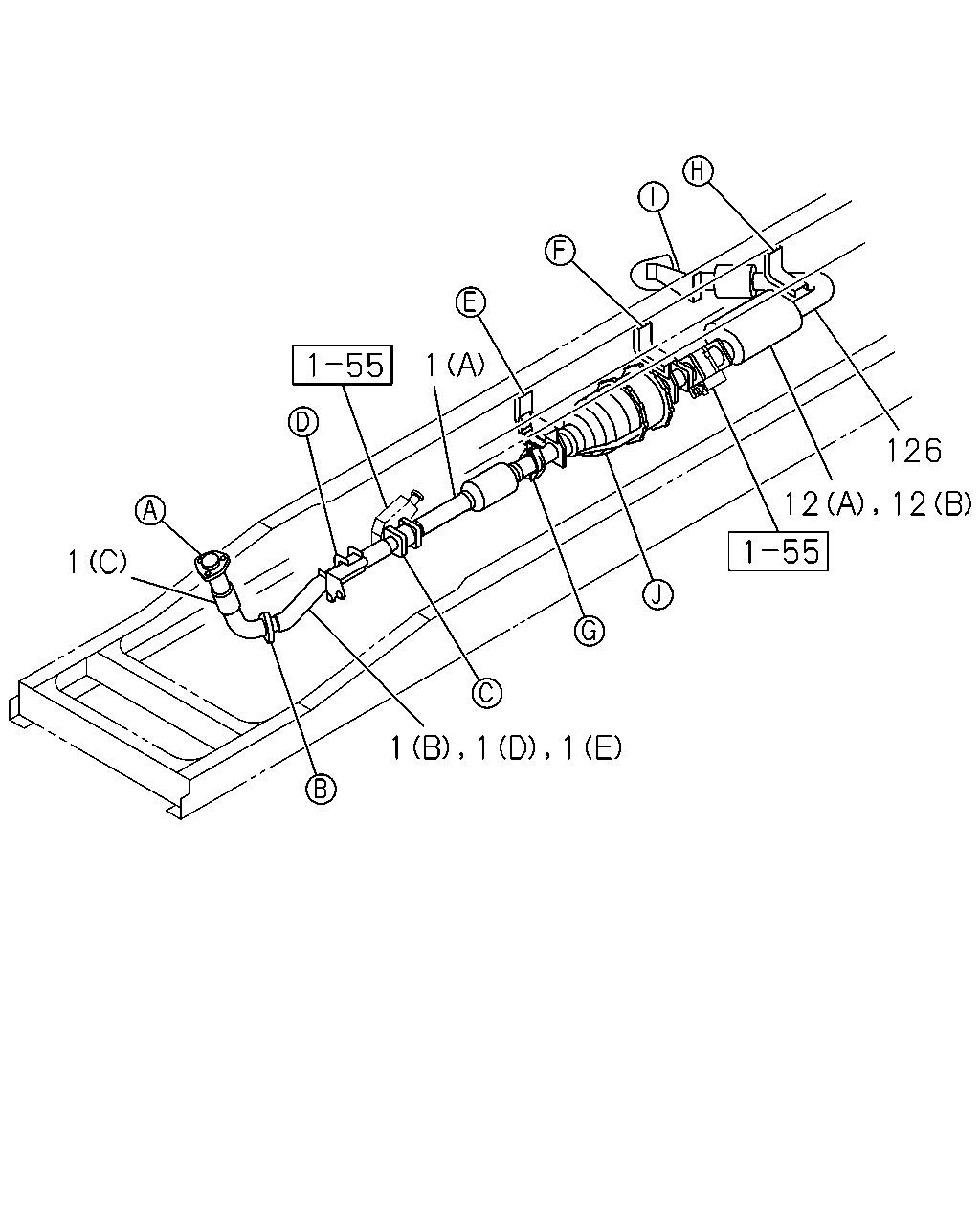

1-50 — EXHAUST PIPE AND SILENCER (#25435) — 238 parça

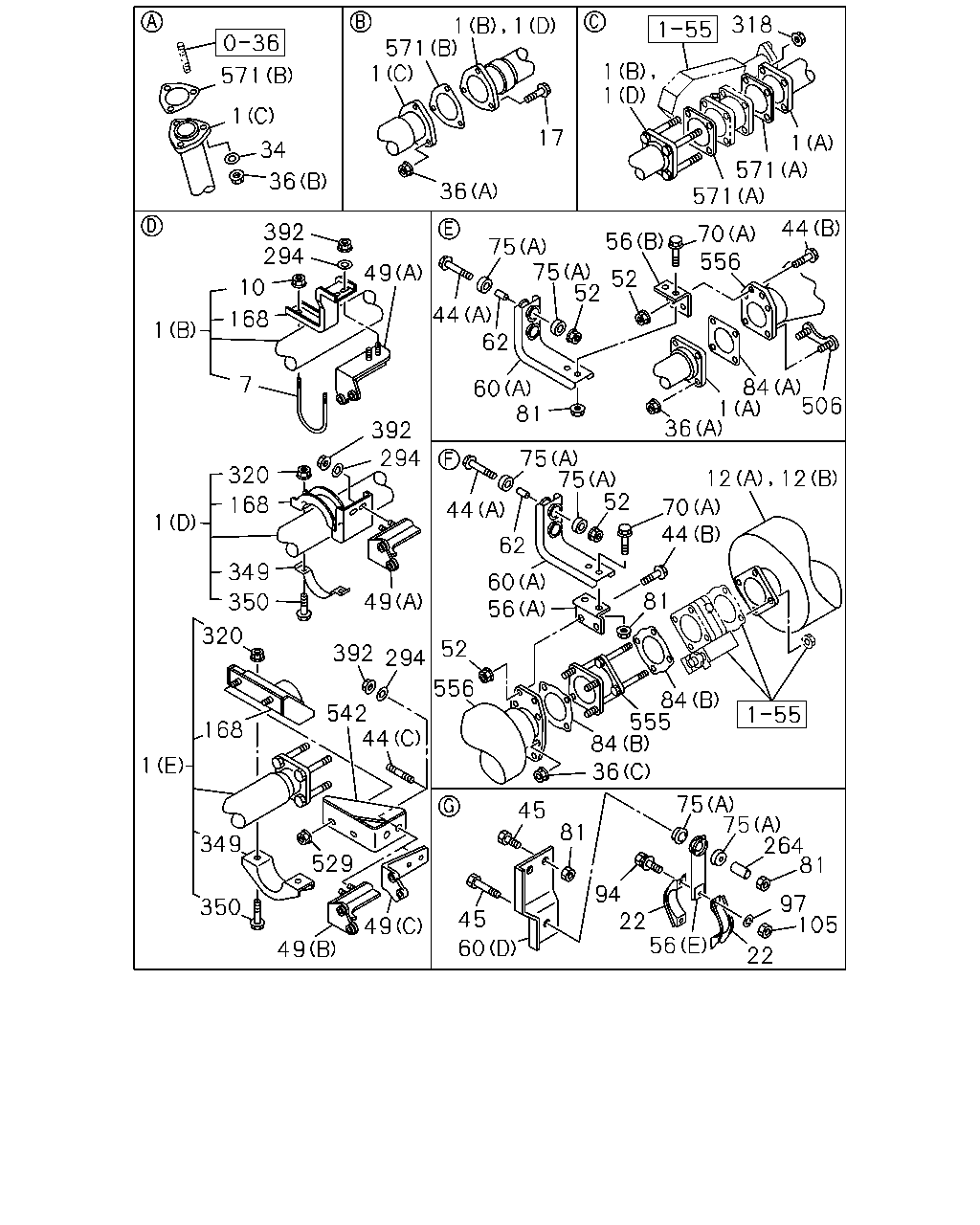

çizim 90254
49 350 349 1 168 320 392 294 542 44 529 49 1 320 168 349 350 392 294 49 1 7 168 10 294 392 49 45 45 81 94 22 56 75 75 264 81 97 105 22 60 556 52 56 60 62 44 75 75 52 70 44 12 12 81 84 555 84 36 81 60 62 44 75 75 52 52 56 70 556 44 506 84 1 36 36 34 1 571 1 571 1 1 17 36 1 1 318 1 571 571
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0609-1304 ● ●
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305- ● ●
1 PIPE; EXH
(B) 		8-98050-137-0 01 1 0609-0609 ● ●
1 PIPE; EXH
(D) 		8-98058-340-0 01 1 0609-0609 ● ●
1 PIPE; EXH
(D) 		8-98063-857-0 01 1 0610-0712 ● ●
1 PIPE; EXH
(E) 		8-98079-293-0 01 1 0801-1304 ● ●
1 PIPE; EXH
(E) 		8-98234-513-0 01 1 1305- ● ●
1 PIPE; EXH
(A) 		8-98050-532-0 01 1 0609-0609 ● ●
1 PIPE; EXH
(A) 		8-98058-346-0 01 1 0609- ● ●
7 U-BOLT; EXH PIPE,FRT 1-22113-009-0 01 1 0609-0609 ● ●
10 NUT; U BOLT
M8 FLANGE 		0-91180-108-0 02 1 0609-0609 ● ●
12 SILENCER ASM; EXH
(A) 		8-98041-923-1 01 1 0609-1301 ● ●
12 SILENCER ASM; EXH
(B) 		8-98234-508-0 01 1 1302- ● ●
17 BOLT; EXH PIPE
M12X40 FLANGE 		0-28051-240-0 03 1 0609- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-0703 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 0609-0703 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 06 1 0704- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0609- ● ●
36 NUT; EXH PIPE
(C) M10 		0-91110-510-0 04 1 0609- ● ●
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0609- ● ●
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0609- ● ●
44 BOLT; BRKT
(C) M10X25 L=40 		0-44011-025-0 02 1 1305- ● ●
44 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0609- ● ●
44 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0609-0610 ● ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0611- ● ●
45 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0609-0703 ●
45 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0704- ● ●
45 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0609-0703 ●
45 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0704- ● ●
49 BRACKET; EXH PIPE TO TRANS
NISSAN DIESEL MPS62B M/T(Y2Z) (A) 		8-98050-141-0 01 1 0609-0712 ●
49 BRACKET; EXH PIPE TO TRANS
NISSAN DIESEL MPS62B M/T(Y2Z) (B) 		8-98079-286-0 01 1 0801-1304 ●
49 BRACKET; EXH PIPE TO TRANS
NISSAN DIESEL MPS62B M/T(Y2Z) (C) 		8-98123-995-0 01 1 1305- ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (A) 		8-98050-140-0 01 1 0609-0712 ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (B) 		8-98079-285-0 01 1 0801-1304 ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (C) 		8-98124-769-0 01 1 1305- ●
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98050-142-0 01 1 0609-0712 ●
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98079-287-0 01 1 0801-1304 ●
49 BRACKET; EXH PIPE TO TRANS
(C) 		8-98113-012-0 01 1 1305- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0609-0703 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0609-0703 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 11 1 0704- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0609-0703 ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0704- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) L=254 		1-22131-527-1 01 1 0609- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22134-247-0 01 1 0609- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-273-0 01 1 0609- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-274-0 01 1 0609- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-537-0 01 1 0609-0703 ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-537-0 01 1 0704- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-084-0 01 1 0609-1301 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98234-333-0 01 1 1302- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-155-0 02 1 0609- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98043-414-0 01 1 0609- ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 06 1 0609- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0609-1301 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 1302- ● ●
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0609- ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0609-0703 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0609-0703 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 10 1 0704- ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 04 1 0609- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0609- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0609- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0609- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0703 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0609-0703 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 06 1 0704-0805 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 06 1 0806-1301 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 1302- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-0703 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0609-0703 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 06 1 0704-1301 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 1302- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-0703 ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0609-0703 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 06 1 0704-1301 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 1302- ● ●
168 BRACKET; EXH PIPE,FRT 8-98050-143-0 01 1 0609-0609 ● ●
168 BRACKET; EXH PIPE,FRT 8-98058-350-0 01 1 0609-0609 ● ●
168 BRACKET; EXH PIPE,FRT 8-98063-859-0 01 1 0610-0712 ● ●
168 BRACKET; EXH PIPE,FRT 8-98079-295-0 01 1 0801- ● ●
264 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0609-0703 ●
264 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0704- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 02 1 0609-0712 ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0801- ● ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0609-0712 ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801- ● ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
349 CLAMP; EXH PIPE 8-98058-351-0 01 1 0609-1304 ● ●
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1305- ● ●
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 0609- ● ●
392 NUT; CLAMP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0609-0703 ●
392 NUT; CLAMP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0704- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0609- ● ●
529 NUT; BRKT,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
542 BRACKET 8-98079-291-0 01 1 0801-1304 ● ●
542 BRACKET 8-98234-525-0 01 1 1305- ● ●
555 PIPE; EXH,DPD 8-98050-138-0 01 1 0609- ● ●
556 DPD ASM
6HK1 TCS ENG(80L) 		8-97606-314-5 01 1 0609-1011 ●
556 DPD ASM
6HK1 TCS ENG(80L) 		8-97622-899-3 01 1 1012- ●
556 DPD ASM
6HK1 TCC ENG(81L) 		8-97613-331-6 01 1 0609-1010 ●
556 DPD ASM 8-97613-331-6 01 1 0609-1010 ●
556 DPD ASM
6HK1 TCC ENG(81L) 		8-97622-883-3 01 1 1011- ●
556 DPD ASM 8-97622-883-3 01 1 1011- ●
571 GASKET
(A) 		1-22116-043-0 02 1 0609- ● ●
571 GASKET
(B) 		8-98043-481-0 02 1 0609- ● ●

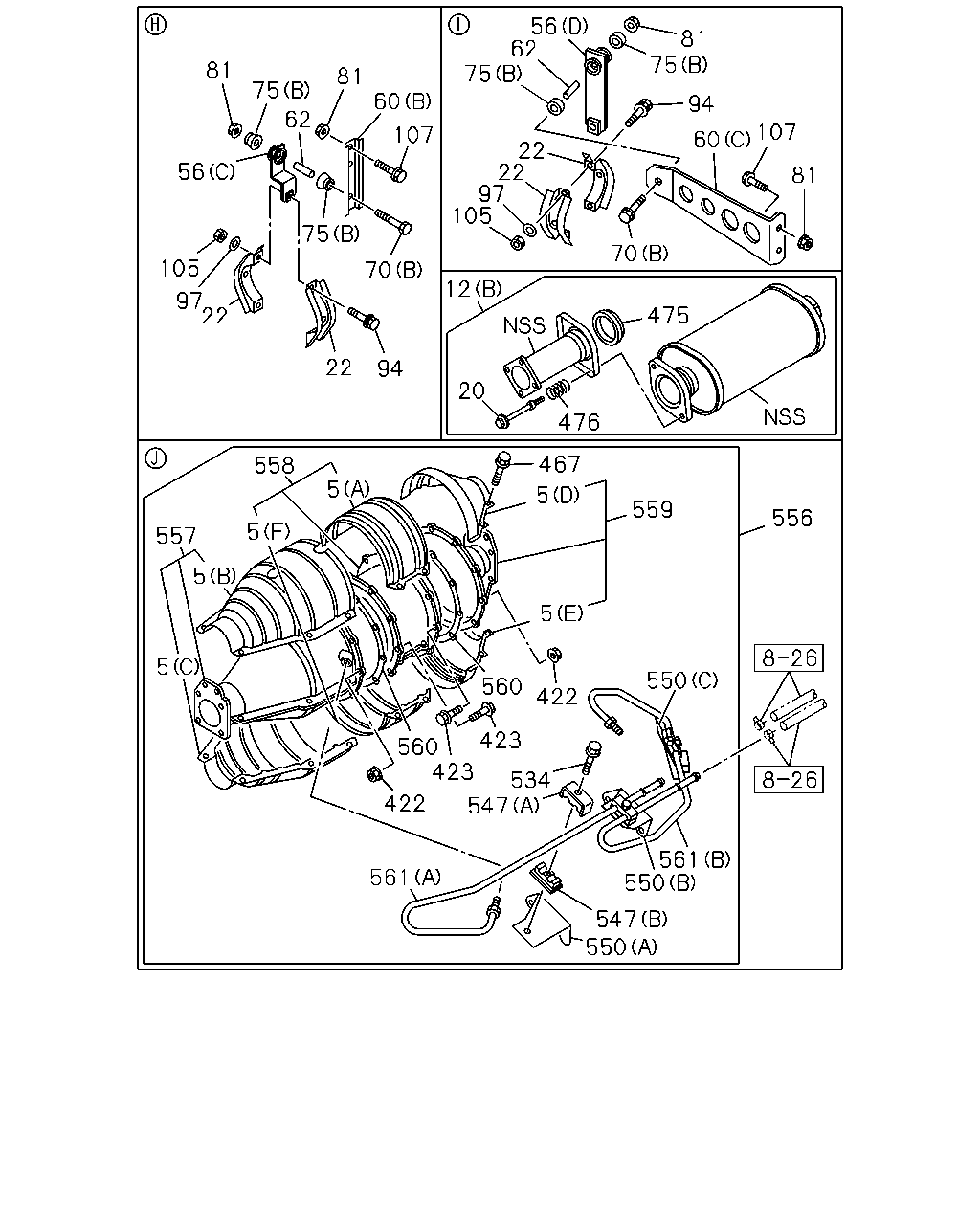

çizim 105741
81 81 550 556 547 550 550 547 561 561 534 422 560 423 423 422 560 5 557 558 5 467 5 5 559 475 476 20 12 70 22 94 22 97 105 75 107 60 75 56 62 75 22 22 97 105 60 70 81 107 94 75 81 56 62 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
6HK1 TCS ENG(80L) (B) 		8-97611-098-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCS ENG(80L) (C) 		8-97611-099-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCS ENG(80L) (A) 		8-97611-100-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCS ENG(80L) (F) 		8-97611-101-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCS ENG(80L) (D) 		8-97611-102-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCS ENG(80L) (E) 		8-97611-103-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCC ENG(81L) (A) 		8-97605-172-0 01 1 0609- ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCC ENG(81L) (B) 		8-97611-086-0 01 1 0609- ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCC ENG(81L) (C) 		8-97611-087-0 01 1 0609- ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCC ENG(81L) (D) 		8-97611-088-0 01 1 0609- ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCC ENG(81L) (E) 		8-97611-089-0 01 1 0609- ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0609- ●
5 PROTECTOR; HEAT
6HK1 TCC ENG(81L) (F) 		8-97613-390-0 01 1 0609- ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0609- ●
12 SILENCER ASM; EXH
(A) 		8-98041-923-1 01 1 0609-1301 ● ●
12 SILENCER ASM; EXH
(B) 		8-98234-508-0 01 1 1302- ● ●
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-0703 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 0609-0703 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 06 1 0704- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0609-0703 ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0704- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) L=254 		1-22131-527-1 01 1 0609- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22134-247-0 01 1 0609- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-273-0 01 1 0609- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-274-0 01 1 0609- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-537-0 01 1 0609-0703 ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-537-0 01 1 0704- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-084-0 01 1 0609-1301 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98234-333-0 01 1 1302- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-155-0 02 1 0609- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98043-414-0 01 1 0609- ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 06 1 0609- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0609-1301 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 1302- ● ●
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0609- ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0609-0703 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0609-0703 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 10 1 0704- ● ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 04 1 0609- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0609- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0703 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0609-0703 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 06 1 0704-0805 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 06 1 0806-1301 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 1302- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-0703 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0609-0703 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 06 1 0704-1301 ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 1302- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-0703 ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0609-0703 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 06 1 0704-1301 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 1302- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0609- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0609- ● ●
422 NUT; PIPE
6HK1 TCS ENG(80L) M8 FLANGE 		0-91180-108-0 20 1 0609-0702 ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0703- ● ●
422 NUT; PIPE
6HK1 TCC ENG(81L) M8 FLANGE 		0-91180-208-0 20 1 0609-0702 ●
422 NUT; PIPE
M8 FLANGE 		0-91180-208-0 20 1 0609-0702 ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0609- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0609- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302- ● ●
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0609- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0609- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0609- ● ●
550 BRACKET; DPD
6HK1 TCS ENG(80L) (A) 		8-97611-096-0 01 1 0609- ●
550 BRACKET; DPD
6HK1 TCS ENG(80L) (B) 		8-97611-097-0 01 1 0609- ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0609- ● ●
550 BRACKET; DPD
6HK1 TCC ENG(81L) (A) 		8-97611-083-0 01 1 0609- ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0609- ●
550 BRACKET; DPD
6HK1 TCC ENG(81L) (B) 		8-97611-084-0 01 1 0609- ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0609- ●
556 DPD ASM
6HK1 TCS ENG(80L) 		8-97606-314-5 01 1 0609-1011 ●
556 DPD ASM
6HK1 TCS ENG(80L) 		8-97622-899-3 01 1 1012- ●
556 DPD ASM
6HK1 TCC ENG(81L) 		8-97613-331-6 01 1 0609-1010 ●
556 DPD ASM 8-97613-331-6 01 1 0609-1010 ●
556 DPD ASM
6HK1 TCC ENG(81L) 		8-97622-883-3 01 1 1011- ●
556 DPD ASM 8-97622-883-3 01 1 1011- ●
557 CATALYST ASM
6HK1 TCS ENG(80L) 		8-97608-054-5 01 1 0609- ●
557 CATALYST ASM
6HK1 TCC ENG(81L) 		8-97608-055-7 01 1 0609- ●
557 CATALYST ASM 8-97608-055-7 01 1 0609- ●
558 FILTER ASM
6HK1 TCS ENG(80L) 		8-97608-056-2 01 1 0609- ●
558 FILTER ASM
6HK1 TCC ENG(81L) 		8-97608-057-3 01 1 0609- ●
558 FILTER ASM 8-97608-057-3 01 1 0609- ●
559 COVER; RR
6HK1 TCS ENG(80L) 		8-97611-090-0 01 1 0609-1011 ●
559 COVER; RR
6HK1 TCS ENG(80L) 		8-97622-903-0 01 1 1012- ●
559 COVER; RR
6HK1 TCC ENG(81L) 		8-97611-078-0 01 1 0609-1010 ●
559 COVER; RR 8-97611-078-0 01 1 0609-1010 ●
559 COVER; RR
6HK1 TCC ENG(81L) 		8-97622-887-0 01 1 1011- ●
559 COVER; RR 8-97622-887-0 01 1 1011- ●
560 GASKET; DPD
6HK1 TCS ENG(80L) 		8-97611-092-0 02 1 0609- ●
560 GASKET; DPD
6HK1 TCC ENG(81L) 		8-97611-080-0 02 1 0609- ●
560 GASKET; DPD 8-97611-080-0 02 1 0609- ●
561 PIPE; DPD
6HK1 TCS ENG(80L) (A) 		8-97611-093-0 01 1 0609-1011 ●
561 PIPE; DPD
6HK1 TCS ENG(80L) (A) 		8-97622-904-0 01 1 1012- ●
561 PIPE; DPD
6HK1 TCS ENG(80L) (B) 		8-97611-094-0 01 1 0609-1011 ●
561 PIPE; DPD
6HK1 TCS ENG(80L) (B) 		8-97622-905-0 01 1 1012- ●
561 PIPE; DPD
6HK1 TCC ENG(81L) (A) 		8-97611-081-0 01 1 0609-1010 ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0609-1010 ●
561 PIPE; DPD
6HK1 TCC ENG(81L) (A) 		8-97622-888-0 01 1 1011- ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011- ●
561 PIPE; DPD
6HK1 TCC ENG(81L) (B) 		8-97611-082-0 01 1 0609-1010 ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0609-1010 ●
561 PIPE; DPD
6HK1 TCC ENG(81L) (B) 		8-97622-889-0 01 1 1011- ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011- ●
çizim 106086
1 1 12 12 126 1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0609-1304 ● ●
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305- ● ●
1 PIPE; EXH
(B) 		8-98050-137-0 01 1 0609-0609 ● ●
1 PIPE; EXH
(D) 		8-98058-340-0 01 1 0609-0609 ● ●
1 PIPE; EXH
(D) 		8-98063-857-0 01 1 0610-0712 ● ●
1 PIPE; EXH
(E) 		8-98079-293-0 01 1 0801-1304 ● ●
1 PIPE; EXH
(E) 		8-98234-513-0 01 1 1305- ● ●
1 PIPE; EXH
(A) 		8-98050-532-0 01 1 0609-0609 ● ●
1 PIPE; EXH
(A) 		8-98058-346-0 01 1 0609- ● ●
12 SILENCER ASM; EXH
(A) 		8-98041-923-1 01 1 0609-1301 ● ●
12 SILENCER ASM; EXH
(B) 		8-98234-508-0 01 1 1302- ● ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 0609-1301 ● ●
126 PIPE; EXH,RR 8-97645-571-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
