1-41 — FUEL PIPING; CHASSIS (#25433) — 55 parça

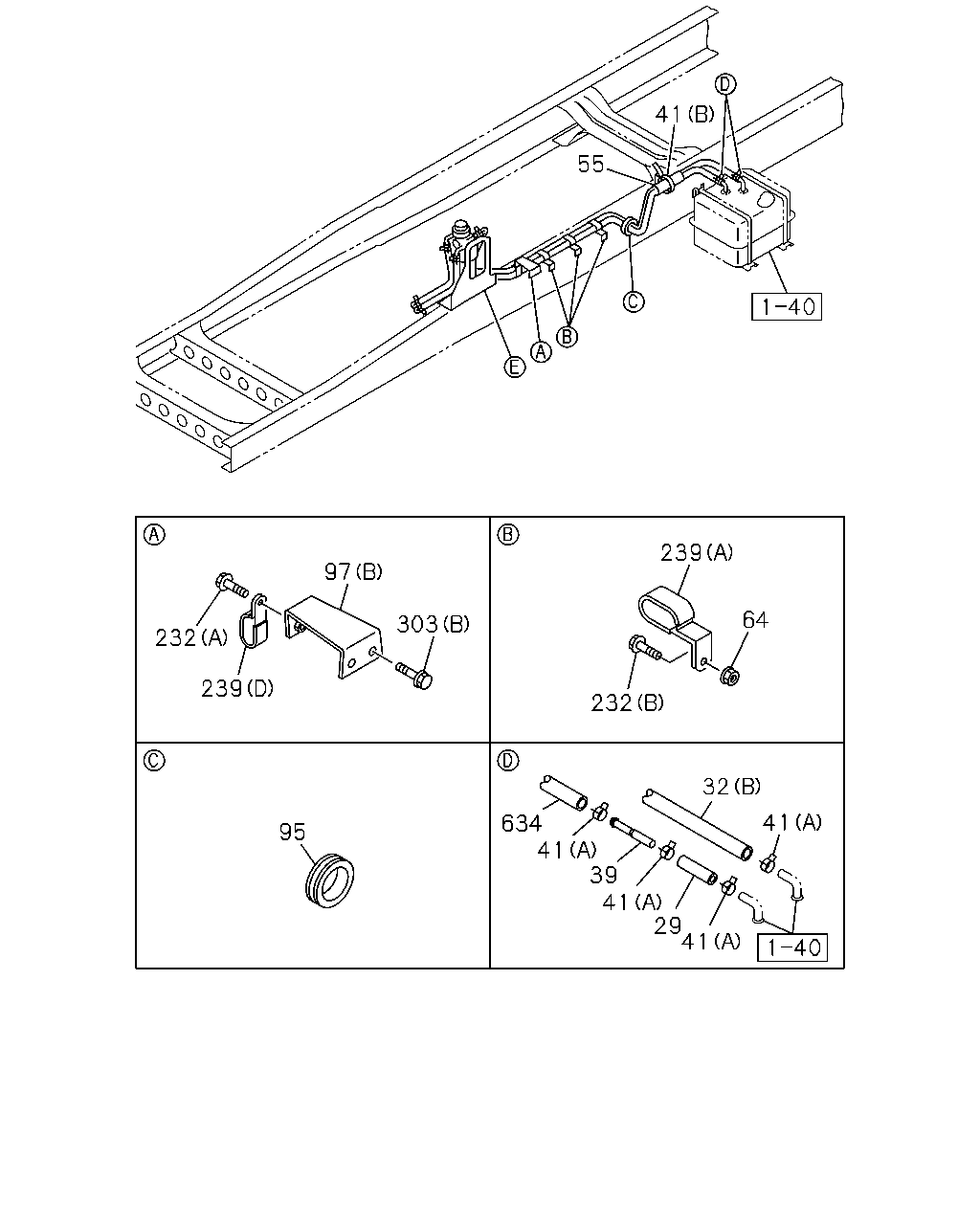

çizim 90339
41 55 239 64 232 32 41 41 29 41 39 41 634 95 232 239 97 303
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
L=60 		8-98009-718-0 01 1 0609- ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2800 SERVICED BY L=3000 		0-01260-300-0 01 1 0609- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=460 SERVICED BY L=3000 		0-01260-300-0 01 1 0609- ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2650 SERVICED BY L=3000 		0-01260-300-0 01 1 0609- ●
39 PIPE; FUEL 8-98009-438-1 01 1 0609- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 08 1 0609- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 		8-94238-568-0 02 1 0609- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 04 1 0609- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 10 1 0609- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 02 1 0609- ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0609- ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0609- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 09 1 0609- ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0609- ● ●
97 BRACKET; CLIP
(A) 		1-48495-274-0 01 1 0609- ● ●
97 BRACKET; CLIP
(B) 		1-48495-276-0 01 1 0609- ● ●
97 BRACKET; CLIP
(C) 		1-48495-284-0 01 1 0609- ● ●
232 BOLT; CLIP,PIPE
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0609- ● ●
232 BOLT; CLIP,PIPE
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0609- ● ●
239 CLIP; FUEL PIPE
(D) ID=16X2 L=20 		0-95325-535-0 01 1 0609- ● ●
239 CLIP; FUEL PIPE
(C) ID=16X2 L=20 		0-95325-536-0 02 1 0609- ● ●
239 CLIP; FUEL PIPE
(B) ID=16 L=20 		0-95235-535-0 01 1 0609- ● ●
239 CLIP; FUEL PIPE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 06 1 0609- ● ●
303 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0609- ● ●
303 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0609- ● ●
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0609- ● ●
634 HOSE; RUBBER RETURN
L=460 SERVICED BY L=3000 		0-01559-300-0 01 1 0609- ● ●
634 HOSE; RUBBER RETURN
SERVICED BY L=3000 		0-01559-300-0 01 1 0609- ● ●

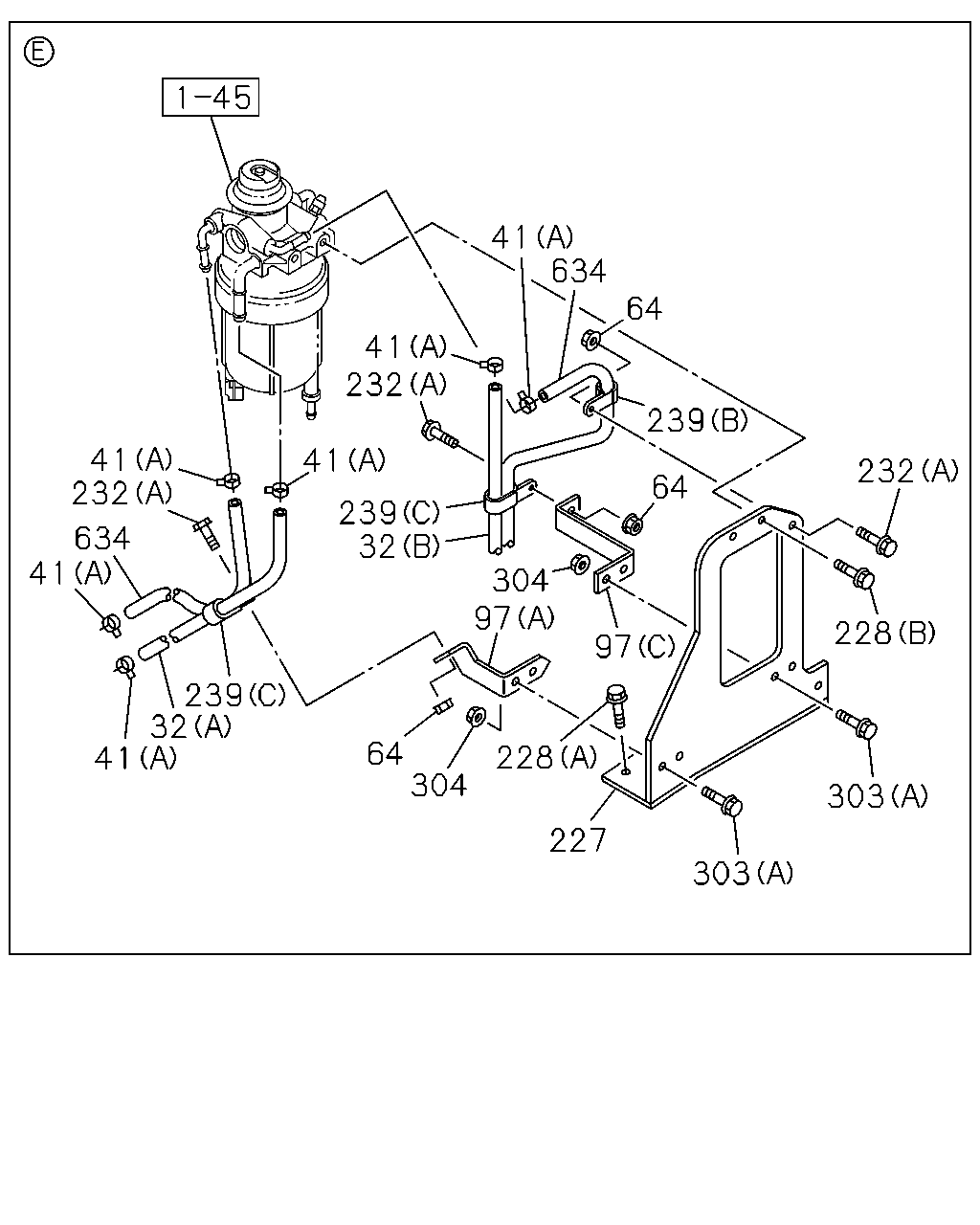

çizim 90340
41 634 41 64 239 232 228 303 303 227 228 304 64 97 97 304 64 232 41 239 32 41 232 634 41 239 32 41
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
(B) L=2800 SERVICED BY L=3000 		0-01260-300-0 01 1 0609- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=460 SERVICED BY L=3000 		0-01260-300-0 01 1 0609- ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2650 SERVICED BY L=3000 		0-01260-300-0 01 1 0609- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 08 1 0609- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 		8-94238-568-0 02 1 0609- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 04 1 0609- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 10 1 0609- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 02 1 0609- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 09 1 0609- ● ●
97 BRACKET; CLIP
(A) 		1-48495-274-0 01 1 0609- ● ●
97 BRACKET; CLIP
(B) 		1-48495-276-0 01 1 0609- ● ●
97 BRACKET; CLIP
(C) 		1-48495-284-0 01 1 0609- ● ●
227 BRACKET; FUEL SEDIMENTER 8-98023-636-1 01 1 0609- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M10X25 FLANGE 		0-28051-025-0 02 1 0609- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0609- ● ●
232 BOLT; CLIP,PIPE
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0609- ● ●
232 BOLT; CLIP,PIPE
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0609- ● ●
239 CLIP; FUEL PIPE
(D) ID=16X2 L=20 		0-95325-535-0 01 1 0609- ● ●
239 CLIP; FUEL PIPE
(C) ID=16X2 L=20 		0-95325-536-0 02 1 0609- ● ●
239 CLIP; FUEL PIPE
(B) ID=16 L=20 		0-95235-535-0 01 1 0609- ● ●
239 CLIP; FUEL PIPE
(A) ID=14X29 H=30 L=25 		1-09701-101-0 06 1 0609- ● ●
303 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0609- ● ●
303 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0609- ● ●
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0609- ● ●
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0609- ● ●
634 HOSE; RUBBER RETURN
L=460 SERVICED BY L=3000 		0-01559-300-0 01 1 0609- ● ●
634 HOSE; RUBBER RETURN
SERVICED BY L=3000 		0-01559-300-0 01 1 0609- ● ●
