Isuzu WW
▶
TRUCKS
▶
FVR
▶
11030 - FVR(RHD) EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#25432) — 61 parça
Tümü
A - FVR5FF
B - FVR5MF
◀

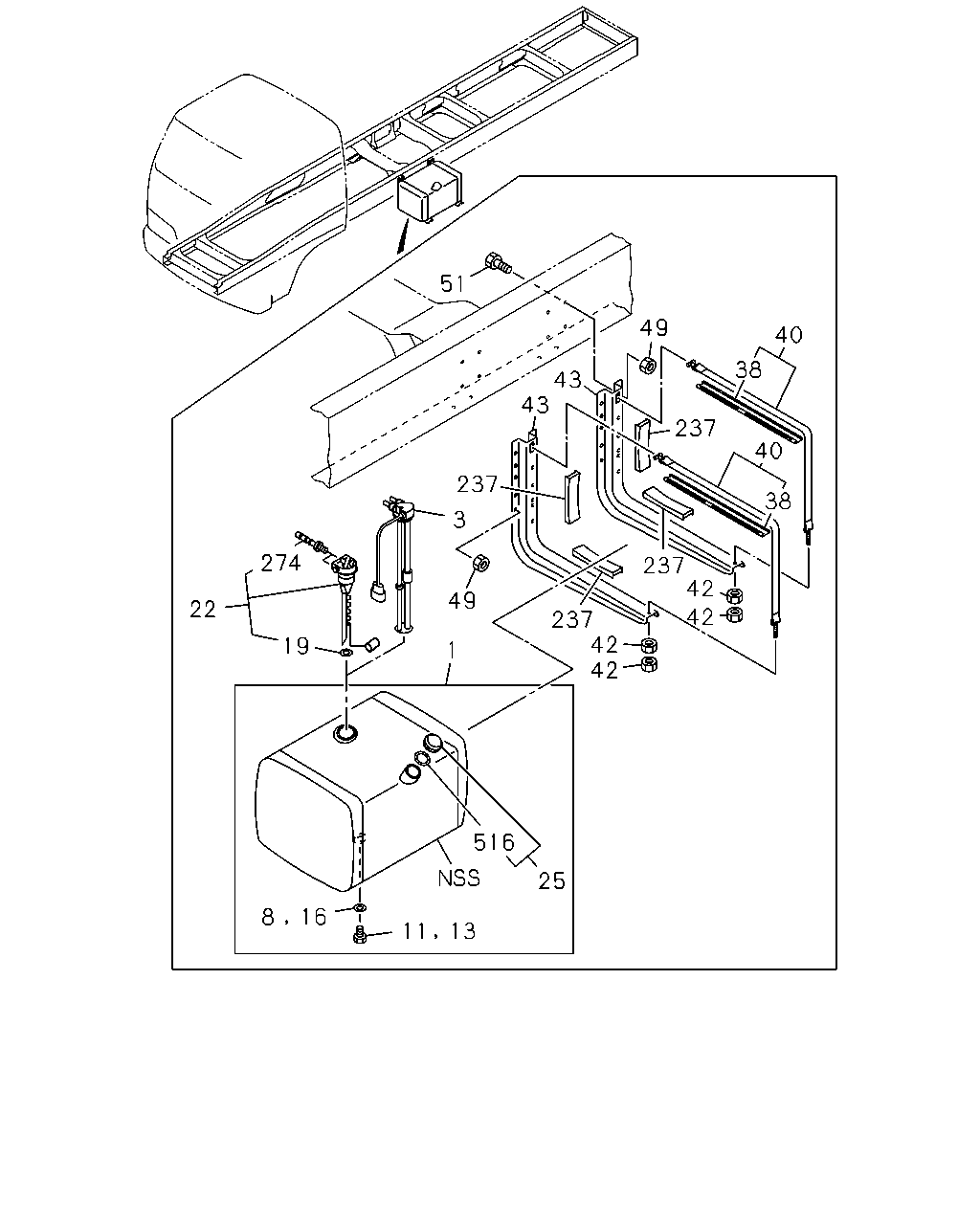

[140A] FUEL TANK 400L (30 parça)

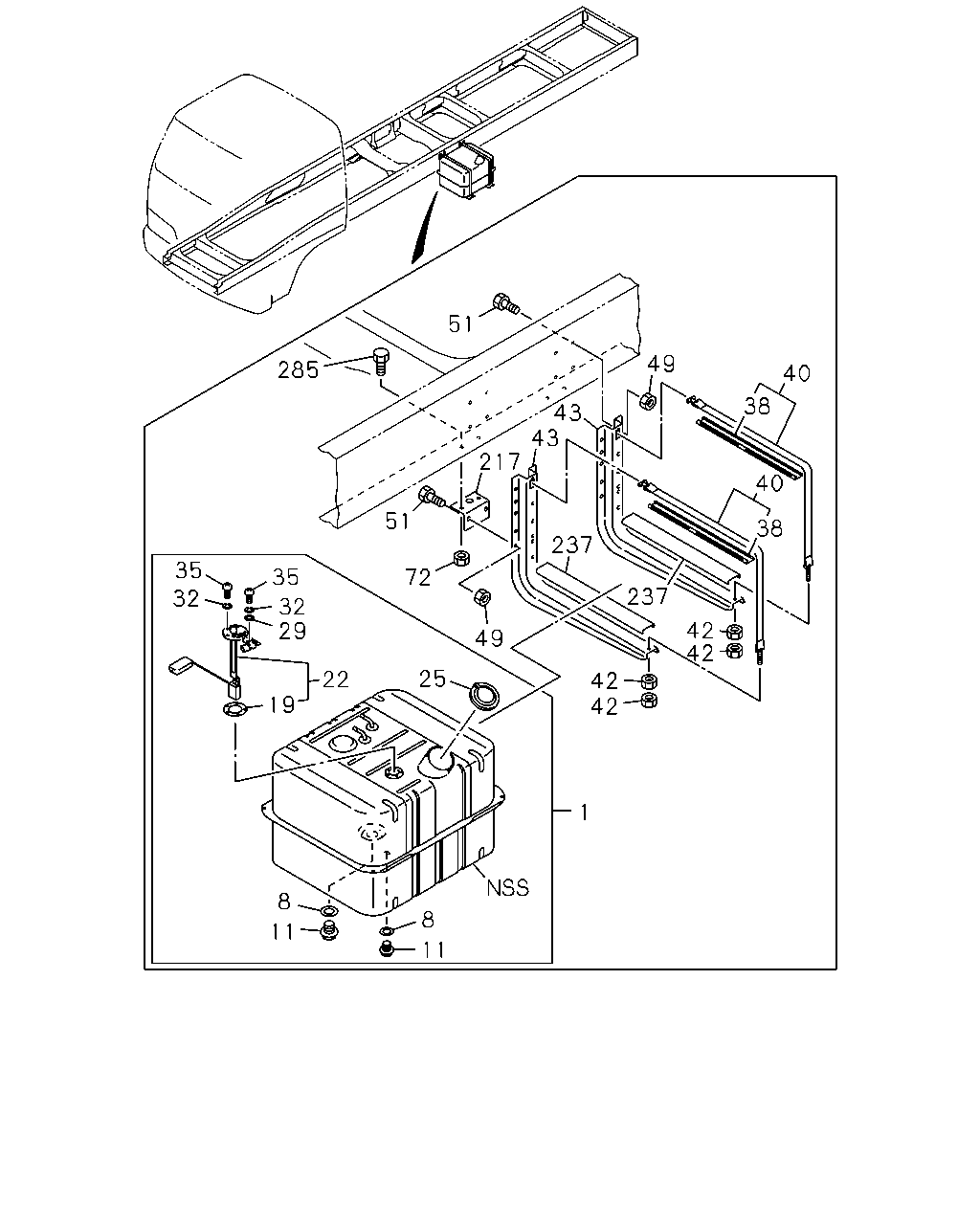

[140A] FUEL TANK 200L (31 parça)
▶
51
49
40
38
237
40
38
42
42
237
42
42
237
49
1
3
237
43
43
274
22
19
516
25
11
13
16
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
1020X680X625 400L
1-87411-168-0
01
1
0609-1202
●
1
TANK; FUEL
1020X685X625 400L
1-87412-052-0
01
1
1203-
●
1
TANK; FUEL
720X610X496 200L
1-22401-192-2
01
1
0609-
●
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1211-
●
8
GASKET; DRAIN PLUG,FUEL TANK
T=1.60
8-98030-453-0
01
1
1211-
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
9-09572-014-0
02
1
0609-
●
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1211-
●
11
PLUG; DRAIN,FUEL TANK
M14X14
9-09862-156-0
02
1
0609-
●
13
PLUG; SCREW,SUB TANK JOINT
M18X12
0-92002-418-0
01
1
0609-1210
●
16
GASKET; PLUG
T=1.60
8-98030-453-0
01
1
0609-1210
●
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0609-
●
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0609-1210
●
22
UNIT; FUEL TANK
1-83141-132-0
01
1
0609-1210
●
22
UNIT; FUEL TANK
1-83141-124-0
01
1
0609-
●
25
CAP; FILLER,FUEL TANK
1-22440-056-0
01
1
0609-
●
25
CAP; FILLER,FUEL TANK
1-22440-046-1
01
1
0609-
●
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
0609-
●
38
INSULATION; SUPPORT BELT
L=650
1-22553-022-1
02
1
0609-
●
40
BELT; SUPPORT,FUEL TANK
L=1205
1-22550-227-2
02
1
0609-
●
40
BELT; SUPPORT,FUEL TANK
L=1030
1-22550-204-2
02
1
0609-
●
42
NUT; SUPPORT BELT
M10
0-91110-510-0
08
1
0609-
●
●
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
0609-
●
43
BRACKET; FUEL TANK
1-53461-279-4
02
1
0609-
●
49
NUT; BRKT
M12
0-91110-512-0
12
1
0609-
●
●
51
BOLT; BRKT TO FRAME
M12X45 FLANGE
0-28051-245-0
12
1
0609-
●
51
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28651-240-0
12
1
0609-
●
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
0609-
●
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
02
1
0609-
●
274
CONNECTOR; ELBOW,FUEL TANK PIPE
1-83149-006-0
02
1
0609-1210
●
516
GASKET; CAP
ID=78
8-98259-383-0
01
1
0609-
●
51
43
43
49
285
40
38
217
40
51
38
237
35
32
35
72
237
32
29
42
42
49
25
22
42
42
19
1
8
8
11
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
1020X680X625 400L
1-87411-168-0
01
1
0609-1202
●
1
TANK; FUEL
1020X685X625 400L
1-87412-052-0
01
1
1203-
●
1
TANK; FUEL
720X610X496 200L
1-22401-192-2
01
1
0609-
●
8
GASKET; DRAIN PLUG,FUEL TANK
T=1.60
8-98030-453-0
01
1
1211-
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
9-09572-014-0
02
1
0609-
●
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1211-
●
11
PLUG; DRAIN,FUEL TANK
M14X14
9-09862-156-0
02
1
0609-
●
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0609-
●
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0609-1210
●
22
UNIT; FUEL TANK
1-83141-132-0
01
1
0609-1210
●
22
UNIT; FUEL TANK
1-83141-124-0
01
1
0609-
●
25
CAP; FILLER,FUEL TANK
1-22440-056-0
01
1
0609-
●
25
CAP; FILLER,FUEL TANK
1-22440-046-1
01
1
0609-
●
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
0-91610-505-0
01
1
0609-
●
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
0-91510-505-0
05
1
0609-
●
35
SCREW; FUEL TANK UNIT
M5X10
0-34218-510-0
05
1
0609-
●
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
0609-
●
38
INSULATION; SUPPORT BELT
L=650
1-22553-022-1
02
1
0609-
●
40
BELT; SUPPORT,FUEL TANK
L=1205
1-22550-227-2
02
1
0609-
●
40
BELT; SUPPORT,FUEL TANK
L=1030
1-22550-204-2
02
1
0609-
●
42
NUT; SUPPORT BELT
M10
0-91110-510-0
08
1
0609-
●
●
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
0609-
●
43
BRACKET; FUEL TANK
1-53461-279-4
02
1
0609-
●
49
NUT; BRKT
M12
0-91110-512-0
12
1
0609-
●
●
51
BOLT; BRKT TO FRAME
M12X45 FLANGE
0-28051-245-0
12
1
0609-
●
51
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28651-240-0
12
1
0609-
●
72
NUT; BRKT
M12
0-91110-512-0
04
1
0609-
●
217
BRACKET; FUEL TANK,LOW
1-53461-283-2
02
1
0609-
●
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
0609-
●
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
02
1
0609-
●
285
BOLT; BRKT
M12X40 FLANGE
0-28651-240-0
04
1
0609-
●
