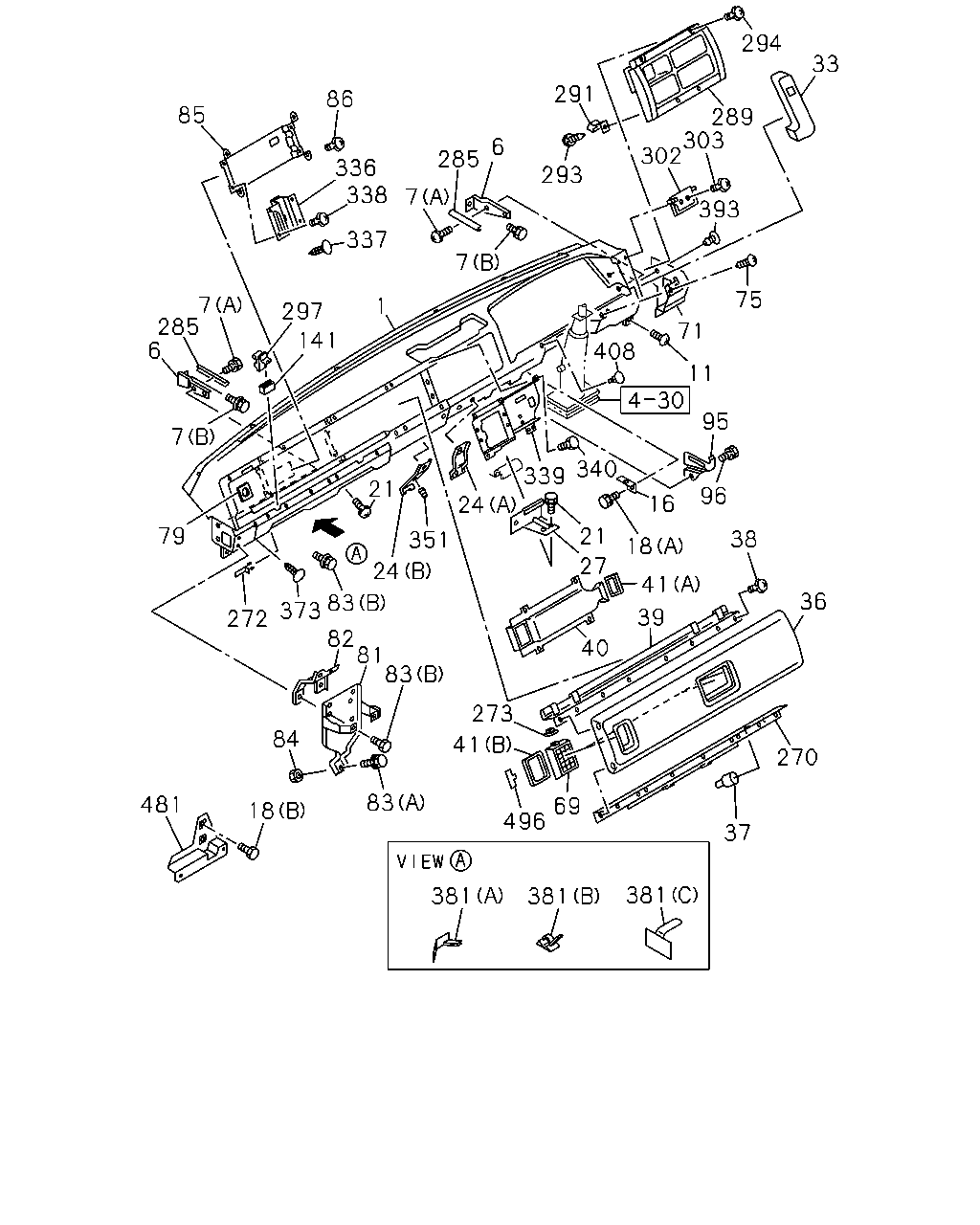

1 |
PANEL; INST
|
1-65671-334-1 |
01 |
1 |
9002-9306 |
| |
1 |
PANEL; INST
|
1-65671-542-0 |
01 |
1 |
9307- |
| |
6 |
SUPPORT; INST PANEL
|
1-65670-592-2 |
01 |
1 |
9002- |
| |
6 |
SUPPORT; INST PANEL
|
1-65670-591-2 |
01 |
1 |
9002- |
| |
7 |
BOLT; SUPPORT,INST PNL
(A)
M6X16 W/LK&PL WASHER
|
1-09980-440-0 |
04 |
1 |
9002- |
| |
7 |
BOLT; SUPPORT,INST PNL
(B)
|
1-09980-497-0 |
02 |
1 |
9002- |
| |
11 |
BOLT; INST PNL
M8X20 W/PL WASHER
|
1-09981-479-0 |
09 |
1 |
9002- |
| |
16 |
BRACKET; INST PNL
|
1-65670-595-1 |
01 |
1 |
9002- |
| |
18 |
BOLT; BRKT
(A)
M6X16 W/LK&PL WASHER
|
1-09980-497-0 |
02 |
1 |
9002-9002 |
| |
18 |
BOLT; BRKT
(A)
M6X16 W/LK&PL WASHER
|
1-09980-527-0 |
02 |
1 |
9003-9008 |
| |
18 |
BOLT; BRKT
(A)
M6X16 W/LK&PL WASHER
|
1-09980-586-0 |
02 |
1 |
9009- |
| |
18 |
BOLT; BRKT
POWER WINDOW<A30>
(B)
M6X14 W/LK&PL WASHER
|
8-94279-142-0 |
02 |
1 |
9307- |
| |
21 |
SCREW; STAY,INST
M6X16 W/LK&PL WASHER
|
1-09981-141-0 |
04 |
1 |
9002- |
| |
24 |
STAY; INST CLUSTER
(A)
|
1-65670-609-3 |
01 |
1 |
9002- |
| |
24 |
STAY; INST CLUSTER
(B)
|
1-65670-695-2 |
01 |
1 |
9002- |
| |
27 |
SUPPORT ASM; STAY "B"
|
1-65670-653-2 |
01 |
1 |
9002- |
| |
33 |
LID; CHECK HOLE,CLU FLUID
|
1-73927-067-0 |
01 |
1 |
9002-9306 |
| |
33 |
LID; CHECK HOLE,CLU FLUID
|
1-73927-072-0 |
01 |
1 |
9307- |
| |
36 |
BEZEL; INST SIDE CLUSTER
|
1-72547-094-0 |
01 |
1 |
9002-9306 |
| |
36 |
BEZEL; INST SIDE CLUSTER
|
1-72547-110-0 |
01 |
1 |
9307- |
| |
37 |
FASTENER; MALE,SIDE CLUSTER BEZEL
|
1-72557-051-1 |
02 |
1 |
9002- |
| |
38 |
SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER
|
1-09981-141-0 |
04 |
1 |
9002- |
| |
39 |
HINGE; BEZEL,INST SIDE CLUSTER
|
1-72557-047-3 |
01 |
1 |
9002- |
| |
40 |
DUCT; VENT,SIDE CLUSTER BEZEL
|
1-76377-089-1 |
01 |
1 |
9002- |
| |
41 |
SEAL; SIDE CLUSTER BEZEL
(A)
|
1-76377-090-0 |
01 |
1 |
9002- |
| |
41 |
SEAL; SIDE CLUSTER BEZEL
(B)
|
1-76377-091-0 |
01 |
1 |
9002- |
| |
69 |
GRILLE; SIDE,AIR OUTLET
|
1-76367-050-1 |
03 |
1 |
9002- |
| |
71 |
GARNISH; INST CLUSTER SIDE
|
1-72437-038-0 |
01 |
1 |
9002-9306 |
| |
71 |
GARNISH; INST CLUSTER SIDE
|
1-72437-078-0 |
01 |
1 |
9307- |
| |
75 |
SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER
|
5-09981-050-0 |
01 |
1 |
9002- |
| |
79 |
SEAL; SIDE DEFROSTER
|
1-76377-092-0 |
01 |
1 |
9002- |
| |
81 |
BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2>
|
1-73997-839-7 |
01 |
1 |
9002-9103 |
| |
81 |
BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2>
|
1-73907-235-0 |
01 |
1 |
9104- |
| |
82 |
BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2>
|
1-73998-409-7 |
01 |
1 |
9002- |
| |
83 |
BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2>
(A)
M6X16 W/LK&PL WASHER
|
1-09980-458-0 |
01 |
1 |
9002-9304 |
| |
83 |
BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2>
(A)
M6X16 W/LK&PL WASHER
|
1-09980-586-0 |
01 |
1 |
9305- |
| |
83 |
BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2>
(B)
M6X16 W/LK&PL WASHER
|
9-01960-616-0 |
01 |
1 |
9002-9204 |
| |
83 |
BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2>
(B)
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
01 |
1 |
9205- |
| |
83 |
BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2>
(B)
M6X20 W/LK&PL WASHER
|
9-01960-620-0 |
03 |
1 |
9002-9204 |
| |
83 |
BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2>
(B)
M6X20 W/LK&PL WASHER
|
0-50140-620-0 |
03 |
1 |
9205- |
| |
84 |
NUT; CONT UNIT BRKT
INTAKE HEATER<SL2>
M6 FLANGE
|
5-09440-004-0 |
01 |
1 |
9002- |
| |
85 |
PANEL; ELEC
|
1-73997-523-7 |
01 |
1 |
9002- |
| |
86 |
BOLT; ELEC PNL
M6X14 W/LK&PL WASHER
|
1-09980-549-0 |
04 |
1 |
9002- |
| |
95 |
PANEL; BLIND,SIDE
|
1-65671-338-0 |
01 |
1 |
9002-9306 |
| |
95 |
PANEL; BLIND,SIDE
|
1-65671-562-0 |
01 |
1 |
9307- |
| |
96 |
SCREW; BLIND PNL
M6X16 W/LK&PL WASHER
|
1-09981-141-0 |
01 |
1 |
9002- |
| |
141 |
PROTECTOR; EDGE
L=35
|
1-73997-910-0 |
02 |
1 |
9002- |
| |
270 |
REINFORCEMENT; SIDE CLUSTER BEZEL
|
1-72557-053-2 |
01 |
1 |
9002- |
| |
272 |
CUSHION; SIDE CLUSTER BEZEL
|
1-72547-054-0 |
02 |
1 |
9002- |
| |
273 |
BUSHING; SIDE CLUSTER BEZEL
|
1-72547-048-1 |
03 |
1 |
9002- |
| |
285 |
FINISHER; INST PANEL
L=175
|
8-94270-196-0 |
02 |
1 |
9002-9306 |
| |
285 |
FINISHER; INST PANEL
L=175
SERVICED BY L=2040
|
1-71997-513-1 |
02 |
1 |
9307- |
| |
289 |
BEZEL; CENTER,INST CLUSTER
|
1-72437-036-0 |
01 |
1 |
9002-9306 |
| |
289 |
BEZEL; CENTER,INST CLUSTER
|
1-72437-084-0 |
01 |
1 |
9307- |
| |
291 |
FASTENER; INST CLUSTER
|
1-72437-005-3 |
02 |
1 |
9002- |
| |
293 |
SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER
|
5-09981-050-0 |
02 |
1 |
9002- |
| |
294 |
SCREW; BEZEL
M6X16 W/PL WASHER
|
1-09981-176-0 |
02 |
1 |
9002- |
| |
297 |
FASTENER; FEMALE,SIDE CLUSTER BEZEL
|
1-72557-052-3 |
02 |
1 |
9002- |
| |
302 |
CATCH; CHECK HOLE LID,CLU FLUID
|
1-73927-069-0 |
01 |
1 |
9002-9306 |
| |
302 |
CATCH; CHECK HOLE LID,CLU FLUID
|
1-73928-356-0 |
01 |
1 |
9307- |
| |
303 |
SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER
|
5-09981-050-0 |
02 |
1 |
9002- |
| |
336 |
COVER; INST PANEL SIDE
|
1-73997-623-0 |
01 |
1 |
9002- |
| |
337 |
FASTENER; COVER
BLACK
|
8-94104-935-0 |
02 |
1 |
9407- |
| |
338 |
SCREW; COVER
M5X14 W/PL WASHER
|
5-09981-050-0 |
01 |
1 |
9002- |
| |
339 |
PANEL; FUSE BOX
|
1-73997-838-3 |
01 |
1 |
9002- |
| |
340 |
BOLT; FUSE BOX PANEL
M6X14 W/LK&PL WASHER
|
1-09980-549-0 |
04 |
1 |
9002- |
| |
351 |
STOPPER; CTR CONSOLE
|
1-09983-052-0 |
01 |
1 |
9002- |
| |
373 |
PLUG; BRKT HOLE,CONT UNIT
EXC. INTAKE HEATER<SL2>
D4.7X11
|
1-76378-154-0 |
01 |
1 |
9002- |
| |
381 |
CLIP; HARNESS
(A)
|
5-09700-088-0 |
02 |
1 |
9002- |
| |
381 |
CLIP; HARNESS
POWER WINDOW<A30>
(B)
1 SET=5 PIECE
|
1-09987-214-0 |
03 |
1 |
9205-9306 |
| |
381 |
CLIP; HARNESS
POWER WINDOW<A30>
(C)
|
8-94138-987-0 |
02 |
1 |
9208-9306 |
| |
381 |
CLIP; HARNESS
POWER WINDOW<A30>
(C)
|
8-94138-987-0 |
01 |
1 |
9307- |
| |
381 |
CLIP; HARNESS
POWER WINDOW<A30>
(B)
1 SET=5 PIECE
|
1-09987-214-0 |
02 |
1 |
9307- |
| |
381 |
CLIP; HARNESS
EXC. POWER WINDOW<A30>
(B)
1 SET=5 PIECE
|
1-09987-214-0 |
01 |
1 |
9307- |
| |
393 |
FASTENER; GARNISH PANEL
|
1-09987-195-0 |
02 |
1 |
9002-9306 |
| |
393 |
FASTENER; GARNISH PANEL
|
1-09987-213-0 |
02 |
1 |
9307- |
| |
408 |
PLUG; DUMMY HOLE,INST PANEL
|
1-09987-112-0 |
01 |
1 |
9002- |
| |
481 |
BRACKET; POWER WINDOW,COMPARTMENT PANE
POWER WINDOW<A30>
|
1-65671-397-1 |
01 |
1 |
9307- |
| |
496 |
PANEL; SHUTTER,SIDE SLUSTER BEZEL
|
1-72547-049-0 |
01 |
1 |
9002- |
