◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#25427) — 66 parça

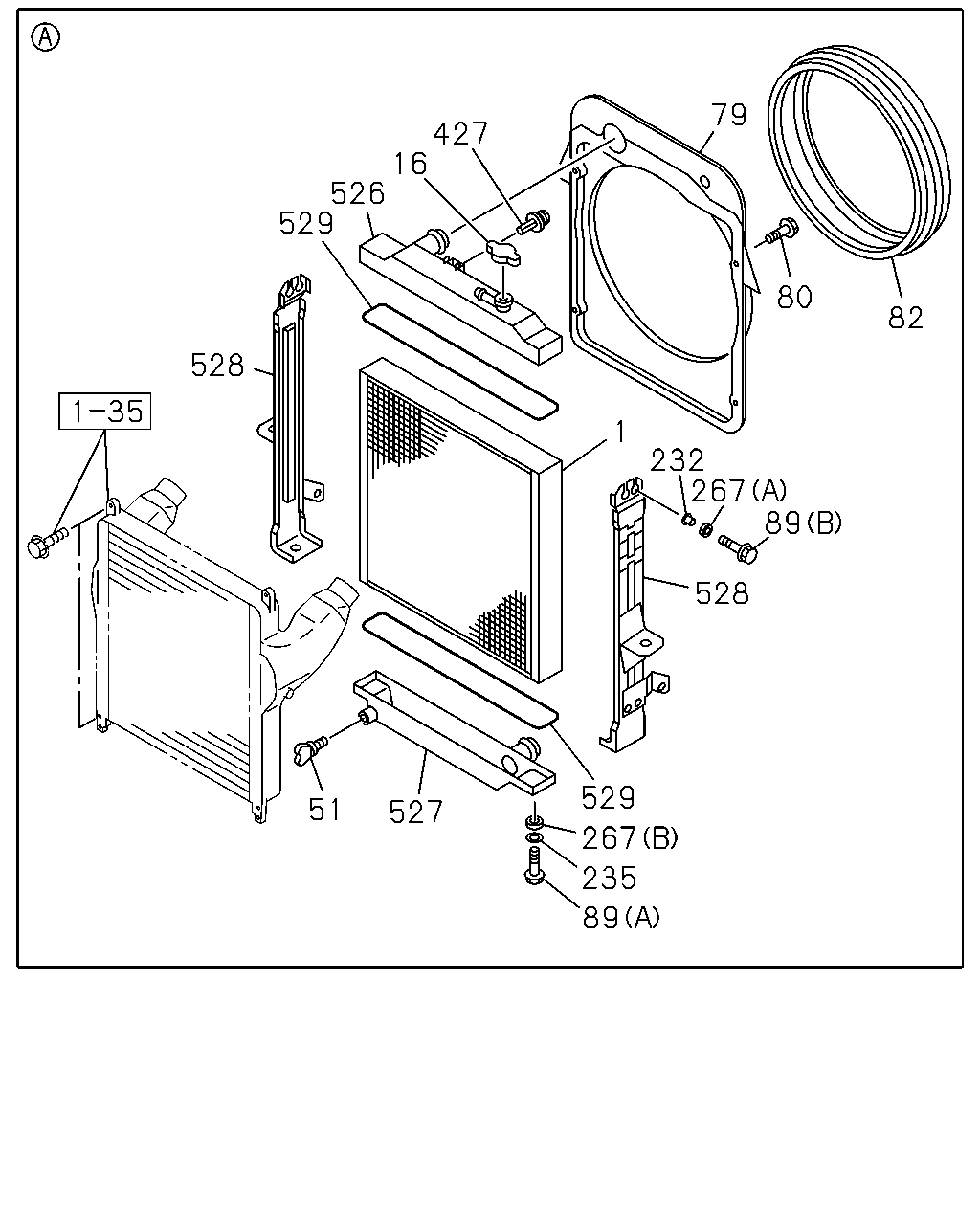

çizim 90367
79 427 16 526 529 80 82 528 1 232 267 89 528 529 51 527 267 235 89
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 8-98012-019-1 01 1 0609- ●
1 RADIATOR ASM 8-98004-201-2 01 1 0609- ● ●
16 CAP; RAD 8-97239-187-0 01 1 0609- ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0609- ● ● ●
79 GUIDE; FAN,RAD 8-98010-384-0 01 1 0609- ●
79 GUIDE; FAN,RAD 8-98004-207-0 01 1 0609- ● ●
80 BOLT; FAN GUIDE
M8X14 		8-98046-222-0 04 1 0609- ● ●
80 BOLT; FAN GUIDE
M8X14 FLANGE 		0-28080-814-0 04 1 0609- ●
82 COVER; FAN,RAD 8-98004-211-0 01 1 0609- ● ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0609- ● ● ●
89 BOLT
(B) M8X25 		1-21469-153-0 04 1 0609- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0609- ● ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0609- ● ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0609- ● ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0609- ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0609- ● ● ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-1 01 1 0609- ● ● ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 0609- ● ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-142-0 01 1 0609- ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-143-0 01 1 0609- ●
528 PLATE; SIDE,RADIATOR CORE 8-98004-204-2 01 1 0609- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98004-205-2 01 1 0609- ● ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0609- ● ● ●

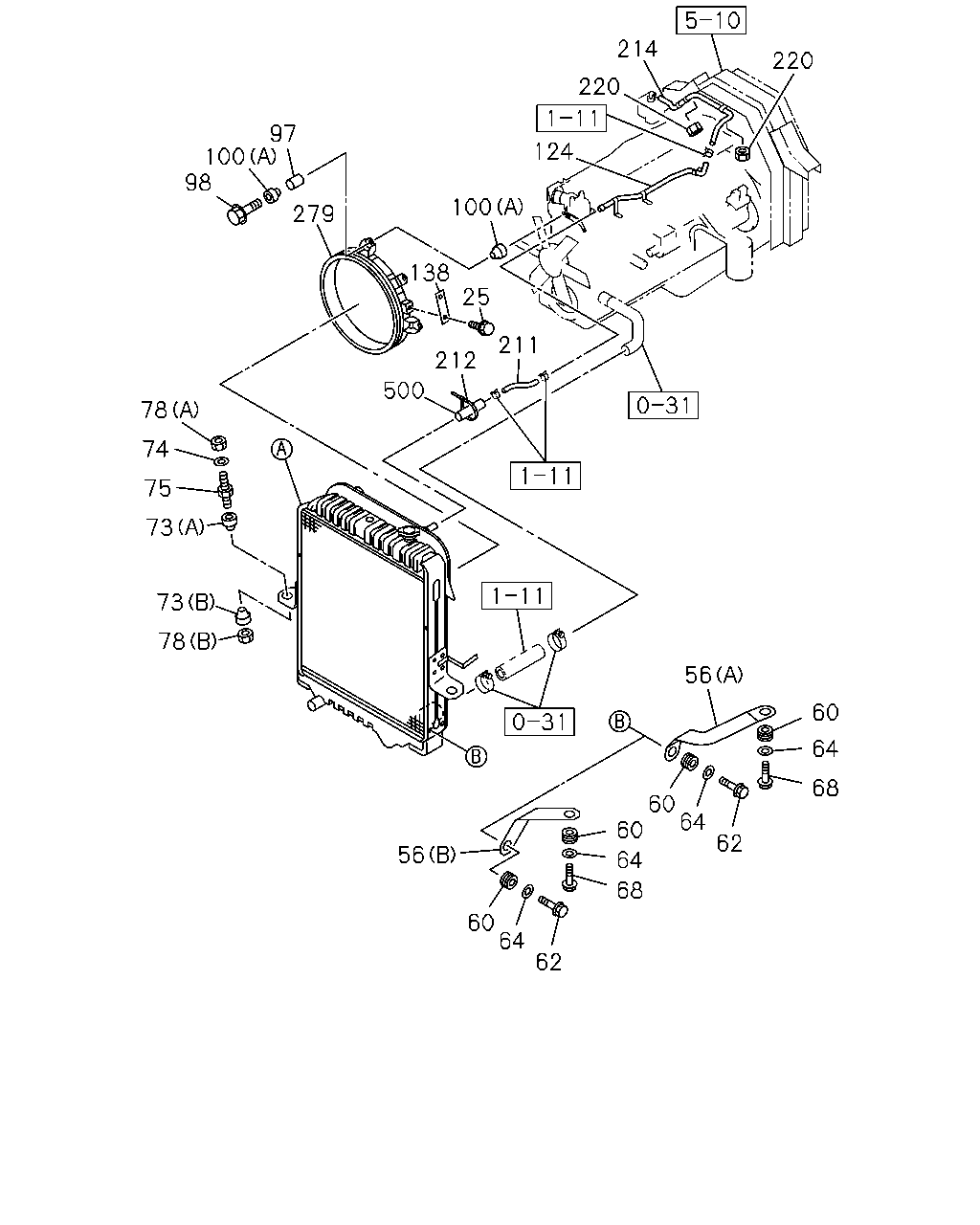

çizim 105505
214 220 220 97 124 100 98 100 279 138 25 211 212 500 78 74 75 73 73 78 56 60 64 68 60 64 60 62 56 64 68 60 64 62
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0609- ● ● ●
56 STAY; RAD
(B) 		8-98004-136-0 01 1 0609- ●
56 STAY; RAD
(B) 		8-98004-137-0 01 1 0609- ●
56 STAY; RAD
WHEEL BASE 4600MM(46W) (A) 		8-98004-130-0 01 1 0609- ●
56 STAY; RAD
WHEEL BASE 4600MM(46W) (A) 		8-98004-131-0 01 1 0609- ●
56 STAY; RAD
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) 		8-98004-134-0 01 1 0609- ●
56 STAY; RAD
(A) 		8-98004-134-0 01 1 0609- ●
56 STAY; RAD
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) 		8-98004-135-0 01 1 0609- ●
56 STAY; RAD
(A) 		8-98004-135-0 01 1 0609- ●
60 GROMMET 1-09332-117-0 04 1 0609- ● ● ●
62 BOLT; STAY
M8X22 		1-09009-123-0 02 1 0609- ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0609- ● ● ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 02 1 0609- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0609- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0609- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0609- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0609- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-110-0 02 1 0609- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0609- ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0609- ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0609- ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0609-0910 ● ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0609- ● ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0609- ● ● ●
138 BRACKET; CLIP 1-47476-881-0 01 1 0609- ● ● ●
211 HOSE; RAD TO PIPE 8-98035-010-0 01 1 0609- ●
211 HOSE; RAD TO PIPE 8-98035-009-0 01 1 0609- ● ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 0609- ● ● ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 0609- ● ● ●
214 HOSE; PIPE TO RESERVE TANK 1-21437-986-0 01 1 0609- ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0609- ● ● ●
279 BELL MOUTH 8-97601-172-1 01 1 0609- ● ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0609- ● ● ●

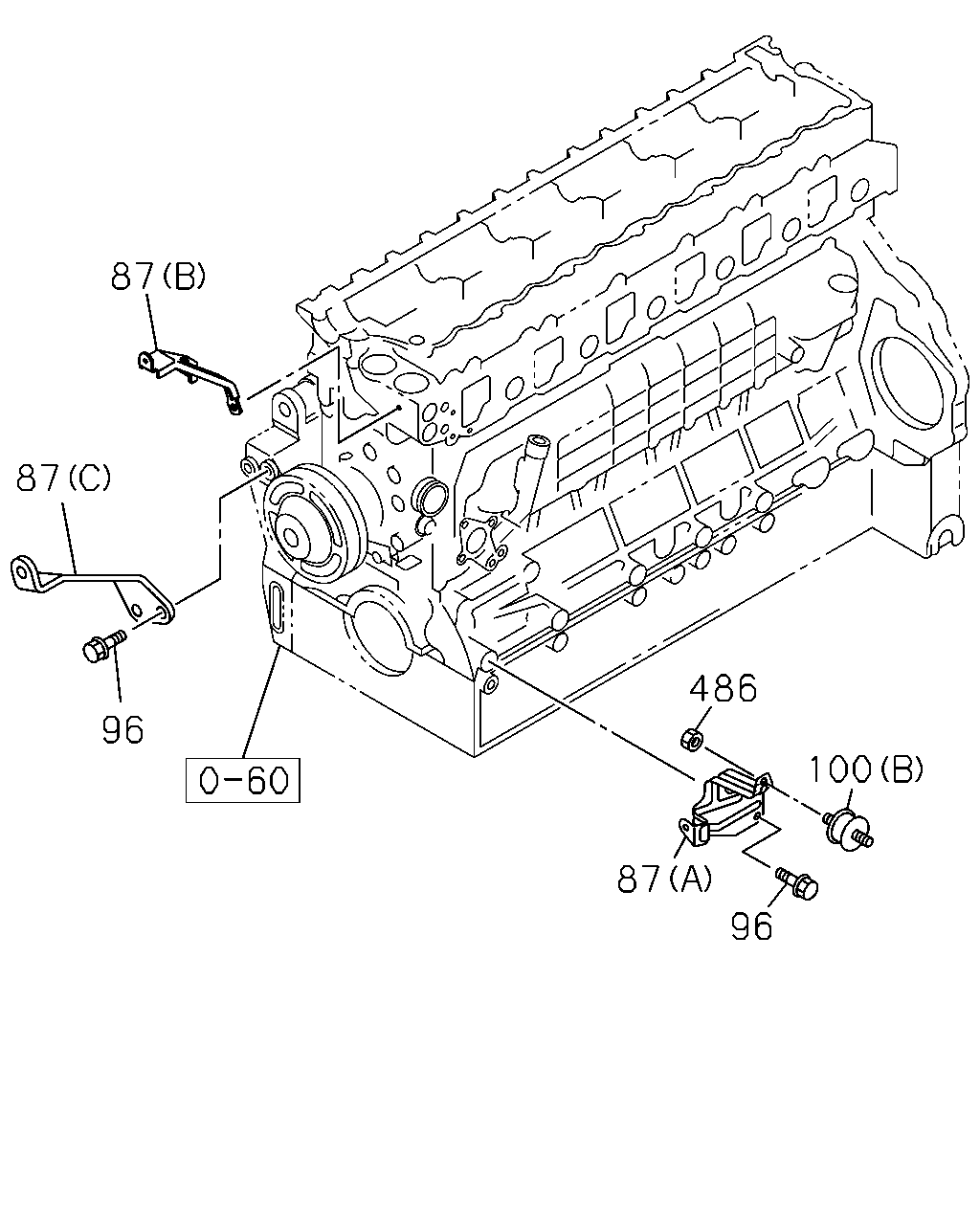

çizim 105735
87 87 486 96 100 87 96
BalonParca AdiParca NoAdetTipApplied Date A B C
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0609- ● ● ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0609- ● ● ●
87 STAY; FAN GUIDE
(C) 		8-97602-988-0 01 1 0609- ● ● ●
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0609- ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0609- ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0609-0910 ● ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0609- ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0609- ● ● ●
