Isuzu WW
▶
TRUCKS
▶
FVR
▶
11030 - FVR(RHD) EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#25426) — 32 parça
Tümü
A - 6HK1 TCS ENG
B - 6HK1 TCC ENG
C - 6HK1 TCN ENG
◀

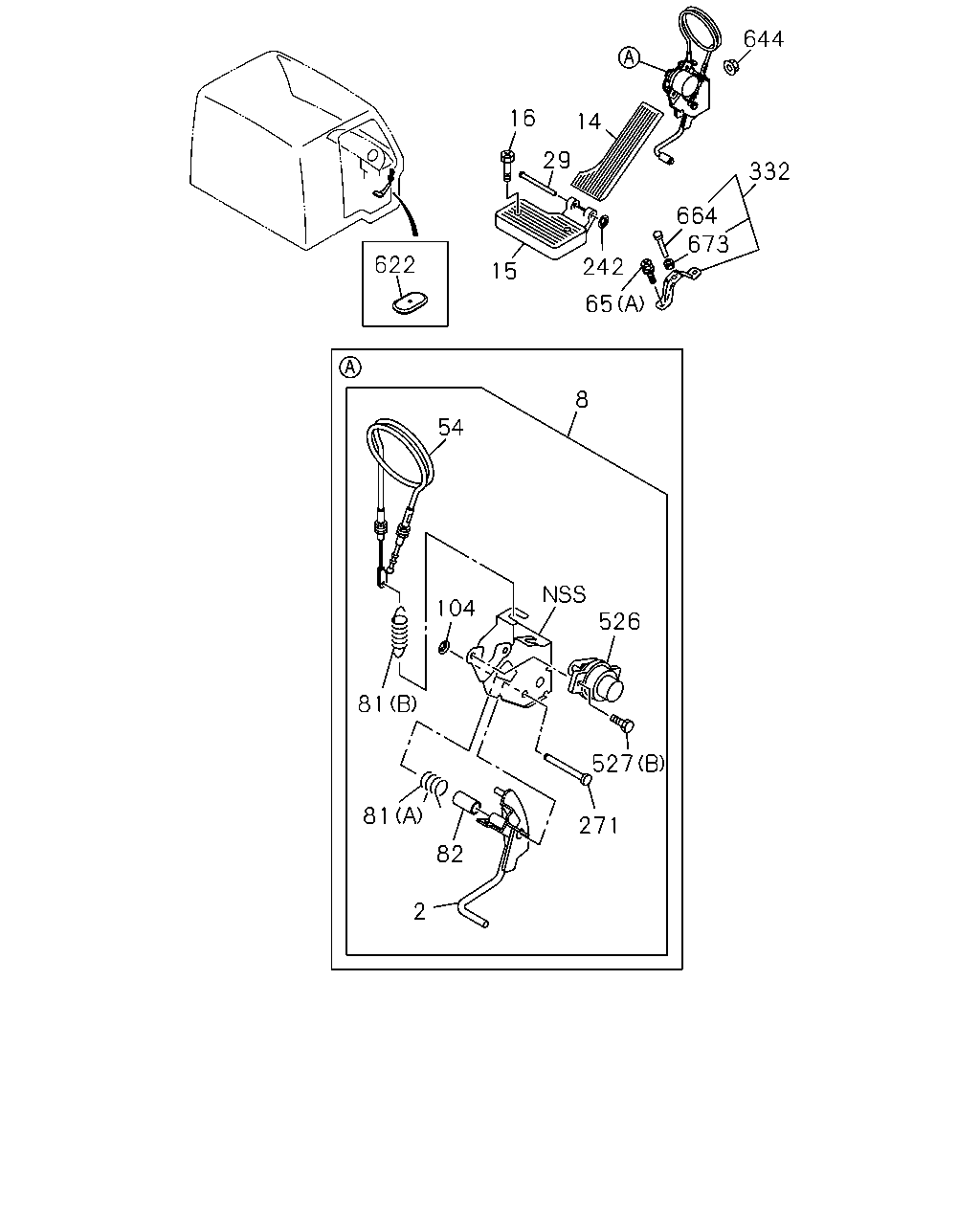

[101A] CAB SIDE (26 parça)
[101A] FRAME SIDE (6 parça)
▶
644
16
14
29
332
664
673
622
242
15
65
8
54
104
526
81
527
81
271
82
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
LEVER; ENG CONT
1-73996-593-1
01
1
0609-
●
●
●
8
LINK ASM; ENG CONT
1-73996-591-0
01
1
0609-0908
●
●
●
8
LINK ASM; ENG CONT
8-98133-476-1
01
1
0909-
●
●
●
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
0609-
●
●
●
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
0609-
●
●
●
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0609-
●
●
●
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
0609-
●
●
●
54
CABLE; ENG CONT
L=850
1-71907-257-0
01
1
0609-
●
●
●
65
BOLT
(C) M10X60
0-16861-060-0
01
1
0609-
●
●
●
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
0609-
●
●
●
65
BOLT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0609-
●
●
●
81
SPRING; RETURN,ENG CONT LEVER
(A)
8-97853-205-1
01
1
0609-
●
●
●
81
SPRING; RETURN,ENG CONT LEVER
(B)
8-97997-917-0
01
1
0609-
●
●
●
82
BUSHING; ENG CONT LVR
L=31.5
1-53459-627-0
01
1
0609-
●
●
●
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
01
1
0609-
●
●
●
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
0609-
●
●
●
271
SHAFT; ENG CONT
OD=8.0 L=69
1-71907-298-0
01
1
0609-
●
●
●
332
BRACKET; ACCEL PEDAL STOPPER
1-73908-428-0
01
1
0609-
●
●
●
526
SENSOR; ACCEL
8-97602-416-0
01
1
0609-0908
●
●
●
526
SENSOR; ACCEL
8-98131-263-0
01
1
0909-
●
●
●
527
BOLT; ACCEL SENSOR
(B) M5X16
8-98111-511-0
01
1
0810-
●
●
●
527
BOLT; ACCEL SENSOR
(A) M8X20 FLANGE
0-28650-820-0
02
1
0609-
●
●
●
622
GROMMET; ACCEL CONT CABLE
OD=30
8-94107-655-0
01
1
0609-
●
●
●
644
NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0609-
●
●
●
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
0609-
●
●
●
673
NUT; STOPPER
M8
0-91111-508-0
01
1
0609-
●
●
●
65
149
65
527
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
65
BOLT
(C) M10X60
0-16861-060-0
01
1
0609-
●
●
●
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
0609-
●
●
●
65
BOLT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0609-
●
●
●
149
BRACKET; ENG CONT
8-98042-125-2
01
1
0609-
●
●
●
527
BOLT; ACCEL SENSOR
(B) M5X16
8-98111-511-0
01
1
0810-
●
●
●
527
BOLT; ACCEL SENSOR
(A) M8X20 FLANGE
0-28650-820-0
02
1
0609-
●
●
●
