Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#25423) — 58 parça

25 79 25 9 80 26 24 71 27 28 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE ID=14 L=44	9-09917-427-0	01	1	0609-	●	●
24	BOLT; BRKT TO FRAME BATTERY 115E41R NS120<W73> M8X35 FLANGE	0-28650-835-0	06	1	0609-	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1> M8X35 FLANGE	0-28650-835-0	06	1	0609-		●
24	BOLT; BRKT TO FRAME EXC. BATTERY 115E41R NS120<W73> M8X35 FLANGE	0-28650-835-0	07	1	0609-	●
24	BOLT; BRKT TO FRAME EXC. BATTERY 95E41R N100<SJ1> M8X35 FLANGE	0-28650-835-0	07	1	0609-		●
25	CLIP; BATTERY CABLE TO BRKT (A) ID=15 L=28	1-09701-216-0	06	1	0609-	●	●
25	CLIP; BATTERY CABLE TO BRKT EXC. BATTERY 115E41R NS120<W73> (B) ID=15 L=22 H=30	1-09701-215-1	01	1	0609-	●
25	CLIP; BATTERY CABLE TO BRKT EXC. BATTERY 95E41R N100<SJ1> (B) ID=15 L=22 H=30	1-09701-215-1	01	1	0609-		●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28650-825-0	06	1	0609-	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1> M8X25 FLANGE	0-28650-825-0	06	1	0609-		●
26	BOLT; BATTERY CABLE CLIP TO BRKT EXC. BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28650-825-0	07	1	0609-	●
26	BOLT; BATTERY CABLE CLIP TO BRKT EXC. BATTERY 95E41R N100<SJ1> M8X25 FLANGE	0-28650-825-0	07	1	0609-		●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 115E41R NS120<W73> M8 FLANGE	0-91180-108-0	06	1	0609-	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1> M8 FLANGE	0-91180-108-0	06	1	0609-		●
27	NUT; BATTERY CABLE CLIP TO BRKT EXC. BATTERY 115E41R NS120<W73> M8 FLANGE	0-91180-108-0	07	1	0609-	●
27	NUT; BATTERY CABLE CLIP TO BRKT EXC. BATTERY 95E41R N100<SJ1> M8 FLANGE	0-91180-108-0	07	1	0609-		●
28	NUT; BRKT TO FRAME BATTERY 115E41R NS120<W73> M8 FLANGE	0-91180-108-0	06	1	0609-	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1> M8 FLANGE	0-91180-108-0	06	1	0609-		●
28	NUT; BRKT TO FRAME EXC. BATTERY 115E41R NS120<W73> M8 FLANGE	0-91180-108-0	07	1	0609-	●
28	NUT; BRKT TO FRAME EXC. BATTERY 95E41R N100<SJ1> M8 FLANGE	0-91180-108-0	07	1	0609-		●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0609-	●	●
79	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	0609-	●	●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0609-	●	●
107	CLIP; BAND BATTERY 115E41R NS120<W73> L=140	5-09707-031-1	01	1	0611-	●
107	CLIP; BAND BATTERY 95E41R N100<SJ1> L=140	5-09707-031-1	01	1	0611-		●

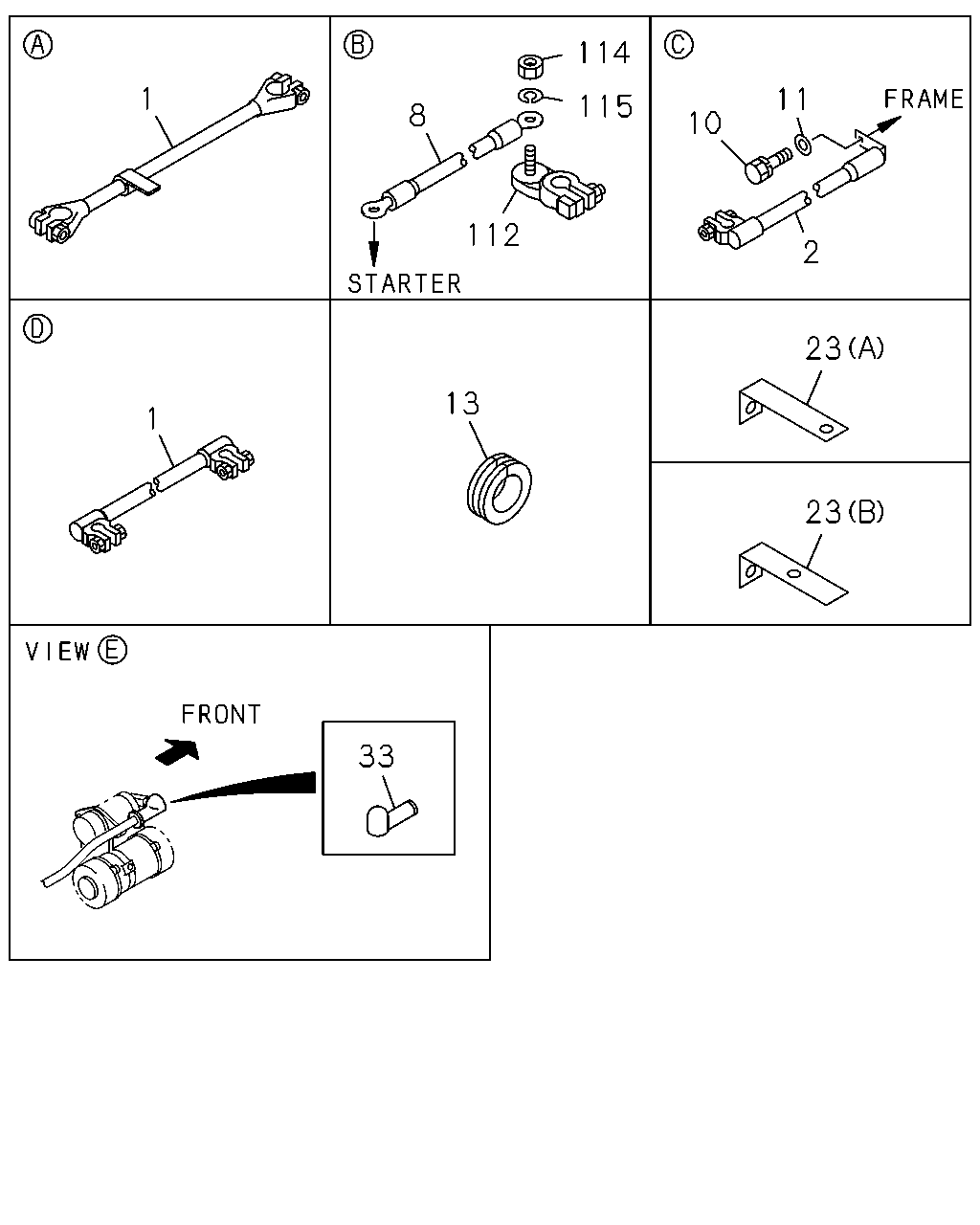

114 1 11 115 8 10 112 2 23 13 1 23 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115E41R NS120<W73> L=450	1-82650-389-1	01	1	0609-	●
1	CABLE; BATTERY BATTERY 95E41R N100<SJ1> L=450	1-82650-389-1	01	1	0609-		●
1	CABLE; BATTERY EXC. BATTERY 115E41R NS120<W73> L=280	8-97230-719-2	01	1	0609-	●
1	CABLE; BATTERY EXC. BATTERY 95E41R N100<SJ1> L=280	8-97230-719-2	01	1	0609-		●
2	CABLE; BATTERY BATTERY 115E41R NS120<W73> L=380	8-97604-629-1	01	1	0609-	●
2	CABLE; BATTERY BATTERY 95E41R N100<SJ1> L=380	8-97604-629-1	01	1	0609-		●
2	CABLE; BATTERY EXC. BATTERY 115E41R NS120<W73> L=240	1-82650-403-1	01	1	0609-	●
2	CABLE; BATTERY EXC. BATTERY 95E41R N100<SJ1> L=240	1-82650-403-1	01	1	0609-		●
8	CABLE; BATTERY,STARTER BATTERY 115E41R NS120<W73>	8-97610-267-0	01	1	0609-	●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>	8-97610-267-0	01	1	0609-		●
8	CABLE; BATTERY,STARTER EXC. BATTERY 115E41R NS120<W73>	8-97604-624-1	01	1	0609-	●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>	8-97604-624-1	01	1	0609-		●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0609-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0609-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=25	1-09332-011-1	01	1	0609-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 115E41R NS120<W73> (A) L=145	1-47475-655-0	01	1	0609-	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1> (A) L=145	1-47475-655-0	01	1	0609-		●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 115E41R NS120<W73> (A) L=95	1-82699-085-0	05	1	0609-	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1> (A) L=95	1-82699-085-0	05	1	0609-		●
23	BRACKET; CABLE CLIP TO FRAME EXC. BATTERY 115E41R NS120<W73> (B) L=55	1-47475-304-0	01	1	0609-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. BATTERY 95E41R N100<SJ1> (B) L=55	1-47475-304-0	01	1	0609-		●
23	BRACKET; CABLE CLIP TO FRAME EXC. BATTERY 115E41R NS120<W73> (A) L=145	1-47475-655-0	02	1	0609-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. BATTERY 95E41R N100<SJ1> (A) L=145	1-47475-655-0	02	1	0609-		●
23	BRACKET; CABLE CLIP TO FRAME EXC. BATTERY 115E41R NS120<W73> (A) L=95	1-82699-085-0	04	1	0609-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. BATTERY 95E41R N100<SJ1> (A) L=95	1-82699-085-0	04	1	0609-		●
33	CAP; INSULATOR	1-82699-431-0	01	1	0609-	●	●
112	TERMINAL; BATTERY <+>	1-82695-169-1	01	1	0609-	●	●
114	NUT; CABLE,BATTERY TERMINAL M8	0-91110-508-0	01	1	0609-	●	●
115	WASHER; LK,CABLE,BATTERY ID=8.2	0-91510-508-0	01	1	0609-	●	●

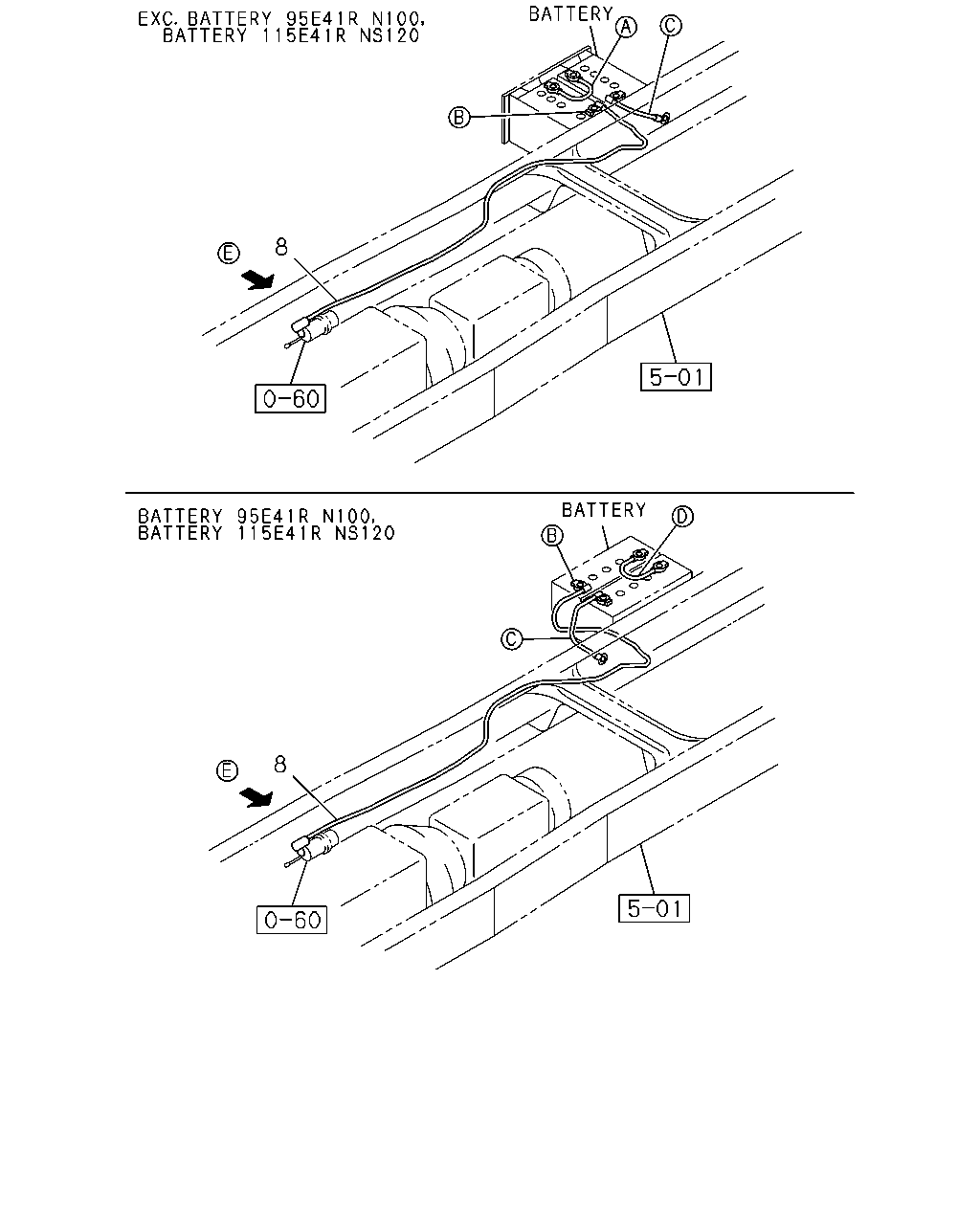

8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	CABLE; BATTERY,STARTER BATTERY 115E41R NS120<W73>	8-97610-267-0	01	1	0609-	●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>	8-97610-267-0	01	1	0609-		●
8	CABLE; BATTERY,STARTER EXC. BATTERY 115E41R NS120<W73>	8-97604-624-1	01	1	0609-	●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>	8-97604-624-1	01	1	0609-		●
