Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#25422) — 74 parça

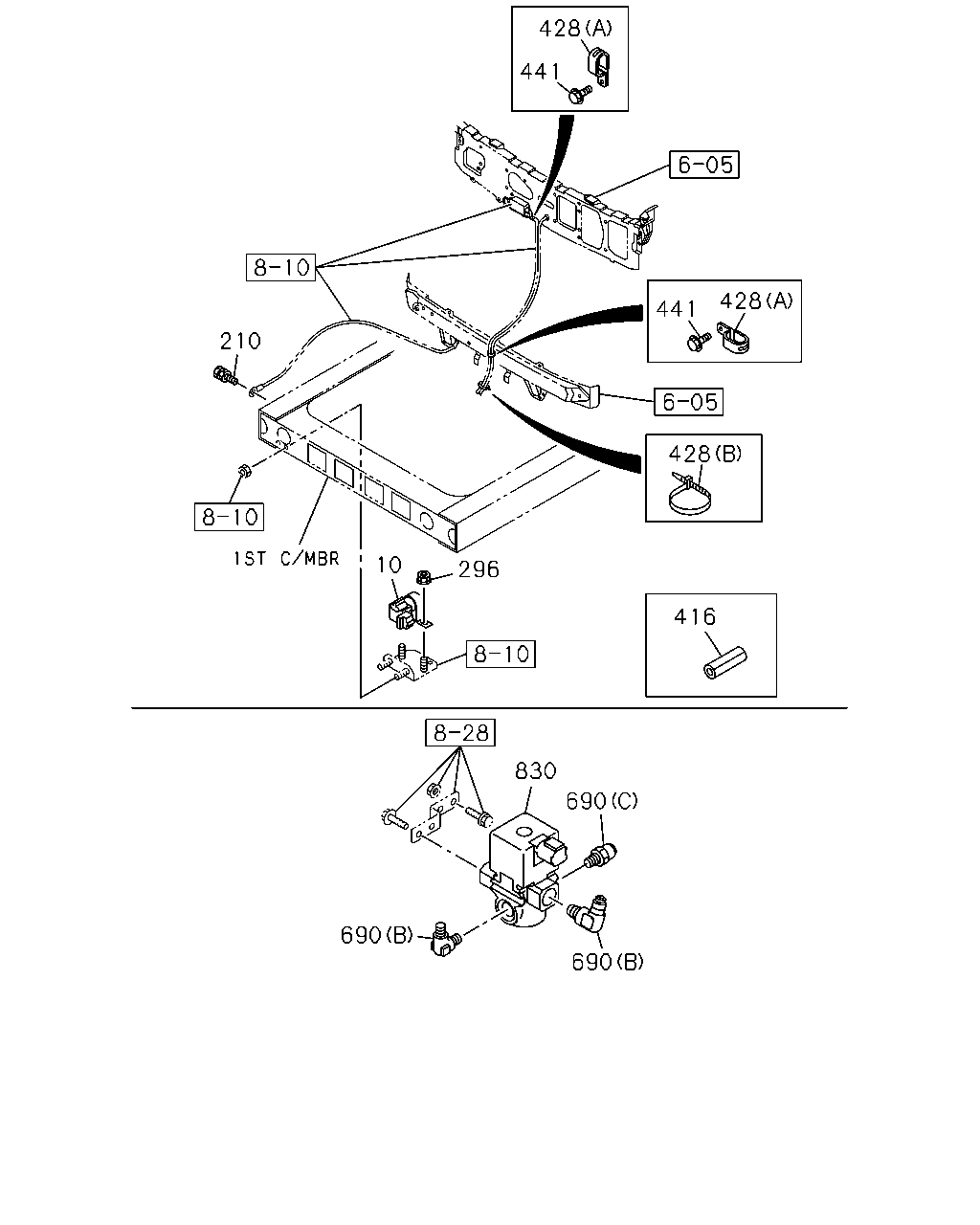

428 441 428 441 210 428 296 416 830 690 690 690 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER 24V NIKKO	8-98005-631-0	01	1	0609-	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0609-1201	●	●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
416	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0610-		●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0609-	●	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	03	1	0609-	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
690	CONNECTOR ZF9S1110 M/T(Y5E) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0609-	●
690	CONNECTOR ZF9S1110 M/T(Y5E) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0609-	●
690	CONNECTOR (A)	8-94390-858-1	02	1	0609-	●	●
830	VALVE; MAG,EGR ZF9S1110 M/T(Y5E)	1-82563-871-2	01	1	0609-	●

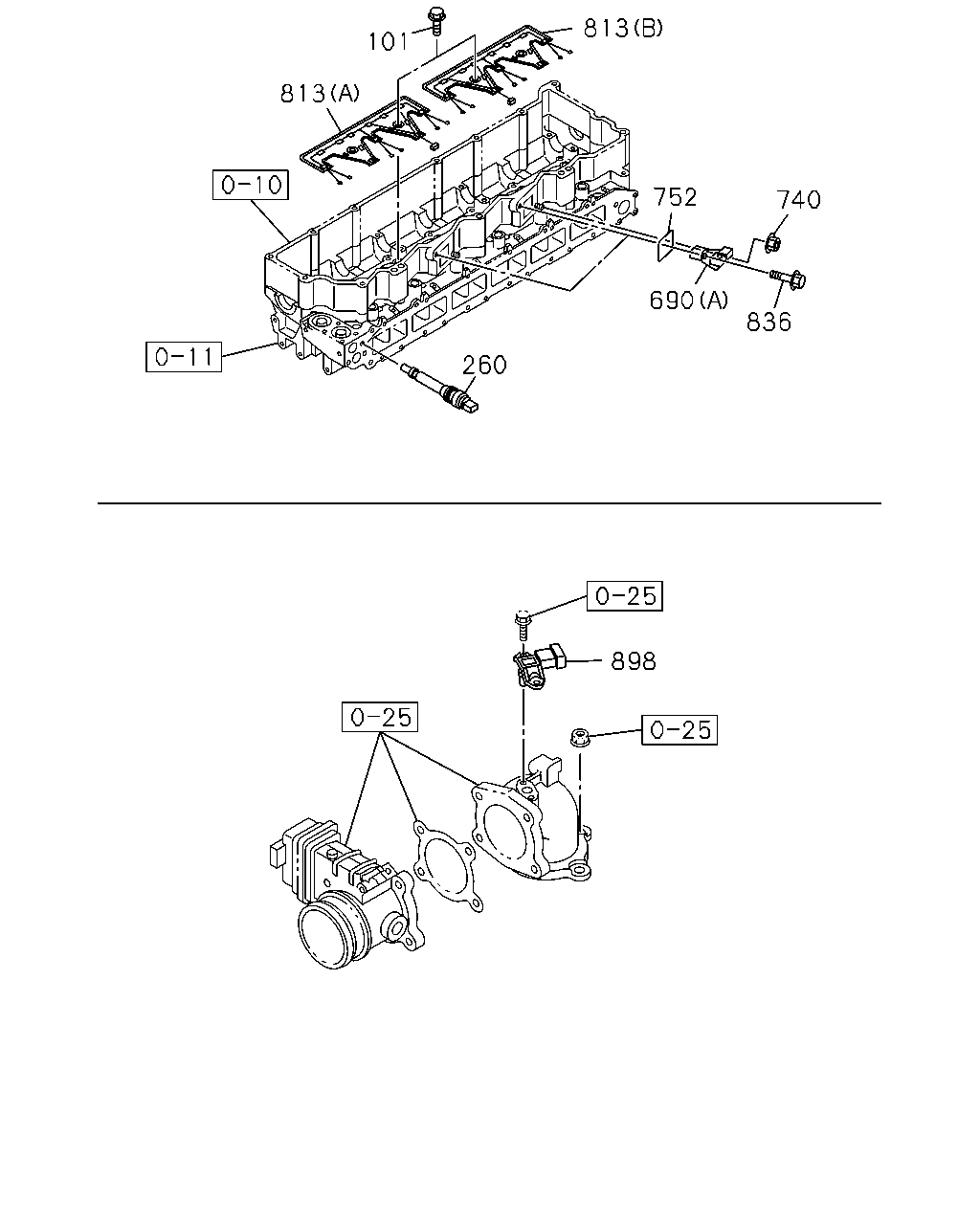

813 101 813 752 740 690 836 260 898

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0609-	●	●
260	SENSOR; WATER TEMP NIPPON THERMOSTAT	8-98023-717-0	01	1	0609-	●	●
690	CONNECTOR ZF9S1110 M/T(Y5E) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0609-	●
690	CONNECTOR ZF9S1110 M/T(Y5E) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0609-	●
690	CONNECTOR (A)	8-94390-858-1	02	1	0609-	●	●
740	NUT M8 FLANGE	0-91180-108-0	04	1	0609-1011	●	●
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0609-	●	●
813	HARNESS; INJECTOR (A) FRONT	8-97602-748-2	01	1	0609-1008	●	●
813	HARNESS; INJECTOR (A) FRONT	8-98177-447-0	01	1	1009-1112	●	●
813	HARNESS; INJECTOR (A) FRONT	8-98204-717-0	01	1	1201-	●	●
813	HARNESS; INJECTOR (B) REAR	8-97602-749-2	01	1	0609-1008	●	●
813	HARNESS; INJECTOR (B) REAR	8-98177-448-0	01	1	1009-1112	●	●
813	HARNESS; INJECTOR (B) REAR	8-98204-718-0	01	1	1201-	●	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●
898	SENSOR; BOOST	8-98009-418-0	01	1	0609-	●	●

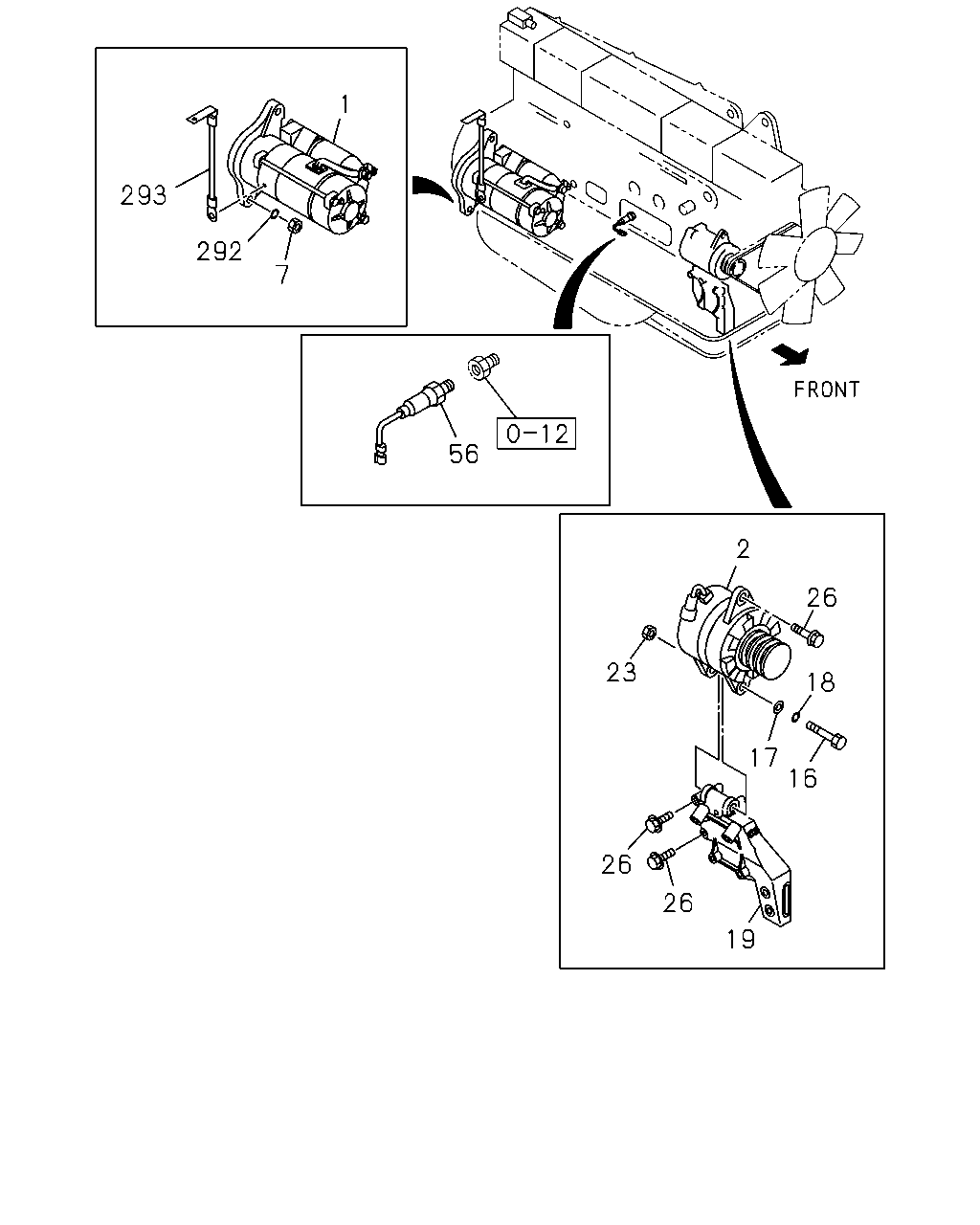

1 293 292 7 56 2 26 23 18 17 16 26 19 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	1-81100-414-2	01	1	0609-0609	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0610-0909	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-2	01	1	0910-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1 TCS ENG(80L) 24V 50A NIKKO	8-98013-461-4	01	1	0609-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO	8-98013-461-4	01	1	0609-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1 TCC ENG(81L) 24V 60A NIKKO	8-98013-462-4	01	1	0609-	●
7	NUT; STARTER M14	0-91110-514-0	02	1	0609-	●	●
16	BOLT; GEN M6X10 FLANGE	0-28050-610-0	01	1	0910-		●
16	BOLT; GEN M6X10 FLANGE	0-28050-610-0	02	1	0609-0611	●	●
16	BOLT; GEN M6X10 FLANGE	0-28050-610-0	02	1	0612-	●	●
16	BOLT; GEN M6X10 FLANGE	0-28050-610-0	02	1	0612-	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0609-	●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0609-	●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0609-	●	●
19	BRACKET; GEN	8-94390-589-1	01	1	0609-0704	●	●
19	BRACKET; GEN	8-97609-149-0	01	1	0705-0803	●	●
19	BRACKET; GEN	8-98082-615-1	01	1	0804-	●	●
23	NUT; GEN M14	0-91110-514-0	01	1	0609-	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	0609-	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0609-	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0609-	●	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0609-	●	●
293	CABLE; STARTER EARTH L=320	1-82650-324-0	01	1	0609-	●	●

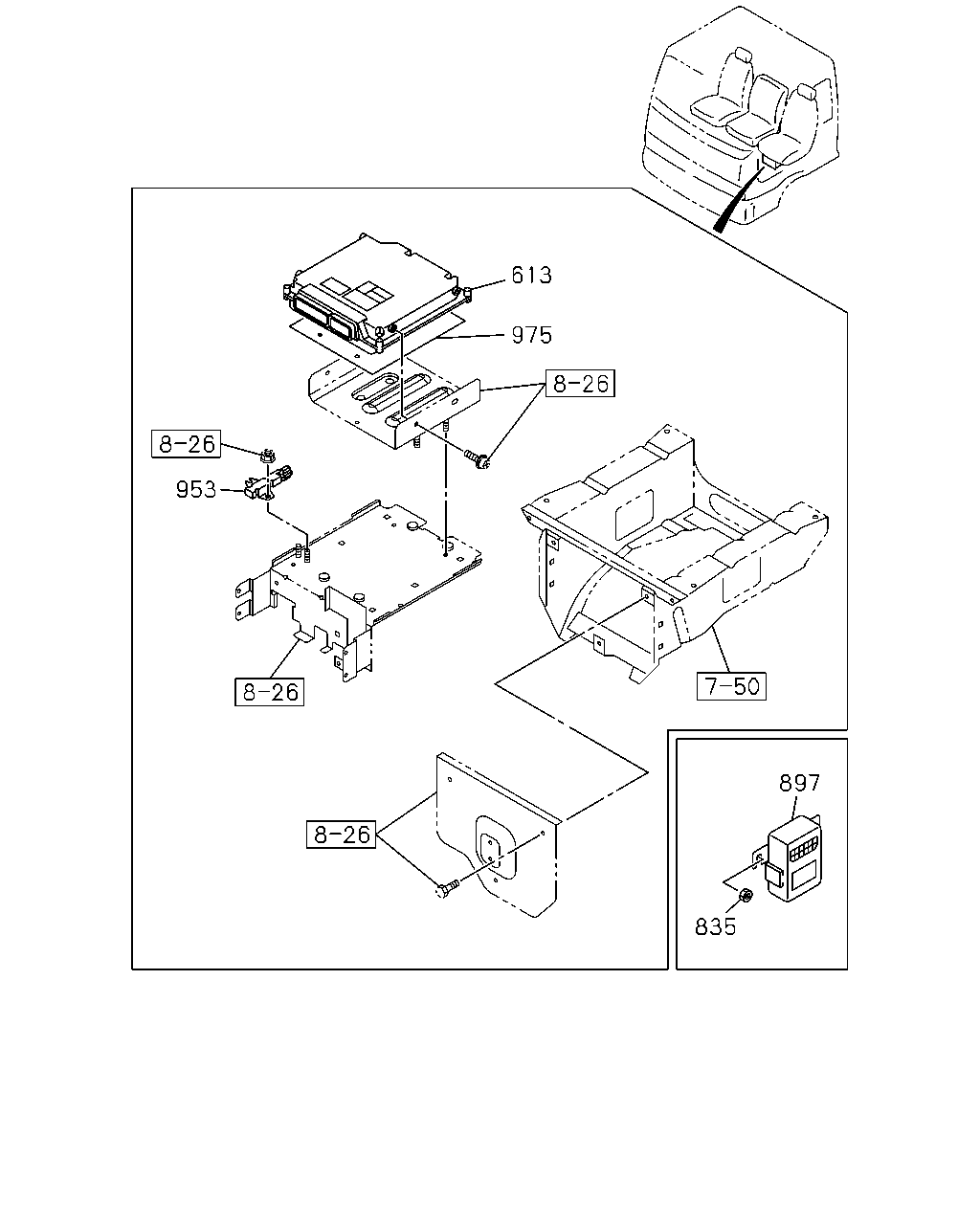

613 975 953 897 835

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
613	CONTROL UNIT; ENG 6HK1 TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-97616-520-2	01	1	0609-0702	●
613	CONTROL UNIT; ENG 6HK1 TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98072-068-0	01	1	0703-0706	●
613	CONTROL UNIT; ENG 6HK1 TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98088-408-2	01	1	0707-0804	●
613	CONTROL UNIT; ENG 6HK1 TCS ENG(80L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98105-535-2	01	1	0805-	●
613	CONTROL UNIT; ENG 6HK1 TCC ENG(81L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-97616-519-2	01	1	0609-0702	●
613	CONTROL UNIT; ENG 6HK1 TCC ENG(81L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98072-067-0	01	1	0703-0706	●
613	CONTROL UNIT; ENG 6HK1 TCC ENG(81L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98088-407-2	01	1	0707-0804	●
613	CONTROL UNIT; ENG 6HK1 TCC ENG(81L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98105-533-1	01	1	0805-1004	●
613	CONTROL UNIT; ENG 6HK1 TCC ENG(81L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98163-590-0	01	1	1005-	●
613	CONTROL UNIT; ENG 6HK1 TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-97616-518-2	01	1	0609-0702		●
613	CONTROL UNIT; ENG 6HK1 TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98072-065-0	01	1	0703-0704		●
613	CONTROL UNIT; ENG 6HK1 TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98085-146-2	01	1	0705-0804		●
613	CONTROL UNIT; ENG 6HK1 TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98105-532-1	01	1	0805-1004		●
613	CONTROL UNIT; ENG 6HK1 TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98163-589-0	01	1	1005-		●
835	NUT; ECU M6 FLANGE	0-91180-106-0	02	1	0609-	●	●
897	DRM	8-98013-144-8	01	1	0609-1401	●	●
897	DRM	8-98260-912-0	01	1	1402-	●	●
953	RESISTOR; CONT UNIT	8-97357-613-0	01	1	0609-	●	●
975	SHEET; DRM	8-98038-647-0	01	1	0609-	●	●

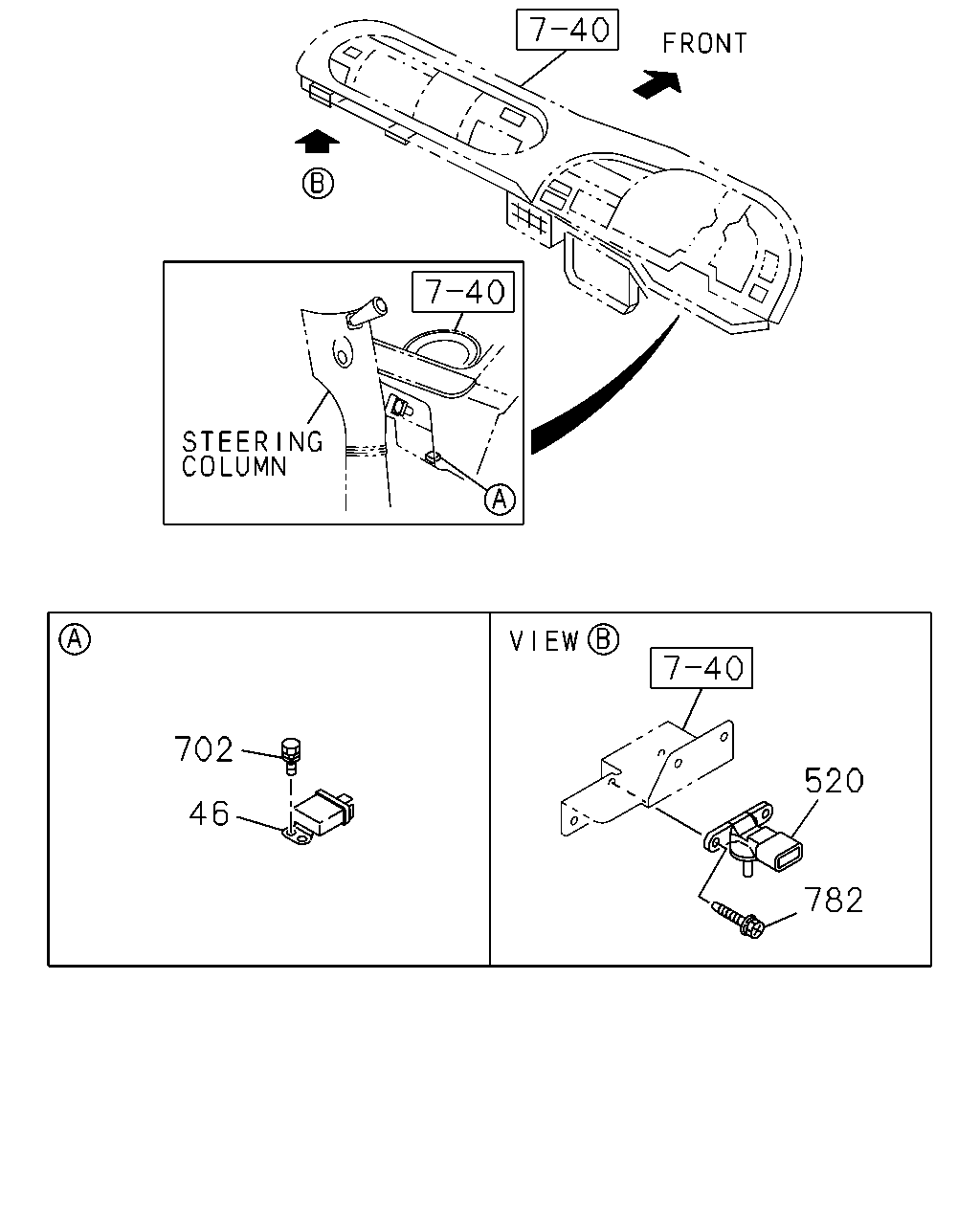

702 520 46 782

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0609-	●	●
520	SENSOR; PRESSURE	8-98020-514-0	01	1	0609-	●	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0609-	●	●
782	BOLT; SENSOR M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	0609-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
