◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#2542) — 16 parça

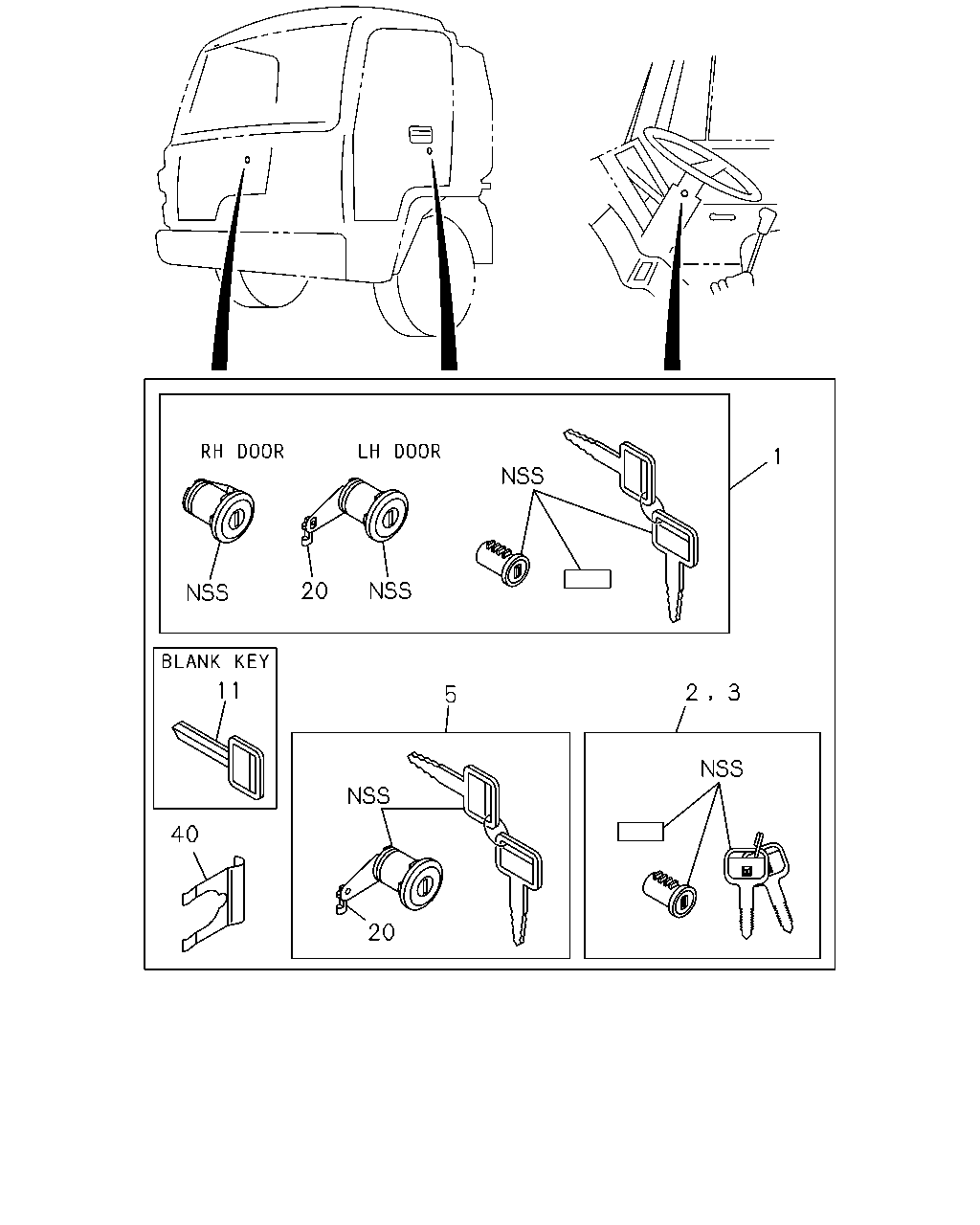

çizim 95448
1 20 11 2 3 5 40 20
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER SET; CAR LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-038-3 01 1 9002-9409
1 CYLINDER SET; CAR LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-077-2 01 1 9410-
1 CYLINDER SET; CAR LOCK
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-037-4 01 1 9002-9409
1 CYLINDER SET; CAR LOCK
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-076-2 01 1 9410-
2 BARREL ASM; W/KEY,STRG LOCK 1-79137-118-2 01 1 9410-
3 BARREL ASM; W/KEY 1-79137-034-2 01 1 9002-9409
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-101-2 01 1 9002-9409
5 CYLINDER ASM; DOOR LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-117-1 01 1 9410-
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-100-2 01 1 9002-9409
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79137-093-1 01 1 9410-
5 CYLINDER ASM; DOOR LOCK
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> W/KEY 		1-79137-094-1 01 1 9410-
11 KEY; BLANK 1-79137-039-0 AR 1 9002-9409
11 KEY; BLANK 1-79137-129-1 AR 1 9410-
20 SNAP; DOOR LOCK CYL
NATURAL FOR D=3.5 		1-79138-167-0 01 1 9002-
20 SNAP; DOOR LOCK CYL
YELLOW 		1-79138-166-0 01 1 9002-
40 CLIP; CYL LK 1-79137-033-1 02 1 9002-
