Sayfa 7-20 - Isuzu EPC

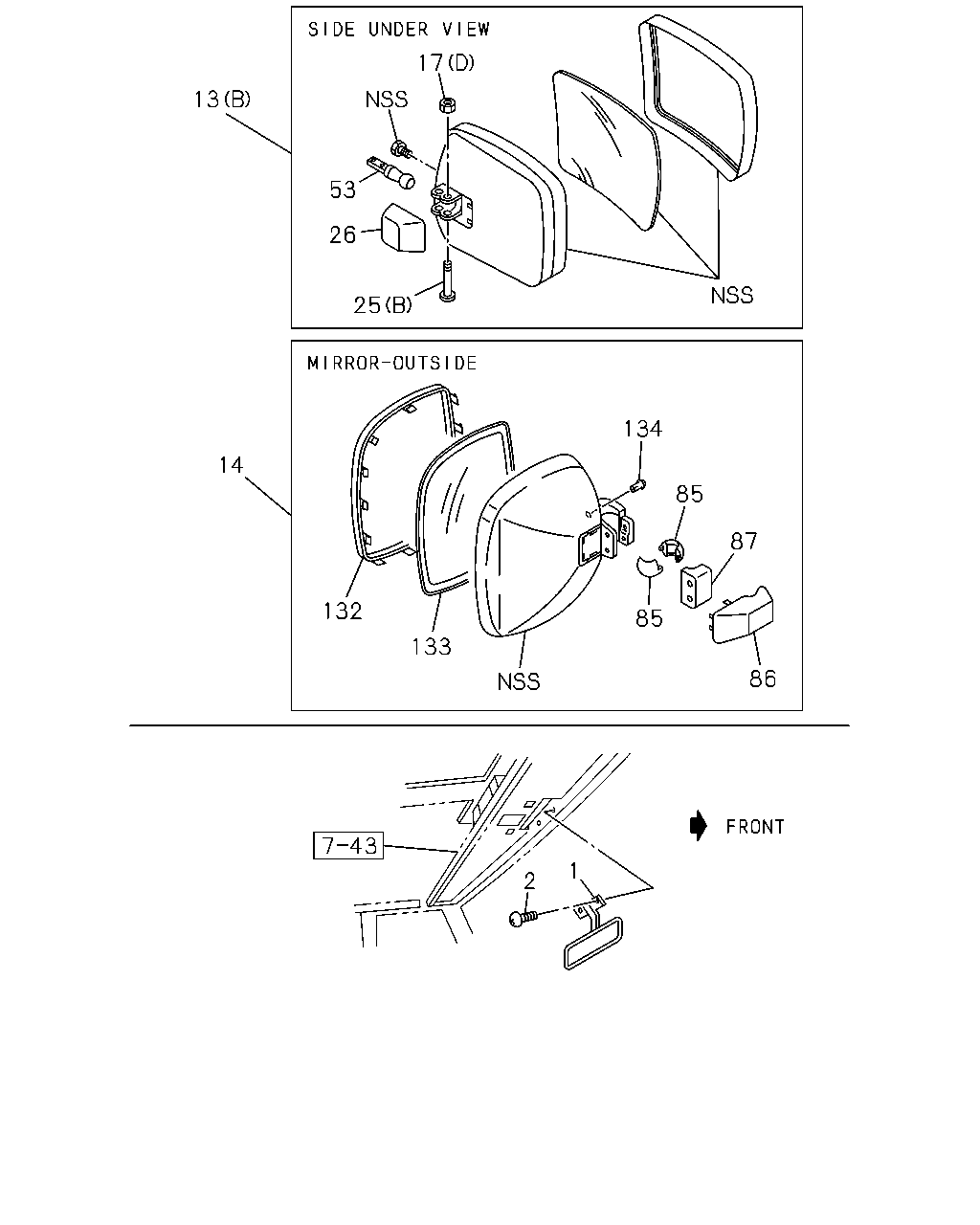

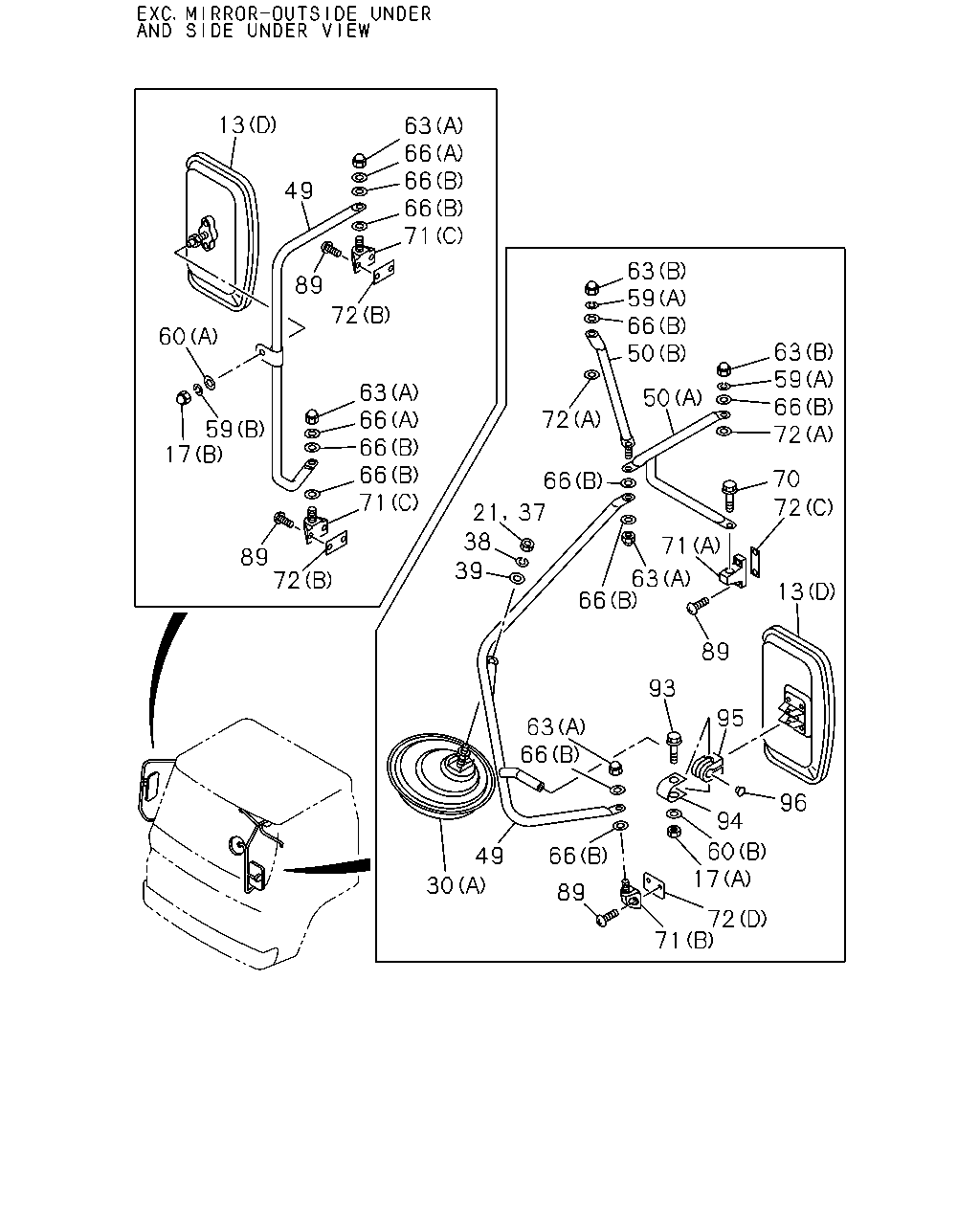

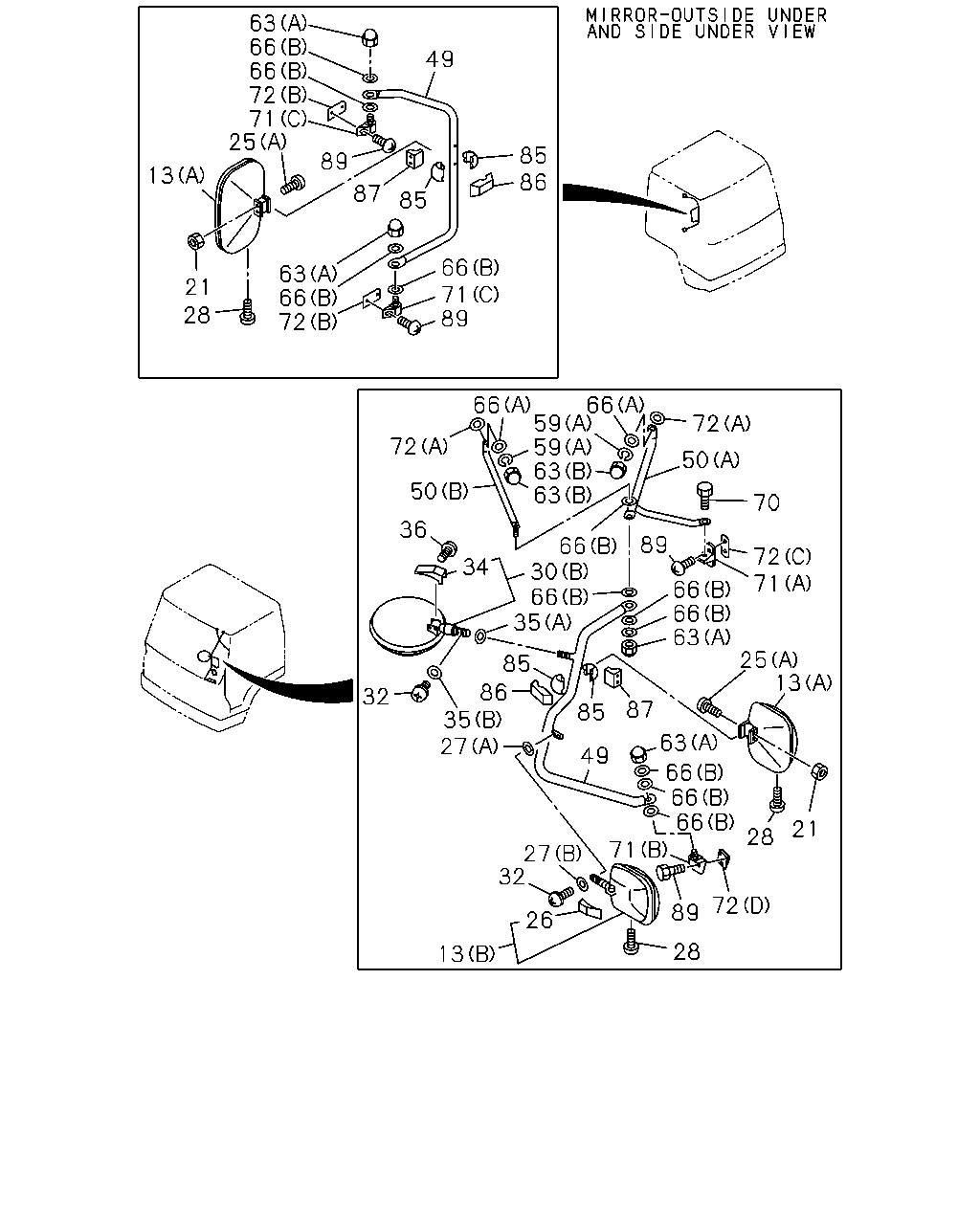

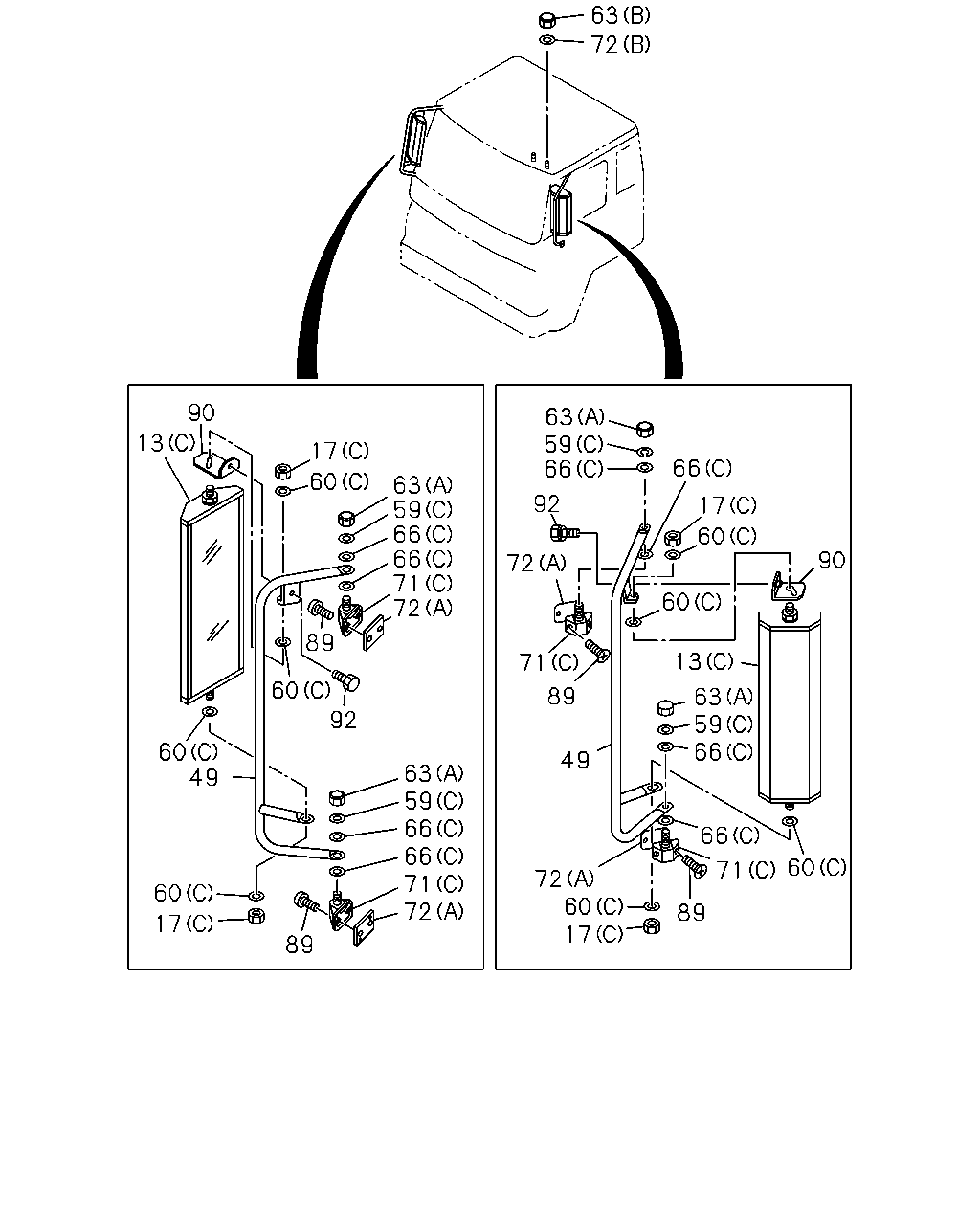

7-20 — MIRROR AND MIRROR STAY (#2541) — 190 parça

63 66 66 72 71 25 49 85 86 89 87 13 85 66 71 89 63 66 72 21 28 66 66 59 59 63 63 72 72 50 50 70 36 89 66 30 66 35 72 71 34 66 66 63 25 13 85 86 35 27 32 87 85 63 49 66 66 66 71 21 28 27 32 72 89 26 28 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (D)	1-71737-730-0	01	1	9002-9306
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-729-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-730-0	01	1	9307-9404
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-919-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-917-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-920-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-730-0	01	1	9405-
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	02	1	9307-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9307-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9307-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9307-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9307-
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9307-
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9307-
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	03	1	9307-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9307-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-732-0	01	1	9002-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9307-
34	CAP; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-649-1	01	1	9307-
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9307-
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9307-
36	GROMMET; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	01	1	9307-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-738-0	01	1	9002-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-735-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-733-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-803-0	01	1	9002-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-778-0	01	1	9307-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71798-001-0	01	1	9307-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9>	1-71737-802-0	01	1	9002-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-779-0	01	1	9002-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-780-2	01	1	9002-
59	WASHER; LK DOOR MIRROR<D32> (C)	1-09985-177-0	04	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32> (A)	1-09985-177-0	02	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-180-0	01	1	9002-
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C) WHITE	1-71798-002-1	04	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A) WHITE	1-71736-578-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C) WHITE	1-71798-002-1	02	1	9002-
72	SHEET DOOR MIRROR<D32> (B) ID=8.5 T=3 OD=30	1-71736-247-0	04	1	9002-
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (C) D=8 2-HOLE	1-71737-444-0	01	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9307-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9307-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-704-0	02	1	9307-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-

63 72 90 63 59 66 13 17 66 60 63 59 66 66 71 72 92 17 60 90 60 72 89 13 71 60 89 63 59 66 92 60 49 49 63 59 66 66 71 72 66 60 71 72 60 17 60 89 17 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (D)	1-71737-730-0	01	1	9002-9306
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-729-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-730-0	01	1	9307-9404
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-919-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-917-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-920-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-730-0	01	1	9405-
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (C) M8 FLANGE	1-09984-122-0	04	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D) M5	1-09984-124-0	04	1	9307-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-738-0	01	1	9002-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-735-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-733-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-803-0	01	1	9002-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-778-0	01	1	9307-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71798-001-0	01	1	9307-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9>	1-71737-802-0	01	1	9002-
59	WASHER; LK DOOR MIRROR<D32> (C)	1-09985-177-0	04	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32> (A)	1-09985-177-0	02	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-180-0	01	1	9002-
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> (C) ID=8.4 OD=22	1-09985-188-0	08	1	9002-
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=18	1-09985-173-0	01	1	9002-
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=8.4 OD=16	1-09985-174-0	01	1	9002-
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C) WHITE	1-71798-002-1	04	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A) WHITE	1-71736-578-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C) WHITE	1-71798-002-1	02	1	9002-
72	SHEET DOOR MIRROR<D32> (B) ID=8.5 T=3 OD=30	1-71736-247-0	04	1	9002-
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (C) D=8 2-HOLE	1-71737-444-0	01	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-
90	BRACKET; MIRROR STAY DOOR MIRROR<D32>	1-71737-764-0	01	1	9002-
90	BRACKET; MIRROR STAY DOOR MIRROR<D32>	1-71737-763-0	01	1	9002-
92	BOLT; STAY BRKT,MIRROR DOOR MIRROR<D32> M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-

13 63 66 66 66 71 49 63 59 66 50 89 72 60 63 59 66 72 63 66 66 66 71 50 72 59 17 70 72 66 21 37 38 71 89 72 39 63 66 13 89 93 95 63 66 96 94 60 17 49 66 30 89 72 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (D)	1-71737-730-0	01	1	9002-9306
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-729-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-730-0	01	1	9307-9404
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-919-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-917-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-920-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-730-0	01	1	9405-
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (C) M8 FLANGE	1-09984-122-0	04	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D) M5	1-09984-124-0	04	1	9307-
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	02	1	9307-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9307-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9307-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-732-0	01	1	9002-
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9002-9306
38	WASHER; LK,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.2	1-09985-177-0	01	1	9002-
39	WASHER; PL,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.4 OD=16	1-09985-174-0	01	1	9002-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-738-0	01	1	9002-
49	STAY; MIRROR SIDE DOOR MIRROR<D32>	1-71737-735-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-733-0	01	1	9002-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-803-0	01	1	9002-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-778-0	01	1	9307-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71798-001-0	01	1	9307-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9>	1-71737-802-0	01	1	9002-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-779-0	01	1	9002-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-780-2	01	1	9002-
59	WASHER; LK DOOR MIRROR<D32> (C)	1-09985-177-0	04	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32> (A)	1-09985-177-0	02	1	9002-
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-180-0	01	1	9002-
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> (C) ID=8.4 OD=22	1-09985-188-0	08	1	9002-
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=18	1-09985-173-0	01	1	9002-
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=8.4 OD=16	1-09985-174-0	01	1	9002-
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C) WHITE	1-71798-002-1	04	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A) WHITE	1-71736-578-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C) WHITE	1-71798-002-1	02	1	9002-
72	SHEET DOOR MIRROR<D32> (B) ID=8.5 T=3 OD=30	1-71736-247-0	04	1	9002-
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (C) D=8 2-HOLE	1-71737-444-0	01	1	9002-
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-
93	BOLT; BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X45 W/LK&PL WASHER	1-09980-542-0	01	1	9002-
94	HOLDER; BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-755-0	01	1	9002-
95	GASKET; NYLON,BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-290-1	01	1	9002-
96	CAP; MIRROR STAY EXC. DOOR MIRROR<D32>	1-71737-292-0	01	1	9002-

17 13 53 26 25 134 14 85 87 132 85 133 86 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-026-1	01	1	9002-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (D)	1-71737-730-0	01	1	9002-9306
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-729-0	01	1	9002-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-730-0	01	1	9307-9404
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-919-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-917-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-920-1	01	1	9307-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-730-0	01	1	9405-
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-924-0	01	1	9307-
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> PIVOT ID=22.2	1-71707-152-1	01	1	9307-
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (C) M8 FLANGE	1-09984-122-0	04	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D) M5	1-09984-124-0	04	1	9307-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9307-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9307-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9307-
53	PIVOT; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-645-1	01	1	9307-
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9307-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9307-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-704-0	02	1	9307-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-934-0	01	1	9307-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-933-0	01	1	9307-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-935-0	01	1	9307-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-928-0	01	1	9307-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	9307-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-929-0	01	1	9307-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	03	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
