Isuzu WW
▶
TRUCKS
▶
FTR
▶
11029 - FTR(RHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#25381) — 69 parça
◀

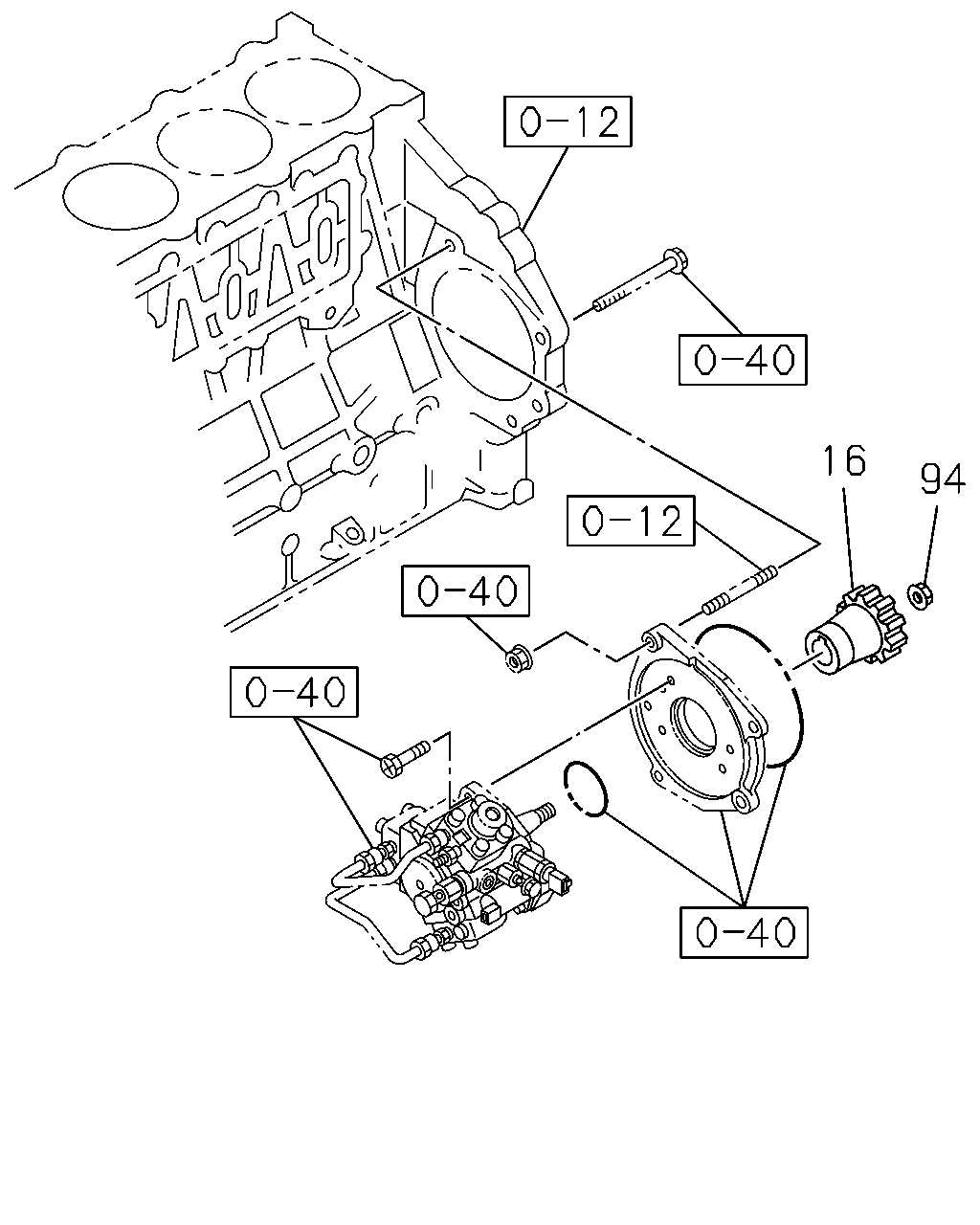

[020A] GEAR;INJ PUMP (2 parça)

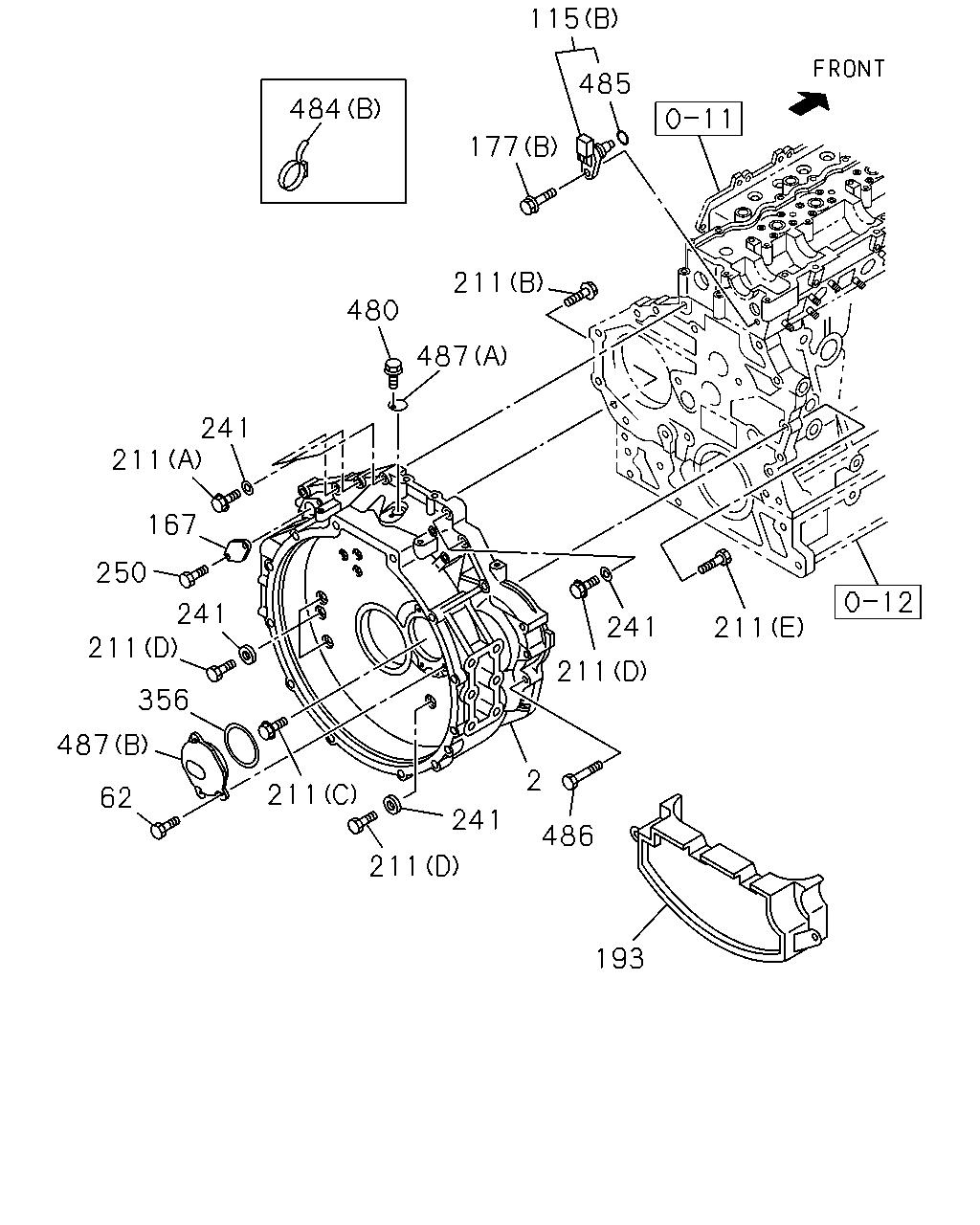

[020A] FIXING;FLYWHEEL HOUSING,COVER NO.2 (24 parça)

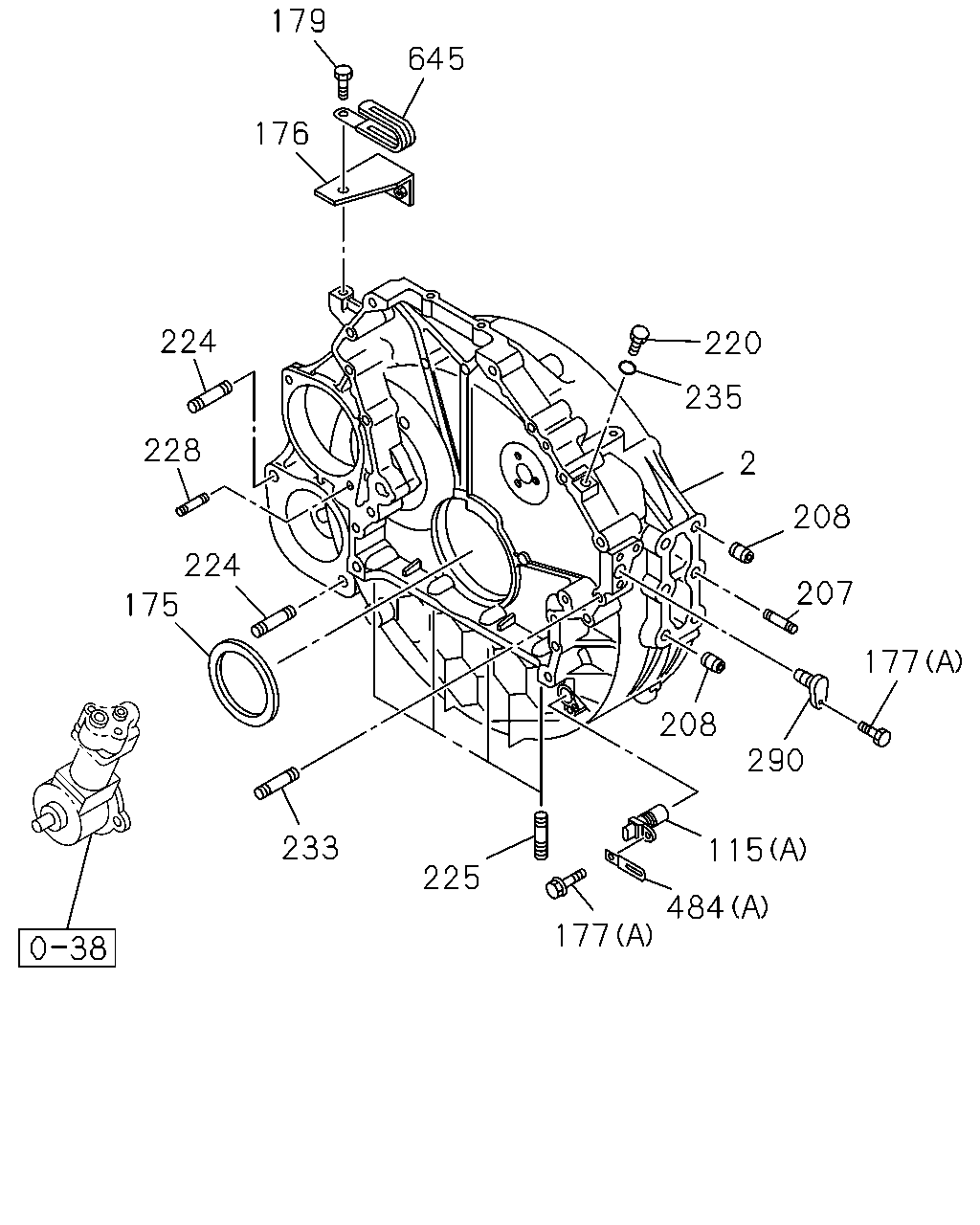

[020A] FIXING;FLYWHEEL HOUSING,COVER NO.1 (24 parça)

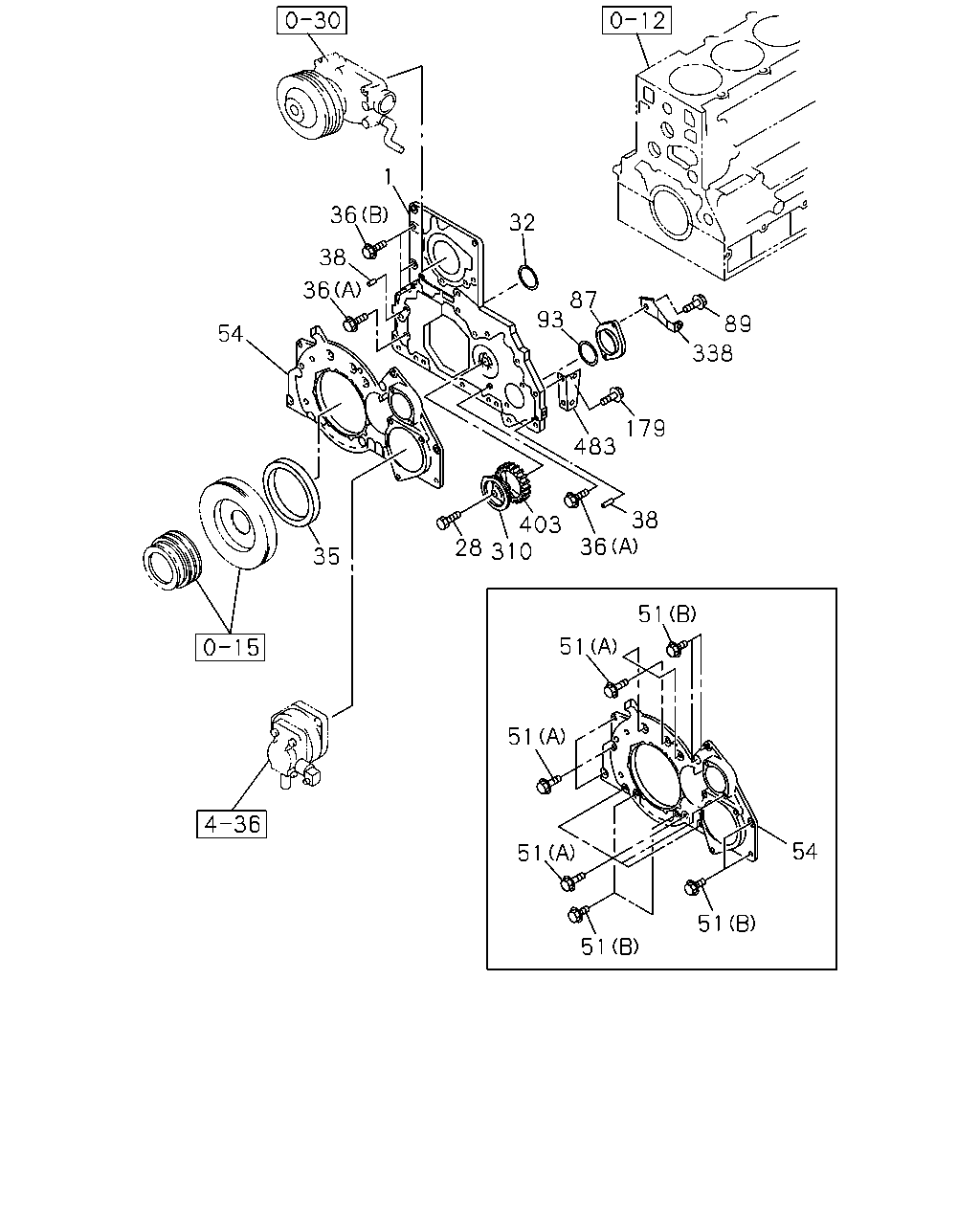

[020A] TIMING GEAR CASE (19 parça)
▶
16
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
GEAR; INJ PUMP DRIVE
Z=35
8-97601-153-1
01
1
0609-
94
NUT; GEAR
M14 FLANGE
0-91180-214-0
01
1
0609-
179
645
176
224
220
235
228
2
208
224
207
175
177
208
290
233
115
225
484
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-97609-998-1
01
1
0609-
115
SENSOR; REVOLUTION,ENG SPD
(A)
8-97606-943-0
01
1
0609-
115
SENSOR; REVOLUTION,ENG SPD
(B)
8-98019-024-0
01
1
0609-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
0609-
176
BRACKET; HARNESS
1-82698-497-0
01
1
0609-
177
BOLT; SENSOR
(B) M6X12 FLANGE
0-28050-612-0
01
1
0609-
177
BOLT; SENSOR
(A) M6X16 FLANGE
0-28050-616-0
02
1
0609-
179
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0609-
207
STUD; ENG FOOT
M12X10 L=55
0-43211-255-0
06
1
0609-
207
STUD; ENG FOOT
M12X24 L=104
8-94390-111-0
02
1
0609-
208
DOWEL; ENG FOOT
9-43269-009-1
04
1
0609-
220
PLUG; GEAR CHECK HOLE
M12X10
1-09605-125-0
01
1
0609-1008
220
PLUG; GEAR CHECK HOLE
M12X10
5-13265-001-0
01
1
1009-
224
STUD; STARTER
M14X35 L=56
0-44011-435-0
02
1
0609-
225
STUD; OIL PAN
M8X28 L=38
8-94396-512-0
06
1
0609-
228
STUD; AIR CMPR
M12X35 L=53
0-44011-235-0
01
1
0609-
233
STUD; BRKT
M12X67 L=82
1-09302-112-0
01
1
0609-
235
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
1-09630-084-0
01
1
0609-1312
235
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
8-98251-344-0
01
1
1401-
290
PLUG; SENSOR HOLE
8-97101-974-0
01
1
0609-
484
CLIP; BAND
(A) L=80
5-09700-307-1
01
1
0609-
484
CLIP; BAND
(B) L=140
8-97122-360-0
01
1
0609-
645
CLIP; HARNESS
ID=18 L=44
8-94225-185-0
01
1
0703-0801
645
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
01
1
0802-
115
485
484
177
211
480
487
241
211
167
250
241
211
241
211
211
356
487
2
211
62
241
486
211
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-97609-998-1
01
1
0609-
62
BOLT; COVER
M8X14 FLANGE
0-28080-814-0
03
1
0609-
115
SENSOR; REVOLUTION,ENG SPD
(A)
8-97606-943-0
01
1
0609-
115
SENSOR; REVOLUTION,ENG SPD
(B)
8-98019-024-0
01
1
0609-
167
COVER; OIL
1-11219-163-0
01
1
0609-
177
BOLT; SENSOR
(B) M6X12 FLANGE
0-28050-612-0
01
1
0609-
177
BOLT; SENSOR
(A) M6X16 FLANGE
0-28050-616-0
02
1
0609-
193
SPACER; STAY TO OIL,PAN
8-98019-738-1
01
1
0609-
211
BOLT; HSG
(E) M12X60
0-16856-260-0
01
1
0609-
211
BOLT; HSG
(D) M12X70
0-16956-270-0
08
1
0609-
211
BOLT; HSG
(A) M12X90
0-16956-290-0
03
1
0609-
211
BOLT; HSG
(B) M10X50 FLANGE
0-28151-050-0
01
1
0609-
211
BOLT; HSG
(C) M14X27 FLANGE
8-94393-995-0
01
1
0609-
241
WASHER; PL,HSG
ID=12.5 OD=22
8-94393-140-1
12
1
0609-
250
BOLT; COVER,OIL
M8X18 FLANGE
0-28080-818-0
02
1
0609-
356
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110
8-94394-186-0
01
1
0609-
480
BOLT; COVER
M6X12 FLANGE
0-28050-612-0
01
1
0609-0805
484
CLIP; BAND
(A) L=80
5-09700-307-1
01
1
0609-
484
CLIP; BAND
(B) L=140
8-97122-360-0
01
1
0609-
485
GASKET; SENSOR
ID=14.2 OD=18.8
8-97369-404-0
02
1
0609-
486
BOLT; AIR CMPR
M12X15
0-28156-215-0
01
1
0609-
487
COVER; HOLE
(B)
8-94394-513-1
01
1
0609-0805
487
COVER; HOLE
(B)
8-98023-824-1
01
1
0806-
487
COVER; HOLE
(A)
8-97600-831-0
01
1
0609-0805
1
36
32
38
36
87
93
89
54
338
179
483
38
403
28
310
36
35
51
51
51
54
51
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CASE; TIMING GEAR
8-94396-434-6
01
1
0609-
28
BOLT; DRIVE GEAR
M8X28
8-94399-256-0
03
1
0609-
32
GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1
8-97028-748-1
01
1
0609-
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137
8-97602-378-3
01
1
0609-
36
BOLT; GEAR CASE
(A) M8X30 FLANGE
0-28050-830-0
02
1
0609-0609
36
BOLT; GEAR CASE
(A) M8X30 FLANGE
0-28650-830-0
02
1
0610-
36
BOLT; GEAR CASE
(B) M8X35 FLANGE
0-28050-835-0
04
1
0609-
38
PIN; GEAR CASE COVER
L=22
8-94483-674-0
02
1
0609-
51
BOLT; GEAR CASE COVER
(A) M8X40 FLANGE
0-28050-840-0
11
1
0609-
51
BOLT; GEAR CASE COVER
(B) M8X20 FLANGE
0-28650-820-0
06
1
0609-
54
COVER; GEAR CASE
8-94393-304-1
01
1
0609-
87
COVER; TACHOMETER DRIVE
8-94396-370-0
01
1
0609-
89
BOLT; ELBOW
M8X18 FLANGE
0-28080-818-0
02
1
0609-
93
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7
1-09623-465-0
01
1
0609-
179
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0609-
310
SHAFT; IDLE GEAR
8-94394-806-0
01
1
0609-
338
BRACKET; CLIP,HARNESS
1-82699-889-0
01
1
0609-
403
GEAR; IDLE,FRONT
Z=33
8-94395-943-1
01
1
0609-
483
BRACKET; WATER DUCT
8-94394-405-1
01
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
