0-13 — OIL PAN AND LEVEL GAUGE
(#25378) — 29 parça
◀

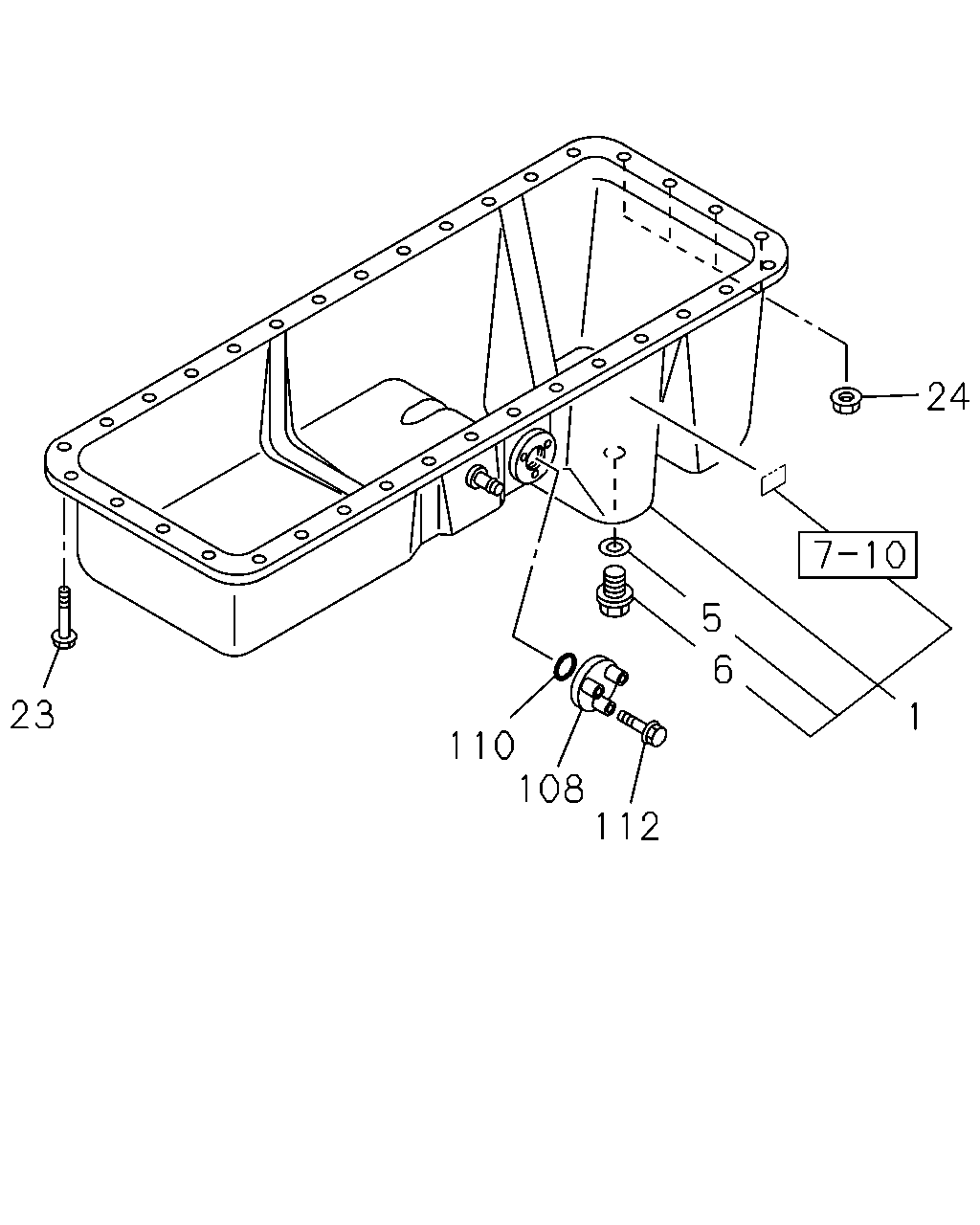

[013A] OIL PAN (16 parça)

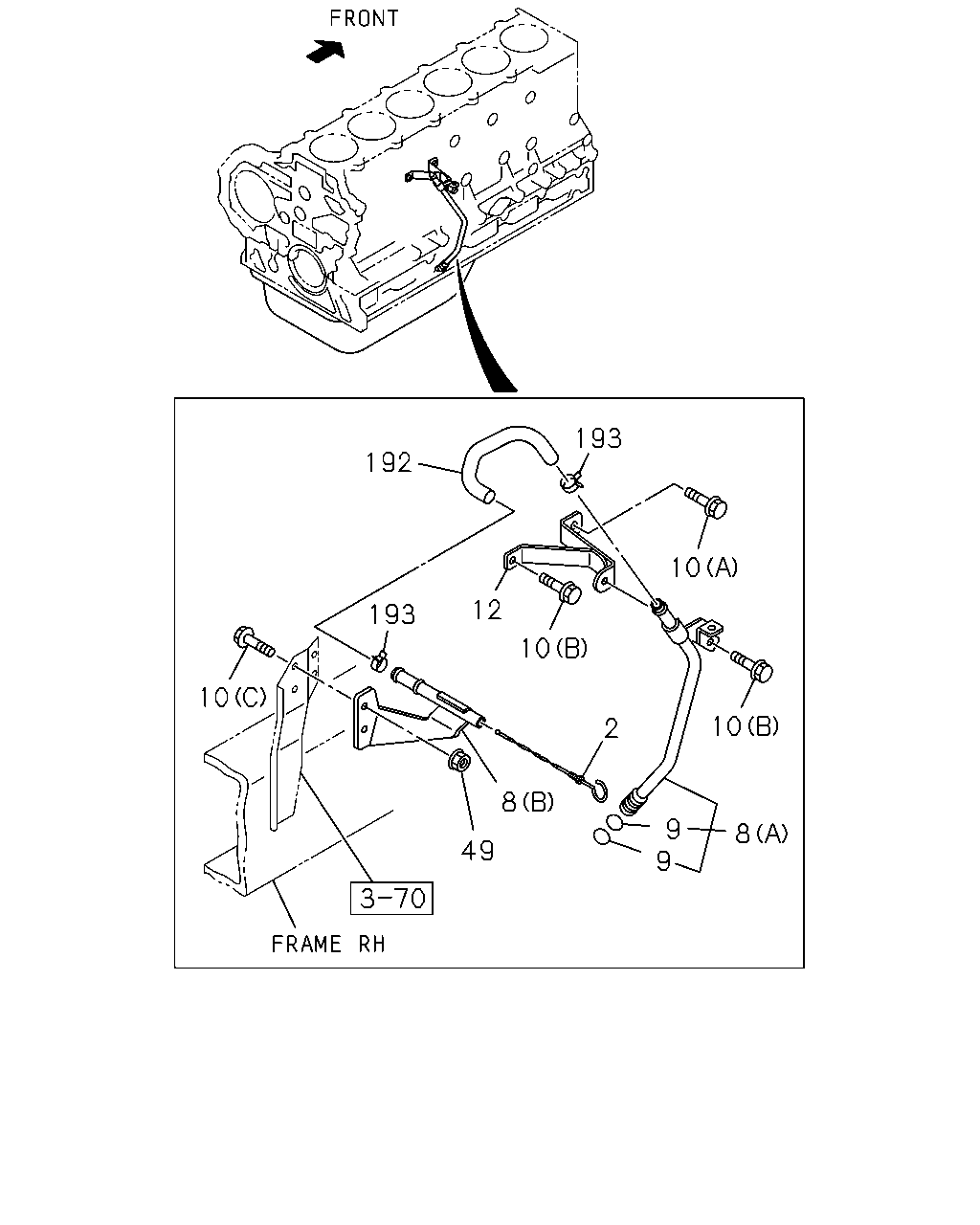

[013A] OIL GAUGE (13 parça)
▶
24
5
6
23
1
110
108
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98021-315-0
01
1
0609-0612
1
PAN ASM; OIL
8-98061-544-0
01
1
0701-0701
1
PAN ASM; OIL
8-98071-469-0
01
1
0701-0904
1
PAN ASM; OIL
8-98061-544-0
01
1
0905-1402
1
PAN ASM; OIL
8-98252-601-0
01
1
1403-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0609-1402
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1403-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
0609-
23
BOLT; OIL PAN
M8X28 FLANGE
8-97329-626-0
02
1
0702-
23
BOLT; OIL PAN
M8X18 FLANGE
0-28080-818-0
28
1
0609-0701
23
BOLT; OIL PAN
M8X18 FLANGE
0-28080-818-0
26
1
0702-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
06
1
0609-
108
COVER; OIL PAN
8-97609-994-0
01
1
0609-1402
110
GASKET; SW,OIL LEVEL
ID=27
1-09623-355-0
01
1
0609-0609
110
GASKET; SW,OIL LEVEL
ID=27
8-98056-488-0
01
1
0610-1402
112
BOLT; SW,OIL LEVEL
M6X25 FLANGE
0-28050-625-0
03
1
0609-1402
193
192
10
12
193
10
10
10
2
8
9
9
8
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98054-702-0
01
1
0609-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98041-061-0
01
1
0609-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98024-021-1
01
1
0609-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0609-
10
BOLT; GUIDE TUBE
(A) M8X16 FLANGE
0-28050-816-0
01
1
0609-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE
0-28050-820-0
02
1
0609-
10
BOLT; GUIDE TUBE
(C) M8X20 FLANGE
0-28650-820-0
02
1
0609-
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-98041-063-0
01
1
0609-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
02
1
0609-
192
HOSE; GUIDE TUBE
L=277
8-98054-809-0
01
1
0609-0701
192
HOSE; GUIDE TUBE
L=300
1-09360-978-0
01
1
0702-0703
192
HOSE; GUIDE TUBE
L=277
8-98054-809-0
01
1
0704-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
0609-
