6-84 — BACK TRIM (#2537) — 29 parça

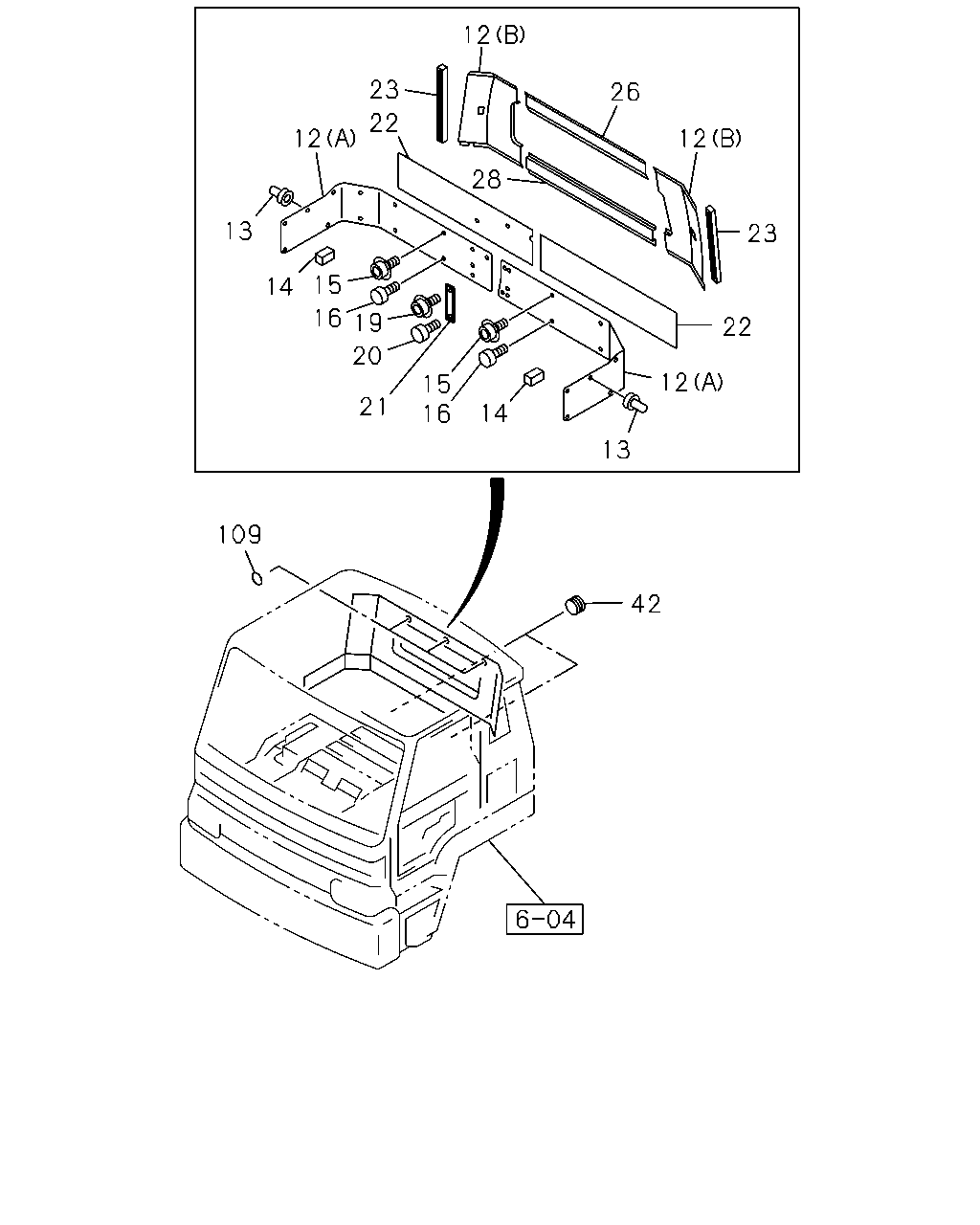

çizim 95371
12 23 26 22 12 12 28 13 23 15 14 16 19 22 20 12 15 16 21 14 13 109 42
BalonParca AdiParca NoAdetTipApplied Date
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-506-2 01 1 9002-9306
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-577-1 01 1 9307-
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-505-2 01 1 9002-9306
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-576-1 01 1 9307-
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-564-1 01 1 9002-9306
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-631-0 01 1 9307-
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-563-1 01 1 9002-9306
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-630-0 01 1 9307-
13 CLIP; BED ROOM TRIM 1-09987-119-1 04 1 9002-
14 INSULATOR; FLOOR SIDE REAR 1-73377-160-0 02 1 9002-
15 HOOK; BED ROOM TRIM
M4X14 HOOK MALE 		1-09981-370-0 08 1 9002-
16 CLIP; TRIM,BED ROOM
D6X23 BLACK 		1-09987-114-0 10 1 9002-
19 HOOK; RET
M4X14 HOOK MALE 		1-09981-370-0 01 1 9002-
20 FASTENER; RET
D6X23 BLACK 		1-09987-114-0 01 1 9002-
21 RETAINER; TRIM,BED ROOM 1-73347-507-0 01 1 9002-9306
21 RETAINER; TRIM,BED ROOM 1-73347-603-0 01 1 9307-
22 SHEET; SILENCER,CAB FLOOR 1-73367-013-0 01 1 9002-
22 SHEET; SILENCER,CAB FLOOR 1-73367-012-0 01 1 9002-
23 FINISHER; BACK INNER PANEL
INTERIOR FULL TRIM<WM3> 		1-73337-300-0 02 1 9002-9306
23 FINISHER; BACK INNER PANEL
INTERIOR FULL TRIM<WM3> 		1-73337-438-0 02 1 9307-
23 FINISHER; BACK INNER PANEL
EXC. INTERIOR FULL TRIM<WM3> 		1-73337-264-0 02 1 9002-
26 TRIM; ROOM,BACK WINDOW CENTER UPR
INTERIOR FULL TRIM<WM3> 		1-73347-567-1 01 1 9002-9306
26 TRIM; ROOM,BACK WINDOW CENTER UPR
INTERIOR FULL TRIM<WM3> 		1-73347-632-0 01 1 9307-
28 TRIM; ROOM,BACK WINDOW CENTER LWR
INTERIOR FULL TRIM<WM3> 		1-73347-569-1 01 1 9002-9306
28 TRIM; ROOM,BACK WINDOW CENTER LWR
INTERIOR FULL TRIM<WM3> 		1-73347-633-0 01 1 9307-
42 SEAL; BACK OUTER PANEL
OD=36 		1-76778-007-0 07 1 9002-9306
42 SEAL; BACK OUTER PANEL
OD=36 		5-76777-035-0 07 1 9307-
109 SEAL; HOLE
EXC. INTERIOR FULL TRIM<WM3> WHITE 		1-76777-076-0 03 1 9104-
109 SEAL; HOLE
EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.4 BLACK 		1-76798-020-0 03 1 9104-
