Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#25360) — 42 parça
◀

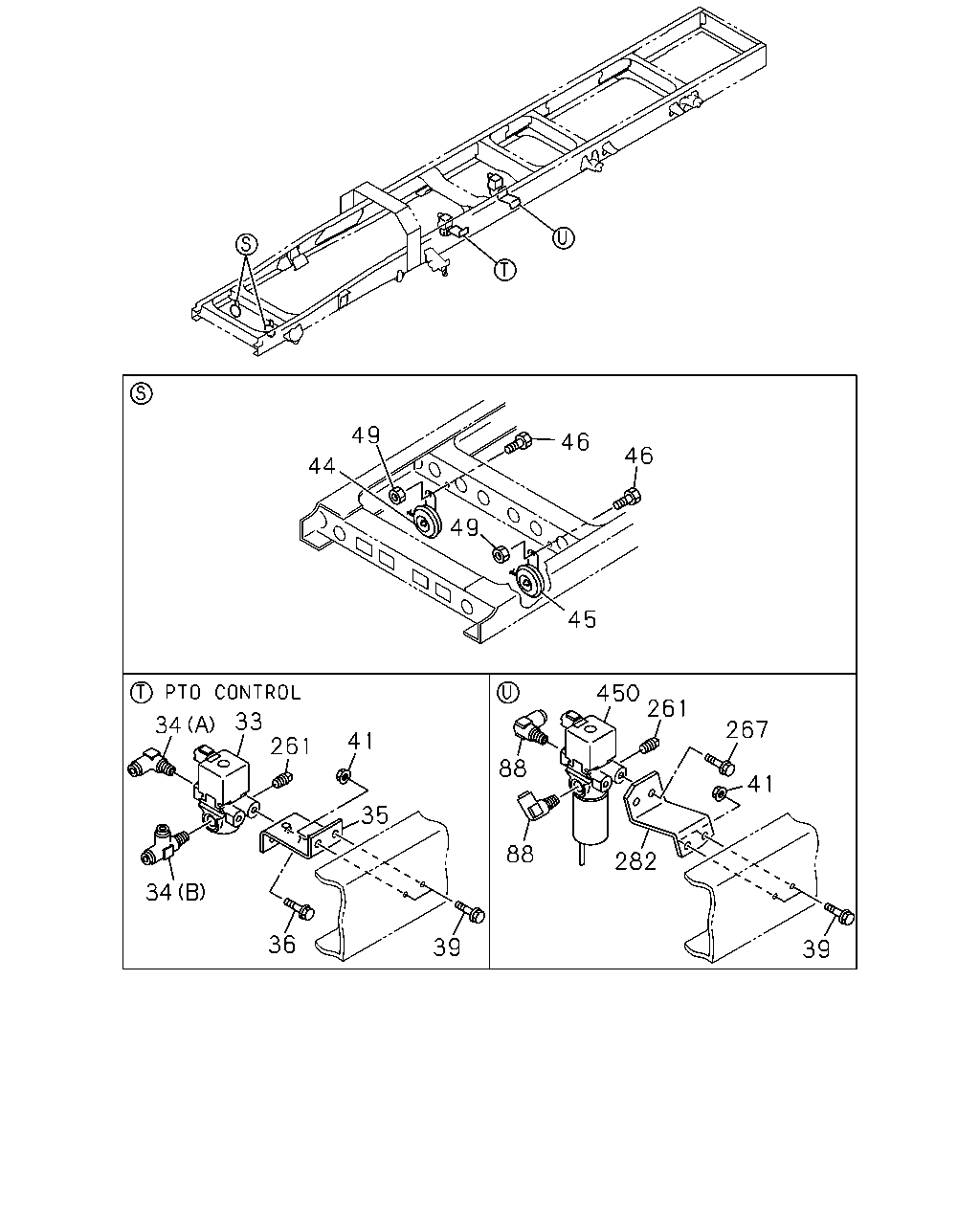

[828A] FRAME SIDE (21 parça)
[828A] CAB SIDE NO.1 (9 parça)
[828A] CAB SIDE NO.2 (12 parça)
▶
49
46
46
44
49
45
450
261
33
261
34
267
41
88
41
35
88
282
34
36
39
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6>
1-82563-871-2
01
1
0609-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0609-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
0609-
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6>
1-47471-374-1
01
1
0609-1004
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6>
8-98154-633-0
01
1
1005-
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE
0-28650-820-0
02
1
0609-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE
0-28650-830-0
02
1
0609-
39
BOLT; BRKT,MAG VLV
M8X30 FLANGE
0-28650-830-0
02
1
0609-
41
NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE
0-91180-108-0
02
1
0609-
41
NUT; BRKT,MAG VLV
M8 FLANGE
0-91180-108-0
02
1
0609-
44
HORN; HIGH NOTE
1-83410-065-1
01
1
0609-
45
HORN; LOW NOTE
1-83410-064-1
01
1
0609-
46
BOLT; HORN TO BODY
M8X25 FLANGE
0-28650-825-0
02
1
0609-
49
NUT; HORN TO BODY
M8 FLANGE
0-91180-108-0
02
1
0609-
88
CONNECTOR; MAG VLV
DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0609-
261
PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
0609-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0609-
267
BOLT; VLV TO BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0609-
282
BRACKET; MAG VLV
1-47471-360-0
01
1
0609-
450
VALVE; MAG
8-97376-939-3
01
1
0609-0910
450
VALVE; MAG
8-97633-075-0
01
1
0911-
1
180
377
31
58
59
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
1-83470-060-1
01
1
0609-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V
1-82550-187-1
01
1
0609-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
58
BUZZER; AIR PRESSURE WARNING
METRO DENSO
1-83460-075-0
01
1
0609-0612
58
BUZZER; AIR PRESSURE WARNING
METRO DENSO
8-98069-859-0
01
1
0701-
59
SCREW; BUZZER
M5X14
8-94279-325-0
01
1
0609-
94
SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER
0-74160-510-0
02
1
0609-
180
NUT; FLASHER UNIT
M6 FLANGE
0-91180-106-0
01
1
0609-
377
NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE
0-91180-106-0
02
1
0609-
22
24
25
29
24
531
331
123
331
31
121
727
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
24
RELAY; LIGHTING
24V 12.5A PANASONIC
8-97262-933-0
02
1
0609-
25
RELAY; TAIL LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
29
RELAY; HORN
24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V
1-82550-187-1
01
1
0609-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
121
RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
123
RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
331
RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC
8-97262-933-0
02
1
0609-
531
RELAY; MAIN
24V
1-82550-308-1
01
1
0609-1005
531
RELAY; MAIN
24V
8-98167-175-0
01
1
1006-
727
RELAY; START CUT
24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
