◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11028 - FSR(RHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#25349) — 8 parça

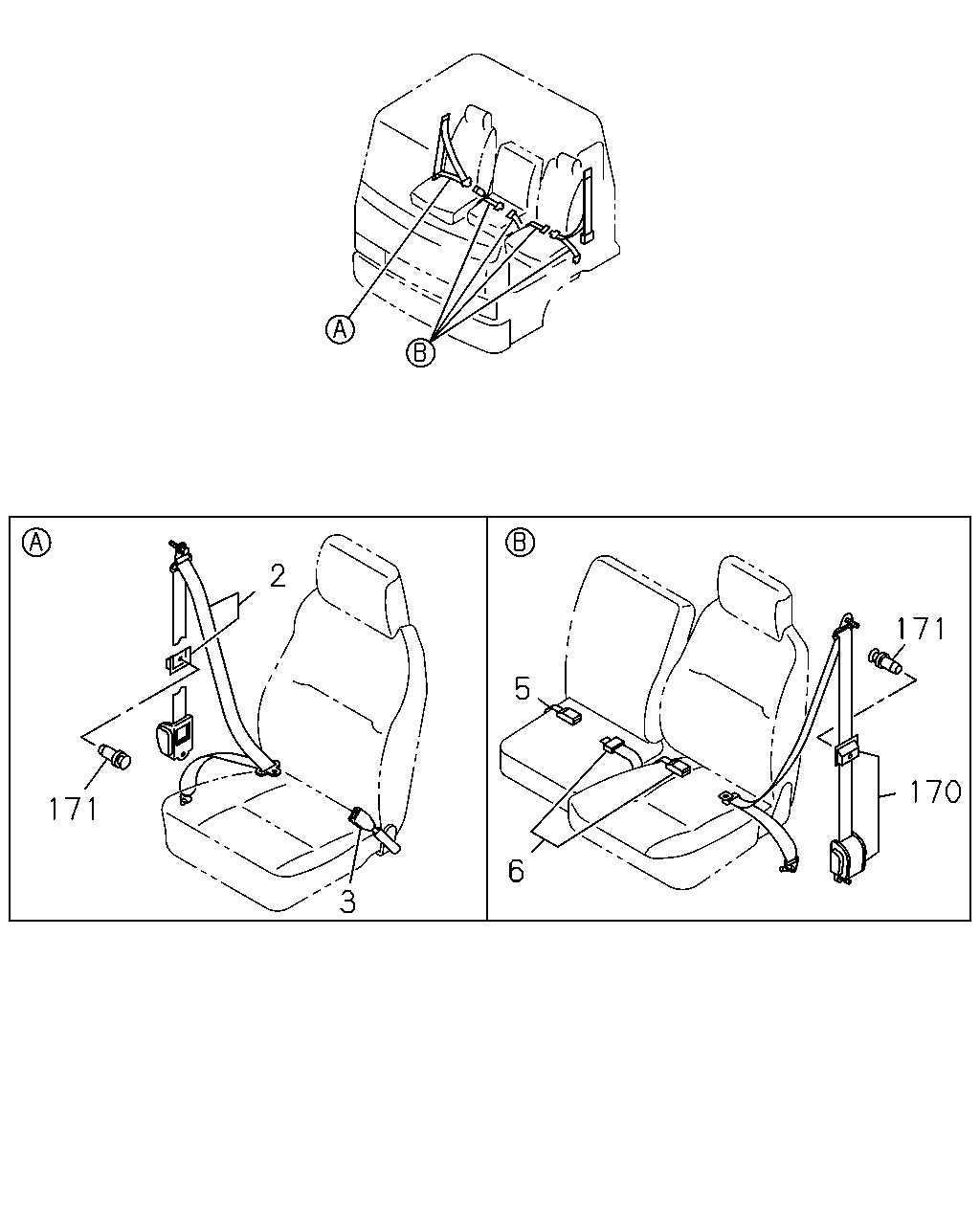

çizim 26472
2 5 170 171 6 3 171
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-938-3 01 1 0609-0805
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		8-98120-815-1 01 1 0806-
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 0609-
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-553-1 01 1 0609-
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-547-5 01 1 0609-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-550-4 01 1 0609-0805
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		8-98120-817-1 01 1 0806-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0609-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
