◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11028 - FSR(RHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#25348) — 237 parça

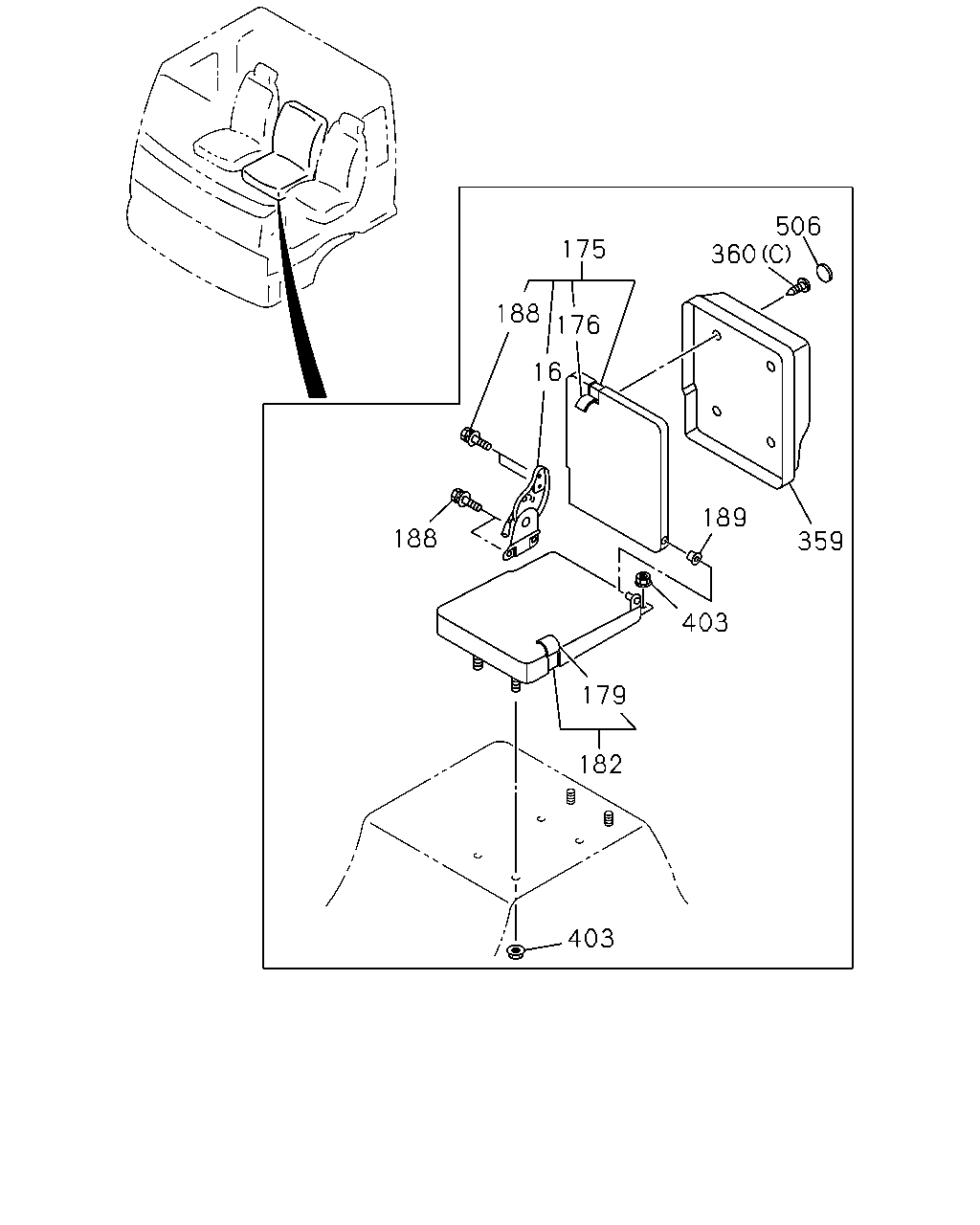

çizim 25090
506 360 175 188 176 16 189 188 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
CENTER SEAT 3 CREWS<SA1> 		1-75418-062-1 01 1 0609-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75026-855-3 01 1 0609-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75026-854-3 01 1 0609-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75116-651-1 01 1 0609-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-650-1 01 1 0609-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75116-638-1 01 1 0609-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75116-637-1 01 1 0609-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> 		1-75026-840-4 01 1 0609-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-75026-839-4 01 1 0609-
188 BOLT; BACK TO CUSHION
CENTER SEAT 3 CREWS<SA1> M10X16 FLANGE 		1-75198-053-0 04 1 0609-
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT 3 CREWS<SA1> 		8-97854-900-0 01 1 0609-
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		1-72538-275-4 01 1 0609-1006
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (D) 		1-09983-165-0 02 1 0609-1006
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0609-0612
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 0609-0612
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0609-1006
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> M8 FLANGE 		1-75538-207-0 04 1 0609-0703
403 NUT; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> M8 FLANGE 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-09983-180-3 04 1 0609-1006
506 CAP; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-09983-180-3 02 1 1007-

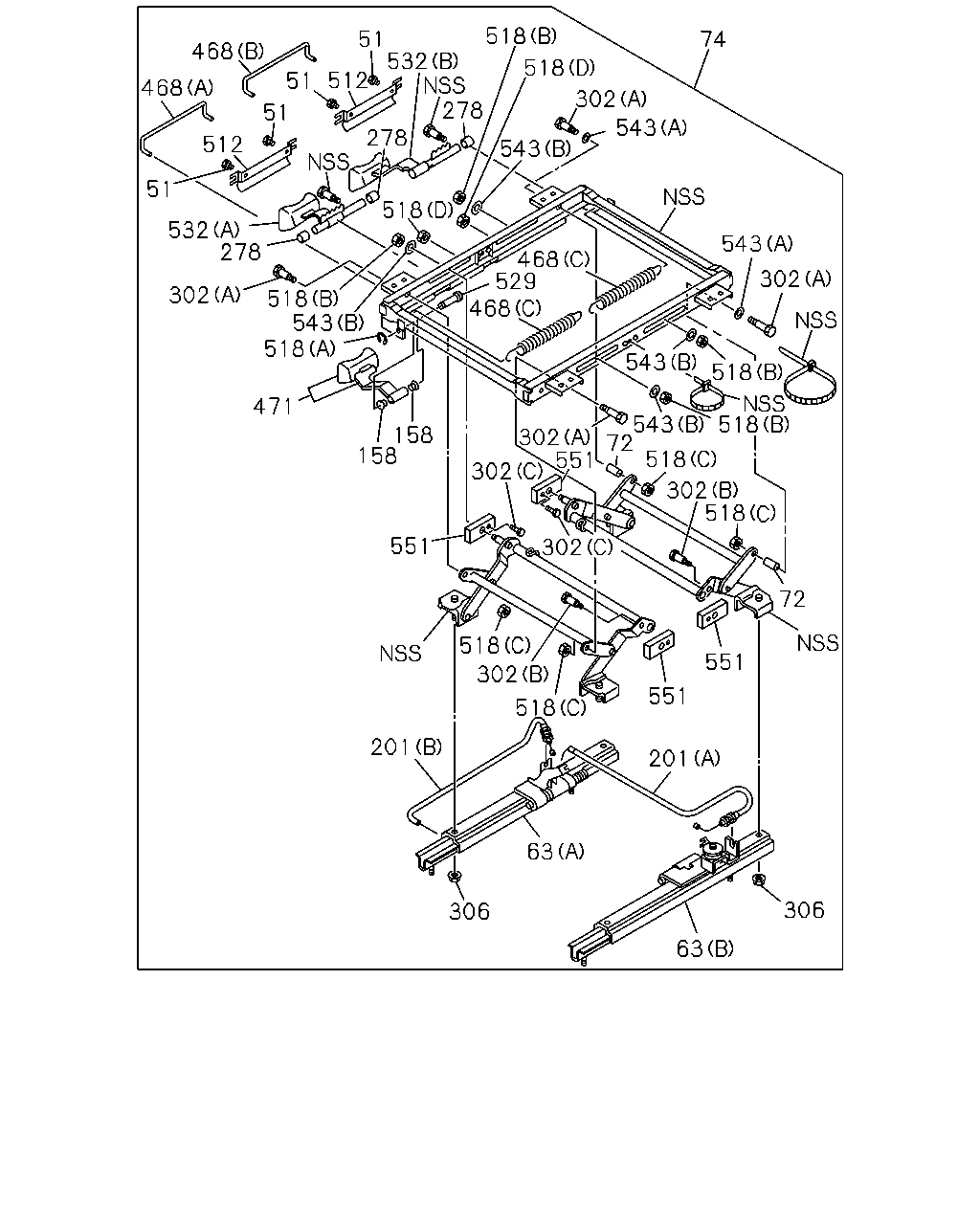

çizim 26642
518 51 532 278 74 468 518 512 51 468 302 51 543 278 512 543 51 518 532 278 543 468 529 468 302 302 518 543 518 543 518 518 471 302 551 543 72 158 158 518 302 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-325-1 04 1 0609-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0609-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0609-
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-294-1 01 1 0609-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-323-0 01 1 0609-
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-334-1 02 1 0609-1502
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-330-3 01 1 0609-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		8-98291-644-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0609-
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 0609-
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 0609-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-244-0 03 1 0609-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) 		1-75518-266-2 02 1 0609-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-270-1 04 1 0609-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-336-1 02 1 0609-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0609-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> M8 FLANGE 		1-75538-207-0 12 1 0609-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0609-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0609-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0609-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 0609-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 0609-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 0609-
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0609-0710
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-243-1 02 1 0609-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0609-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-264-0 04 1 0609-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0609-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) M8 FLANGE 		8-94152-886-0 04 1 0609-
529 PIN; LINK 1-75518-262-0 01 1 0609-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-203-0 01 1 0609-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-204-1 01 1 0609-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) ID=8.4 		9-09160-508-0 04 1 0609-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-335-0 02 1 0609-1502
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		8-98291-669-0 02 1 1503-
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-265-0 04 1 0609-

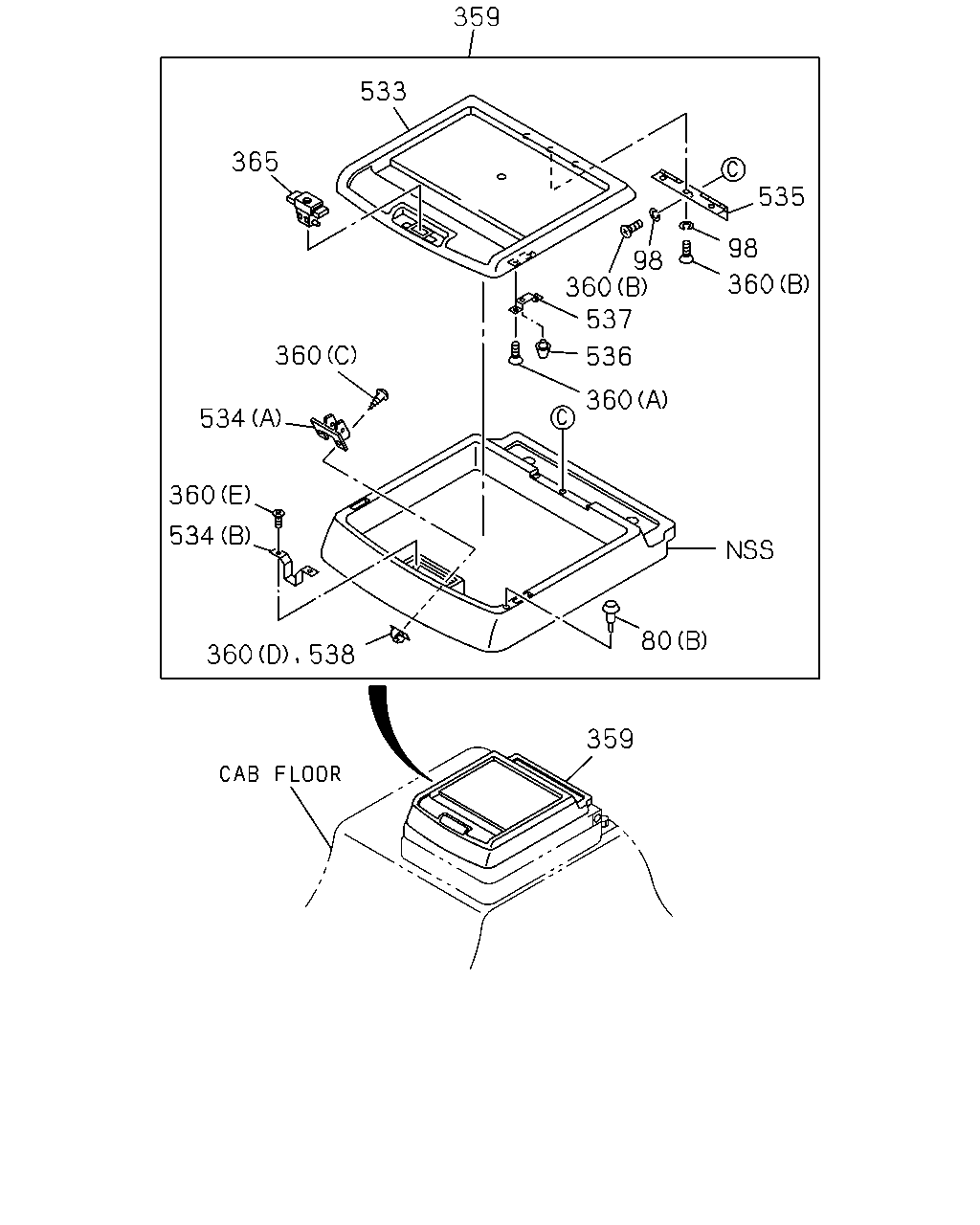

çizim 84107
359 533 365 535 98 98 360 537 360 360 536 360 534 360 534 80 359 538 360
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
CENTER SEAT 3 CREWS<SA1> (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (A) 		1-09987-123-0 01 1 0609-
98 WASHER; HINGE
CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0609-
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		1-72538-275-4 01 1 0609-1006
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (D) 		1-09983-165-0 02 1 0609-1006
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0609-0612
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 0609-0612
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0609-1006
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT
CENTER SEAT 3 CREWS<SA1> 		1-72538-180-0 01 1 0609-
533 LID; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-72538-277-1 01 1 0609-1006
533 LID; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> (A) 		1-72538-181-0 01 1 0609-1006
534 STRIKER; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-72447-391-1 01 1 0609-
536 RUBBER; CUSHION
CENTER SEAT 3 CREWS<SA1> 		5-09983-002-1 02 1 0609-1006
537 BRACKET; RUBBER
CENTER SEAT 3 CREWS<SA1> 		1-72548-057-1 02 1 0609-1006
538 GROMMET; SCREW
CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> 		1-09983-165-0 02 1 0609-1006

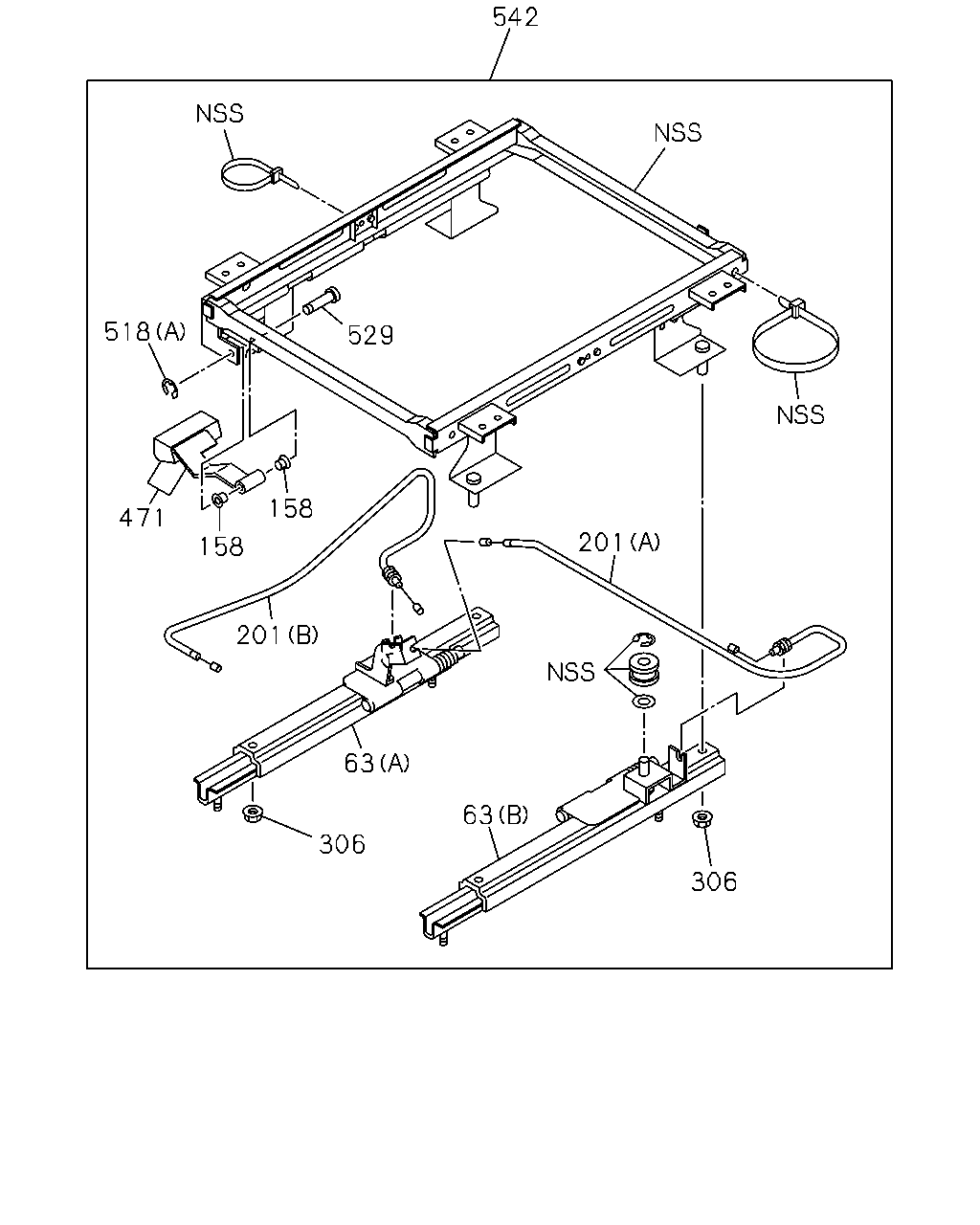

çizim 85258
542 518 529 158 471 201 158 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0609-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14) (A) 		1-75518-294-1 01 1 0609-
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-294-1 01 1 0609-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-323-0 01 1 0609-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0609-
201 CABLE; ADJ
(B) L=667 		1-75518-288-0 01 1 0609-
201 CABLE; ADJ
(A) L=605 		1-75518-289-1 01 1 0609-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0609-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> M8 FLANGE 		1-75538-207-0 12 1 0609-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0609-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0609-
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0609-0710
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0609-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-264-0 04 1 0609-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0609-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) M8 FLANGE 		8-94152-886-0 04 1 0609-
529 PIN; LINK 1-75518-262-0 01 1 0609-
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-282-3 01 1 0609-1502
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-282-3 01 1 0609-1502
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75518-282-3 01 1 0609-1502
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-655-0 01 1 1503-
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		8-98291-655-0 01 1 1503-
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		8-98291-655-0 01 1 1503-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0609-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		8-98291-659-0 01 1 1503-

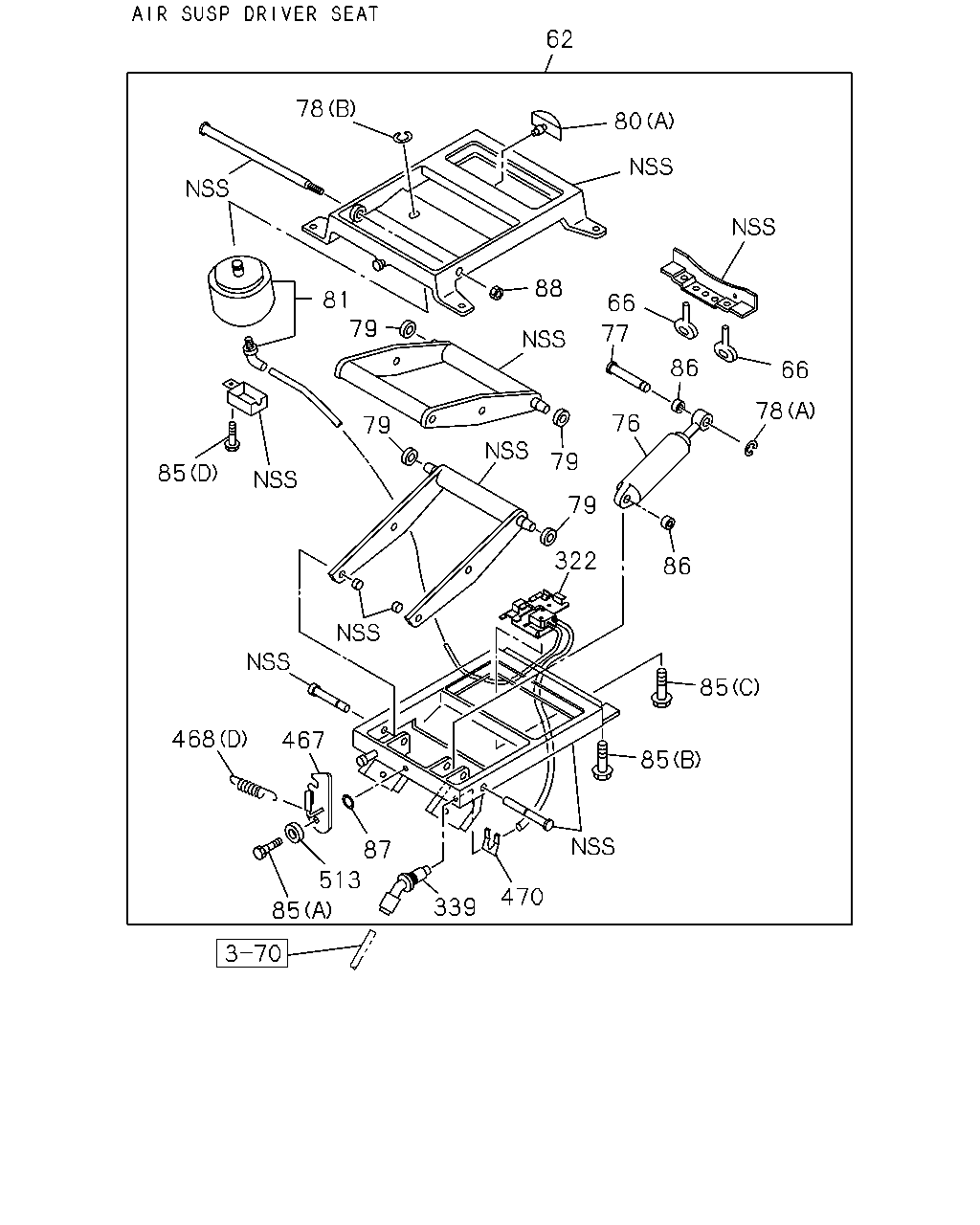

çizim 88189
78 62 80 66 78 86 66 77 76 79 79 322 86 85 85 470 339 87 513 85 467 468 85 79 81 79 88
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-8 01 1 0609-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404-
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 0609-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-139-0 01 1 0609-
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 0609-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 0609-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 0609-
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-159-0 04 1 0609-1403
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
CENTER SEAT 3 CREWS<SA1> (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> (A) 		1-09987-123-0 01 1 0609-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		1-75538-151-2 01 1 0609-1312
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) 		1-09980-577-1 01 1 0609-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-75538-208-1 02 1 0609-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0609-1312
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0609-
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		9-09150-508-0 01 1 0609-0710
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 0711-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75537-273-1 01 1 0609-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-3 01 1 0609-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75538-131-3 01 1 0609-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 0609-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0609-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (A) 		1-75518-206-0 01 1 0609-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (B) 		1-75518-207-0 01 1 0609-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) (C) 		1-75518-208-0 02 1 0609-
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 0609-
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 0609-

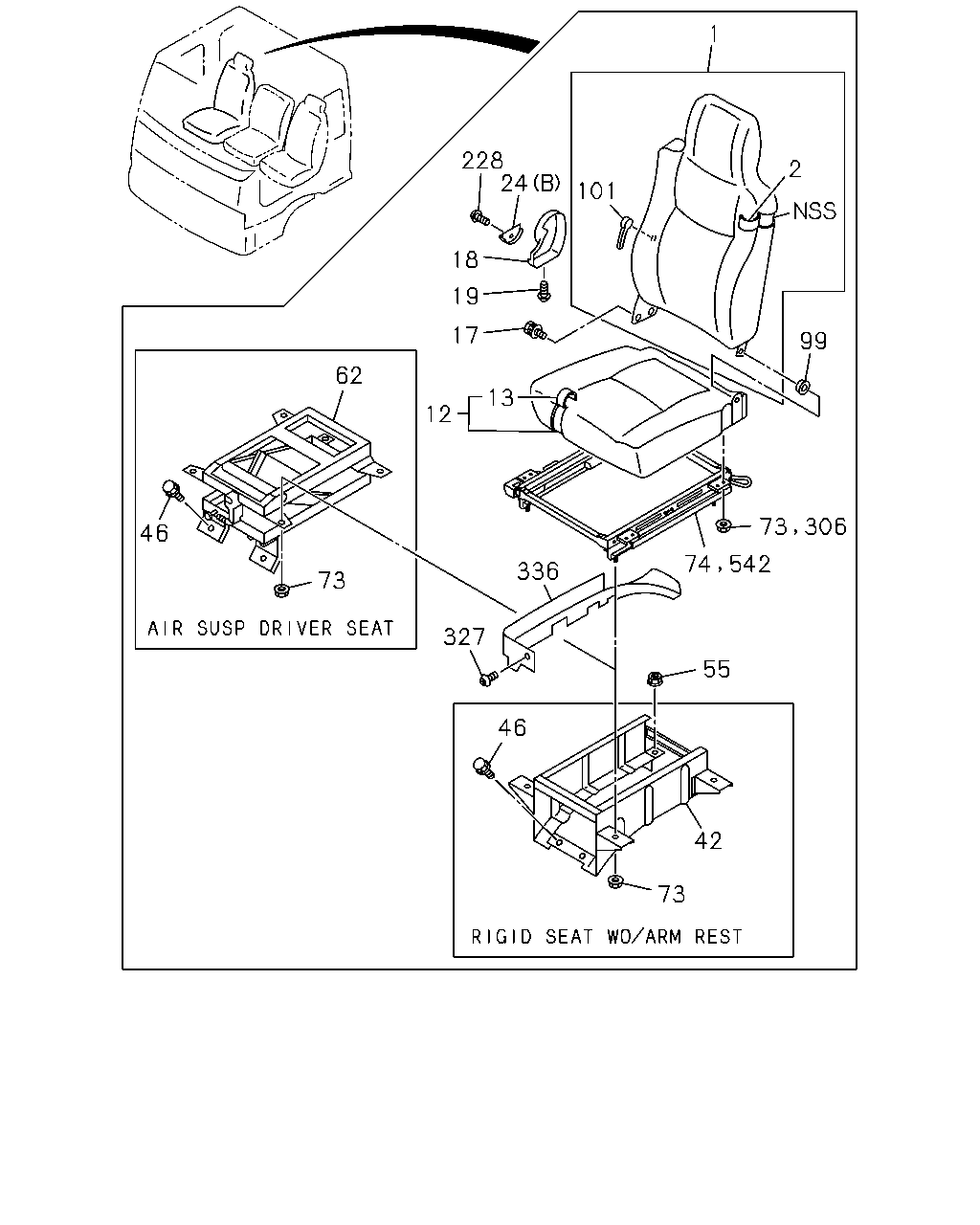

çizim 88209
1 228 24 2 101 18 19 17 99 62 13 12 46 336 73 327 55 46 42 73 73 306 542 74
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75208-068-2 01 1 0609-0901
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		8-98135-612-0 01 1 0902-
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75208-065-2 01 1 0609-0901
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		8-98135-611-0 01 1 0902-
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75208-062-3 01 1 0609-
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75208-069-2 01 1 0609-0901
1 BACK ASM; SEAT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		8-98135-615-0 01 1 0902-
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75208-067-3 01 1 0609-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) DRIVER 		1-75116-703-1 01 1 0609-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		1-75116-594-1 01 1 0609-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-602-1 01 1 0609-
2 COVER; TRIM,FRT SEAT,BACK
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-704-1 01 1 0609-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75116-702-1 01 1 0609-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75026-693-3 01 1 0609-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75026-698-1 01 1 0609-
12 CUSHION; SEAT,FRT
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75026-695-3 01 1 0609-
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75026-692-1 01 1 0609-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> DRIVER 		1-75116-681-1 01 1 0609-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> DRIVER 		1-75116-686-1 01 1 0609-
13 COVER; TRIM,FRT SEAT,CUSHION
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> DRIVER 		1-75116-683-1 01 1 0609-
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> DRIVER 		1-75116-680-1 01 1 0609-
17 BOLT; RECLINING
DRIVER M8X20 		8-97255-906-0 02 1 0609-
18 COVER; RECLINING
DRIVER DARK GRAY 		8-97867-020-0 01 1 0609-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0609-
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER DARK GRAY 		8-97867-021-0 01 1 0609-0710
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-066-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> (A) PASSENGER DARK GRAY 		8-97859-019-0 01 1 0609-
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0609-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0609-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0609-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-8 01 1 0609-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404-
73 NUT; ADJ,HEIGHT CONT
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8 FLANGE 		1-75538-207-0 04 1 0609-
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0609-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-330-3 01 1 0609-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		8-98291-644-0 01 1 1503-
99 BUSHING; SEAT BACK
DRIVER 		8-97854-087-0 01 1 0609-
101 LEVER ASM; LUMBAR
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) DRIVER 		5-75190-138-0 01 1 0609-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0609-0710
228 SCREW; KNOB
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER M4X6 		8-97042-273-0 01 1 0609-0710
228 SCREW; KNOB
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER M4X6 		8-97042-273-0 01 1 0711-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 12 1 0609-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> M8 FLANGE 		1-75538-207-0 12 1 0609-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) M8 FLANGE 		1-75538-207-0 14 1 0609-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0609-
327 CLIP; COVER
FABRIC SEAT W/RECLINING<SFQ> 		1-09987-273-0 02 1 0609-
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-09987-273-0 02 1 0609-
336 COVER; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-75518-303-0 01 1 0609-
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-282-3 01 1 0609-1502
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		1-75518-282-3 01 1 0609-1502
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		1-75518-282-3 01 1 0609-1502
542 ADJUSTER ASM; SEAT SLIDE
HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-655-0 01 1 1503-
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> HIGH ROOF<S2F> EXC. DELUXE CAB(W14) 		8-98291-655-0 01 1 1503-
542 ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> LOW ROOF<6XQ> 		8-98291-655-0 01 1 1503-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		1-75518-286-3 01 1 0609-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> LOW ROOF<6XQ> 		8-98291-659-0 01 1 1503-

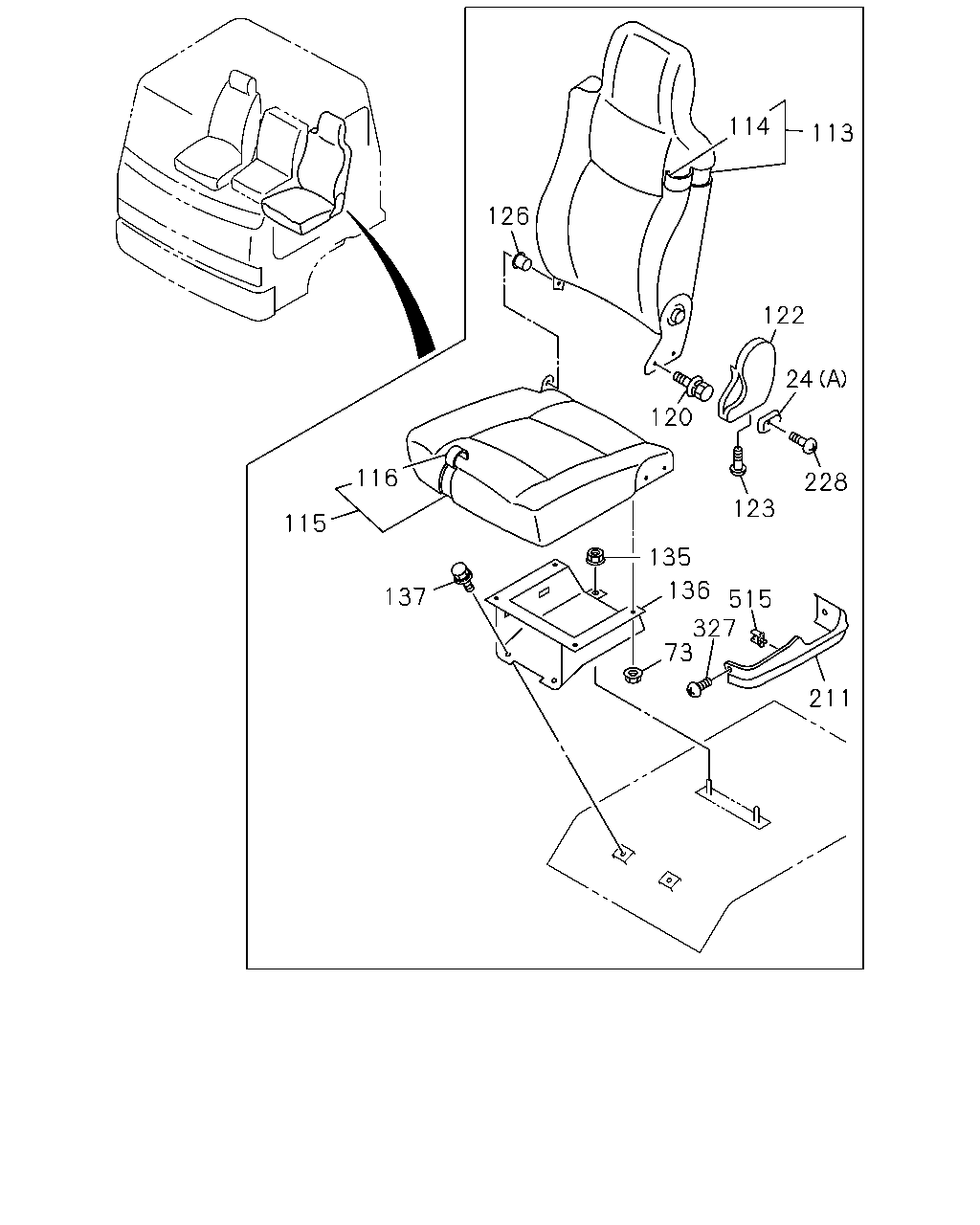

çizim 88210
114 113 126 122 24 120 116 228 123 115 135 136 137 515 327 73 211
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER DARK GRAY 		8-97867-021-0 01 1 0609-0710
24 KNOB; RECLINING,FRT,SEAT
(B) DRIVER 		1-75418-066-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> (A) PASSENGER DARK GRAY 		8-97859-019-0 01 1 0609-
73 NUT; ADJ,HEIGHT CONT
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> M8 FLANGE 		1-75538-207-0 04 1 0609-
73 NUT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 08 1 0609-
113 BACK ASM; SEAT
VINYL SEAT<A83> PASSENGER 		1-75208-074-3 01 1 0609-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75208-072-3 01 1 0609-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> PASSENGER 		1-75116-592-1 01 1 0609-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75116-707-1 01 1 0609-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> PASSENGER 		1-75026-701-1 01 1 0609-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75026-783-1 01 1 0609-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> PASSENGER 		1-75116-689-1 01 1 0609-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-75116-690-1 01 1 0609-
120 BOLT; RECLINING ADJ
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER M8X20 		8-97255-906-0 02 1 0609-
122 COVER; ADJ,RECLINING
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER DARK GRAY 		8-97859-018-0 01 1 0609-
123 SCREW; COVER,RECLINING
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0609-
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		8-97854-087-0 01 1 0609-
135 NUT; SEAT STAND
PASSENGER M10 FLANGE 		1-09984-153-0 02 1 0609-0703
135 NUT; SEAT STAND
PASSENGER M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> 		1-75558-602-3 01 1 0609-1305
136 STAND; PASSENGER SEAT
VINYL SEAT<A83> 		8-98242-299-0 01 1 1306-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		1-75558-550-7 01 1 0609-1305
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING<SFQ> 		8-98242-292-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0609-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
211 COVER; FRT SEAT
FABRIC SEAT W/RECLINING<SFQ> PASSENGER 		1-72538-274-0 01 1 0609-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0609-0710
228 SCREW; KNOB
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER M4X6 		8-97042-273-0 01 1 0609-0710
228 SCREW; KNOB
VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> PASSENGER M4X6 		8-97042-273-0 01 1 0711-
327 CLIP; COVER
FABRIC SEAT W/RECLINING<SFQ> 		1-09987-273-0 02 1 0609-
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> DELUXE CAB(W14) 		1-09987-273-0 02 1 0609-
515 CLIP; PIPE
FABRIC SEAT W/RECLINING<SFQ> BLACK 		8-94227-248-1 01 1 0609-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
