7-45 — CONSOLE BOX (#25347) — 14 parça

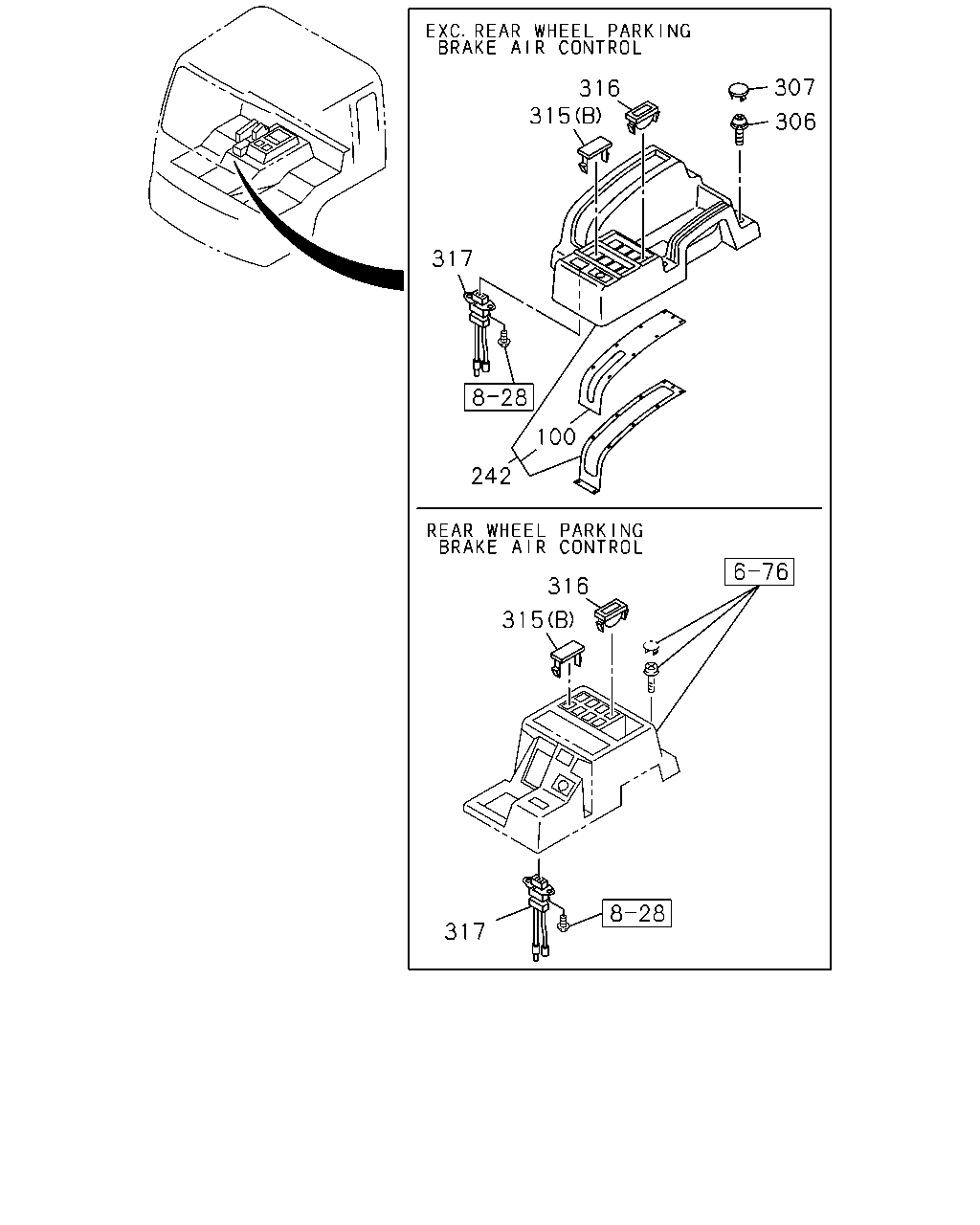

çizim 25092

307 316 315 306 317 100 242 316 315 317

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	100	RUBBER; CONSOLE,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-161-3	01	1	0609-
	242	TRAY ASM; CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-72538-245-0	01	1	0609-
	306	SCREW; TRAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0609-
	307	COVER; HOLE,CTR CONSOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-76337-461-0	04	1	0609-
	315	COVER; HOLE,SW (A)	1-82359-069-2	AR	1	0609-
	315	COVER; HOLE,SW (B)	8-97043-732-1	AR	1	0609-
	316	BOX; COIN	8-94482-280-2	02	1	0609-
	317	CONSENT	1-82523-020-2	01	1	0609-

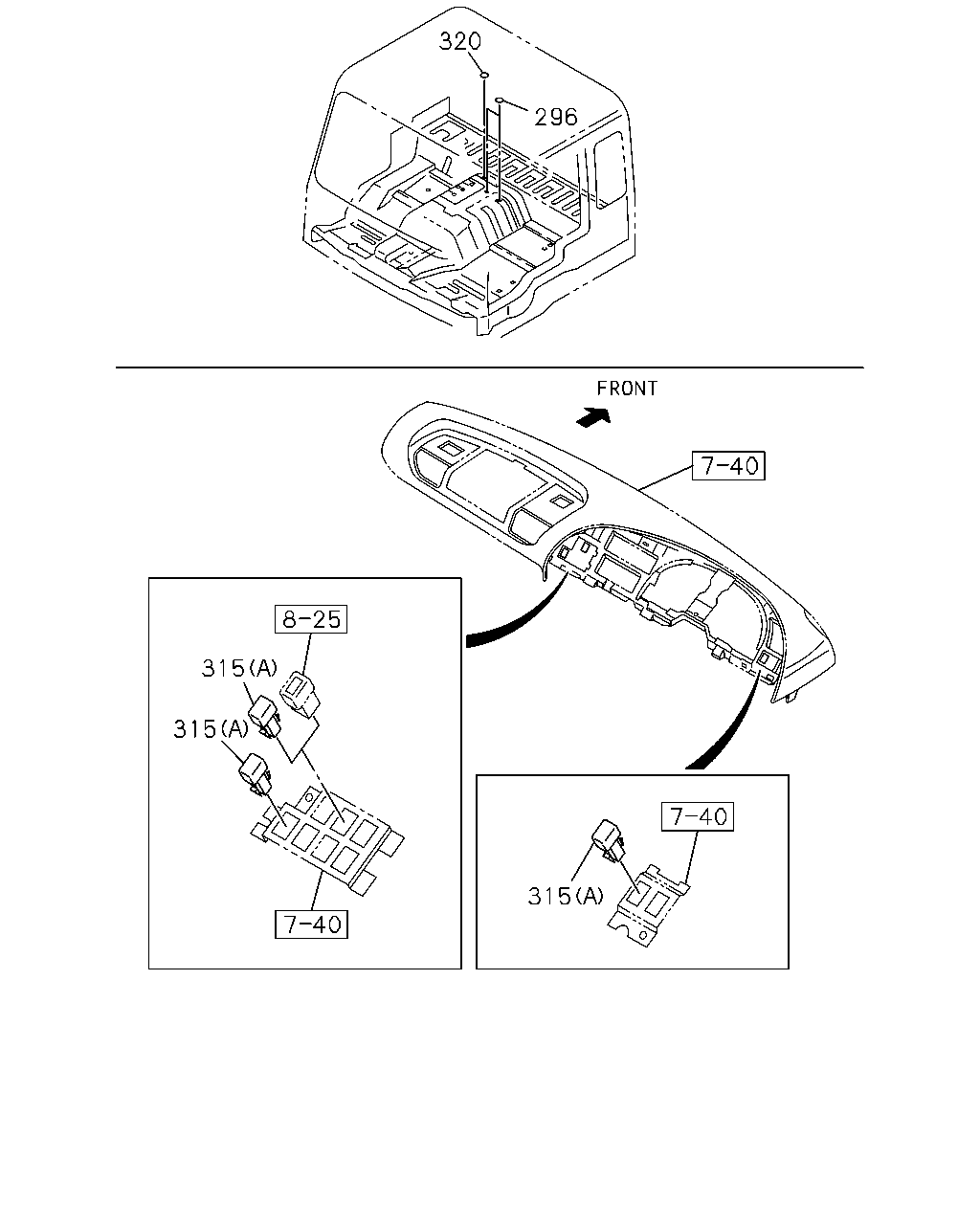

çizim 88191

320 296 315 315 315

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	296	SEAL CENTER SEAT 3 CREWS<SA1> OD=25 BLACK	1-76798-019-0	02	1	0609-
	296	SEAL CENTER SEAT DELETE 2 CREWS<SP9> EXC. DELUXE CAB(W14) OD=25 BLACK	1-76798-019-0	02	1	0609-
	315	COVER; HOLE,SW (A)	1-82359-069-2	AR	1	0609-
	315	COVER; HOLE,SW (B)	8-97043-732-1	AR	1	0609-
	320	SEAL; HOLE,TRAY OD=25 BLACK	1-76798-019-0	05	1	0609-
	320	SEAL; HOLE,TRAY EXC. DUAL AIR GAUGE<UG2> OD=25 BLACK	1-76798-019-0	02	1	0609-
