◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11028 - FSR(RHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#25345) — 103 parça

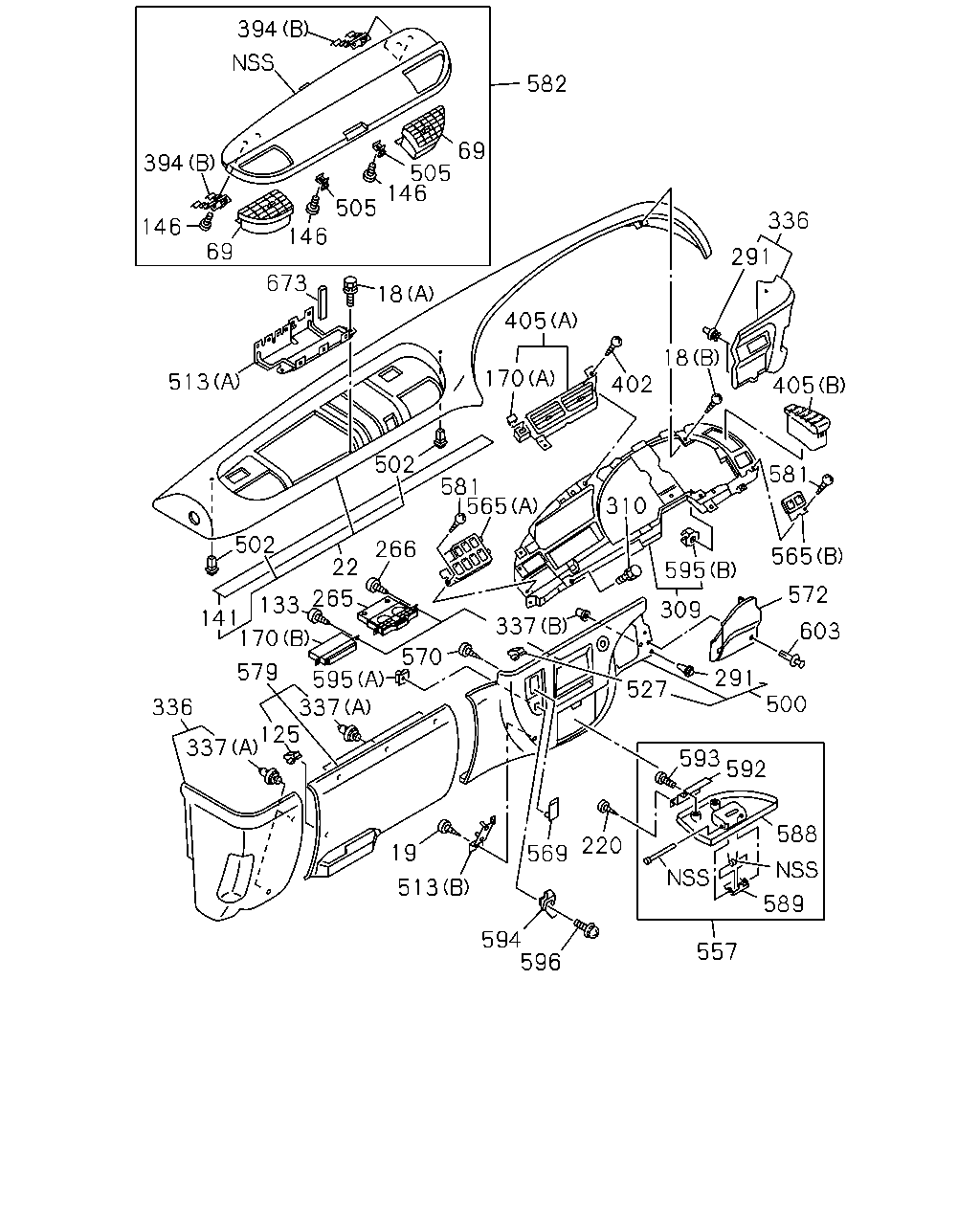

çizim 25338
394 582 69 505 146 394 505 336 146 146 69 291 673 18 405 18 170 513 402 405 502 581 581 565 310 502 266 565 22 595 572 265 133 309 141 170 337 603 570 595 337 125 579 291 527 500 336 337 593 592 588 220 19 569 513 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0609-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0609-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0609-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0609-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0609-
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0609-
22 PAD; INST 1-72318-433-4 01 1 0609-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0609-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0609-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0609-
125 CLIP; INST PANEL 8-97217-066-0 08 1 0609-
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 0609-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0609-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0609-
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 0609-
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-1 01 1 0609-
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0609-
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-8 01 1 0609-
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 0609-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0609-
309 PANEL; SW,INST 1-72418-009-6 01 1 0609-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0609-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0609-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0609-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0609-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0609-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0609-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0609-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0609-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0609-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0609-
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0609-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0609-
505 LOCK; LID 1-72558-024-2 02 1 0609-
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 0609-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0609-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0609-
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0609-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0609-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0609-
569 HOLDER; CARD 1-72498-015-2 01 1 0609-
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0609-
572 COVER; INSPECTION 1-72438-183-0 01 1 0609-
579 COVER; INST PNL 1-72438-184-1 01 1 0609-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0609-
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0609-
588 LID; BOX 1-72548-135-3 01 1 0609-
589 KNOB; LID 1-72548-143-0 01 1 0609-
592 HINGE; LID 1-72548-133-3 01 1 0609-
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0609-
594 HOOK; COAT 1-72498-013-0 01 1 0609-
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0609-
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0609-
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0609-
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0609-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0609-

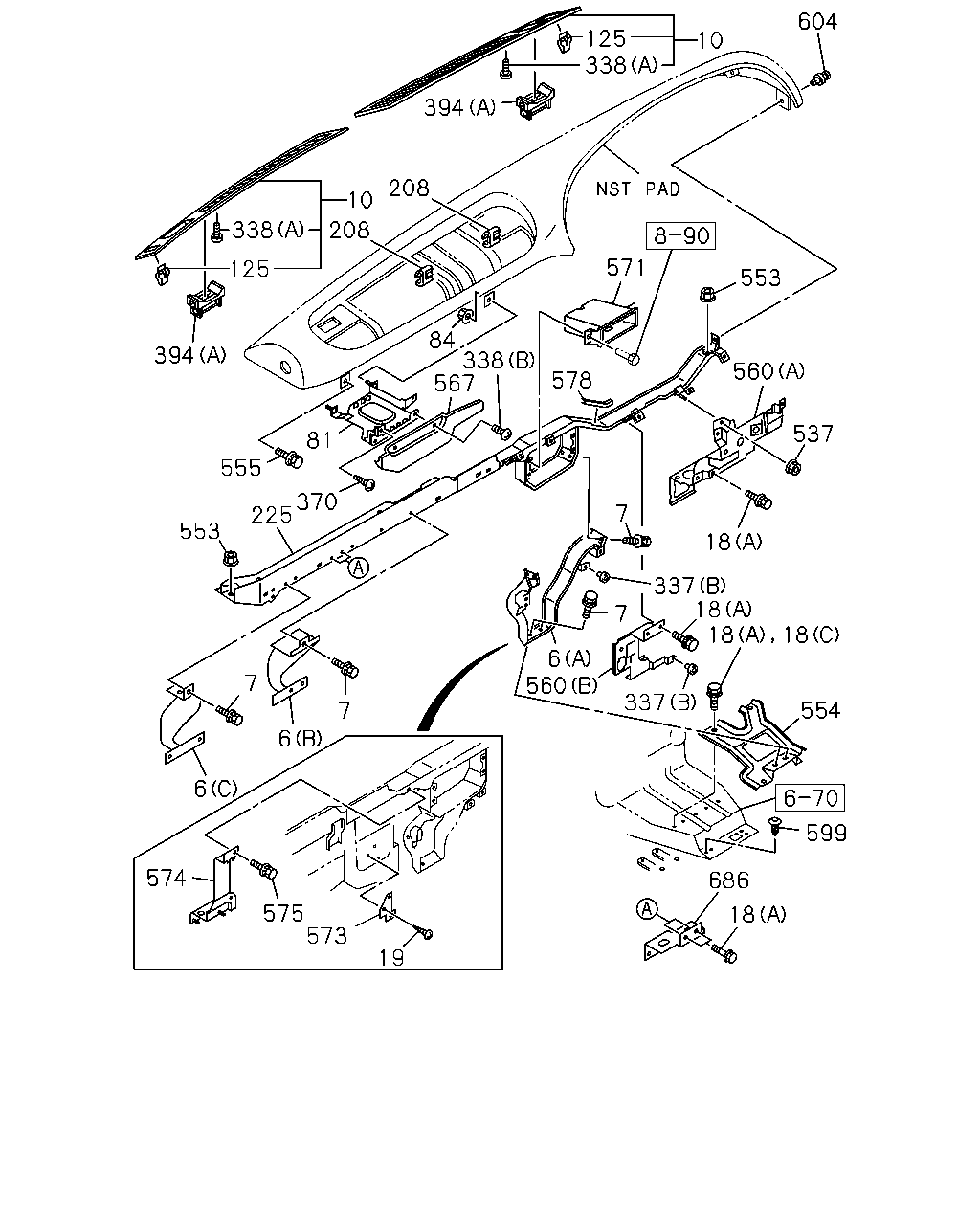

çizim 26587
604 125 338 10 394 208 10 338 208 571 125 553 84 338 567 394 560 578 537 81 555 370 225 7 553 18 337 18 18 7 18 6 560 7 337 554 7 6 6 599 574 686 575 573 18 19
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
(A) 		1-65681-165-2 01 1 0609-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 0609-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 0609-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0609-
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0609-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 0609-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0609-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 0609-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 0609-
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0609-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0609-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0609-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0609-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0609-
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0609-
81 BRACKET; ELEC CONT UNIT 1-73908-437-1 01 1 0609-
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0609-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0609-
125 CLIP; INST PANEL 8-97217-066-0 08 1 0609-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0609-
225 FRAME; FACIA 1-65681-096-2 01 1 0609-1002
225 FRAME; FACIA 8-98142-102-0 01 1 1003-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0609-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0609-
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 0609-0801
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 15 1 0802-
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0609-
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 		8-94279-325-0 01 1 0609-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0609-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0609-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0609-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0609-
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0609-
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0609-
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0609-
560 BRACKET
(B) 		1-65681-197-2 01 1 0609-
560 BRACKET
(A) 		1-65681-223-2 01 1 0609-
567 COVER; CONT UNIT 1-65681-022-2 01 1 0609-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0609-
571 BEZEL; POCKET 1-72438-151-3 01 1 0609-
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 0609-
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0609-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0609-
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0609-
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0609-
604 CLIP; INST PAD 1-09983-123-0 01 1 0609-
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 0609-
