Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

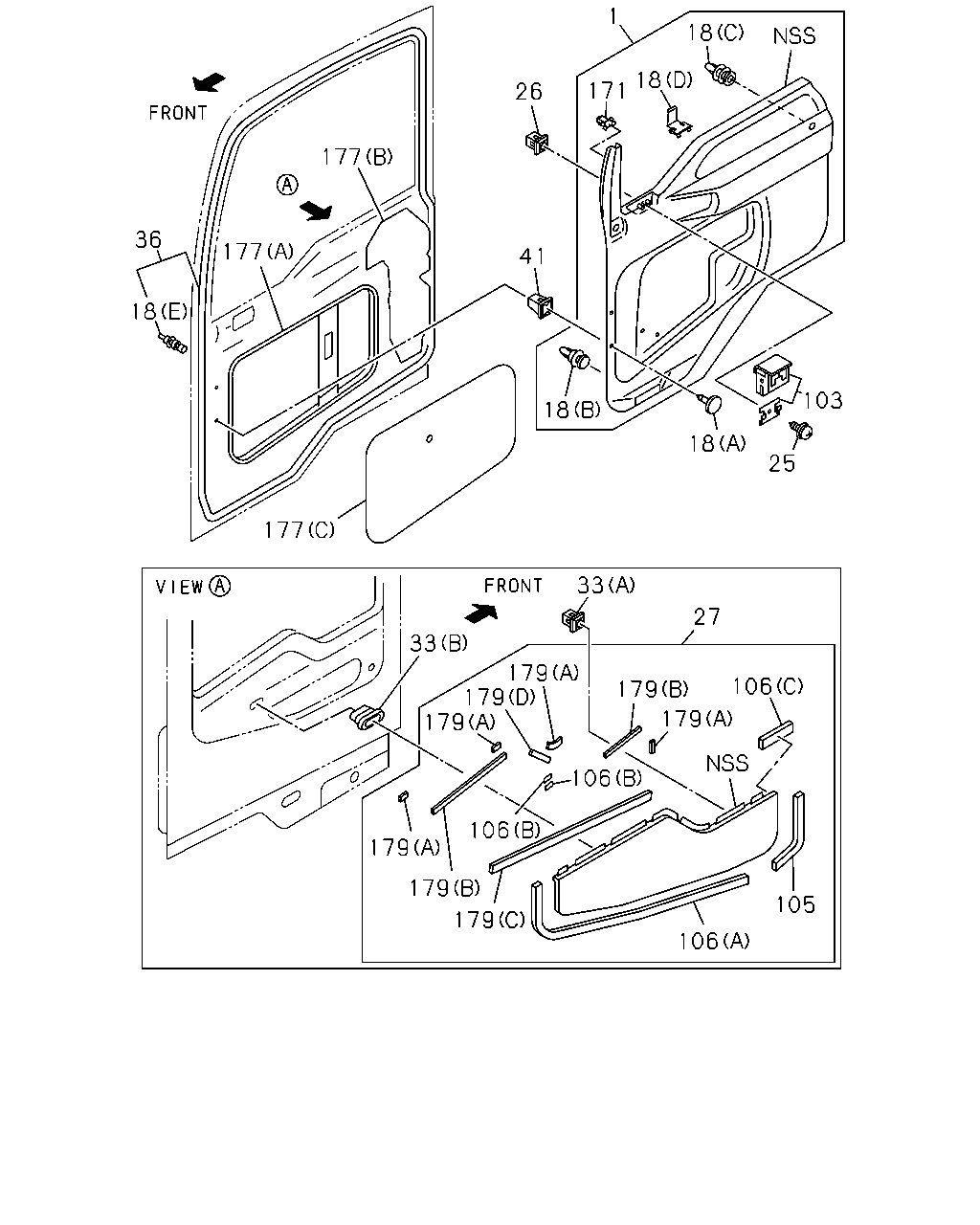

6-35 — FRONT DOOR TRIM
(#25327) — 42 parça
177
177
36
18
26
1
18
18
171
41
18
18
103
25
177
33
33
27
179
106
179
105
106
179
179
106
179
179
179
179
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
1-73337-509-0
01
1
0609-0702
1
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
1-73337-513-1
01
1
0703-
1
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
1-73338-539-0
01
1
0609-0702
1
PAD; TRIM,FRT DOOR
POWER WINDOW<A30>
1-73337-516-1
01
1
0703-
1
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
1-73337-510-0
01
1
0609-0702
1
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
1-73337-514-1
01
1
0703-
1
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
1-73338-538-0
01
1
0609-0702
1
PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF>
1-73337-515-1
01
1
0703-
18
CLIP; DOOR PAD
(D)
1-09987-262-0
10
1
0609-
18
CLIP; DOOR PAD
(C) OD=7.9 BLACK
8-94279-974-1
02
1
0609-
18
CLIP; DOOR PAD
(B) OD=8.5 GRAY
8-97893-482-0
10
1
0609-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0609-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0609-
18
CLIP; DOOR PAD
(A) D4.2X19.9 GRAY
1-09987-272-0
04
1
0609-
25
SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING
8-94279-123-0
02
1
0609-
26
GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0609-
27
PANEL; ORNAMENT,DOOR
1-76218-095-7
01
1
0609-1210
27
PANEL; ORNAMENT,DOOR
8-98229-328-0
01
1
1211-
27
PANEL; ORNAMENT,DOOR
1-76218-099-7
01
1
0609-
33
GROMMET; DOOR ORNAMENT
(A)
1-09983-149-1
02
1
0609-0802
33
GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
02
1
0803-
33
GROMMET; DOOR ORNAMENT
(B)
1-74998-111-0
02
1
0609-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-176-9
01
1
0609-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-763-0
01
1
1011-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-177-9
01
1
0609-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-764-0
01
1
1011-
41
GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
04
1
0609-
103
TRAY ASM; ASH,DOOR
1-76458-085-1
01
1
0609-
103
TRAY ASM; ASH,DOOR
1-76458-086-1
01
1
0609-
105
SEAL; DOOR ORNAMENT,FRT
1-76218-082-2
02
1
0609-
106
SEAL; DOOR ORNAMENT
(C)
8-98226-642-0
01
1
1211-
106
SEAL; DOOR ORNAMENT
(A)
1-76218-083-2
02
1
0609-
106
SEAL; DOOR ORNAMENT
(B)
1-76218-104-0
02
1
0609-
171
RETAINER; DOOR PAD
1-09987-264-0
02
1
0609-
177
SEAL; WATER,DOOR
POWER WINDOW<A30> (A)
1-76778-035-6
01
1
0609-
177
SEAL; WATER,DOOR
POWER WINDOW<A30> (A)
1-76778-052-2
01
1
0609-
177
SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C)
1-76778-047-3
02
1
0609-
177
SEAL; WATER,DOOR
(B)
1-76778-055-2
02
1
0609-
179
TAPE; ORNAMENT
(A) L=45
1-76218-063-2
08
1
0609-
179
TAPE; ORNAMENT
(C) L=770
1-76218-091-2
02
1
0609-
179
TAPE; ORNAMENT
(D) L=160
1-76218-094-1
02
1
0609-
179
TAPE; ORNAMENT
(B) L=235
1-76218-127-1
04
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
