1 |

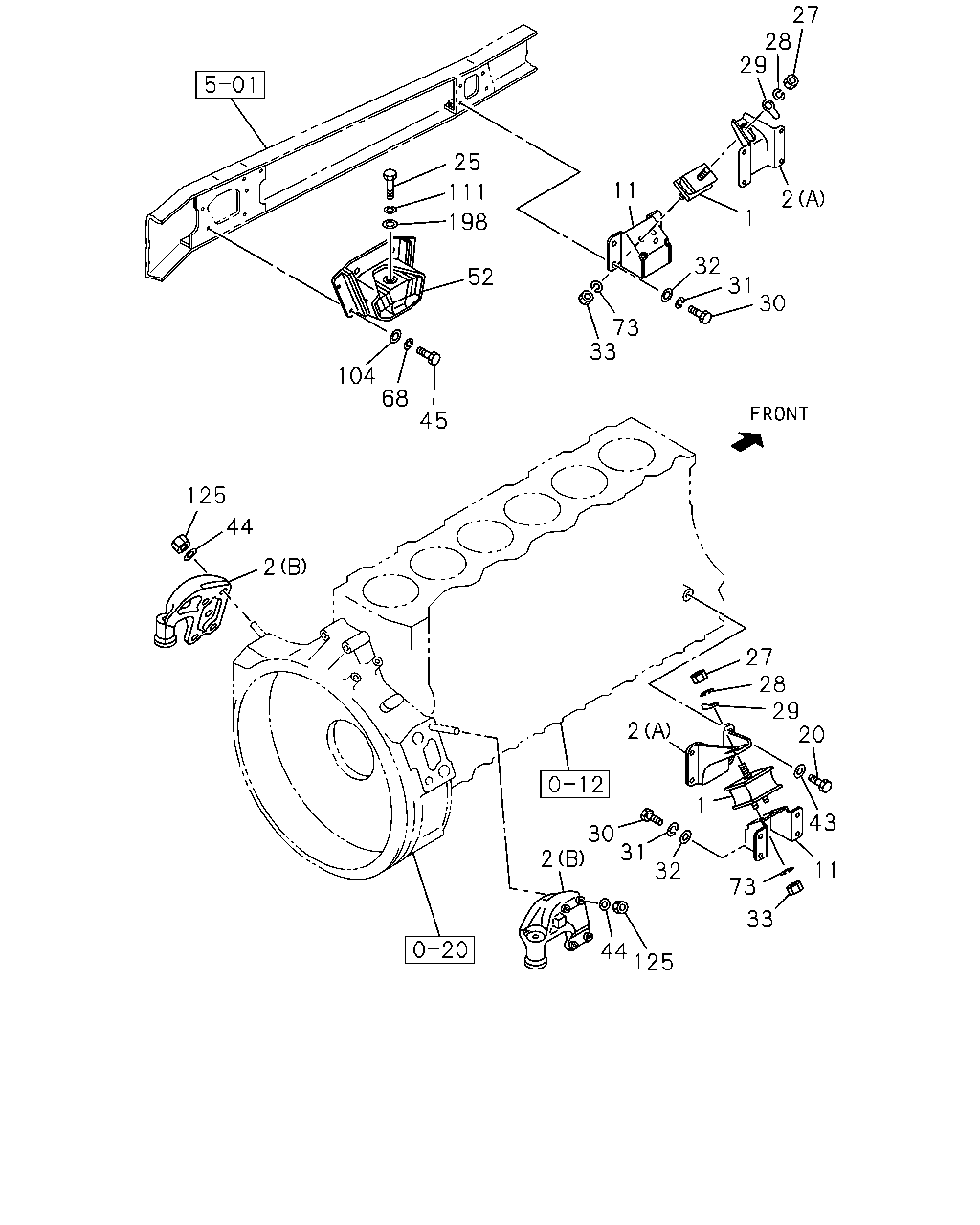

RUBBER; ENG FOOT,FRT
|
1-53215-132-2 |
02 |
1 |
0603- |
| |
2 |
FOOT; ENG
(A)
|
1-11771-220-0 |
02 |
1 |
0603- |
| |
2 |
FOOT; ENG
(B)
|
1-11777-189-1 |
01 |
1 |
0603- |
| |
2 |
FOOT; ENG
(B)
|
1-11777-197-1 |
01 |
1 |
0603- |
| |
11 |
BRACKET; CUSHION RUBBER,FRT
|
1-53211-272-0 |
02 |
1 |
0603- |
| |
20 |
BOLT; ENG FOOT
M14X32
|
9-92361-432-0 |
08 |
1 |
0603- |
| |
25 |
BOLT; CUSHION RUBBER TO BRKT
M22X105
|
1-09000-773-0 |
02 |
1 |
0603- |
| |
27 |
NUT; CUSHION RUBBER TO ENG FOOT
M18
|
0-91110-518-0 |
02 |
1 |
0603- |
| |
28 |
WASHER; LK,SUPPORT BRKT
ID=18.2
|
9-09150-518-0 |
02 |
1 |
0603-0603 |
| |
28 |
WASHER; LK,SUPPORT BRKT
ID=18.2
|
0-91510-518-0 |
02 |
1 |
0604- |
| |
29 |
PLATE; LK,CUSHION RUBBER,FRT
|
1-53229-040-0 |
02 |
1 |
0603- |
| |
30 |
BOLT; BRKT TO FRAME
M14X35
|
0-20951-435-0 |
08 |
1 |
0603- |
| |
31 |
WASHER; LK,BRKT TO FRAME
ID=14.2
|
9-09150-814-0 |
08 |
1 |
0603-0603 |
| |
31 |
WASHER; LK,BRKT TO FRAME
ID=14.2
|
0-91510-814-0 |
08 |
1 |
0604- |
| |
32 |
WASHER; PL,BRKT TO FRAME
ID=15
|
9-09651-069-0 |
08 |
1 |
0603-1201 |
| |
32 |
WASHER; PL,BRKT TO FRAME
ID=15
|
8-98010-627-1 |
08 |
1 |
1202- |
| |
33 |
NUT; CUSHION RUBBER TO BRKT
M14
|
0-91110-514-0 |
04 |
1 |
0603- |
| |
43 |
WASHER; ENG FOOT
ID=14.2
|
1-09503-050-0 |
08 |
1 |
0603- |
| |
44 |
WASHER; LK,ENG FOOT
ID=18.2 OD=29
|
1-09503-032-0 |
08 |
1 |
0603- |
| |
45 |
BOLT; CUSHION RUBBER TO FRAME
M14X35
|
0-20951-435-0 |
12 |
1 |
0603- |
| |
52 |
RUBBER; CUSHION,ENG MTG,RR
|
1-53225-345-0 |
02 |
1 |
0603- |
| |
68 |
WASHER; LK,CUSHION RUBBER
ID=14.2
|
9-09150-814-0 |
12 |
1 |
0603-0603 |
| |
68 |
WASHER; LK,CUSHION RUBBER
ID=14.2
|
0-91510-814-0 |
12 |
1 |
0604- |
| |
73 |
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
|
9-09150-514-0 |
04 |
1 |
0603-0603 |
| |
73 |
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
|
0-91510-514-0 |
04 |
1 |
0604- |
| |
104 |
WASHER; PL,CUSHION RUBBER
ID=15
|
9-09651-069-0 |
12 |
1 |
0603-1201 |
| |
104 |
WASHER; PL,CUSHION RUBBER
ID=15
|
8-98010-627-1 |
12 |
1 |
1202- |
| |
111 |
WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5
|
9-09150-622-0 |
02 |
1 |
0603-0603 |
| |
111 |
WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5
|
0-91510-622-0 |
02 |
1 |
0604- |
| |
125 |
NUT; ENG FOOT
M18
|
0-91110-518-0 |
08 |
1 |
0603- |
| |
198 |
WASHER; PL,CUSHION TO BRKT,RR
|
9-09164-622-0 |
02 |
1 |
0603- |
