0-12 — CYLINDER BLOCK (#25303) — 158 parça

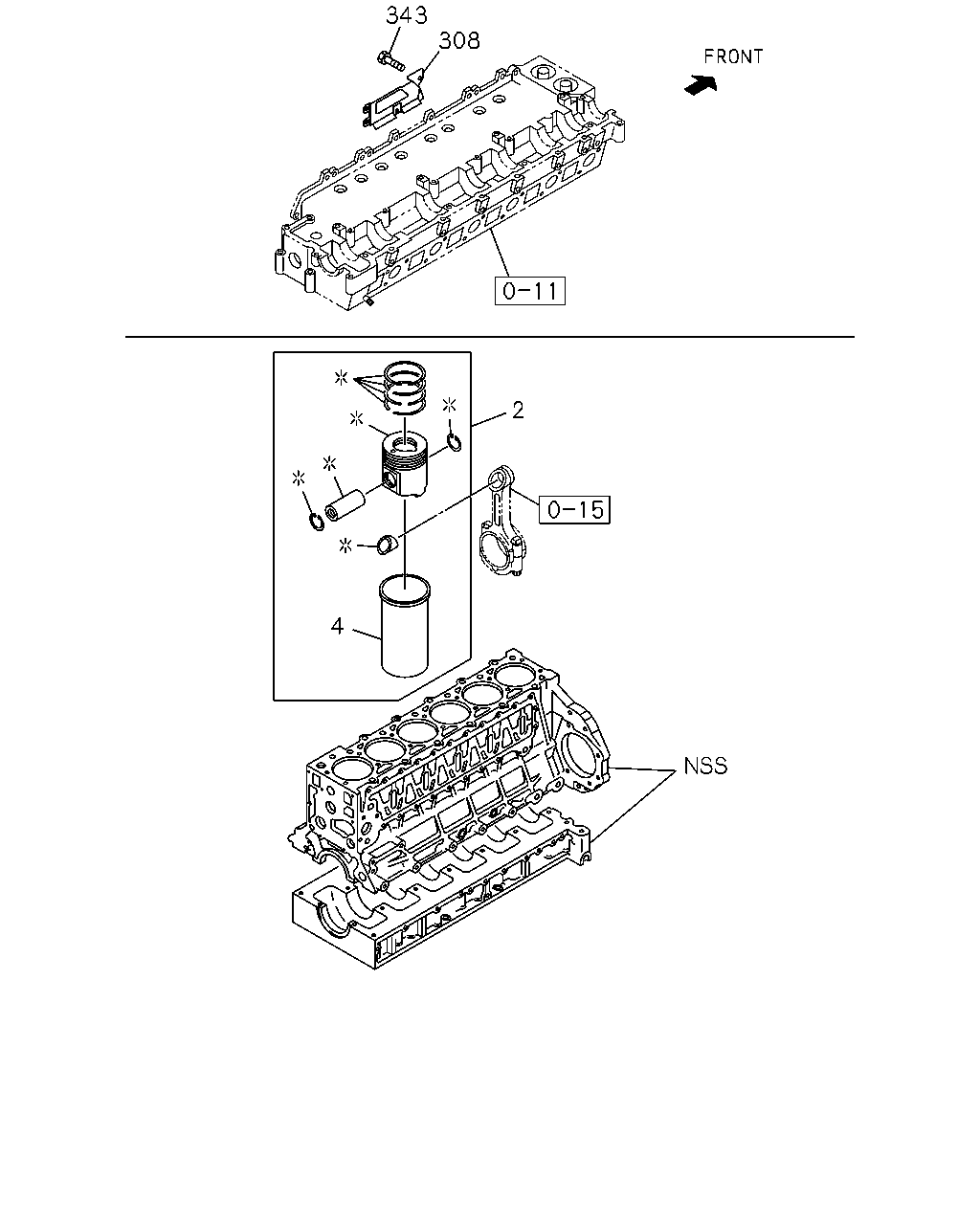

çizim 24224
343 2 4 308
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-459-2 06 1 9811-0108 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-205-1 06 1 0109-0201 ●
2 LINER SET; ENG CYL
EXC. EURO2 SPECIFICATION<THN> GRADE=1X 		1-87812-205-1 06 1 0202-0203 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-460-2 06 1 9811-0108 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-206-1 06 1 0109-0201 ●
2 LINER SET; ENG CYL
EXC. EURO2 SPECIFICATION<THN> GRADE=3X 		1-87812-206-1 06 1 0202-0203 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-701-2 06 1 9903-0108 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-203-1 06 1 0109-0201 ●
2 LINER SET; ENG CYL
EURO2 SPECIFICATION<THN> GRADE=1X 		1-87812-203-1 06 1 0202-0203 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-203-1 06 1 0202-0203 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-203-3 06 1 0204-0305 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-701-4 06 1 0306-0706 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-203-5 06 1 0707- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-702-2 06 1 9903-0108 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-204-1 06 1 0109-0201 ●
2 LINER SET; ENG CYL
EURO2 SPECIFICATION<THN> GRADE=3X 		1-87812-204-1 06 1 0202-0203 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-204-1 06 1 0202-0203 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-204-3 06 1 0204-0305 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-702-4 06 1 0306-0706 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-204-5 06 1 0707- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-600-0 06 1 9811-9902 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-600-1 06 1 9903- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-601-0 06 1 9811-9902 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-601-1 06 1 9903- ● ●
308 PROTECTOR; HEAT,HD COVER 8-94395-748-0 01 1 9811-9902 ●
308 PROTECTOR; HEAT,HD COVER 8-94395-748-0 01 1 9903- ● ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 04 1 9811-9902 ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 04 1 9903-0512 ● ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 0601- ● ●

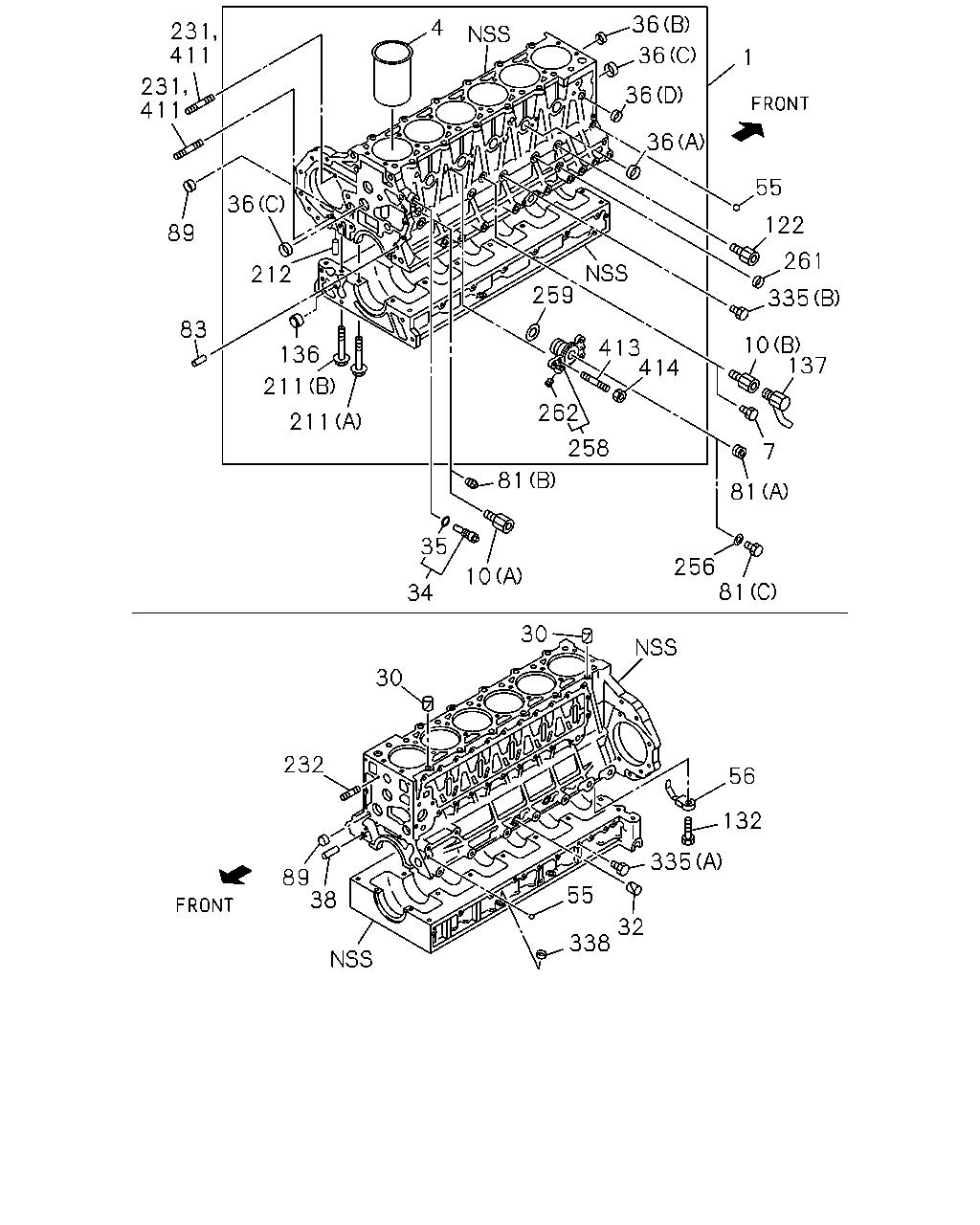

çizim 25186
36 4 231 411 36 1 231 411 36 36 55 36 122 89 261 259 212 335 83 413 414 10 137 136 211 262 211 258 7 81 81 35 256 81 10 34 30 30 232 56 132 335 89 38 55 32 338
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-97601-297-0 01 1 9811-0201 ●
1 BLOCK ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-97601-297-0 01 1 0202-0203 ●
1 BLOCK ASM; CYL 8-97601-299-0 01 1 9903-0201 ●
1 BLOCK ASM; CYL
EURO2 SPECIFICATION<THN> 		8-97601-299-0 01 1 0202-0203 ●
1 BLOCK ASM; CYL 8-97601-299-0 01 1 0202-0203 ●
1 BLOCK ASM; CYL 8-97601-299-5 01 1 0204-1012 ● ●
1 BLOCK ASM; CYL 8-98180-705-0 01 1 1101-1209 ● ●
1 BLOCK ASM; CYL 8-98206-960-0 01 1 1210- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-600-0 06 1 9811-9902 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-600-1 06 1 9903- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-601-0 06 1 9811-9902 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-601-1 06 1 9903- ● ●
7 PLUG; WATER DRAIN
M14X16.5 		8-97329-617-0 01 1 1101- ● ●
10 CONNECTOR; WATER DRAIN
(A) 		1-09660-408-0 01 1 9811-0201 ●
10 CONNECTOR; WATER DRAIN
EXC. EURO2 SPECIFICATION<THN> (A) 		1-09660-408-0 01 1 0202-0203 ●
10 CONNECTOR; WATER DRAIN
(A) 		8-94396-378-0 01 1 0204-1012 ● ●
10 CONNECTOR; WATER DRAIN
(B) 		8-94396-378-0 01 1 9811-9902 ●
10 CONNECTOR; WATER DRAIN
(B) 		8-94396-378-0 01 1 9903-0203 ● ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 9811-9902 ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 9903- ● ●
32 PIN; INJ PUMP BRKT
OD=14 		8-94453-344-0 02 1 9811-9902 ●
32 PIN; INJ PUMP BRKT
OD=14 		8-94453-344-0 02 1 9903- ● ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 9811-9902 ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 9903- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0204- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 9811-9902 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 9903-0203 ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 05 1 9811-0201 ●
36 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (A) OD=45 		1-09600-005-1 05 1 0202-0203 ●
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 9811-9902 ●
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 9903- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 9811-9902 ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 9903- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 9811-9902 ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 9903-0502 ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-97096-824-0 04 1 0503- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 04 1 9903-0201 ●
36 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=45 		1-09600-005-1 04 1 0202-0203 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 04 1 0202-0203 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 0204- ● ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 9811-9902 ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 9903- ● ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 02 1 9811-9902 ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 02 1 9903- ● ●
56 JET; OIL,PISTON COOLING 8-94395-194-0 06 1 9811-9902 ●
56 JET; OIL,PISTON COOLING 8-94395-194-0 06 1 9903-0703 ● ●
56 JET; OIL,PISTON COOLING 8-98020-649-0 06 1 0704-1007 ● ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1008- ● ●
81 PLUG; WATER JACKET
(A) NPTF1-11 1/2 		1-09605-065-1 01 1 9903-0201 ●
81 PLUG; WATER JACKET
EURO2 SPECIFICATION<THN> (A) NPTF1-11 1/2 		1-09605-065-1 01 1 0202-0203 ●
81 PLUG; WATER JACKET
(A) NPTF1-11 1/2 		1-09605-065-1 01 1 0202-0203 ●
81 PLUG; WATER JACKET
(A) NPTF1-11 1/2 		1-09605-065-1 01 1 0204-0507 ● ●
81 PLUG; WATER JACKET
(C) M14X14 		9-09862-156-0 01 1 0508- ● ●
81 PLUG; WATER JACKET
(B) PT3/8 		8-94397-338-0 01 1 9903-0201 ●
81 PLUG; WATER JACKET
EURO2 SPECIFICATION<THN> (B) PT3/8 		8-94397-338-0 01 1 0202-0203 ●
81 PLUG; WATER JACKET
(B) PT3/8 		8-94397-338-0 01 1 0202-0203 ●
81 PLUG; WATER JACKET
(B) PT3/8 		8-94397-338-0 01 1 0204- ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 9811-9902 ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 9903-0306 ● ●
83 PIN; FLYWHEEL HSG
OD=10 L=20 		8-97135-423-0 02 1 0307-0307 ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0308- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 9811-9902 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 9903-0908 ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0909- ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 9811-9902 ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 9903- ● ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 9811-9902 ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 9903- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0204-0812 ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ● ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 9811-9902 ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 9903-1012 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 9811-9902 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 9903-0905 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 0906- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 9811-9902 ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 9903- ● ●
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 9811-9902 ●
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 9903-0306 ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0307- ● ●
231 STUD; AIR CMPR
M10X36.5 L=48.5 		8-94396-145-0 02 1 9811-0201 ●
231 STUD; AIR CMPR
EXC. EURO2 SPECIFICATION<THN> M10X36.5 L=48.5 		8-94396-145-0 02 1 0202-0203 ●
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 9811-9902 ●
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 9903-0604 ● ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 0605- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0508- ● ●
258 ADAPTER; BLOCK HTR 8-94395-868-0 01 1 9903-0201 ●
258 ADAPTER; BLOCK HTR
EURO2 SPECIFICATION<THN> 		8-94395-868-0 01 1 0202-0203 ●
258 ADAPTER; BLOCK HTR 8-94395-868-0 01 1 0202-0203 ●
258 ADAPTER; BLOCK HTR 8-94395-868-0 01 1 0204-0507 ● ●
258 ADAPTER; BLOCK HTR 8-97602-806-0 01 1 0508- ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 9903-0201 ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. ID=38.7 		1-09623-184-0 01 1 0202-0203 ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 0202-0203 ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 0204- ● ●
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 9811-9902 ●
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 9903-0307 ● ●
262 PLUG; ADAPTER 1-13163-002-0 01 1 9903-0201 ●
262 PLUG; ADAPTER
EURO2 SPECIFICATION<THN> 		1-13163-002-0 01 1 0202-0203 ●
262 PLUG; ADAPTER 1-13163-002-0 01 1 0202-0203 ●
262 PLUG; ADAPTER 1-13163-002-0 01 1 0204- ● ●
335 PLUG; C/BL,SIDE
(B) M14 		8-94399-225-0 04 1 9811-0201 ●
335 PLUG; C/BL,SIDE
EXC. EURO2 SPECIFICATION<THN> (B) M14 		8-94399-225-0 04 1 0202-0203 ●
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 0204-0501 ● ●
335 PLUG; C/BL,SIDE
(A) M8X10 		8-98003-416-0 01 1 0502- ● ●
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 9811-9902 ●
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 9903-0203 ● ●
335 PLUG; C/BL,SIDE
(B) M14 		8-94399-225-0 02 1 9903-0201 ●
335 PLUG; C/BL,SIDE
(B) M14 		8-94399-225-0 02 1 0202-0703 ● ●
335 PLUG; C/BL,SIDE
(B) M14X16.5 		8-97329-617-0 02 1 0704- ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 9811-9902 ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 9903-0607 ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 0608- ● ●
411 STUD; BRG CASE
M10X36.5 L=48.5 		8-94396-145-0 02 1 9903-0201 ●
411 STUD; BRG CASE
EURO2 SPECIFICATION<THN> M10X36.5 L=48.5 		8-94396-145-0 02 1 0202-0203 ●
411 STUD; BRG CASE
M10X36.5 L=48.5 		8-94396-145-0 02 1 0202-0203 ●
411 STUD; BRG CASE
M10X36.5 L=48.5 		8-94396-145-0 02 1 0204-0301 ● ●
411 STUD; BRG CASE
M10X25 L=40 		0-49841-025-0 02 1 0302-0512 ● ●
411 STUD; BRG CASE
M10X25 L=48.5 		0-49241-025-0 02 1 0601- ● ●
413 STUD; ADAPTER
M8X30 L=41 		9-04110-830-0 02 1 9903-0201 ●
413 STUD; ADAPTER
EURO2 SPECIFICATION<THN> M8X30 L=41 		9-04110-830-0 02 1 0202-0203 ●
413 STUD; ADAPTER
M8X30 L=41 		9-04110-830-0 02 1 0202-0203 ●
413 STUD; ADAPTER
M8X30 L=41 		9-04110-830-0 02 1 0204-0604 ● ●
413 STUD; ADAPTER
M8X30 L=41 		0-41010-830-0 02 1 0605- ● ●
414 NUT; ADAPTER
M8 FLANGE 		0-91150-208-0 02 1 9903-0201 ●
414 NUT; ADAPTER
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-208-0 02 1 0202-0203 ●
414 NUT; ADAPTER
M8 FLANGE 		0-91150-208-0 02 1 0202-0203 ●
414 NUT; ADAPTER
M8 FLANGE 		0-91150-208-0 02 1 0204-0602 ● ●
414 NUT; ADAPTER
M8 FLANGE 		0-91180-208-0 02 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
