0-11 — CYLINDER HEAD (#25302) — 115 parça

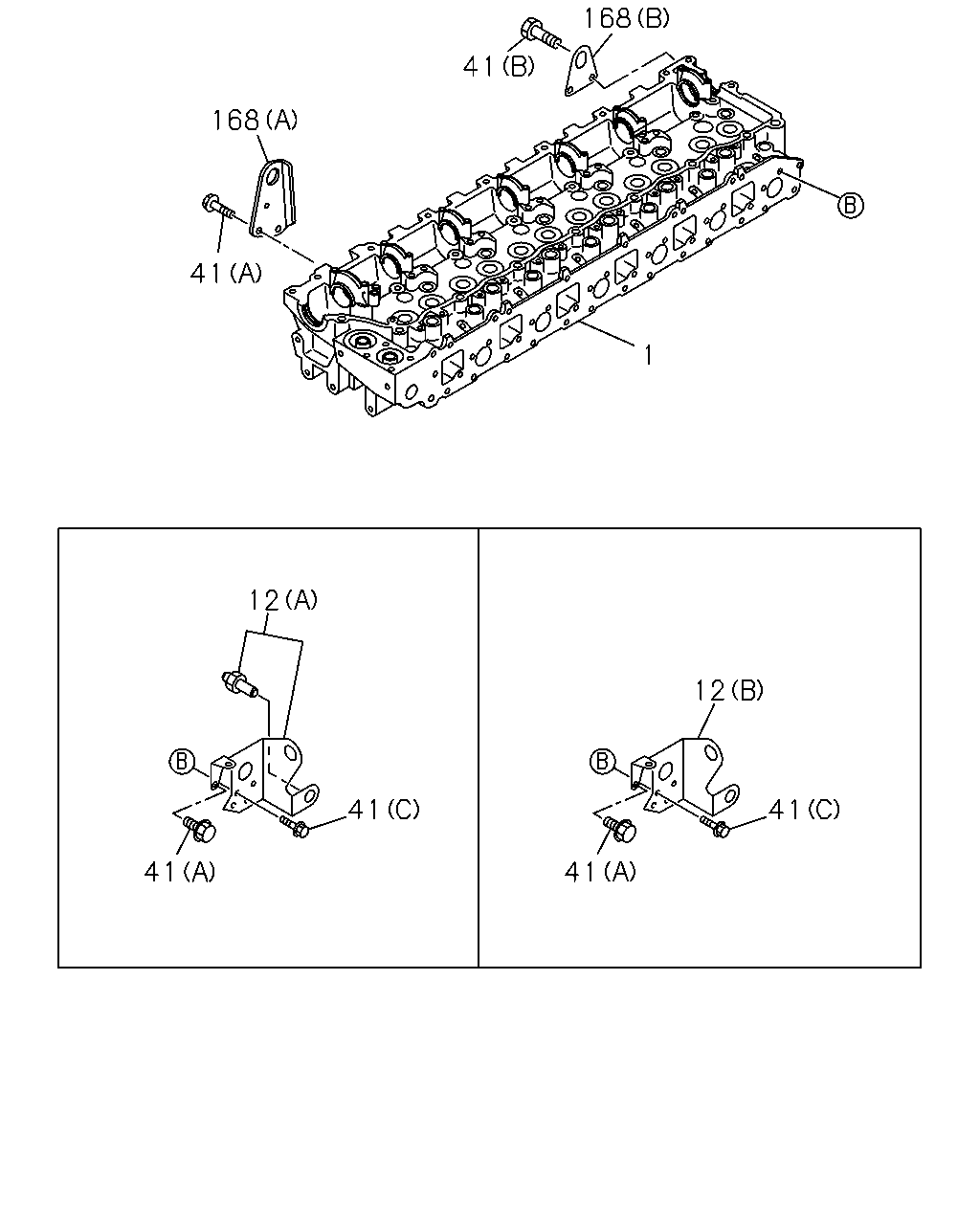

çizim 80194
168 1 41 168 41 12 41 41 41 12 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94390-967-2 01 1 9811-0201 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-2 01 1 0202-0203 ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 9903-0201 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94391-162-3 01 1 0202-0203 ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 0202-0203 ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0204-1012 ● ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ● ●
12 HANGER; ENG,RR
(A) 		8-94394-553-1 01 1 9811-0201 ●
12 HANGER; ENG,RR
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-553-1 01 1 0202-0203 ●
12 HANGER; ENG,RR
(B) 		8-94394-337-1 01 1 9903-0201 ●
12 HANGER; ENG,RR
(B) 		8-94394-337-1 01 1 0202- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9811-9902 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9903-0512 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
(B) M10X30 FLANGE 		0-28181-030-0 02 1 9811-0201 ●
41 BOLT; ENG HANGER
EXC. EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE 		0-28181-030-0 02 1 0202-0203 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9811-9902 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9903- ● ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28781-025-0 02 1 9903-0201 ●
41 BOLT; ENG HANGER
EURO2 SPECIFICATION<THN> (B) M10X25 FLANGE 		0-28781-025-0 02 1 0202-0203 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28781-025-0 02 1 0202-0203 ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28781-025-0 02 1 0204-0512 ● ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ●
168 HANGER; ENG,FRT
(A) 		8-94394-071-1 01 1 9811-0201 ●
168 HANGER; ENG,FRT
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94394-071-1 01 1 0202-0203 ●
168 HANGER; ENG,FRT
(A) 		8-94394-398-1 01 1 0204- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 9811-9902 ●
168 HANGER; ENG,FRT
(A) 		8-94391-505-0 01 1 9903-0201 ●
168 HANGER; ENG,FRT
(A) 		8-94391-505-0 01 1 0202- ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 9903-0203 ● ●

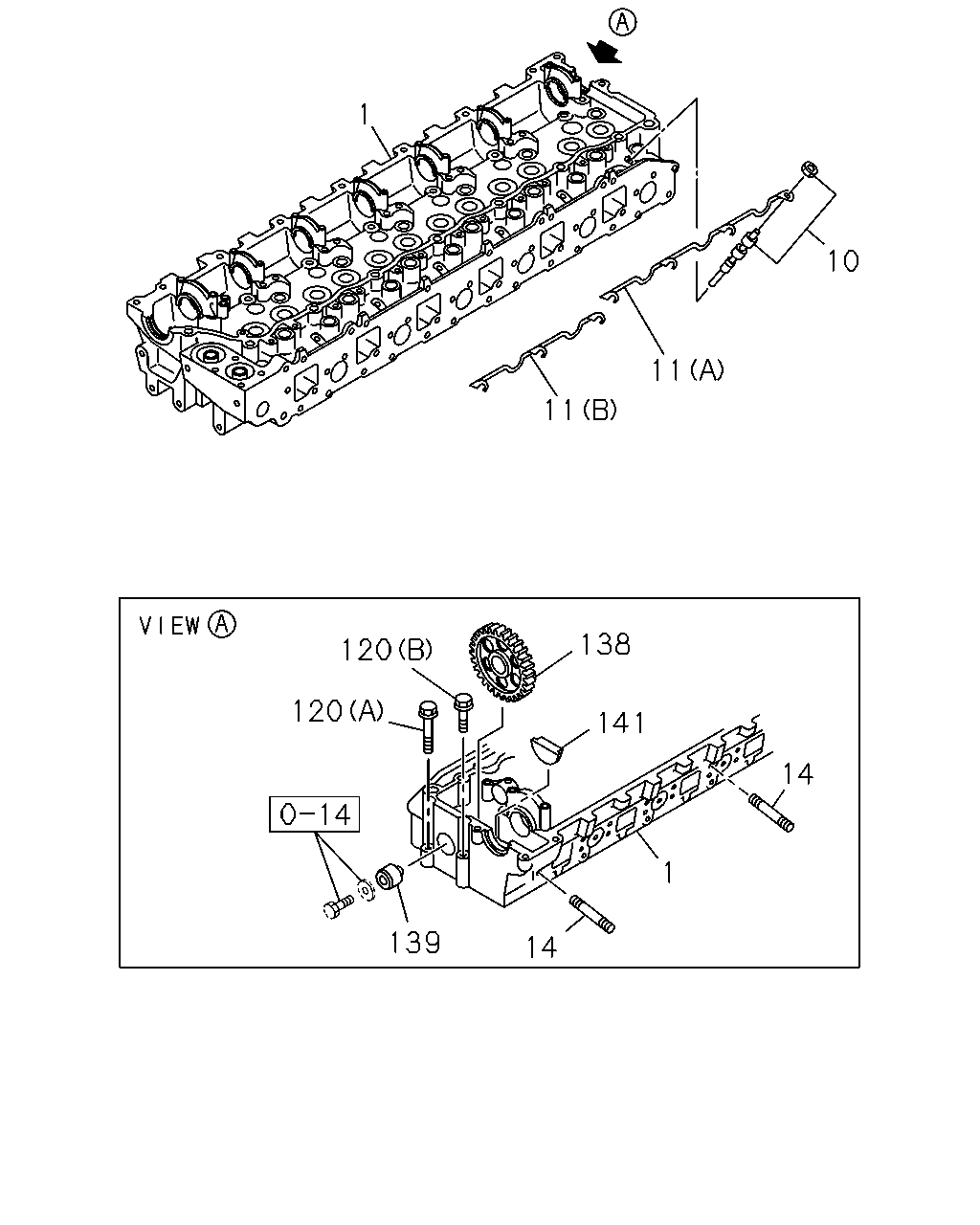

çizim 80251
1 11 11 10 138 141 14 1 14 139 120 120
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94390-967-2 01 1 9811-0201 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-2 01 1 0202-0203 ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 9903-0201 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94391-162-3 01 1 0202-0203 ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 0202-0203 ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0204-1012 ● ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9811-9902 ●
10 PLUG; GLOW 1-82513-043-2 06 1 9903- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9811-9902 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9903-0206 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9811-9902 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 9903- ● ●
14 STUD; EXH MANIF
M10X93 L=108 		8-94396-123-0 11 1 9811-0201 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X93 L=108 		8-94396-123-0 11 1 0202-0203 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 01 1 9811-0201 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 01 1 0202-0203 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9903-0201 ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 12 1 0202-0203 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0202-0203 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0204- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9811-9902 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9903- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9811-9902 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9903- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9811-9902 ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 9903- ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9811-9902 ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 9903- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9811-9902 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9903-1005 ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ●

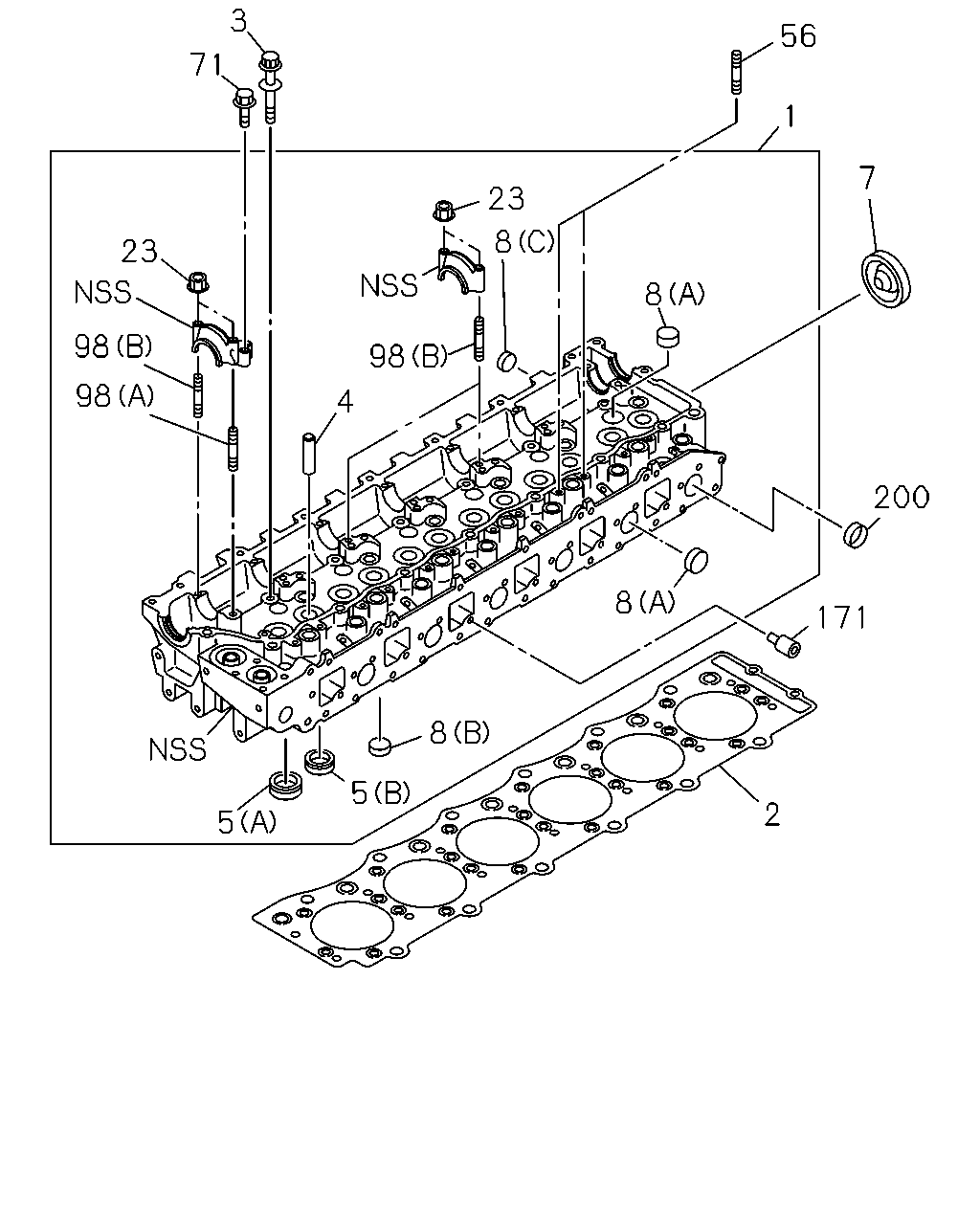

çizim 82003
3 56 71 1 7 23 8 23 8 98 98 98 4 200 8 171 8 5 2 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94390-967-2 01 1 9811-0201 ●
1 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<THN> 		8-94390-967-2 01 1 0202-0203 ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 9903-0201 ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94391-162-3 01 1 0202-0203 ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 0202-0203 ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0204-1012 ● ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9811-9902 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 9903- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9811-9902 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9903-0901 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9811-9902 ●
4 GUIDE; VLV 8-94396-598-0 12 1 9903- ● ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 9811-9902 ●
5 SEAT; VLV INSERT
(B) OD=48 		8-94394-462-0 06 1 9903- ● ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9811-9902 ●
5 SEAT; VLV INSERT
(A) OD=43 		8-94396-172-0 06 1 9903- ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9811-9902 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9903-0303 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9811-0201 ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 18 1 0202-0203 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9811-9902 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9903- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9811-9902 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9903- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9903-0201 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-1 17 1 0202-0203 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 0202-0203 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0204- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9811-9902 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9903-0602 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9811-9902 ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9903- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9811-9902 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9903-0512 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9811-9902 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9903- ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9811-9902 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9903- ● ●
171 SEAT; VLV 8-94395-571-1 06 1 9811-0201 ●
171 SEAT; VLV
EXC. EURO2 SPECIFICATION<THN> 		8-94395-571-1 06 1 0202-0203 ●
171 SEAT; VLV 8-94394-678-1 06 1 9903-0201 ●
171 SEAT; VLV
EURO2 SPECIFICATION<THN> 		8-94394-678-1 06 1 0202-0203 ●
171 SEAT; VLV 8-94394-678-1 06 1 0202-0203 ●
171 SEAT; VLV 8-94394-678-1 06 1 0204- ● ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-1 01 1 9903-0201 ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-2 01 1 0202- ● ●
