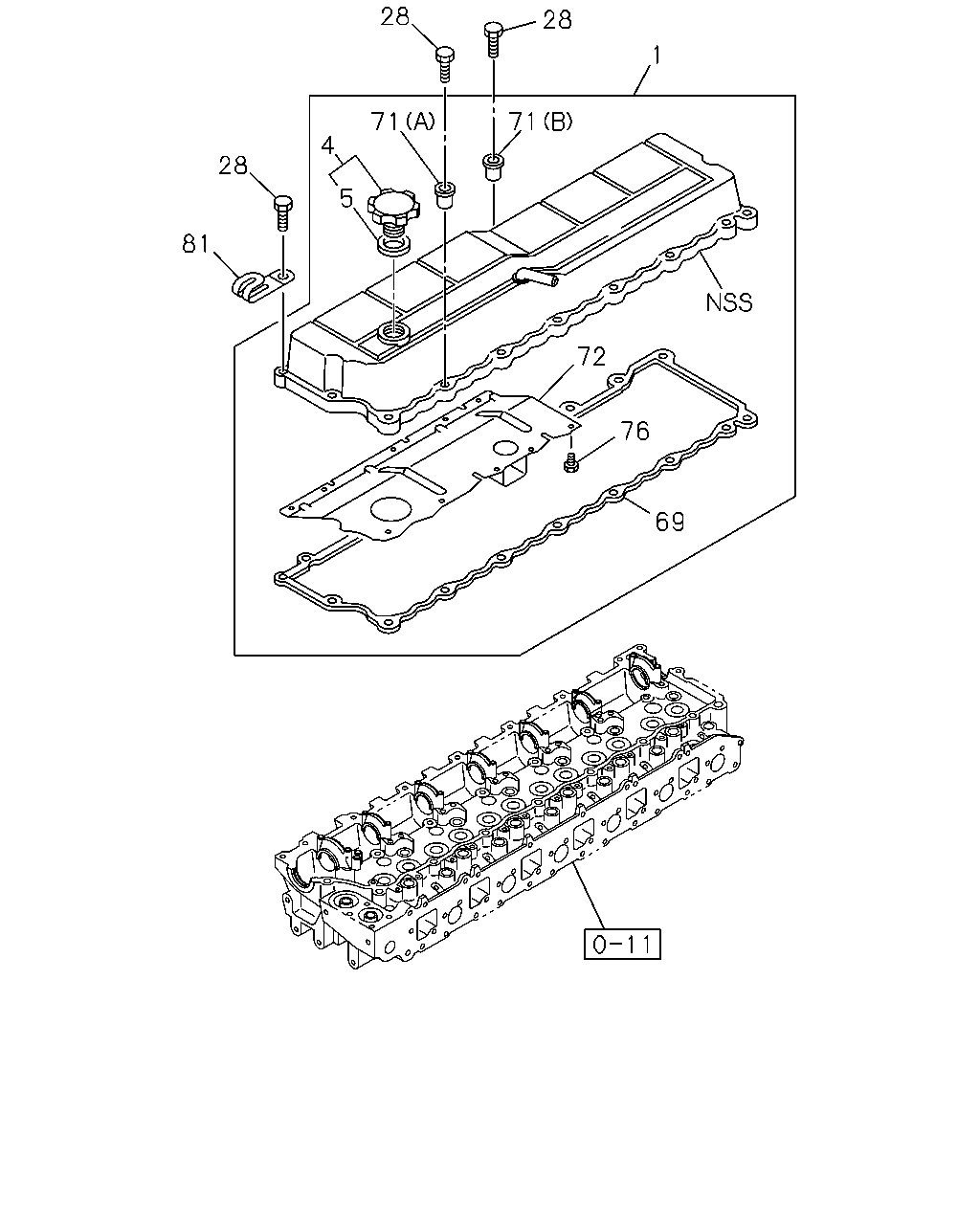

0-10 — CYLINDER HEAD COVER (#25301) — 24 parça

28 28 1 71 71 4 28 5 81 72 76 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD	8-94394-862-1	01	1	9811-9902	●
1	COVER; CYL HD	8-94394-862-2	01	1	9903-	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9811-9902	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9903-	●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	9811-9902	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	9903-	●	●
28	BOLT; HD COVER M8X35 FLANGE	0-28280-835-0	19	1	9811-9812	●
28	BOLT; HD COVER M8X35 FLANGE	0-28680-835-0	19	1	9901-9902	●
28	BOLT; HD COVER M8X35 FLANGE	0-28680-835-0	19	1	9903-0512	●	●
28	BOLT; HD COVER M8X35 FLANGE	0-28650-835-0	19	1	0601-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-383-0	01	1	9811-9902	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-383-0	01	1	9903-	●	●
71	COLLAR; HD COVER (A) OD=12.3	8-94396-971-1	18	1	9811-9902	●
71	COLLAR; HD COVER (A) OD=12.3	8-94396-971-1	18	1	9903-	●	●
71	COLLAR; HD COVER (B) OD=11	8-94396-972-1	01	1	9811-9902	●
71	COLLAR; HD COVER (B) OD=11	8-94396-972-1	01	1	9903-	●	●
72	PLATE; INNER HD COVER	8-94393-609-1	01	1	9811-9902	●
72	PLATE; INNER HD COVER	8-94393-609-1	01	1	9903-	●	●
76	SCREW; INNER PLATE M4X12 TAPPING	0-71180-412-0	07	1	9811-9902	●
76	SCREW; INNER PLATE M4X12 TAPPING	0-71180-412-0	07	1	9903-0603	●	●
76	SCREW; INNER PLATE M4X12 TAPPING	0-71240-412-0	07	1	0604-	●	●
81	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	9811-9902	●
81	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	9903-0801	●	●
81	CLIP; HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-	●	●
