◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#25300) — 75 parça

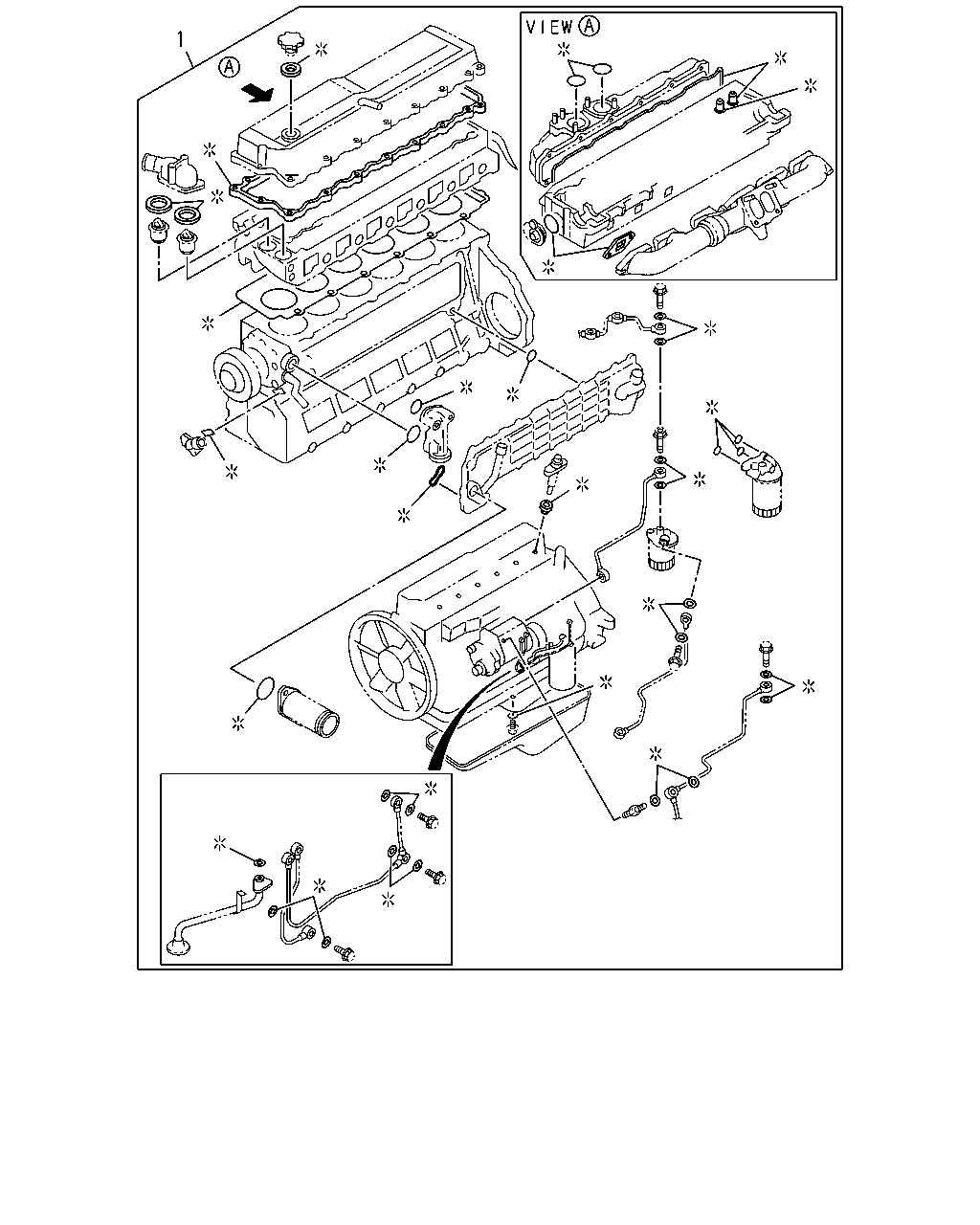

çizim 21062
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87812-025-0 01 1 9811-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 9911-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-185-0 01 1 0106-0201 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-331-0 01 1 0202-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-0 01 1 0202-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-2 01 1 0204-0606 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-107-0 01 1 0607-0912 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-543-2 01 1 1001-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-130-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-189-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-807-1 01 1 1409- ● ●
1 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-307-0 01 1 0202-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-091-0 01 1 9903-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 9911-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0201 ●

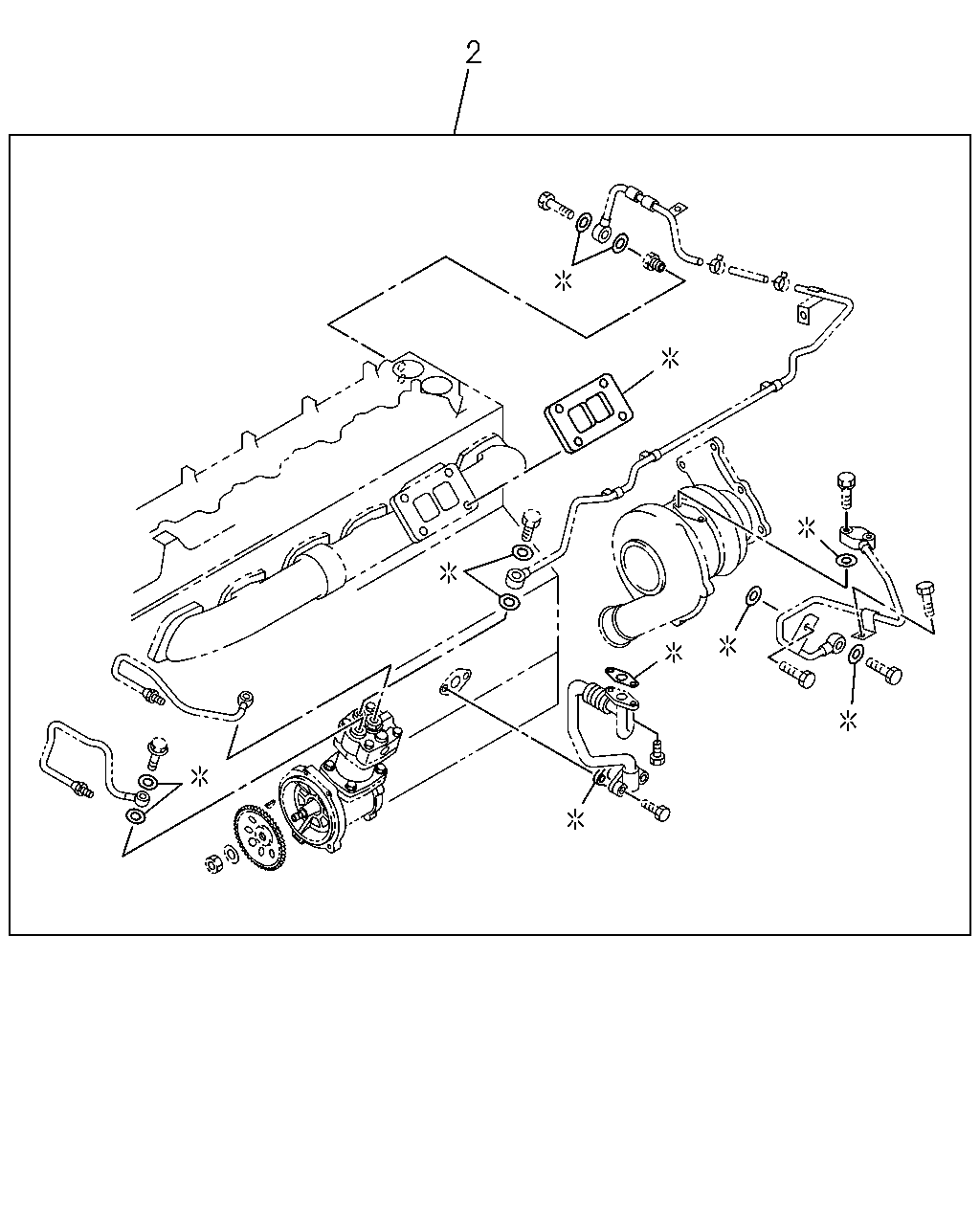

çizim 22074
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9811-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-186-0 01 1 0106-0201 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-186-0 01 1 0202-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 9903-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0106-0201 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-184-0 01 1 0202-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0202-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-4 01 1 0204-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-190-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-735-1 01 1 1409- ● ●

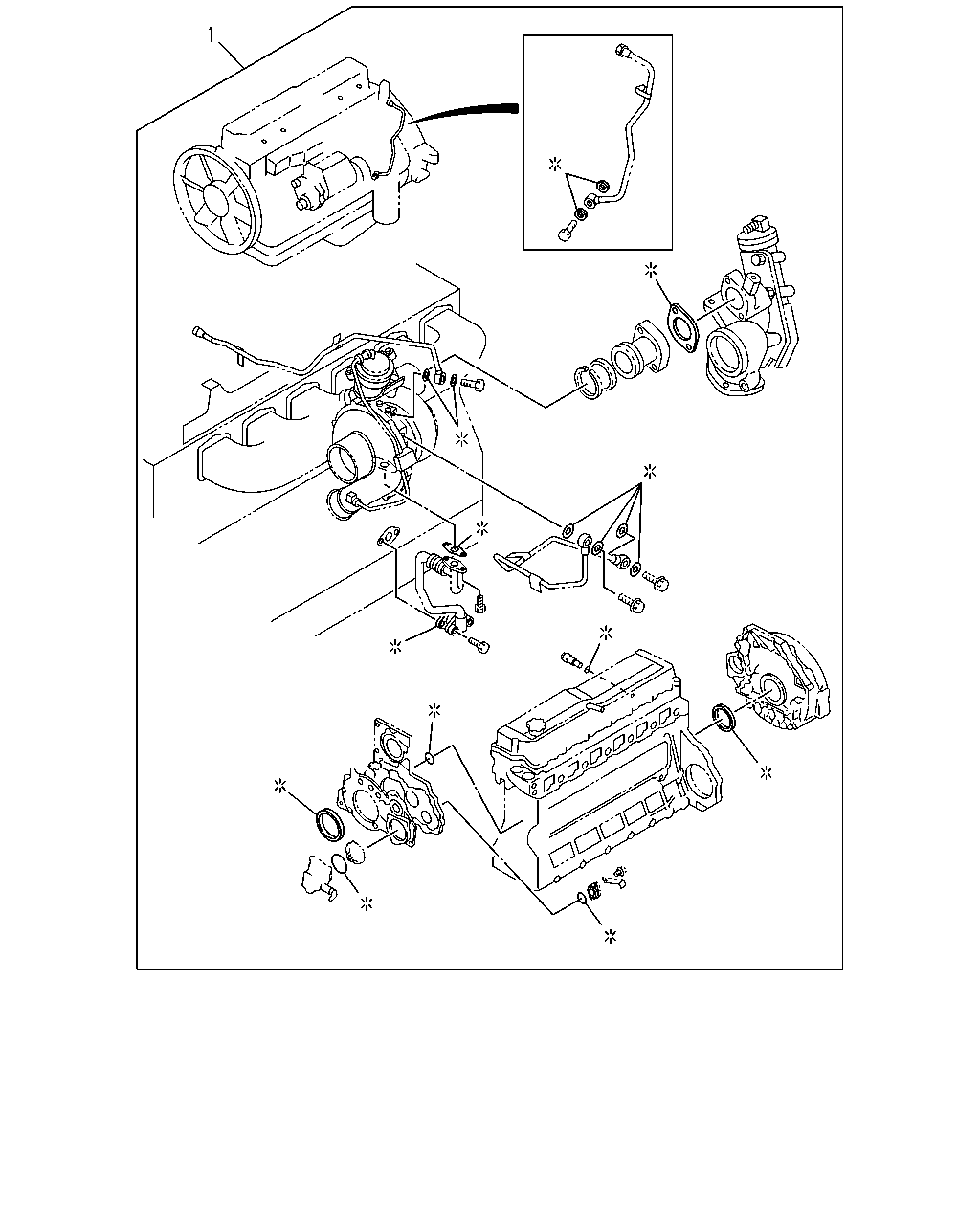

çizim 23864
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87812-025-0 01 1 9811-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 9911-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-185-0 01 1 0106-0201 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-331-0 01 1 0202-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-0 01 1 0202-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-2 01 1 0204-0606 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-107-0 01 1 0607-0912 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-543-2 01 1 1001-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-130-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-189-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-807-1 01 1 1409- ● ●
1 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-307-0 01 1 0202-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-091-0 01 1 9903-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 9911-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0201 ●

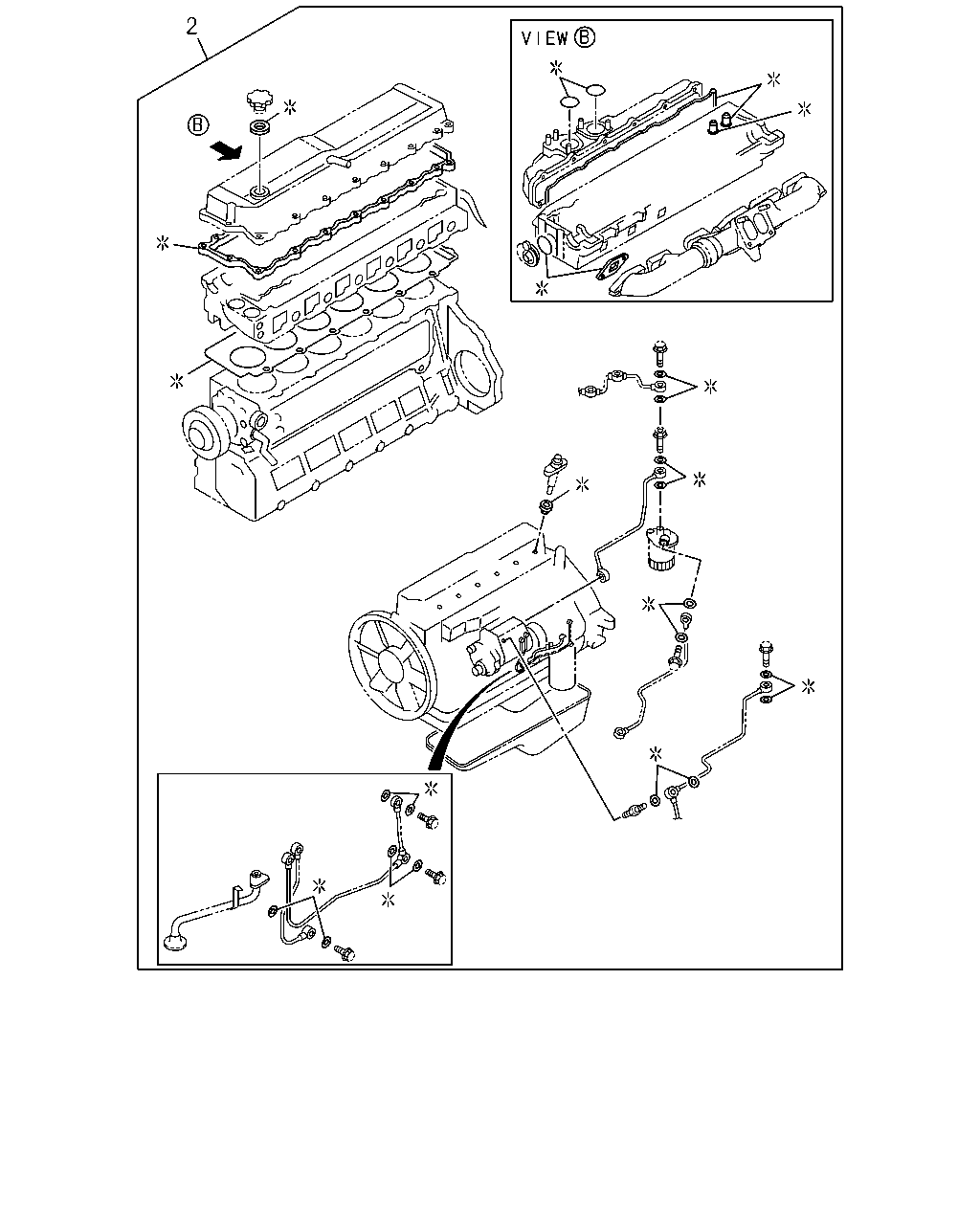

çizim 23987
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9811-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-186-0 01 1 0106-0201 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-186-0 01 1 0202-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 9903-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0106-0201 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-184-0 01 1 0202-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0202-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-4 01 1 0204-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-190-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-735-1 01 1 1409- ● ●

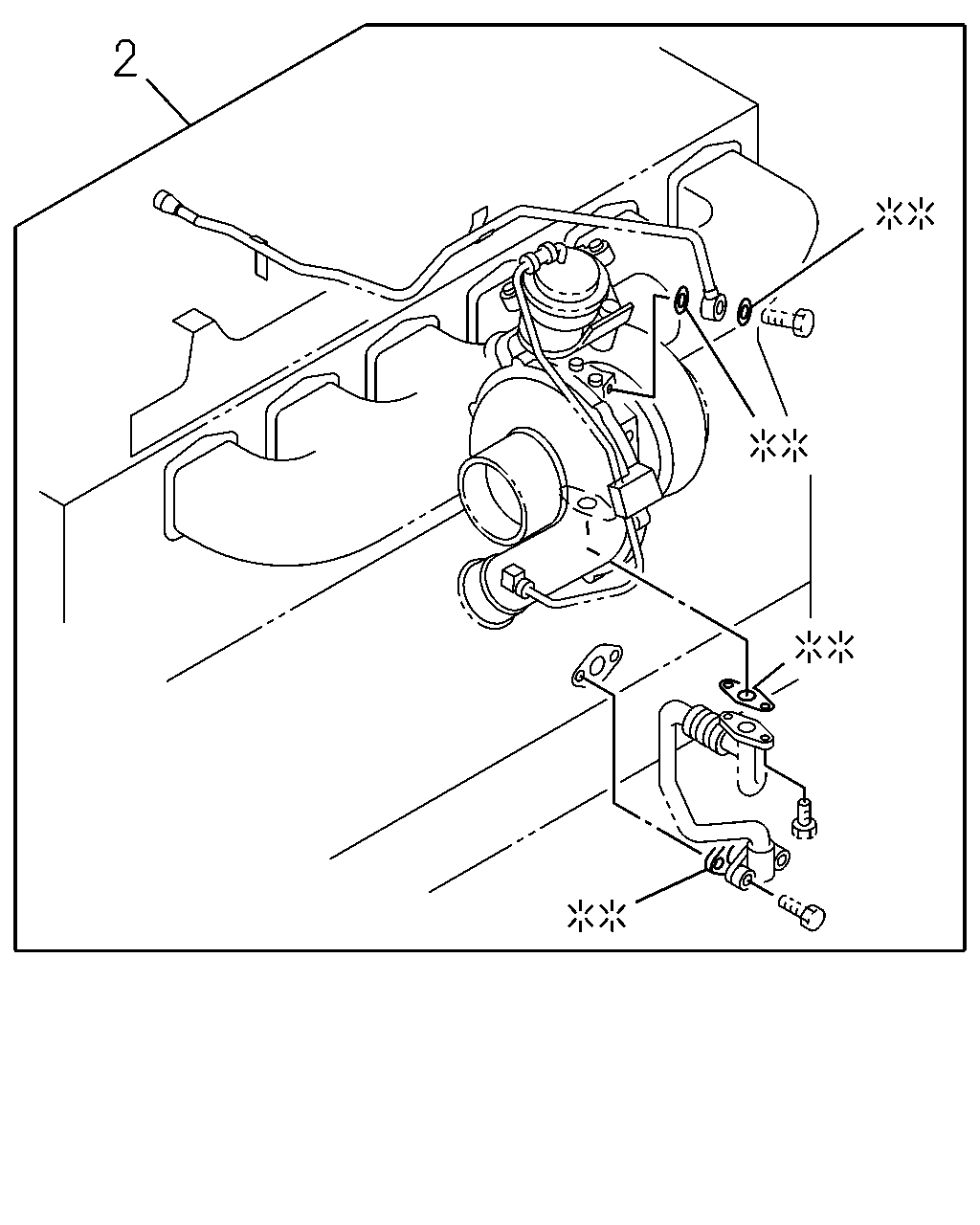

çizim 25126
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87811-624-0 01 1 9811-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-186-0 01 1 0106-0201 ●
2 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-186-0 01 1 0202-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87811-626-0 01 1 9903-0105 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0106-0201 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-184-0 01 1 0202-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-0 01 1 0202-0203 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-184-4 01 1 0204-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-190-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-735-1 01 1 1409- ● ●

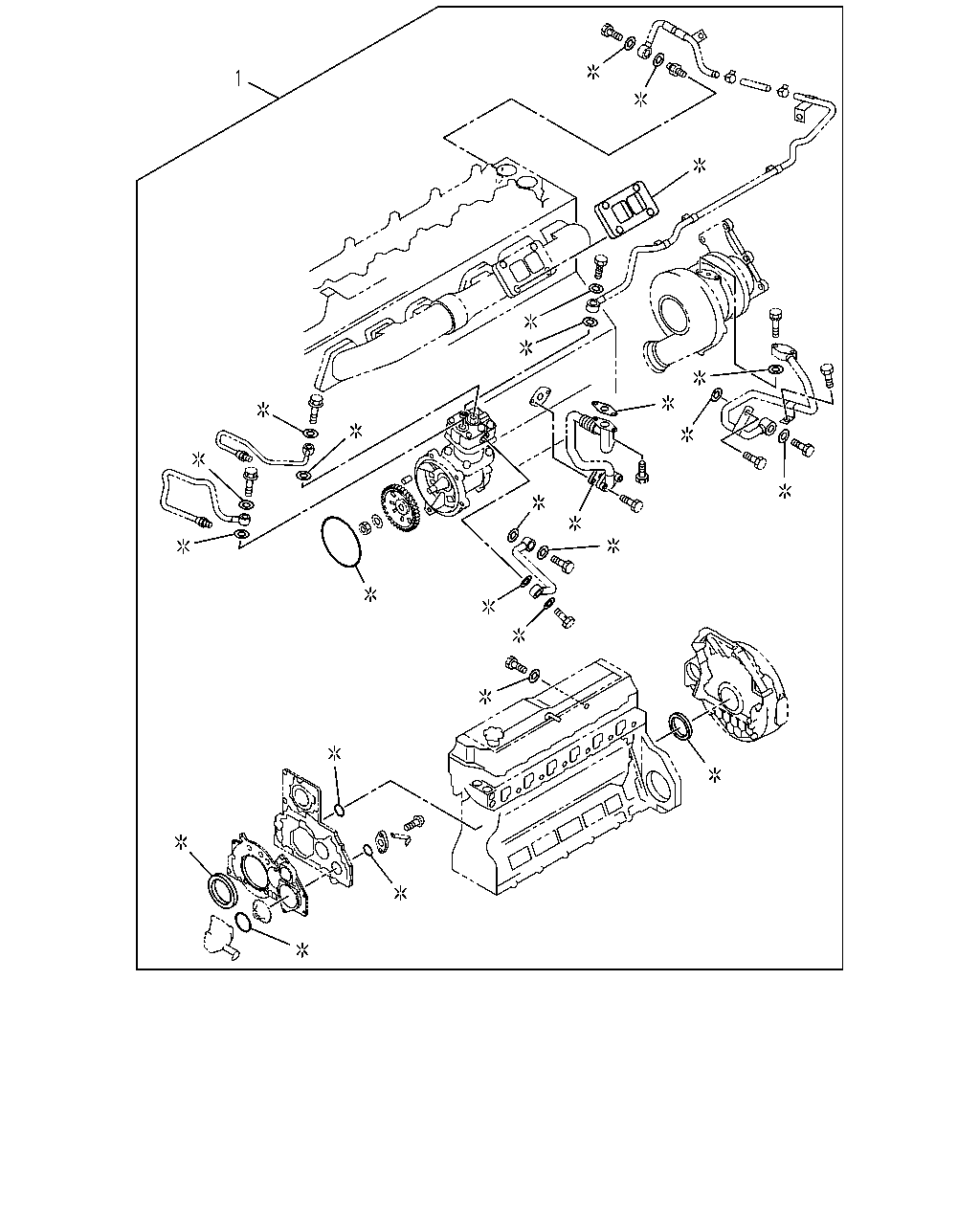

çizim 25231
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87812-025-0 01 1 9811-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-026-0 01 1 9911-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-185-0 01 1 0106-0201 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<THN> 		1-87812-331-0 01 1 0202-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-0 01 1 0202-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-331-2 01 1 0204-0606 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-107-0 01 1 0607-0912 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-543-2 01 1 1001-1308 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-130-0 01 1 1309-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-189-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-807-1 01 1 1409- ● ●
1 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<THN> 		1-87812-307-0 01 1 0202-0203 ●
1 GASKET SET; ENG OVERHAUL 1-87812-091-0 01 1 9903-9910 ●
1 GASKET SET; ENG OVERHAUL 1-87812-092-0 01 1 9911-0105 ●
1 GASKET SET; ENG OVERHAUL 1-87812-182-0 01 1 0106-0201 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
