6-68 — ROOF VENTILATOR (#2530) — 27 parça

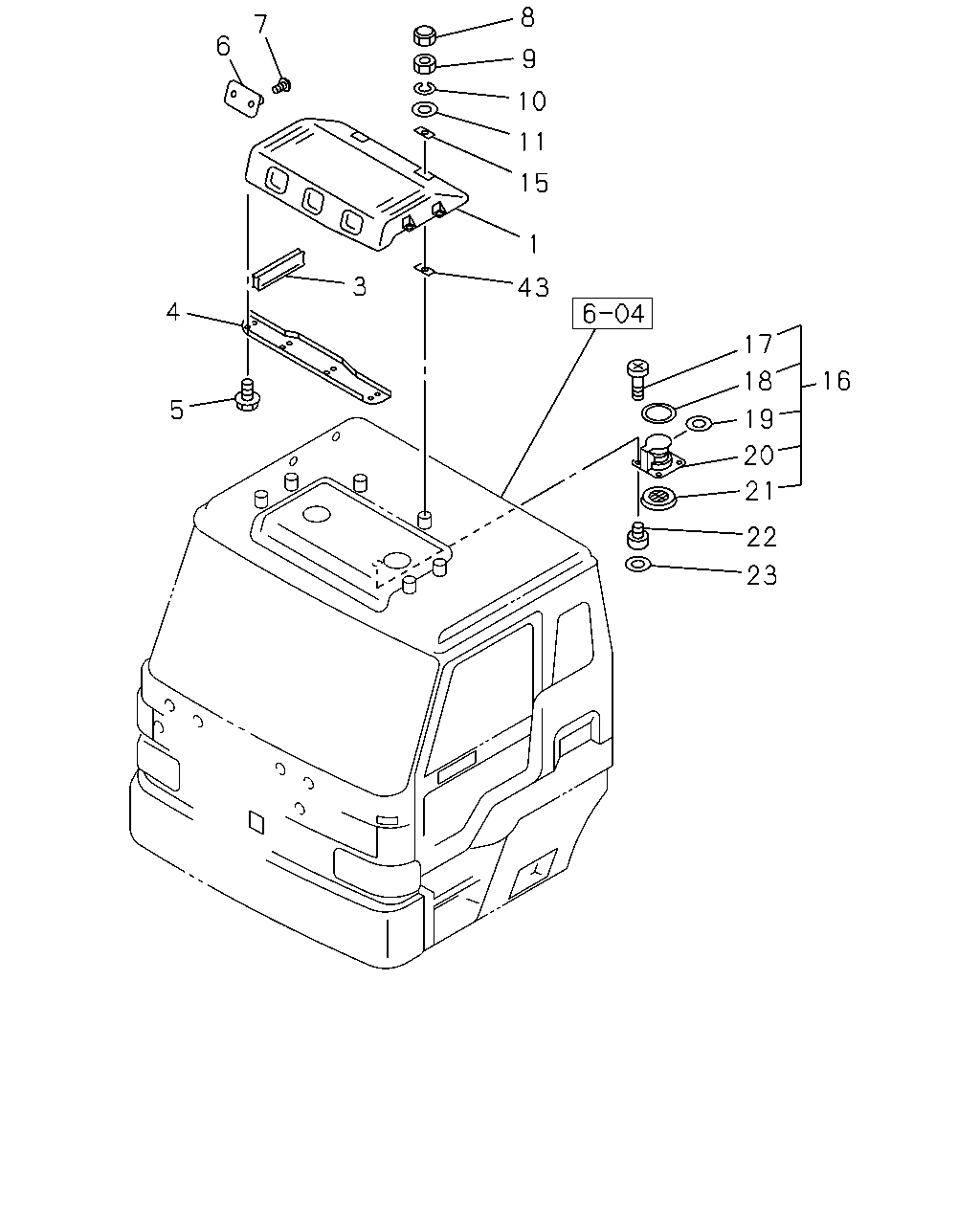

çizim 93752
8 7 6 9 10 11 15 1 3 43 4 17 16 18 5 19 20 21 22 23
BalonParca AdiParca NoAdetTipApplied Date
1 HOOD; ROOF VENT 1-76337-437-0 01 1 9002-
3 SEAL; HOOD,ROOF VENT 1-76777-066-0 04 1 9002-
4 GUARD; MOTH,ROOF VENT 1-76337-265-0 01 1 9002-
5 SCREW; MOTH GUARD
M5X10 		1-09981-428-0 10 1 9002-9112
5 SCREW; MOTH GUARD
M5X10 		1-09981-428-0 08 1 9201-
6 COVER; SPD INDICATOR LAMP
LAMPS FOUR ROOF MARKER<PJ5> 		1-76337-394-0 01 1 9002-
6 COVER; SPD INDICATOR LAMP
EXC. LAMPS FOUR ROOF MARKER<PJ5> 		1-76337-394-0 03 1 9002-
7 SCREW; COVER
LAMPS FOUR ROOF MARKER<PJ5> M5X12 W/LK&PL WASHER 		1-09981-464-0 02 1 9002-
7 SCREW; COVER
EXC. LAMPS FOUR ROOF MARKER<PJ5> M5X12 W/LK&PL WASHER 		1-09981-464-0 06 1 9002-
8 NUT; CAP,HOOD,ROOF VENT
M8 FLANGE 		1-09984-126-0 06 1 9002-
9 NUT; HOOD
M8 		1-09984-149-0 06 1 9002-
10 WASHER; LK,HOOD,ROOF VENT
ID=8.2 		1-09985-177-0 06 1 9002-
11 WASHER; PL,HOOD,ROOF VENT
ID=8.4 OD=22 		1-09985-188-0 06 1 9002-
15 PATCH; HOOD,ROOF VENT 1-76337-319-0 06 1 9002-
16 DEVICE; VENT,ROOF VENT 1-76337-443-0 02 1 9002-9306
16 DEVICE; VENT,ROOF VENT 1-76337-456-0 02 1 9307-
17 SCREW; BODY,ROOF VENT 1-76337-282-0 18 1 9002-
18 SEAL; BODY,ROOF VENT 1-76337-279-0 02 1 9002-
19 SEAL; DAMPER,ROOF VENT 1-76337-280-0 02 1 9002-
20 BODY ASM; ROOF VENT 1-76337-444-0 02 1 9002-9306
20 BODY ASM; ROOF VENT 1-76337-457-0 02 1 9307-
21 GRILLE ASM; ROOF VENT 1-76337-446-0 02 1 9002-9306
21 GRILLE ASM; ROOF VENT 1-76337-458-0 02 1 9307-
22 SCREW; DEVICE,ROOF VENT
M6X20 W/LK&PL WASHER 		1-09981-312-0 08 1 9002-
23 COVER; DEVICE,HOLE,ROOF VENT 1-76337-445-0 08 1 9002-9306
23 COVER; DEVICE,HOLE,ROOF VENT 1-73337-366-0 08 1 9307-
43 SHEET; HOOD,ROOF VENT 1-76337-271-1 06 1 9002-
