Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#25298) — 311 parça

120 120 75 123 122 121 163 163 163 163 166 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	TOOL; SETTING,OIL SEAL MAL6 M/T<X9G>	1-85221-096-0	01	1	0107-	●
120	PULLER ASM; MAIN REAR BRG MAL6S M/T(Y1V) (A) L=285	9-85210-184-0	01	1	0012-0106	●
120	PULLER ASM; MAIN REAR BRG MAL6 M/T<X9G> (A) L=285	9-85210-184-0	01	1	0107-	●
120	PULLER ASM; MAIN REAR BRG MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B)	9-85210-192-0	01	1	9601-9609		●
120	PULLER ASM; MAIN REAR BRG MLD7 M/T<X9Z> (B)	9-85210-192-0	01	1	9610-9803	●
120	PULLER ASM; MAIN REAR BRG MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B)	9-85210-192-0	01	1	9610-9803		●
120	PULLER ASM; MAIN REAR BRG MLD7 M/T<X9Z> (B)	9-85210-192-0	01	1	9804-0106	●
121	PULLER ASM; COUNTER REAR MAL6S M/T(Y1V) L=285	9-85210-184-0	01	1	0012-0106	●
122	PULLER ASM; COUNTER FRT MLD6 M/T<X9Y>,MLD7 M/T<X9Z>	9-85210-129-1	01	1	9601-9609		●
122	PULLER ASM; COUNTER FRT MLD7 M/T<X9Z>	9-85210-129-1	01	1	9610-9803	●
122	PULLER ASM; COUNTER FRT MLD6 M/T<X9Y>,MLD7 M/T<X9Z>	9-85210-129-1	01	1	9610-9803		●
122	PULLER ASM; COUNTER FRT MLD7 M/T<X9Z>	9-85210-129-1	01	1	9804-0011	●
122	PULLER ASM; COUNTER FRT MAL6 M/T<X9G>,MLD7 M/T<X9Z>	9-85210-129-1	01	1	0012-0106	●
123	PULLER; SPEEDOMETER BUSHING MAL6S M/T(Y1V)	9-85210-091-0	01	1	0012-0106	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=195	1-85221-162-1	01	1	9601-9609		●
163	TOOL; SETTING MLD7 M/T<X9Z> (B) L=195	1-85221-162-1	01	1	9610-9803	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=195	1-85221-162-1	01	1	9610-9803		●
163	TOOL; SETTING MLD7 M/T<X9Z> (B) L=195	1-85221-162-1	01	1	9804-0011	●
163	TOOL; SETTING MAL6 M/T<X9G>,MLD7 M/T<X9Z> (B) L=195	1-85221-162-1	01	1	0012-0106	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (D) L=150	1-85221-163-0	01	1	9601-9609		●
163	TOOL; SETTING MLD7 M/T<X9Z> (D) L=150	1-85221-163-0	01	1	9610-9803	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (D) L=150	1-85221-163-0	01	1	9610-9803		●
163	TOOL; SETTING MLD7 M/T<X9Z> (D) L=150	1-85221-163-0	01	1	9804-0011	●
163	TOOL; SETTING MAL6 M/T<X9G>,MLD7 M/T<X9Z> (D) L=150	1-85221-163-0	01	1	0012-0106	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) OD=120	1-85221-164-0	01	1	9601-9609		●
163	TOOL; SETTING MLD7 M/T<X9Z> (A) OD=120	1-85221-164-0	01	1	9610-9803	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A) OD=120	1-85221-164-0	01	1	9610-9803		●
163	TOOL; SETTING MLD7 M/T<X9Z> (A) OD=120	1-85221-164-0	01	1	9804-0011	●
163	TOOL; SETTING MAL6 M/T<X9G>,MLD7 M/T<X9Z> (A) OD=120	1-85221-164-0	01	1	0012-0106	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=150	9-85221-248-0	01	1	9601-9609		●
163	TOOL; SETTING MLD7 M/T<X9Z> (B) L=150	9-85221-248-0	01	1	9610-9803	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=150	9-85221-248-0	01	1	9610-9803		●
163	TOOL; SETTING MLD7 M/T<X9Z> (B) L=150	9-85221-248-0	01	1	9804-0106	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) L=350	9-85221-310-0	01	1	9601-9609		●
163	TOOL; SETTING MLD7 M/T<X9Z> (C) L=350	9-85221-310-0	01	1	9610-9803	●
163	TOOL; SETTING MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) L=350	9-85221-310-0	01	1	9610-9803		●
163	TOOL; SETTING MLD7 M/T<X9Z> (C) L=350	9-85221-310-0	01	1	9804-0106	●
166	ALIGNER; CLU RELEASE LEVER	1-85253-011-0	01	1	9601-9609		●
166	ALIGNER; CLU RELEASE LEVER 15" CLUTCH(RE9) ISUZU M/T<X9A>	1-85253-011-0	01	1	9610-9705	●
166	ALIGNER; CLU RELEASE LEVER	1-85253-011-0	01	1	9610-9705		●
166	ALIGNER; CLU RELEASE LEVER 15" CLUTCH(RE9) ISUZU M/T<X9A>	1-85253-011-0	01	1	9706-9803	●
166	ALIGNER; CLU RELEASE LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-85253-011-0	01	1	9706-9803		●
166	ALIGNER; CLU RELEASE LEVER	1-85253-011-0	01	1	9804-0106	●
167	ALIGNER; CLU PILOT L=190	1-85253-022-0	01	1	9601-9609	●
167	ALIGNER; CLU PILOT ZF 9S109 OD M/T(Y2L) L=190	1-85253-022-0	01	1	9610-9903	●
167	ALIGNER; CLU PILOT ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y) L=190	1-85253-022-0	01	1	9904-0004	●
167	ALIGNER; CLU PILOT ZF 9S109 OD M/T(Y2L) L=190	1-85253-022-0	01	1	0005-0011	●
167	ALIGNER; CLU PILOT MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) L=190	1-85253-022-0	01	1	0012-0106	●
167	ALIGNER; CLU PILOT MLD6 M/T<X9Y>,MLD7 M/T<X9Z> L=185	1-85253-012-0	01	1	9601-9609		●
167	ALIGNER; CLU PILOT MLD7 M/T<X9Z> L=185	1-85253-012-0	01	1	9610-9803	●
167	ALIGNER; CLU PILOT MLD6 M/T<X9Y>,MLD7 M/T<X9Z> L=185	1-85253-012-0	01	1	9610-9803		●
167	ALIGNER; CLU PILOT ISUZU M/T<X9A> L=185	1-85253-012-0	01	1	9804-0004	●
167	ALIGNER; CLU PILOT MLD7 M/T<X9Z> L=185	1-85253-012-0	01	1	0005-0106	●

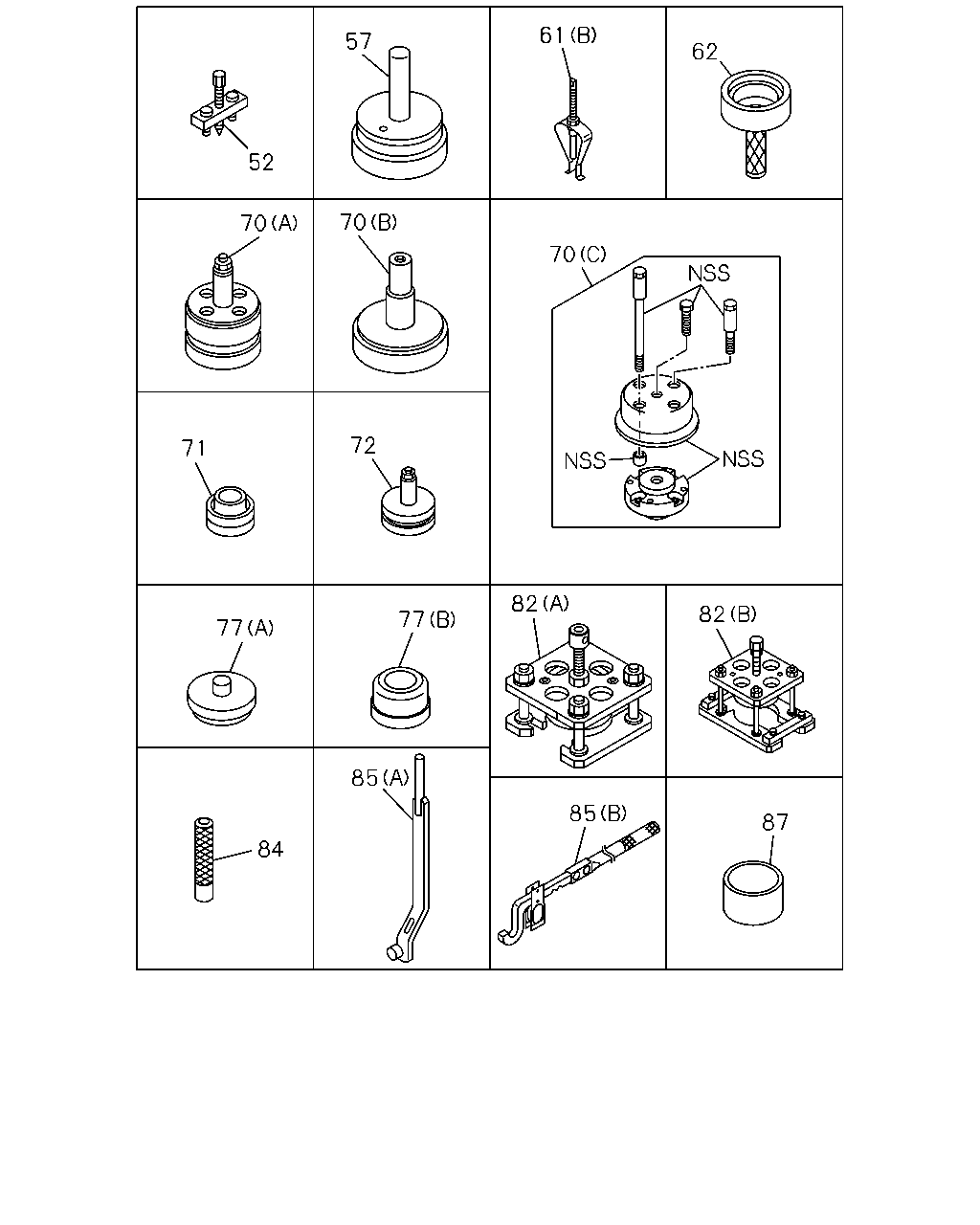

61 57 62 52 70 70 70 72 71 82 82 77 77 85 85 87 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	9601-9609	●
52	REMOVER; WATER PUMP 6SD1 TCN ENG(31L)	1-85210-047-0	01	1	9610-	●
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	9601-9609	●
57	TOOL; SETTING CRANK GEAR 6SD1 TCN ENG(31L) ID=144.5	1-85221-072-0	01	1	9610-	●
57	TOOL; SETTING CRANK GEAR 6SD1 TCN ENG(31L) ID=165.8	1-85221-075-0	01	1	0107-	●
57	TOOL; SETTING CRANK GEAR ID=134.5	8-94396-819-0	01	1	9601-9609		●
57	TOOL; SETTING CRANK GEAR 6HE1 TC ENG(57L) ID=134.5	8-94396-819-0	01	1	9610-9803	●
57	TOOL; SETTING CRANK GEAR ID=134.5	8-94396-819-0	01	1	9610-9803		●
57	TOOL; SETTING CRANK GEAR 6HE1 TC ENG(57L) ID=134.5	8-94396-819-0	01	1	9804-0106	●
61	PULLER ASM; PILOT BRG 6SD1 TCN ENG(31L) (B)	1-85220-028-0	01	1	0107-	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9601-9803	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9804-	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9601-9609		●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L) (B)	9-85210-157-0	01	1	9610-9803	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9610-9803		●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L) (B)	9-85210-157-0	01	1	9804-0106	●
62	TOOL ASM; SETTING WEAR RING 6SD1 TCN ENG(31L)	1-85221-079-0	01	1	0107-	●
70	TOOL; SETTING,OIL SEAL (A)	1-85220-025-1	01	1	9601-9609	●
70	TOOL; SETTING,OIL SEAL 6SD1 TCN ENG(31L) (A)	1-85220-025-1	01	1	9610-0106	●
70	TOOL; SETTING,OIL SEAL (B)	8-94396-856-0	01	1	9601-9609		●
70	TOOL; SETTING,OIL SEAL 6HE1 TC ENG(57L) (B)	8-94396-856-0	01	1	9610-9803	●
70	TOOL; SETTING,OIL SEAL (B)	8-94396-856-0	01	1	9610-9803		●
70	TOOL; SETTING,OIL SEAL 6HE1 TC ENG(57L) (B)	8-94396-856-0	01	1	9804-0106	●
70	TOOL; SETTING,OIL SEAL 6SD1 TCN ENG(31L) (C)	8-98194-607-0	01	1	1109-	●
71	TOOL; SETTING,OIL SEAL,FRT 6SD1 TCN ENG(31L)	1-85220-029-0	01	1	0107-1108	●
72	TOOL; SETTING,OIL SEAL,RR 6SD1 TCN ENG(31L)	1-85220-030-0	01	1	0107-1108	●
77	TOOL; SETTING,CYL LINER (A)	1-85221-073-0	01	1	9601-9609	●
77	TOOL; SETTING,CYL LINER 6SD1 TCN ENG(31L) (A)	1-85221-073-0	01	1	9610-	●
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L) (B)	8-94396-816-0	01	1	9610-0106	●
82	PULLER ASM; CR/SHF GEAR 6SD1 TCN ENG(31L) (B)	1-85210-051-0	01	1	0107-	●
82	PULLER ASM; CR/SHF GEAR (A)	8-94396-818-0	01	1	9601-9609		●
82	PULLER ASM; CR/SHF GEAR 6HE1 TC ENG(57L) (A)	8-94396-818-0	01	1	9610-9803	●
82	PULLER ASM; CR/SHF GEAR (A)	8-94396-818-0	01	1	9610-9803		●
82	PULLER ASM; CR/SHF GEAR 6HE1 TC ENG(57L) (A)	8-94396-818-0	01	1	9804-0106	●
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9601-9609		●
84	REPLACER; VALVE SEAL 6HE1 TC ENG(57L)	8-94396-815-0	01	1	9610-9803	●
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9610-9803		●
84	REPLACER; VALVE SEAL 6HE1 TC ENG(57L)	8-94396-815-0	01	1	9804-0106	●
85	REPLACER ASM; VALVE SPR (A)	1-85235-007-0	01	1	9601-9609	●
85	REPLACER ASM; VALVE SPR 6SD1 TCN ENG(31L) (A)	1-85235-007-0	01	1	9610-	●
85	REPLACER ASM; VALVE SPR 6HK1 TCS ENG(80L) (B)	8-94391-528-0	01	1	0107-	●
85	REPLACER ASM; VALVE SPR (A)	8-94396-861-0	01	1	9601-9609		●
85	REPLACER ASM; VALVE SPR 6HE1 TC ENG(57L) (A)	8-94396-861-0	01	1	9610-9803	●
85	REPLACER ASM; VALVE SPR (A)	8-94396-861-0	01	1	9610-9803		●
85	REPLACER ASM; VALVE SPR 6HE1 TC ENG(57L) (A)	8-94396-861-0	01	1	9804-0106	●
87	TOOL; PISTON	1-85221-082-0	01	1	9601-9609	●
87	TOOL; PISTON 6SD1 TCN ENG(31L)	1-85221-082-0	01	1	9610-	●

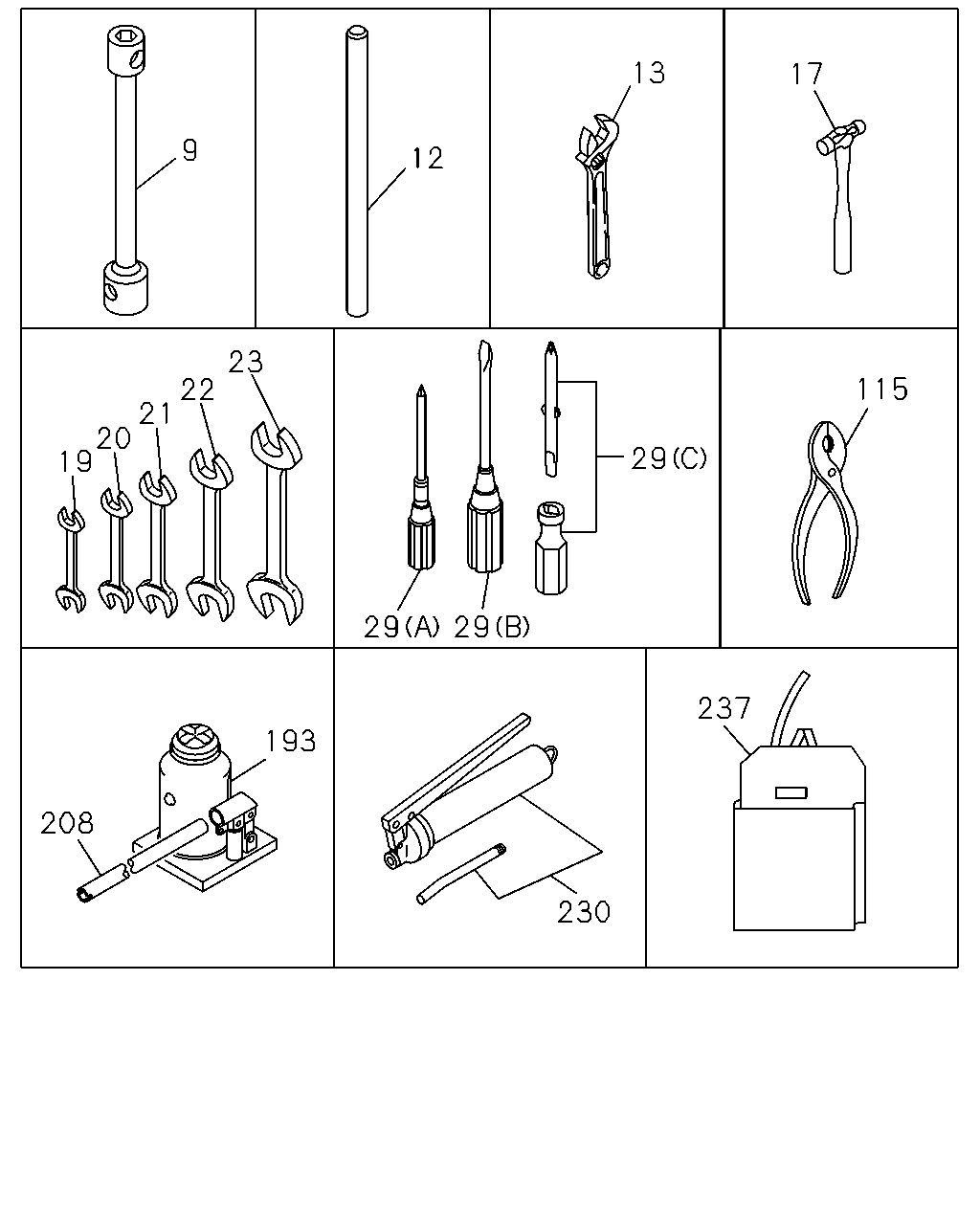

13 17 9 12 23 22 21 20 19 115 29 29 29 237 193 208 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	WRENCH; WHEEL PIN EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=41X21 L=440	1-85113-015-1	01	1	0005-0106	●
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9601-9803	●	●
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9804-0004	●
9	WRENCH; WHEEL PIN DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450	1-85111-033-1	01	1	0005-0106	●
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	0107-	●
12	HANDLE; WRENCH,WHEEL PIN SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> OD=25 L=480	1-85116-011-0	01	1	0107-0208	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0209-1409	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1410-	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9601-9803	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9804-0106	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9601-9803	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9804-0208	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-	●
17	HAMMER	9-85121-406-0	01	1	9601-9803	●	●
17	HAMMER	9-85121-406-0	01	1	9804-0208	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-	●
19	WRENCH; 7X8 8X10	9-99592-108-0	01	1	9601-9602	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9601-9803	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9804-0208	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9601-9803	●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9804-0208	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9601-9803	●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9804-0208	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9601-9803	●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9804-0208	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0607	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-	●
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	9601-9803	●	●
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	9804-0208	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=285	1-85151-004-0	01	1	0209-0611	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=275	8-98061-105-0	01	1	0612-	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9601-9803	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9804-	●
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	9601-9803	●	●
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	9804-0208	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=190	9-09595-522-0	01	1	0209-	●
115	PLIER	5-85171-001-0	01	1	9601-9602	●	●
115	PLIER	5-85171-002-0	01	1	9603-9803	●	●
115	PLIER	5-85171-002-0	01	1	9804-0208	●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0209-	●
193	JACK ASM 10TON	1-85510-013-1	01	1	9601-9803	●	●
193	JACK ASM 10TON	1-85510-013-1	01	1	9804-0504	●
193	JACK ASM 10TON	8-97607-599-0	01	1	0505-	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9601-9803	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9804-0105	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-1107	●
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-	●
230	PUMP; GREASE	1-85556-007-2	01	1	9601-9803	●	●
230	PUMP; GREASE	1-85556-007-2	01	1	9804-0208	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-	●
237	BAG; TOOL	8-97130-902-0	01	1	9601-9803	●	●
237	BAG; TOOL	8-97130-902-1	01	1	9804-	●

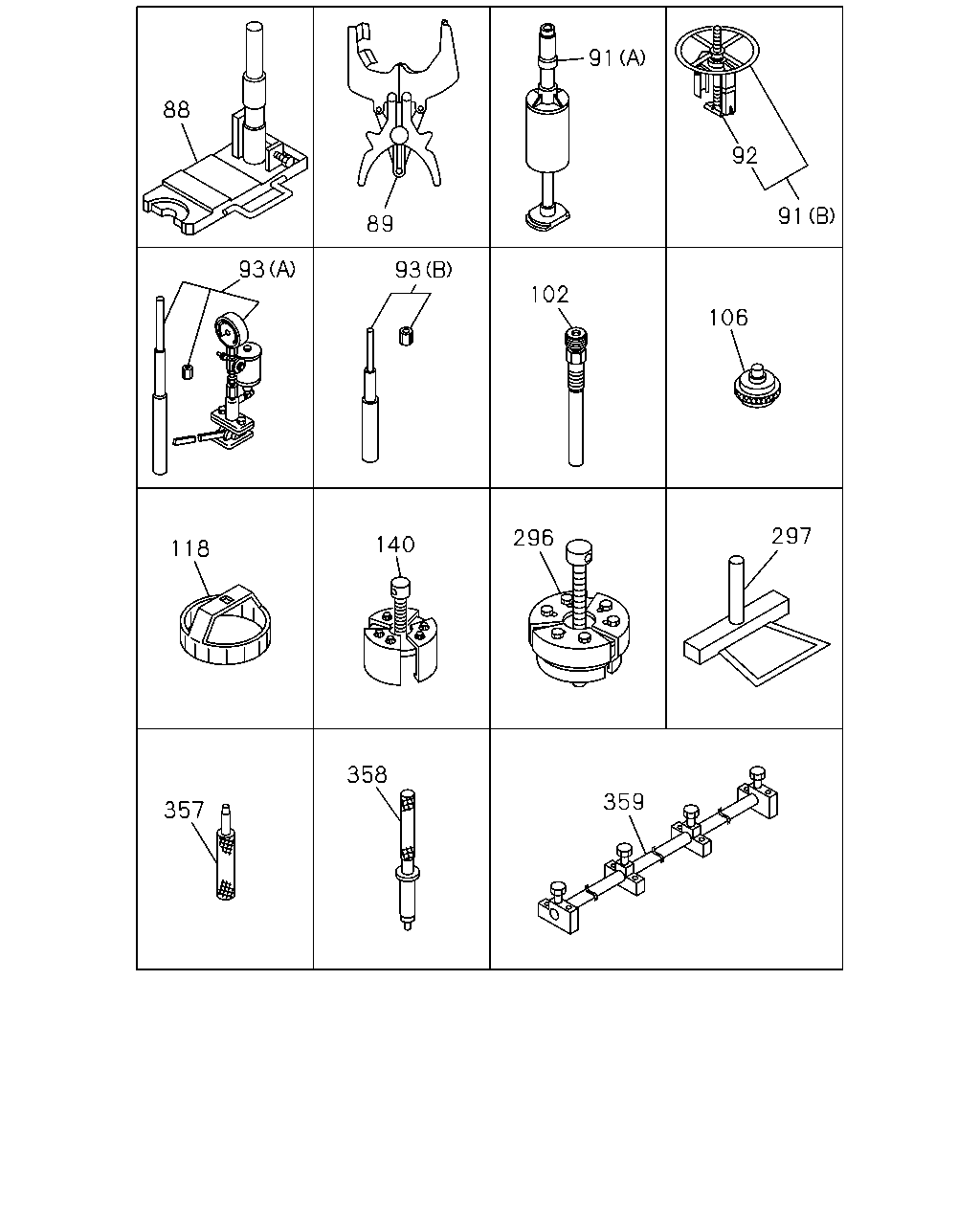

91 88 92 91 89 93 93 102 106 297 296 140 118 358 359 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	9601-9609	●
88	TOOL; CONNROD BUSHING 6SD1 TCN ENG(31L)	1-85220-037-0	01	1	9610-	●
89	TOOL; PISTON RING	1-85221-029-0	01	1	9601-9803	●	●
89	TOOL; PISTON RING	1-85221-029-0	01	1	9804-0106	●
91	REPLACER ASM; CYL LINER (A)	1-85231-021-0	01	1	9601-9609	●
91	REPLACER ASM; CYL LINER 6SD1 TCN ENG(31L) (A)	1-85231-021-0	01	1	9610-	●
91	REPLACER ASM; CYL LINER (B)	8-94396-849-0	01	1	9601-9609		●
91	REPLACER ASM; CYL LINER 6HE1 TC ENG(57L) (B)	8-94396-849-0	01	1	9610-9803	●
91	REPLACER ASM; CYL LINER (B)	8-94396-849-0	01	1	9610-9803		●
91	REPLACER ASM; CYL LINER 6HE1 TC ENG(57L) (B)	8-94396-849-0	01	1	9804-0106	●
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9601-9609		●
92	ANKLE; REPLACER,CYL LINER 6HE1 TC ENG(57L)	8-94396-821-0	01	1	9610-9803	●
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9610-9803		●
92	ANKLE; REPLACER,CYL LINER 6HE1 TC ENG(57L)	8-94396-821-0	01	1	9804-0106	●
93	SETTING KIT; VALVE GUIDE (B) L=260	9-85231-202-0	01	1	9601-9609	●
93	SETTING KIT; VALVE GUIDE 6SD1 TCN ENG(31L) (B) L=260	9-85231-202-0	01	1	9610-	●
93	SETTING KIT; VALVE GUIDE (A)	1-85220-001-0	01	1	9601-9609		●
93	SETTING KIT; VALVE GUIDE 6HE1 TC ENG(57L) (A)	1-85220-001-0	01	1	9610-9803	●
93	SETTING KIT; VALVE GUIDE (A)	1-85220-001-0	01	1	9610-9803		●
93	SETTING KIT; VALVE GUIDE 6HE1 TC ENG(57L) (A)	1-85220-001-0	01	1	9804-0106	●
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	9601-9609	●
102	ADAPTER; COMP GAGE 6SD1 TCN ENG(31L)	5-85317-001-0	01	1	9610-	●
106	TOOL; SETTING PILOT BRG 6SD1 TCN ENG(31L)	1-85221-080-0	01	1	0107-	●
118	WRENCH; OIL FILTER	1-85221-097-0	01	1	9601-9609		●
118	WRENCH; OIL FILTER 6HE1 TC ENG(57L)	1-85221-097-0	01	1	9610-9803	●
118	WRENCH; OIL FILTER	1-85221-097-0	01	1	9610-9803		●
118	WRENCH; OIL FILTER 6HE1 TC ENG(57L)	1-85221-097-0	01	1	9804-0106	●
140	REMOVER; WEAR RING 6SD1 TCN ENG(31L)	1-85210-053-0	01	1	0107-	●
296	REPLACER; SLINGER	8-94396-858-0	01	1	9601-9609		●
296	REPLACER; SLINGER 6HE1 TC ENG(57L)	8-94396-858-0	01	1	9610-9803	●
296	REPLACER; SLINGER	8-94396-858-0	01	1	9610-9803		●
296	REPLACER; SLINGER 6HE1 TC ENG(57L)	8-94396-858-0	01	1	9804-0106	●
297	CUTTER; SEAL,OIL PAN	8-94393-112-0	01	1	9601-9609		●
297	CUTTER; SEAL,OIL PAN 6HE1 TC ENG(57L)	8-94393-112-0	01	1	9610-9803	●
297	CUTTER; SEAL,OIL PAN	8-94393-112-0	01	1	9610-9803		●
297	CUTTER; SEAL,OIL PAN 6HE1 TC ENG(57L)	8-94393-112-0	01	1	9804-0106	●
357	REPLACER; NOZZLE SLEEVE 6HK1 TCS ENG(80L)	8-94391-555-0	01	1	0107-	●
358	PLACER; NOZZLE SLEEVE 6HK1 TCS ENG(80L)	8-94391-556-0	01	1	0107-	●
359	PIVOT 6HK1 TCS ENG(80L)	8-94396-862-0	01	1	0107-	●

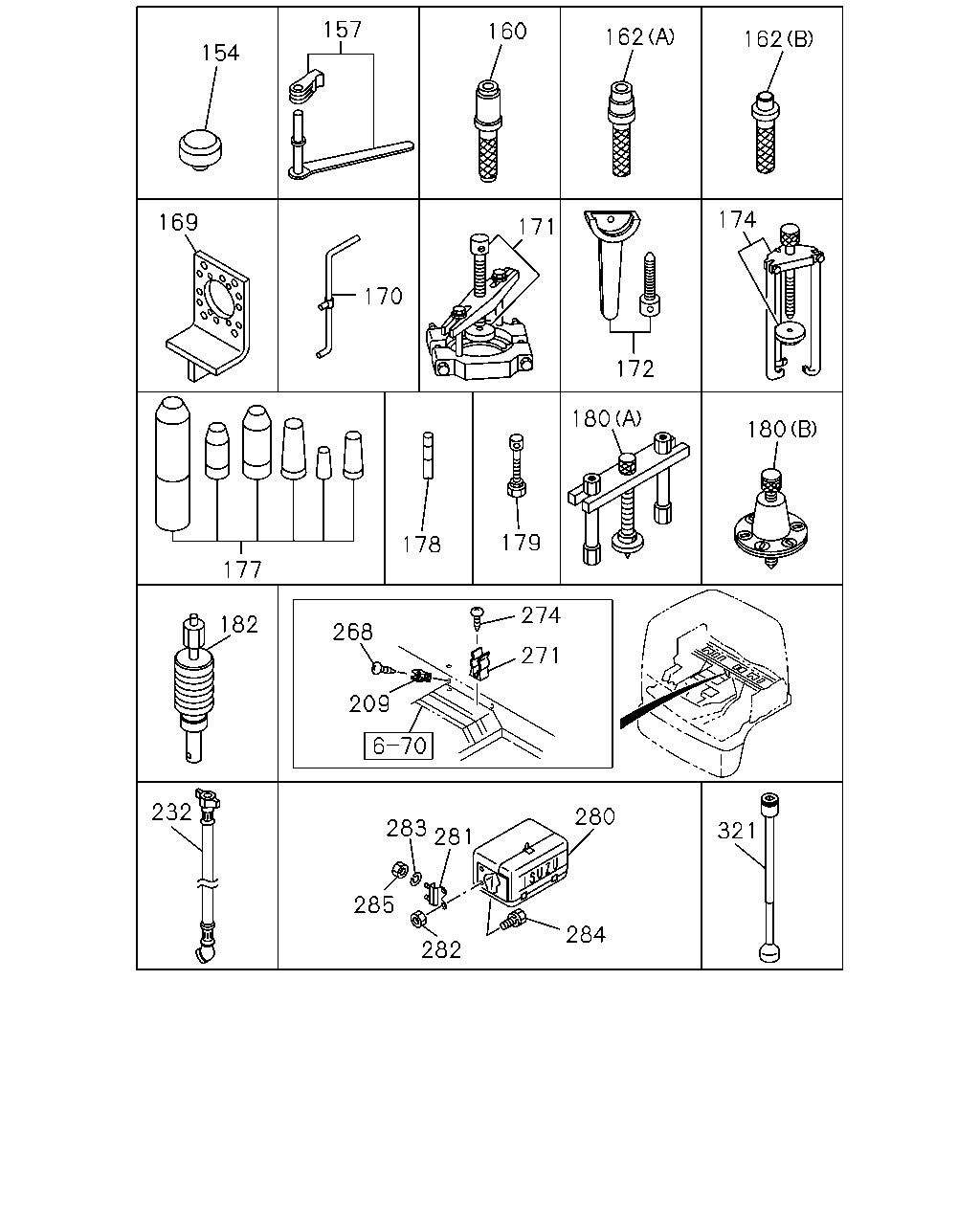

157 160 162 162 154 174 169 171 170 172 180 180 179 178 177 274 182 268 271 209 232 280 283 281 321 285 284 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9601-9803	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9804-	●
157	REPLACER KIT; RETURN SPR	1-85237-017-0	01	1	0107-	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	9601-9803		●
162	SETTING TOOL; NEEDLE BRG (A) L=200	1-85238-005-0	01	1	9601-9803	●	●
162	SETTING TOOL; NEEDLE BRG (A) L=200	1-85238-005-0	01	1	9804-0106	●
162	SETTING TOOL; NEEDLE BRG (B) L=175	1-85238-006-0	01	1	9601-9803	●	●
162	SETTING TOOL; NEEDLE BRG (B) L=175	1-85238-006-0	01	1	9804-0106	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9601-9803	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9804-0106	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9601-9803	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9601-9803	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9804-0106	●
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9601-9803	●	●
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9804-0106	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9601-9803	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9804-0106	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9601-9803	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9804-	●
177	SETTING TOOL KIT	9-85220-040-0	01	1	9601-9803	●	●
177	SETTING TOOL KIT	9-85220-040-0	01	1	9804-0106	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9601-9803	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9804-	●
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9601-9803	●	●
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9804-0106	●
180	PULLER; FRT & RR HUB (B)	1-85210-002-0	01	1	9601-9803	●	●
180	PULLER; FRT & RR HUB (B)	1-85210-002-0	01	1	9601-9803	●	●
180	PULLER; FRT & RR HUB (B)	1-85210-002-0	02	1	9804-	●
180	PULLER; FRT & RR HUB (A) M20	9-85210-187-0	01	1	9601-9803	●	●
180	PULLER; FRT & RR HUB (A) M20	9-85210-187-0	01	1	9804-0106	●
182	REMOVER ASM	9-85210-095-0	01	1	9601-9803	●	●
182	REMOVER ASM	9-85210-095-0	01	1	9804-0106	●
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9601-9803	●	●
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9804-0708	●
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<SG4>	1-09360-245-1	01	1	9601-9803	●	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<SG4>	1-09360-245-1	01	1	9804-0106	●
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9601-9803	●	●
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9804-0604	●
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9601-9803	●	●
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9804-0708	●
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-	●
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9601-9803	●	●
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9804-0604	●
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-	●
280	BOX; TOOL KEY LOCK TOOL<RC5>	1-85561-006-2	01	1	9601-9803	●	●
280	BOX; TOOL KEY LOCK TOOL<RC5>	1-85561-006-2	01	1	9804-0106	●
281	BRACKET; TOOL BOX KEY LOCK TOOL<RC5>	1-53459-665-2	02	1	9601-9803	●	●
281	BRACKET; TOOL BOX KEY LOCK TOOL<RC5>	1-53459-665-2	02	1	9804-0106	●
282	NUT; BRKT KEY LOCK TOOL<RC5> M10	9-09110-510-0	04	1	9601-9606	●	●
282	NUT; BRKT KEY LOCK TOOL<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-9803	●	●
282	NUT; BRKT KEY LOCK TOOL<RC5> M10 FLANGE	0-91150-210-0	04	1	9804-0106	●
283	WASHER; LK,BRKT KEY LOCK TOOL<RC5> ID=10.2	9-09150-510-0	04	1	9601-9803	●	●
283	WASHER; LK,BRKT KEY LOCK TOOL<RC5> ID=10.2	9-09150-510-0	04	1	9804-0106	●
284	BOLT; TOOL BOX KEY LOCK TOOL<RC5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9601-9606	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9607-9803	●	●
284	BOLT; TOOL BOX KEY LOCK TOOL<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9804-0106	●
285	NUT; TOOL BOX KEY LOCK TOOL<RC5> M10	9-09110-510-0	04	1	9601-9606	●	●
285	NUT; TOOL BOX KEY LOCK TOOL<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-9803	●	●
285	NUT; TOOL BOX KEY LOCK TOOL<RC5> M10 FLANGE	0-91150-210-0	04	1	9804-0106	●
321	SOCKET; PROP SHAFT L=300	1-85115-024-0	01	1	9601-9803	●	●
321	SOCKET; PROP SHAFT P46 PROP SHAFT(C4Z) L=300	1-85115-024-0	01	1	9804-0106	●

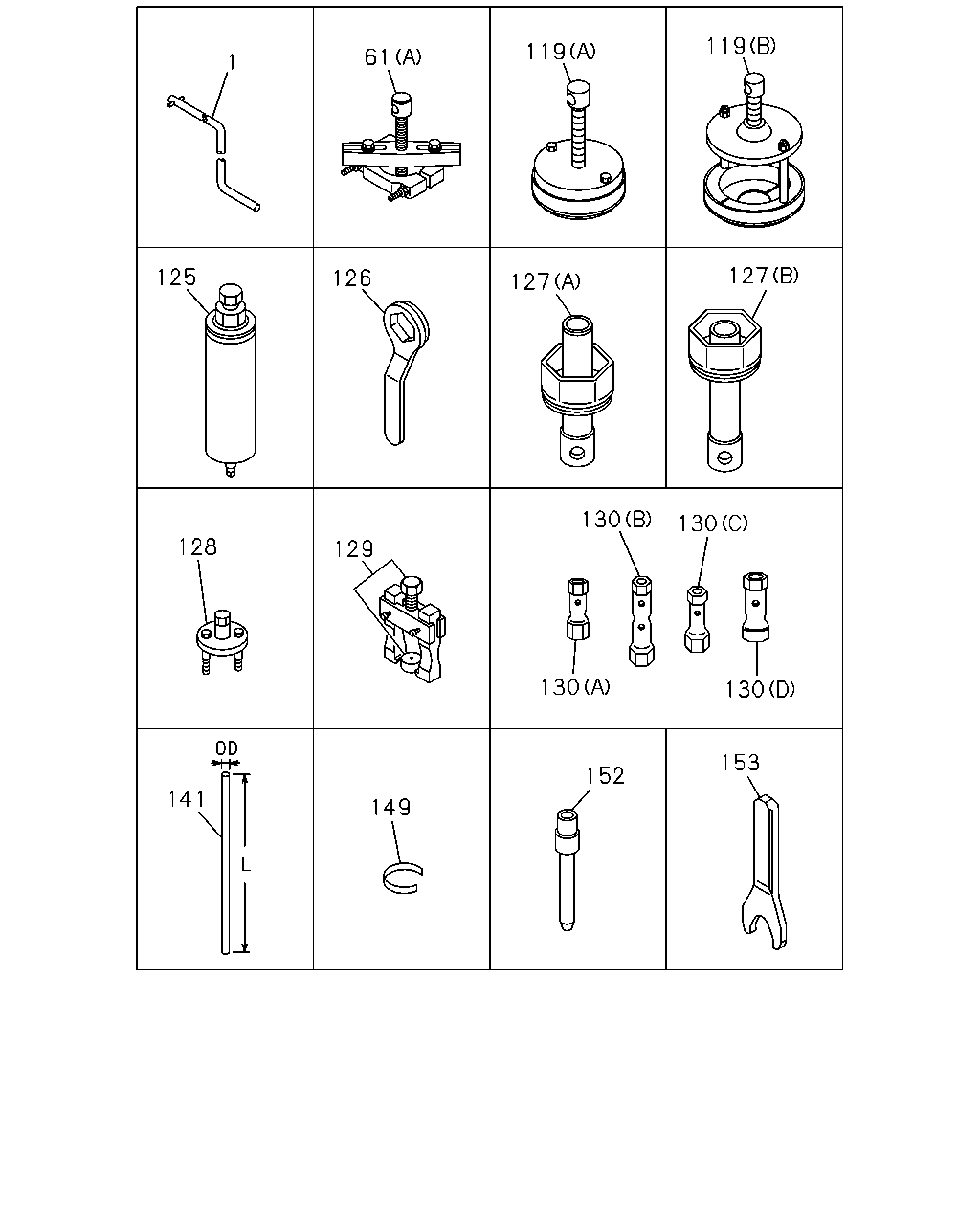

119 119 61 1 127 125 126 127 130 130 128 129 130 130 153 152 141 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9601-9803	●	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9804-	●
61	PULLER ASM; PILOT BRG 6SD1 TCN ENG(31L) (B)	1-85220-028-0	01	1	0107-	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9601-9803	●	●
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9804-	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9601-9609		●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L) (B)	9-85210-157-0	01	1	9610-9803	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9610-9803		●
61	PULLER ASM; PILOT BRG 6HE1 TC ENG(57L) (B)	9-85210-157-0	01	1	9804-0106	●
119	PULLER ASM; TOP GEAR BRG MAL6S M/T(Y1V) (B) L=235	9-85210-190-0	01	1	0012-0106	●
119	PULLER ASM; TOP GEAR BRG MAL6 M/T<X9G> (B) L=235	9-85210-190-0	01	1	0107-	●
119	PULLER ASM; TOP GEAR BRG MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B)	9-85210-185-0	01	1	9601-9609		●
119	PULLER ASM; TOP GEAR BRG MLD7 M/T<X9Z> (B)	9-85210-185-0	01	1	9610-9803	●
119	PULLER ASM; TOP GEAR BRG MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B)	9-85210-185-0	01	1	9610-9803		●
119	PULLER ASM; TOP GEAR BRG MLD7 M/T<X9Z> (B)	9-85210-185-0	01	1	9804-0106	●
119	PULLER ASM; TOP GEAR BRG MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A)	9-85210-186-0	01	1	9601-9609		●
119	PULLER ASM; TOP GEAR BRG MLD7 M/T<X9Z> (A)	9-85210-186-0	01	1	9610-9803	●
119	PULLER ASM; TOP GEAR BRG MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (A)	9-85210-186-0	01	1	9610-9803		●
119	PULLER ASM; TOP GEAR BRG MLD7 M/T<X9Z> (A)	9-85210-186-0	01	1	9804-0106	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9601-9803		●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	9601-9803		●
127	WRENCH ASM; HUB BRG NUT (B) B=98 L=305	9-85113-533-0	01	1	9601-9803	●	●
127	WRENCH ASM; HUB BRG NUT (B) B=98 L=305	9-85113-533-1	01	1	9804-	●
127	WRENCH ASM; HUB BRG NUT (A) L=400 B=105	9-85113-509-0	01	1	9601-9803		●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9601-9803	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9804-	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9601-9803		●
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9601-9803	●	●
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9804-0106	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9601-9803	●	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9804-0106	●
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9601-9803	●	●
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9804-0106	●
130	WRENCH; BOX (C) B=41 & 46 L=165	9-85113-401-0	01	1	9601-9803	●	●
130	WRENCH; BOX (C) B=41 & 46 L=165	9-85113-401-0	01	1	9804-0106	●
141	HANDLE; WRENCH SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> OD=25 L=480	1-85116-011-0	01	1	0107-1409	●
141	HANDLE; WRENCH SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> OD=25 L=480	8-98257-407-0	01	1	1410-	●
141	HANDLE; WRENCH OD=25 L=480	1-85116-011-0	01	1	9601-9803	●	●
141	HANDLE; WRENCH OD=25 L=480	1-85116-011-0	01	1	9804-0106	●
141	HANDLE; WRENCH OD=19 L=400	9-85114-306-0	01	1	9601-9803	●	●
141	HANDLE; WRENCH OD=19 L=400	9-85114-306-0	01	1	9804-0106	●
141	HANDLE; WRENCH OD=16 L=300	9-85114-307-0	01	1	9601-9803	●	●
141	HANDLE; WRENCH OD=16 L=300	9-85114-307-0	01	1	9804-0106	●
149	PLATE; PILOT BRG PULLER	1-85219-009-0	01	1	9601-9803	●	●
149	PLATE; PILOT BRG PULLER	1-85219-009-0	01	1	9804-0106	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9601-9803	●	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9804-	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9601-9803	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
