◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#25296) — 197 parça

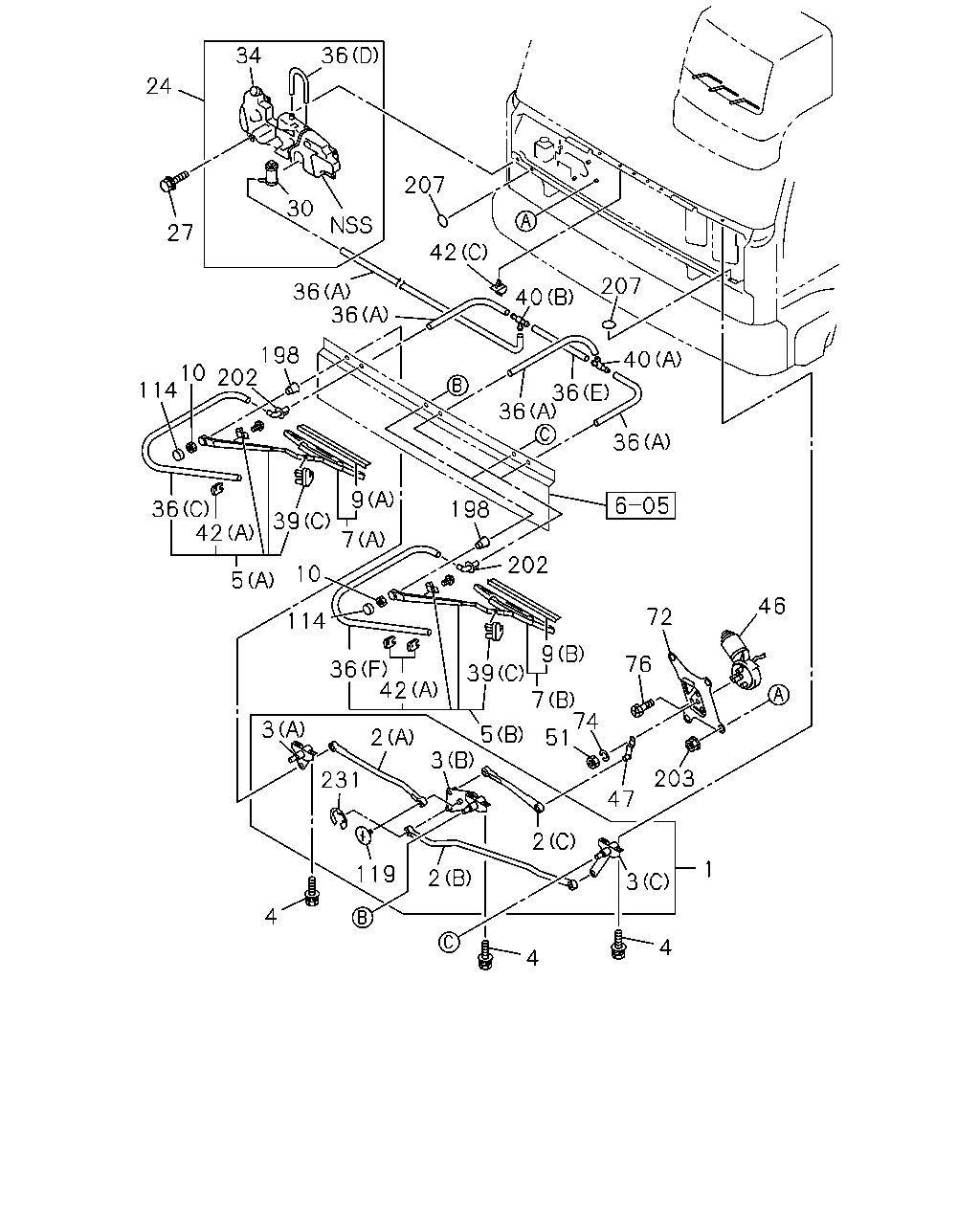

çizim 104993
34 36 24 207 30 27 42 207 36 36 40 198 202 40 10 114 36 36 36 9 36 42 198 39 7 202 10 5 46 114 72 9 76 36 42 39 7 74 51 3 5 3 2 203 231 47 2 1 119 2 3 4 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-86810-006-4 01 1 9601-9705 ●
1 LINK ASM; FRT WIPER 1-83312-139-2 01 1 9706- ●
1 LINK ASM; FRT WIPER 1-86810-002-6 01 1 9601-9705 ●
1 LINK ASM; FRT WIPER 1-83312-137-0 01 1 9706-9803 ●
2 LINK; FRT WIPER
(A) 		1-86810-068-0 01 1 9601-9705 ●
2 LINK; FRT WIPER
(B) 		1-83312-144-1 01 1 9706- ●
2 LINK; FRT WIPER
(B) 		1-86810-069-0 01 1 9601-9705 ●
2 LINK; FRT WIPER
(A) 		1-83312-145-1 01 1 9706- ●
2 LINK; FRT WIPER
(C) 		1-86810-070-1 01 1 9601- ●
2 LINK; FRT WIPER
(A) 		1-86810-064-0 01 1 9601-9705 ●
2 LINK; FRT WIPER
(B) 		1-83312-142-0 01 1 9706-9803 ●
2 LINK; FRT WIPER
(B) 		1-86810-065-0 01 1 9601-9705 ●
2 LINK; FRT WIPER
(A) 		1-83312-143-0 01 1 9706-9803 ●
2 LINK; FRT WIPER
(C) 		1-86810-066-0 01 1 9601-9803 ●
3 PIVOT ASM; FRT WIPER
(A) 		1-86810-071-1 01 1 9601- ●
3 PIVOT ASM; FRT WIPER
(B) 		1-86810-072-0 01 1 9601-9705 ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-111-2 01 1 9706- ●
3 PIVOT ASM; FRT WIPER
(C) 		1-86810-073-1 01 1 9601- ●
3 PIVOT ASM; FRT WIPER
(D) 		1-86810-067-0 02 1 9601-9803 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9601-0904 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9601-9803 ●
5 ARM; WIPER
(A) 		1-86810-025-1 01 1 9601- ●
5 ARM; WIPER
(B) 		1-86810-027-1 02 1 9601- ●
5 ARM; WIPER
(A) 		1-86810-142-0 01 1 9601-9803 ●
5 ARM; WIPER
(B) 		1-86810-143-0 01 1 9601-9803 ●
7 BLADE; WIPER
(A) 		1-86810-024-0 01 1 9601-9703 ●
7 BLADE; WIPER
(A) 		1-83315-047-2 01 1 9704- ●
7 BLADE; WIPER
(B) 		1-86810-026-0 02 1 9601-9703 ●
7 BLADE; WIPER
(B) 		1-83315-048-2 02 1 9704- ●
7 BLADE; WIPER
(A) 		1-86810-019-0 01 1 9601-9703 ●
7 BLADE; WIPER
(A) 		1-83315-045-0 01 1 9704-9803 ●
7 BLADE; WIPER
(B) 		1-86810-020-0 01 1 9601-9703 ●
7 BLADE; WIPER
(B) 		1-83315-046-0 01 1 9704-9803 ●
9 RUBBER; FRT WIPER BLADE
(A) L=500 		1-86810-034-0 01 1 9601-9703 ●
9 RUBBER; FRT WIPER BLADE
(A) L=500 		1-83355-015-0 01 1 9704- ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-86810-035-0 02 1 9601-9703 ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-83355-016-0 02 1 9704- ●
9 RUBBER; FRT WIPER BLADE
(C) L=550 		1-86810-033-0 02 1 9601-9703 ●
9 RUBBER; FRT WIPER BLADE
(C) L=550 		1-83355-014-0 02 1 9704-9803 ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 9601- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 9601-9803 ●
24 TANK ASM; WASHER 1-86815-013-6 01 1 9601-9803 ● ●
24 TANK ASM; WASHER 1-86815-013-7 01 1 9804- ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9601-9803 ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9804- ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-0 01 1 9601-9803 ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 9804- ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 9601-9803 ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 9804- ●
36 HOSE; WASHER
(F) L=735 		1-86810-039-0 02 1 9601- ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		9-09914-906-0 01 1 9601- ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 9601-9803 ● ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 9804- ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9601-9803 ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9804- ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 9601-9803 ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 9804- ●
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 9601-9803 ●
39 NOZZLE; WINDSHIELD WASHER
(C) 		1-86810-042-0 03 1 9601- ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-040-0 01 1 9601-9803 ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-041-0 01 1 9601-9803 ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 9601- ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 9601-9803 ● ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 9804- ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 9601- ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9601-9803 ● ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9804- ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 9601-9803 ●
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 9601-9803 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-076-1 01 1 9601- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-059-1 01 1 9601-9803 ●
47 ARM; CRANK,WIPER MOTOR 1-86810-077-0 01 1 9601- ●
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 9601-9803 ●
51 NUT; WIPER MOTOR LINK 1-86810-078-0 01 1 9601- ●
51 NUT; WIPER MOTOR LINK 1-83319-012-0 01 1 9601-9803 ●
72 BRACKET; WIPER MOTOR 1-86810-075-0 01 1 9601- ●
72 BRACKET; WIPER MOTOR 1-86810-056-0 01 1 9601-9803 ●
74 WASHER; ARM TO MOTOR 1-86810-079-0 01 1 9601- ●
74 WASHER; ARM TO MOTOR 1-83319-011-0 01 1 9601-9803 ●
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 9601-9802 ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 9803- ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 9803-9803 ●
114 COVER; FRT WIPER ARM 1-86810-028-0 03 1 9601- ●
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 9601-9803 ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9601-9705 ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9706-9803 ● ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9804-0805 ●
198 COVER; PIVOT,WIPER 1-86810-018-3 03 1 9601- ●
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 9601-9803 ●
202 GROMMET; WIPER 1-86815-003-2 03 1 9601- ●
202 GROMMET; WIPER 1-86815-003-1 02 1 9601-9803 ●
203 NUT; WIPER MOTOR
M8 FLANGE 		8-94279-517-0 04 1 9601-9611 ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9612-9803 ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9804- ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9601-9803 ● ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9804- ●
231 RING; STOPPER 8-98120-195-0 02 1 0806- ●

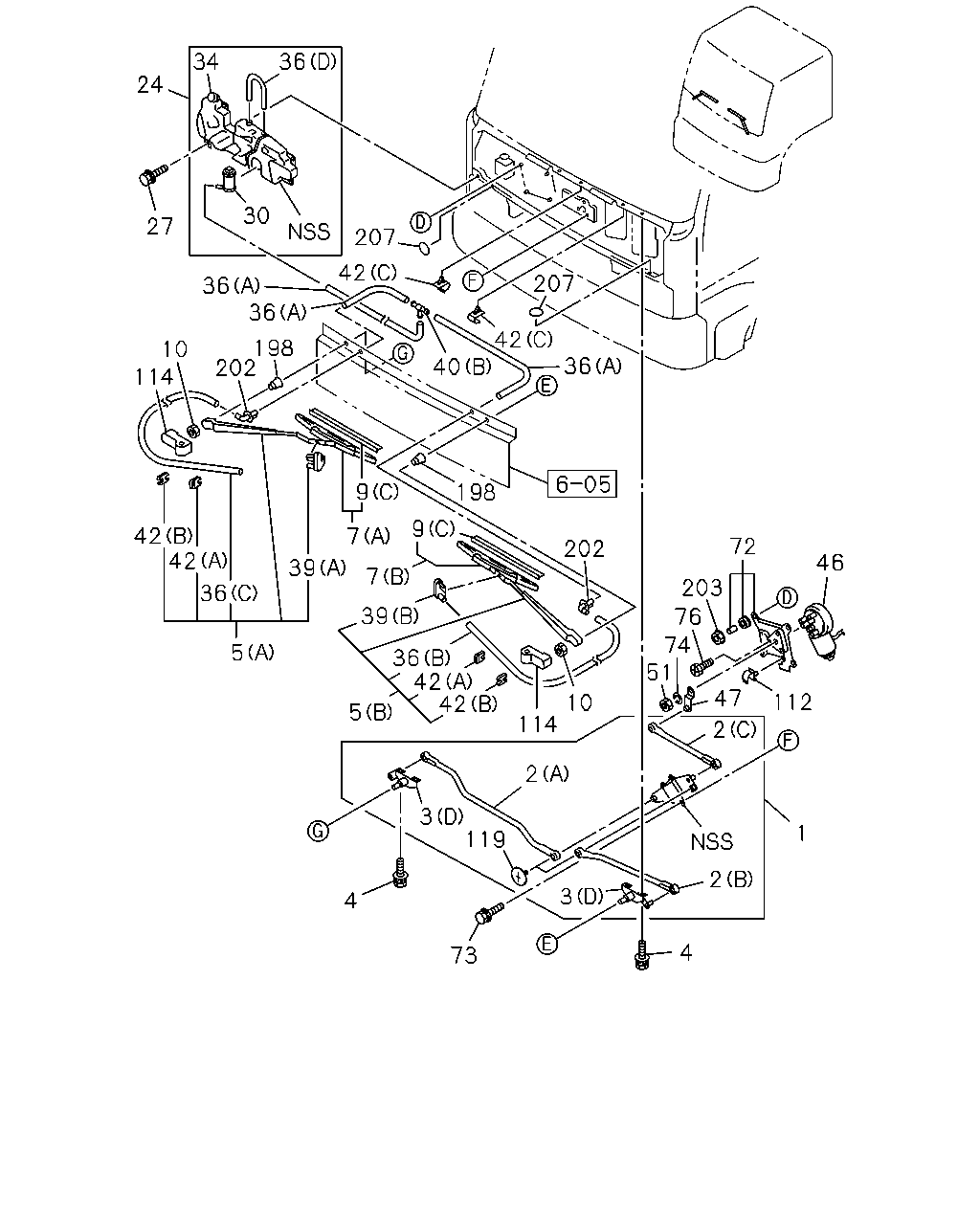

çizim 105112
34 36 24 30 27 207 207 42 36 36 42 40 198 202 10 114 36 198 9 9 42 42 7 72 202 46 39 7 203 36 39 76 74 51 5 36 42 42 47 112 10 5 114 2 2 3 119 1 2 3 4 4 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-86810-006-4 01 1 9601-9705 ●
1 LINK ASM; FRT WIPER 1-83312-139-2 01 1 9706- ●
1 LINK ASM; FRT WIPER 1-86810-002-6 01 1 9601-9705 ●
1 LINK ASM; FRT WIPER 1-83312-137-0 01 1 9706-9803 ●
2 LINK; FRT WIPER
(A) 		1-86810-068-0 01 1 9601-9705 ●
2 LINK; FRT WIPER
(B) 		1-83312-144-1 01 1 9706- ●
2 LINK; FRT WIPER
(B) 		1-86810-069-0 01 1 9601-9705 ●
2 LINK; FRT WIPER
(A) 		1-83312-145-1 01 1 9706- ●
2 LINK; FRT WIPER
(C) 		1-86810-070-1 01 1 9601- ●
2 LINK; FRT WIPER
(A) 		1-86810-064-0 01 1 9601-9705 ●
2 LINK; FRT WIPER
(B) 		1-83312-142-0 01 1 9706-9803 ●
2 LINK; FRT WIPER
(B) 		1-86810-065-0 01 1 9601-9705 ●
2 LINK; FRT WIPER
(A) 		1-83312-143-0 01 1 9706-9803 ●
2 LINK; FRT WIPER
(C) 		1-86810-066-0 01 1 9601-9803 ●
3 PIVOT ASM; FRT WIPER
(A) 		1-86810-071-1 01 1 9601- ●
3 PIVOT ASM; FRT WIPER
(B) 		1-86810-072-0 01 1 9601-9705 ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-111-2 01 1 9706- ●
3 PIVOT ASM; FRT WIPER
(C) 		1-86810-073-1 01 1 9601- ●
3 PIVOT ASM; FRT WIPER
(D) 		1-86810-067-0 02 1 9601-9803 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9601-0904 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9601-9803 ●
5 ARM; WIPER
(A) 		1-86810-025-1 01 1 9601- ●
5 ARM; WIPER
(B) 		1-86810-027-1 02 1 9601- ●
5 ARM; WIPER
(A) 		1-86810-142-0 01 1 9601-9803 ●
5 ARM; WIPER
(B) 		1-86810-143-0 01 1 9601-9803 ●
7 BLADE; WIPER
(A) 		1-86810-024-0 01 1 9601-9703 ●
7 BLADE; WIPER
(A) 		1-83315-047-2 01 1 9704- ●
7 BLADE; WIPER
(B) 		1-86810-026-0 02 1 9601-9703 ●
7 BLADE; WIPER
(B) 		1-83315-048-2 02 1 9704- ●
7 BLADE; WIPER
(A) 		1-86810-019-0 01 1 9601-9703 ●
7 BLADE; WIPER
(A) 		1-83315-045-0 01 1 9704-9803 ●
7 BLADE; WIPER
(B) 		1-86810-020-0 01 1 9601-9703 ●
7 BLADE; WIPER
(B) 		1-83315-046-0 01 1 9704-9803 ●
9 RUBBER; FRT WIPER BLADE
(A) L=500 		1-86810-034-0 01 1 9601-9703 ●
9 RUBBER; FRT WIPER BLADE
(A) L=500 		1-83355-015-0 01 1 9704- ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-86810-035-0 02 1 9601-9703 ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-83355-016-0 02 1 9704- ●
9 RUBBER; FRT WIPER BLADE
(C) L=550 		1-86810-033-0 02 1 9601-9703 ●
9 RUBBER; FRT WIPER BLADE
(C) L=550 		1-83355-014-0 02 1 9704-9803 ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 9601- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 9601-9803 ●
24 TANK ASM; WASHER 1-86815-013-6 01 1 9601-9803 ● ●
24 TANK ASM; WASHER 1-86815-013-7 01 1 9804- ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9601-9803 ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9804- ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-0 01 1 9601-9803 ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 9804- ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 9601-9803 ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 9804- ●
36 HOSE; WASHER
(F) L=735 		1-86810-039-0 02 1 9601- ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		9-09914-906-0 01 1 9601- ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 9601-9803 ● ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 9804- ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9601-9803 ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9804- ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 9601-9803 ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 9804- ●
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 9601-9803 ●
39 NOZZLE; WINDSHIELD WASHER
(C) 		1-86810-042-0 03 1 9601- ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-040-0 01 1 9601-9803 ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-041-0 01 1 9601-9803 ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 9601- ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 9601-9803 ● ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 9804- ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 9601- ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9601-9803 ● ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9804- ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 9601-9803 ●
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 9601-9803 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-076-1 01 1 9601- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-059-1 01 1 9601-9803 ●
47 ARM; CRANK,WIPER MOTOR 1-86810-077-0 01 1 9601- ●
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 9601-9803 ●
51 NUT; WIPER MOTOR LINK 1-86810-078-0 01 1 9601- ●
51 NUT; WIPER MOTOR LINK 1-83319-012-0 01 1 9601-9803 ●
72 BRACKET; WIPER MOTOR 1-86810-075-0 01 1 9601- ●
72 BRACKET; WIPER MOTOR 1-86810-056-0 01 1 9601-9803 ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9601-9803 ●
74 WASHER; ARM TO MOTOR 1-86810-079-0 01 1 9601- ●
74 WASHER; ARM TO MOTOR 1-83319-011-0 01 1 9601-9803 ●
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 9601-9802 ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 9803- ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 9803-9803 ●
112 CLIP; HARNESS,WIPER MOTOR 1-86810-061-0 01 1 9601-9803 ●
114 COVER; FRT WIPER ARM 1-86810-028-0 03 1 9601- ●
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 9601-9803 ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9601-9705 ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9706-9803 ● ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9804-0805 ●
198 COVER; PIVOT,WIPER 1-86810-018-3 03 1 9601- ●
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 9601-9803 ●
202 GROMMET; WIPER 1-86815-003-2 03 1 9601- ●
202 GROMMET; WIPER 1-86815-003-1 02 1 9601-9803 ●
203 NUT; WIPER MOTOR
M8 FLANGE 		8-94279-517-0 04 1 9601-9611 ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9612-9803 ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9804- ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9601-9803 ● ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
