8-75 — CONDENSER (#25295) — 137 parça

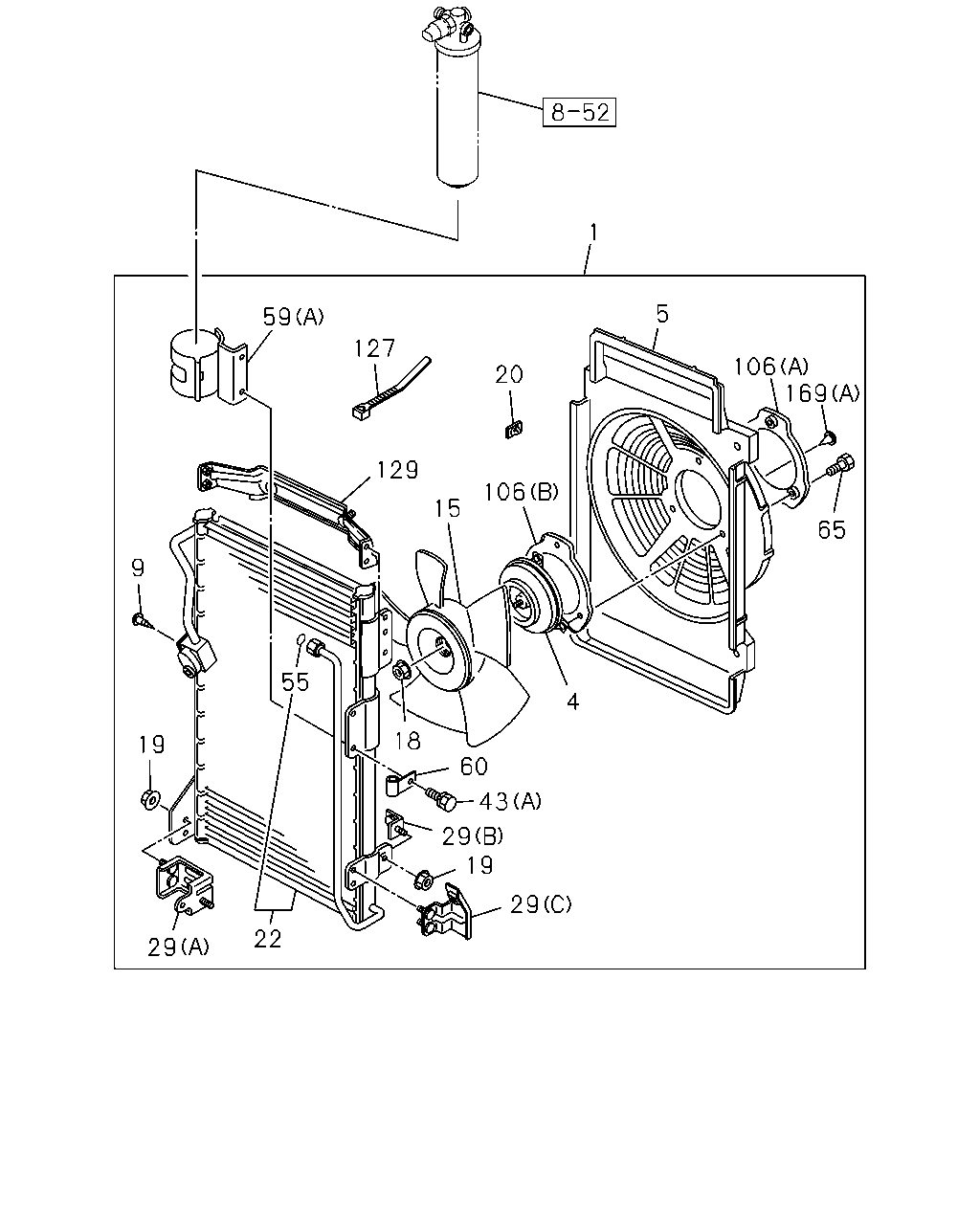

1 5 59 127 106 169 20 129 106 15 65 9 55 4 18 19 60 43 29 19 29 22 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9804-0106
1	CONDENSER; A/C	1-83534-213-2	01	1	0107-0209
1	CONDENSER; A/C	1-83534-211-2	01	1	0210-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9804-0106
4	MOTOR ASM; FAN	1-83539-231-0	01	1	0107-0209
4	MOTOR ASM; FAN	1-83561-156-1	01	1	0210-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9804-0106
5	SHROUD; FAN MOTOR	1-83539-230-2	01	1	0107-0209
5	SHROUD; FAN MOTOR	1-83539-343-0	01	1	0210-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-374-0	01	1	0104-0106
9	BOLT; BRKT	1-83539-374-0	01	1	0107-0209
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9804-0106
15	FAN; MOTOR	1-83539-232-0	01	1	0107-0209
15	FAN; MOTOR	1-83561-158-0	01	1	0210-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9804-0106
18	NUT; FAN,CENTER	8-97018-672-0	01	1	0107-
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	9804-0106
19	NUT; BRKT	1-83539-235-0	11	1	0107-0209
19	NUT; BRKT	1-83539-235-0	02	1	0210-
20	CLIP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94364-751-0	01	1	9804-0106
20	CLIP; CONDENSER	8-94364-751-0	01	1	0107-0209
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9804-0106
22	CONDENSER ASM; A/C	1-83534-222-1	01	1	0107-0209
22	CONDENSER ASM; A/C	1-83534-224-0	01	1	0210-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9804-0106
29	BRACKET; SIDE (A)	1-83539-227-1	01	1	0107-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9804-0106
29	BRACKET; SIDE (B)	1-83539-236-0	04	1	0107-0209
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9804-0106
29	BRACKET; SIDE (C)	1-83539-311-1	01	1	0107-0209
29	BRACKET; SIDE (D)	1-83539-348-1	01	1	0210-
43	BOLT; BRKT,CONDENSER (B)	1-83579-975-0	02	1	0210-
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 W/FLANGE	1-83539-260-0	06	1	9804-0106
43	BOLT; BRKT,CONDENSER (A) M6X16 W/FLANGE	1-83539-260-0	06	1	0107-0209
43	BOLT; BRKT,CONDENSER (C)	8-97018-671-0	03	1	0210-
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	9804-0106
55	GASKET; PIPE	8-97161-776-0	01	1	0107-
59	BRACKET; CONDENSER (B)	1-83539-344-0	01	1	0210-
59	BRACKET; CONDENSER (C)	1-83539-346-0	01	1	0210-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	9804-0106
59	BRACKET; CONDENSER (A)	1-83539-228-2	01	1	0107-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9804-0106
60	CLIP; PIPE	1-83539-234-0	01	1	0107-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9804-0106
65	BOLT; SHROUD	1-83539-242-0	03	1	0107-0209
65	BOLT; SHROUD	8-97117-796-0	03	1	0210-
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	9804-0106
106	BRACKET; FAN MOTOR (A)	1-83539-243-0	01	1	0107-0209
106	BRACKET; FAN MOTOR (C)	1-83539-345-0	01	1	0210-
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	9804-0106
106	BRACKET; FAN MOTOR (B)	1-83539-244-0	01	1	0107-0209
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9804-0106
127	CLIP; SHROUD L=140	5-09707-008-0	01	1	0107-0209
127	CLIP; SHROUD	8-94158-260-0	01	1	0210-
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	9804-0106
129	BRACKET; UPR	1-83539-237-1	01	1	0107-0209
129	BRACKET; UPR	1-83539-347-1	01	1	0210-
169	SCREW; SHROUD (C)	1-83579-975-0	04	1	0210-
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94248-807-0	01	1	9804-0106
169	SCREW; SHROUD (A)	8-94248-807-0	01	1	0107-0209
169	SCREW; SHROUD (B)	1-83579-974-0	08	1	0210-

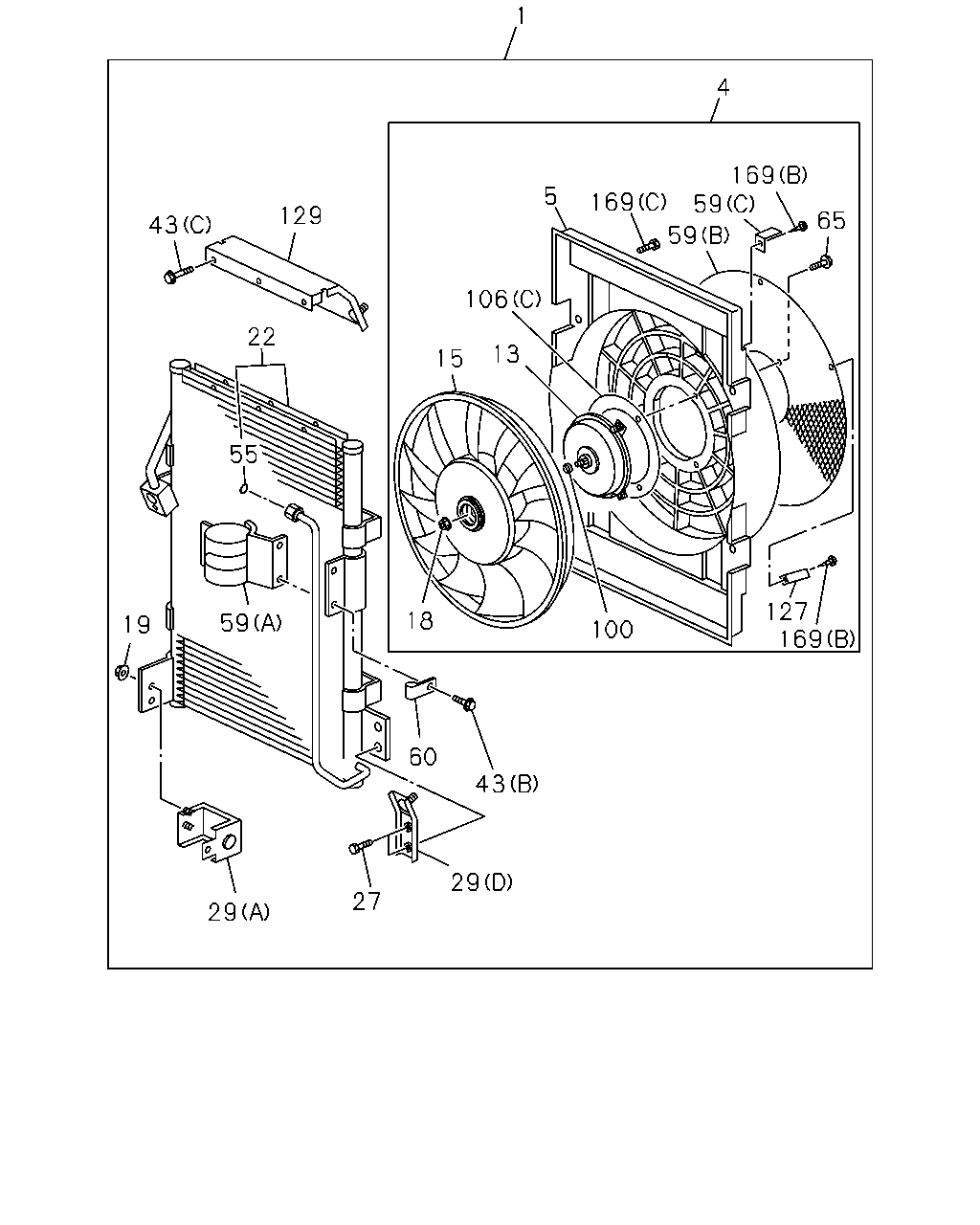

1 4 169 59 5 169 129 65 43 59 106 22 13 15 55 127 169 18 59 19 100 60 43 29 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9804-0106
1	CONDENSER; A/C	1-83534-213-2	01	1	0107-0209
1	CONDENSER; A/C	1-83534-211-2	01	1	0210-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9804-0106
4	MOTOR ASM; FAN	1-83539-231-0	01	1	0107-0209
4	MOTOR ASM; FAN	1-83561-156-1	01	1	0210-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9804-0106
5	SHROUD; FAN MOTOR	1-83539-230-2	01	1	0107-0209
5	SHROUD; FAN MOTOR	1-83539-343-0	01	1	0210-
13	MOTOR; FAN	1-83561-157-1	01	1	0210-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9804-0106
15	FAN; MOTOR	1-83539-232-0	01	1	0107-0209
15	FAN; MOTOR	1-83561-158-0	01	1	0210-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9804-0106
18	NUT; FAN,CENTER	8-97018-672-0	01	1	0107-
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	9804-0106
19	NUT; BRKT	1-83539-235-0	11	1	0107-0209
19	NUT; BRKT	1-83539-235-0	02	1	0210-
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9804-0106
22	CONDENSER ASM; A/C	1-83534-222-1	01	1	0107-0209
22	CONDENSER ASM; A/C	1-83534-224-0	01	1	0210-
27	BOLT; BRKT,LOW SIDE	1-83579-975-0	02	1	0210-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9804-0106
29	BRACKET; SIDE (A)	1-83539-227-1	01	1	0107-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9804-0106
29	BRACKET; SIDE (B)	1-83539-236-0	04	1	0107-0209
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9804-0106
29	BRACKET; SIDE (C)	1-83539-311-1	01	1	0107-0209
29	BRACKET; SIDE (D)	1-83539-348-1	01	1	0210-
43	BOLT; BRKT,CONDENSER (B)	1-83579-975-0	02	1	0210-
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 W/FLANGE	1-83539-260-0	06	1	9804-0106
43	BOLT; BRKT,CONDENSER (A) M6X16 W/FLANGE	1-83539-260-0	06	1	0107-0209
43	BOLT; BRKT,CONDENSER (C)	8-97018-671-0	03	1	0210-
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	9804-0106
55	GASKET; PIPE	8-97161-776-0	01	1	0107-
59	BRACKET; CONDENSER (B)	1-83539-344-0	01	1	0210-
59	BRACKET; CONDENSER (C)	1-83539-346-0	01	1	0210-
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-228-2	01	1	9804-0106
59	BRACKET; CONDENSER (A)	1-83539-228-2	01	1	0107-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9804-0106
60	CLIP; PIPE	1-83539-234-0	01	1	0107-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9804-0106
65	BOLT; SHROUD	1-83539-242-0	03	1	0107-0209
65	BOLT; SHROUD	8-97117-796-0	03	1	0210-
100	COLLAR; FAN MOTOR	1-83539-349-0	01	1	0210-
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	9804-0106
106	BRACKET; FAN MOTOR (A)	1-83539-243-0	01	1	0107-0209
106	BRACKET; FAN MOTOR (C)	1-83539-345-0	01	1	0210-
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	9804-0106
106	BRACKET; FAN MOTOR (B)	1-83539-244-0	01	1	0107-0209
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9804-0106
127	CLIP; SHROUD L=140	5-09707-008-0	01	1	0107-0209
127	CLIP; SHROUD	8-94158-260-0	01	1	0210-
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	9804-0106
129	BRACKET; UPR	1-83539-237-1	01	1	0107-0209
129	BRACKET; UPR	1-83539-347-1	01	1	0210-
169	SCREW; SHROUD (C)	1-83579-975-0	04	1	0210-
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94248-807-0	01	1	9804-0106
169	SCREW; SHROUD (A)	8-94248-807-0	01	1	0107-0209
169	SCREW; SHROUD (B)	1-83579-974-0	08	1	0210-

150 30 1 150 79 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9804-0106
1	CONDENSER; A/C	1-83534-213-2	01	1	0107-0209
1	CONDENSER; A/C	1-83534-211-2	01	1	0210-
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9804-0106
30	BOLT; CONDENSER,A/C M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0107-0904
30	BOLT; CONDENSER,A/C M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	9804-0106
35	NUT; CONDENSER,A/C M8 FLANGE	0-91150-108-0	05	1	0107-0602
35	NUT; CONDENSER,A/C M8 FLANGE	0-91180-108-0	05	1	0603-
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0002-0106
79	BOLT; CONDENSER BRKT M8X35	8-97103-452-0	01	1	0107-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-786-1	01	1	9804-0106
150	BRACKET; CONDENSER,MTG (B)	1-83571-786-1	01	1	0107-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-067-0	01	1	9804-9804
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-785-2	01	1	9804-0106
150	BRACKET; CONDENSER,MTG (A)	1-83571-785-2	01	1	0107-
