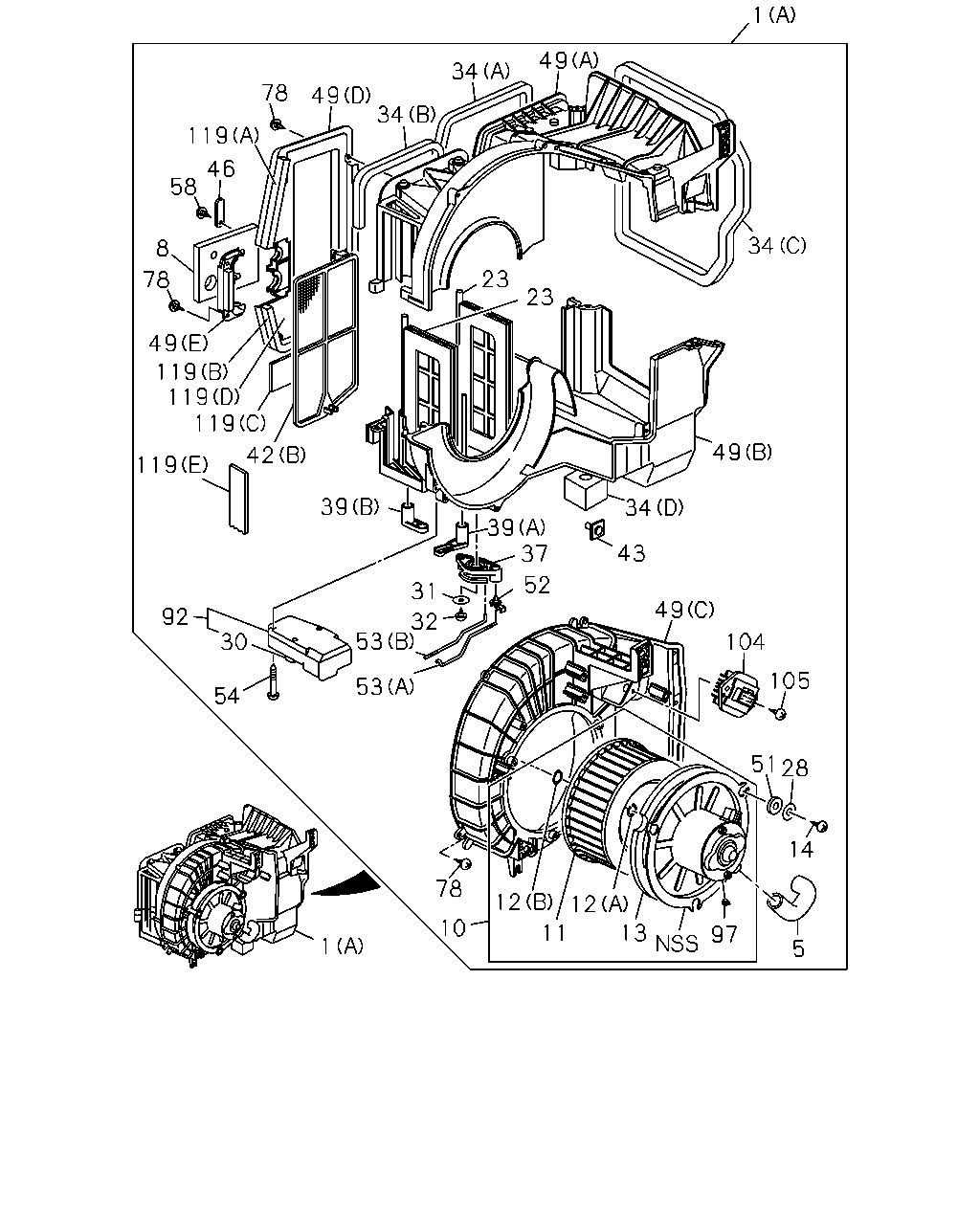

8-73 — BLOWER UNIT (#25293) — 463 parça

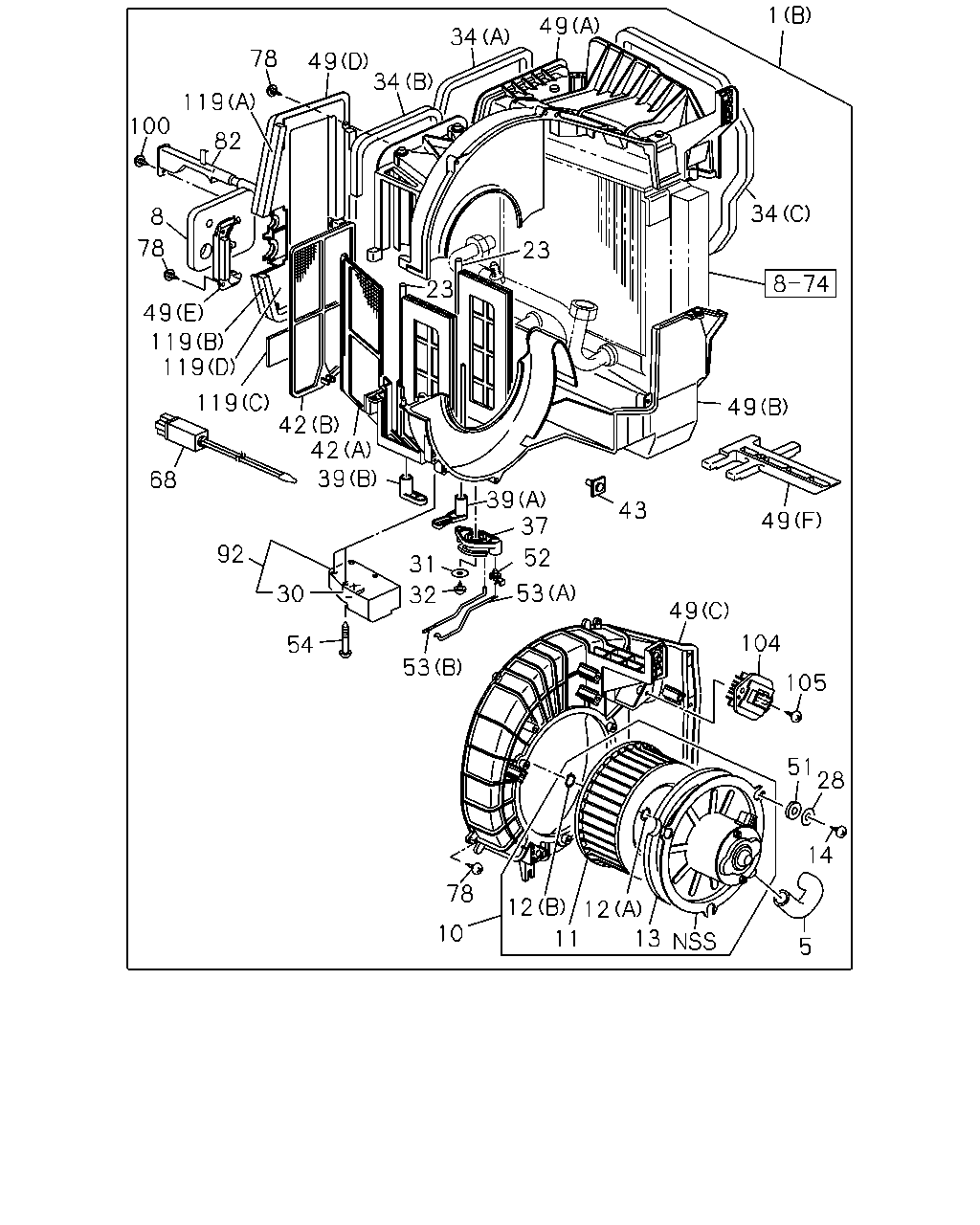

çizim 105109
1 49 34 78 49 34 119 100 82 34 8 78 23 23 49 119 119 119 42 42 39 49 68 39 37 43 49 92 52 31 53 30 32 49 104 54 53 105 51 28 14 78 12 12 10 13 11 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-150-3 01 1 9804-0106 ●
1 BLOWER ASM
(B) 		1-83561-150-5 01 1 0107- ●
1 BLOWER ASM
(A) 		1-83561-105-5 01 1 9601-9705 ● ●
1 BLOWER ASM
(A) 		1-83561-105-5 01 1 9706-9803 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83561-105-5 01 1 9706-9803 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-105-8 01 1 9804-0106 ●
5 HOSE; AIR 1-83563-140-0 01 1 9601-9705 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 9706-9803 ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 9706-9803 ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 9804-0106 ●
5 HOSE; AIR 1-83563-140-0 01 1 0107- ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 9804-0106 ●
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 0107- ●
8 SEAL; BLOWER UNIT 1-83579-801-0 01 1 9601-9705 ● ●
8 SEAL; BLOWER UNIT 1-83579-801-0 01 1 9706-9803 ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-801-0 01 1 9706-9803 ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83579-801-1 01 1 9804-0106 ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-100-1 01 1 9601-9705 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-100-1 01 1 9706-9803 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-100-1 01 1 9706-9803 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-100-1 01 1 9804-9901 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 9902-0106 ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0107- ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9601-9705 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9706-9803 ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 9706-9803 ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 9804-0106 ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0107- ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9601-9705 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9706-9803 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 9706-9803 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 9804-0106 ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0107- ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9601-9705 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9706-9803 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 9706-9803 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 9804-0106 ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0107- ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9601-9705 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9706-9803 ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 9706-9803 ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 9804-0106 ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0107- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 03 1 9902-0106 ●
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 9601-9705 ● ●
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 9706-9803 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 03 1 9706-9803 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 9804-9901 ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 9902-0106 ●
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 0107- ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9601-9705 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9706-9803 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 9706-9803 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-637-0 02 1 9804-0106 ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0107- ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9601-9705 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9706-9803 ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 9706-9803 ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 9804-0106 ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0107- ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9601-9705 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9706-9803 ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 9706-9803 ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 9804-0106 ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0107- ●
31 WASHER; LEVER 1-83579-095-0 01 1 9601-9705 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9706-9803 ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 9706-9803 ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 9804-0106 ●
31 WASHER; LEVER 1-83579-095-0 01 1 0107- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 9902-0106 ●
32 SCREW; LEVER 8-97130-601-0 01 1 9601-9705 ● ●
32 SCREW; LEVER 8-97130-601-0 01 1 9706-9803 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 01 1 9706-9803 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9804-9901 ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9902-0106 ●
32 SCREW; LEVER 8-97130-601-0 01 1 0107- ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9601-9705 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 9804-0106 ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0107- ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-1 01 1 9601-9705 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-1 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-1 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 9804-0106 ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0107- ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9601-9705 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 9804-0106 ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0107- ●
34 LINING; BLOWER UNIT
(D) 		1-83579-687-0 01 1 9601-9705 ● ●
34 LINING; BLOWER UNIT
(D) 		1-83579-687-0 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-687-0 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41) (D) 		1-83579-687-0 01 1 9804-9901 ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9601-9705 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9706-9803 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 9706-9803 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 9804-0106 ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0107- ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9601-9705 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9706-9803 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 9706-9803 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 9804-0106 ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0107- ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9601-9705 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9706-9803 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 9706-9803 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 9804-0106 ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0107- ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-933-0 02 1 9804-9901 ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 9902-0106 ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0107- ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-2 01 1 9601-9705 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-2 01 1 9706-9803 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-2 01 1 9706-9803 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-2 01 1 9804-0106 ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0107- ●
43 BOLT; CASE 1-83579-657-0 04 1 9601-9705 ● ●
43 BOLT; CASE 1-83579-657-0 04 1 9706-9803 ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-0 04 1 9706-9803 ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 9804-0106 ●
43 BOLT; CASE 1-83579-657-2 04 1 0107- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(B) 		1-83564-336-6 01 1 0107- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 0107- ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0107- ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0107- ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-0 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-0 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-0 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0107- ●
49 CASE; BLOWER UNIT
(B) 		1-83564-352-4 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-352-4 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-352-4 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-352-5 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-0 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-0 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-0 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0107- ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9601-9705 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9706-9803 ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 9706-9803 ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 9804-0106 ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0107- ●
52 CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 9804-9901 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 9902-0106 ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0107- ●
52 CLIP; LEVER TO CASE 1-83579-488-0 02 1 9601-9705 ● ●
52 CLIP; LEVER TO CASE 1-83579-488-0 02 1 9706-9803 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 02 1 9706-9803 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41) 		1-83579-488-0 02 1 9804-9901 ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9601-9705 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9706-9803 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 9706-9803 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 9804-0106 ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0107- ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9601-9705 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9706-9803 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 9706-9803 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 9804-0106 ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0107- ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9601-9705 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9706-9803 ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9706-9803 ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 9804-0106 ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0107- ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 9804-0106 ●
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 0107- ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9601-9705 ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9706-9803 ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 9706-9803 ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 17 1 9804-0106 ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 0107- ●
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 9804-0106 ●
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 0107- ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-0 01 1 9601-9705 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-0 01 1 9706-9803 ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-0 01 1 9706-9803 ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 9804-0106 ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0107- ●
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 9804-0106 ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0107- ●
104 RESISTOR; BLOWER UNIT 1-83519-092-0 01 1 0107- ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9601-9705 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9706-9803 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 9706-9803 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-073-1 01 1 9804-0106 ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9601-9705 ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9706-9803 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 9706-9803 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 9804-0106 ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0107- ●
119 LINING; CASE
(A) 		1-83579-670-0 01 1 9601-9705 ● ●
119 LINING; CASE
(A) 		1-83579-670-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 9804-0106 ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0107- ●
119 LINING; CASE
(B) 		1-83579-671-0 01 1 9601-9705 ● ●
119 LINING; CASE
(B) 		1-83579-671-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 9804-0106 ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0107- ●
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9601-9705 ● ●
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-672-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-672-0 01 1 9804-9901 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-672-0 01 1 9902-0007 ●
119 LINING; CASE
(D) 		1-83579-673-1 01 1 9601-9705 ● ●
119 LINING; CASE
(D) 		1-83579-673-1 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-673-1 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-1 01 1 9804-9901 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 9902-0106 ●
119 LINING; CASE
(D) 		1-83579-673-2 01 1 0107- ●
119 LINING; CASE
(E) 		1-83579-839-0 02 1 9601-9705 ● ●
119 LINING; CASE
(E) 		1-83579-839-0 02 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83579-839-0 02 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41) (E) 		1-83579-839-0 02 1 9804-0106 ●
çizim 105115
1 49 34 78 49 34 119 46 58 34 8 23 78 23 49 119 119 119 49 42 119 39 34 39 37 43 52 31 49 92 32 53 104 30 105 53 54 51 28 14 78 12 12 10 13 11 97 1 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-150-3 01 1 9804-0106 ●
1 BLOWER ASM
(B) 		1-83561-150-5 01 1 0107- ●
1 BLOWER ASM
(A) 		1-83561-105-5 01 1 9601-9705 ● ●
1 BLOWER ASM
(A) 		1-83561-105-5 01 1 9706-9803 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83561-105-5 01 1 9706-9803 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-105-8 01 1 9804-0106 ●
5 HOSE; AIR 1-83563-140-0 01 1 9601-9705 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 9706-9803 ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 9706-9803 ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 9804-0106 ●
5 HOSE; AIR 1-83563-140-0 01 1 0107- ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 9804-0106 ●
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 0107- ●
8 SEAL; BLOWER UNIT 1-83579-801-0 01 1 9601-9705 ● ●
8 SEAL; BLOWER UNIT 1-83579-801-0 01 1 9706-9803 ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-801-0 01 1 9706-9803 ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83579-801-1 01 1 9804-0106 ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-100-1 01 1 9601-9705 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-100-1 01 1 9706-9803 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-100-1 01 1 9706-9803 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-100-1 01 1 9804-9901 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 9902-0106 ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0107- ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9601-9705 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9706-9803 ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 9706-9803 ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 9804-0106 ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0107- ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9601-9705 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9706-9803 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 9706-9803 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 9804-0106 ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0107- ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9601-9705 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9706-9803 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 9706-9803 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 9804-0106 ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0107- ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9601-9705 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9706-9803 ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 9706-9803 ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 9804-0106 ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0107- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 03 1 9902-0106 ●
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 9601-9705 ● ●
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 9706-9803 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 03 1 9706-9803 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 9804-9901 ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 9902-0106 ●
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 0107- ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9601-9705 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9706-9803 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 9706-9803 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-637-0 02 1 9804-0106 ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0107- ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9601-9705 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9706-9803 ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 9706-9803 ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 9804-0106 ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0107- ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9601-9705 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9706-9803 ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 9706-9803 ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 9804-0106 ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0107- ●
31 WASHER; LEVER 1-83579-095-0 01 1 9601-9705 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9706-9803 ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 9706-9803 ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 9804-0106 ●
31 WASHER; LEVER 1-83579-095-0 01 1 0107- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 9902-0106 ●
32 SCREW; LEVER 8-97130-601-0 01 1 9601-9705 ● ●
32 SCREW; LEVER 8-97130-601-0 01 1 9706-9803 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 01 1 9706-9803 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9804-9901 ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9902-0106 ●
32 SCREW; LEVER 8-97130-601-0 01 1 0107- ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9601-9705 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 9804-0106 ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0107- ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-1 01 1 9601-9705 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-1 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-1 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 9804-0106 ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0107- ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9601-9705 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 9804-0106 ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0107- ●
34 LINING; BLOWER UNIT
(D) 		1-83579-687-0 01 1 9601-9705 ● ●
34 LINING; BLOWER UNIT
(D) 		1-83579-687-0 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-687-0 01 1 9706-9803 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41) (D) 		1-83579-687-0 01 1 9804-9901 ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9601-9705 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9706-9803 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 9706-9803 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 9804-0106 ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0107- ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9601-9705 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9706-9803 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 9706-9803 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 9804-0106 ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0107- ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9601-9705 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9706-9803 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 9706-9803 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 9804-0106 ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0107- ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-933-0 02 1 9804-9901 ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 9902-0106 ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0107- ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-2 01 1 9601-9705 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-2 01 1 9706-9803 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-643-2 01 1 9706-9803 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-2 01 1 9804-0106 ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0107- ●
43 BOLT; CASE 1-83579-657-0 04 1 9601-9705 ● ●
43 BOLT; CASE 1-83579-657-0 04 1 9706-9803 ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-0 04 1 9706-9803 ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 9804-0106 ●
43 BOLT; CASE 1-83579-657-2 04 1 0107- ●
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 9601-9705 ● ●
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 9706-9803 ●
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83571-870-1 01 1 9706-9803 ●
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(B) 		1-83564-336-6 01 1 0107- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 0107- ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0107- ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0107- ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-0 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-0 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-0 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0107- ●
49 CASE; BLOWER UNIT
(B) 		1-83564-352-4 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-352-4 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-352-4 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-352-5 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-0 01 1 9601-9705 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-0 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-0 01 1 9706-9803 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 9804-0106 ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0107- ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9601-9705 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9706-9803 ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 9706-9803 ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 9804-0106 ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0107- ●
52 CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 9804-9901 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 9902-0106 ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0107- ●
52 CLIP; LEVER TO CASE 1-83579-488-0 02 1 9601-9705 ● ●
52 CLIP; LEVER TO CASE 1-83579-488-0 02 1 9706-9803 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 02 1 9706-9803 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41) 		1-83579-488-0 02 1 9804-9901 ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9601-9705 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9706-9803 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 9706-9803 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 9804-0106 ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0107- ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9601-9705 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9706-9803 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 9706-9803 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 9804-0106 ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0107- ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9601-9705 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9706-9803 ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9706-9803 ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 9804-0106 ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0107- ●
58 SCREW; PLATE TO CASE
M4X16 		8-94324-850-0 01 1 9601-9705 ● ●
58 SCREW; PLATE TO CASE
M4X16 		8-94324-850-0 01 1 9706-9803 ●
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 01 1 9706-9803 ●
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 9804-0106 ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9601-9705 ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9706-9803 ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 9706-9803 ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 17 1 9804-0106 ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 0107- ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-0 01 1 9601-9705 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-0 01 1 9706-9803 ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-0 01 1 9706-9803 ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 9804-0106 ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0107- ●
97 PLUG; FAN MOTOR 1-83579-248-0 01 1 9601-9702 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-092-0 01 1 0107- ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9601-9705 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9706-9803 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 9706-9803 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-073-1 01 1 9804-0106 ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9601-9705 ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9706-9803 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 9706-9803 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 9804-0106 ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0107- ●
119 LINING; CASE
(A) 		1-83579-670-0 01 1 9601-9705 ● ●
119 LINING; CASE
(A) 		1-83579-670-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 9804-0106 ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0107- ●
119 LINING; CASE
(B) 		1-83579-671-0 01 1 9601-9705 ● ●
119 LINING; CASE
(B) 		1-83579-671-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 9804-0106 ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0107- ●
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9601-9705 ● ●
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-672-0 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-672-0 01 1 9804-9901 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-672-0 01 1 9902-0007 ●
119 LINING; CASE
(D) 		1-83579-673-1 01 1 9601-9705 ● ●
119 LINING; CASE
(D) 		1-83579-673-1 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-673-1 01 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-1 01 1 9804-9901 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 9902-0106 ●
119 LINING; CASE
(D) 		1-83579-673-2 01 1 0107- ●
119 LINING; CASE
(E) 		1-83579-839-0 02 1 9601-9705 ● ●
119 LINING; CASE
(E) 		1-83579-839-0 02 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83579-839-0 02 1 9706-9803 ●
119 LINING; CASE
HEATER & DEFROSTER(C41) (E) 		1-83579-839-0 02 1 9804-0106 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
