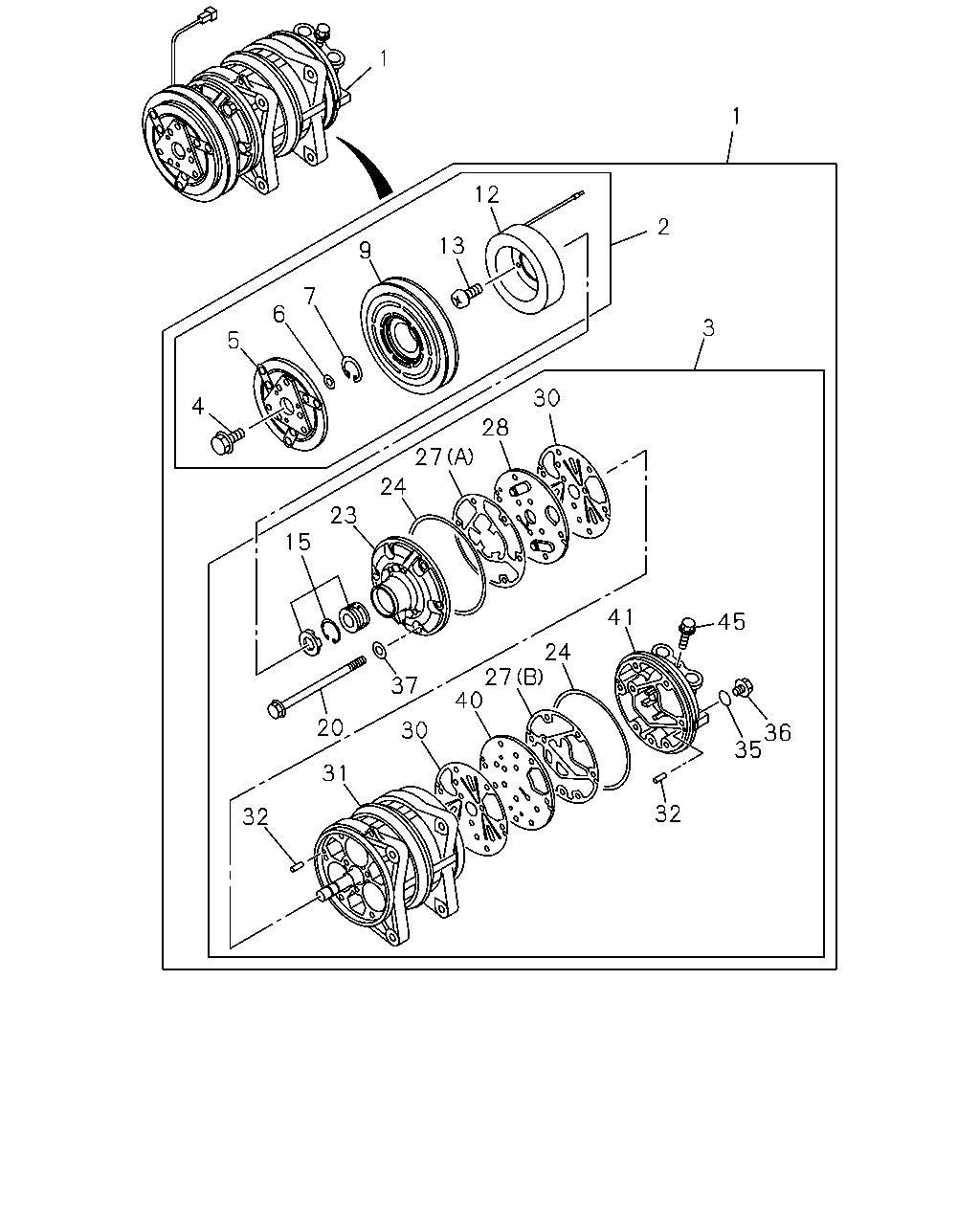

8-71 — COMPRESSOR; AIR CONDITIONING (#25292) — 94 parça

1 1 12 2 13 9 7 6 3 5 30 4 28 27 24 23 15 45 41 24 27 40 37 20 30 36 35 31 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C 6HE1 TC ENG(57L)	1-83532-287-0	01	1	9804-0106
1	COMPRESSOR ASM; A/C 6HK1 TCS ENG(80L)	1-83532-287-1	01	1	0107-
1	COMPRESSOR ASM; A/C 6SD1 TCN ENG(31L)	1-83532-278-0	01	1	9804-9804
1	COMPRESSOR ASM; A/C 6SD1 TCN ENG(31L)	1-83532-295-1	01	1	9805-
2	CLUTCH; MAGNET,A/C 6HE1 TC ENG(57L)	1-83533-037-0	01	1	9804-0106
2	CLUTCH; MAGNET,A/C 6HK1 TCS ENG(80L)	1-83533-037-0	01	1	0107-
2	CLUTCH; MAGNET,A/C 6SD1 TCN ENG(31L)	1-83533-041-0	01	1	9804-
3	COMPRESSOR ASM; A/C 6HE1 TC ENG(57L)	1-83532-290-0	01	1	9804-0106
3	COMPRESSOR ASM; A/C 6HK1 TCS ENG(80L)	1-83532-290-0	01	1	0107-
3	COMPRESSOR ASM; A/C 6SD1 TCN ENG(31L)	1-83532-292-0	01	1	9804-9804
3	COMPRESSOR ASM; A/C 6SD1 TCN ENG(31L)	1-83532-299-0	01	1	9805-
4	BOLT; MAGNET CLU	8-94164-439-0	01	1	0005-
5	ARMATURE ASM; MAGNET CLU,A/C	8-97034-788-0	01	1	0005-
6	SHIM; MAGNET CLU T=0.1	8-94120-721-0	AR	1	0005-
6	SHIM; MAGNET CLU T=0.3	8-94120-722-0	AR	1	0005-
6	SHIM; MAGNET CLU T=0.5	8-94120-723-0	AR	1	0005-
7	RING; SNAP,PULLEY	8-94120-724-0	01	1	0005-
9	PULLEY; MAGNET CLU 6HE1 TC ENG(57L)	1-83579-609-1	01	1	0005-0106
9	PULLEY; MAGNET CLU 6HK1 TCS ENG(80L)	1-83579-609-1	01	1	0107-
9	PULLEY; MAGNET CLU 6SD1 TCN ENG(31L)	1-83579-616-1	01	1	0005-
12	COIL; FIELD,MAGNET CLU 6HE1 TC ENG(57L)	1-83578-091-0	01	1	0005-0106
12	COIL; FIELD,MAGNET CLU 6HK1 TCS ENG(80L)	1-83578-091-0	01	1	0107-
12	COIL; FIELD,MAGNET CLU 6SD1 TCN ENG(31L)	1-83579-833-0	01	1	0005-0205
12	COIL; FIELD,MAGNET CLU 6SD1 TCN ENG(31L)	1-83578-093-0	01	1	0206-
13	SCREW; COIL FIELD	8-94120-727-0	03	1	0005-
15	SEAL; SHAFT	1-83578-090-0	01	1	0005-
20	BOLT; CMPR	8-97233-738-0	06	1	0005-
23	HEAD; CYL,FRT	8-97178-401-0	01	1	0005-
24	GASKET; CMPR 6HE1 TC ENG(57L)	1-83579-953-0	02	1	0005-0106
24	GASKET; CMPR 6HK1 TCS ENG(80L)	1-83579-953-0	02	1	0107-
24	GASKET; CMPR 6SD1 TCN ENG(31L)	1-83579-951-0	02	1	0005-
27	GASKET; CYL HD (B)	8-97170-930-0	01	1	0005-
27	GASKET; CYL HD (A)	8-97170-933-0	01	1	0005-
28	PLATE; VLV,CMPR	8-97170-932-1	01	1	0005-
30	VALVE; SUCTION	8-97134-755-0	02	1	0005-
31	CYLINDER & SHAFT ASM; AIR CMPR 6HE1 TC ENG(57L)	8-97138-175-0	01	1	0005-0106
31	CYLINDER & SHAFT ASM; AIR CMPR 6HK1 TCS ENG(80L)	8-97138-175-0	01	1	0107-
31	CYLINDER & SHAFT ASM; AIR CMPR 6SD1 TCN ENG(31L)	8-97138-177-0	01	1	0005-
32	PIN; CMPR	8-94154-711-0	04	1	0005-
35	GASKET; PLUG,CYL "R-134A"	8-97081-395-0	01	1	0005-
36	PLUG; CYL	8-94164-473-0	01	1	0005-
37	GASKET; CMPR	8-97233-739-0	06	1	0005-
40	PLATE; VLV,RR	8-97170-931-1	01	1	0005-
41	HEAD; CYL,RR 6HE1 TC ENG(57L)	8-97178-402-0	01	1	0005-0106
41	HEAD; CYL,RR 6HK1 TCS ENG(80L)	8-97178-402-0	01	1	0107-
41	HEAD; CYL,RR 6SD1 TCN ENG(31L)	8-97170-929-1	01	1	0005-
45	BOLT; PLATE TO CYL HD M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	0005-

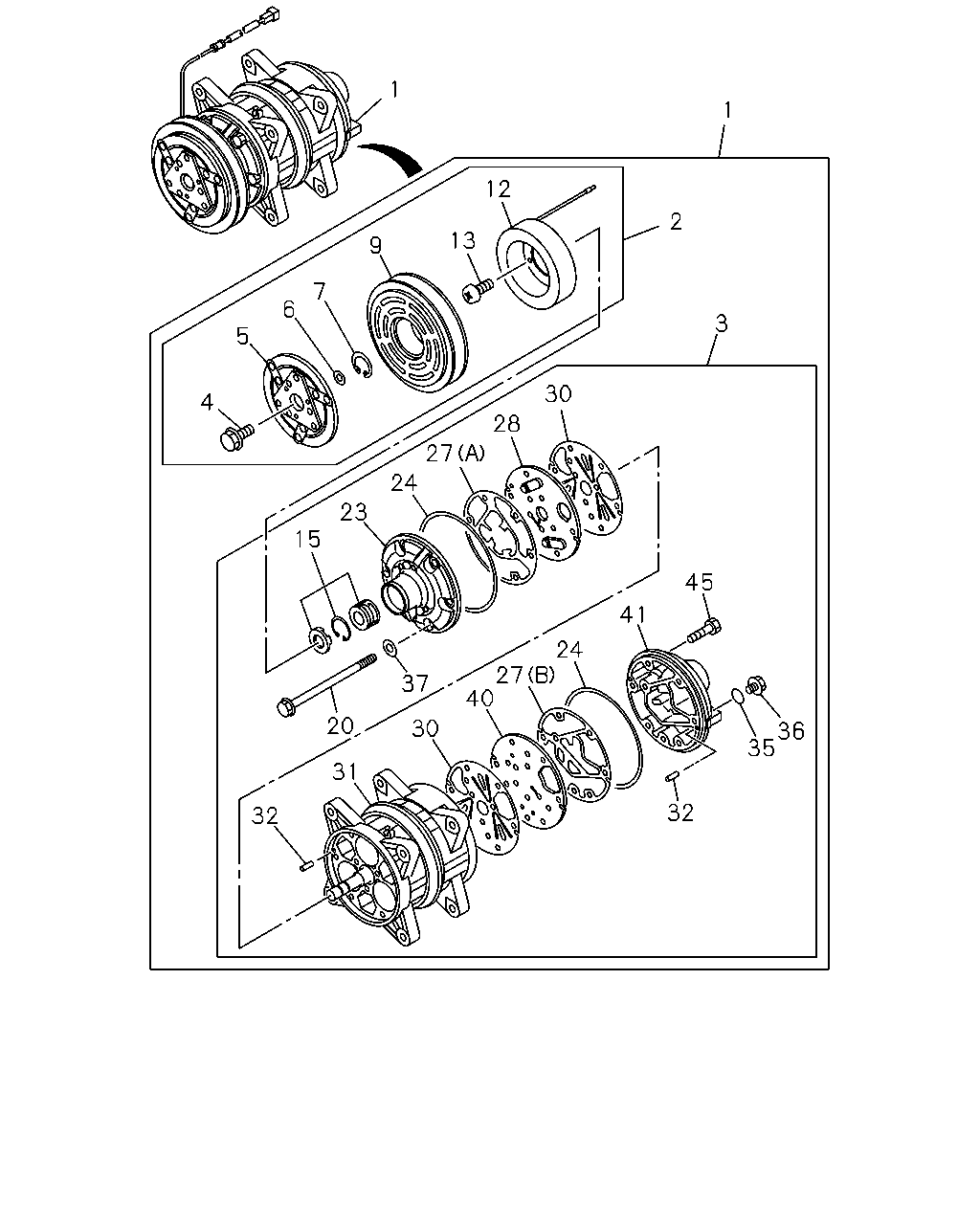

1 1 12 2 13 9 7 6 3 5 30 4 28 27 24 23 15 41 45 24 27 40 37 20 30 36 35 31 32 32
