◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#25291) — 330 parça

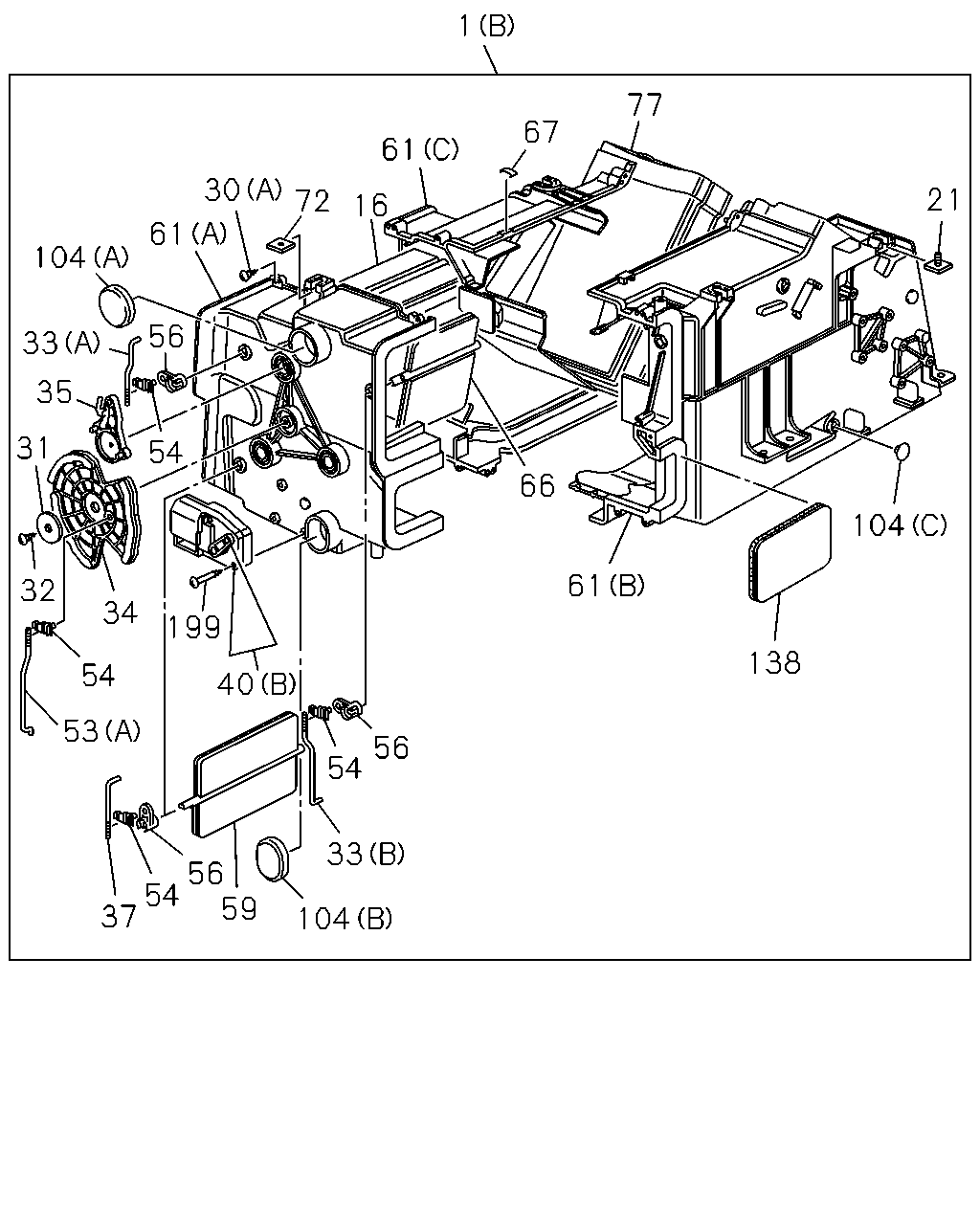

çizim 87405
1 77 67 61 30 72 21 16 61 104 56 33 35 31 54 66 104 61 32 34 199 138 54 40 53 56 54 33 56 54 59 37 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
(A) 		1-83511-129-7 01 1 9601-9705 ● ●
1 HEATER UNIT
(A) 		1-83511-129-7 01 1 9706-9803 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83511-129-7 01 1 9706-9803 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83511-129-8 01 1 9804-0106 ●
1 HEATER UNIT
(A) 		1-83511-129-8 01 1 0107-0109 ●
1 HEATER UNIT
(A) 		1-83511-175-1 01 1 0110- ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83511-139-1 01 1 9706-9803 ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9601-9705 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9706-9803 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 9706-9803 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-625-1 01 1 9804-0106 ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0107- ●
21 BOLT; CASE,HTR UNIT 1-83579-657-1 02 1 9601-9705 ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-0 02 1 9706-9803 ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-0 02 1 9706-9803 ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 9804-0106 ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0107- ●
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0107- ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 9601-9705 ● ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 9706-9803 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 12 1 9706-9803 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 9804-0106 ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0107- ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9601-9705 ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9706-9803 ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 9706-9803 ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 9804-0106 ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0107- ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9601-9705 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9706-9803 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 9706-9803 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 9804-0106 ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0107- ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 02 1 9706-9803 ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9601-9705 ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9706-9803 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 9706-9803 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 9804-0106 ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0107- ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9601-9705 ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9706-9803 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-621-0 01 1 9706-9803 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 9804-0106 ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0107- ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9601-9705 ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9706-9803 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 9706-9803 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-326-0 01 1 9804-0106 ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0107- ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9601-9705 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9706-9803 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 03 1 9706-9803 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 9804-0106 ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0107- ●
37 ROD; LEVER 1-83579-620-1 01 1 9601-9705 ● ●
37 ROD; LEVER 1-83579-620-1 01 1 9706-9803 ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 9706-9803 ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 9804-0106 ●
37 ROD; LEVER 1-83579-620-1 01 1 0107- ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-0 01 1 9601-9705 ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-0 01 1 9706-9803 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-0 01 1 9706-9803 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-649-1 01 1 9804-0106 ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 0107- ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-0 01 1 9601-9705 ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-0 01 1 9706-9803 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-650-0 01 1 9706-9803 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 9804-0106 ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0107- ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 9601-9705 ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-622-0 01 1 9804-0106 ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0107- ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 9601-9705 ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		1-83579-623-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 9804-0106 ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0107- ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 9601-9705 ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (C) 		1-83579-624-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 9804-0106 ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0107- ●
54 CLIP; SHUTTER LEVER 1-83579-488-0 05 1 9601-9702 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 9703-9705 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 9706-9803 ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-94248-794-0 05 1 9706-9803 ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 9804-0106 ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0107- ●
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 04 1 9706-9803 ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9601-9705 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9706-9803 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 03 1 9706-9803 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 9804-0106 ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0107- ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 9601-9705 ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-1 01 1 9706-9803 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-1 01 1 9706-9803 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-626-2 01 1 9804-0106 ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0107- ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 9601-9702 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 9703-9705 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-401-0 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-401-0 01 1 9804-0106 ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0107- ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9601-9705 ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-346-3 01 1 9804-0106 ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0107- ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 9601-9702 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 9703-9705 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83564-402-0 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-402-0 01 1 9804-0106 ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0107- ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-323-5 01 1 9706-9803 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-347-3 01 1 9706-9803 ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9601-9705 ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9706-9803 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 9706-9803 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-627-0 01 1 9804-0106 ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0107- ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9601-9705 ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9706-9803 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 9706-9803 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 9804-0106 ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0107- ●
72 NUT; CASE,HTR UNIT 1-83579-659-1 02 1 9601-9705 ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-0 02 1 9706-9803 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-0 02 1 9706-9803 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 9804-0106 ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0107- ●
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-802-0 01 1 9706-9803 ●
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-617-0 01 1 9706-9803 ●
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-618-0 01 1 9706-9803 ●
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-94328-657-0 04 1 9706-9803 ●
138 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-599-2 01 1 9706-9803 ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 9601-9705 ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 9706-9803 ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41) 		8-94348-809-0 04 1 9706-9803 ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 9804-0106 ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0107- ●
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9706-9803 ●

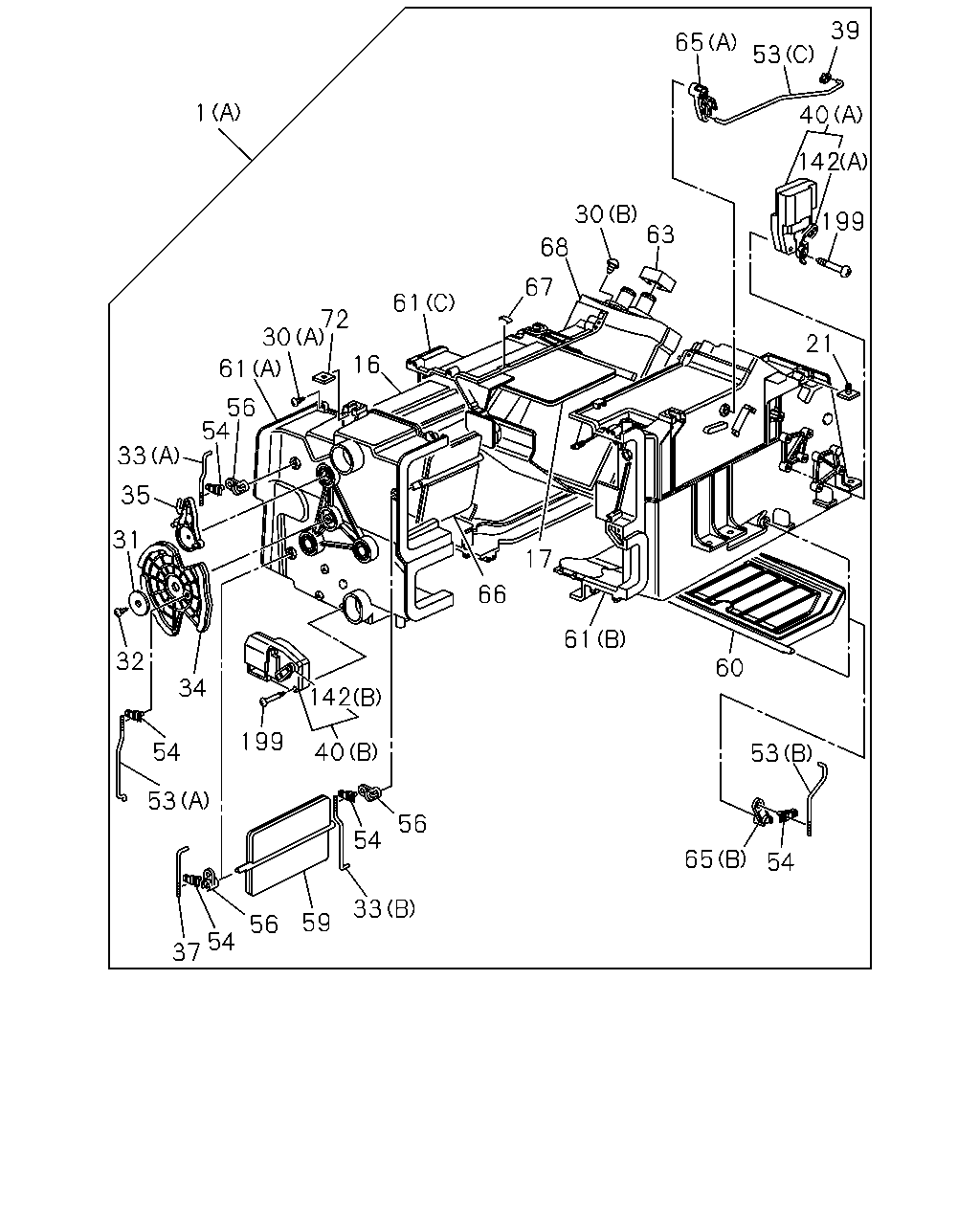

çizim 105113
39 65 53 1 40 30 63 199 68 67 61 72 30 21 16 61 56 54 33 35 31 17 66 61 32 60 34 199 54 40 53 53 56 54 65 54 33 59 56 54 37 142 142
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
(A) 		1-83511-129-7 01 1 9601-9705 ● ●
1 HEATER UNIT
(A) 		1-83511-129-7 01 1 9706-9803 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83511-129-7 01 1 9706-9803 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83511-129-8 01 1 9804-0106 ●
1 HEATER UNIT
(A) 		1-83511-129-8 01 1 0107-0109 ●
1 HEATER UNIT
(A) 		1-83511-175-1 01 1 0110- ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83511-139-1 01 1 9706-9803 ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9601-9705 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 9706-9803 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 9706-9803 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-625-1 01 1 9804-0106 ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0107- ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 9601-9705 ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 9706-9803 ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		1-83579-628-1 01 1 9706-9803 ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 9804-0106 ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0107- ●
21 BOLT; CASE,HTR UNIT 1-83579-657-1 02 1 9601-9705 ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-0 02 1 9706-9803 ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-0 02 1 9706-9803 ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 9804-0106 ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0107- ●
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0107- ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 9601-9705 ● ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 9706-9803 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 12 1 9706-9803 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 9804-0106 ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0107- ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9601-9705 ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9706-9803 ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 9706-9803 ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 9804-0106 ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0107- ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9601-9705 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9706-9803 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 9706-9803 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 9804-0106 ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0107- ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 02 1 9706-9803 ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9601-9705 ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 9706-9803 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 9706-9803 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 9804-0106 ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0107- ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9601-9705 ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 9706-9803 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-621-0 01 1 9706-9803 ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 9804-0106 ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0107- ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9601-9705 ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 9706-9803 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 9706-9803 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-326-0 01 1 9804-0106 ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0107- ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9601-9705 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 9706-9803 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 03 1 9706-9803 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 9804-0106 ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0107- ●
37 ROD; LEVER 1-83579-620-1 01 1 9601-9705 ● ●
37 ROD; LEVER 1-83579-620-1 01 1 9706-9803 ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 9706-9803 ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 9804-0106 ●
37 ROD; LEVER 1-83579-620-1 01 1 0107- ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 9601-9705 ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 9706-9803 ●
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83574-136-0 01 1 9706-9803 ●
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 9804-0106 ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0107- ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-0 01 1 9601-9705 ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-0 01 1 9706-9803 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-0 01 1 9706-9803 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-649-1 01 1 9804-0106 ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 0107- ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-0 01 1 9601-9705 ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-0 01 1 9706-9803 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-650-0 01 1 9706-9803 ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 9804-0106 ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0107- ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 9601-9705 ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-622-0 01 1 9804-0106 ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0107- ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 9601-9705 ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		1-83579-623-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 9804-0106 ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0107- ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 9601-9705 ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (C) 		1-83579-624-0 01 1 9706-9803 ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 9804-0106 ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0107- ●
54 CLIP; SHUTTER LEVER 1-83579-488-0 05 1 9601-9702 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 9703-9705 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 9706-9803 ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-94248-794-0 05 1 9706-9803 ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 9804-0106 ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0107- ●
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 04 1 9706-9803 ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9601-9705 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 9706-9803 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 03 1 9706-9803 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 9804-0106 ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0107- ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 9601-9705 ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-1 01 1 9706-9803 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-1 01 1 9706-9803 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-626-2 01 1 9804-0106 ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0107- ●
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 9601-9705 ● ●
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 9706-9803 ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41) 		1-83579-629-0 01 1 9706-9803 ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-629-0 01 1 9804-0106 ●
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 0107-0109 ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0110- ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 9601-9702 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 9703-9705 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-401-0 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-401-0 01 1 9804-0106 ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0107- ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9601-9705 ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-346-3 01 1 9804-0106 ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0107- ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 9601-9702 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 9703-9705 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83564-402-0 01 1 9706-9803 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-402-0 01 1 9804-0106 ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0107- ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-323-5 01 1 9706-9803 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-347-3 01 1 9706-9803 ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 9601-9705 ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 9706-9803 ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83579-557-0 02 1 9706-9803 ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 9804-0106 ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 0107- ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 9601-9705 ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 9706-9803 ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) (A) 		1-83564-327-0 01 1 9706-9803 ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 9804-0106 ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0107- ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 9601-9705 ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 9706-9803 ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) (B) 		1-83564-328-1 01 1 9706-9803 ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 9804-0106 ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0107- ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9601-9705 ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 9706-9803 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 9706-9803 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-627-0 01 1 9804-0106 ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0107- ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9601-9705 ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 9706-9803 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 9706-9803 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 9804-0106 ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0107- ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 9601-9705 ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 9706-9803 ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83562-078-1 01 1 9706-9803 ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 9804-0106 ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 0107- ●
72 NUT; CASE,HTR UNIT 1-83579-659-1 02 1 9601-9705 ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-0 02 1 9706-9803 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-0 02 1 9706-9803 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 9804-0106 ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0107- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0012-0106 ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0107- ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 9703-9705 ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 9706-9803 ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41) (B) 		1-83564-345-1 01 1 9706-9803 ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-345-1 01 1 9804-0106 ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0107- ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 9601-9705 ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 9706-9803 ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41) 		8-94348-809-0 04 1 9706-9803 ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 9804-0106 ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0107- ●
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9706-9803 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
