Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#25290) — 211 parça

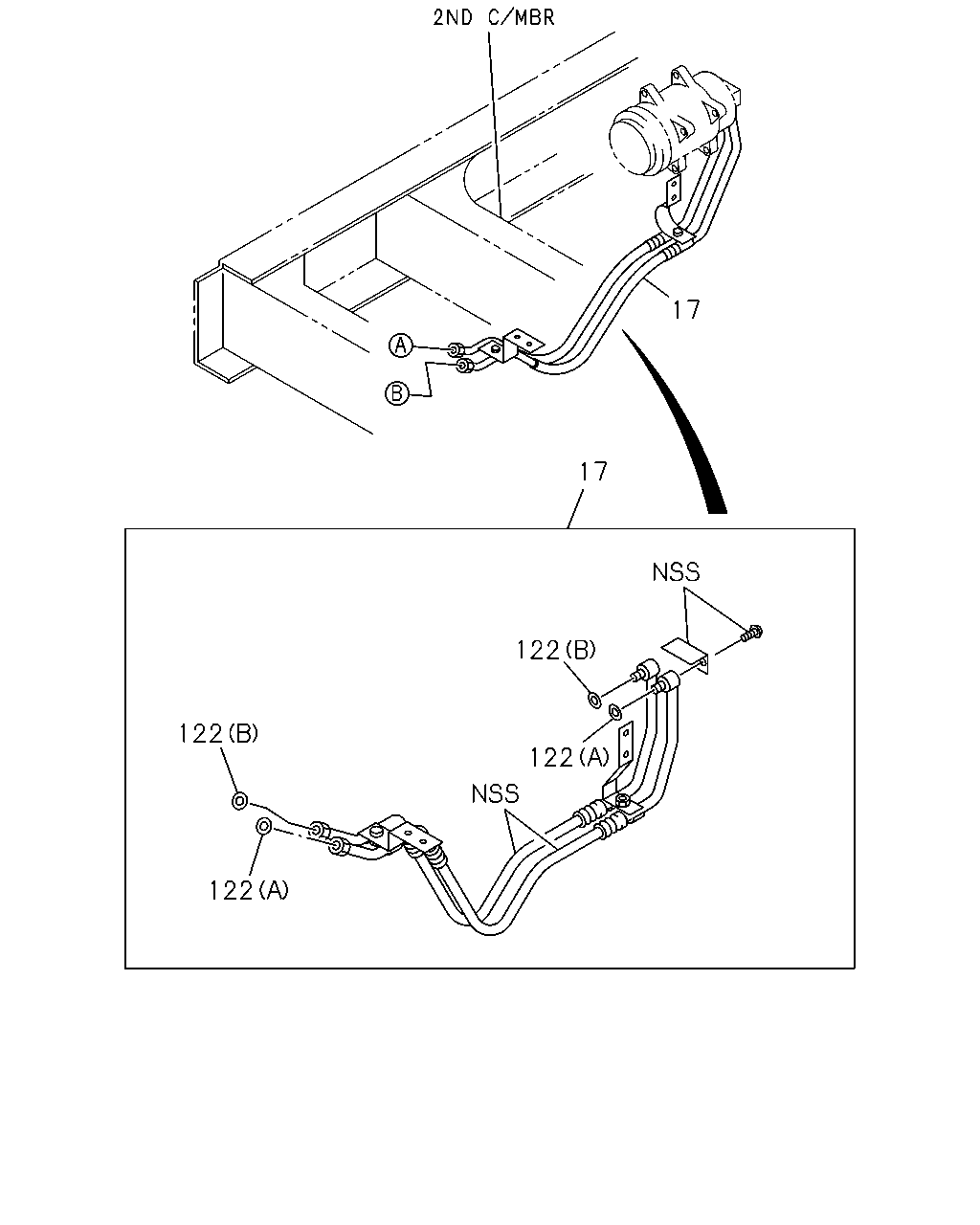

17 17 122 122 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L)	1-83572-520-0	01	1	9804-9809	●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L)	1-83572-519-0	01	1	9810-0106	●
17	HOSE; FLEX,CMPR TO PIPE 6HK1 TCS ENG(80L)	1-83572-519-1	01	1	0107-0301	●
17	HOSE; FLEX,CMPR TO PIPE 6HK1 TCS ENG(80L)	1-83572-918-0	01	1	0302-	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-524-0	01	1	9804-9805	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-568-0	01	1	9806-0004	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-571-0	01	1	0005-0106	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L)	1-83572-571-0	01	1	0107-0202	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L)	1-83572-900-1	01	1	0203-	●
122	GASKET 6HE1 TC ENG(57L) (B) ID=15.5	8-97161-777-0	01	1	9804-0106	●
122	GASKET 6HK1 TCS ENG(80L) (B) ID=15.5	8-97161-777-0	01	1	0107-	●
122	GASKET 6HE1 TC ENG(57L) (A) ID=18.3	8-97161-778-0	01	1	9804-0106	●
122	GASKET 6HK1 TCS ENG(80L) (A) ID=18.3	8-97161-778-0	01	1	0107-	●
122	GASKET 6SD1 TCN ENG(31L) (B) ID=15.5	8-97161-777-0	02	1	9804-	●
122	GASKET 6SD1 TCN ENG(31L) (A) ID=18.3	8-97161-778-0	02	1	9804-	●

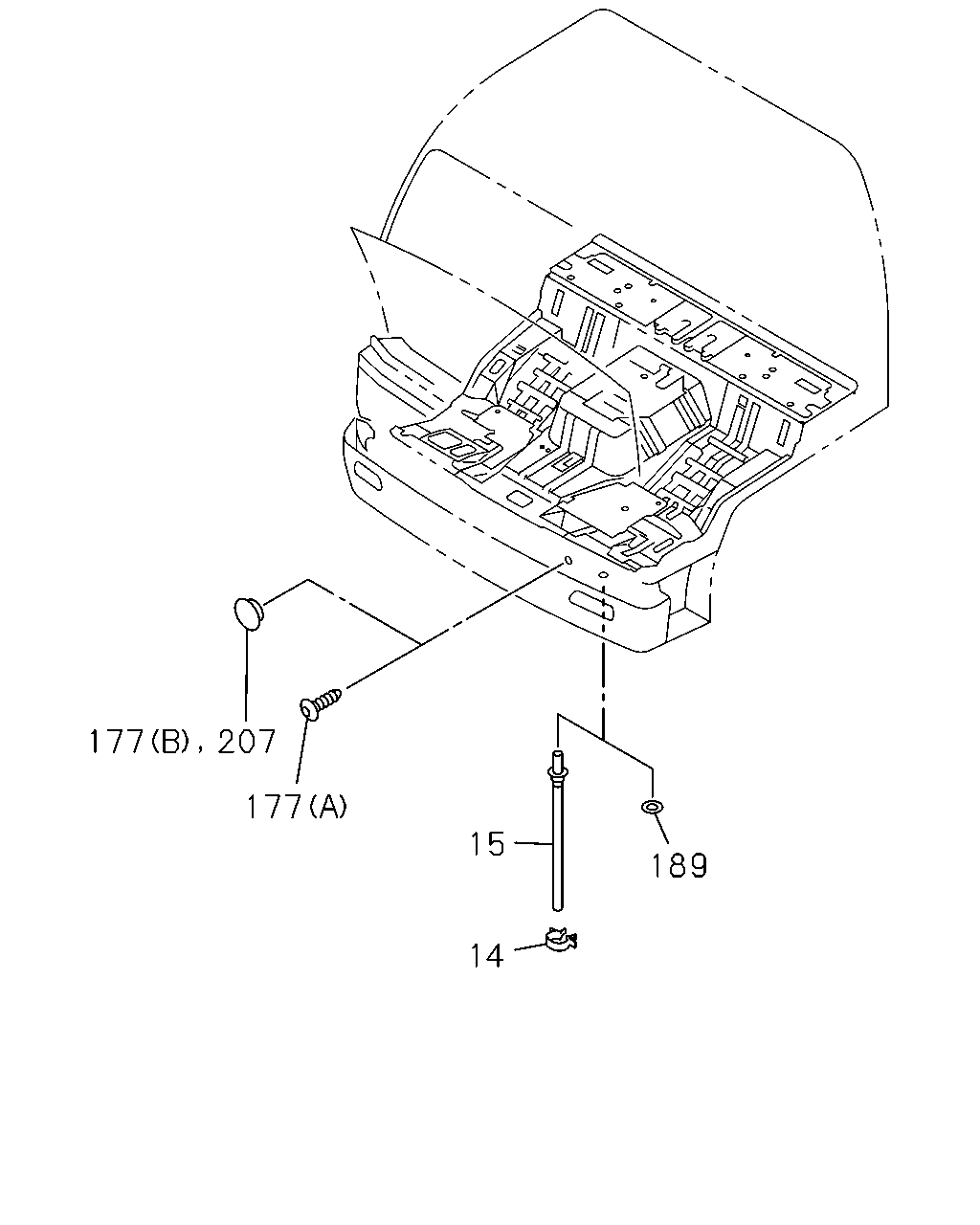

177 15 189 14 177 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	9804-9904	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	9905-0106	●
14	CLIP; BAND,EVAP DRAIN HOSE ID=20	8-94410-200-0	01	1	0107-	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-411-0	01	1	9804-9904	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	9905-0106	●
15	HOSE; DRAIN	1-83572-635-0	01	1	0107-	●
15	HOSE; DRAIN	1-83566-904-2	01	1	9601-9702	●	●
15	HOSE; DRAIN	1-83572-412-0	01	1	9703-9705	●	●
15	HOSE; DRAIN	1-83572-412-0	01	1	9706-9803	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9706-9803		●
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	9804-0106	●
177	PLUG; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=15 BLACK	8-94279-804-0	03	1	9804-9804	●
177	PLUG; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=25 BLACK	1-76798-019-0	03	1	9804-9804	●
177	PLUG; CLIP (A) OD=15 BLACK	8-94279-804-0	01	1	9601-9711	●	●
177	PLUG; CLIP (A) OD=15 BLACK	8-94279-804-0	02	1	9712-9801	●	●
177	PLUG; CLIP (A) OD=15 BLACK	8-94279-804-0	03	1	9802-9803	●	●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=15 BLACK	8-94279-804-0	01	1	9804-9804	●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=15 BLACK	8-94279-804-0	01	1	9804-9804	●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=25 BLACK	1-76798-019-0	01	1	9804-9804	●
177	PLUG; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=25 BLACK	1-76798-019-0	01	1	9804-9804	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09575-397-0	01	1	0005-0106	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9706-9803		●
207	SEAL; FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9903-0106	●

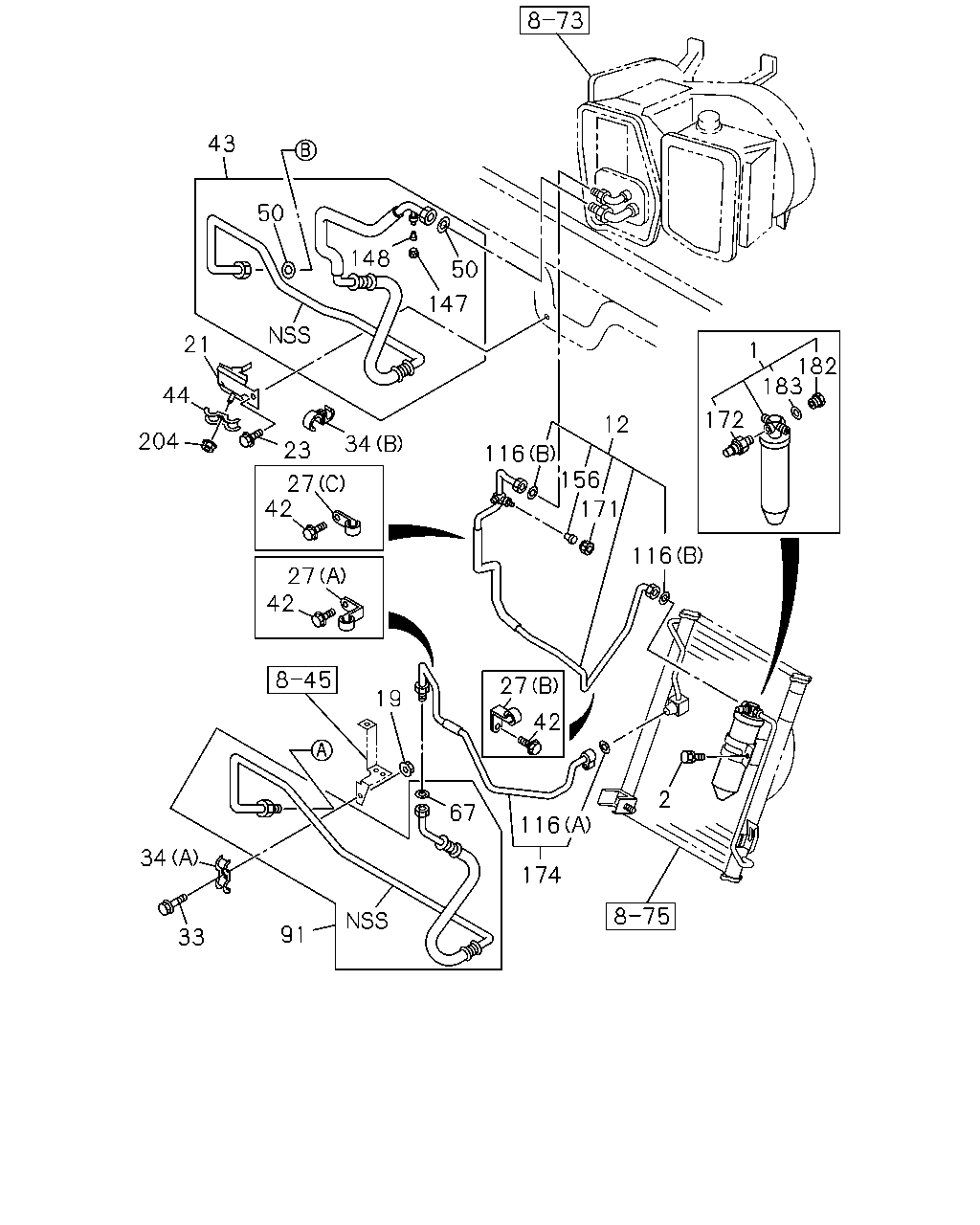

43 50 148 50 147 21 1 182 183 44 172 12 204 34 23 116 156 27 42 171 116 27 42 27 19 42 2 67 116 34 174 91 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	9804-0106	●
1	TANK; RECEIVER	1-83535-084-0	01	1	0107-	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9804-0106	●
2	BOLT; RECEIVER TANK M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0107-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-662-0	01	1	9804-0106	●
12	PIPE; COOLER,EVAP TO TANK	1-83567-662-0	01	1	0107-	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0104	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	9804-0106	●
21	BRACKET; COOLER HOSE	1-83571-831-4	01	1	0107-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9804-0106	●
23	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●
23	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9804-9902	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=12 L=20	1-09701-274-0	01	1	9903-0004	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0005-0106	●
27	CLIP; COOLER PIPE (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0107-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9804-0106	●
27	CLIP; COOLER PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-0707	●
27	CLIP; COOLER PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9804-0106	●
27	CLIP; COOLER PIPE (C) ID=13 L=20	9-09525-235-0	01	1	0107-0606	●
27	CLIP; COOLER PIPE (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●
33	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●
33	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
34	CLIP; COOLER PIPE 6SD1 TCN ENG(31L) (B) ID=12 & 15	1-09709-281-1	01	1	0207-	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0106	●
34	CLIP; COOLER PIPE (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0107-	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9804-0106	●
42	SCREW; CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0107-0904	●
42	SCREW; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-517-0	01	1	9804-0106	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1 TCS ENG(80L)	1-83572-517-2	01	1	0107-0301	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1 TCS ENG(80L)	1-83572-916-0	01	1	0302-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-522-0	01	1	9804-0106	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L)	1-83572-522-0	01	1	0107-0202	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L)	1-83572-902-0	01	1	0203-0206	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L)	1-83572-912-0	01	1	0207-	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0106	●
44	CLIP; FLEX HOSE ID=12.2 & 16.2	1-83574-190-0	01	1	0107-	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) ID=18.3	8-97161-778-0	01	1	0203-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	9804-0106	●
50	GASKET; FLEX HOSE,A/C ID=18.3	8-97161-778-0	02	1	0107-0202	●
50	GASKET; FLEX HOSE,A/C 6HK1 TCS ENG(80L) ID=18.3	8-97161-778-0	02	1	0203-	●
67	GASKET; FLEX HOSE 6HE1 TC ENG(57L) ID=15.5	8-97161-777-0	02	1	9804-0106	●
67	GASKET; FLEX HOSE 6HK1 TCS ENG(80L) ID=15.5	8-97161-777-0	02	1	0107-	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L) ID=15.5	8-97161-777-0	02	1	9804-	●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L)	1-83572-518-0	01	1	9804-0106	●
91	HOSE; FLEX,CMPR 6HK1 TCS ENG(80L)	1-83572-518-1	01	1	0107-0301	●
91	HOSE; FLEX,CMPR 6HK1 TCS ENG(80L)	1-83572-917-0	01	1	0302-	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0106	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L)	1-83572-523-0	01	1	0107-0202	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L)	1-83572-901-0	01	1	0203-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	9804-0106	●
116	GASKET; PIPE (B)	8-97161-776-0	02	1	0107-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9804-0106	●
116	GASKET; PIPE (A) ID=15.5	8-97161-777-0	01	1	0107-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9804-0106	●
147	CAP; FLEX HOSE CAP MARK L	8-97083-102-0	01	1	0107-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9804-0106	●
148	VALVE; FLEX HOSE	8-97083-100-0	01	1	0107-0109	●
148	VALVE; FLEX HOSE 6SD1 TCN ENG(31L)	8-97083-100-0	01	1	0110-0209	●
148	VALVE; FLEX HOSE	8-97083-100-0	01	1	0210-	●
148	VALVE; FLEX HOSE 6HK1 TCS ENG(80L)	8-97083-892-0	01	1	0110-0209	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9804-0106	●
156	VALVE; PIPE	8-97083-100-0	01	1	0107-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	9804-0106	●
171	CAP; PIPE CAP MARK H	8-97083-101-0	01	1	0107-	●
172	SWITCH; PRESS,RECEIVER TANK	1-83544-047-0	01	1	0107-	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-97085-786-0	01	1	9804-0106	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-664-1	01	1	9804-0106	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE	1-83567-664-2	01	1	0107-	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	9804-0106	●
182	PLUG; RECEIVER TANK	1-83539-226-0	01	1	0107-	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	9804-0106	●
183	GASKET; PLUG	8-94154-048-0	01	1	0107-	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0106	●
204	NUT M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
204	NUT M8 FLANGE	0-91180-108-0	01	1	0603-	●

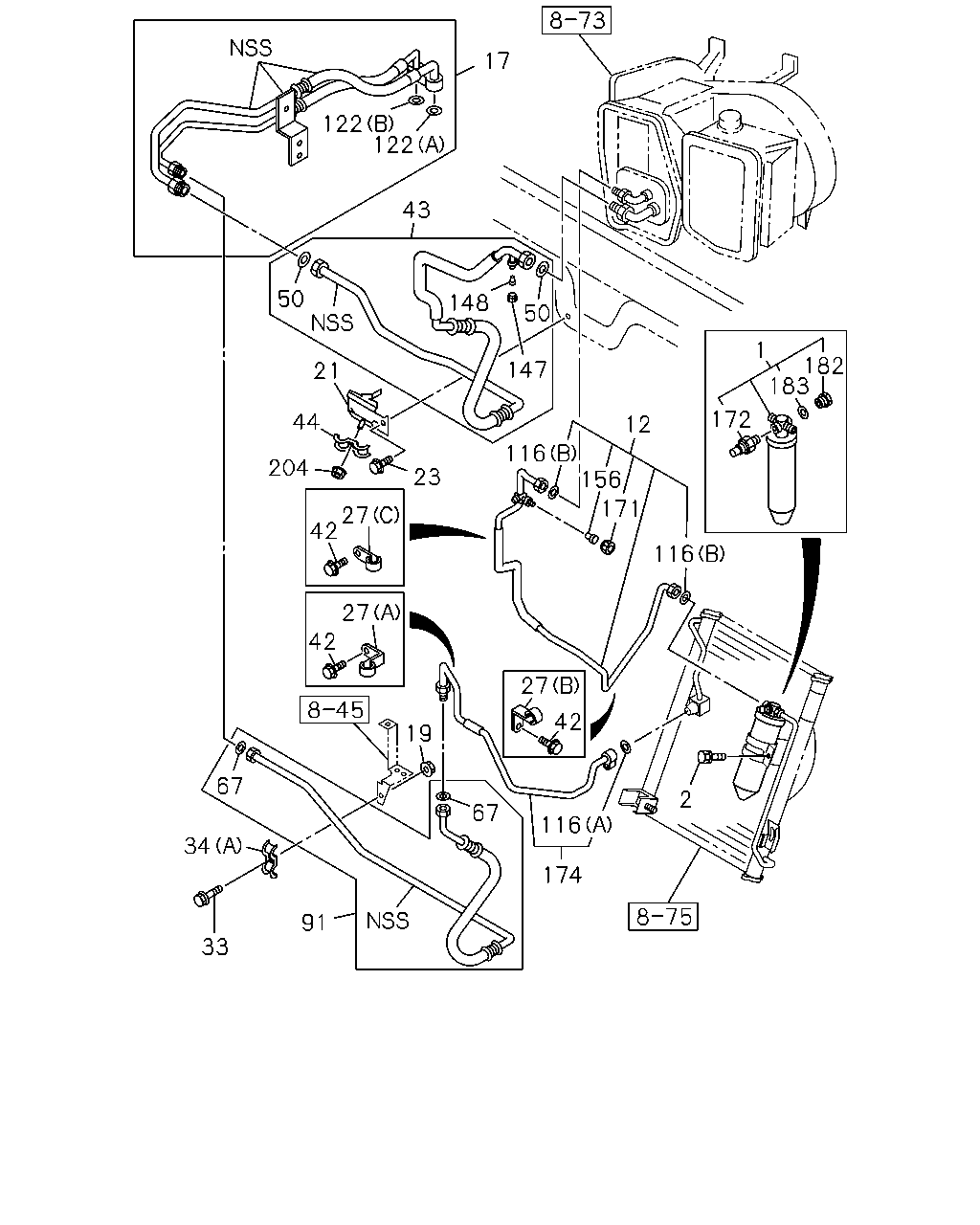

17 122 122 43 50 148 50 1 182 183 147 21 172 44 12 116 156 204 23 171 27 42 116 27 42 27 42 19 67 2 67 116 34 174 91 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-084-0	01	1	9804-0106	●
1	TANK; RECEIVER	1-83535-084-0	01	1	0107-	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9804-0106	●
2	BOLT; RECEIVER TANK M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0107-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-662-0	01	1	9804-0106	●
12	PIPE; COOLER,EVAP TO TANK	1-83567-662-0	01	1	0107-	●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L)	1-83572-520-0	01	1	9804-9809	●
17	HOSE; FLEX,CMPR TO PIPE 6HE1 TC ENG(57L)	1-83572-519-0	01	1	9810-0106	●
17	HOSE; FLEX,CMPR TO PIPE 6HK1 TCS ENG(80L)	1-83572-519-1	01	1	0107-0301	●
17	HOSE; FLEX,CMPR TO PIPE 6HK1 TCS ENG(80L)	1-83572-918-0	01	1	0302-	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-524-0	01	1	9804-9805	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-568-0	01	1	9806-0004	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-571-0	01	1	0005-0106	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L)	1-83572-571-0	01	1	0107-0202	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 TCN ENG(31L)	1-83572-900-1	01	1	0203-	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0104	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-831-4	01	1	9804-0106	●
21	BRACKET; COOLER HOSE	1-83571-831-4	01	1	0107-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9804-0106	●
23	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●
23	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9804-9902	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=12 L=20	1-09701-274-0	01	1	9903-0004	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0005-0106	●
27	CLIP; COOLER PIPE (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0107-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9804-0106	●
27	CLIP; COOLER PIPE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-0707	●
27	CLIP; COOLER PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9804-0106	●
27	CLIP; COOLER PIPE (C) ID=13 L=20	9-09525-235-0	01	1	0107-0606	●
27	CLIP; COOLER PIPE (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●
33	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●
33	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
34	CLIP; COOLER PIPE 6SD1 TCN ENG(31L) (B) ID=12 & 15	1-09709-281-1	01	1	0207-	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0106	●
34	CLIP; COOLER PIPE (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0107-	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9804-0106	●
42	SCREW; CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0107-0904	●
42	SCREW; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-517-0	01	1	9804-0106	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1 TCS ENG(80L)	1-83572-517-2	01	1	0107-0301	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1 TCS ENG(80L)	1-83572-916-0	01	1	0302-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-522-0	01	1	9804-0106	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L)	1-83572-522-0	01	1	0107-0202	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L)	1-83572-902-0	01	1	0203-0206	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 TCN ENG(31L)	1-83572-912-0	01	1	0207-	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0106	●
44	CLIP; FLEX HOSE ID=12.2 & 16.2	1-83574-190-0	01	1	0107-	●
50	GASKET; FLEX HOSE,A/C 6SD1 TCN ENG(31L) ID=18.3	8-97161-778-0	01	1	0203-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	9804-0106	●
50	GASKET; FLEX HOSE,A/C ID=18.3	8-97161-778-0	02	1	0107-0202	●
50	GASKET; FLEX HOSE,A/C 6HK1 TCS ENG(80L) ID=18.3	8-97161-778-0	02	1	0203-	●
67	GASKET; FLEX HOSE 6HE1 TC ENG(57L) ID=15.5	8-97161-777-0	02	1	9804-0106	●
67	GASKET; FLEX HOSE 6HK1 TCS ENG(80L) ID=15.5	8-97161-777-0	02	1	0107-	●
67	GASKET; FLEX HOSE 6SD1 TCN ENG(31L) ID=15.5	8-97161-777-0	02	1	9804-	●
91	HOSE; FLEX,CMPR 6HE1 TC ENG(57L)	1-83572-518-0	01	1	9804-0106	●
91	HOSE; FLEX,CMPR 6HK1 TCS ENG(80L)	1-83572-518-1	01	1	0107-0301	●
91	HOSE; FLEX,CMPR 6HK1 TCS ENG(80L)	1-83572-917-0	01	1	0302-	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-523-0	01	1	9804-0106	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L)	1-83572-523-0	01	1	0107-0202	●
91	HOSE; FLEX,CMPR 6SD1 TCN ENG(31L)	1-83572-901-0	01	1	0203-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-776-0	02	1	9804-0106	●
116	GASKET; PIPE (B)	8-97161-776-0	02	1	0107-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	9804-0106	●
116	GASKET; PIPE (A) ID=15.5	8-97161-777-0	01	1	0107-	●
122	GASKET 6HE1 TC ENG(57L) (B) ID=15.5	8-97161-777-0	01	1	9804-0106	●
122	GASKET 6HK1 TCS ENG(80L) (B) ID=15.5	8-97161-777-0	01	1	0107-	●
122	GASKET 6HE1 TC ENG(57L) (A) ID=18.3	8-97161-778-0	01	1	9804-0106	●
122	GASKET 6HK1 TCS ENG(80L) (A) ID=18.3	8-97161-778-0	01	1	0107-	●
122	GASKET 6SD1 TCN ENG(31L) (B) ID=15.5	8-97161-777-0	02	1	9804-	●
122	GASKET 6SD1 TCN ENG(31L) (A) ID=18.3	8-97161-778-0	02	1	9804-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9804-0106	●
147	CAP; FLEX HOSE CAP MARK L	8-97083-102-0	01	1	0107-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9804-0106	●
148	VALVE; FLEX HOSE	8-97083-100-0	01	1	0107-0109	●
148	VALVE; FLEX HOSE 6SD1 TCN ENG(31L)	8-97083-100-0	01	1	0110-0209	●
148	VALVE; FLEX HOSE	8-97083-100-0	01	1	0210-	●
148	VALVE; FLEX HOSE 6HK1 TCS ENG(80L)	8-97083-892-0	01	1	0110-0209	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9804-0106	●
156	VALVE; PIPE	8-97083-100-0	01	1	0107-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	9804-0106	●
171	CAP; PIPE CAP MARK H	8-97083-101-0	01	1	0107-	●
172	SWITCH; PRESS,RECEIVER TANK	1-83544-047-0	01	1	0107-	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-97085-786-0	01	1	9804-0106	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-664-1	01	1	9804-0106	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE	1-83567-664-2	01	1	0107-	●
182	PLUG; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-226-0	01	1	9804-0106	●
182	PLUG; RECEIVER TANK	1-83539-226-0	01	1	0107-	●
183	GASKET; PLUG AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-048-0	01	1	9804-0106	●
183	GASKET; PLUG	8-94154-048-0	01	1	0107-	●
204	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9804-0106	●
204	NUT M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
204	NUT M8 FLANGE	0-91180-108-0	01	1	0603-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
