8-50 — AIR CONDITIONING SYSTEM; FRONT (#25289) — 118 parça

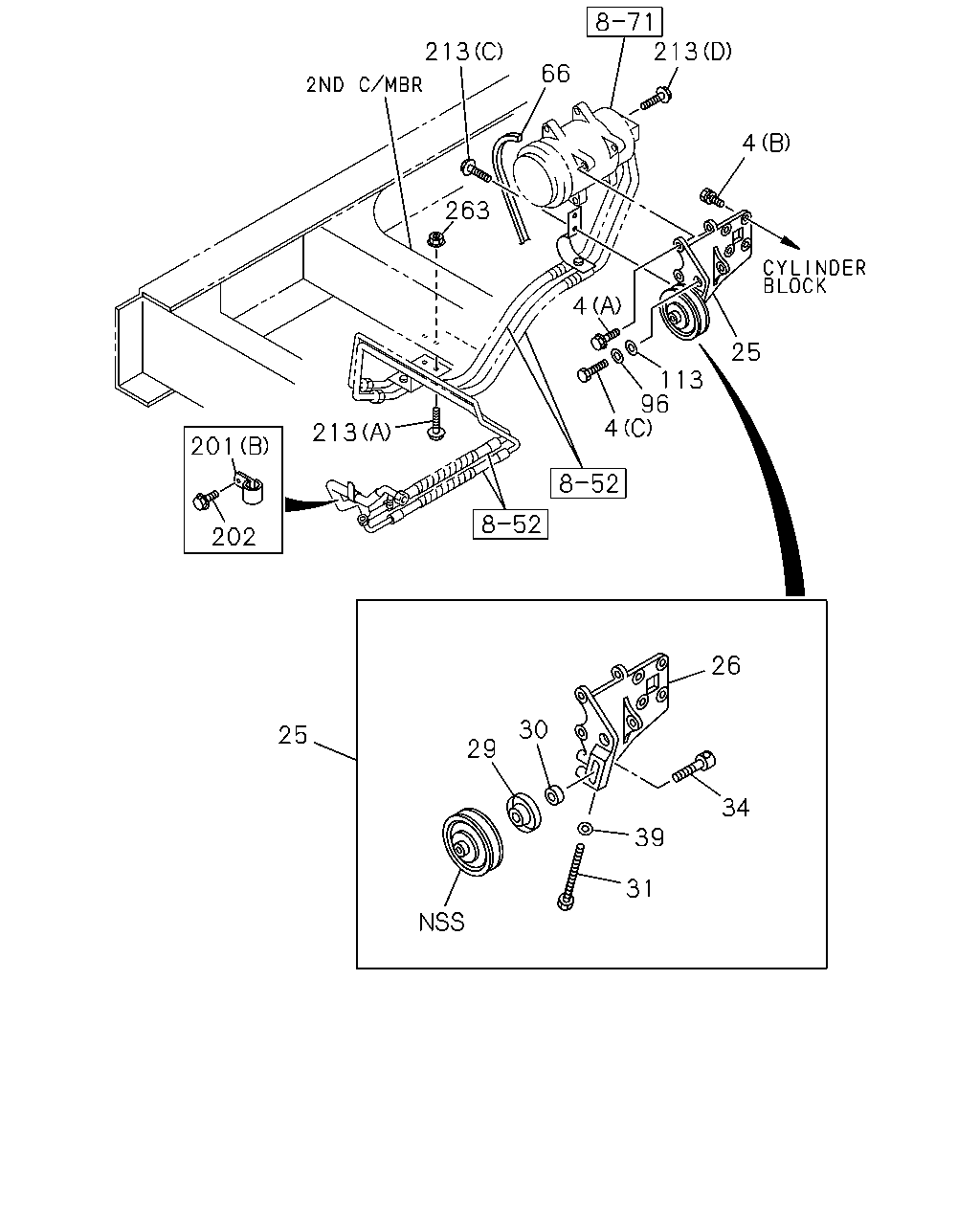

213 213 66 4 263 4 25 113 96 4 213 201 202 26 30 25 29 34 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) (A) M10X40 FLANGE	0-28181-040-0	04	1	9804-0512
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) (A) M10X40 FLANGE	0-28151-040-0	04	1	0601-
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	9804-0512
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) (B) M10X40 W/LK WASHER	0-50541-040-0	04	1	0601-
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L) (C) M10X135	1-09020-090-0	01	1	9804-
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L)	8-94399-957-0	01	1	9804-0106
25	PULLEY ASM; IDLER,CMPR 6HK1 TCS ENG(80L)	8-94399-957-0	01	1	0107-
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L)	1-83570-021-0	01	1	9804-
26	BRACKET; IDLE PULLEY,A/C 6SD1 TCN ENG(31L)	1-83571-708-0	01	1	9804-
29	COVER; DUST,IDLE PULLEY	9-13369-603-0	01	1	9804-
30	COLLAR; IDLE PULLEY	1-83579-144-0	01	1	9804-
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L)	1-83579-143-0	01	1	9804-0106
31	BOLT; ADJ,IDLE PULLEY 6HK1 TCS ENG(80L)	1-83579-143-0	01	1	0107-
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L)	8-94238-324-0	01	1	9804-
34	SHAFT; IDLE PULLEY	1-83579-236-0	01	1	9804-
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L) ID=8.2	9-09150-608-0	01	1	9804-0106
39	WASHER; LK,ADJ BOLT 6HK1 TCS ENG(80L) ID=8.2	9-09150-608-0	01	1	0107-
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L)	1-83579-492-0	01	1	9804-
66	BELT; A/C CMPR 6HE1 TC ENG(57L) L=1110	8-94395-172-0	01	1	9804-0106
66	BELT; A/C CMPR 6HK1 TCS ENG(80L) L=1110	8-94395-172-0	01	1	0107-
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) L=1196	1-13671-405-0	01	1	9804-0107
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) L=1196	1-13671-464-1	01	1	0108-
96	WASHER; LK 6SD1 TCN ENG(31L) ID=10.2	9-09150-510-0	01	1	9804-0603
96	WASHER; LK 6SD1 TCN ENG(31L) ID=10.2	0-91510-510-0	01	1	0604-
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L) ID=10.5 OD=18	9-09160-510-0	01	1	9804-0605
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L) ID=10.5	0-91610-510-0	01	1	0606-
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	9804-0106
201	CLIP; HOSE,CMPR TO EVAP (B) ID=19 L=20	9-09525-836-0	01	1	0107-0606
201	CLIP; HOSE,CMPR TO EVAP (B) ID=19 L=20	0-95235-836-0	01	1	0607-
201	CLIP; HOSE,CMPR TO EVAP 6HE1 TC ENG(57L) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0106
201	CLIP; HOSE,CMPR TO EVAP 6HK1 TCS ENG(80L) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0107-
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	01	1	9804-0106
202	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
202	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28650-825-0	01	1	0601-
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9804-0106
213	BOLT; FLEX HOSE TO CMPR (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
213	BOLT; FLEX HOSE TO CMPR (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28681-035-0	01	1	9806-0106
213	BOLT; FLEX HOSE TO CMPR 6HK1 TCS ENG(80L) (B) M10X35 FLANGE	0-28681-035-0	01	1	0107-0512
213	BOLT; FLEX HOSE TO CMPR 6HK1 TCS ENG(80L) (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28080-816-0	02	1	9804-0106
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) (C) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (D) M10X45 FLANGE	0-28081-045-0	01	1	9804-0106
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) (D) M10X45 FLANGE	0-28081-045-0	01	1	0107-0512
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) (D) M10X45 FLANGE	0-28051-045-0	01	1	0601-
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9804-0106
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0107-0602
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-

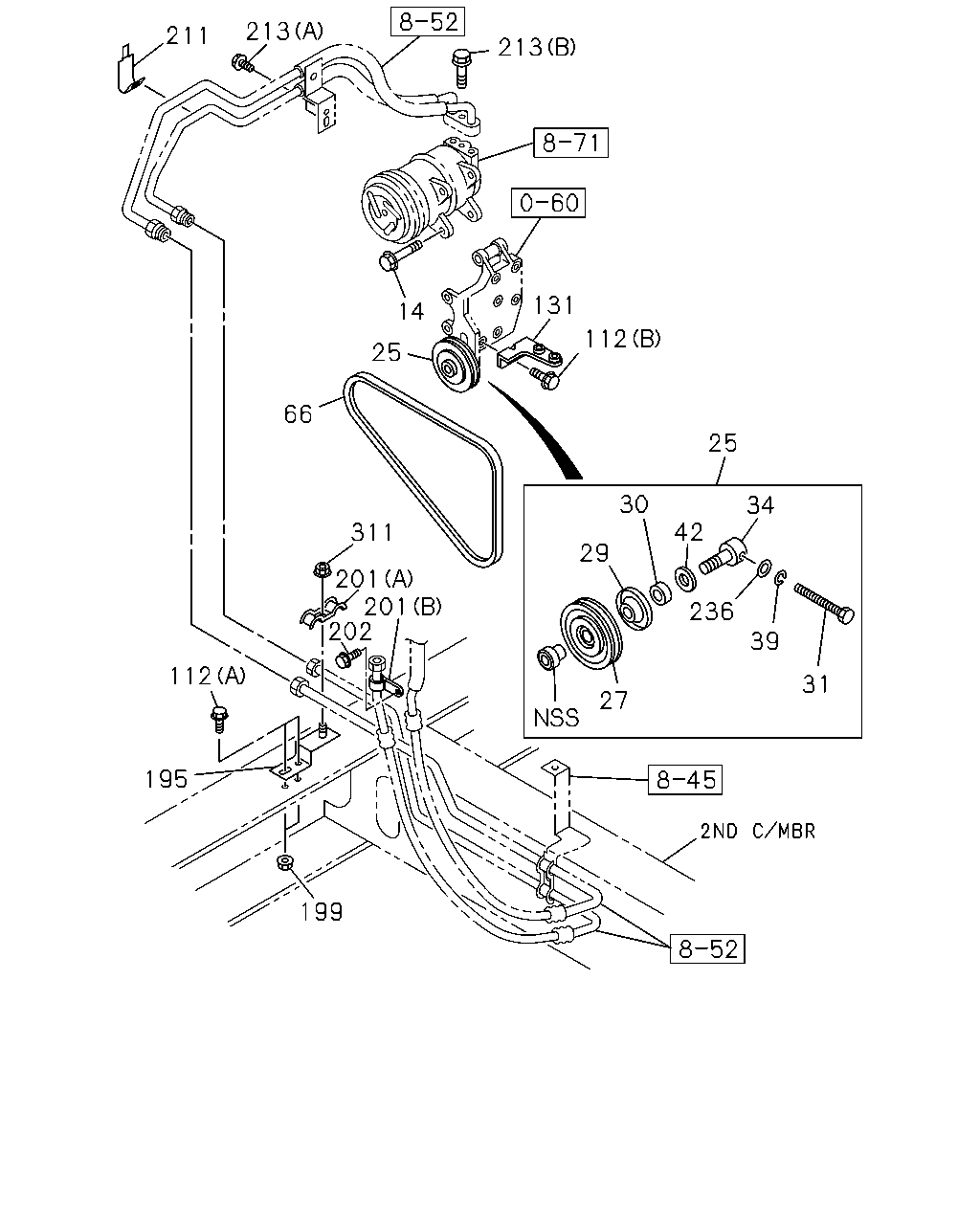

213 211 213 131 14 112 25 66 25 30 34 42 311 29 201 201 202 236 39 112 31 27 195 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	BOLT; CMPR 6HE1 TC ENG(57L) M10X45 FLANGE	0-28081-045-0	02	1	9804-0106
14	BOLT; CMPR 6HK1 TCS ENG(80L) M10X45 FLANGE	0-28081-045-0	02	1	0107-0512
14	BOLT; CMPR 6HK1 TCS ENG(80L) M10X45 FLANGE	0-28051-045-0	02	1	0601-
14	BOLT; CMPR 6HE1 TC ENG(57L) M10X35 FLANGE	0-28681-035-0	02	1	9804-0106
14	BOLT; CMPR 6HK1 TCS ENG(80L) M10X35 FLANGE	0-28681-035-0	02	1	0107-0512
14	BOLT; CMPR 6HK1 TCS ENG(80L) M10X35 FLANGE	0-28651-035-0	02	1	0601-
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L)	8-94399-957-0	01	1	9804-0106
25	PULLEY ASM; IDLER,CMPR 6HK1 TCS ENG(80L)	8-94399-957-0	01	1	0107-
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L)	1-83570-021-0	01	1	9804-
27	PULLEY; IDLE,A/C 6HE1 TC ENG(57L)	1-83579-116-0	01	1	9804-0106
27	PULLEY; IDLE,A/C 6HK1 TCS ENG(80L)	1-83579-116-0	01	1	0107-
29	COVER; DUST,IDLE PULLEY	9-13369-603-0	01	1	9804-
30	COLLAR; IDLE PULLEY	1-83579-144-0	01	1	9804-
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L)	1-83579-143-0	01	1	9804-0106
31	BOLT; ADJ,IDLE PULLEY 6HK1 TCS ENG(80L)	1-83579-143-0	01	1	0107-
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L)	8-94238-324-0	01	1	9804-
34	SHAFT; IDLE PULLEY	1-83579-236-0	01	1	9804-
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L) ID=8.2	9-09150-608-0	01	1	9804-0106
39	WASHER; LK,ADJ BOLT 6HK1 TCS ENG(80L) ID=8.2	9-09150-608-0	01	1	0107-
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L)	1-83579-492-0	01	1	9804-
42	WASHER; PULLEY 6HE1 TC ENG(57L)	8-97014-636-0	01	1	9804-0106
42	WASHER; PULLEY 6HK1 TCS ENG(80L)	8-97014-636-0	01	1	0107-
66	BELT; A/C CMPR 6HE1 TC ENG(57L) L=1110	8-94395-172-0	01	1	9804-0106
66	BELT; A/C CMPR 6HK1 TCS ENG(80L) L=1110	8-94395-172-0	01	1	0107-
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) L=1196	1-13671-405-0	01	1	9804-0107
66	BELT; A/C CMPR 6SD1 TCN ENG(31L) L=1196	1-13671-464-1	01	1	0108-
112	BOLT; STAY 6HE1 TC ENG(57L) (B) M8X16 FLANGE	0-28080-816-0	02	1	9610-9811
112	BOLT; STAY 6HE1 TC ENG(57L) (A) M8X25 FLANGE	0-28680-825-0	02	1	9804-0106
112	BOLT; STAY 6HK1 TCS ENG(80L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
112	BOLT; STAY 6HK1 TCS ENG(80L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
112	BOLT; STAY 6HE1 TC ENG(57L) (B) M8X16 FLANGE	0-28080-816-0	02	1	9812-0106
112	BOLT; STAY 6HK1 TCS ENG(80L) (B) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
112	BOLT; STAY 6HK1 TCS ENG(80L) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-
131	STAY; CMPR BRKT 6HE1 TC ENG(57L)	8-94393-451-0	01	1	9610-0106
131	STAY; CMPR BRKT 6HK1 TCS ENG(80L)	8-94393-451-0	01	1	0107-
195	STAY; CLIP 6HE1 TC ENG(57L)	1-83573-088-0	01	1	9804-0106
195	STAY; CLIP 6HK1 TCS ENG(80L)	1-83573-088-0	01	1	0107-0301
195	STAY; CLIP 6HK1 TCS ENG(80L)	1-83573-172-0	01	1	0302-
199	NUT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9806-0106
199	NUT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0107-0602
199	NUT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	9804-0106
201	CLIP; HOSE,CMPR TO EVAP (B) ID=19 L=20	9-09525-836-0	01	1	0107-0606
201	CLIP; HOSE,CMPR TO EVAP (B) ID=19 L=20	0-95235-836-0	01	1	0607-
201	CLIP; HOSE,CMPR TO EVAP 6HE1 TC ENG(57L) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9804-0106
201	CLIP; HOSE,CMPR TO EVAP 6HK1 TCS ENG(80L) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0107-
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	01	1	9804-0106
202	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
202	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28650-825-0	01	1	0601-
211	CLIP; HOSE 6HE1 TC ENG(57L) L=170	1-83574-139-0	01	1	9810-0106
211	CLIP; HOSE 6HK1 TCS ENG(80L) L=170	1-83574-139-0	01	1	0107-1205
211	CLIP; HOSE 6HK1 TCS ENG(80L) L=170	8-98166-021-0	01	1	1206-
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9804-0106
213	BOLT; FLEX HOSE TO CMPR (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
213	BOLT; FLEX HOSE TO CMPR (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X35 FLANGE	0-28681-035-0	01	1	9806-0106
213	BOLT; FLEX HOSE TO CMPR 6HK1 TCS ENG(80L) (B) M10X35 FLANGE	0-28681-035-0	01	1	0107-0512
213	BOLT; FLEX HOSE TO CMPR 6HK1 TCS ENG(80L) (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28080-816-0	02	1	9804-0106
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) (C) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) AIR CONDITIONER MANUAL CONTROL(C60) (D) M10X45 FLANGE	0-28081-045-0	01	1	9804-0106
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) (D) M10X45 FLANGE	0-28081-045-0	01	1	0107-0512
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L) (D) M10X45 FLANGE	0-28051-045-0	01	1	0601-
236	WASHER; PL,ADJ BOLT 6HE1 TC ENG(57L)	1-09503-216-0	01	1	9804-0106
236	WASHER; PL,ADJ BOLT 6HK1 TCS ENG(80L)	1-09503-216-0	01	1	0107-
311	NUT; HOSE CLIP 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9804-0106
311	NUT; HOSE CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0107-0602
311	NUT; HOSE CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-
