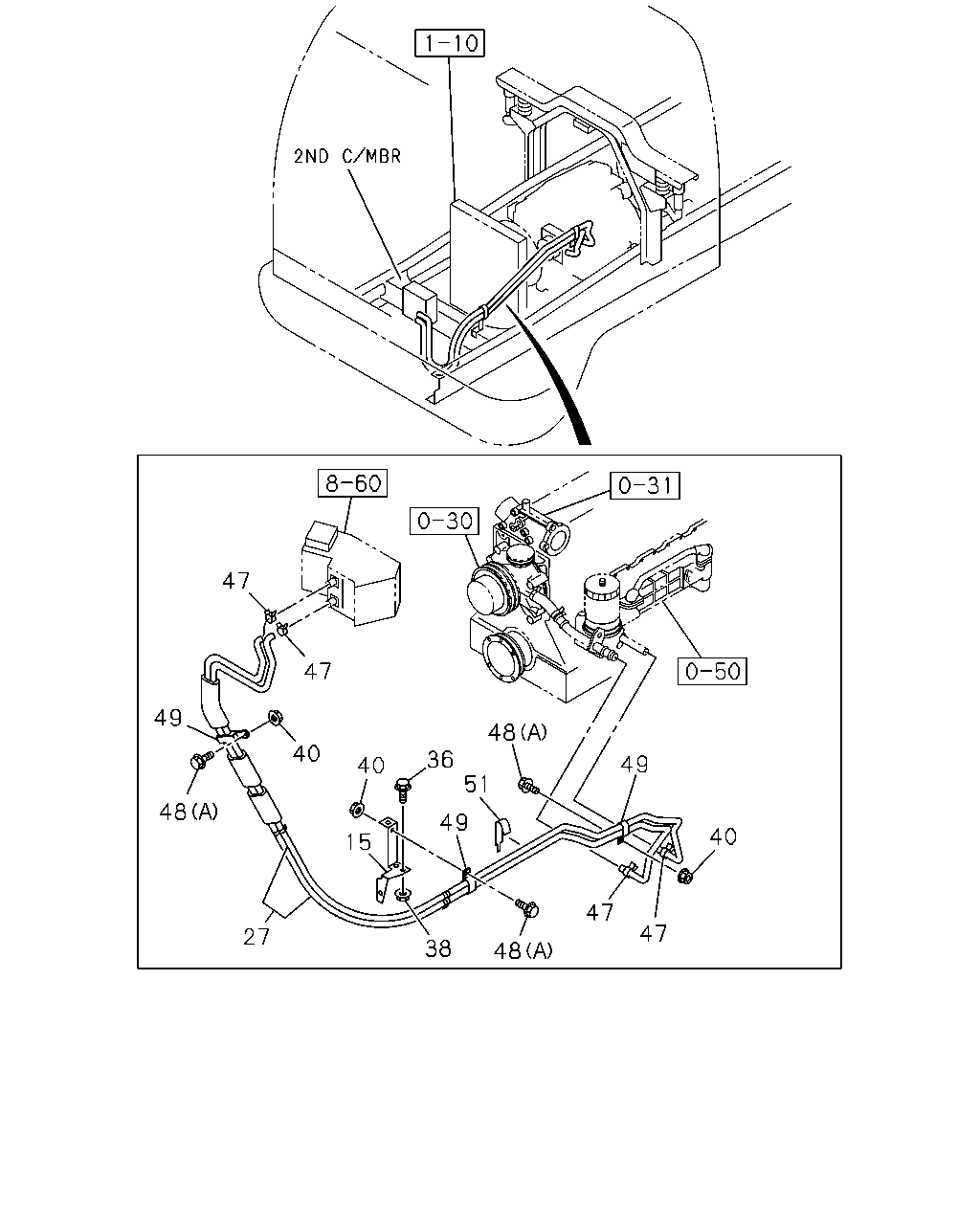

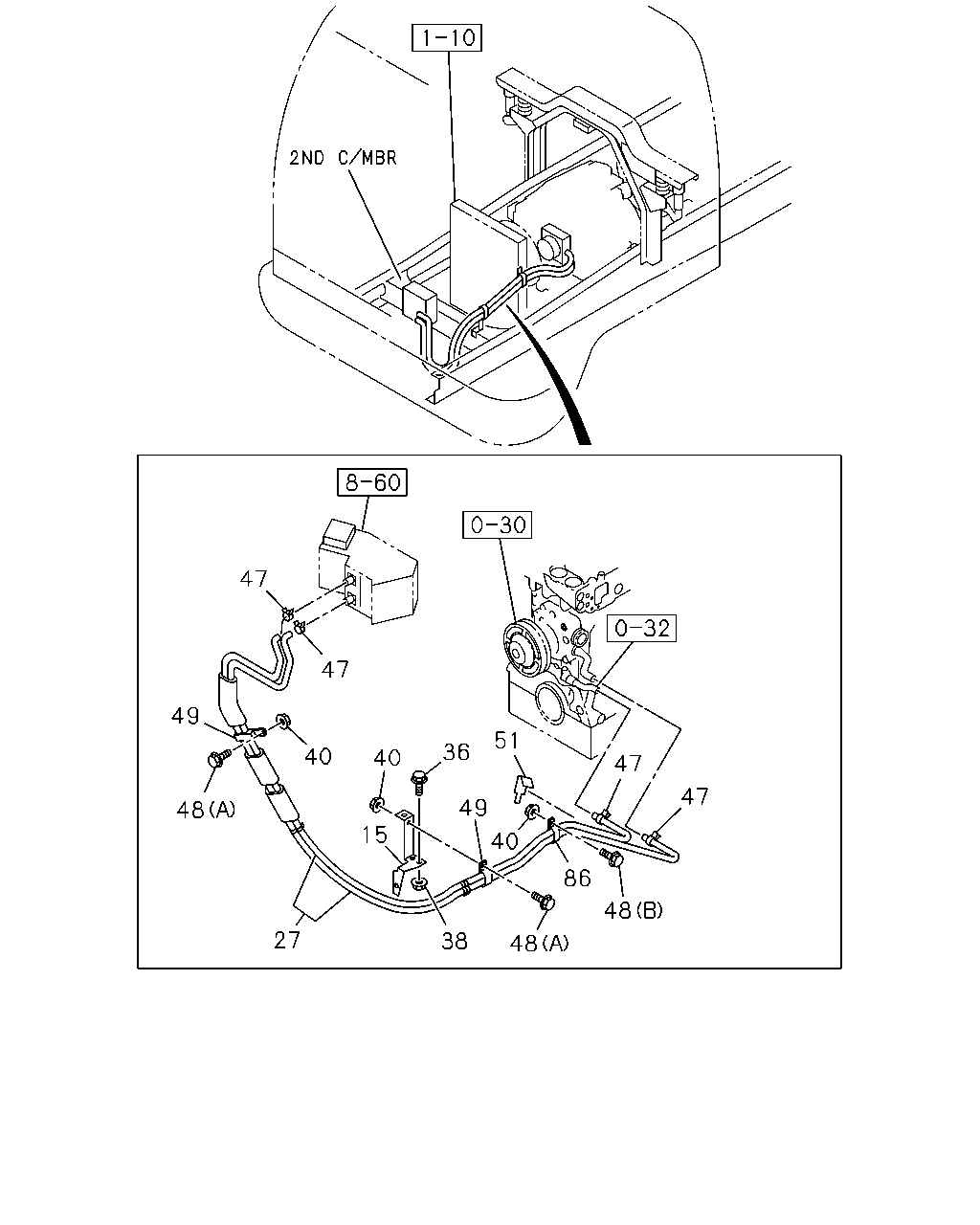

15 |
BRACKET; WATER HOSE
|
1-83571-844-1 |
01 |
1 |
9601-9609 |
● |
● |
| |
15 |
BRACKET; WATER HOSE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L)
|
1-83571-844-1 |
01 |
1 |
9610-9705 |
● |
|
| |
15 |
BRACKET; WATER HOSE
|
1-83571-844-1 |
01 |
1 |
9610-9705 |
|
● |
| |
15 |
BRACKET; WATER HOSE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L)
|
1-83571-844-1 |
01 |
1 |
9706-9803 |
● |
|
| |
15 |
BRACKET; WATER HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
|
1-83571-844-1 |
01 |
1 |
9706-9803 |
|
● |
| |
15 |
BRACKET; WATER HOSE
6HE1 TC ENG(57L)
|
1-83571-844-1 |
01 |
1 |
9804-0104 |
● |
|
| |
15 |
BRACKET; WATER HOSE
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83571-844-1 |
01 |
1 |
9804-0104 |
● |
|
| |
15 |
BRACKET; WATER HOSE
6HE1 TC ENG(57L)
|
1-83573-070-0 |
01 |
1 |
0105-0106 |
● |
|
| |
15 |
BRACKET; WATER HOSE
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83573-070-0 |
01 |
1 |
0105-0106 |
● |
|
| |
15 |
BRACKET; WATER HOSE
|
1-83573-070-1 |
01 |
1 |
0107- |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
|
1-83565-620-1 |
01 |
1 |
9601-9609 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SD1 TCN ENG(31L)
|
1-83565-620-1 |
01 |
1 |
9610-9611 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SD1 TCN ENG(31L)
|
1-83565-654-0 |
01 |
1 |
9612-9803 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-654-1 |
01 |
1 |
9804-0106 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SD1 TCN ENG(31L)
|
1-83565-769-0 |
01 |
1 |
0107- |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 TC ENG(57L)
EURO2 SPECIFICATION<THN>
|
1-83565-659-0 |
01 |
1 |
9701-9803 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 TC ENG(57L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-659-1 |
01 |
1 |
9804-0106 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCS ENG(80L)
|
1-83565-766-0 |
01 |
1 |
0107- |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
|
1-83565-586-5 |
01 |
1 |
9601-9609 |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 TC ENG(57L)
|
1-83565-586-5 |
01 |
1 |
9610-9612 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
|
1-83565-586-5 |
01 |
1 |
9610-9612 |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 TC ENG(57L)
EXC. EURO2 SPECIFICATION<THN>
|
1-83565-586-5 |
01 |
1 |
9701-9705 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
|
1-83565-586-5 |
01 |
1 |
9701-9705 |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 TC ENG(57L)
EXC. EURO2 SPECIFICATION<THN>
|
1-83565-586-5 |
01 |
1 |
9706-9803 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41)
EXC. EURO2 SPECIFICATION<THN>
|
1-83565-586-5 |
01 |
1 |
9706-9803 |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 TC ENG(57L)
HEATER & DEFROSTER(C41)
EURO2 SPECIFICATION<THN>
|
1-83565-660-0 |
01 |
1 |
9706-9803 |
|
● |
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
36 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9609 |
● |
● |
| |
36 |
BOLT; BRKT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9610-9705 |
● |
|
| |
36 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9610-9705 |
|
● |
| |
36 |
BOLT; BRKT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9706-9801 |
● |
|
| |
36 |
BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9706-9801 |
|
● |
| |
36 |
BOLT; BRKT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9802-9803 |
● |
|
| |
36 |
BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9802-9803 |
|
● |
| |
36 |
BOLT; BRKT
6HE1 TC ENG(57L)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9804-0106 |
● |
|
| |
36 |
BOLT; BRKT
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9804-0106 |
● |
|
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0107-0512 |
● |
|
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
|
| |
38 |
NUT; BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9609 |
● |
● |
| |
38 |
NUT; BRKT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9610-9705 |
● |
|
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9610-9705 |
|
● |
| |
38 |
NUT; BRKT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9706-9803 |
● |
|
| |
38 |
NUT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9706-9803 |
|
● |
| |
38 |
NUT; BRKT
6HE1 TC ENG(57L)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9804-0106 |
● |
|
| |
38 |
NUT; BRKT
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9804-0106 |
● |
|
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0602 |
● |
|
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
| |
40 |
NUT; CLIP
6HK1 TCS ENG(80L)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0107-0602 |
● |
|
| |
40 |
NUT; CLIP
6HK1 TCS ENG(80L)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
| |
40 |
NUT; CLIP
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
40 |
NUT; CLIP
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
● |
|
| |
40 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9609 |
● |
● |
| |
40 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9609 |
● |
|
| |
40 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9610-9705 |
● |
● |
| |
40 |
NUT; CLIP
6SD1 TCN ENG(31L)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9610-9705 |
● |
|
| |
40 |
NUT; CLIP
6SD1 TCN ENG(31L)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9706-9803 |
● |
|
| |
40 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9706-9803 |
● |
|
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9706-9803 |
|
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9804-0106 |
● |
|
| |
40 |
NUT; CLIP
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9804-0106 |
● |
|
| |
40 |
NUT; CLIP
6SD1 TCN ENG(31L)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0107-0602 |
● |
|
| |
40 |
NUT; CLIP
6SD1 TCN ENG(31L)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
● |
|
| |
47 |
CLAMP; WATER HOSE,HTR
ID=22
|
8-94382-401-0 |
04 |
1 |
9601-9705 |
● |
● |
| |
47 |
CLAMP; WATER HOSE,HTR
ID=22
|
8-94382-401-0 |
04 |
1 |
9706-9803 |
● |
|
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=22
|
8-94382-401-0 |
04 |
1 |
9706-9803 |
|
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-94382-401-0 |
04 |
1 |
9804-0106 |
● |
|
| |
47 |
CLAMP; WATER HOSE,HTR
ID=22
|
8-94382-401-0 |
04 |
1 |
0107-0611 |
● |
|
| |
47 |
CLAMP; WATER HOSE,HTR
ID=22
|
8-97359-141-0 |
04 |
1 |
0612- |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9601-9606 |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9609 |
● |
● |
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9609 |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9610-9705 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 TCN ENG(31L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9610-9705 |
● |
|
| |
48 |
BOLT; CLIP FIX
6SD1 TCN ENG(31L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9706-9801 |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9706-9801 |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9706-9801 |
|
● |
| |
48 |
BOLT; CLIP FIX
6SD1 TCN ENG(31L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9802-9803 |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9802-9803 |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9802-9803 |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9802-9803 |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9802-9803 |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9804-9901 |
● |
|
| |
48 |
BOLT; CLIP FIX
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9804-9901 |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9804-9901 |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9902-0106 |
● |
|
| |
48 |
BOLT; CLIP FIX
6SD1 TCN ENG(31L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
05 |
1 |
0107-0512 |
● |
|
| |
48 |
BOLT; CLIP FIX
6SD1 TCN ENG(31L)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
05 |
1 |
0601- |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9902-0106 |
● |
|
| |
48 |
BOLT; CLIP FIX
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9902-0106 |
● |
|
| |
48 |
BOLT; CLIP FIX
6HK1 TCS ENG(80L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0107-0512 |
● |
|
| |
48 |
BOLT; CLIP FIX
6HK1 TCS ENG(80L)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
● |
|
| |
48 |
BOLT; CLIP FIX
(A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
48 |
BOLT; CLIP FIX
(A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9705 |
● |
● |
| |
48 |
BOLT; CLIP FIX
(A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9706-9801 |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9706-9801 |
|
● |
| |
48 |
BOLT; CLIP FIX
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9601-9609 |
|
● |
| |
48 |
BOLT; CLIP FIX
6HE1 TC ENG(57L)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9610-9705 |
● |
|
| |
48 |
BOLT; CLIP FIX
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9610-9705 |
|
● |
| |
48 |
BOLT; CLIP FIX
6HE1 TC ENG(57L)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9706-9803 |
● |
|
| |
48 |
BOLT; CLIP FIX
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9706-9803 |
|
● |
| |
48 |
BOLT; CLIP FIX
6HE1 TC ENG(57L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9804-0106 |
● |
|
| |
48 |
BOLT; CLIP FIX
6HK1 TCS ENG(80L)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
0107- |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9601-9607 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9608-9609 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9608-9609 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9608-9609 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9610-9705 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9610-9705 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 TCN ENG(31L)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9610-9705 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 TCN ENG(31L)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9706-9803 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9706-9803 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9706-9803 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9706-9803 |
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9706-9803 |
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9804-9901 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9804-9901 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9804-9901 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9902-0106 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 TCN ENG(31L)
ID=24X2 L=25
|
1-09700-710-0 |
05 |
1 |
0107- |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9902-0106 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 TCN ENG(31L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9902-0106 |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
6HK1 TCS ENG(80L)
ID=24X2 L=25
|
1-09700-710-0 |
04 |
1 |
0107- |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9601-9607 |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
6HK1 TCS ENG(80L)
L=170
|
1-83574-139-0 |
02 |
1 |
0107-1205 |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
6HK1 TCS ENG(80L)
L=170
|
8-98166-021-0 |
02 |
1 |
1206- |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
L=170
|
1-83574-139-0 |
01 |
1 |
9601-9702 |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
L=170
|
1-83574-139-0 |
01 |
1 |
9703-9705 |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
6HE1 TC ENG(57L)
L=170
|
1-83574-139-0 |
01 |
1 |
9703-9705 |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
L=170
|
1-83574-139-0 |
01 |
1 |
9706-9803 |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
6HE1 TC ENG(57L)
L=170
|
1-83574-139-0 |
01 |
1 |
9706-9803 |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
L=170
|
1-83574-139-0 |
01 |
1 |
9706-9803 |
|
● |
| |
51 |
CLIP; WATER HOSE,HTR
6HE1 TC ENG(57L)
HEATER & DEFROSTER(C41)
L=170
|
1-83574-139-0 |
01 |
1 |
9706-9803 |
|
● |
| |
51 |
CLIP; WATER HOSE,HTR
6HE1 TC ENG(57L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
L=170
|
1-83574-139-0 |
01 |
1 |
9804-0106 |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
L=170
|
1-83574-139-0 |
01 |
1 |
9804-0106 |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
6SD1 TCN ENG(31L)
L=170
|
1-83574-139-0 |
01 |
1 |
0107-1205 |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
6SD1 TCN ENG(31L)
L=170
|
8-98166-021-0 |
01 |
1 |
1206- |
● |
|
| |
86 |
CLIP; HTR HOSE
|
1-83571-049-1 |
01 |
1 |
9601-9609 |
|
● |
| |
86 |
CLIP; HTR HOSE
6HE1 TC ENG(57L)
|
1-83571-049-1 |
01 |
1 |
9610-9705 |
● |
|
| |
86 |
CLIP; HTR HOSE
|
1-83571-049-1 |
01 |
1 |
9610-9705 |
|
● |
| |
86 |
CLIP; HTR HOSE
6HE1 TC ENG(57L)
|
1-83571-049-1 |
01 |
1 |
9706-9803 |
● |
|
| |
86 |
CLIP; HTR HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41)
|
1-83571-049-1 |
01 |
1 |
9706-9803 |
|
● |
| |
86 |
CLIP; HTR HOSE
6HE1 TC ENG(57L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83571-049-1 |
01 |
1 |
9804-0106 |
● |
|
| |
86 |
CLIP; HTR HOSE
6HK1 TCS ENG(80L)
|
1-83571-049-1 |
01 |
1 |
0107- |
● |
|
