Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#25287) — 209 parça

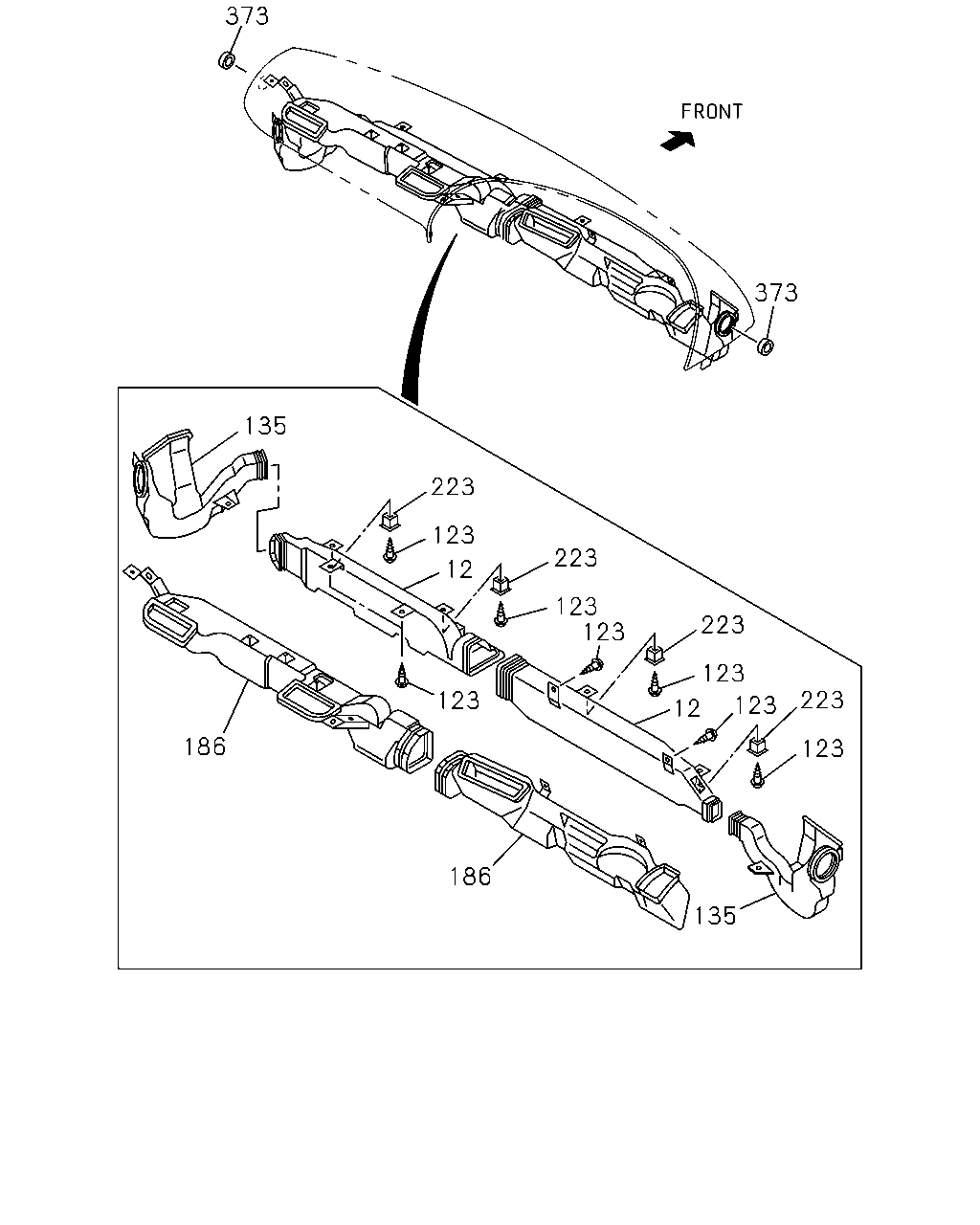

373 373 135 223 123 223 12 123 123 223 123 223 123 123 12 186 123 186 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	1-76378-289-5	01	1	9601-9801	●
12	NOZZLE; DEFROSTER	1-76377-172-6	01	1	9805-9910	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-172-6	01	1	9911-0106	●
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0107-	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41)	1-76378-289-6	01	1	9805-9910	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-289-6	01	1	9911-0106	●
12	NOZZLE; DEFROSTER	1-76378-289-6	01	1	0107-	●
12	NOZZLE; DEFROSTER	1-76377-172-5	01	1	9601-9705	●	●
12	NOZZLE; DEFROSTER	1-76377-172-5	01	1	9706-9801	●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-172-5	01	1	9706-9801		●
12	NOZZLE; DEFROSTER	1-76378-321-5	01	1	9601-9705		●
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-321-5	01	1	9706-9801		●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9601-9705	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9706-9803	●
123	SCREW; DUCT HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9706-9803		●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9804-0004	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-0106	●
123	SCREW; DUCT M5X14	8-94279-325-0	10	1	0107-	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9601-9705	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9706-9803	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9706-9803		●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9804-0004	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	08	1	0005-0106	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	9805-9910	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-252-7	01	1	9911-0106	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0107-	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41)	1-76378-253-4	01	1	9805-9910	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-253-4	01	1	9911-0106	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0107-	●
135	HOSE; DEFROSTER	1-76378-253-3	01	1	9601-9705	●	●
135	HOSE; DEFROSTER	1-76378-253-3	01	1	9706-9801	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-253-3	01	1	9706-9801		●
135	HOSE; DEFROSTER	1-76378-252-6	01	1	9601-9705	●	●
135	HOSE; DEFROSTER	1-76378-252-6	01	1	9706-9801	●
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-252-6	01	1	9706-9801		●
186	DUCT; VENTILATOR	1-76378-290-8	01	1	9601-9801	●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	9805-9910	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-173-6	01	1	9911-0106	●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	0107-0710	●
186	DUCT; VENTILATOR	1-76377-246-0	01	1	0711-	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41)	1-76378-290-9	01	1	9805-9910	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-290-9	01	1	9911-0106	●
186	DUCT; VENTILATOR	1-76378-290-9	01	1	0107-0610	●
186	DUCT; VENTILATOR	1-76378-446-1	01	1	0611-	●
186	DUCT; VENTILATOR	1-76377-173-5	01	1	9601-9705	●	●
186	DUCT; VENTILATOR	1-76377-173-5	01	1	9706-9801	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-173-5	01	1	9706-9801		●
186	DUCT; VENTILATOR	1-76378-322-8	01	1	9601-9705		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-322-8	01	1	9706-9801		●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9601-9705	●	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9706-9803	●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9706-9803		●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9804-0004	●
223	GROMMET; SCREW HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0005-0106	●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0107-	●
373	RUBBER; JOINT	1-76378-291-0	02	1	9601-9803	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	9804-	●

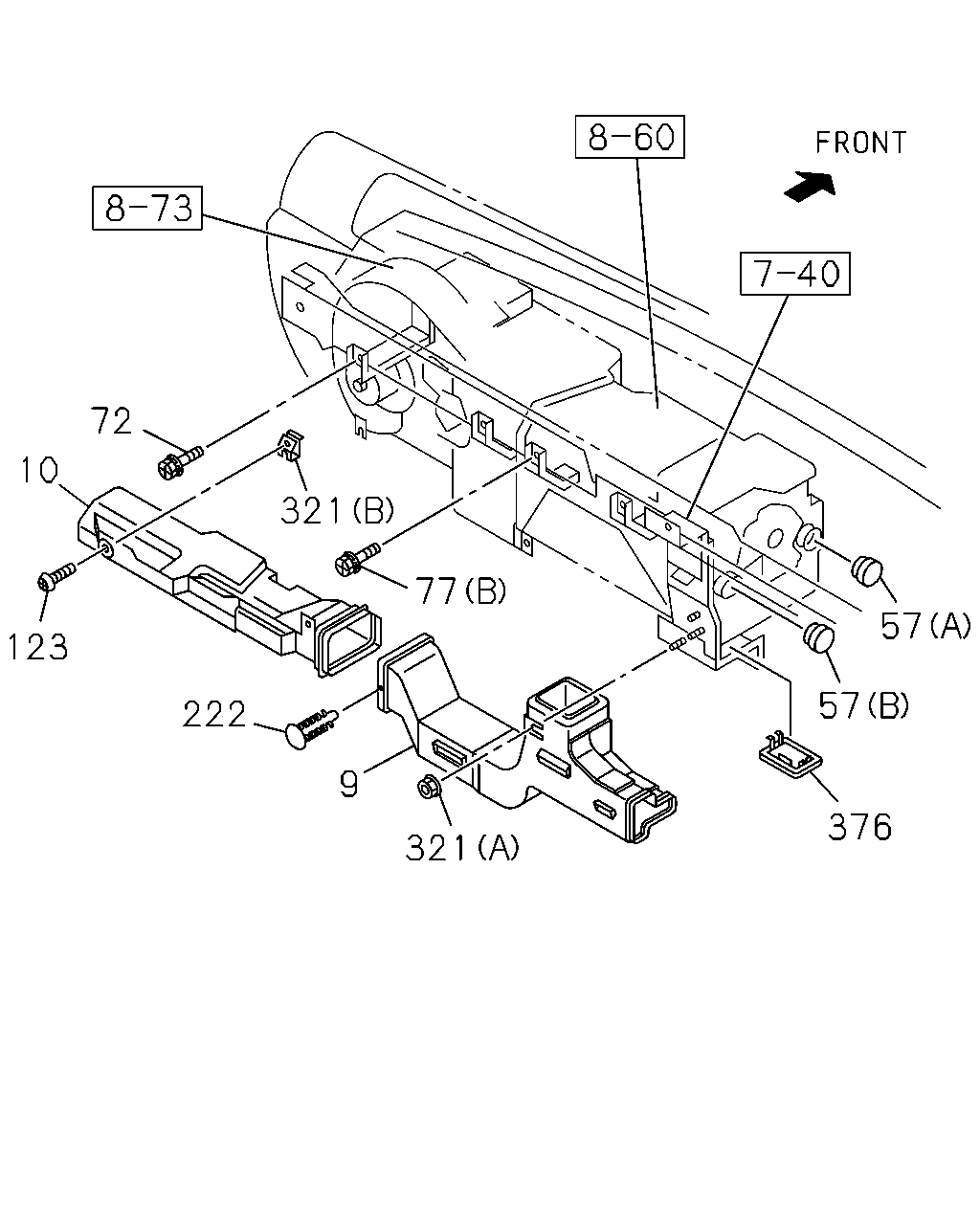

72 10 321 77 57 123 57 222 9 376 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	DUCT; HTR AIR,FOOT CENTER	1-76378-380-4	01	1	9601-9801	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-410-0	01	1	9802-9803	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-410-0	01	1	9804-9805	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-410-0	01	1	9806-0006	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-427-1	01	1	0007-0106	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-427-2	01	1	0107-	●
9	DUCT; HTR AIR,FOOT CENTER	1-76378-370-3	01	1	9601-9705		●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-370-3	01	1	9706-9801		●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-409-0	01	1	9802-9803		●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-278-7	01	1	9601-9705	●	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-278-7	01	1	9706-9801	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-278-7	01	1	9706-9801		●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	9802-9803	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-413-0	01	1	9802-9803		●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	9804-0004	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	0005-0106	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76378-413-0	01	1	0107-	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9601-9705	●	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9706-9803	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41) (A)	1-83579-617-0	02	1	9706-9803		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-617-0	02	1	9804-0106	●
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	0107-	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9601-9705	●	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9706-9803	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41) (B)	1-83579-618-0	01	1	9706-9803		●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-618-0	01	1	9804-0106	●
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	0107-	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803		●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9601-9705	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9706-9803	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9706-9803		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16	1-09980-598-1	02	1	9804-0106	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0107-	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803		●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9601-9705	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9706-9803	●
123	SCREW; DUCT HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9706-9803		●
123	SCREW; DUCT M5X14	8-94279-325-0	02	1	9804-0004	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-0106	●
123	SCREW; DUCT M5X14	8-94279-325-0	10	1	0107-	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9601-9705	●	●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9706-9803	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9706-9803		●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	9804-0004	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	08	1	0005-0106	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	9802-9803	●
222	FASTENER; DUCT HEATER & DEFROSTER(C41) ID=6 OD=16 L=18	8-94178-705-0	01	1	9802-9803		●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	9804-9910	●
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	9911-0106	●
222	FASTENER; DUCT ID=6 OD=16 L=18	8-94178-705-0	01	1	0107-	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	02	1	9601-9803	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	9804-9910	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-150-0	01	1	9911-0106	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	0107-0409	●
321	NUT; DUCT FIX (B) M5	1-09984-196-0	01	1	0410-	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	9601-9705	●	●
321	NUT; DUCT FIX (B) M5	1-09984-150-0	01	1	9706-9803	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (B) M5	1-09984-150-0	01	1	9706-9803		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (A) M6 FLANGE	0-91150-106-0	02	1	9804-9910	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91150-106-0	02	1	9911-0106	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	02	1	0107-0602	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●
321	NUT; DUCT FIX (A) M6 FLANGE	0-91150-106-0	01	1	9601-9705		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (A) M6 FLANGE	0-91150-106-0	01	1	9706-9803		●
376	COVER; BED HEATER	1-83579-599-2	01	1	9601-9702	●	●

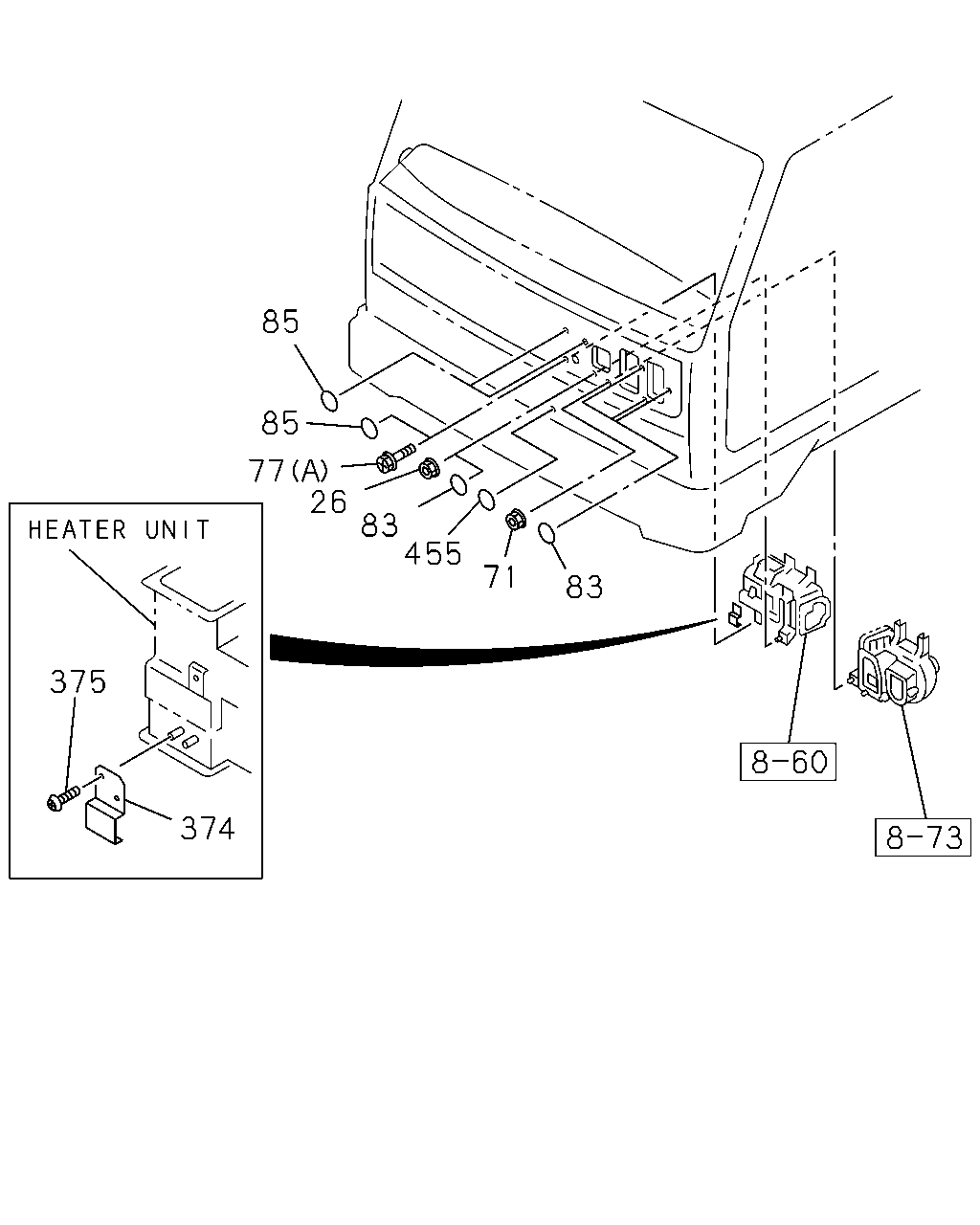

85 85 77 26 83 455 71 83 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9705	●	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9706-9803	●
26	NUT; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9706-9803		●
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9804-0106	●
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9601-9705	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9706-9803	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9706-9803		●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9804-0106	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0107-	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9601-9705	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-0	02	1	9706-9803	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9706-9803		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16	1-09980-598-1	02	1	9804-0106	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0107-	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9705	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9706-9803		●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0004	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0106	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	04	1	0005-0106	●
83	SEAL; COVER,HTR HOLE OD=25 BLACK	1-76798-019-0	04	1	0107-	●
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9706-9803		●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9706-9803		●
374	HOLDER; DUCT	1-76398-012-1	01	1	9601-9705	●	●
374	HOLDER; DUCT	1-76398-012-1	01	1	9706-9803	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41)	1-76398-012-1	01	1	9706-9803		●
374	HOLDER; DUCT	1-76398-012-1	01	1	9804-9910	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	9911-0106	●
374	HOLDER; DUCT	1-76398-012-1	01	1	0107-	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9601-9705	●	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9706-9803	●
375	SCREW; HOLDER HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9706-9803		●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9804-9910	●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9911-0106	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	0107-	●
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9903-0106	●

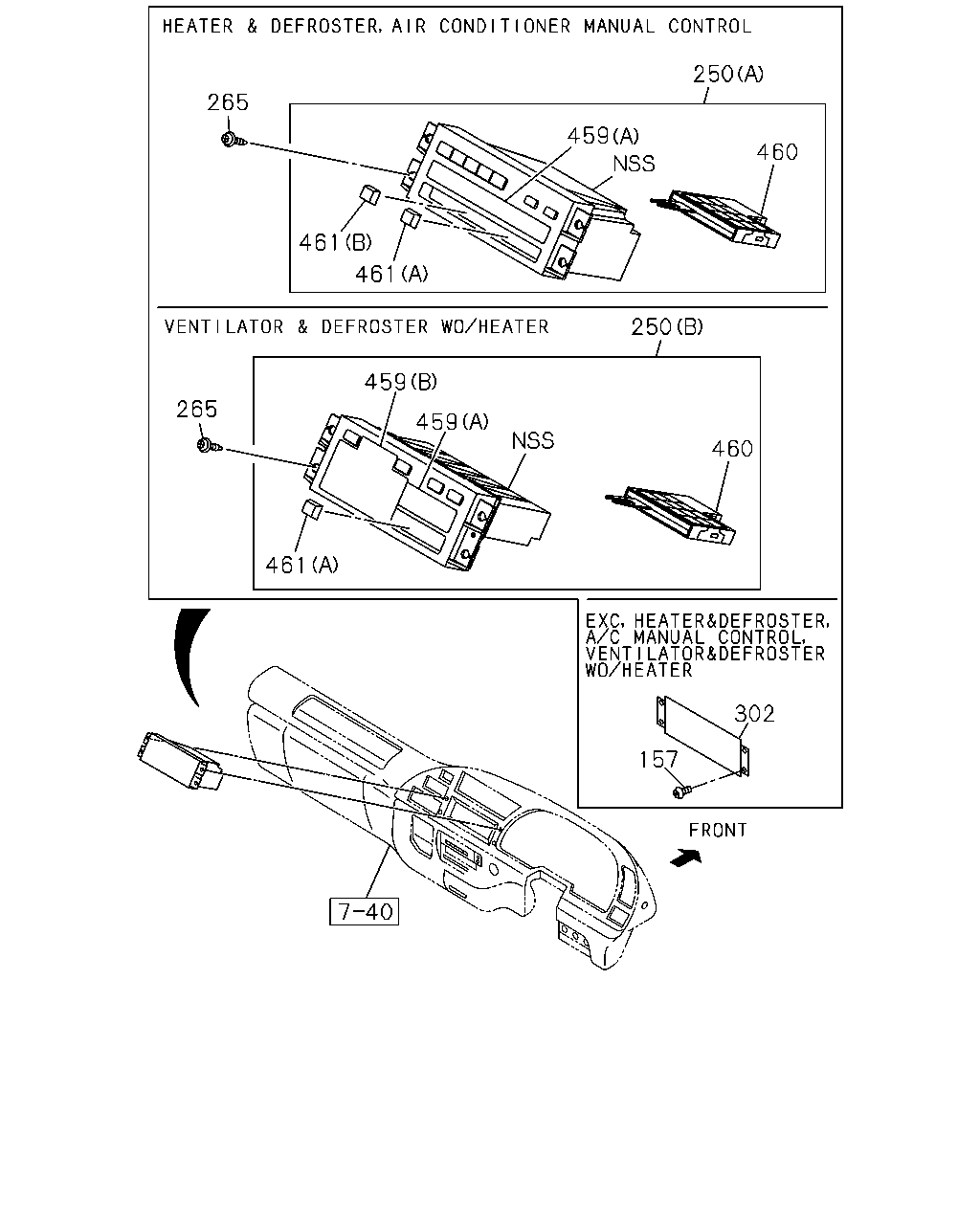

265 460 461 461 250 459 265 459 460 461 302 157 250 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0106	●
157	SCREW EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9706-9803		●
250	CONTROL ASM; A/C (A)	1-83543-033-2	01	1	9601-9705	●	●
250	CONTROL ASM; A/C (A)	1-83543-033-2	01	1	9706-9803	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41) (A)	1-83543-033-2	01	1	9706-9803		●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-033-2	01	1	9804-9909	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	9910-0106	●
250	CONTROL ASM; A/C (A)	1-83543-050-0	01	1	0107-	●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83543-034-1	01	1	9706-9803		●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9601-9705	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9706-9803	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9706-9803		●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9804-0004	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0005-0106	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0107-0604	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-72438-140-1	01	1	0005-0106	●
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	9706-9803		●
459	PANEL; CONTROL ASM,A/C (A)	1-83549-013-0	01	1	9601-9705	●	●
459	PANEL; CONTROL ASM,A/C (A)	1-83549-013-0	01	1	9706-9803	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	9706-9803		●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-013-0	01	1	9804-0106	●
459	PANEL; CONTROL ASM,A/C (A)	1-83549-013-0	01	1	0107-	●
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-017-0	01	1	9706-9803		●
460	SWITCH; CONTROL ASM,A/C	1-82489-006-0	01	1	9601-9705	●	●
460	SWITCH; CONTROL ASM,A/C	1-82489-006-0	01	1	9706-9803	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	9706-9803		●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	9804-0106	●
460	SWITCH; CONTROL ASM,A/C	1-82489-006-0	01	1	0107-	●
461	KNOB; CONTROL ASM,A/C (B)	1-83549-015-0	01	1	9601-9705	●	●
461	KNOB; CONTROL ASM,A/C (B)	1-83549-015-0	01	1	9706-9803	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41) (B)	1-83549-015-0	01	1	9706-9803		●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	9804-0106	●
461	KNOB; CONTROL ASM,A/C (B)	1-83549-015-0	01	1	0107-	●
461	KNOB; CONTROL ASM,A/C (A)	1-83549-016-0	01	1	9601-9705	●	●
461	KNOB; CONTROL ASM,A/C (A)	1-83549-016-0	01	1	9706-9803	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	9706-9803		●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	9804-0106	●
461	KNOB; CONTROL ASM,A/C (A)	1-83549-016-0	01	1	0107-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
