Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#25286) — 206 parça

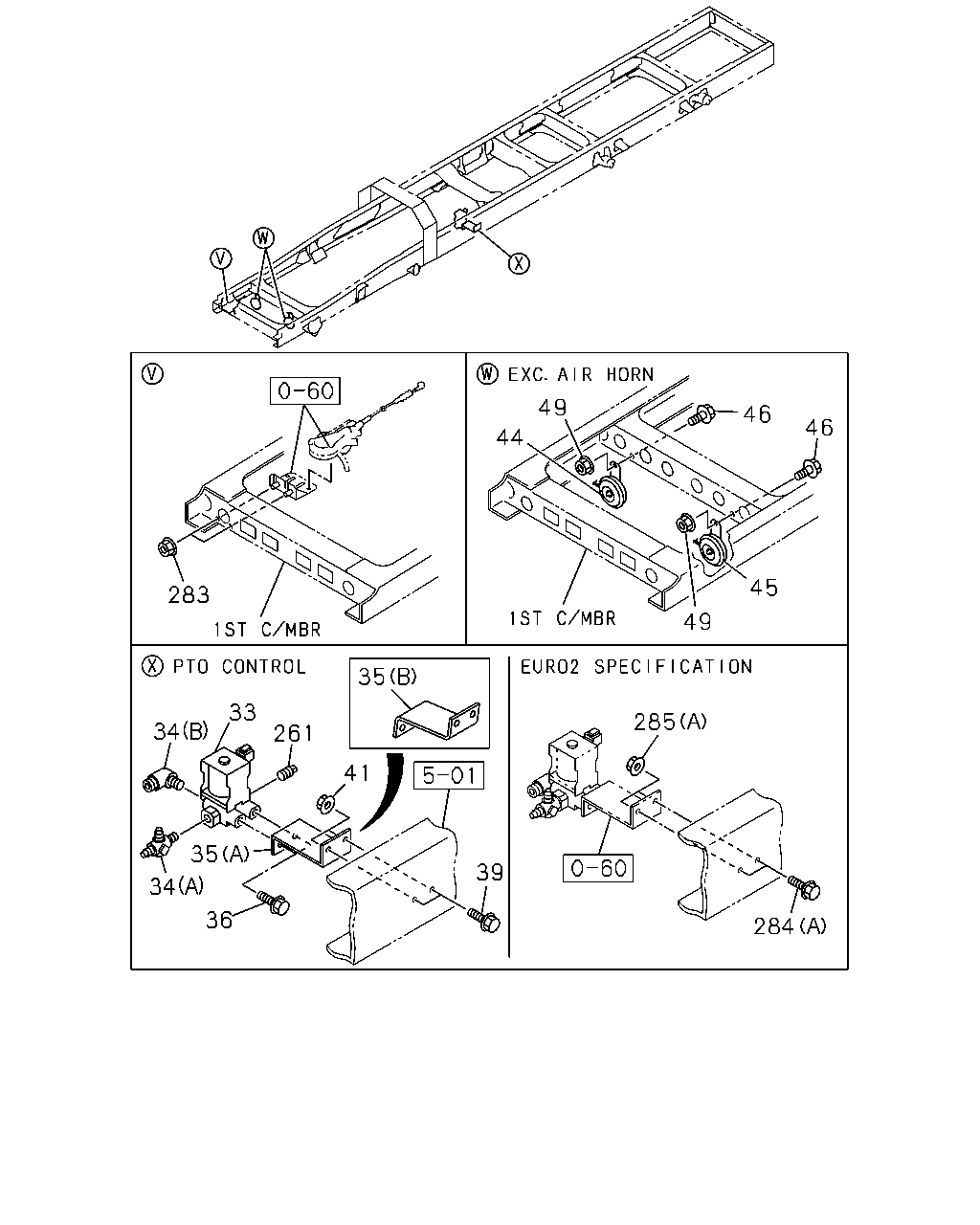

49 46 46 44 45 283 49 35 33 285 34 261 41 35 39 34 36 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-2	01	1	9601-9706	●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-2	01	1	9707-9803	●	●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-4	01	1	9804-0004		●
33	VALVE; MAG,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-82563-600-4	01	1	0005-0005		●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-4	01	1	0006-0106		●
33	VALVE; MAG,PTO CONT 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6>	1-82563-600-5	01	1	0107-		●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9804-0011		●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0012-0106		●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0107-0204		●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0205-		●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 TC ENG(57L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-0106		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9601-9706	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9707-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9804-0004		●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0005-0005		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0006-0106		●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0107-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A)	1-09660-718-1	01	1	9601-9706	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A)	1-09660-718-1	01	1	9707-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> ISUZU M/T<X9A> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-9806		●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 TC ENG(57L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9807-0004		●
35	BRACKET; MAG VLV,PTO CONT 6HE1 TC ENG(57L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B)	1-47477-967-0	01	1	0006-0106		●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> (A)	1-47477-462-0	01	1	9601-9704	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> (A)	1-47477-953-0	01	1	9705-9706	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> (A)	1-47477-953-0	01	1	9707-9803	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> (A)	1-47477-953-0	01	1	9804-0004		●
35	BRACKET; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (A)	1-47477-953-0	01	1	0005-0011		●
35	BRACKET; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) PTO CONTROL<SV6> (A)	1-47477-953-0	01	1	0012-0106		●
35	BRACKET; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> (A)	1-47477-953-1	01	1	0107-		●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512		●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28650-820-0	03	1	0601-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9601-9706	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9707-9803	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9804-0004		●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0005-0005		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0006-0106		●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0107-0512		●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28680-835-0	02	1	9607-9706	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28680-835-0	02	1	9707-9803	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28680-835-0	02	1	9804-0106		●
39	BOLT; BRKT,MAG VLV 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> M8X35 FLANGE	0-28680-835-0	02	1	0107-0512		●
39	BOLT; BRKT,MAG VLV 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0601-		●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9601-9606	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9607-9706	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9707-9803	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9804-0106		●
41	NUT; BRKT,MAG VLV 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
41	NUT; BRKT,MAG VLV 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-		●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	9601-9803	●	●
44	HORN; HIGH NOTE EXC. AIR HORN<WB8>	1-83410-057-1	01	1	9804-0004		●
44	HORN; HIGH NOTE	1-83410-057-1	01	1	0005-0210		●
44	HORN; HIGH NOTE	1-83410-065-1	01	1	0211-		●
45	HORN; LOW NOTE	1-83410-058-1	01	1	9601-9803	●	●
45	HORN; LOW NOTE EXC. AIR HORN<WB8>	1-83410-058-1	01	1	9804-0004		●
45	HORN; LOW NOTE	1-83410-058-1	01	1	0005-0210		●
45	HORN; LOW NOTE	1-83410-064-1	01	1	0211-		●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●
46	BOLT; HORN TO BODY EXC. AIR HORN<WB8> M8X25 FLANGE	0-28680-825-0	02	1	9804-0004		●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	02	1	9601-9606	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59>,AIR HORN<WB8> M8 FLANGE	0-91150-108-0	02	1	9804-0004		●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	0005-0106		●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-		●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9601-9706	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9707-9803	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9804-0004		●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-0005		●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0006-0106		●
261	PLUG; MAG VLV 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0107-		●
261	PLUG; MAG VLV 6SD1 TCN ENG(31L) PT1/4	9-99204-513-0	01	1	0107-		●
283	NUT; BRKT M8 FLANGE	5-09440-005-0	02	1	9601-9606	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9804-0106		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X35 FLANGE	0-28680-835-0	02	1	9610-9705		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X35 FLANGE	0-28680-835-0	02	1	9706-9803	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) (A) M8X35 FLANGE	0-28680-835-0	02	1	9804-0106		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-0512		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (B) M6X50 FLANGE	0-28080-650-0	02	1	0107-0512		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8 FLANGE	0-91150-108-0	02	1	9610-9705		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8 FLANGE	0-91150-108-0	02	1	9706-9803	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) (A) M8 FLANGE	0-91150-108-0	02	1	9804-0106		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (B) M8 FLANGE	0-91150-108-0	04	1	0107-0602		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (B) M8 FLANGE	0-91180-108-0	04	1	0603-		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (C) M6 FLANGE	0-91150-106-0	02	1	0107-0602		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (C) M6 FLANGE	0-91180-106-0	02	1	0603-		●

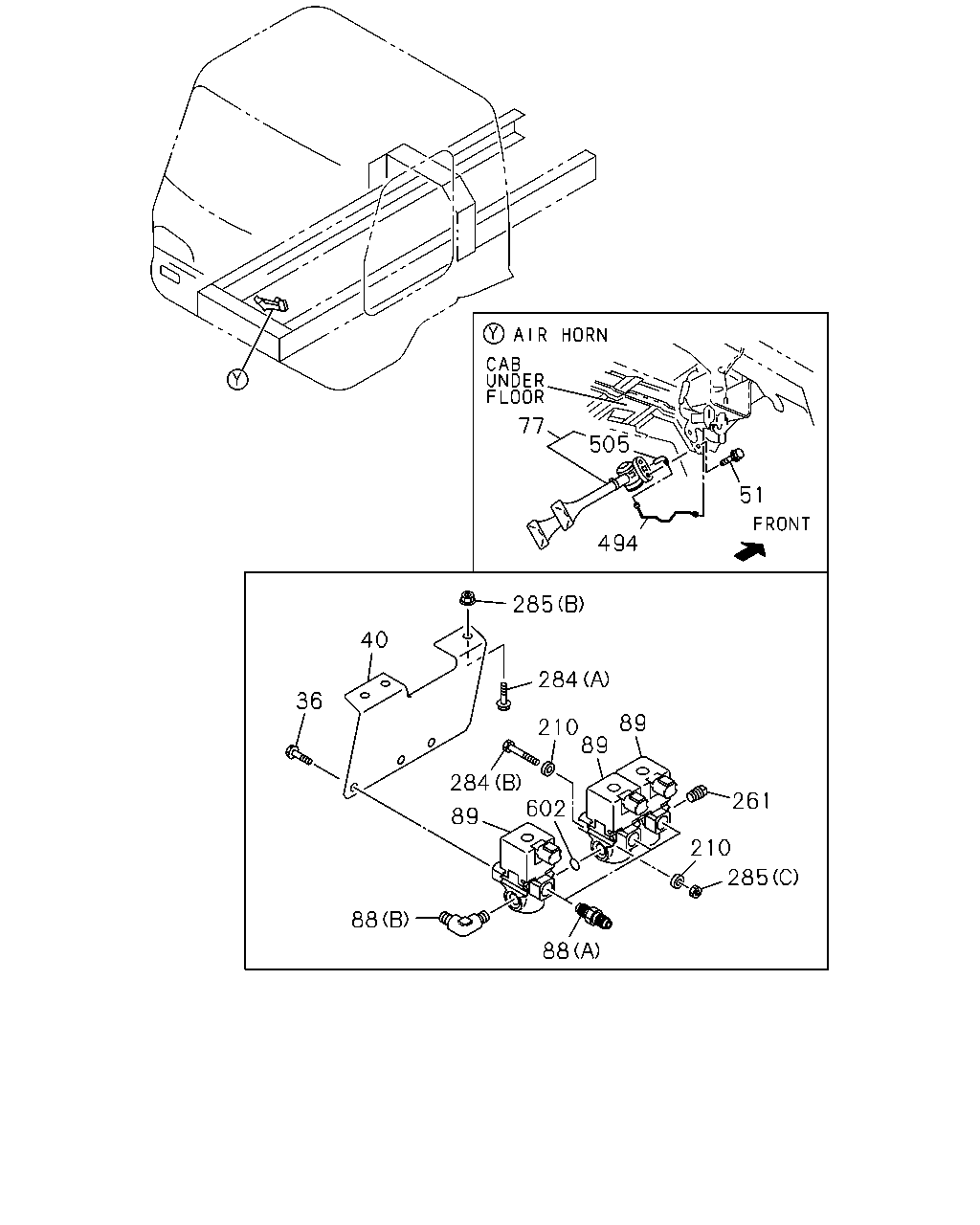

77 505 51 494 285 40 284 36 89 210 89 284 602 261 89 210 285 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512		●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28650-820-0	03	1	0601-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9601-9706	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9707-9803	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9804-0004		●
36	BOLT; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0005-0005		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0006-0106		●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0107-0512		●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
40	BRACKET; MAG VLV 6SD1 TCN ENG(31L)	1-82569-326-0	01	1	0107-		●
51	BOLT; HORN TO BRKT AIR HORN<WB8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9804-9804		●
51	BOLT; HORN TO BRKT AIR HORN<WB8> M8X20 FLANGE	0-28680-820-0	02	1	9805-0004		●
77	HORN ASM AIR HORN<WB8>	1-83430-038-2	01	1	9804-0004		●
88	CONNECTOR; MAG VLV 6SD1 TCN ENG(31L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0107-		●
88	CONNECTOR; MAG VLV 6SD1 TCN ENG(31L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-		●
89	VALVE; MAG,DIFF LOCK 6SD1 TCN ENG(31L)	1-82563-871-2	03	1	0107-		●
210	WASHER; PL,BRKT 6SD1 TCN ENG(31L)	1-82569-266-0	04	1	0107-		●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9601-9706	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9707-9803	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9804-0004		●
261	PLUG; MAG VLV ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-0005		●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0006-0106		●
261	PLUG; MAG VLV 6SD1 TCN ENG(31L) MAL6S M/T(Y1V) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0107-		●
261	PLUG; MAG VLV 6SD1 TCN ENG(31L) PT1/4	9-99204-513-0	01	1	0107-		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X35 FLANGE	0-28680-835-0	02	1	9610-9705		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X35 FLANGE	0-28680-835-0	02	1	9706-9803	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) (A) M8X35 FLANGE	0-28680-835-0	02	1	9804-0106		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-0512		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (B) M6X50 FLANGE	0-28080-650-0	02	1	0107-0512		●
284	BOLT; MAG VLV 6SD1 TCN ENG(31L) (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8 FLANGE	0-91150-108-0	02	1	9610-9705		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8 FLANGE	0-91150-108-0	02	1	9706-9803	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) (A) M8 FLANGE	0-91150-108-0	02	1	9804-0106		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (B) M8 FLANGE	0-91150-108-0	04	1	0107-0602		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (B) M8 FLANGE	0-91180-108-0	04	1	0603-		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (C) M6 FLANGE	0-91150-106-0	02	1	0107-0602		●
285	NUT; MAG VLV 6SD1 TCN ENG(31L) (C) M6 FLANGE	0-91180-106-0	02	1	0603-		●
494	PIPE; AIR,UNION TO HORN AIR HORN<WB8>	1-49115-750-0	01	1	9804-0004		●
505	JOINT; AIR HORN AIR HORN<WB8>	1-83439-005-0	01	1	9804-0004		●
602	GASKET; MAG VLV 6SD1 TCN ENG(31L) ID=16.8	9-09565-117-0	02	1	0107-		●

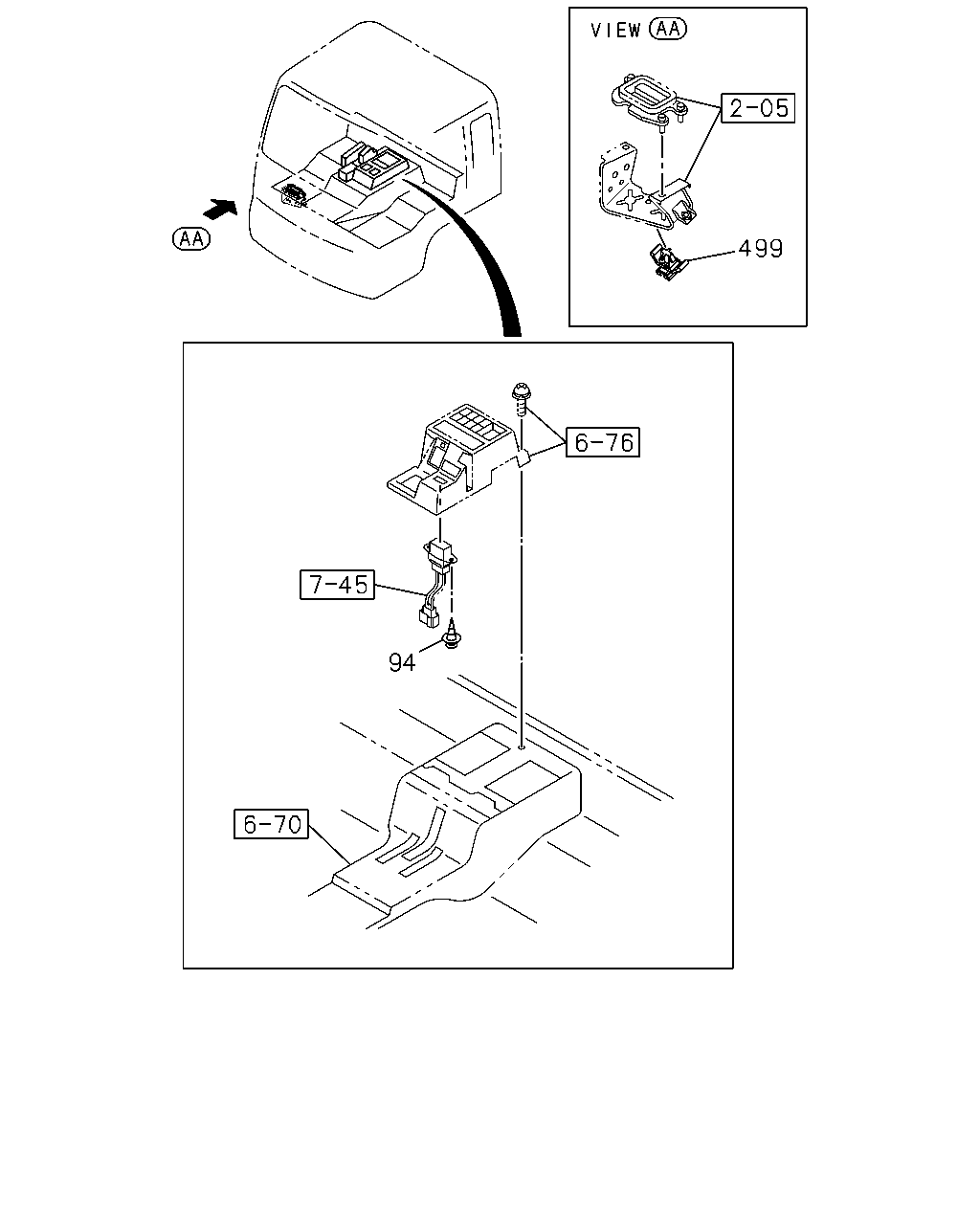

499 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9601-9803	●	●
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9804-9810		●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9811-0604		●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-		●
499	CLIP; SWITCH OD=9 H=6	1-09709-178-0	01	1	0304-		●

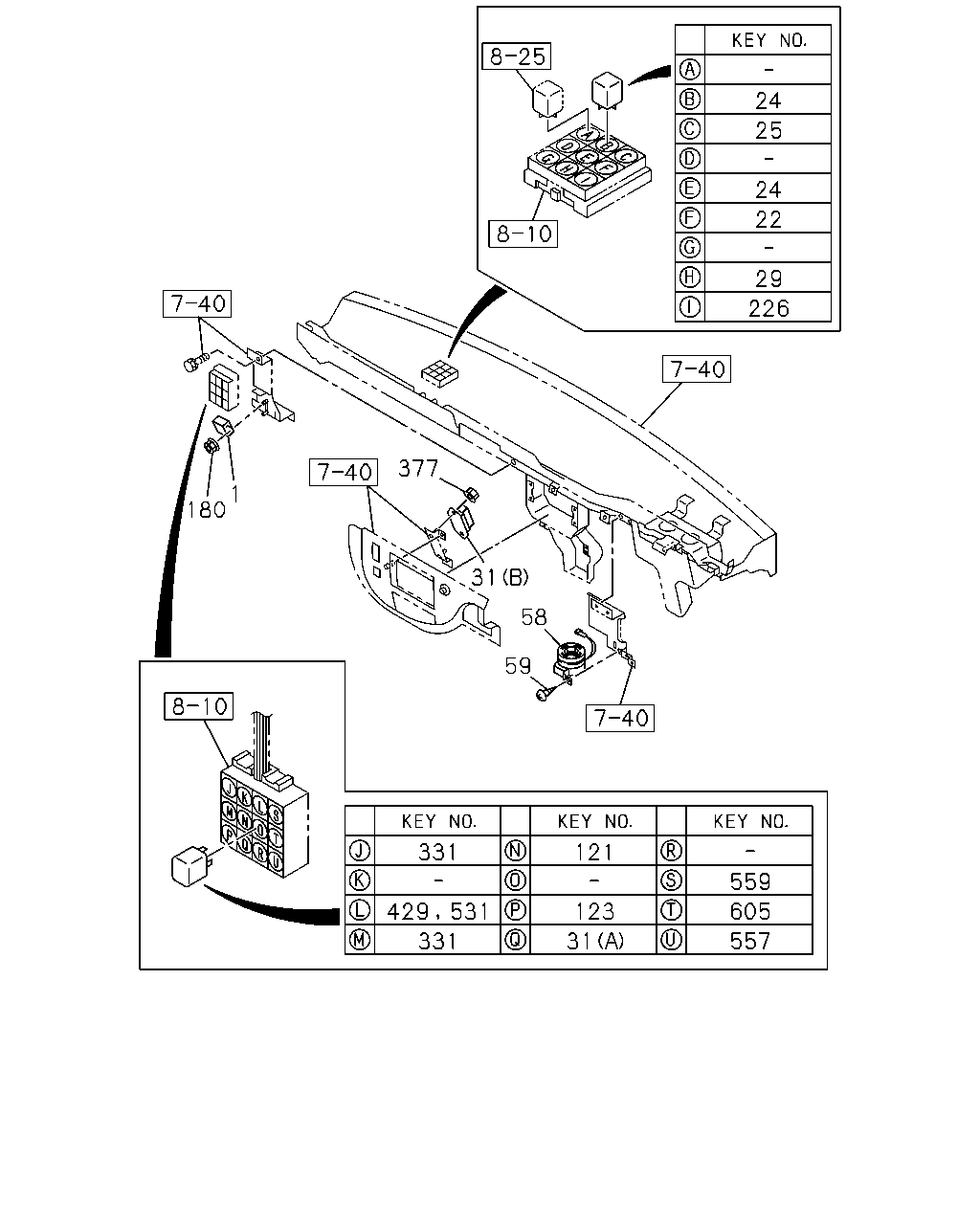

24 25 24 22 29 226 377 1 180 31 58 59 121 559 429 531 123 605 331 31 557 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-060-0	01	1	9601-9803	●	●
1	UNIT; FLASHER	1-83470-060-1	01	1	9804-		●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0111		●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9601-9803	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9804-0111		●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-		●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0111		●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
29	RELAY; HORN EXC. AIR HORN<WB8> 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004		●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111		●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	9601-9706	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	9707-9803	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V	1-82550-187-1	01	1	9804-		●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9706	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-9803	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0111		●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907		●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0004		●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9601-9803	●	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9804-0004		●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0005-0612		●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	0701-		●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9601-9803	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9804-		●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0111		●
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
123	RELAY; HTR 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9705	●	●
123	RELAY; HTR 24V 12.5A MITUBA	8-97062-815-1	01	1	9706-9803		●
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	9706-9803	●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0106		●
123	RELAY; HTR 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111		●
123	RELAY; HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9601-9803	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9804-0602		●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-		●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0111		●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9804-0106		●
331	RELAY; A/C 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-0111		●
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-		●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9601-9706	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9707-9803	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9804-0602		●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-		●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-0	01	1	9610-9705		●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9706-9803	●	●
429	RELAY; POWER CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004		●
429	RELAY; POWER CUT 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0006		●
429	RELAY; POWER CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	0007-0106		●
429	RELAY; POWER CUT 6HK1 TCS ENG(80L) 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111		●
429	RELAY; POWER CUT 6HK1 TCS ENG(80L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
531	RELAY; MAIN 6SD1 TCN ENG(31L) 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111		●
531	RELAY; MAIN 6SD1 TCN ENG(31L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
557	RELAY; WASHER 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111		●
557	RELAY; WASHER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
559	RELAY; MAG VLV 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111		●
559	RELAY; MAG VLV 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
605	RELAY; PCV 6SD1 TCN ENG(31L) 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111		●
605	RELAY; PCV 6SD1 TCN ENG(31L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
