Isuzu WW
▶
TRUCKS
▶
FVR
▶
10893 - FVR(HONG KONG)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#25285) — 28 parça
Tümü
A - FVR5FF
B - FVR5MF
◀

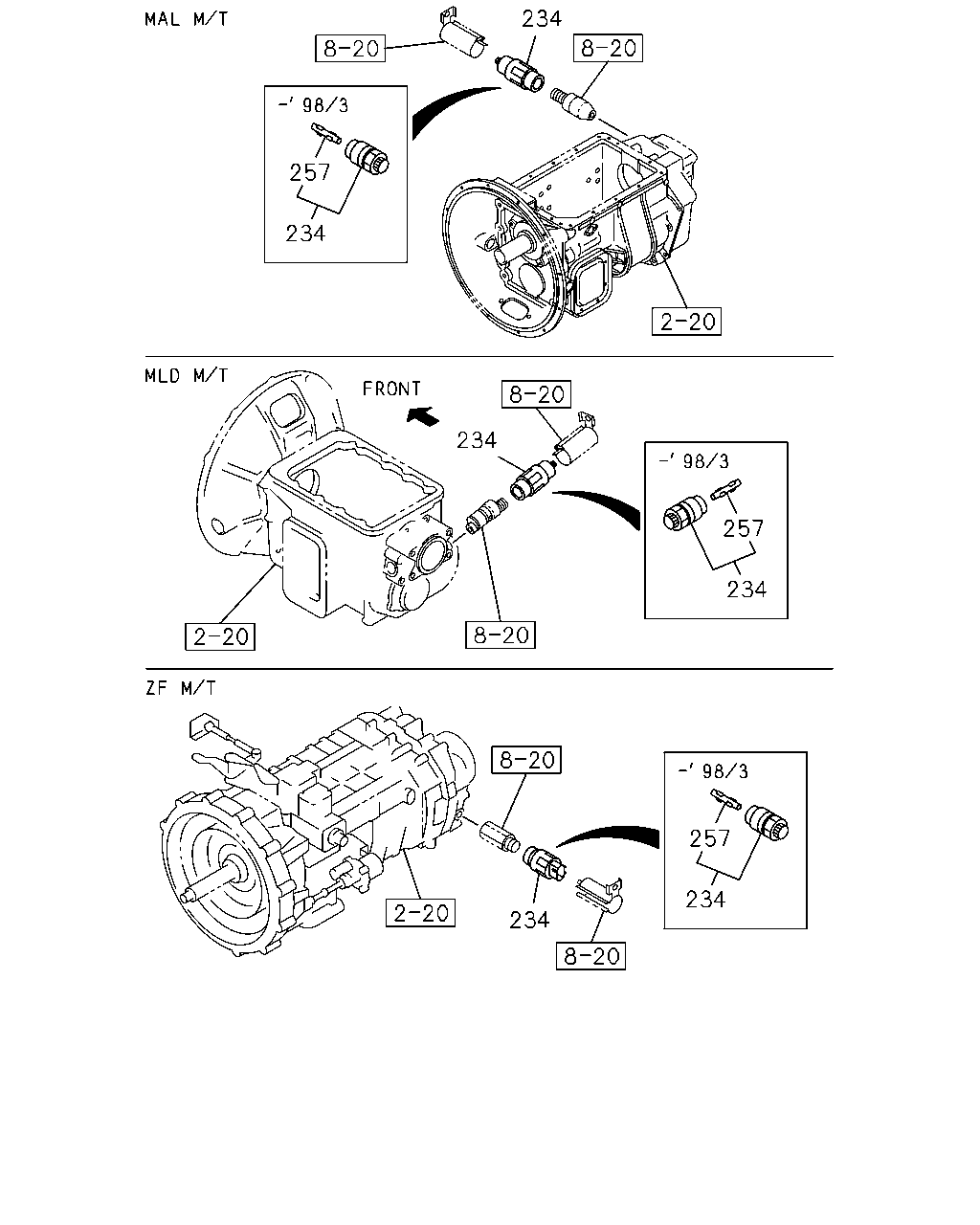

[826A] SPEED SENSOR (4 parça)

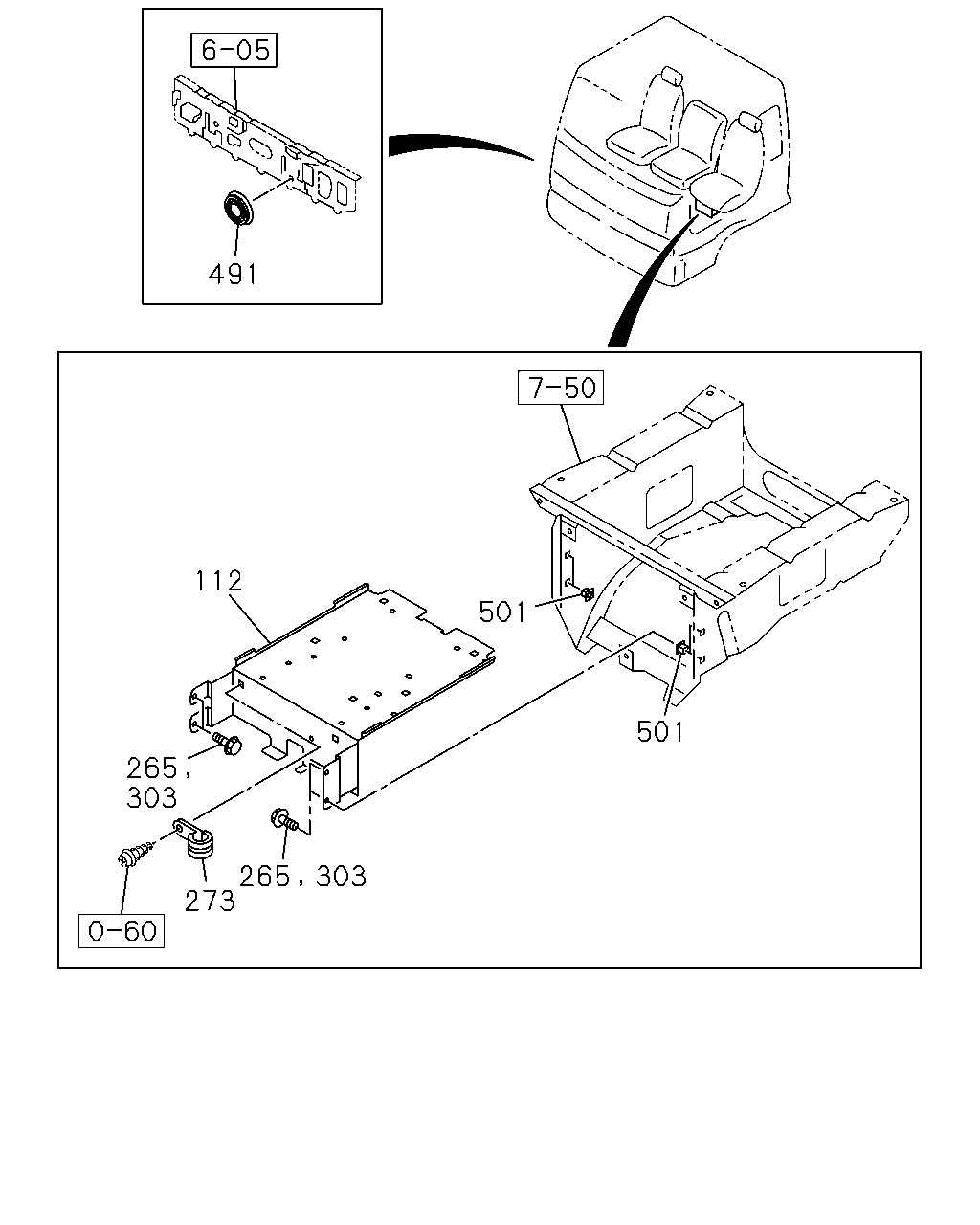

[826A] CONT UNIT BRKT AND HOLE PLUG (11 parça)

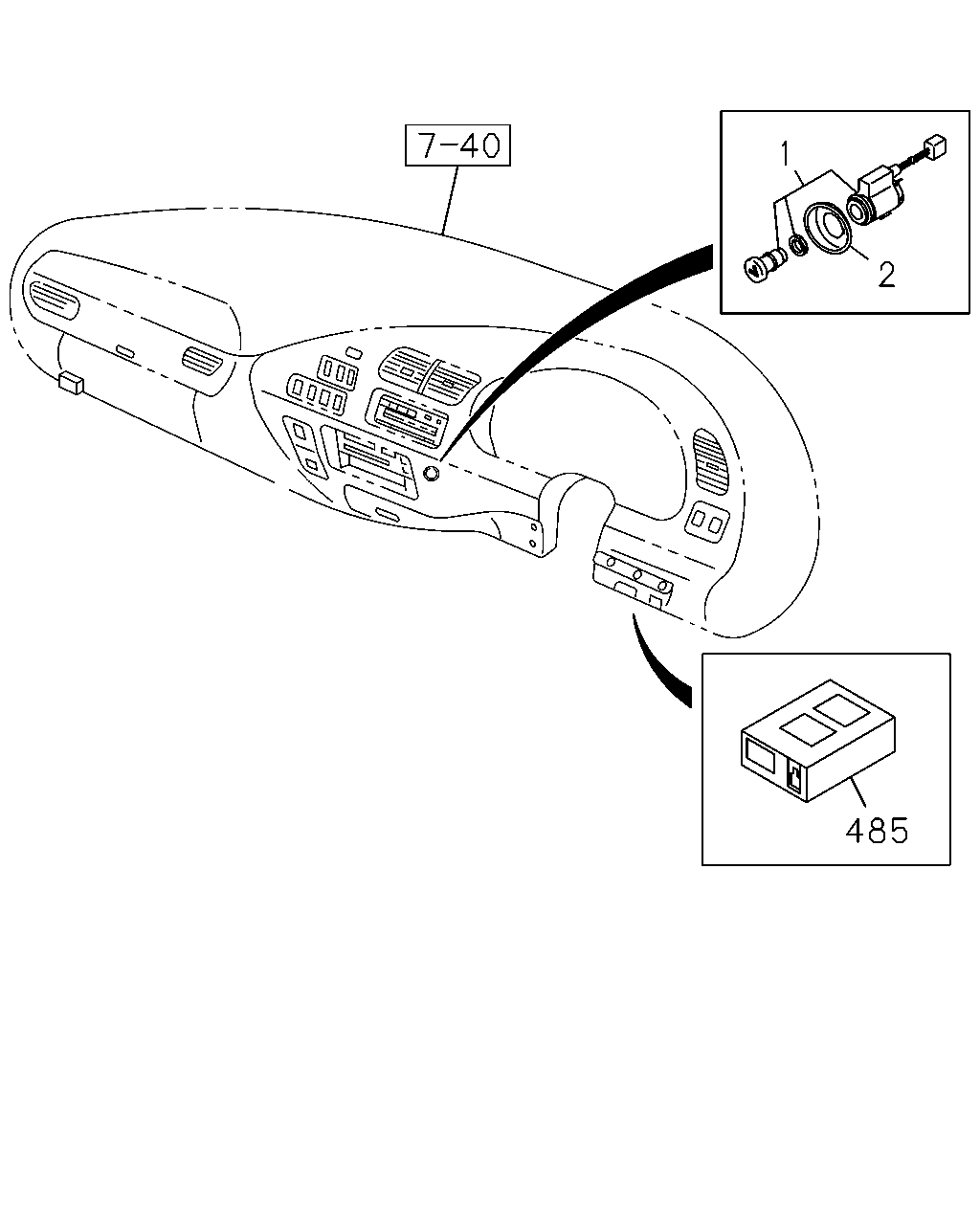

[826A] CIGAR LIGHTER & SPEED SENSOR CONT UNIT (13 parça)
▶
234
257
234
234
257
234
257
234
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
234
SENSOR; VEHICLE SPD
1-83127-241-1
01
1
9601-9803
●
●
234
SENSOR; VEHICLE SPD
1-80240-001-1
01
1
9804-0202
●
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
0203-
●
257
KEY; SPEED SENSOR
1-83129-126-0
01
1
9601-9803
●
●
491
112
501
501
265
303
273
265
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
112
BRACKET; CONT UNIT
6SD1 TCN ENG(31L)
1-75558-566-0
02
1
0107-
●
265
SCREW; BRKT,CONT UNIT
6SD1 TCN ENG(31L) M6X12 TAPPING W/PL WASHER
0-74100-612-0
04
1
0107-
●
273
CLIP; HARNESS
ID=35 L=35
1-09700-726-0
01
1
0107-
●
303
SCREW; CONT UNIT
6SD1 TCN ENG(31L) M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0107-0604
●
303
SCREW; CONT UNIT
6SD1 TCN ENG(31L) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0605-
●
491
PLUG; HOLE,CONT UNIT
OD=54.5
1-73907-309-0
01
1
0107-0201
●
491
PLUG; HOLE,CONT UNIT
OD=54.5
1-73907-309-0
01
1
9601-9608
●
●
491
PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5
1-73907-309-0
01
1
9609-9705
●
491
PLUG; HOLE,CONT UNIT
OD=54.5
1-73907-309-0
01
1
9609-9705
●
491
PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5
1-73907-309-0
01
1
9706-9803
●
●
501
GROMMET; SCREW
6SD1 TCN ENG(31L) D=9.7X9.7 L=8
8-94222-314-0
04
1
0107-
●
1
2
485
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LIGHTER; CIGAR
8-97064-970-1
01
1
9601-9803
●
●
1
LIGHTER; CIGAR
8-97064-970-1
01
1
9804-0108
●
1
LIGHTER; CIGAR
8-97320-325-0
01
1
0109-
●
2
BEZEL; CIGAR LIGHTER
1-73998-883-2
01
1
9601-9803
●
●
2
BEZEL; CIGAR LIGHTER
1-73998-883-2
01
1
9804-
●
485
CONTROL UNIT; SPEED SENSOR
1-82540-065-0
01
1
9601-9803
●
●
485
CONTROL UNIT; SPEED SENSOR
1-82540-065-0
01
1
9804-9809
●
485
CONTROL UNIT; SPEED SENSOR
MLD7Q M/T(X5K),ZF 9S109 OD M/T(Y2L)
1-82540-065-0
01
1
9810-9903
●
485
CONTROL UNIT; SPEED SENSOR
MLD7Q M/T(X5K),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y)
1-82540-065-0
01
1
9904-0004
●
485
CONTROL UNIT; SPEED SENSOR
1-82540-065-0
01
1
0005-0005
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-038-1
01
1
0005-0402
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-149-0
01
1
0403-0410
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-158-0
01
1
0411-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
