Isuzu WW
▶
TRUCKS
▶
FVR
▶
10893 - FVR(HONG KONG)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

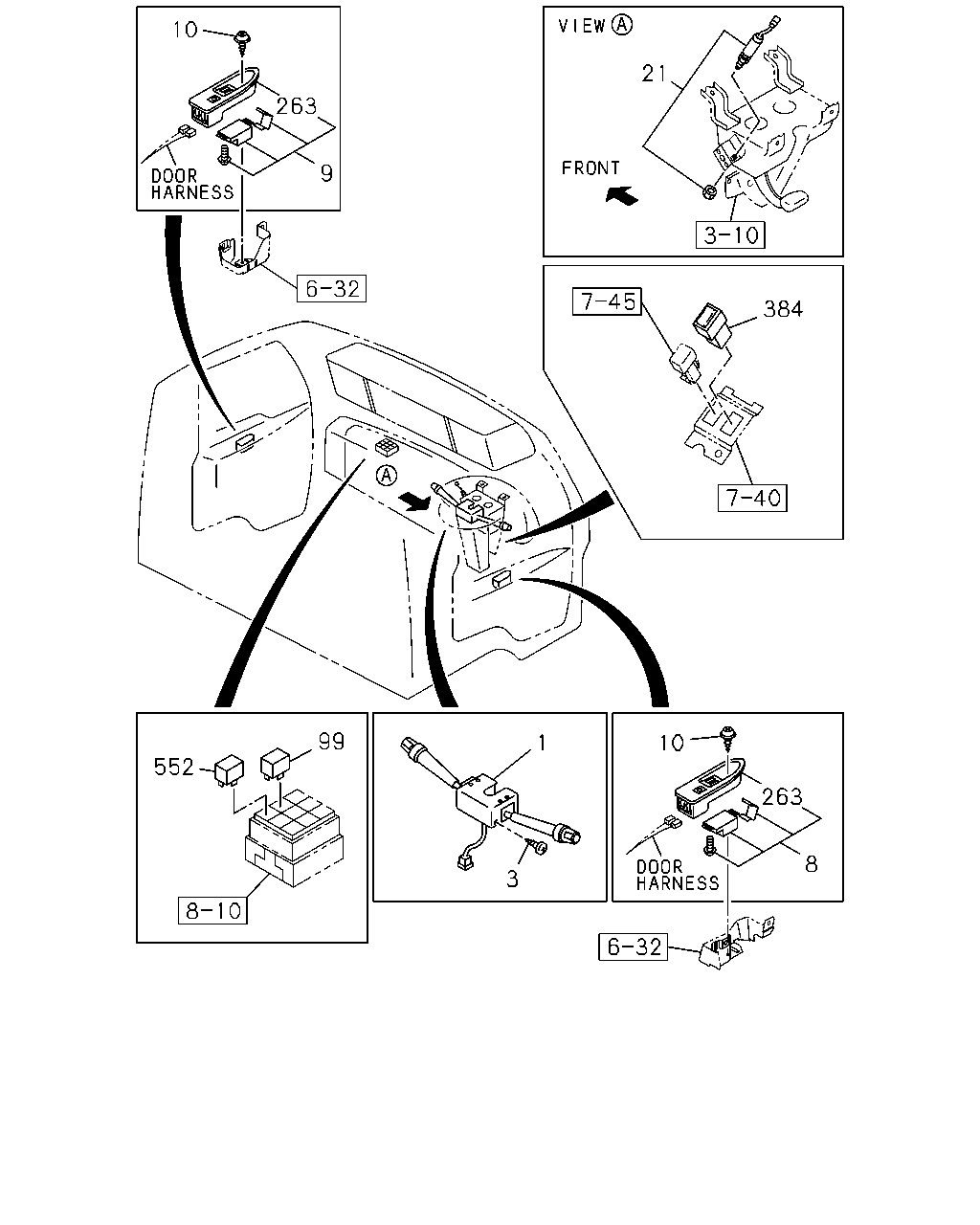

8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#25284) — 54 parça
Tümü
A - FVR5MF
B - FVR5FF
◀
[825A] INST PANEL SIDE NO.2;PTO SW (3 parça)
[825A] INST PANEL SIDE NO.1 & POWER WINDOW SW (42 parça)
[825A] DOOR SW AND SW HOLE COVER (9 parça)
▶
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
77
SWITCH; PTO
PTO CONTROL<SV6>
1-82340-403-0
01
1
9601-9706
●
77
SWITCH; PTO
PTO CONTROL<SV6>
1-82340-403-0
01
1
9707-9803
●
●
77
SWITCH; PTO
PTO CONTROL<SV6>
1-82340-403-0
01
1
9804-
●
10
21
263
9
384
99
10
1
552
263
8
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
1-82360-412-2
01
1
9601-9803
●
●
1
SWITCH; COMB
1-82360-412-3
01
1
9804-0004
●
1
SWITCH; COMB
1-82360-412-3
01
1
0005-0103
●
1
SWITCH; COMB
1-82360-619-0
01
1
0104-0312
●
1
SWITCH; COMB
1-82360-715-0
01
1
0401-
●
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
9601-9803
●
●
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
9804-0604
●
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
●
8
SWITCH; POWER WINDOW
DRIVER SIDE
1-82380-148-0
01
1
9601-9705
●
●
8
SWITCH; POWER WINDOW
DRIVER SIDE
1-82380-148-0
01
1
9706-9709
●
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER SIDE
1-82380-148-0
01
1
9706-9709
●
8
SWITCH; POWER WINDOW
DRIVER SIDE
1-82380-155-1
01
1
9710-9803
●
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER SIDE
1-82380-155-1
01
1
9710-9803
●
8
SWITCH; POWER WINDOW
DRIVER SIDE
1-82380-155-4
01
1
9804-
●
9
SWITCH; POWER WINDOW
PASSENGER SIDE
1-82380-138-0
01
1
9601-9705
●
●
9
SWITCH; POWER WINDOW
PASSENGER SIDE
1-82380-138-0
01
1
9706-9709
●
9
SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER SIDE
1-82380-138-0
01
1
9706-9709
●
9
SWITCH; POWER WINDOW
PASSENGER SIDE
1-82380-154-1
01
1
9710-9803
●
9
SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER SIDE
1-82380-154-1
01
1
9710-9803
●
9
SWITCH; POWER WINDOW
PASSENGER SIDE
1-82380-154-3
01
1
9804-
●
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
9601-9803
●
●
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
9804-0604
●
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0605-
●
21
SWITCH; CLU
1-82380-114-1
01
1
9601-9803
●
●
21
SWITCH; CLU
1-82380-114-2
01
1
9804-0106
●
21
SWITCH; CLU
1-82440-116-1
01
1
0107-0608
●
21
SWITCH; CLU
1-82440-126-1
01
1
0609-
●
99
RELAY; FOG LAMP
24V 12.5A MITUBA
8-97062-815-1
01
1
9601-9803
●
●
99
RELAY; FOG LAMP
24V 12.5A MITUBA
8-97062-815-1
01
1
9804-0111
●
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-
●
263
COVER; SW
DRIVER SIDE
1-82385-005-2
01
1
9601-9705
●
●
263
COVER; SW
DRIVER SIDE
1-82385-005-2
01
1
9706-9803
●
263
COVER; SW
POWER WINDOW<A30> DRIVER SIDE
1-82385-005-2
01
1
9706-9803
●
263
COVER; SW
DRIVER SIDE
1-82385-005-2
01
1
9804-
●
263
COVER; SW
PASSENGER SIDE
1-82385-006-3
01
1
9601-9705
●
●
263
COVER; SW
PASSENGER SIDE
1-82385-006-3
01
1
9706-9803
●
263
COVER; SW
POWER WINDOW<A30> PASSENGER SIDE
1-82385-006-3
01
1
9706-9803
●
263
COVER; SW
PASSENGER SIDE
1-82385-006-3
01
1
9804-
●
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0107-
●
552
RELAY; CIGAR LIGHTER
24V 12.5A MITUBA
8-97062-815-1
01
1
9601-9803
●
●
552
RELAY; CIGAR LIGHTER
24V 12.5A MITUBA
8-97062-815-1
01
1
9804-0111
●
552
RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-
●
29
30
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
SWITCH; DOOR
8-97855-032-2
01
1
9601-9803
●
●
29
SWITCH; DOOR
8-97855-032-3
01
1
9804-
●
30
SCREW; DOOR SW
M5X16
8-94279-341-0
01
1
9601-9803
●
●
30
SCREW; DOOR SW
M5X16
8-94279-341-0
01
1
9804-9906
●
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
9907-
●
257
COVER; HOLE,SW
8-94229-914-1
01
1
9601-9803
●
●
257
COVER; HOLE,SW
8-94229-914-1
01
1
9804-
●
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30>
1-82389-012-2
01
1
9706-9803
●
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30>
1-82389-011-2
01
1
9706-9803
●
