8-21 — METER ASM (#25283) — 142 parça

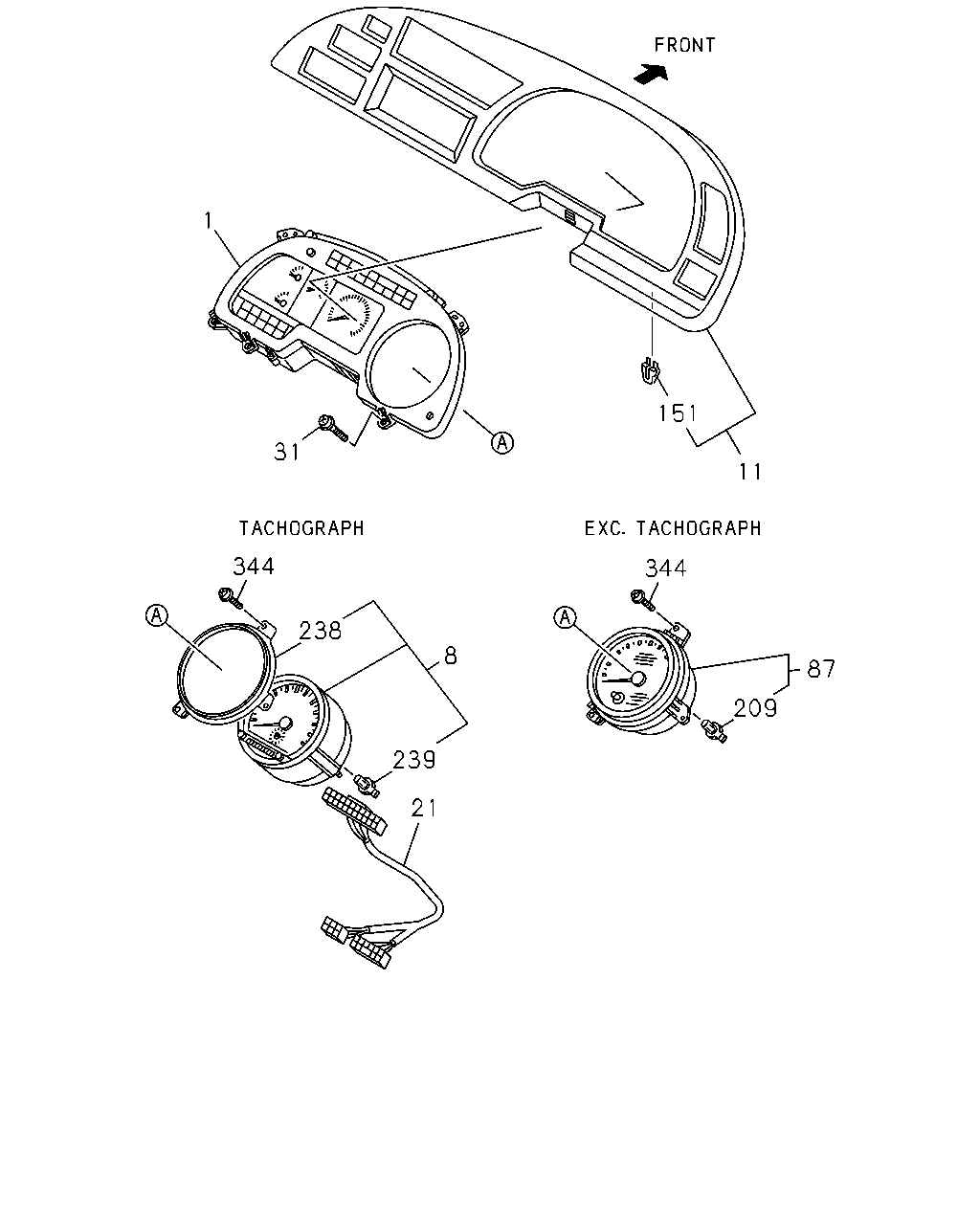

çizim 85693
1 151 31 11 344 344 238 8 87 209 239 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83116-124-0 01 1 0303- ●
1 METER COMPL; CLUSTER
6HK1 TCS ENG(80L) EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83116-123-0 01 1 0303- ●
1 METER COMPL; CLUSTER 1-83114-756-1 01 1 9601-9609 ●
1 METER COMPL; CLUSTER
EXC. EURO2 SPECIFICATION<THN> 		1-83114-756-1 01 1 9610-9704 ●
1 METER COMPL; CLUSTER
EXC. EURO2 SPECIFICATION<THN> 		1-83114-981-0 01 1 9705-9803 ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83114-858-0 01 1 9610-9704 ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83114-995-0 01 1 9705-9705 ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83114-995-0 01 1 9706-9803 ● ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) 		1-83114-995-0 01 1 9804-0106 ●
1 METER COMPL; CLUSTER
6HK1 TCS ENG(80L) 		1-83115-795-1 01 1 0107-0302 ●
1 METER COMPL; CLUSTER
6HK1 TCS ENG(80L) INDICATOR TAIL & STOP LAMP<YD6> 		1-83115-795-1 01 1 0303- ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83115-112-0 01 1 9710-9711 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> 		1-83114-859-0 01 1 9610-9704 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> 		1-83114-996-0 01 1 9705-9803 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) 		1-83114-996-0 01 1 9804-0106 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) 		1-83115-896-0 01 1 0107-0302 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) INDICATOR TAIL & STOP LAMP<YD6> 		1-83115-896-0 01 1 0303- ●
1 METER COMPL; CLUSTER 1-83114-751-1 01 1 9601-9704 ●
1 METER COMPL; CLUSTER 1-83114-976-0 01 1 9705-9705 ●
1 METER COMPL; CLUSTER
EXC. EURO2 SPECIFICATION<THN> 		1-83114-976-0 01 1 9706-9803 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-562-2 01 1 9601-9706 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-746-0 01 1 9707-9803 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-746-0 01 1 9804-0106 ●
11 CLUSTER ASM; METER 1-72418-012-5 01 1 9601-9803 ● ●
11 CLUSTER ASM; METER 1-72418-012-9 01 1 9804- ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-82624-665-1 01 1 9601-9803 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-82624-665-1 01 1 9804-0106 ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9601-9803 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9804-0604 ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ●
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83120-490-1 01 1 9601-9803 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83120-490-1 01 1 9804-0106 ●
87 SPEEDOMETER 1-83120-490-1 01 1 0107- ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9601-9803 ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9804-9812 ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9901- ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9601-9803 ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9804-0106 ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0107- ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 9601-9803 ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 9804-0106 ●
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 24V 1.8W 		1-82194-076-0 03 1 9601-9803 ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 24V 1.8W 		1-82194-076-0 03 1 9804-0106 ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9601-9803 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9804-0604 ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ●

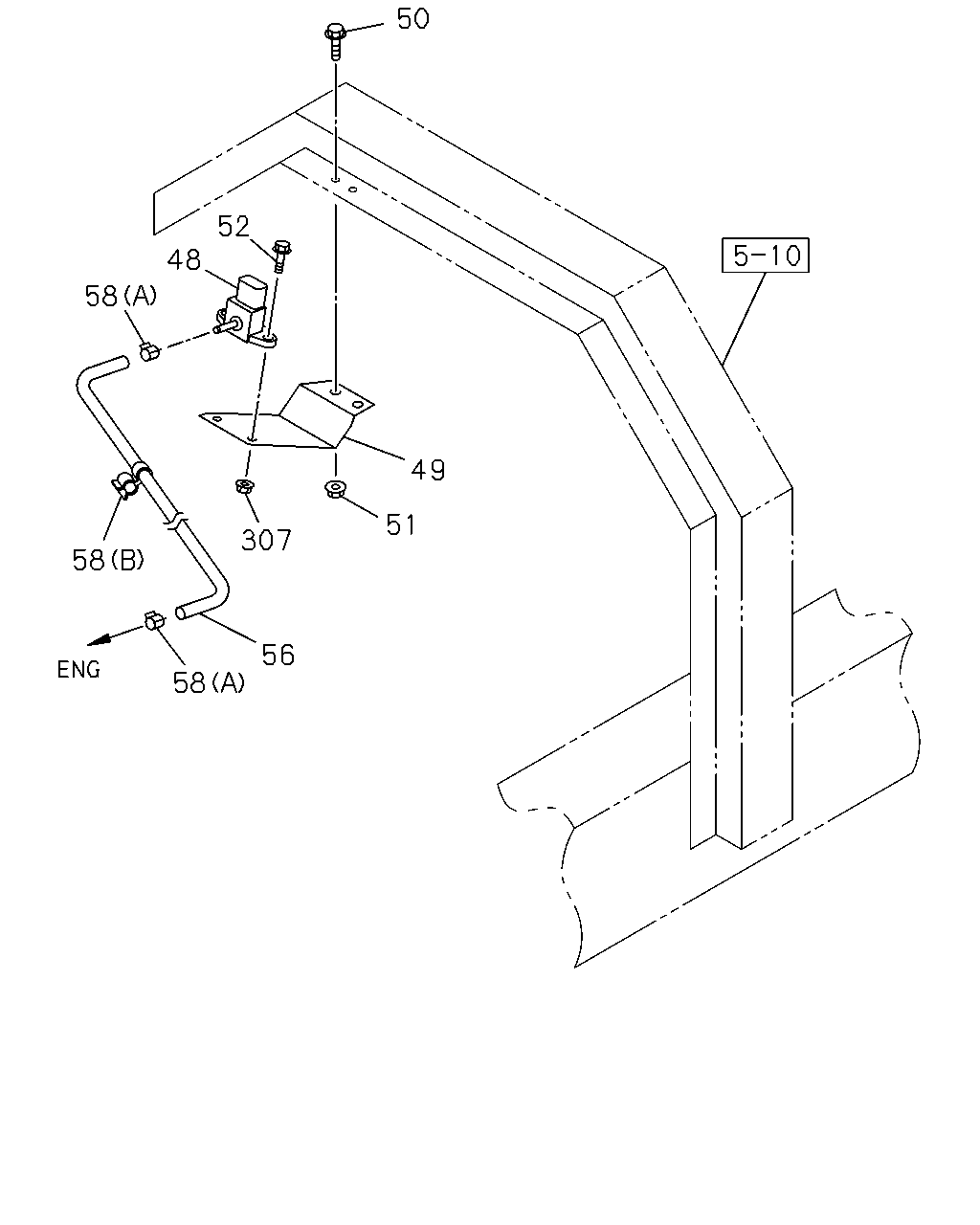

çizim 86042
50 52 48 58 49 51 307 58 56 58
BalonParca AdiParca NoAdetTipApplied Date A B
48 SENSOR; BOOST
6HK1 TCS ENG(80L) 		1-81531-011-0 01 1 0107- ●
49 BRACKET; SENSOR
6HK1 TCS ENG(80L) 		1-47479-242-1 01 1 0107- ●
50 BOLT; FIX
6HK1 TCS ENG(80L) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ●
50 BOLT; FIX
6HK1 TCS ENG(80L) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
51 NUT; FIX
6HK1 TCS ENG(80L) M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ●
51 NUT; FIX
6HK1 TCS ENG(80L) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
52 BOLT; SENSOR
6HK1 TCS ENG(80L) M6X16 FLANGE 		0-28680-616-0 02 1 0107-0512 ●
52 BOLT; SENSOR
6HK1 TCS ENG(80L) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
56 HOSE; NIPPLE TO SENSOR
6HK1 TCS ENG(80L) L=400 SERVICED BY L=3000 		0-04740-300-0 01 1 0107- ●
58 CLIP; HOSE
6HK1 TCS ENG(80L) (B) ID=8.3 & 12 		8-94155-469-0 01 1 0107- ●
58 CLIP; HOSE
6HK1 TCS ENG(80L) (A) ID=7.8 		8-94246-958-0 02 1 0107- ●
307 NUT
6HK1 TCS ENG(80L) M6 FLANGE 		0-91150-106-0 02 1 0107-0602 ●
307 NUT
6HK1 TCS ENG(80L) M6 FLANGE 		0-91180-106-0 02 1 0603- ●

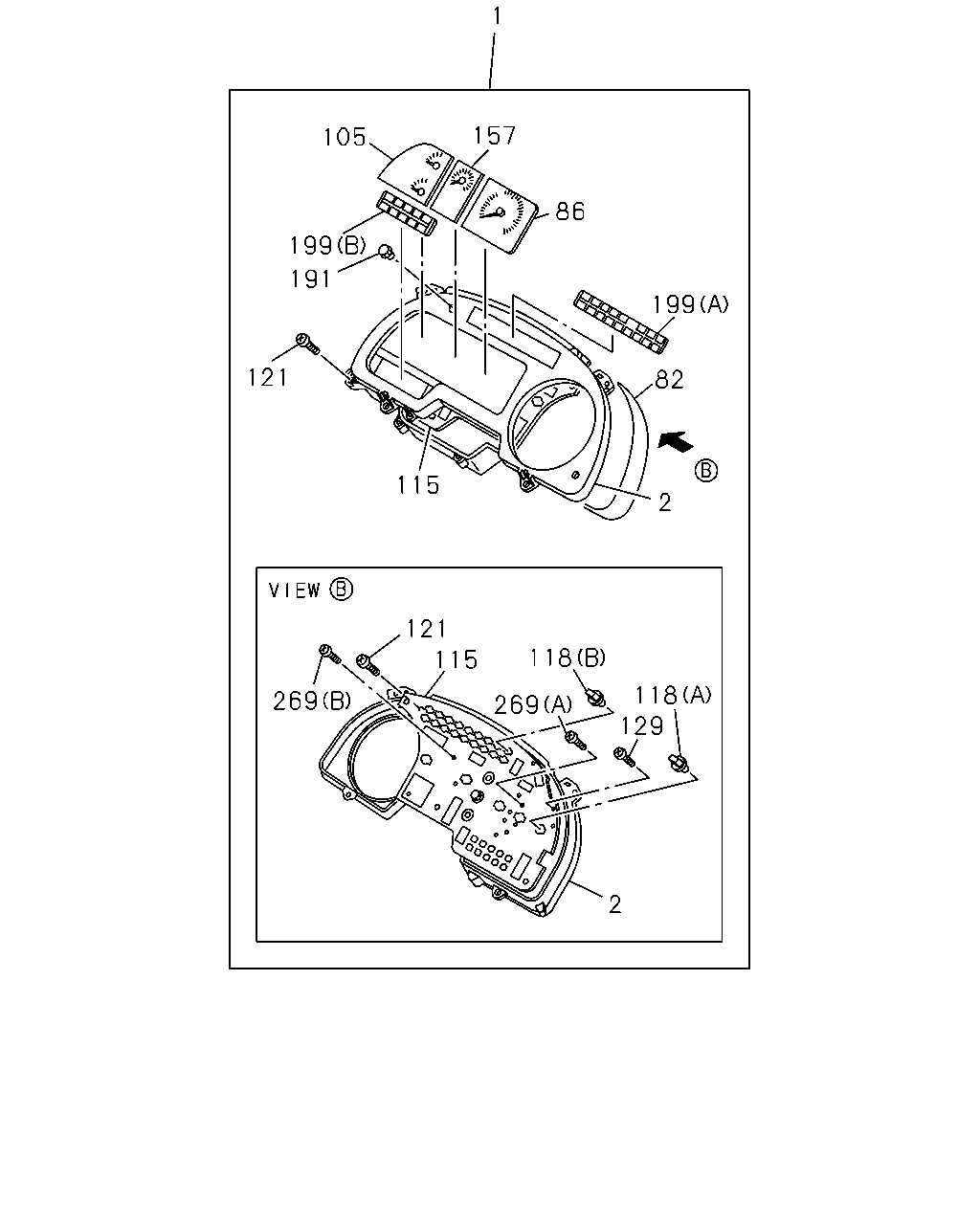

çizim 86074
1 157 105 86 199 191 199 121 82 115 2 121 118 115 118 129 269 269 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83116-124-0 01 1 0303- ●
1 METER COMPL; CLUSTER
6HK1 TCS ENG(80L) EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83116-123-0 01 1 0303- ●
1 METER COMPL; CLUSTER 1-83114-756-1 01 1 9601-9609 ●
1 METER COMPL; CLUSTER
EXC. EURO2 SPECIFICATION<THN> 		1-83114-756-1 01 1 9610-9704 ●
1 METER COMPL; CLUSTER
EXC. EURO2 SPECIFICATION<THN> 		1-83114-981-0 01 1 9705-9803 ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83114-858-0 01 1 9610-9704 ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83114-995-0 01 1 9705-9705 ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83114-995-0 01 1 9706-9803 ● ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) 		1-83114-995-0 01 1 9804-0106 ●
1 METER COMPL; CLUSTER
6HK1 TCS ENG(80L) 		1-83115-795-1 01 1 0107-0302 ●
1 METER COMPL; CLUSTER
6HK1 TCS ENG(80L) INDICATOR TAIL & STOP LAMP<YD6> 		1-83115-795-1 01 1 0303- ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83115-112-0 01 1 9710-9711 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> 		1-83114-859-0 01 1 9610-9704 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> 		1-83114-996-0 01 1 9705-9803 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) 		1-83114-996-0 01 1 9804-0106 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) 		1-83115-896-0 01 1 0107-0302 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) INDICATOR TAIL & STOP LAMP<YD6> 		1-83115-896-0 01 1 0303- ●
1 METER COMPL; CLUSTER 1-83114-751-1 01 1 9601-9704 ●
1 METER COMPL; CLUSTER 1-83114-976-0 01 1 9705-9705 ●
1 METER COMPL; CLUSTER
EXC. EURO2 SPECIFICATION<THN> 		1-83114-976-0 01 1 9706-9803 ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 9601-9803 ● ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 9804- ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9601-9803 ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9804- ●
86 TACHOMETER; CLUSTER METER 1-83120-671-0 01 1 9601-9609 ●
86 TACHOMETER; CLUSTER METER
EXC. EURO2 SPECIFICATION<THN> 		1-83120-671-0 01 1 9610-9704 ●
86 TACHOMETER; CLUSTER METER
EXC. EURO2 SPECIFICATION<THN> 		1-83120-833-0 01 1 9705-9803 ●
86 TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83120-712-0 01 1 9610-9704 ●
86 TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83120-836-0 01 1 9705-9705 ●
86 TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83120-836-0 01 1 9706-9709 ● ●
86 TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83120-836-0 01 1 9710-9711 ● ●
86 TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83120-836-0 01 1 9710-9711 ●
86 TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83120-836-0 01 1 9712-9803 ● ●
86 TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L) 		1-83120-836-0 01 1 9804-0106 ●
86 TACHOMETER; CLUSTER METER
6HK1 TCS ENG(80L) 		1-83120-922-0 01 1 0107- ●
86 TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> 		1-83120-713-0 01 1 9610-9704 ●
86 TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> 		1-83120-701-0 01 1 9705-9803 ●
86 TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L) 		1-83120-701-0 01 1 9804-0106 ●
86 TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L) 		1-83120-923-0 01 1 0107- ●
86 TACHOMETER; CLUSTER METER 1-83120-667-0 01 1 9601-9704 ●
86 TACHOMETER; CLUSTER METER 1-83120-566-0 01 1 9705-9705 ●
86 TACHOMETER; CLUSTER METER
EXC. EURO2 SPECIFICATION<THN> 		1-83120-566-0 01 1 9706-9803 ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-209-0 01 1 9601-9704 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 9705-9803 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 9804- ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83189-467-0 01 1 0303- ●
115 CIRCUIT; PRINTED,CLUSTER METER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83189-320-0 01 1 9710-9711 ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-308-0 01 1 9601-9803 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-308-0 01 1 9804-0106 ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-447-0 01 1 0107-0302 ●
115 CIRCUIT; PRINTED,CLUSTER METER
INDICATOR TAIL & STOP LAMP<YD6> 		1-83189-447-0 01 1 0303- ●
118 BULB; CLUSTER METER
EXC. INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 24 1 0303- ●
118 BULB; CLUSTER METER
EXC. EURO2 SPECIFICATION<THN> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9610-9705 ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9610-9705 ●
118 BULB; CLUSTER METER
EXC. EURO2 SPECIFICATION<THN> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9706-9803 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9601-9803 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9804- ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9601-9609 ● ●
118 BULB; CLUSTER METER
EXC. EURO2 SPECIFICATION<THN> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 9610-9705 ● ●
118 BULB; CLUSTER METER
EURO2 SPECIFICATION<THN> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 9706-9803 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 9804-0106 ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 25 1 0107-0302 ●
118 BULB; CLUSTER METER
INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 25 1 0303- ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 9601-9803 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 9804- ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 9601-9803 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 9804- ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-187-0 01 1 9601-9803 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-187-0 01 1 9804- ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9601-9803 ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9804- ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 9601-9803 ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 9804-0106 ●
199 LENS; WARNING LAMP
(B) 		1-83119-805-0 01 1 0107- ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 9601-9803 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 9804- ●
269 SCREW; METER CLUSTER
EXC. INDICATOR TAIL & STOP LAMP<YD6> (B) M3 TAPPING 		1-83119-439-0 03 1 0303- ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 9601-9803 ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 9804-0106 ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 04 1 0107-0302 ●
269 SCREW; METER CLUSTER
INDICATOR TAIL & STOP LAMP<YD6> (B) M3 TAPPING 		1-83119-439-0 04 1 0303- ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 9601-9803 ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
