Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#25281) — 829 parça

224 185 224 178 178 178 178 503 530 513 510 503 53 59 53 154 53 53 312 342 324 334 335 334 335 335 178 224 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

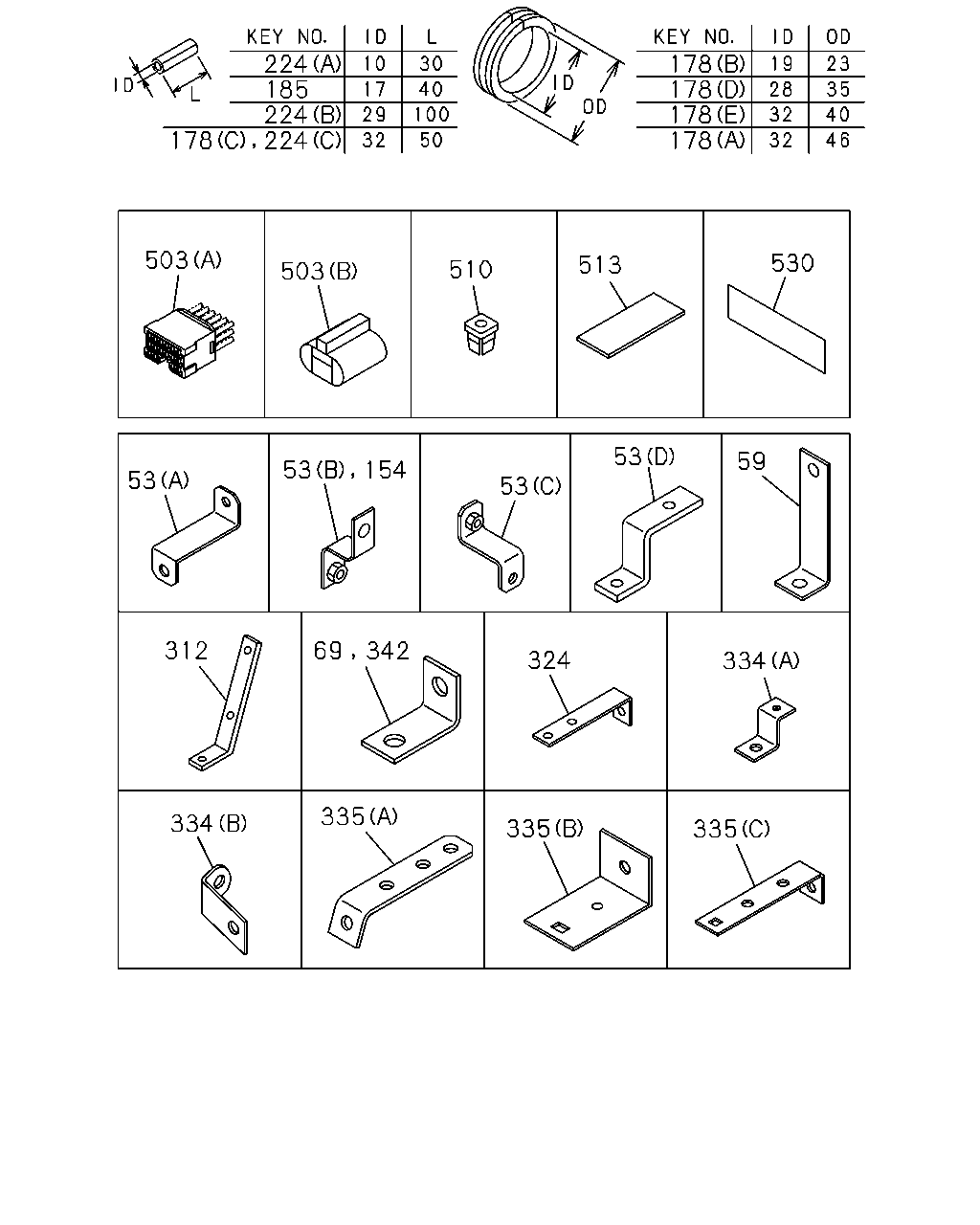

53	BRACKET; HARNESS 6SD1 TCN ENG(31L) (C)	1-47476-658-0	01	1	0412-0503	●
53	BRACKET; HARNESS 6SD1 TCN ENG(31L) (D)	1-47475-702-0	01	1	0504-	●
53	BRACKET; HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A)	1-47476-812-1	01	1	9701-9705	●
53	BRACKET; HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A)	1-47476-812-1	01	1	9706-9803	●	●
53	BRACKET; HARNESS 6HE1 TC ENG(57L) (A)	1-47476-812-1	01	1	9804-0106	●
53	BRACKET; HARNESS 6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> (B)	1-47476-200-0	01	1	9701-9803	●
53	BRACKET; HARNESS 6SD1 TCN ENG(31L) (B)	1-47476-200-0	01	1	9804-0106	●
59	BRACKET; FRAME HARNESS L=95	1-82699-085-0	01	1	9601-9803	●	●
59	BRACKET; FRAME HARNESS L=95	1-82699-085-0	01	1	9804-	●
69	BRACKET; CLIP 6SD1 TCN ENG(31L) 25X37	1-34656-004-0	01	1	0107-	●
154	BRACKET; STARTER EARTH CABLE	1-47465-518-0	01	1	9601-9803		●
178	GROMMET; HARNESS 6SD1 TCN ENG(31L) (E) ID=32 OD=40 T=23	1-09332-112-0	01	1	0412-	●
178	GROMMET; HARNESS (B) ID=19 OD=23 T=24	1-09332-103-0	02	1	9601-9609	●
178	GROMMET; HARNESS 6SD1 TCN ENG(31L) (B) ID=19 OD=23 T=24	1-09332-103-0	02	1	9610-0106	●
178	GROMMET; HARNESS 6SD1 TCN ENG(31L) (B) ID=19 OD=23 T=24	1-09332-103-0	03	1	0107-	●
178	GROMMET; HARNESS 6HE1 TC ENG(57L) (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-9705	●
178	GROMMET; HARNESS (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-9705		●
178	GROMMET; HARNESS 6HE1 TC ENG(57L) (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	9706-9803	●
178	GROMMET; HARNESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	9706-9803		●
178	GROMMET; HARNESS 6HE1 TC ENG(57L) (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	9804-0106	●
178	GROMMET; HARNESS 6HK1 TCS ENG(80L) (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	0107-	●
178	GROMMET; HARNESS 6HK1 TCS ENG(80L) (B) ID=19 OD=23 T=24	1-09332-103-0	01	1	0107-	●
178	GROMMET; HARNESS (B) ID=19 OD=23 T=24	1-09332-103-0	01	1	9601-9803	●	●
178	GROMMET; HARNESS (B) ID=19 OD=23 T=24	1-09332-103-0	01	1	9804-0106	●
178	GROMMET; HARNESS (C) ID=32 OD=36 L=50	1-09337-023-0	01	1	0107-	●
178	GROMMET; HARNESS LOW ROOF<6XQ> (A) ID=32 OD=48 T=5	9-09575-232-0	01	1	9706-9803		●
185	SLEEVE; RUBBER MLD7 M/T<X9Z> ID=17 OD=21 L=40	1-09337-012-0	01	1	9601-9609		●
185	SLEEVE; RUBBER MLD7 M/T<X9Z> ID=17 OD=21 L=40	1-09337-012-0	01	1	9610-9803	●	●
185	SLEEVE; RUBBER MLD7 M/T<X9Z> ID=17 OD=21 L=40	1-09337-012-0	01	1	9804-0106	●
224	SLEEVE; RUBBER,HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=29 OD=39 L=100	1-09337-022-0	01	1	0005-0106	●
224	SLEEVE; RUBBER,HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) ID=32 OD=36 L=50	1-09337-023-0	01	1	9704-9705	●
224	SLEEVE; RUBBER,HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) ID=32 OD=36 L=50	1-09337-023-0	01	1	9706-9803	●	●
224	SLEEVE; RUBBER,HARNESS 6HE1 TC ENG(57L) (C) ID=32 OD=36 L=50	1-09337-023-0	01	1	9804-0106	●
224	SLEEVE; RUBBER,HARNESS 6HK1 TCS ENG(80L) (A) ID=10 OD=14 L=30	9-09956-682-0	05	1	0107-	●
312	BRACKET; CLIP HARNESS	1-82699-109-0	01	1	9601-9803	●	●
312	BRACKET; CLIP HARNESS	1-82699-109-0	01	1	9804-	●
324	BRACKET; CLIP 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=120	1-82699-465-0	01	1	9707-9803	●	●
324	BRACKET; CLIP 6HE1 TC ENG(57L) L=120	1-82699-465-0	01	1	9804-0106	●
334	BRACKET MAL6 M/T<X9G> (A)	1-82699-425-0	01	1	0012-0106	●
334	BRACKET MAL6S M/T(Y1V) (A)	1-82699-425-0	01	1	0107-	●
334	BRACKET 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (B)	1-47477-571-3	01	1	0107-0112	●
334	BRACKET 6SD1 TCN ENG(31L) (B)	1-47477-571-3	01	1	0201-	●
335	BRACKET; CONNECTOR MAL6S M/T(Y1V) (B) L=60	1-82699-875-0	01	1	0012-0206	●
335	BRACKET; CONNECTOR MAL6S M/T(Y1V) (C)	1-82699-963-0	01	1	0207-	●
335	BRACKET; CONNECTOR (A)	1-82699-517-0	01	1	9601-9803	●	●
335	BRACKET; CONNECTOR (A)	1-82699-517-0	01	1	9804-9910	●
335	BRACKET; CONNECTOR (A)	1-82698-167-0	01	1	9911-	●
342	BRACKET; HARNESS CAB MTG 6HK1 TCS ENG(80L) L=40	1-47478-410-0	01	1	0107-	●
503	CONNECTOR ZF 9S109 OD M/T(Y2L) (A)	1-82690-974-0	01	1	0007-	●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-668-0	01	1	9601-9608	●	●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-668-0	01	1	9609-9609	●	●
503	CONNECTOR (B)	1-82690-668-0	01	1	9609-9609		●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-668-0	01	1	9610-9705	●	●
503	CONNECTOR 6HE1 TC ENG(57L) (B)	1-82690-668-0	01	1	9610-9705	●
503	CONNECTOR (B)	1-82690-668-0	01	1	9610-9705		●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-668-0	01	1	9706-9803	●	●
503	CONNECTOR 6HE1 TC ENG(57L) (B)	1-82690-668-0	01	1	9706-9803	●
503	CONNECTOR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	1-82690-668-0	01	1	9706-9803		●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-668-0	01	1	9804-0004	●
503	CONNECTOR 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	9804-0004	●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-668-0	01	1	0005-0106	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0005-0106	●
510	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	01	1	9611-9705	●
510	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	01	1	9706-9803	●	●
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	01	1	9804-0106	●
510	GROMMET; SCREW 6HK1 TCS ENG(80L) D=9.7X9.7 L=8	8-94222-314-0	01	1	0107-	●
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-0	01	1	0005-0906	●
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X30	1-74998-068-0	02	1	9609-9612	●
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X30	1-72498-014-1	02	1	9701-9705	●
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X30	1-72498-014-1	02	1	9706-9803	●	●
513	TAPE; SOFT,HARNESS 100X30	1-72498-014-1	02	1	9804-9903	●
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-0	02	1	9904-0002	●
513	TAPE; SOFT,HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 100X40	1-72498-022-0	02	1	0003-0106	●
513	TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 100X40	1-72498-022-0	04	1	0003-0003	●
513	TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 100X40	1-72498-022-0	05	1	0004-0106	●
530	SEAL; HARNESS 180X40	1-72498-019-1	06	1	0102-	●

16 171 16 16 16 16 16 148 168 148 121 168 171 171 462 514 116 421 121 171 223 231 470 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

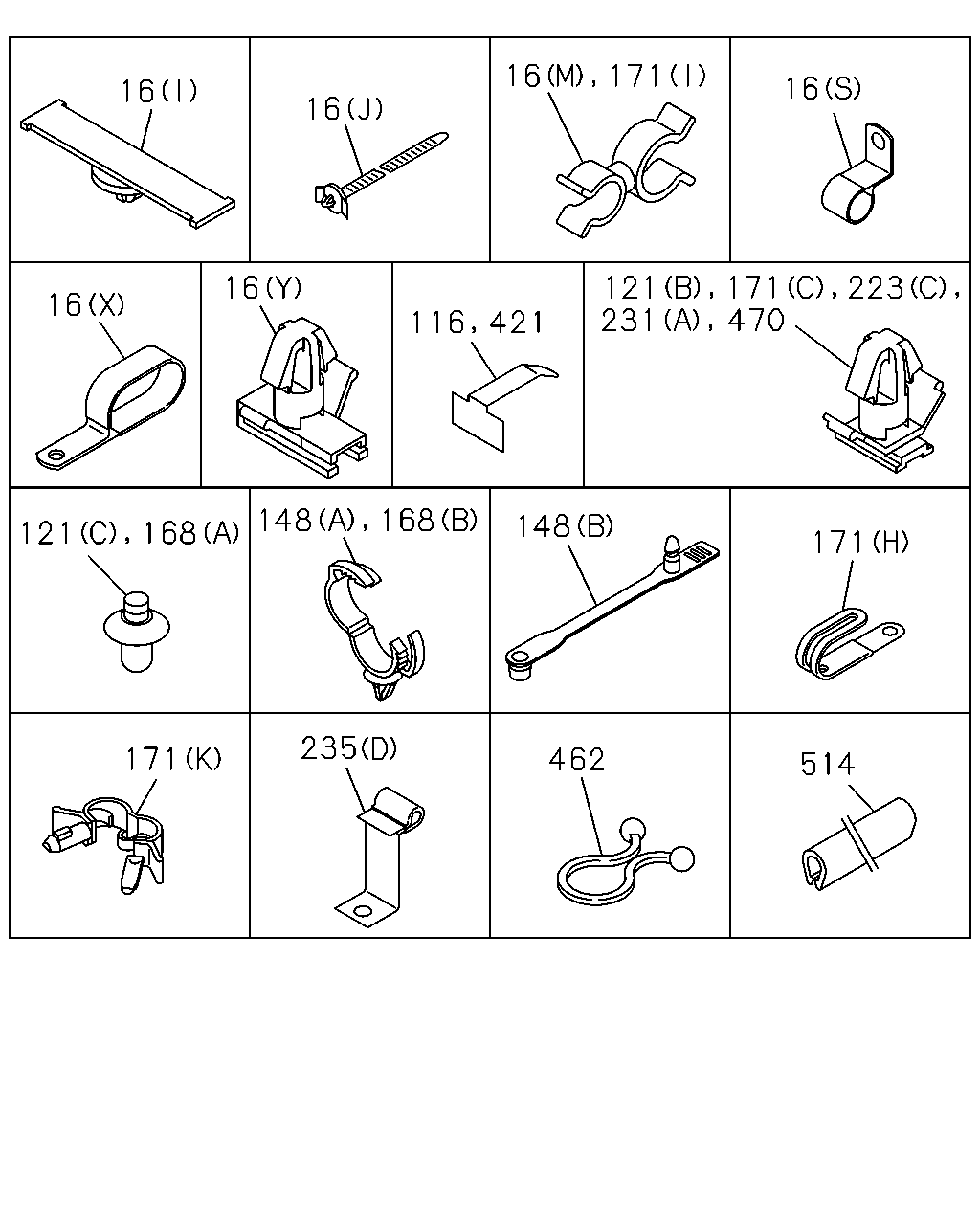

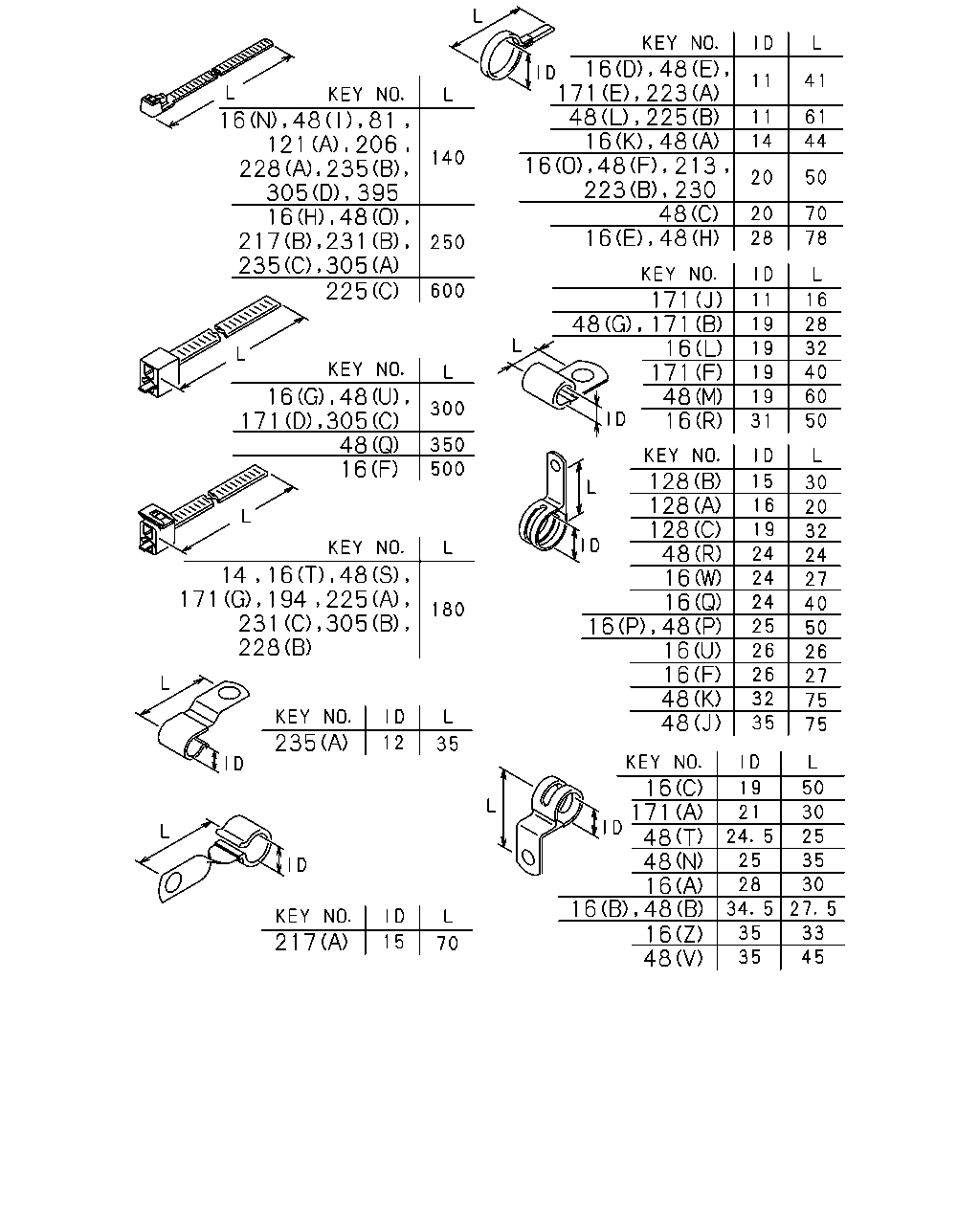

16	CLIP; HARNESS 6SD1 TCN ENG(31L) (Y) OD=9 H=6	8-97368-793-0	01	1	0412-	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (D) ID=11 L=41	1-09700-403-0	04	1	0412-	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (G) L=300	1-09707-001-1	01	1	0412-0503	●
16	CLIP; HARNESS (G) L=300	1-09707-001-1	01	1	0504-	●
16	CLIP; HARNESS (N) L=140	5-09707-031-0	01	1	9601-9609	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (N) L=140	5-09707-031-1	01	1	9610-	●
16	CLIP; HARNESS (O) ID=20 L=50	9-09917-430-0	03	1	9601-9609	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (O) ID=20 L=50	9-09917-430-0	03	1	9610-	●
16	CLIP; HARNESS (W) ID=24 L=27	1-09700-809-0	01	1	0107-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (P) ID=25 L=50	1-09701-019-0	01	1	9610-9705	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (P) ID=25 L=50	1-09701-019-0	01	1	9706-9803	●	●
16	CLIP; HARNESS (P) ID=25 L=50	1-09701-019-0	01	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (M) ID=12 & 16.5	8-94400-865-0	01	1	0107-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (Q) ID=24 L=40	1-09701-139-0	01	1	9610-9705	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (Q) ID=24 L=40	1-09701-139-0	01	1	9706-9803	●	●
16	CLIP; HARNESS (Q) ID=24 L=40	1-09701-139-0	01	1	9804-0106	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (R) ID=31 L=30	1-09700-969-0	02	1	0107-	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (S) ID=19 H=33 L=45	1-09701-045-0	01	1	9601-9801	●
16	CLIP; HARNESS (S) ID=19 H=33 L=45	1-09701-045-0	01	1	9601-9801		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (C) ID=19 H=21 L=50	1-09700-910-1	01	1	9802-9803	●
16	CLIP; HARNESS (C) ID=19 H=21 L=50	1-09700-910-1	01	1	9802-9803		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (C) ID=19 H=21 L=50	1-09700-910-1	01	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0107-	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (T) L=180	1-09707-162-0	01	1	9601-9803	●
16	CLIP; HARNESS (T) L=180	1-09707-162-0	01	1	9601-9803		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (T) L=180	1-09707-162-1	01	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (T) L=180	1-09707-162-1	01	1	0107-0302	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (L) ID=19 L=32	9-09525-866-0	01	1	9601-9803	●
16	CLIP; HARNESS (L) ID=19 L=32	9-09525-866-0	01	1	9601-9803		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (L) ID=19 L=32	9-09525-866-0	01	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (L) ID=19 L=32	9-09525-866-0	01	1	0107-0606	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (L) ID=19 L=32	0-95235-866-0	01	1	0607-	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (X) ID=20X2 L=55	1-09700-554-0	02	1	0201-	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	9601-9803	●	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (U) ID=26 L=26	1-09701-236-0	01	1	0107-	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	9601-9803	●	●
16	CLIP; HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (D) ID=11 L=41	1-09700-403-0	01	1	9804-0004	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0005-0106	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	0107-0411	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (D) ID=11 L=41	1-09700-403-0	05	1	0412-	●
16	CLIP; HARNESS (E) ID=28 L=78	1-09700-858-0	01	1	9601-9803	●	●
16	CLIP; HARNESS (E) ID=28 L=78	1-09700-858-0	01	1	9804-0410	●
16	CLIP; HARNESS (Z) ID=35 H=45 L=33	1-09701-047-0	01	1	0411-	●
16	CLIP; HARNESS (B) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9601-9803	●	●
16	CLIP; HARNESS (B) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9804-	●
16	CLIP; HARNESS (G) L=300	1-09707-001-0	01	1	9601-9803	●	●
16	CLIP; HARNESS (G) L=300	1-09707-001-1	01	1	9804-0411	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (G) L=300	1-09707-001-1	02	1	0412-0503	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (F) L=500	1-09707-082-1	01	1	0504-	●
16	CLIP; HARNESS (H) L=250	5-09707-030-0	01	1	9601-9803	●	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	9804-	●
16	CLIP; HARNESS (I) L=55	8-94432-655-0	06	1	9601-9705	●	●
16	CLIP; HARNESS (I) L=55	8-94432-655-0	06	1	9706-9803	●
16	CLIP; HARNESS POWER WINDOW<A30> (I) L=55	8-94432-655-0	06	1	9706-9803		●
16	CLIP; HARNESS (I) L=55	8-94432-655-0	06	1	9804-	●
16	CLIP; HARNESS (J) L=175	8-97110-167-0	04	1	9601-9705	●	●
16	CLIP; HARNESS (J) L=175	8-97110-167-0	04	1	9706-9803	●
16	CLIP; HARNESS POWER WINDOW<A30> (J) L=175	8-97110-167-0	04	1	9706-9803		●
16	CLIP; HARNESS (J) L=175	8-97110-167-0	04	1	9804-9904	●
16	CLIP; HARNESS (J) L=175	8-97110-167-0	06	1	9905-	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) ID=11 L=41	1-09700-403-0	02	1	9707-9803	●	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (D) ID=11 L=41	1-09700-403-0	02	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (C) ID=19 H=21 L=50	1-09700-910-1	01	1	0107-	●
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	9601-9609		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (K) ID=14 L=44	9-09917-427-0	03	1	9610-9705	●
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	9610-9705		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (K) ID=14 L=44	9-09917-427-0	03	1	9706-9803	●
16	CLIP; HARNESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (K) ID=14 L=44	9-09917-427-0	03	1	9706-9803		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (K) ID=14 L=44	9-09917-427-0	03	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (K) ID=14 L=44	9-09917-427-0	03	1	0107-	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	9601-9705	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	9706-9803	●
116	CLIP; ROOF HARNESS LOW ROOF<6XQ> L=20 SET=10 PIECE	1-09987-246-2	05	1	9706-9803		●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	9804-0009	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0010-0112	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0201-	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	02	1	9601-9705		●
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	02	1	9706-9803		●
121	CLIP; FACIA HARNESS (B) OD=6.8 H=5	8-97082-051-0	02	1	9601-	●
121	CLIP; FACIA HARNESS (A) L=140	5-09707-031-1	01	1	0005-	●
121	CLIP; FACIA HARNESS EXC. POWER WINDOW<A30> (C) OD=7 H=1.2	8-94364-750-0	02	1	9706-9803		●
148	CLIP; BAND,HEADLAMP HARNESS (B) L=85	8-94232-611-0	01	1	9601-9803	●	●
148	CLIP; BAND,HEADLAMP HARNESS (B) L=85	8-94232-611-0	01	1	9804-	●
148	CLIP; BAND,HEADLAMP HARNESS (A) ID=6 & 10-13	8-97069-515-0	01	1	9601-9803	●	●
148	CLIP; BAND,HEADLAMP HARNESS (A) ID=6 & 10-13	8-97069-515-0	01	1	9804-	●
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=7 H=1.2	8-94364-750-0	01	1	9805-0004	●
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	05	1	9601-9803	●	●
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	05	1	9804-	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (J) ID=11 L=16	9-09525-025-0	01	1	0402-0606	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (J) ID=11 L=16	0-95235-025-0	01	1	0607-	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (K) ID=5-12 L=14.5	1-09987-221-0	01	1	0402-	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) (D) L=300	1-09707-001-1	01	1	0107-0112	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (D) L=300	1-09707-001-1	01	1	0107-0112	●
171	CLIP; STARTER HARNESS (D) L=300	1-09707-001-1	01	1	0201-0209	●
171	CLIP; STARTER HARNESS (D) L=300	1-09707-001-1	01	1	0210-	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) (D) L=300	1-09707-001-1	01	1	0210-	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (E) ID=11 L=41	1-09700-403-0	01	1	0012-	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (A) ID=21 L=30 H=40	1-09700-991-1	02	1	0012-	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (F) ID=19 L=40	9-09525-876-0	01	1	0012-0606	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (F) ID=19 L=40	0-95235-876-0	01	1	0607-	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	02	1	9610-9702	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (F) ID=19 L=40	9-09525-876-0	01	1	9610-9702	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	9810-9903	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y) (B) ID=19 L=28	9-09525-856-0	03	1	9904-0004	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	0005-0106	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	04	1	0107-0109	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	05	1	0110-0606	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	0-95235-856-0	05	1	0607-	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) (A) ID=21 L=30 H=40	1-09700-991-1	01	1	9810-0106	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0107-	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) (D) L=300	1-09707-001-1	01	1	0005-0106	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) (G) L=180	1-09707-162-1	01	1	0107-	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) (I) ID=10 & 16.5	8-94360-745-0	01	1	0110-	●
171	CLIP; STARTER HARNESS (H) ID=18 L=44	8-94225-185-0	01	1	9601-9803	●	●
171	CLIP; STARTER HARNESS (H) ID=18 L=44	8-94225-185-0	01	1	9804-0106	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) (C) OD=9 H=6	1-09709-178-0	01	1	0107-	●
171	CLIP; STARTER HARNESS (A) ID=21 L=30 H=40	1-09700-991-1	01	1	9601-9705		●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) (A) ID=21 L=30 H=40	1-09700-991-1	01	1	9706-9803		●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y> (C) OD=9 H=6	1-09709-178-0	01	1	9601-9608		●
171	CLIP; STARTER HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	9601-9608		●
171	CLIP; STARTER HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	9609-9609		●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y> (C) OD=9 H=6	1-09709-178-0	01	1	9609-9609		●
171	CLIP; STARTER HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	9609-9609		●
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (C) OD=9 H=6	1-09709-178-0	01	1	9610-9803	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y> (C) OD=9 H=6	1-09709-178-0	01	1	9610-9803		●
171	CLIP; STARTER HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	9610-9803		●
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (C) OD=9 H=6	1-09709-178-0	01	1	9804-0004	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (C) OD=9 H=6	1-09709-178-0	02	1	0005-0011	●
171	CLIP; STARTER HARNESS MAL6 M/T<X9G>,MLD7 M/T<X9Z> (C) OD=9 H=6	1-09709-178-0	02	1	0012-0106	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (C) OD=9 H=6	1-09709-178-0	02	1	0107-	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9601-9609		●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9610-9702	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9610-9702		●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9703-9803	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	9703-9803	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9703-9803		●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9804-9809	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	9804-9809	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	04	1	9810-0106	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	0107-0606	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	0-95235-856-0	03	1	0607-	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (G) L=180	1-09707-162-0	01	1	9601-9609		●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (G) L=180	1-09707-162-0	01	1	9610-9803	●	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (G) L=180	1-09707-162-1	01	1	9804-0106	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) (H) ID=18 L=44	8-94225-185-0	01	1	0107-0801	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) (H) ID=18 L=44	8-97367-985-1	01	1	0802-	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) (B) ID=19 L=28	9-09525-856-0	01	1	9706-9803		●
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	9601-9609	●
223	CLIP; AIR TANK HARNESS 6SD1 TCN ENG(31L) (A) ID=11 L=41	1-09700-403-0	01	1	9610-	●
223	CLIP; AIR TANK HARNESS (C) OD=9 H=17.5	1-09709-181-0	01	1	9601-9803	●	●
223	CLIP; AIR TANK HARNESS (C) OD=9 H=17.5	1-09709-181-0	01	1	9804-	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	04	1	9601-9703	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	03	1	9704-9803	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	03	1	9804-0005	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	04	1	0006-0305	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	05	1	0306-	●
231	CLIP; BAND,OIL PRESS (B) L=250	5-09707-030-0	01	1	9601-9609	●
231	CLIP; BAND,OIL PRESS 6SD1 TCN ENG(31L) (B) L=250	5-09707-030-1	01	1	9610-0104	●
231	CLIP; BAND,OIL PRESS 6SD1 TCN ENG(31L) (C) L=180	1-09707-162-1	01	1	0105-0201	●
231	CLIP; BAND,OIL PRESS (C) L=180	1-09707-162-1	01	1	0202-	●
231	CLIP; BAND,OIL PRESS (C) L=180	1-09707-162-0	01	1	9601-9609		●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) (C) L=180	1-09707-162-0	01	1	9610-9803	●
231	CLIP; BAND,OIL PRESS (C) L=180	1-09707-162-0	01	1	9610-9803		●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) (C) L=180	1-09707-162-1	01	1	9804-0001	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) (A) OD=9 H=6	1-09709-178-0	01	1	0002-0106	●
231	CLIP; BAND,OIL PRESS 6HK1 TCS ENG(80L) (A) OD=9 H=6	1-09709-178-0	01	1	0107-0201	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=140	5-09707-031-0	01	1	9601-9609	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L) (B) L=140	5-09707-031-1	01	1	9610-9903	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y) (B) L=140	5-09707-031-1	01	1	9904-0004	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L) (B) L=140	5-09707-031-1	01	1	0005-0104	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L) (B) L=140	5-09707-031-1	02	1	0105-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=250	5-09707-030-0	01	1	9601-9609	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L) (C) L=250	5-09707-030-0	01	1	9610-9803	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ISUZU M/T<X9A> (C) L=250	5-09707-030-0	01	1	9610-9803	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=250	5-09707-030-0	01	1	9610-9803		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (D) ID=6 H=25 L=21	1-09700-432-0	01	1	9601-9609		●
235	CLIP; HARNESS,SPD SENSOR,SSPS ISUZU M/T<X9A> (D) ID=6 H=25 L=21	1-09700-432-0	01	1	9610-9803	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (D) ID=6 H=25 L=21	1-09700-432-0	01	1	9610-9803		●
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD7 M/T<X9Z> (A) ID=12 L=35	5-09700-206-0	01	1	9804-0011	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MAL6S M/T(Y1V) (A) ID=12 L=35	5-09700-206-0	01	1	0012-0106	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD7 M/T<X9Z> (A) ID=12 L=35	5-09700-206-0	01	1	0012-0106	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MAL6S M/T(Y1V) (A) ID=12 L=35	5-09700-206-0	01	1	0107-	●
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	9601-9803	●	●
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	9804-0101	●
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	01	1	0102-	●
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20	1-09709-068-0	02	1	9910-0106	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	9601-9803	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	9804-	●
514	FINISHER; HARNESS L=50	8-94270-377-1	01	1	0907-	●

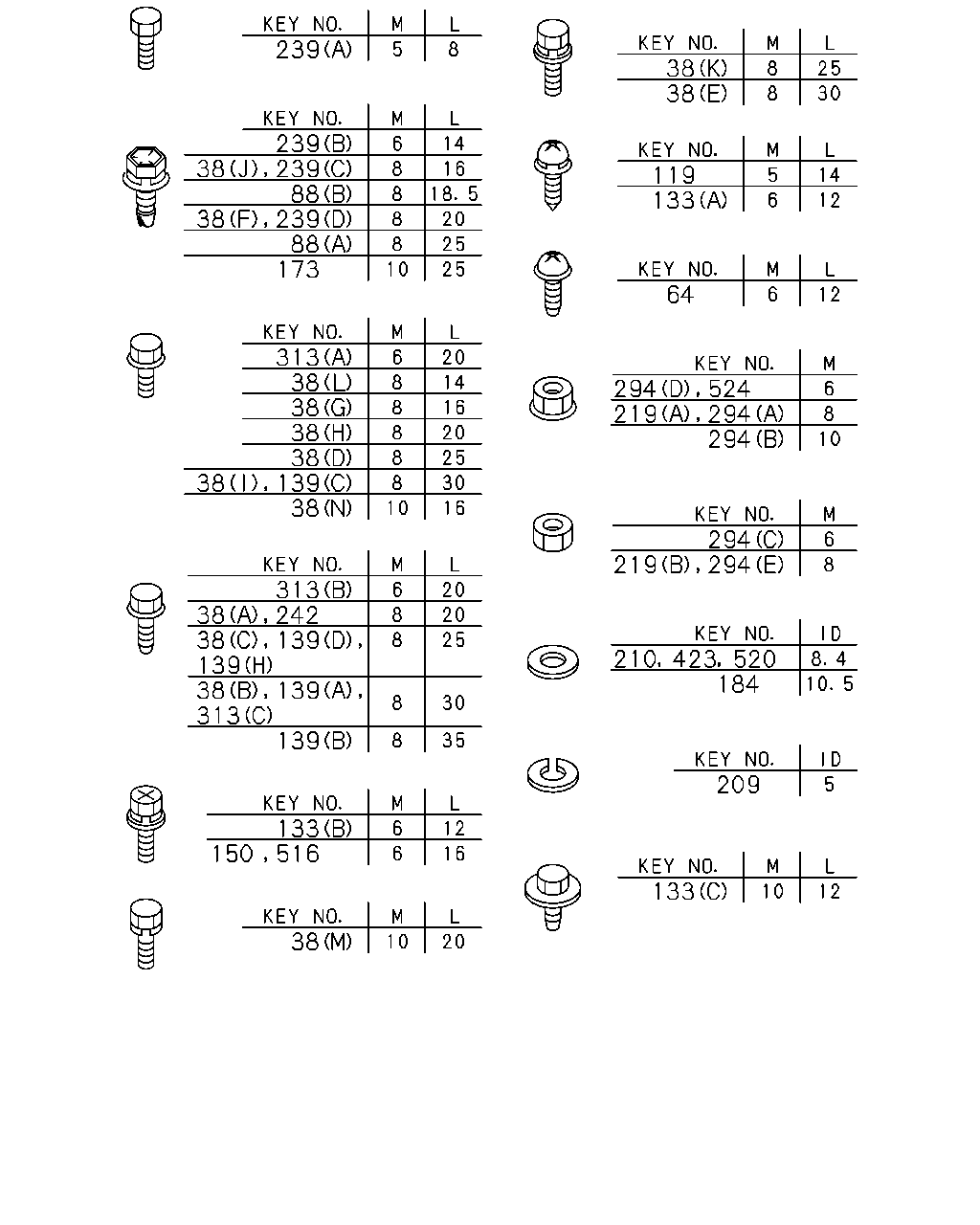

239 38 38 239 88 88 173 119 133 64 313 38 38 38 38 139 38 294 38 294 313 38 139 139 38 139 313 139 184 210 209 133 516 150 133 38 294 524 219 294 294 219 423 520 38 242 239 38 239 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS (H) M8X20 FLANGE	0-28080-820-0	03	1	9601-9608	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	03	1	9607-9609	●
38	BOLT; CLIP,HARNESS ZF 9S109 OD M/T(Y2L) (A) M8X20 FLANGE	0-28680-820-0	03	1	9610-9612	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	03	1	9610-9612	●
38	BOLT; CLIP,HARNESS ZF 9S109 OD M/T(Y2L) (A) M8X20 FLANGE	0-28680-820-0	03	1	9701-9903	●
38	BOLT; CLIP,HARNESS ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y) (A) M8X20 FLANGE	0-28680-820-0	03	1	9904-0004	●
38	BOLT; CLIP,HARNESS ZF 9S109 OD M/T(Y2L) (A) M8X20 FLANGE	0-28680-820-0	03	1	0005-0011	●
38	BOLT; CLIP,HARNESS MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (A) M8X20 FLANGE	0-28680-820-0	03	1	0012-0106	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
38	BOLT; CLIP,HARNESS (I) M8X30 FLANGE	0-28080-830-0	01	1	9606-9606	●
38	BOLT; CLIP,HARNESS (B) M8X30 FLANGE	0-28680-830-0	04	1	9607-9609	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) (B) M8X30 FLANGE	0-28680-830-0	04	1	9610-0106	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) (B) M8X30 FLANGE	0-28680-830-0	05	1	0107-0512	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) (B) M8X30 FLANGE	0-28650-830-0	05	1	0601-	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	02	1	9610-9612	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	03	1	9701-9705	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	03	1	9706-9803	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	03	1	9804-0106	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (H) M8X20 FLANGE	0-28080-820-0	03	1	0107-0112	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (H) M8X20 FLANGE	0-28080-820-0	05	1	0201-0512	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (H) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●
38	BOLT; CLIP,HARNESS MAL6 M/T<X9G> (A) M8X20 FLANGE	0-28680-820-0	01	1	0012-0106	●
38	BOLT; CLIP,HARNESS MAL6S M/T(Y1V) (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-0512	●
38	BOLT; CLIP,HARNESS MAL6S M/T(Y1V) (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) (H) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
38	BOLT; CLIP,HARNESS (H) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9612	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9612		●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9701-9705	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	9701-9705	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	02	1	9701-9705		●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9706-9803	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	9706-9803	●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9706-9803		●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9804-0106	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0107-1201	●
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-	●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) (G) M8X16 FLANGE	0-28080-816-0	01	1	9810-0106	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) (H) M8X20 FLANGE	0-28080-820-0	04	1	0107-0512	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) (H) M8X20 FLANGE	0-28050-820-0	04	1	0601-	●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	04	1	9701-9705	●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	04	1	9706-9803	●	●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	04	1	9804-0106	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
38	BOLT; CLIP,HARNESS (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9803	●	●
38	BOLT; CLIP,HARNESS (B) M8X30 FLANGE	0-28680-830-0	02	1	9804-0106	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (B) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9803	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	01	1	9804-0106	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (C) M8X25 FLANGE	0-28680-825-0	02	1	0107-0410	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (C) M8X25 FLANGE	0-28680-825-0	03	1	0411-0512	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (C) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9601-9609	●	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9610-9705	●	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (F) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9610-9705	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (F) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9706-9803	●	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9706-9803	●	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9804-9903	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9804-9903	●
38	BOLT; CLIP,HARNESS (J) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9904-9909	●
38	BOLT; CLIP,HARNESS (J) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9904-9909	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9910-0106	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9910-0106	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (A) M8X20 FLANGE	0-28680-820-0	05	1	0107-0109	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (A) M8X20 FLANGE	0-28680-820-0	06	1	0110-0512	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-	●
38	BOLT; CLIP,HARNESS (K) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9607-9702	●	●
38	BOLT; CLIP,HARNESS (E) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9703-9803	●	●
38	BOLT; CLIP,HARNESS (E) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9804-0512	●
38	BOLT; CLIP,HARNESS (E) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (L) M8X14 FLANGE	0-28080-814-0	04	1	9601-9606		●
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (G) M8X16 FLANGE	0-28080-816-0	04	1	9607-9609		●
38	BOLT; CLIP,HARNESS MLD7 M/T<X9Z> (G) M8X16 FLANGE	0-28080-816-0	04	1	9610-9803	●
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (G) M8X16 FLANGE	0-28080-816-0	04	1	9610-9803		●
38	BOLT; CLIP,HARNESS MLD7 M/T<X9Z> (G) M8X16 FLANGE	0-28080-816-0	04	1	9804-0106	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (G) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512	●
38	BOLT; CLIP,HARNESS 6HK1 TCS ENG(80L) (G) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (M) M10X20 W/LK WASHER	0-50051-020-0	01	1	9601-9606		●
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (N) M10X16 FLANGE	0-28181-016-0	01	1	9607-9609		●
38	BOLT; CLIP,HARNESS MLD7 M/T<X9Z> (N) M10X16 FLANGE	0-28181-016-0	01	1	9610-9803	●
38	BOLT; CLIP,HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (N) M10X16 FLANGE	0-28181-016-0	01	1	9610-9803		●
38	BOLT; CLIP,HARNESS MLD7 M/T<X9Z> (N) M10X16 FLANGE	0-28181-016-0	01	1	9804-0106	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) (C) M8X25 FLANGE	0-28680-825-0	01	1	0107-0410	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) (C) M8X25 FLANGE	0-28680-825-0	02	1	0411-0512	●
38	BOLT; CLIP,HARNESS 6SD1 TCN ENG(31L) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
64	SCREW; CLIP EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	9703-9705	●
64	SCREW; CLIP EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	9706-9803	●	●
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	9804-0106	●
64	SCREW; CLIP 6HK1 TCS ENG(80L) M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0107-	●
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	9601-9705	●	●
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	9706-9803	●
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	9706-9803		●
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	9804-1007	●
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-	●
88	BOLT; DOOR HARNESS EARTH DOOR WINDOW MANUAL CONT<SKF> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9706-9803		●
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	9601-9705	●	●
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	9706-9803	●
119	SCREW; DOOR HARNESS EARTH POWER WINDOW<A30> M5X14 W/PL WASHER	8-94447-551-0	02	1	9706-9803		●
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	9804-	●
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-0210	●
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9601-9803	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9804-0110	●
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-	●
139	BOLT; BRKT MAL6S M/T(Y1V) (B) M8X35 FLANGE	0-28680-835-0	01	1	0012-0512	●
139	BOLT; BRKT MAL6S M/T(Y1V) (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●
139	BOLT; BRKT (C) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
139	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●	●
139	BOLT; BRKT (B) M8X35 FLANGE	0-28680-835-0	02	1	9804-0512	●
139	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
139	BOLT; BRKT 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE	0-28680-830-0	01	1	9707-9803	●	●
139	BOLT; BRKT 6HE1 TC ENG(57L) (A) M8X30 FLANGE	0-28680-830-0	01	1	9804-0106	●
139	BOLT; BRKT 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (D) M8X25 FLANGE	0-28680-825-0	01	1	0107-0112	●
139	BOLT; BRKT 6SD1 TCN ENG(31L) (H) M8X20 FLANGE	0-28680-820-0	01	1	0201-0512	●
139	BOLT; BRKT 6SD1 TCN ENG(31L) (H) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
150	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9611-9702	●
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9601-9803	●	●
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9804-	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	9904-	●
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	9601-9803	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	9804-0603	●
209	WASHER; LK,GEN,EARTH ID=5.1	0-91510-505-0	01	1	0604-	●
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	9904-	●
219	NUT (B) M8	9-09110-408-0	02	1	9601-9606	●
219	NUT (B) M8	9-09110-408-0	02	1	9607-9608	●	●
219	NUT (B) M8	9-09110-408-0	02	1	9607-9608	●
219	NUT (B) M8	9-09110-408-0	02	1	9609-9609	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	04	1	9610-9612	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9701-9706	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9701-9706	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9707-9803	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9707-9803	●	●
219	NUT 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8 FLANGE	0-91150-108-0	01	1	9707-9803	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9804-9807	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9804-9807	●	●
219	NUT 6HE1 TC ENG(57L) (A) M8 FLANGE	0-91150-108-0	01	1	9804-9807	●	●
219	NUT 6SD1 TCN ENG(31L) (A) M8 FLANGE	0-91150-108-0	02	1	9808-0106	●
219	NUT 6SD1 TCN ENG(31L) (A) M8 FLANGE	0-91150-108-0	07	1	0107-0410	●
219	NUT 6SD1 TCN ENG(31L) (A) M8 FLANGE	0-91150-108-0	08	1	0411-0411	●
219	NUT (A) M8 FLANGE	0-91150-108-0	09	1	0412-0602	●
219	NUT (A) M8 FLANGE	0-91180-108-0	09	1	0603-	●
219	NUT (A) M8 FLANGE	0-91150-108-0	04	1	0005-0106	●
219	NUT 6HK1 TCS ENG(80L) (A) M8 FLANGE	0-91150-108-0	08	1	0107-0410	●
219	NUT 6HK1 TCS ENG(80L) (A) M8 FLANGE	0-91150-108-0	09	1	0411-0411	●
219	NUT 6HE1 TC ENG(57L) (A) M8 FLANGE	0-91150-108-0	04	1	9808-0004	●
219	NUT (A) M8 FLANGE	0-91150-108-0	04	1	9808-0004	●
219	NUT 6HE1 TC ENG(57L) (A) M8 FLANGE	0-91150-108-0	03	1	0005-0011	●
219	NUT 6HE1 TC ENG(57L) (A) M8 FLANGE	0-91150-108-0	03	1	0012-0106	●
219	NUT MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (A) M8 FLANGE	0-91150-108-0	03	1	0012-0106	●
219	NUT MAL6S M/T(Y1V) (A) M8 FLANGE	0-91150-108-0	03	1	0107-0109	●
219	NUT 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (A) M8 FLANGE	0-91150-108-0	03	1	0107-0109	●
219	NUT 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) M8 FLANGE	0-91150-108-0	03	1	0110-0602	●
219	NUT MAL6S M/T(Y1V) (A) M8 FLANGE	0-91150-108-0	03	1	0110-0602	●
219	NUT 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (A) M8 FLANGE	0-91180-108-0	03	1	0603-	●
219	NUT MAL6S M/T(Y1V) (A) M8 FLANGE	0-91180-108-0	03	1	0603-	●
219	NUT 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (A) M8 FLANGE	0-91150-108-0	04	1	0110-0602	●
219	NUT 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●
219	NUT (B) M8	9-09110-408-0	01	1	9601-9606	●	●
219	NUT (B) M8	9-09110-408-0	01	1	9601-9606	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9607-9609	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9607-9609	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	02	1	9610-9610	●	●
219	NUT ZF 9S109 OD M/T(Y2L) (A) M8 FLANGE	0-91150-108-0	02	1	9610-9610	●
219	NUT ZF 9S109 OD M/T(Y2L) (A) M8 FLANGE	0-91150-108-0	02	1	9610-9711	●
219	NUT (B) M8	9-09110-408-0	04	1	9601-9606	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	02	1	9607-9609	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9610-9612	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9610-9612	●	●
219	NUT EURO2 SPECIFICATION<THN> (A) M8 FLANGE	0-91150-108-0	01	1	9610-9612	●
219	NUT (A) M8 FLANGE	0-91150-108-0	04	1	9701-9705	●	●
219	NUT EURO2 SPECIFICATION<THN> (A) M8 FLANGE	0-91150-108-0	04	1	9701-9705	●
219	NUT EURO2 SPECIFICATION<THN> (A) M8 FLANGE	0-91150-108-0	04	1	9706-9803	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	04	1	9706-9803	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	04	1	9804-9807	●
219	NUT (A) M8 FLANGE	0-91150-108-0	04	1	9804-9807	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9808-0004	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	9808-0004	●
219	NUT 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) M8 FLANGE	0-91150-108-0	01	1	9808-0004	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	0005-0106	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	0005-0106	●	●
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	0005-0106	●	●
239	BOLT; GRAND (A) M5X8	0-20800-508-0	01	1	9601-9803	●	●
239	BOLT; GRAND (A) M5X8	0-20800-508-0	01	1	9804-	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9601-9803	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9804-0004	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9804-0004	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0005-1007	●
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-	●
239	BOLT; GRAND (D) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9601-9803	●	●
239	BOLT; GRAND (D) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9804-9903	●
239	BOLT; GRAND (C) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9904-1201	●
239	BOLT; GRAND (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-	●
242	BOLT; BRKT,HARNESS 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●
242	BOLT; BRKT,HARNESS 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
294	NUT MAL6 M/T<X9G> (B) M10 FLANGE	0-91150-210-0	01	1	0012-0106	●
294	NUT MAL6S M/T(Y1V) (B) M10 FLANGE	0-91150-210-0	01	1	0107-0602	●
294	NUT MAL6S M/T(Y1V) (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●
294	NUT MAL6S M/T(Y1V) (A) M8 FLANGE	0-91150-108-0	01	1	0012-0602	●
294	NUT MAL6S M/T(Y1V) (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
294	NUT (C) M6	9-09110-406-0	01	1	9601-9606	●	●
294	NUT (D) M6 FLANGE	0-91150-106-0	01	1	9607-9803	●	●
294	NUT (D) M6 FLANGE	0-91150-106-0	01	1	9804-0602	●
294	NUT (D) M6 FLANGE	0-91180-106-0	01	1	0603-	●
294	NUT (E) M8	9-09110-408-0	02	1	9601-9606	●	●
294	NUT (A) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
294	NUT (A) M8 FLANGE	0-91150-108-0	02	1	9804-0602	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
313	BOLT; BRKT 6SD1 TCN ENG(31L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0412-0512	●
313	BOLT; BRKT 6SD1 TCN ENG(31L) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
313	BOLT; BRKT (A) M6X20 FLANGE	0-28080-620-0	01	1	9601-9606	●	●
313	BOLT; BRKT (B) M6X20 FLANGE	0-28680-620-0	01	1	9607-9803	●	●
313	BOLT; BRKT (B) M6X20 FLANGE	0-28680-620-0	01	1	9804-0512	●
313	BOLT; BRKT (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	9904-9909	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	9904-9909	●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9803	●	●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-	●
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	9904-	●
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	9601-9803	●	●
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	9804-0602	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0603-	●

16 48 81 121 206 228 235 305 395 16 48 217 231 235 305 225 16 48 171 305 48 16 48 16 14 171 194 225 231 305 228 235 217 48 16 16 48 16 48 48 171 16 48 48 16 16 16 48 16 16 48 128 128 128 16 48 171 16 48 171 171 16 48 48 230 223 16 48 213 48 16 48 171 16 48 223 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS L=180	1-09707-162-0	01	1	9601-9803	●	●
14	CLIP; BAND,HARNESS L=180	1-09707-162-1	01	1	9804-	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (Y) OD=9 H=6	8-97368-793-0	01	1	0412-	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (D) ID=11 L=41	1-09700-403-0	04	1	0412-	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (G) L=300	1-09707-001-1	01	1	0412-0503	●
16	CLIP; HARNESS (G) L=300	1-09707-001-1	01	1	0504-	●
16	CLIP; HARNESS (N) L=140	5-09707-031-0	01	1	9601-9609	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (N) L=140	5-09707-031-1	01	1	9610-	●
16	CLIP; HARNESS (O) ID=20 L=50	9-09917-430-0	03	1	9601-9609	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (O) ID=20 L=50	9-09917-430-0	03	1	9610-	●
16	CLIP; HARNESS (W) ID=24 L=27	1-09700-809-0	01	1	0107-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (P) ID=25 L=50	1-09701-019-0	01	1	9610-9705	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (P) ID=25 L=50	1-09701-019-0	01	1	9706-9803	●	●
16	CLIP; HARNESS (P) ID=25 L=50	1-09701-019-0	01	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (M) ID=12 & 16.5	8-94400-865-0	01	1	0107-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (Q) ID=24 L=40	1-09701-139-0	01	1	9610-9705	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (Q) ID=24 L=40	1-09701-139-0	01	1	9706-9803	●	●
16	CLIP; HARNESS (Q) ID=24 L=40	1-09701-139-0	01	1	9804-0106	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (R) ID=31 L=30	1-09700-969-0	02	1	0107-	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (S) ID=19 H=33 L=45	1-09701-045-0	01	1	9601-9801	●
16	CLIP; HARNESS (S) ID=19 H=33 L=45	1-09701-045-0	01	1	9601-9801		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (C) ID=19 H=21 L=50	1-09700-910-1	01	1	9802-9803	●
16	CLIP; HARNESS (C) ID=19 H=21 L=50	1-09700-910-1	01	1	9802-9803		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (C) ID=19 H=21 L=50	1-09700-910-1	01	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0107-	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (T) L=180	1-09707-162-0	01	1	9601-9803	●
16	CLIP; HARNESS (T) L=180	1-09707-162-0	01	1	9601-9803		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (T) L=180	1-09707-162-1	01	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (T) L=180	1-09707-162-1	01	1	0107-0302	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (L) ID=19 L=32	9-09525-866-0	01	1	9601-9803	●
16	CLIP; HARNESS (L) ID=19 L=32	9-09525-866-0	01	1	9601-9803		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (L) ID=19 L=32	9-09525-866-0	01	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (L) ID=19 L=32	9-09525-866-0	01	1	0107-0606	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (L) ID=19 L=32	0-95235-866-0	01	1	0607-	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (X) ID=20X2 L=55	1-09700-554-0	02	1	0201-	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	9601-9803	●	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (U) ID=26 L=26	1-09701-236-0	01	1	0107-	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	9601-9803	●	●
16	CLIP; HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (D) ID=11 L=41	1-09700-403-0	01	1	9804-0004	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0005-0106	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	0107-0411	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (D) ID=11 L=41	1-09700-403-0	05	1	0412-	●
16	CLIP; HARNESS (E) ID=28 L=78	1-09700-858-0	01	1	9601-9803	●	●
16	CLIP; HARNESS (E) ID=28 L=78	1-09700-858-0	01	1	9804-0410	●
16	CLIP; HARNESS (Z) ID=35 H=45 L=33	1-09701-047-0	01	1	0411-	●
16	CLIP; HARNESS (B) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9601-9803	●	●
16	CLIP; HARNESS (B) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9804-	●
16	CLIP; HARNESS (G) L=300	1-09707-001-0	01	1	9601-9803	●	●
16	CLIP; HARNESS (G) L=300	1-09707-001-1	01	1	9804-0411	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (G) L=300	1-09707-001-1	02	1	0412-0503	●
16	CLIP; HARNESS 6SD1 TCN ENG(31L) (F) L=500	1-09707-082-1	01	1	0504-	●
16	CLIP; HARNESS (H) L=250	5-09707-030-0	01	1	9601-9803	●	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	9804-	●
16	CLIP; HARNESS (I) L=55	8-94432-655-0	06	1	9601-9705	●	●
16	CLIP; HARNESS (I) L=55	8-94432-655-0	06	1	9706-9803	●
16	CLIP; HARNESS POWER WINDOW<A30> (I) L=55	8-94432-655-0	06	1	9706-9803		●
16	CLIP; HARNESS (I) L=55	8-94432-655-0	06	1	9804-	●
16	CLIP; HARNESS (J) L=175	8-97110-167-0	04	1	9601-9705	●	●
16	CLIP; HARNESS (J) L=175	8-97110-167-0	04	1	9706-9803	●
16	CLIP; HARNESS POWER WINDOW<A30> (J) L=175	8-97110-167-0	04	1	9706-9803		●
16	CLIP; HARNESS (J) L=175	8-97110-167-0	04	1	9804-9904	●
16	CLIP; HARNESS (J) L=175	8-97110-167-0	06	1	9905-	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) ID=11 L=41	1-09700-403-0	02	1	9707-9803	●	●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (D) ID=11 L=41	1-09700-403-0	02	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (C) ID=19 H=21 L=50	1-09700-910-1	01	1	0107-	●
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	9601-9609		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (K) ID=14 L=44	9-09917-427-0	03	1	9610-9705	●
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	9610-9705		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (K) ID=14 L=44	9-09917-427-0	03	1	9706-9803	●
16	CLIP; HARNESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (K) ID=14 L=44	9-09917-427-0	03	1	9706-9803		●
16	CLIP; HARNESS 6HE1 TC ENG(57L) (K) ID=14 L=44	9-09917-427-0	03	1	9804-0106	●
16	CLIP; HARNESS 6HK1 TCS ENG(80L) (K) ID=14 L=44	9-09917-427-0	03	1	0107-	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	07	1	9601-9603	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	9604-9604	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	9605-9803	●	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (C) ID=20 L=70	1-09700-485-0	01	1	9804-0004	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (C) ID=20 L=70	1-09700-485-0	07	1	0005-0106	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (C) ID=20 L=70	1-09700-485-0	11	1	0107-	●
48	CLIP; FRAME HARNESS (J) ID=35 L=75	1-09700-608-2	01	1	9601-9609	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (J) ID=35 L=75	1-09700-608-2	01	1	9610-	●
48	CLIP; FRAME HARNESS (K) ID=32 L=75	1-09700-704-1	02	1	9601-9609	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (K) ID=32 L=75	1-09700-704-1	02	1	9610-	●
48	CLIP; FRAME HARNESS (H) ID=28 L=78	1-09700-858-0	03	1	9601-9609	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (H) ID=28 L=78	1-09700-858-0	03	1	9610-	●
48	CLIP; FRAME HARNESS (F) ID=20 L=50	9-09917-430-0	04	1	9601-9603	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	10	1	9604-9609	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (C) ID=20 L=70	1-09700-485-0	10	1	9610-9803	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (C) ID=20 L=70	1-09700-485-0	03	1	9804-0004	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (C) ID=20 L=70	1-09700-485-0	01	1	0005-0106	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (E) ID=11 L=41	1-09700-403-0	04	1	0107-	●
48	CLIP; FRAME HARNESS (F) ID=20 L=50	9-09917-430-0	03	1	9601-9609	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (F) ID=20 L=50	9-09917-430-0	03	1	9610-9806	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (F) ID=20 L=50	9-09917-430-0	02	1	9807-0106	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (L) ID=11 L=61	1-09700-484-0	08	1	0107-	●
48	CLIP; FRAME HARNESS (M) ID=19 L=60	9-09525-896-0	01	1	9606-9609	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (M) ID=19 L=60	9-09525-896-0	01	1	9610-0606	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (M) ID=19 L=60	0-95235-896-0	01	1	0607-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (N) ID=25 H=30 L=35	1-09700-875-0	02	1	9610-9612	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (I) L=140	5-09707-031-0	01	1	9701-9702	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (O) L=250	5-09707-030-0	01	1	9703-9703	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (O) L=250	5-09707-030-0	01	1	9704-9705	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (O) L=250	5-09707-030-0	01	1	9704-9705	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (O) L=250	5-09707-030-0	01	1	9706-9803	●	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (O) L=250	5-09707-030-0	01	1	9706-9803	●	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (O) L=250	5-09707-030-1	01	1	9804-0004	●
48	CLIP; FRAME HARNESS (O) L=250	5-09707-030-1	01	1	9804-0004	●
48	CLIP; FRAME HARNESS (O) L=250	5-09707-030-1	01	1	0005-0106	●
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (O) L=250	5-09707-030-1	01	1	0005-0106	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (O) L=250	5-09707-030-1	01	1	0005-0106	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (P) ID=25 L=50	1-09700-976-0	01	1	9610-9612	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (P) ID=25 L=50	1-09700-976-0	02	1	9701-9705	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (P) ID=25 L=50	1-09700-976-0	02	1	9706-9803	●	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (P) ID=25 L=50	1-09700-976-0	02	1	9804-0106	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (L) ID=11 L=61	1-09700-484-0	08	1	9601-9609	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (L) ID=11 L=61	1-09700-484-0	08	1	9610-0106	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (E) ID=11 L=41	1-09700-403-0	07	1	9601-9803	●
48	CLIP; FRAME HARNESS (E) ID=11 L=41	1-09700-403-0	07	1	9601-9803		●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (E) ID=11 L=41	1-09700-403-0	07	1	9804-0106	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (C) ID=20 L=70	1-09700-485-0	05	1	9601-9803	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	05	1	9601-9803		●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (C) ID=20 L=70	1-09700-485-0	05	1	9804-9808	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (C) ID=20 L=70	1-09700-485-0	04	1	9809-0004	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (C) ID=20 L=70	1-09700-485-0	05	1	0005-0106	●
48	CLIP; FRAME HARNESS 6HK1 TCS ENG(80L) (C) ID=20 L=70	1-09700-485-0	05	1	0107-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (H) ID=28 L=78	1-09700-858-0	04	1	9601-9803	●
48	CLIP; FRAME HARNESS (H) ID=28 L=78	1-09700-858-0	04	1	9601-9803		●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (H) ID=28 L=78	1-09700-858-0	04	1	9804-0106	●
48	CLIP; FRAME HARNESS 6HK1 TCS ENG(80L) (H) ID=28 L=78	1-09700-858-0	04	1	0107-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (A) ID=14 L=44	9-09917-427-0	02	1	9601-9803	●
48	CLIP; FRAME HARNESS (A) ID=14 L=44	9-09917-427-0	02	1	9601-9803		●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (A) ID=14 L=44	9-09917-427-0	02	1	9804-0106	●
48	CLIP; FRAME HARNESS 6HK1 TCS ENG(80L) (A) ID=14 L=44	9-09917-427-0	01	1	0107-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (F) ID=20 L=50	9-09917-430-0	01	1	9601-9803	●
48	CLIP; FRAME HARNESS (F) ID=20 L=50	9-09917-430-0	01	1	9601-9803		●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (F) ID=20 L=50	9-09917-430-0	01	1	9804-9806	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (F) ID=20 L=50	9-09917-430-0	01	1	9807-0004	●
48	CLIP; FRAME HARNESS (F) ID=20 L=50	9-09917-430-0	01	1	0005-0106	●
48	CLIP; FRAME HARNESS (F) ID=20 L=50	9-09917-430-0	03	1	0107-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (Q) L=350	1-09707-183-0	01	1	0005-0106	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (I) L=140	5-09707-031-1	03	1	0005-0106	●
48	CLIP; FRAME HARNESS 6HK1 TCS ENG(80L) (I) L=140	5-09707-031-1	04	1	0107-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (N) ID=25 H=30 L=35	1-09700-875-0	02	1	9701-9703	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (N) ID=25 H=30 L=35	1-09700-875-0	01	1	9704-9705	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (N) ID=25 H=30 L=35	1-09700-875-0	01	1	9706-9803	●	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (N) ID=25 H=30 L=35	1-09700-875-0	01	1	9804-0005	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (R) ID=24 H=40 L=24	1-09701-243-0	01	1	9704-9705	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (R) ID=24 H=40 L=24	1-09701-243-0	01	1	9706-9803	●	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (R) ID=24 H=40 L=24	1-09701-243-0	01	1	9804-0005	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (R) ID=24 H=40 L=24	1-09701-243-0	01	1	0006-0106	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (R) ID=24 H=40 L=24	1-09701-243-0	01	1	0006-0106	●
48	CLIP; FRAME HARNESS 6HK1 TCS ENG(80L) WHEEL BASE 5600MM(56W) (F) ID=20 L=50	9-09917-430-0	19	1	0202-	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> (T) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9701-9803	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (T) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9804-0106	●
48	CLIP; FRAME HARNESS (S) L=180	1-09707-162-0	01	1	9601-9703	●	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (S) L=180	1-09707-162-1	01	1	9704-0104	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (U) L=300	1-09707-001-1	01	1	0105-0209	●
48	CLIP; FRAME HARNESS (G) ID=19 L=28	9-09525-856-0	01	1	9601-9803	●	●
48	CLIP; FRAME HARNESS (G) ID=19 L=28	9-09525-856-0	01	1	9804-0606	●
48	CLIP; FRAME HARNESS (G) ID=19 L=28	0-95235-856-0	01	1	0607-	●
48	CLIP; FRAME HARNESS (B) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9601-9803	●	●
48	CLIP; FRAME HARNESS (B) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9804-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (F) ID=20 L=50	9-09917-430-0	18	1	9601-9803	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (F) ID=20 L=50	9-09917-430-0	18	1	9804-0106	●
48	CLIP; FRAME HARNESS WHEEL BASE 5600MM(56W) (F) ID=20 L=50	9-09917-430-0	19	1	0107-0201	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) WHEEL BASE 5600MM(56W) (F) ID=20 L=50	9-09917-430-0	18	1	0202-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (F) ID=20 L=50	9-09917-430-0	21	1	9601-9803	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (F) ID=20 L=50	9-09917-430-0	21	1	9804-0106	●
48	CLIP; FRAME HARNESS WHEEL BASE 6100MM(61W) (F) ID=20 L=50	9-09917-430-0	21	1	0107-	●
48	CLIP; FRAME HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	9601-9609		●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (E) ID=11 L=41	1-09700-403-0	01	1	9610-9705	●
48	CLIP; FRAME HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	9610-9705		●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (E) ID=11 L=41	1-09700-403-0	01	1	9706-9803	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (E) ID=11 L=41	1-09700-403-0	01	1	9706-9803		●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) (E) ID=11 L=41	1-09700-403-0	01	1	9804-0106	●
48	CLIP; FRAME HARNESS 6HK1 TCS ENG(80L) (E) ID=11 L=41	1-09700-403-0	09	1	0107-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (F) ID=20 L=50	9-09917-430-0	15	1	9601-9609		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (F) ID=20 L=50	9-09917-430-0	15	1	9610-9803	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (F) ID=20 L=50	9-09917-430-0	15	1	9804-0106	●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM(47W) (F) ID=20 L=50	9-09917-430-0	15	1	0107-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (F) ID=20 L=50	9-09917-430-0	16	1	9706-9803		●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (C) ID=20 L=70	1-09700-485-0	07	1	9804-0004	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (C) ID=20 L=70	1-09700-485-0	03	1	0005-0106	●
48	CLIP; FRAME HARNESS 6SD1 TCN ENG(31L) (V) ID=35 H=45 L=33	1-09701-047-0	02	1	0107-	●
81	CLIP; HARNESS L=140	5-09707-031-0	02	1	9601-9803	●	●
81	CLIP; HARNESS L=140	5-09707-031-1	02	1	9804-	●
121	CLIP; FACIA HARNESS (B) OD=6.8 H=5	8-97082-051-0	02	1	9601-	●
121	CLIP; FACIA HARNESS (A) L=140	5-09707-031-1	01	1	0005-	●
121	CLIP; FACIA HARNESS EXC. POWER WINDOW<A30> (C) OD=7 H=1.2	8-94364-750-0	02	1	9706-9803		●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	9601-9803	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	9804-0606	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=19 L=32	9-09525-862-0	01	1	9601-9803	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=19 L=32	9-09525-862-0	01	1	9804-0011	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0012-	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (J) ID=11 L=16	9-09525-025-0	01	1	0402-0606	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (J) ID=11 L=16	0-95235-025-0	01	1	0607-	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (K) ID=5-12 L=14.5	1-09987-221-0	01	1	0402-	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) (D) L=300	1-09707-001-1	01	1	0107-0112	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (D) L=300	1-09707-001-1	01	1	0107-0112	●
171	CLIP; STARTER HARNESS (D) L=300	1-09707-001-1	01	1	0201-0209	●
171	CLIP; STARTER HARNESS (D) L=300	1-09707-001-1	01	1	0210-	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) (D) L=300	1-09707-001-1	01	1	0210-	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (E) ID=11 L=41	1-09700-403-0	01	1	0012-	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (A) ID=21 L=30 H=40	1-09700-991-1	02	1	0012-	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (F) ID=19 L=40	9-09525-876-0	01	1	0012-0606	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (F) ID=19 L=40	0-95235-876-0	01	1	0607-	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	02	1	9610-9702	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (F) ID=19 L=40	9-09525-876-0	01	1	9610-9702	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	9810-9903	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y) (B) ID=19 L=28	9-09525-856-0	03	1	9904-0004	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	0005-0106	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	04	1	0107-0109	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	05	1	0110-0606	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	0-95235-856-0	05	1	0607-	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) (A) ID=21 L=30 H=40	1-09700-991-1	01	1	9810-0106	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) ZF 9S109 OD M/T(Y2L) (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0107-	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) (D) L=300	1-09707-001-1	01	1	0005-0106	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) (G) L=180	1-09707-162-1	01	1	0107-	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) (I) ID=10 & 16.5	8-94360-745-0	01	1	0110-	●
171	CLIP; STARTER HARNESS (H) ID=18 L=44	8-94225-185-0	01	1	9601-9803	●	●
171	CLIP; STARTER HARNESS (H) ID=18 L=44	8-94225-185-0	01	1	9804-0106	●
171	CLIP; STARTER HARNESS 6HK1 TCS ENG(80L) (C) OD=9 H=6	1-09709-178-0	01	1	0107-	●
171	CLIP; STARTER HARNESS (A) ID=21 L=30 H=40	1-09700-991-1	01	1	9601-9705		●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) (A) ID=21 L=30 H=40	1-09700-991-1	01	1	9706-9803		●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y> (C) OD=9 H=6	1-09709-178-0	01	1	9601-9608		●
171	CLIP; STARTER HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	9601-9608		●
171	CLIP; STARTER HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	9609-9609		●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y> (C) OD=9 H=6	1-09709-178-0	01	1	9609-9609		●
171	CLIP; STARTER HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	9609-9609		●
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (C) OD=9 H=6	1-09709-178-0	01	1	9610-9803	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y> (C) OD=9 H=6	1-09709-178-0	01	1	9610-9803		●
171	CLIP; STARTER HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	9610-9803		●
171	CLIP; STARTER HARNESS ISUZU M/T<X9A> (C) OD=9 H=6	1-09709-178-0	01	1	9804-0004	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (C) OD=9 H=6	1-09709-178-0	02	1	0005-0011	●
171	CLIP; STARTER HARNESS MAL6 M/T<X9G>,MLD7 M/T<X9Z> (C) OD=9 H=6	1-09709-178-0	02	1	0012-0106	●
171	CLIP; STARTER HARNESS MAL6S M/T(Y1V) (C) OD=9 H=6	1-09709-178-0	02	1	0107-	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9601-9609		●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9610-9702	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9610-9702		●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9703-9803	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	9703-9803	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9703-9803		●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	03	1	9804-9809	●
171	CLIP; STARTER HARNESS ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	9804-9809	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (B) ID=19 L=28	9-09525-856-0	04	1	9810-0106	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	9-09525-856-0	03	1	0107-0606	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) (B) ID=19 L=28	0-95235-856-0	03	1	0607-	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (G) L=180	1-09707-162-0	01	1	9601-9609		●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (G) L=180	1-09707-162-0	01	1	9610-9803	●	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (G) L=180	1-09707-162-1	01	1	9804-0106	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) (H) ID=18 L=44	8-94225-185-0	01	1	0107-0801	●
171	CLIP; STARTER HARNESS 6SD1 TCN ENG(31L) (H) ID=18 L=44	8-97367-985-1	01	1	0802-	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) (B) ID=19 L=28	9-09525-856-0	01	1	9706-9803		●
194	CLIP; BAND L=180	1-09707-162-0	03	1	9601-9803	●	●
194	CLIP; BAND L=180	1-09707-162-1	03	1	9804-	●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-0	02	1	9601-9803	●	●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	9804-	●
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	9601-9803	●	●
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	9804-	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9601-9803	●	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9804-0209	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-0	02	1	9601-9803	●	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	9804-	●
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	9601-9609	●
223	CLIP; AIR TANK HARNESS 6SD1 TCN ENG(31L) (A) ID=11 L=41	1-09700-403-0	01	1	9610-	●
223	CLIP; AIR TANK HARNESS (C) OD=9 H=17.5	1-09709-181-0	01	1	9601-9803	●	●
223	CLIP; AIR TANK HARNESS (C) OD=9 H=17.5	1-09709-181-0	01	1	9804-	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	04	1	9601-9703	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	03	1	9704-9803	●	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	03	1	9804-0005	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	04	1	0006-0305	●
223	CLIP; AIR TANK HARNESS (B) ID=20 L=50	9-09917-430-0	05	1	0306-	●
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-0	01	1	9601-9803	●	●
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	9804-0112	●
225	CLIP; AIR TANK HARNESS (C) L=600	1-09707-107-1	01	1	0201-	●
225	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) ID=11 L=61	1-09700-484-0	02	1	9601-0106	●	●
225	CLIP; AIR TANK HARNESS (B) ID=11 L=61	1-09700-484-0	02	1	0107-	●
228	CLIP; COOLER HARNESS (A) L=140	5-09707-031-0	01	1	9601-9609		●
228	CLIP; COOLER HARNESS 6HE1 TC ENG(57L) (A) L=140	5-09707-031-0	01	1	9610-9803	●
228	CLIP; COOLER HARNESS (A) L=140	5-09707-031-0	01	1	9610-9803		●
228	CLIP; COOLER HARNESS (A) L=140	5-09707-031-1	01	1	9804-0112	●
228	CLIP; COOLER HARNESS (B) L=180	1-09707-162-1	01	1	0201-0405	●
228	CLIP; COOLER HARNESS (A) L=140	5-09707-031-1	01	1	0406-	●
230	CLIP; C/MBR HARNESS ID=20 L=50	9-09917-430-0	02	1	9601-9803	●	●
230	CLIP; C/MBR HARNESS ID=20 L=50	9-09917-430-0	02	1	9804-	●
231	CLIP; BAND,OIL PRESS (B) L=250	5-09707-030-0	01	1	9601-9609	●
231	CLIP; BAND,OIL PRESS 6SD1 TCN ENG(31L) (B) L=250	5-09707-030-1	01	1	9610-0104	●
231	CLIP; BAND,OIL PRESS 6SD1 TCN ENG(31L) (C) L=180	1-09707-162-1	01	1	0105-0201	●
231	CLIP; BAND,OIL PRESS (C) L=180	1-09707-162-1	01	1	0202-	●
231	CLIP; BAND,OIL PRESS (C) L=180	1-09707-162-0	01	1	9601-9609		●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) (C) L=180	1-09707-162-0	01	1	9610-9803	●
231	CLIP; BAND,OIL PRESS (C) L=180	1-09707-162-0	01	1	9610-9803		●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) (C) L=180	1-09707-162-1	01	1	9804-0001	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) (A) OD=9 H=6	1-09709-178-0	01	1	0002-0106	●
231	CLIP; BAND,OIL PRESS 6HK1 TCS ENG(80L) (A) OD=9 H=6	1-09709-178-0	01	1	0107-0201	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=140	5-09707-031-0	01	1	9601-9609	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L) (B) L=140	5-09707-031-1	01	1	9610-9903	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y) (B) L=140	5-09707-031-1	01	1	9904-0004	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L) (B) L=140	5-09707-031-1	01	1	0005-0104	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L) (B) L=140	5-09707-031-1	02	1	0105-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=250	5-09707-030-0	01	1	9601-9609	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ZF 9S109 OD M/T(Y2L) (C) L=250	5-09707-030-0	01	1	9610-9803	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ISUZU M/T<X9A> (C) L=250	5-09707-030-0	01	1	9610-9803	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=250	5-09707-030-0	01	1	9610-9803		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (D) ID=6 H=25 L=21	1-09700-432-0	01	1	9601-9609		●
235	CLIP; HARNESS,SPD SENSOR,SSPS ISUZU M/T<X9A> (D) ID=6 H=25 L=21	1-09700-432-0	01	1	9610-9803	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (D) ID=6 H=25 L=21	1-09700-432-0	01	1	9610-9803		●
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD7 M/T<X9Z> (A) ID=12 L=35	5-09700-206-0	01	1	9804-0011	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MAL6S M/T(Y1V) (A) ID=12 L=35	5-09700-206-0	01	1	0012-0106	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD7 M/T<X9Z> (A) ID=12 L=35	5-09700-206-0	01	1	0012-0106	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MAL6S M/T(Y1V) (A) ID=12 L=35	5-09700-206-0	01	1	0107-	●
305	CLIP; ENG HARNESS 6SD1 TCN ENG(31L) (D) L=140	5-09707-031-1	01	1	0405-	●
305	CLIP; ENG HARNESS 6HE1 TC ENG(57L) (B) L=180	1-09707-162-1	01	1	0002-0106	●
305	CLIP; ENG HARNESS 6HK1 TCS ENG(80L) (B) L=180	1-09707-162-1	01	1	0107-0201	●
305	CLIP; ENG HARNESS 6SD1 TCN ENG(31L) (C) L=300	1-09707-001-0	01	1	9701-9803	●
305	CLIP; ENG HARNESS 6SD1 TCN ENG(31L) (C) L=300	1-09707-001-1	01	1	9804-	●
305	CLIP; ENG HARNESS 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) L=140	5-09707-031-0	01	1	9701-9705	●
305	CLIP; ENG HARNESS 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) L=140	5-09707-031-0	01	1	9706-9706	●
305	CLIP; ENG HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) L=140	5-09707-031-0	01	1	9706-9706		●
305	CLIP; ENG HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) L=140	5-09707-031-0	01	1	9706-9803	●	●
305	CLIP; ENG HARNESS 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) L=140	5-09707-031-0	01	1	9706-9803	●
305	CLIP; ENG HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) L=140	5-09707-031-0	01	1	9706-9803		●
305	CLIP; ENG HARNESS 6HE1 TC ENG(57L) (D) L=140	5-09707-031-1	01	1	9804-0001	●
305	CLIP; ENG HARNESS 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (D) L=140	5-09707-031-1	01	1	9804-0001	●
305	CLIP; ENG HARNESS 6SD1 TCN ENG(31L) (D) L=140	5-09707-031-1	01	1	0002-0106	●
305	CLIP; ENG HARNESS 6HK1 TCS ENG(80L) (A) L=250	5-09707-030-1	07	1	0107-	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-0	01	1	9601-9609	●	●
305	CLIP; ENG HARNESS 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) L=180	1-09707-162-0	01	1	9610-9612	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-0	01	1	9610-9612		●
305	CLIP; ENG HARNESS 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) L=180	1-09707-162-0	01	1	9701-9705	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-0	01	1	9701-9705		●
305	CLIP; ENG HARNESS 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) L=180	1-09707-162-0	01	1	9706-9803	●
305	CLIP; ENG HARNESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) L=180	1-09707-162-0	01	1	9706-9803		●
395	CLIP; WIPER HARNESS L=140	5-09707-031-1	01	1	0005-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
