8-01 — LAMP; FRONT AND FRONT SIDE (#25277) — 114 parça

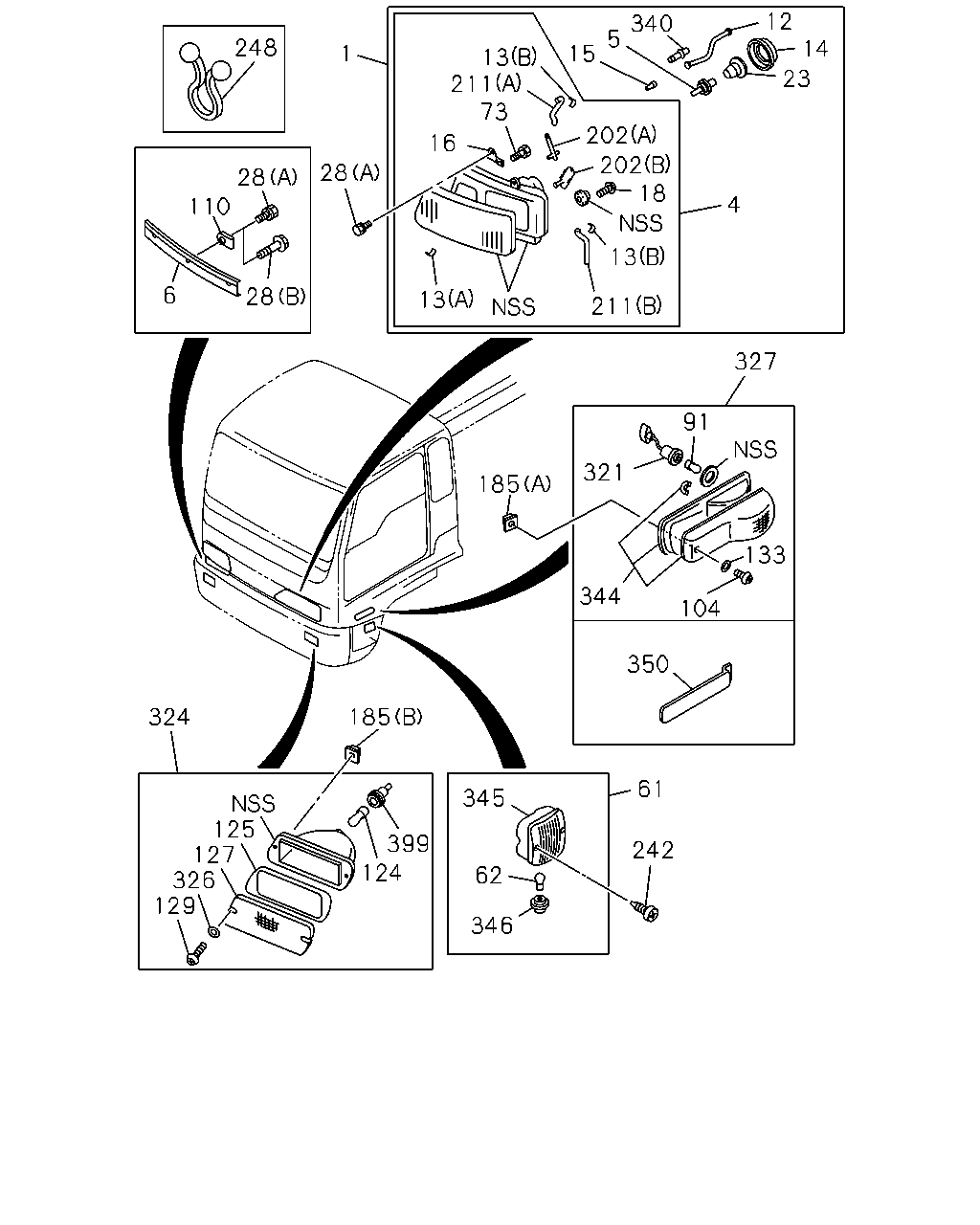

çizim 104757
248 1 13 15 5 340 12 14 23 202 202 18 4 13 211 13 16 73 211 28 28 110 6 28 324 125 127 326 129 124 399 185 345 62 346 242 61 350 344 185 321 91 327 133 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-86830-178-4 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD 1-86830-178-6 01 1 9804-0210 ●
1 LAMP ASM; HEAD 1-86830-359-0 01 1 0211- ●
1 LAMP ASM; HEAD 1-86830-177-4 01 1 9601-9803 ● ●
1 LAMP ASM; HEAD 1-86830-177-6 01 1 9804-0210 ●
1 LAMP ASM; HEAD 1-86830-358-0 01 1 0211- ●
4 HEADLAMP UNIT 1-86830-190-1 01 1 9601-9803 ● ●
4 HEADLAMP UNIT 1-86830-190-1 01 1 9804-0210 ●
4 HEADLAMP UNIT 1-82119-200-0 01 1 0211- ●
4 HEADLAMP UNIT 1-86830-189-1 01 1 9601-9803 ● ●
4 HEADLAMP UNIT 1-86830-189-1 01 1 9804-0210 ●
4 HEADLAMP UNIT 1-82119-199-0 01 1 0211- ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 9601-9803 ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 9804- ●
6 RIM; HEADLAMP 1-86830-006-4 01 1 9601-9803 ●
6 RIM; HEADLAMP 1-86830-006-5 01 1 9804- ●
6 RIM; HEADLAMP 1-86830-005-4 01 1 9601-9803 ●
6 RIM; HEADLAMP 1-86830-005-5 01 1 9804- ●
12 HARNESS; HEADLAMP 1-86830-145-0 02 1 9601-9803 ● ●
12 HARNESS; HEADLAMP 1-86830-145-0 02 1 9804- ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 9601-9803 ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 9804- ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 9601-9803 ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 9804- ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 9601-9803 ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 9804- ●
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 9601-9803 ● ●
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 9804- ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 9601-9803 ● ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 9804- ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 9601-9803 ● ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 9804- ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 9601-9803 ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 9804- ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 9601-9803 ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 9804- ●
28 BOLT; HEADLAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9601-9803 ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 9804-0708 ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ●
61 LAMP ASM; CORNERING
24V 30W 		1-86830-186-2 01 1 0107- ●
61 LAMP ASM; CORNERING
24V 30W 		1-86830-185-2 01 1 0107- ●
62 BULB; CORNERING LAMP
24V 30W 		8-97010-179-0 02 1 0107- ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 9601-9803 ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 9804- ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9601-9803 ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 9804-9809 ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 9810- ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9601-9803 ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 9804- ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 9601-9803 ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 9804- ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 9601-9803 ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 9804- ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 9601-9803 ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 9804- ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 9601-9803 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 9804- ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 9601-9803 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 9804- ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 9601-9803 ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 9804- ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9601-9803 ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9804-0206 ●
185 GROMMET; SCREW
(B) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9601-9803 ● ●
185 GROMMET; SCREW
(B) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9804- ●
185 GROMMET; SCREW
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-9604 ●
185 GROMMET; SCREW
(A) D=8.6X7.7 L=7.5 		1-09983-177-0 02 1 9605-9803 ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 9601-9803 ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 9804- ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 9601-9803 ● ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 9804- ●
211 TUBE; HEADLAMP
(A) 		1-86830-142-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-142-0 01 1 9804-9911 ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 9912-0105 ●
211 TUBE; HEADLAMP
(B) 		1-86830-144-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-144-0 01 1 9804-9911 ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 9912- ●
211 TUBE; HEADLAMP
(A) 		1-86830-141-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-141-0 01 1 9804-9911 ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 9912-0105 ●
211 TUBE; HEADLAMP
(B) 		1-86830-143-0 01 1 9601-9803 ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-143-0 01 1 9804-9911 ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 9912- ●
242 SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 0107-0207 ●
242 SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0208- ●
248 CLIP; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5 		1-09709-083-0 01 1 9706-9803 ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9601-9803 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 9804- ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 9601-9803 ● ●
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 9804- ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 9601-9803 ● ●
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 9804- ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 9601-9803 ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 9804- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9601-9803 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 9804-9809 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 9810- ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9601-9803 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 9804-9809 ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 9810- ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 9601-9803 ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 9804- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 9601-9803 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 9804- ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 9601-9803 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 9804- ●
345 LAMP UNIT; CORNERING 1-86830-255-0 01 1 0107- ●
345 LAMP UNIT; CORNERING 1-86830-254-0 01 1 0107- ●
346 SOCKET; CORNERING LAMP 1-86830-256-0 02 1 0107- ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 9601-9803 ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 9601-9803 ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 9601-9803 ● ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 9804- ●
