◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#25275) — 63 parça

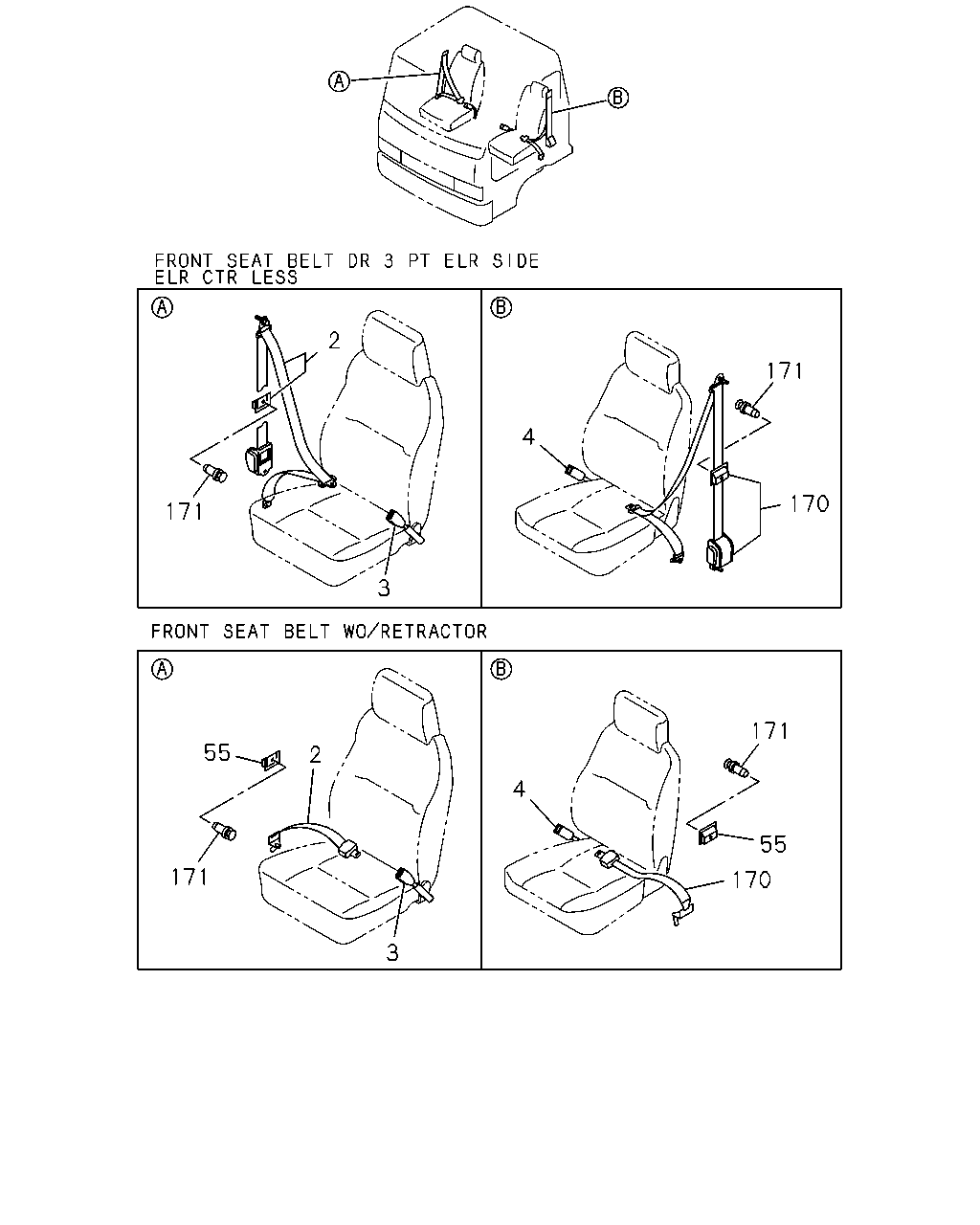

çizim 85625
2 171 4 170 171 3 171 55 2 4 55 171 170 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE 1-75617-509-1 01 1 9601-9705 ● ●
2 BELT; SEAT,TONGUE SIDE 1-75617-509-1 01 1 9706-9803 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-509-1 01 1 9706-9803 ●
2 BELT; SEAT,TONGUE SIDE 1-75617-509-3 01 1 9804-0004 ●
2 BELT; SEAT,TONGUE SIDE 1-75618-938-3 01 1 0005-0805 ●
2 BELT; SEAT,TONGUE SIDE 8-98120-815-1 01 1 0806- ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-1 01 1 9706-9803 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-794-4 01 1 9706-9803 ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-796-0 01 1 9601-0004 ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-953-0 01 1 0005- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-779-0 01 1 9601-9705 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-779-0 01 1 9706-9803 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-795-2 01 1 9706-9803 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-752-0 01 1 9706-9803 ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9706-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-514-1 01 1 9601-9705 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-514-1 01 1 9706-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-514-1 01 1 9706-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-514-3 01 1 9804-0004 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-550-4 01 1 0005-0805 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-817-1 01 1 0806- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-1 01 1 9706-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-515-1 01 1 9706-9803 ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9601-9803 ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9804- ●

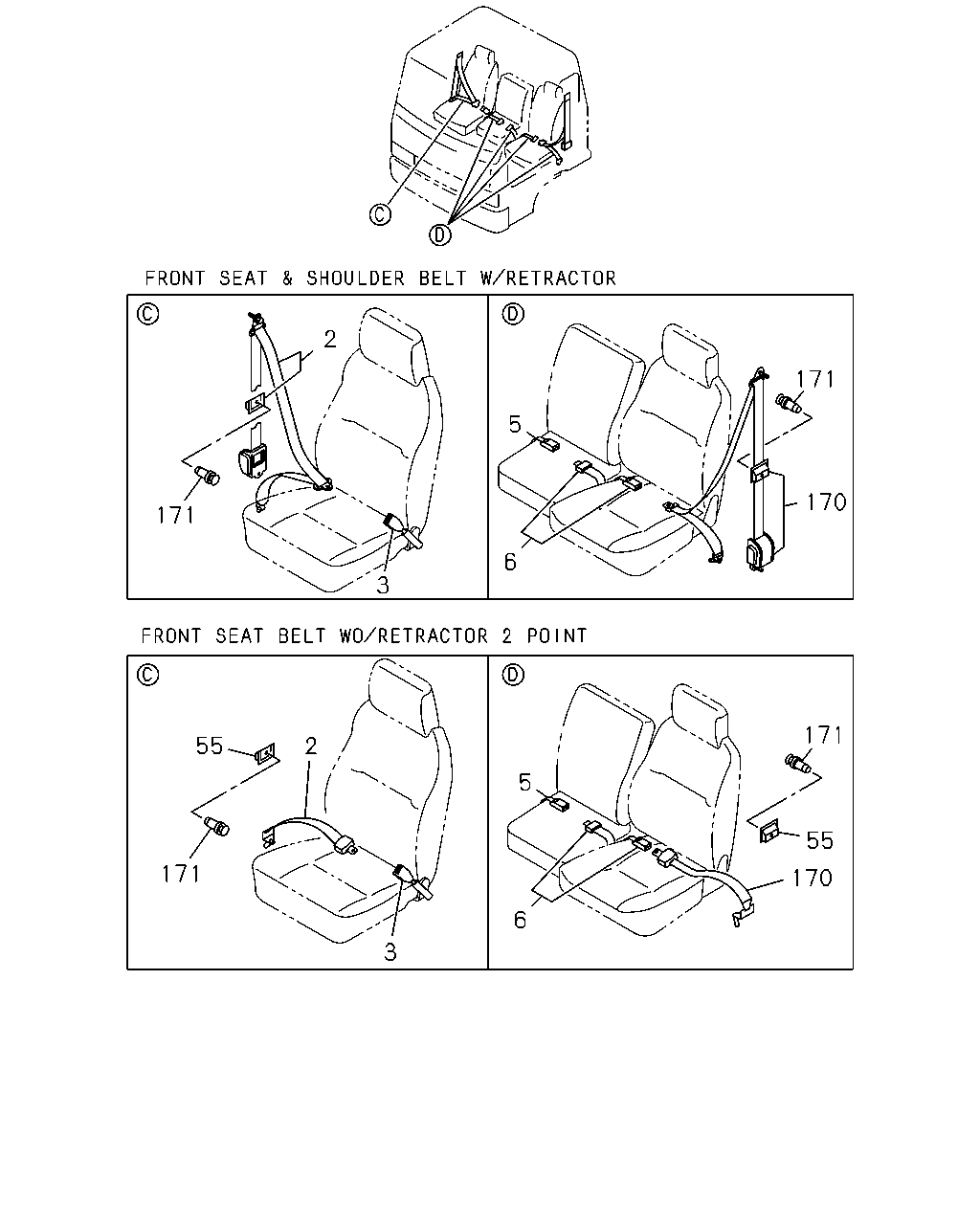

çizim 86015
2 171 5 170 171 6 3 171 55 2 5 55 171 170 6 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE 1-75617-509-1 01 1 9601-9705 ● ●
2 BELT; SEAT,TONGUE SIDE 1-75617-509-1 01 1 9706-9803 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-509-1 01 1 9706-9803 ●
2 BELT; SEAT,TONGUE SIDE 1-75617-509-3 01 1 9804-0004 ●
2 BELT; SEAT,TONGUE SIDE 1-75618-938-3 01 1 0005-0805 ●
2 BELT; SEAT,TONGUE SIDE 8-98120-815-1 01 1 0806- ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-1 01 1 9706-9803 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-794-4 01 1 9706-9803 ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-796-0 01 1 9601-0004 ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-953-0 01 1 0005- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-779-0 01 1 9601-9705 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-779-0 01 1 9706-9803 ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-795-2 01 1 9706-9803 ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75618-739-0 01 1 9601-9705 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75618-739-0 01 1 9706-9803 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-739-0 01 1 9706-9803 ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75618-739-0 01 1 9804-0004 ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0005- ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-741-3 01 1 9601-0004 ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-899-2 01 1 0005- ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-737-1 01 1 9601-9705 ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-737-1 01 1 9706-9803 ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75618-798-1 01 1 9706-9803 ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9706-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-514-1 01 1 9601-9705 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-514-1 01 1 9706-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-514-1 01 1 9706-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-514-3 01 1 9804-0004 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-550-4 01 1 0005-0805 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-817-1 01 1 0806- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-1 01 1 9706-9803 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75617-515-1 01 1 9706-9803 ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9601-9803 ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9804- ●

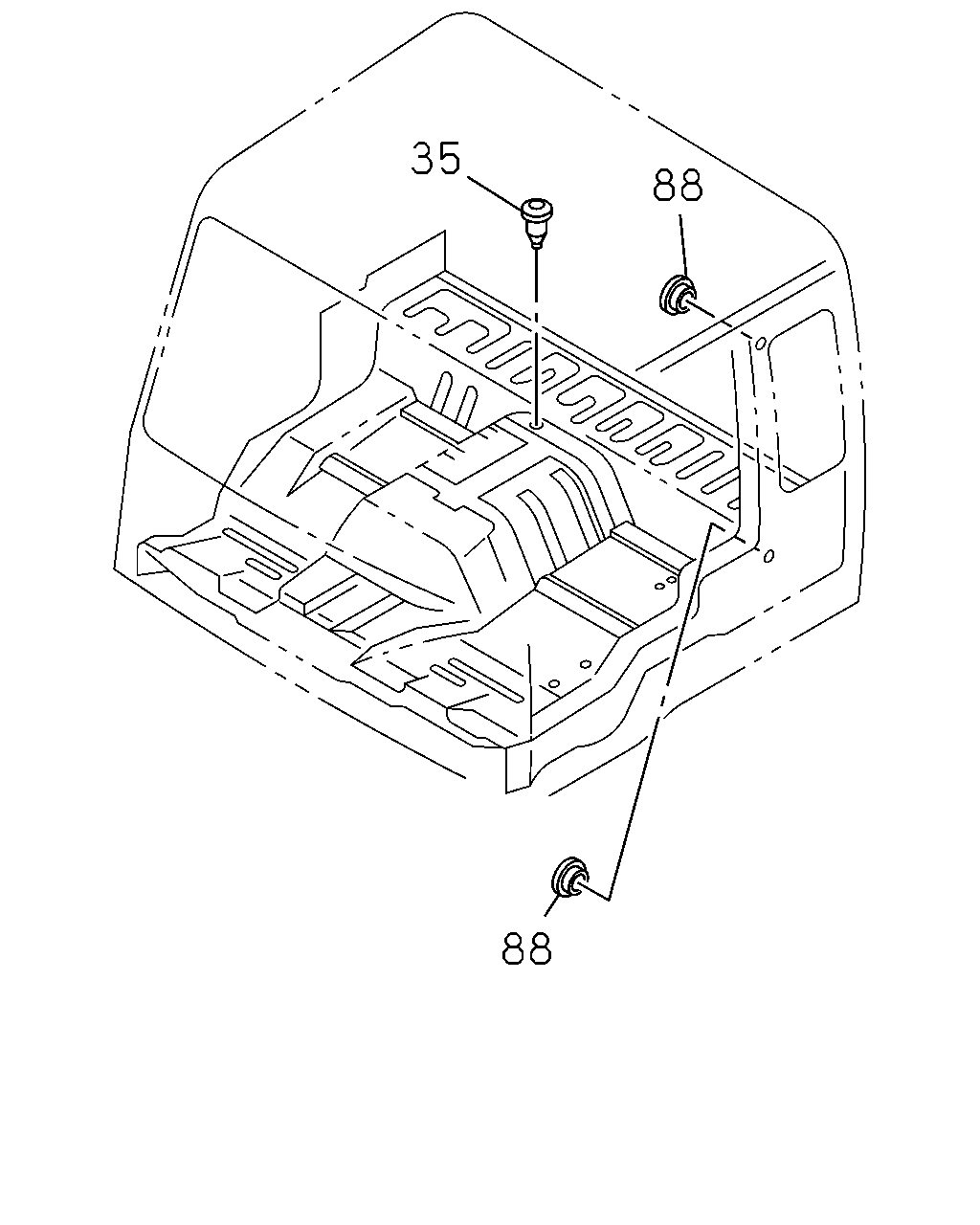

çizim 86075
35 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR3 PT ELR SIDE ELR CTR LESS<SHY> OD=22 		9-61168-535-0 01 1 9706-9803 ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 03 1 9706-9803 ●
88 PLUG; HOLE
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=31.6 		8-94198-177-0 02 1 9706-9709 ●
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRTSEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=31.6 		8-94198-177-0 02 1 9710-9803 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
