◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#25273) — 30 parça

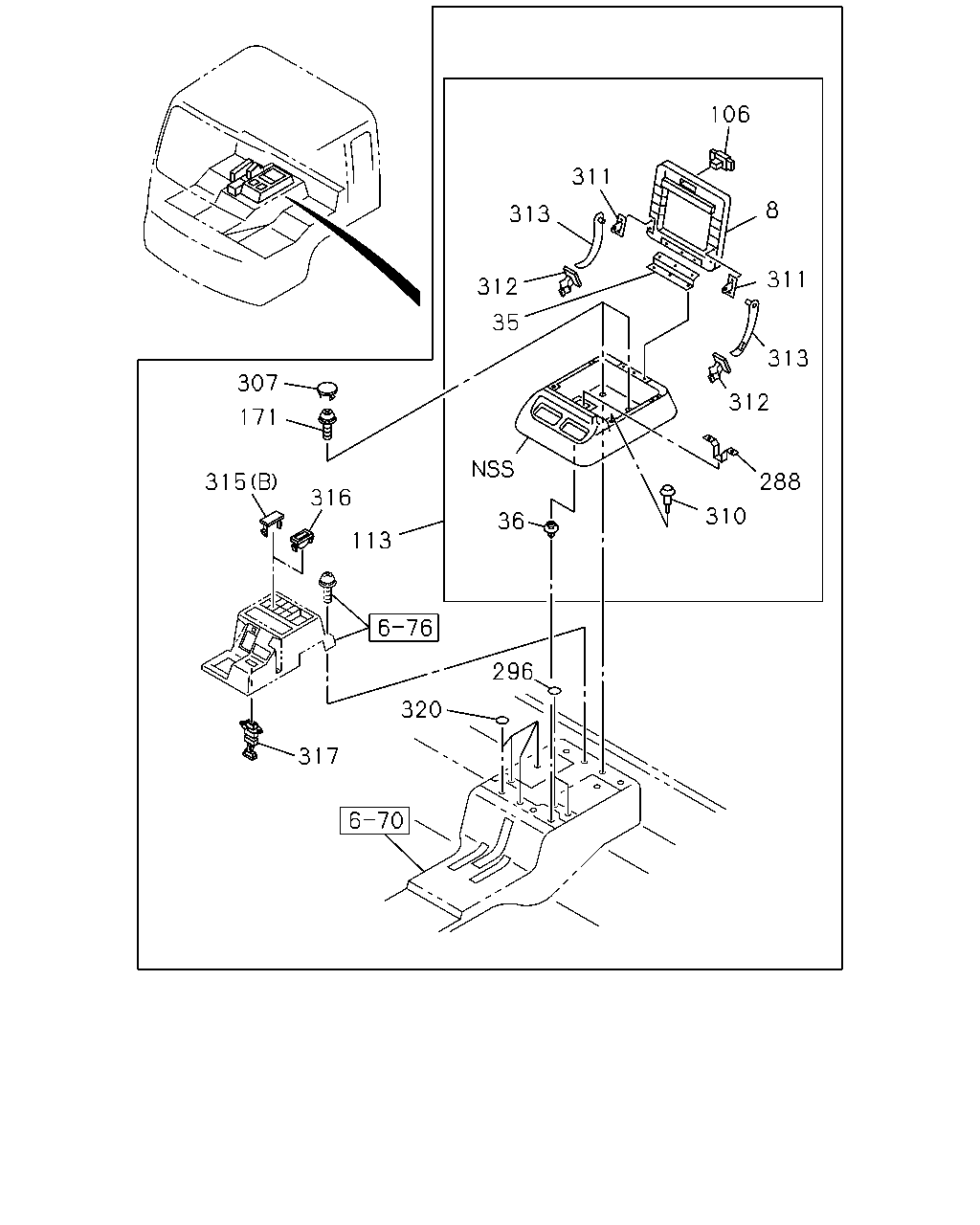

çizim 85712
106 311 8 313 311 312 35 313 307 312 171 288 315 316 310 36 113 296 320 317
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-179-3 01 1 9706-9803 ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-182-1 02 1 9706-9803 ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-09984-190-0 02 1 9706-9803 ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-180-0 01 1 9706-9803 ●
113 BOX; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-225-0 01 1 9706-9803 ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9706-9803 ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-190-0 01 1 9706-9803 ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9601-9705 ● ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9706-9803 ●
296 SEAL
CENTER SEAT<SA1> OD=25 BLACK 		1-76798-019-0 02 1 9706-9803 ●
296 SEAL
CENTER SEAT DELETE<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 9706-9803 ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9804- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-166-0 02 1 9706-9803 ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-187-0 02 1 9706-9803 ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-188-2 02 1 9706-9803 ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-186-1 02 1 9706-9803 ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-185-3 01 1 9706-9803 ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> HIGH ROOF<S2F> 		1-72538-184-3 01 1 9706-9803 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9804- ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 9804- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9601-9803 ● ●
316 BOX; COIN 8-94482-280-2 02 1 9803-9803 ● ●
316 BOX; COIN 8-94482-280-2 02 1 9804- ●
317 CONSENT 1-82523-020-2 01 1 9601-9803 ● ●
317 CONSENT 1-82523-020-2 01 1 9804- ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 05 1 9601-9803 ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 05 1 9804- ●

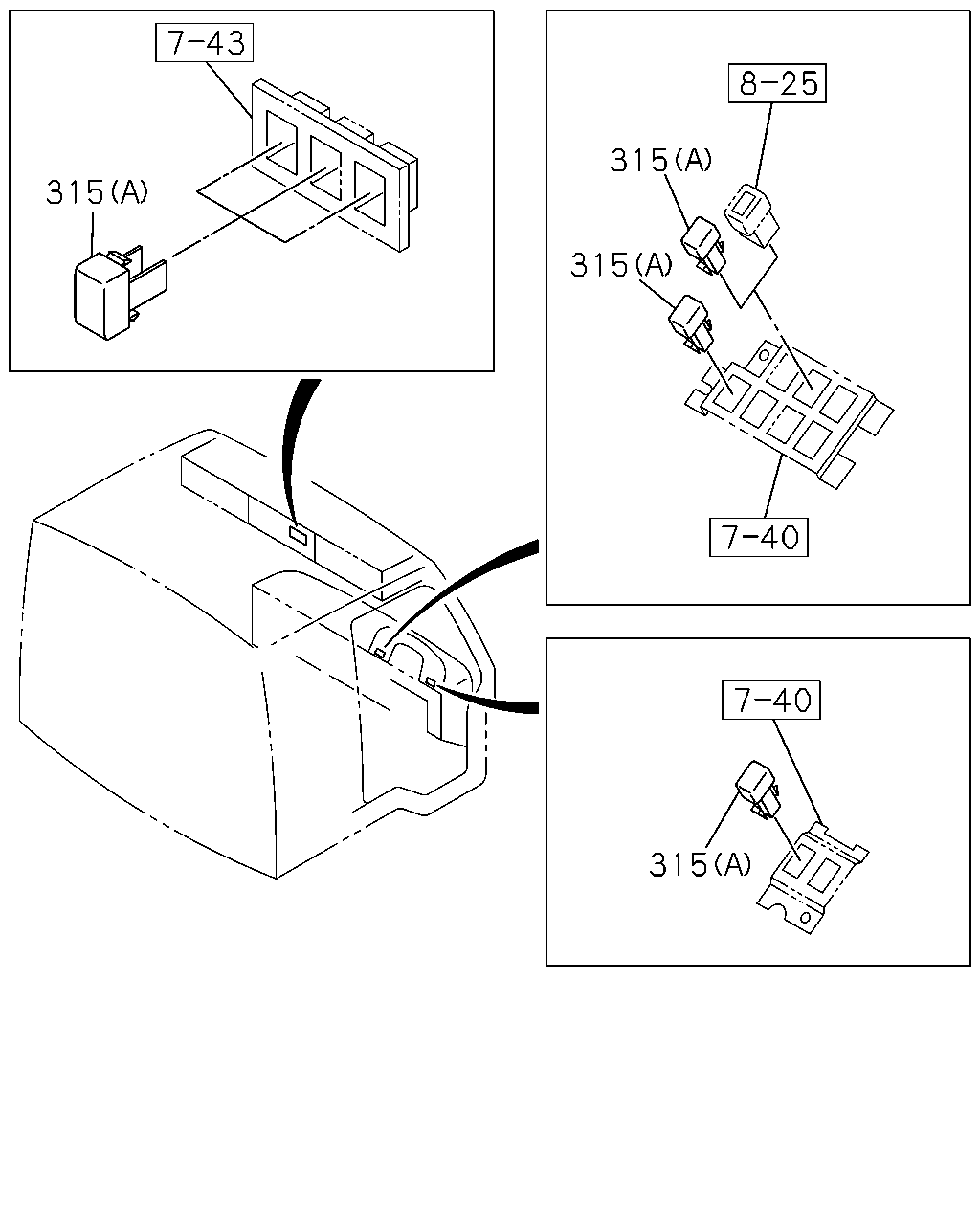

çizim 104753
315 315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9804- ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 9804- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9601-9803 ● ●
