7-43 — SUN VISOR AND ASSIST GRIP (#25272) — 244 parça

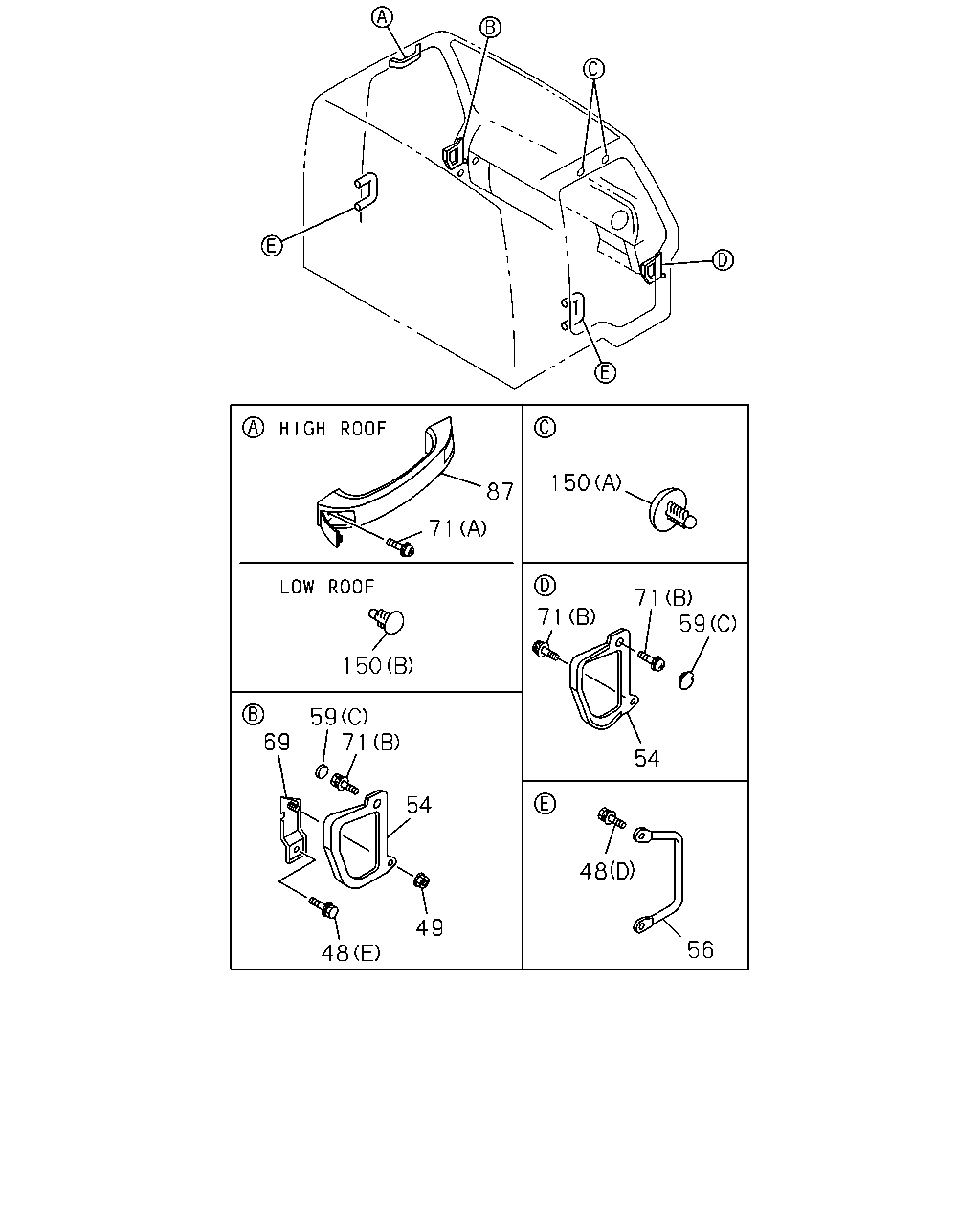

150 87 71 71 59 71 150 59 71 69 54 54 48 49 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9601-9602	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-9803	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9804-	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9601-9803	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9804-	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9803	●	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9804-0904	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9601-9803	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9804-	●
48	BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9601-9603	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-9705	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9706-9803	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9706-9803		●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9804-	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	9601-9803	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	9804-0602	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0603-	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-067-0	01	1	9601-9803	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-067-0	01	1	9804-0004	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-564-1	01	1	0005-	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-066-0	01	1	9601-9803	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-066-0	01	1	9804-0004	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-563-1	01	1	0005-	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-4	02	1	9601-9803	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9804-0402	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-1	02	1	9601-9803	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9804-	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-1	02	1	9601-9803	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9804-	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9601-9803	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9804-0004	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0005-	●
69	BRACKET; ASSIST GRIP	1-73618-178-2	01	1	9601-9803	●	●
69	BRACKET; ASSIST GRIP	1-73618-178-2	01	1	9804-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9601-9803	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9804-	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9601-9702	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-9705	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9706-9803	●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9706-9803		●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9804-0212	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-9705	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9706-9803	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9706-9803		●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9804-	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	01	1	9601-9705	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	01	1	9706-9803	●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F>	1-73618-170-0	01	1	9706-9803		●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	01	1	9804-0004	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9601-9602	●	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9603-9803	●	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9804-0004	●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9601-9705	●	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9706-9803	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> (A) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9706-9803		●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9804-0004	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0005-	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9706-9803		●

24 26 24 14 24 33 24 121 26 14 33 34 121 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9706-9803		●
23	SUN VISOR	1-73138-150-1	01	1	9601-9705	●	●
23	SUN VISOR	1-73138-150-1	01	1	9706-9803	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9706-9803		●
23	SUN VISOR	1-73138-150-1	01	1	9804-0004	●
23	SUN VISOR	1-73138-157-1	01	1	0005-	●
23	SUN VISOR	1-73138-148-1	01	1	9601-9803	●	●
23	SUN VISOR	1-73138-148-1	01	1	9804-0004	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (B)	1-73138-145-0	02	1	9706-9803		●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-144-1	01	1	9706-9803		●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-143-1	01	1	9706-9803		●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9601-9705	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9706-9803	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9804-0004	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9601-9705	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9706-9803	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9804-0603	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9601-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-9705	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-9705	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9706-9803	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9706-9803	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9706-9803		●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9804-0106	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9804-0106	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0107-	●
121	SCREW; BRKT,SUN VISOR LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9706-9803		●

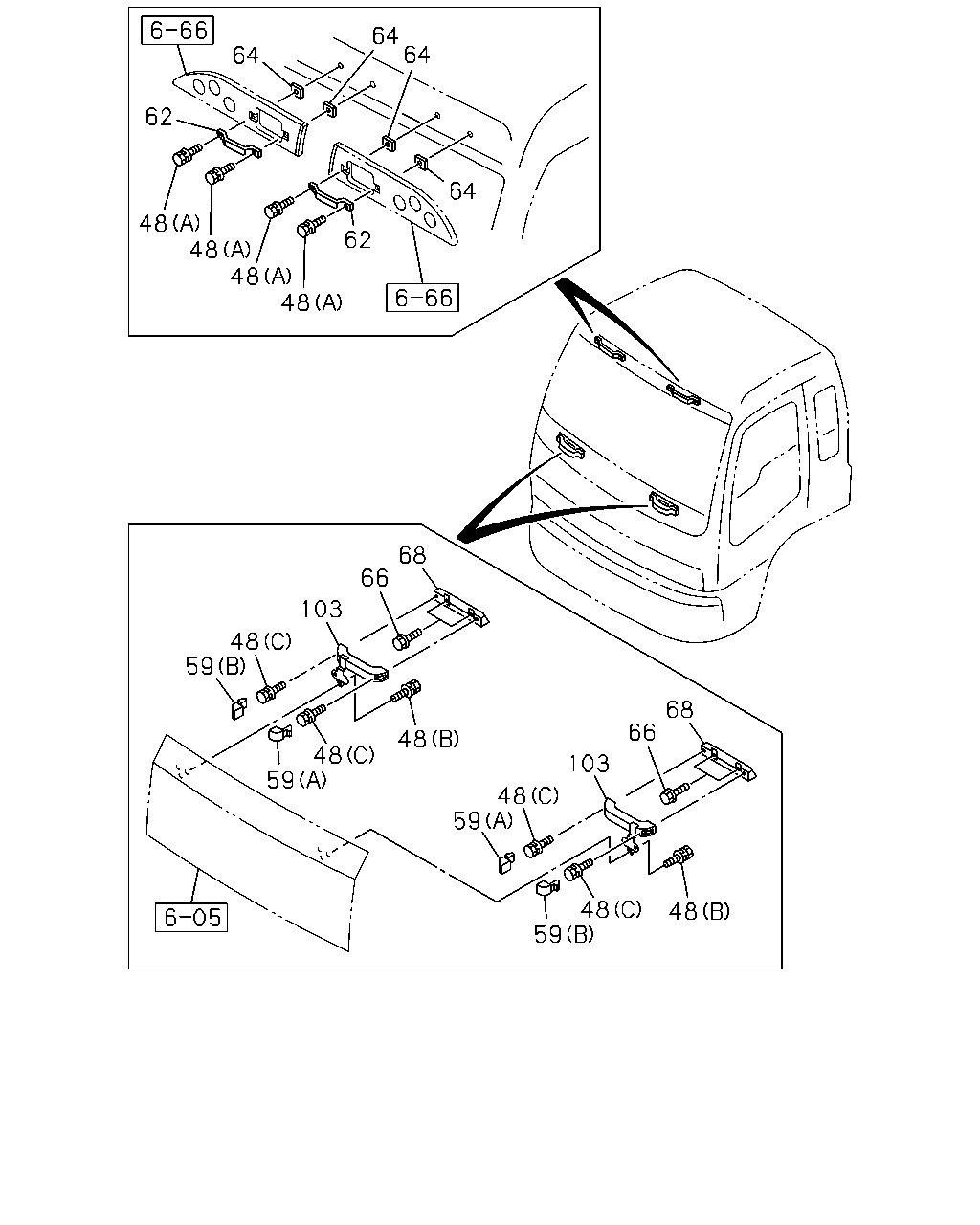

64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9601-9602	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-9803	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9804-	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9601-9803	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9804-	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9803	●	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9804-0904	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9601-9803	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9804-	●
48	BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9601-9603	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-9705	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9706-9803	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9706-9803		●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9804-	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-1	02	1	9601-9803	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9804-	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-1	02	1	9601-9803	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9804-	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9601-9803	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9804-0004	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0005-	●
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	02	1	9601-9610	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9611-9705	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9706-9803	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71907-492-0	02	1	9706-9803		●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9804-0907	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9601-9705	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9706-9803	●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	9706-9803		●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9804-	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9601-9803	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9804-	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9601-9803	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9804-	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9601-	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9601-	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-1	01	1	9601-9803		●
103	GRIP; ASSIST,FRT PNL	1-71998-791-1	01	1	9601-9803		●

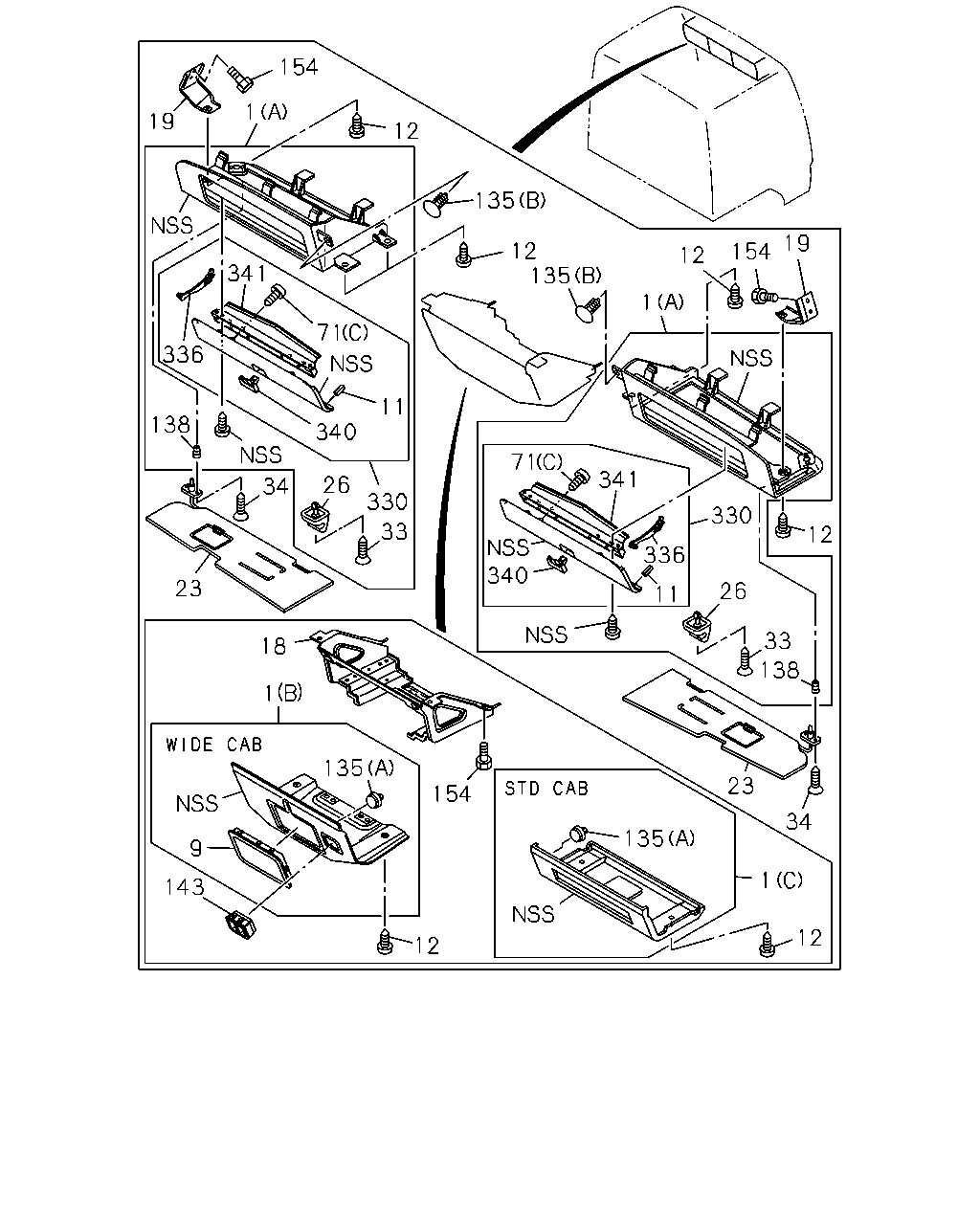

154 1 19 12 135 19 12 135 154 12 341 1 71 336 11 138 340 71 341 26 34 330 330 33 12 340 336 23 26 11 33 18 138 1 135 23 154 34 135 9 1 143 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B) CENTER	1-72448-539-1	01	1	9601-0004	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-668-0	01	1	0005-	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9601-9705	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9706-9803	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-597-2	01	1	9706-9803		●
1	BOARD; HEADER SHELF (A)	1-73318-616-1	01	1	9804-0003	●
1	BOARD; HEADER SHELF (A)	1-73318-689-0	01	1	0004-0004	●
1	BOARD; HEADER SHELF (A)	1-73318-691-0	01	1	0005-	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9601-9705	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9706-9803	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-596-2	01	1	9706-9803		●
1	BOARD; HEADER SHELF (A)	1-73317-362-1	01	1	9804-0003	●
1	BOARD; HEADER SHELF (A)	1-73318-687-0	01	1	0004-0004	●
1	BOARD; HEADER SHELF (A)	1-73318-690-0	01	1	0005-	●
1	BOARD; HEADER SHELF (C) CENTER	1-72448-568-1	01	1	9601-9705		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C) CENTER	1-72448-568-1	01	1	9706-9803		●
9	COVER; HOLE,HEADER SHELF CENTER	1-72448-547-2	01	1	9601-	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9601-9705	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9706-9803	●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9706-9803		●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9804-	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-9705	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9706-9803	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9706-9803		●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9804-	●
18	SUPPORT; HEADER SHELF CENTER	1-72448-334-5	01	1	9601-9604	●
18	SUPPORT; HEADER SHELF CENTER	1-72448-633-1	01	1	9605-	●
18	SUPPORT; HEADER SHELF CENTER	1-72448-552-4	01	1	9601-9604		●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-0	01	1	9605-9705		●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-0	01	1	9706-9803		●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9601-9705	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9706-9803	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9706-9803		●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9804-	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9601-9705	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9706-9803	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9706-9803		●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9804-	●
23	SUN VISOR	1-73138-150-1	01	1	9601-9705	●	●
23	SUN VISOR	1-73138-150-1	01	1	9706-9803	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9706-9803		●
23	SUN VISOR	1-73138-150-1	01	1	9804-0004	●
23	SUN VISOR	1-73138-157-1	01	1	0005-	●
23	SUN VISOR	1-73138-148-1	01	1	9601-9803	●	●
23	SUN VISOR	1-73138-148-1	01	1	9804-0004	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9601-9705	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9706-9803	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9804-0004	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9601-9705	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9706-9803	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9804-0603	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9601-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-9705	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-9705	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9706-9803	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9706-9803	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9706-9803		●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9804-0106	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9804-0106	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0107-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9601-9803	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9804-	●
71	SCREW (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9601-9702	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-9705	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9706-9803	●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9706-9803		●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9804-0212	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-9705	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9706-9803	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9706-9803		●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9804-	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	04	1	9601-	●
135	CLIP; HEADER SHELF (A) OD=7.9 BLACK	8-94279-974-1	03	1	9601-9705		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9706-9803		●
135	CLIP; HEADER SHELF (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9804-0209	●
135	CLIP; HEADER SHELF (B) D6X23 BLACK	1-09987-114-0	02	1	0210-	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9601-9705	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9706-9803	●
138	NUT; BRKT,HEADER SHELF HIGH ROOF<S2F>	1-09984-166-0	04	1	9706-9803		●
143	BEZEL	1-72448-411-0	01	1	9601-	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9601-9705	●	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9706-9803	●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9706-9803		●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9804-	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9601-9705	●	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9706-9803	●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-360-3	02	1	9706-9803		●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9804-0004	●
330	LID; HEADER SHELF	1-72448-679-0	02	1	0005-	●
336	STAY; LID	1-72448-379-3	04	1	9601-9705	●	●
336	STAY; LID	1-72448-379-3	04	1	9706-9803	●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9706-9803		●
336	STAY; LID	1-72448-379-3	04	1	9804-	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9601-9705	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9706-9803	●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9706-9803		●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9804-	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9601-9705	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9706-9803	●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9706-9803		●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
