Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#25271) — 318 parça

259 260 597

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
259	PLATE; STUFF,SUN VISOR LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20>	1-73318-551-0	01	1	9706-9803	●
260	SCREW; STUFF PLATE LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9706-9803	●
597	SEAL; HOLE,DASH OD=16 BLACK	1-76798-037-0	02	1	9601-9803	●	●
597	SEAL; HOLE,DASH OD=16 BLACK	1-76798-037-0	02	1	9804-		●

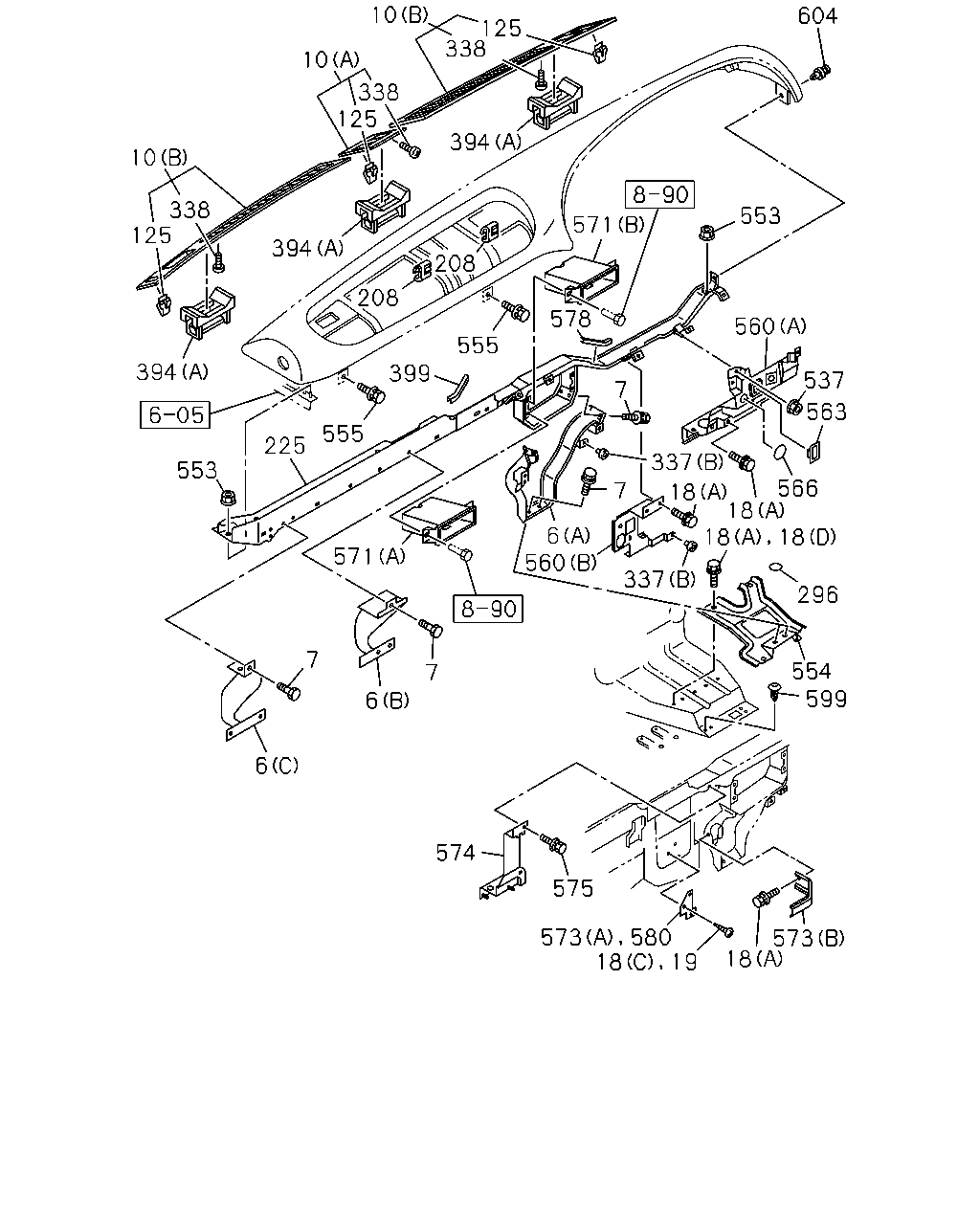

10 604 125 338 10 338 125 394 10 338 125 553 571 394 208 208 578 560 555 394 399 537 7 563 555 225 337 553 566 18 7 18 18 18 6 560 571 337 296 7 554 599 7 6 6 574 575 18 19 573 18 573 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	SUPPORT; INST PANEL (A)	1-65681-089-3	01	1	9601-		●
6	SUPPORT; INST PANEL (A)	1-65680-961-4	01	1	9601-9803	●
6	SUPPORT; INST PANEL EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-65681-064-2	01	1	9706-9803	●
6	SUPPORT; INST PANEL EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-65681-063-3	01	1	9706-9803	●
7	BOLT; SUPPORT,INST PNL M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9601-9803	●	●
7	BOLT; SUPPORT,INST PNL M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9804-		●
7	BOLT; SUPPORT,INST PNL EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	9706-9803	●
10	PANEL ASM; GARNISH (A)	1-72438-120-3	01	1	9601-9803		●
10	PANEL ASM; GARNISH (A)	1-72438-120-6	01	1	9804-		●
10	PANEL ASM; GARNISH EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-72438-158-1	01	1	0005-0106		●
10	PANEL ASM; GARNISH EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-72438-157-1	01	1	0005-0106		●
10	PANEL ASM; GARNISH (B) W/SPEAKER NET	1-72437-601-1	01	1	9601-9705	●	●
10	PANEL ASM; GARNISH (B) W/SPEAKER NET	1-72437-601-1	01	1	9706-9803		●
10	PANEL ASM; GARNISH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET	1-72437-601-1	01	1	9706-9803	●
10	PANEL ASM; GARNISH (B) W/SPEAKER NET	1-72437-601-2	01	1	9804-0004		●
10	PANEL ASM; GARNISH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET	1-72437-601-3	01	1	0005-0106		●
10	PANEL ASM; GARNISH (B) W/SPEAKER NET	1-72437-601-6	01	1	0107-		●
10	PANEL ASM; GARNISH (B) W/SPEAKER NET	1-72437-600-1	01	1	9601-9705	●	●
10	PANEL ASM; GARNISH (B) W/SPEAKER NET	1-72437-600-1	01	1	9706-9803		●
10	PANEL ASM; GARNISH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) W/SPEAKER NET	1-72437-600-1	01	1	9706-9803	●
10	PANEL ASM; GARNISH (B) W/SPEAKER NET	1-72437-600-2	01	1	9804-0004		●
10	PANEL ASM; GARNISH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET	1-72437-600-3	01	1	0005-0106		●
10	PANEL ASM; GARNISH (B) W/SPEAKER NET	1-72437-600-7	01	1	0107-		●
10	PANEL ASM; GARNISH EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-72438-158-0	01	1	9706-9803	●
10	PANEL ASM; GARNISH EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-72438-157-0	01	1	9706-9803	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9705		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9803		●
18	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9803	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	9804-0004		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0106		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0107-		●
18	BOLT; BRKT (C) M5X14	8-94279-325-0	03	1	9601-		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9801	●	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	9802-9803	●	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9804-0004		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0005-0106		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	9601-9801	●	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9802-9803	●	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9802-9803		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0106		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0106		●
18	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9601-9803	●	●
18	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9804-		●
18	BOLT; BRKT (D) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9802-9803	●
19	SCREW; BRKT M5X14	8-94279-325-0	02	1	9601-9705	●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	9601-9705	●
19	SCREW; BRKT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	02	1	9706-9706	●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	9706-9706	●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	9707-9803	●	●
19	SCREW; BRKT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	02	1	9707-9803	●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	9804-0004		●
19	SCREW; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-0106		●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	0005-0106		●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	0107-		●
19	SCREW; BRKT M5X14	8-94279-325-0	02	1	0107-		●
125	CLIP; INST PANEL	8-97853-939-4	02	1	9601-9803		●
125	CLIP; INST PANEL	8-97853-939-4	03	1	9804-9812		●
125	CLIP; INST PANEL	8-97217-066-0	08	1	9901-9909		●
125	CLIP; INST PANEL	8-97217-066-0	04	1	9910-0004		●
125	CLIP; INST PANEL	8-97217-066-0	04	1	9910-0004		●
125	CLIP; INST PANEL	8-97217-066-0	08	1	0005-0106		●
125	CLIP; INST PANEL	8-97217-066-0	11	1	0107-		●
125	CLIP; INST PANEL	8-97853-939-4	01	1	9601-9803	●	●
125	CLIP; INST PANEL	8-97853-939-4	08	1	9804-9812		●
125	CLIP; INST PANEL	8-97217-066-0	03	1	9901-0106		●
125	CLIP; INST PANEL	8-97853-939-4	08	1	9601-9803	●	●
208	HOLDER; BOX,DASH SIDE	1-72558-027-2	02	1	9601-9803	●	●
208	HOLDER; BOX,DASH SIDE	1-72558-027-2	02	1	9804-		●
225	FRAME; FACIA	1-65681-097-2	01	1	9601-1002		●
225	FRAME; FACIA	8-98142-103-0	01	1	1003-		●
225	FRAME; FACIA	1-65681-096-0	01	1	9601-9803	●
296	SEAL; INST CENTER BEZEL OD=25 BLACK	1-76798-019-0	01	1	9601-9803	●
337	FASTENER; COVER (A)	1-72438-124-2	12	1	0107-		●
337	FASTENER; COVER (A)	1-72438-124-2	08	1	9601-9803		●
337	FASTENER; COVER (A)	1-72438-124-2	02	1	9804-0106		●
337	FASTENER; COVER (B)	1-72438-138-0	06	1	9601-9803	●	●
337	FASTENER; COVER (B)	1-72438-138-0	06	1	9804-		●
337	FASTENER; COVER (A)	1-72438-124-2	02	1	9601-9803	●	●
337	FASTENER; COVER (A)	1-72438-124-2	08	1	9804-0106		●
337	FASTENER; COVER (A)	1-72438-124-2	06	1	9601-9803	●
338	SCREW; COVER M5X14	8-94279-325-0	02	1	9601-9803		●
338	SCREW; COVER M5X14	8-94279-325-0	10	1	9804-9909		●
338	SCREW; COVER M5X14	8-94279-325-0	05	1	9910-0004		●
338	SCREW; COVER M5X14	8-94279-325-0	05	1	9910-0004		●
338	SCREW; COVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	10	1	0005-0106		●
338	SCREW; COVER M5X14	8-94279-325-0	10	1	9601-9705	●	●
338	SCREW; COVER M5X14	8-94279-325-0	10	1	9706-9803		●
338	SCREW; COVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	10	1	9706-9803	●
338	SCREW; COVER M5X14	8-94279-325-0	02	1	9804-0106		●
338	SCREW; COVER M5X14	8-94279-325-0	12	1	0107-0208		●
338	SCREW; COVER M5X14	8-94148-576-1	12	1	0209-0309		●
338	SCREW; COVER M5X14	8-94279-325-0	22	1	0310-0405		●
338	SCREW; COVER M5X14	8-94279-325-0	12	1	0406-0801		●
338	SCREW; COVER M5X14	8-94279-325-0	17	1	0802-		●
394	HOLDER; PANEL (A)	1-72438-066-0	08	1	9601-		●
394	HOLDER; PANEL (B)	1-72558-026-5	02	1	9601-9803	●	●
394	HOLDER; PANEL (B)	1-72558-026-5	02	1	9804-		●
394	HOLDER; PANEL (A)	1-72438-066-0	06	1	9601-9803	●
399	FINISHER; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=60	8-97865-346-0	01	1	9808-0106		●
399	FINISHER; HARNESS VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60	8-97865-346-0	01	1	9803-9803	●
537	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9601-9803	●	●
537	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9804-0602		●
537	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	0603-		●
553	NUT; FRAME M8 FLANGE	0-91150-108-0	04	1	9601-9803	●	●
553	NUT; FRAME M8 FLANGE	0-91150-108-0	04	1	9804-0602		●
553	NUT; FRAME M8 FLANGE	0-91180-108-0	04	1	0603-		●
554	BRACKET; CENTER BEZEL	1-65681-023-2	01	1	9601-		●
554	BRACKET; CENTER BEZEL	1-65680-963-1	01	1	9601-9803	●
555	BOLT; PAD M10X25 FLANGE	0-28281-025-0	08	1	9601-0512		●
555	BOLT; PAD M10X25 FLANGE	0-28251-025-0	08	1	0601-0604		●
555	BOLT; PAD M10X25 FLANGE	8-98041-453-0	08	1	0605-		●
555	BOLT; PAD M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9601-9803	●	●
555	BOLT; PAD M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9804-		●
555	BOLT; PAD M10X25 FLANGE	0-28281-025-0	07	1	9601-9803	●
560	BRACKET (B)	1-65680-976-2	01	1	9601-9803	●	●
560	BRACKET (B)	1-65680-976-3	01	1	9804-		●
560	BRACKET (A)	1-65681-078-3	01	1	9601-9803	●	●
560	BRACKET (A)	1-65681-078-3	01	1	9804-0106		●
560	BRACKET (A)	1-65671-772-4	01	1	0107-		●
563	BEZEL; BRKT	1-72448-410-3	01	1	0107-		●
566	PLUG; HOLE 6SD1 TCN ENG(31L) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0107-		●
566	PLUG; HOLE OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9601-9803	●	●
566	PLUG; HOLE OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9804-0106		●
566	PLUG; HOLE 6HK1 TCS ENG(80L) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0107-		●
571	BEZEL; POCKET (A)	1-72438-060-1	01	1	9601-9803	●	●
571	BEZEL; POCKET (A)	1-72438-060-1	01	1	9804-9812		●
571	BEZEL; POCKET (B)	1-72438-151-0	01	1	9601-9803	●	●
571	BEZEL; POCKET (B)	1-72438-151-0	01	1	9804-9812		●
571	BEZEL; POCKET (B)	1-72438-151-1	01	1	9901-0106		●
571	BEZEL; POCKET (B)	1-72438-151-1	01	1	9901-0106		●
571	BEZEL; POCKET (B)	1-72438-151-3	02	1	0107-		●
573	BRACKET; PANEL,RELAY BOX (B)	1-73908-024-2	01	1	9601-9705		●
573	BRACKET; PANEL,RELAY BOX (B)	1-73908-024-2	01	1	9706-9803		●
573	BRACKET; PANEL,RELAY BOX EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-73908-024-2	01	1	9706-9803	●
573	BRACKET; PANEL,RELAY BOX (B)	1-73908-024-2	01	1	9804-		●
573	BRACKET; PANEL,RELAY BOX (A)	1-73908-023-2	01	1	9601-9705	●
573	BRACKET; PANEL,RELAY BOX HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-73908-023-2	01	1	9706-9803	●
574	PANEL; RELAY BOX	1-73908-011-3	01	1	9601-9803	●	●
574	PANEL; RELAY BOX	1-73908-011-3	01	1	9804-9910		●
574	PANEL; RELAY BOX	1-73908-252-3	01	1	9911-		●
575	BOLT; PANEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9803	●	●
575	BOLT; PANEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-		●
578	SEAL; PROTECTOR,HARNESS 100X30	1-72498-014-1	01	1	9601-9803	●	●
578	SEAL; PROTECTOR,HARNESS 100X30	1-72498-014-1	01	1	9804-9903		●
578	SEAL; PROTECTOR,HARNESS 100X40	1-72498-022-1	01	1	9904-		●
580	BRACKET; COVER	1-72437-094-3	01	1	9601-		●
599	PLUG; BRKT D4.7X11	1-76378-154-0	03	1	9601-9801		●
599	PLUG; BRKT D7.8X20	8-94353-238-0	03	1	9802-		●
599	PLUG; BRKT D4.7X11	1-76378-154-0	01	1	9601-9803	●
604	CLIP; INST PAD	1-09983-123-0	01	1	9601-9803	●	●
604	CLIP; INST PAD	1-09983-123-0	01	1	9804-		●

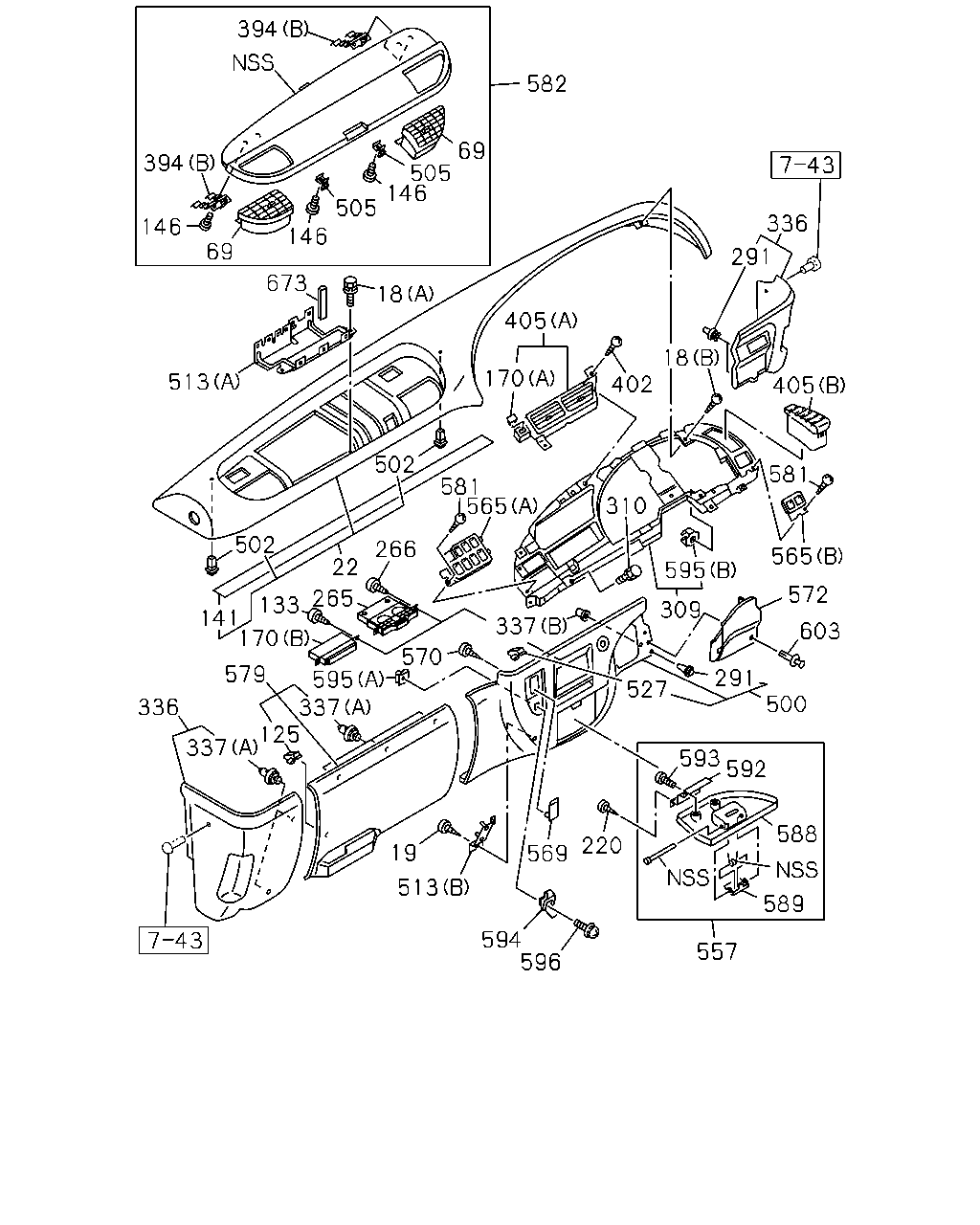

394 582 69 505 146 394 505 336 146 146 69 291 673 18 405 18 170 513 402 405 502 581 581 565 310 502 266 565 22 595 572 265 133 309 141 170 337 603 570 595 337 125 579 291 527 500 336 337 593 592 588 220 19 569 513 589 594 596 557

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9705		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9803		●
18	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9803	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	9804-0004		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0106		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0107-		●
18	BOLT; BRKT (C) M5X14	8-94279-325-0	03	1	9601-		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9801	●	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	9802-9803	●	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9804-0004		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0005-0106		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	9601-9801	●	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9802-9803	●	●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9802-9803		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0106		●
18	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9804-0106		●
18	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9601-9803	●	●
18	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9804-		●
18	BOLT; BRKT (D) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9802-9803	●
19	SCREW; BRKT M5X14	8-94279-325-0	02	1	9601-9705	●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	9601-9705	●
19	SCREW; BRKT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	02	1	9706-9706	●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	9706-9706	●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	9707-9803	●	●
19	SCREW; BRKT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	02	1	9707-9803	●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	9804-0004		●
19	SCREW; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0005-0106		●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	0005-0106		●
19	SCREW; BRKT PTO CONTROL<SV6> M5X14	8-94279-325-0	02	1	0107-		●
19	SCREW; BRKT M5X14	8-94279-325-0	02	1	0107-		●
22	PAD; INST	1-72318-424-2	01	1	9601-0004		●
22	PAD; INST	1-72318-434-4	01	1	0005-		●
22	PAD; INST	1-72318-421-2	01	1	9601-9803	●
69	GRILLE; SIDE,AIR OUTLET	1-76368-029-5	01	1	9601-9803	●	●
69	GRILLE; SIDE,AIR OUTLET	1-76368-029-5	01	1	9804-0004		●
69	GRILLE; SIDE,AIR OUTLET	1-76367-070-0	01	1	0005-		●
69	GRILLE; SIDE,AIR OUTLET	1-76368-028-5	01	1	9601-9803	●	●
69	GRILLE; SIDE,AIR OUTLET	1-76368-028-5	01	1	9804-0004		●
69	GRILLE; SIDE,AIR OUTLET	1-76367-069-0	01	1	0005-		●
125	CLIP; INST PANEL	8-97853-939-4	02	1	9601-9803		●
125	CLIP; INST PANEL	8-97853-939-4	03	1	9804-9812		●
125	CLIP; INST PANEL	8-97217-066-0	08	1	9901-9909		●
125	CLIP; INST PANEL	8-97217-066-0	04	1	9910-0004		●
125	CLIP; INST PANEL	8-97217-066-0	04	1	9910-0004		●
125	CLIP; INST PANEL	8-97217-066-0	08	1	0005-0106		●
125	CLIP; INST PANEL	8-97217-066-0	11	1	0107-		●
125	CLIP; INST PANEL	8-97853-939-4	01	1	9601-9803	●	●
125	CLIP; INST PANEL	8-97853-939-4	08	1	9804-9812		●
125	CLIP; INST PANEL	8-97217-066-0	03	1	9901-0106		●
125	CLIP; INST PANEL	8-97853-939-4	08	1	9601-9803	●	●
133	SCREW; COVER,INST PNL EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14	8-94279-325-0	02	1	9706-9803	●
141	PROTECTOR; EDGE	1-72318-430-0	01	1	9601-9803	●	●
141	PROTECTOR; EDGE	1-72318-430-0	01	1	9804-		●
146	SCREW; TAP M5X14	8-94279-325-0	10	1	9601-9803	●	●
146	SCREW; TAP M5X14	8-94279-325-0	10	1	9804-		●
170	COVER; HOLE (A)	1-76367-068-0	01	1	9601-9803	●	●
170	COVER; HOLE (A)	1-76367-068-0	01	1	9804-		●
170	COVER; HOLE EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B)	1-72438-139-0	01	1	9706-9803	●
220	SCREW; LID TO STOPPER M5X14	8-94279-325-0	02	1	9601-9803	●	●
220	SCREW; LID TO STOPPER M5X14	8-94279-325-0	02	1	9804-		●
265	HOLDER; CUP	8-97853-172-5	01	1	9601-9705	●	●
265	HOLDER; CUP	8-97853-172-5	01	1	9706-9803		●
265	HOLDER; CUP INTERIOR ORNAMENT HOLDER<TEJ>	8-97853-172-5	01	1	9706-9803	●
265	HOLDER; CUP	8-97853-172-8	01	1	9804-		●
266	SCREW; CUP STAND M5X14	8-94279-325-0	02	1	9601-9705	●	●
266	SCREW; CUP STAND M5X14	8-94279-325-0	02	1	9706-9803		●
266	SCREW; CUP STAND INTERIOR ORNAMENT HOLDER<TEJ> M5X14	8-94279-325-0	02	1	9706-9803	●
266	SCREW; CUP STAND M5X14	8-94279-325-0	02	1	9804-		●
291	FASTENER; INST CLUSTER	1-72438-137-0	06	1	0107-		●
291	FASTENER; INST CLUSTER	1-72438-137-0	06	1	9601-9803	●	●
291	FASTENER; INST CLUSTER	1-72438-137-0	06	1	9804-0106		●
309	PANEL; SW,INST	1-72418-009-6	01	1	9601-9803	●	●
309	PANEL; SW,INST	1-72418-009-6	01	1	9804-		●
310	BOLT; SW PNL M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	9601-9803	●	●
310	BOLT; SW PNL M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	9804-		●
336	COVER; INST PANEL SIDE	1-72438-111-4	01	1	9601-9803	●	●
336	COVER; INST PANEL SIDE	1-72438-111-4	01	1	9804-0004		●
336	COVER; INST PANEL SIDE	1-72437-624-0	01	1	0005-		●
336	COVER; INST PANEL SIDE	1-72438-109-6	01	1	9601-9803	●	●
336	COVER; INST PANEL SIDE	1-72438-109-6	01	1	9804-0004		●
336	COVER; INST PANEL SIDE	1-72437-622-0	01	1	0005-		●
337	FASTENER; COVER (A)	1-72438-124-2	12	1	0107-		●
337	FASTENER; COVER (A)	1-72438-124-2	08	1	9601-9803		●
337	FASTENER; COVER (A)	1-72438-124-2	02	1	9804-0106		●
337	FASTENER; COVER (B)	1-72438-138-0	06	1	9601-9803	●	●
337	FASTENER; COVER (B)	1-72438-138-0	06	1	9804-		●
337	FASTENER; COVER (A)	1-72438-124-2	02	1	9601-9803	●	●
337	FASTENER; COVER (A)	1-72438-124-2	08	1	9804-0106		●
337	FASTENER; COVER (A)	1-72438-124-2	06	1	9601-9803	●
394	HOLDER; PANEL (A)	1-72438-066-0	08	1	9601-		●
394	HOLDER; PANEL (B)	1-72558-026-5	02	1	9601-9803	●	●
394	HOLDER; PANEL (B)	1-72558-026-5	02	1	9804-		●
394	HOLDER; PANEL (A)	1-72438-066-0	06	1	9601-9803	●
402	SCREW; VENT GRILLE,INST M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9601-9803	●	●
402	SCREW; VENT GRILLE,INST M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9804-0604		●
402	SCREW; VENT GRILLE,INST M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-		●
405	GRILLE ASM; METER VENT (A)	1-76367-062-1	01	1	9601-9803	●	●
405	GRILLE ASM; METER VENT (A)	1-76367-062-2	01	1	9804-		●
405	GRILLE ASM; METER VENT (B)	1-76367-059-3	01	1	9601-9803	●	●
405	GRILLE ASM; METER VENT (B)	1-76367-059-3	01	1	9804-		●
500	CLUSTER; INST CENTER	1-72438-117-8	01	1	9601-9803	●	●
500	CLUSTER; INST CENTER	1-72438-117-9	01	1	9804-0004		●
500	CLUSTER; INST CENTER	1-72438-185-1	01	1	0005-		●
502	GROMMET; SCREW,CENTER,CLUSTER D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9601-9803	●	●
502	GROMMET; SCREW,CENTER,CLUSTER D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9804-		●
505	LOCK; LID	1-72558-024-2	02	1	9601-9803	●	●
505	LOCK; LID	1-72558-024-2	02	1	9804-		●
513	BRACKET; RELAY (A)	1-73908-009-9	01	1	9601-9803	●	●
513	BRACKET; RELAY (A)	1-73908-009-9	01	1	9804-0205		●
513	BRACKET; RELAY (A)	1-73908-425-0	01	1	0206-		●
513	BRACKET; RELAY PTO CONTROL<SV6> (B)	1-73908-043-1	01	1	9601-9706	●
513	BRACKET; RELAY PTO CONTROL<SV6> (B)	1-73908-043-1	01	1	9707-9803	●	●
513	BRACKET; RELAY PTO CONTROL<SV6> (B)	1-73908-043-1	01	1	9804-		●
527	CLIP; INST CLUSTER	8-97853-939-4	04	1	9601-9803	●	●
527	CLIP; INST CLUSTER	8-97853-939-4	04	1	9804-9812		●
527	CLIP; INST CLUSTER	8-97217-066-0	04	1	9901-		●
557	LID; BOX,COOL & HOT	1-72548-142-1	01	1	9601-9803	●	●
557	LID; BOX,COOL & HOT	1-72548-142-1	01	1	9804-		●
565	BEZEL; SW PANEL (A)	1-72418-010-1	01	1	9601-9803	●	●
565	BEZEL; SW PANEL (A)	1-72418-010-2	01	1	9804-		●
565	BEZEL; SW PANEL (B)	1-72418-011-2	01	1	9601-9803	●	●
565	BEZEL; SW PANEL (B)	1-72418-011-3	01	1	9804-		●
569	HOLDER; CARD	1-72498-015-1	01	1	9601-9803	●	●
569	HOLDER; CARD	1-72498-015-2	01	1	9804-		●
570	SCREW; HOLDER M5X14	8-94279-325-0	01	1	9601-9803	●	●
570	SCREW; HOLDER M5X14	8-94279-325-0	01	1	9804-		●
572	COVER; INSPECTION	1-72438-054-3	01	1	9601-9803	●	●
572	COVER; INSPECTION	1-72438-054-3	01	1	9804-0004		●
572	COVER; INSPECTION	1-72438-183-0	01	1	0005-		●
579	COVER; INST PNL	1-72438-115-5	01	1	9601-0004		●
579	COVER; INST PNL	1-72438-186-1	01	1	0005-		●
579	COVER; INST PNL	1-72438-113-3	01	1	9601-9803	●
581	SCREW M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9601-9803	●	●
581	SCREW M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9804-0604		●
581	SCREW M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-		●
582	LID; FUSE & RELAY	1-72547-115-8	01	1	9601-0004		●
582	LID; FUSE & RELAY	1-72547-124-0	01	1	0005-		●
582	LID; FUSE & RELAY	1-72548-127-8	01	1	9601-9803	●
588	LID; BOX	1-72548-135-3	01	1	9601-9803	●	●
588	LID; BOX	1-72548-135-3	01	1	9804-		●
589	KNOB; LID	1-72548-143-0	01	1	9601-9803	●	●
589	KNOB; LID	1-72548-143-0	01	1	9804-		●
592	HINGE; LID	1-72548-133-3	01	1	9601-9803	●	●
592	HINGE; LID	1-72548-133-3	01	1	9804-		●
593	SCREW; HINGE M5X14	8-94279-325-0	02	1	9601-9803	●	●
593	SCREW; HINGE M5X14	8-94279-325-0	02	1	9804-		●
594	HOOK; COAT	1-72498-013-0	01	1	9601-9803	●	●
594	HOOK; COAT	1-72498-013-0	01	1	9804-		●
595	NUT; HOOK (A) M5	1-09984-162-0	01	1	9601-9803	●	●
595	NUT; HOOK (A) M5	1-09984-162-0	01	1	9804-0012		●
595	NUT; HOOK (A)	8-97810-118-0	01	1	0101-0110		●
595	NUT; HOOK (A) M5	1-09984-162-0	01	1	0111-		●
595	NUT; HOOK (B)	1-72418-013-0	11	1	9601-9803	●	●
595	NUT; HOOK (B)	1-72418-013-0	11	1	9804-		●
596	SCREW; HOOK M5X16 W/LK&PL WASHER	8-94279-400-0	01	1	9601-9803	●	●
596	SCREW; HOOK M5X16 W/LK&PL WASHER	8-94279-400-0	01	1	9804-0012		●
596	SCREW; HOOK M5X14	8-94279-325-0	01	1	0101-0110		●
596	SCREW; HOOK M5X16 W/LK&PL WASHER	8-94279-400-0	01	1	0111-		●
603	CLIP; COVER	1-09987-245-1	01	1	9601-9803	●	●
603	CLIP; COVER	1-09987-245-1	01	1	9804-0004		●
603	CLIP; COVER D8X13.5	1-09987-270-0	01	1	0005-		●
673	FINISHER; BRKT,RELAY L=30	8-94273-221-0	01	1	0006-0009		●
673	FINISHER; BRKT,RELAY L=50	8-94270-377-1	01	1	0010-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
