◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#25270) — 26 parça

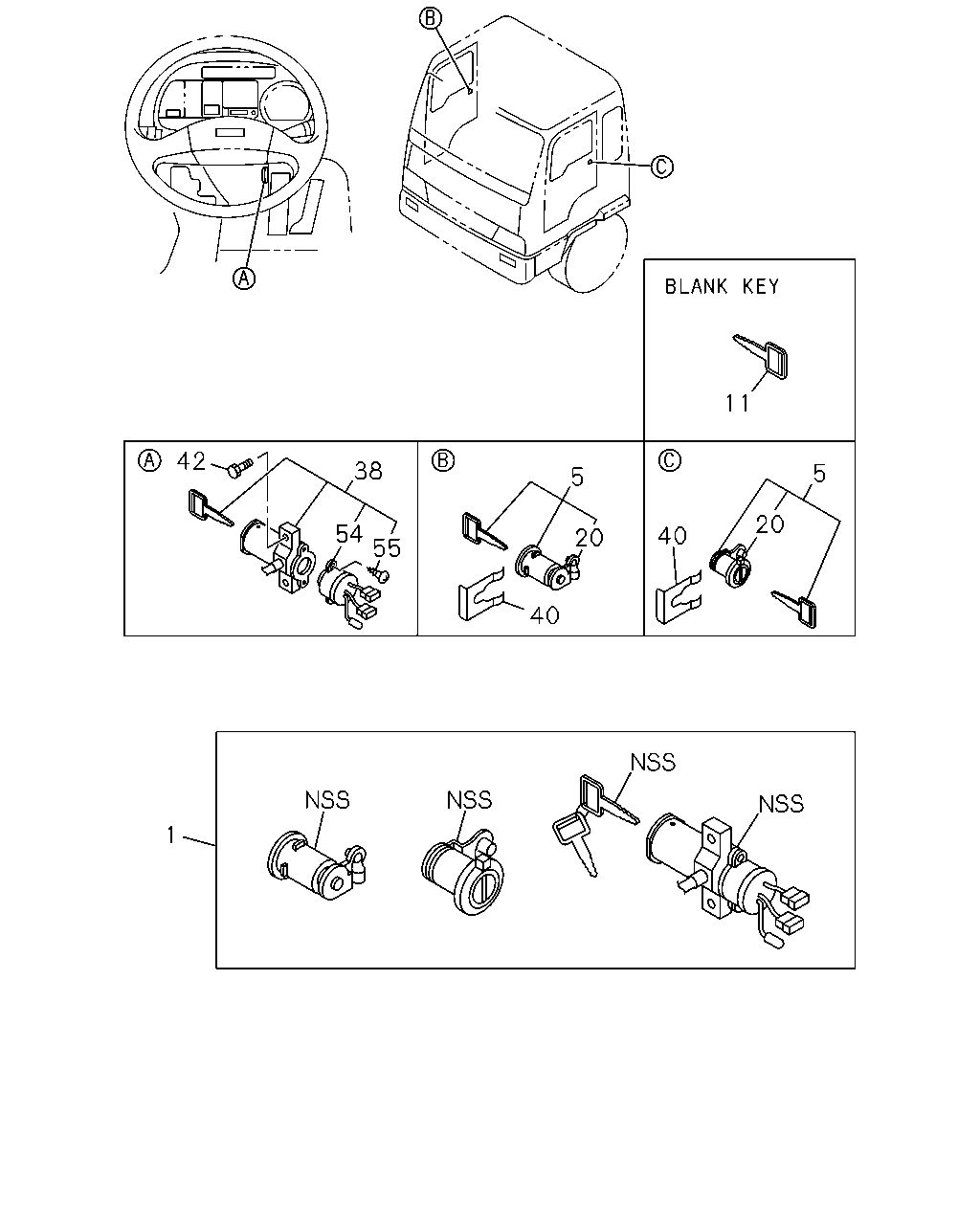

çizim 86009
11 42 38 5 5 20 54 55 40 20 40 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 1-79138-199-1 01 1 9601-9803 ● ●
1 CYLINDER SET; CAR LOCK 1-79138-199-5 01 1 9804- ●
5 CYLINDER ASM; DOOR LOCK 1-79138-203-1 01 1 9601-9803 ● ●
5 CYLINDER ASM; DOOR LOCK 1-79138-203-2 01 1 9804- ●
5 CYLINDER ASM; DOOR LOCK 1-79138-202-1 01 1 9601-9803 ● ●
5 CYLINDER ASM; DOOR LOCK 1-79138-202-2 01 1 9804- ●
11 KEY; BLANK
WO/RESIN 		1-79137-129-1 AR 1 9601-9803 ● ●
11 KEY; BLANK
WO/RESIN 		1-79137-129-1 AR 1 9804- ●
11 KEY; BLANK
W/RESIN 		1-79137-130-1 AR 1 9601-9803 ● ●
11 KEY; BLANK
W/RESIN 		1-79137-130-1 AR 1 9804- ●
20 SNAP; DOOR LOCK CYL
GREEN 		1-79138-193-0 01 1 9601-9803 ● ●
20 SNAP; DOOR LOCK CYL
GREEN 		1-79138-193-0 01 1 9804- ●
20 SNAP; DOOR LOCK CYL
PINK 		1-79138-192-0 01 1 9601-9803 ● ●
20 SNAP; DOOR LOCK CYL
PINK 		1-79138-192-0 01 1 9804- ●
38 LOCK ASM; STRG 1-79138-201-1 01 1 9601-9803 ● ●
38 LOCK ASM; STRG 1-79138-201-2 01 1 9804- ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9601-9803 ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9804- ●
42 BOLT; STRG LOCK
M8X30 W/PL WASHER 		1-09981-482-2 02 1 0005-0106 ●
42 BOLT; STRG LOCK
M8X30 W/PL WASHER 		1-09980-621-1 02 1 0107- ●
42 BOLT; STRG LOCK
M8X30 W/PL WASHER 		1-09981-482-1 02 1 9601-9803 ● ●
42 BOLT; STRG LOCK
M8X30 W/PL WASHER 		1-09981-482-2 02 1 9804-0004 ●
54 SWITCH ASM; STRG LOCK CYL 1-79137-050-0 01 1 9601-9803 ● ●
54 SWITCH ASM; STRG LOCK CYL 1-79137-050-2 01 1 9804- ●
55 SCREW; SWITCH
M3X10 W/LK WASHER 		9-03910-310-0 02 1 9601-9803 ● ●
55 SCREW; SWITCH
M3X10 W/LK WASHER 		9-03910-310-0 02 1 9804- ●
