Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#2527) — 169 parça

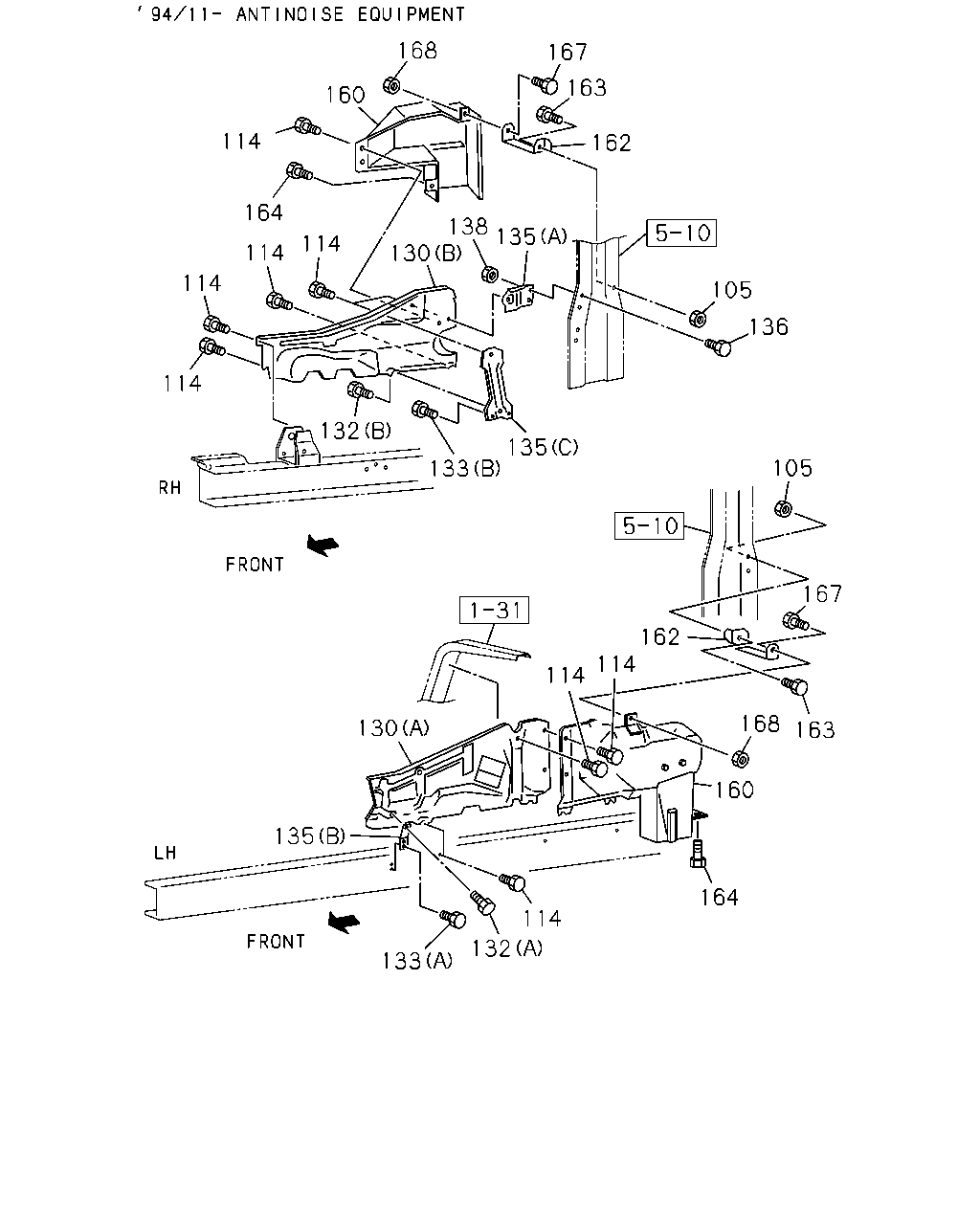

168 167 163 160 114 162 164 138 135 130 114 114 114 105 136 114 132 135 133 105 167 162 114 114 168 130 163 160 135 164 114 132 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
105	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8	9-09110-408-0	03	1	9411-
105	NUT; BRKT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	02	1	9411-9501
105	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	9502-9503
105	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	9504-
105	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	9504-
114	BOLT ANTI NOISE EQUIPMENT<SV9> M8X14 FLANGE	0-28080-814-0	01	1	9411-9501
114	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X14 FLANGE	0-28080-814-0	01	1	9502-
114	BOLT ANTI NOISE EQUIPMENT<SV9> M8X22 W/LK&PL WASHER	1-09030-042-0	07	1	9411-9501
114	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X22 W/LK&PL WASHER	1-09030-042-0	07	1	9502-
114	BOLT ANTI NOISE EQUIPMENT<SV9> M8X30 W/LK&PL WASHER	1-09030-080-0	04	1	9411-9501
114	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 W/LK&PL WASHER	1-09030-080-0	04	1	9502-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (B)	1-53192-585-0	01	1	9411-9501
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (C)	1-79937-817-3	01	1	9502-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53192-333-0	01	1	9411-
130	PANEL; SHUTTER NOISE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-331-0	01	1	9411-9501
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B)	1-53192-585-0	01	1	9502-
132	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE	0-28080-820-0	02	1	9411-9501
132	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	02	1	9502-
132	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (B) M8X35 W/LK&PL WASHER	1-09030-073-0	01	1	9411-9501
132	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) M8X35 W/LK&PL WASHER	1-09030-073-0	01	1	9502-
133	BOLT; FRAME ANTI NOISE EQUIPMENT<SV9> (A) M8X30 FLANGE	0-28080-830-0	02	1	9411-9501
133	BOLT; FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) M8X30 FLANGE	0-28080-830-0	02	1	9502-
133	BOLT; FRAME ANTI NOISE EQUIPMENT<SV9> (B) M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	9411-9501
133	BOLT; FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	9502-
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (A)	1-53441-494-1	01	1	9411-9501
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53441-494-1	01	1	9502-
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (B)	1-53441-555-0	01	1	9411-9412
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (B)	1-53441-558-0	01	1	9501-9501
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B)	1-53441-558-0	01	1	9502-
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> (C)	1-53441-491-0	01	1	9411-9501
135	BRACKET; SIDE PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (C)	1-53441-491-0	01	1	9502-
136	BOLT ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	02	1	9411-9501
136	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9502-
138	NUT ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	06	1	9411-9501
138	NUT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8	9-09110-408-0	06	1	9502-
160	COVER ASM; EXH ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-79931-081-0	01	1	9411-
160	COVER ASM; EXH 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-79931-164-0	01	1	9411-
160	COVER ASM; EXH 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9>	1-79930-910-1	01	1	9411-9501
162	BRACKET ANTI NOISE EQUIPMENT<SV9>	1-53441-488-0	01	1	9411-9501
162	BRACKET ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-53441-488-0	01	1	9502-
162	BRACKET ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-53441-487-0	01	1	9411-
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9411-
163	BOLT; BRKT 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	02	1	9411-9501
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28080-830-0	02	1	9502-9503
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28080-830-0	02	1	9504-
163	BOLT; BRKT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28080-830-0	02	1	9504-
164	BOLT; FLEX COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9411-
164	BOLT; FLEX COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	01	1	9411-
164	BOLT; FLEX COVER 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	01	1	9411-9501
167	BOLT; EXH COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9411-
167	BOLT; EXH COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X22 W/LK&PL WASHER	1-09030-042-0	02	1	9411-
168	NUT; EXH COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8 FLANGE	5-09440-005-0	02	1	9411-
168	NUT; EXH COVER 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	5-09440-005-0	01	1	9411-9501

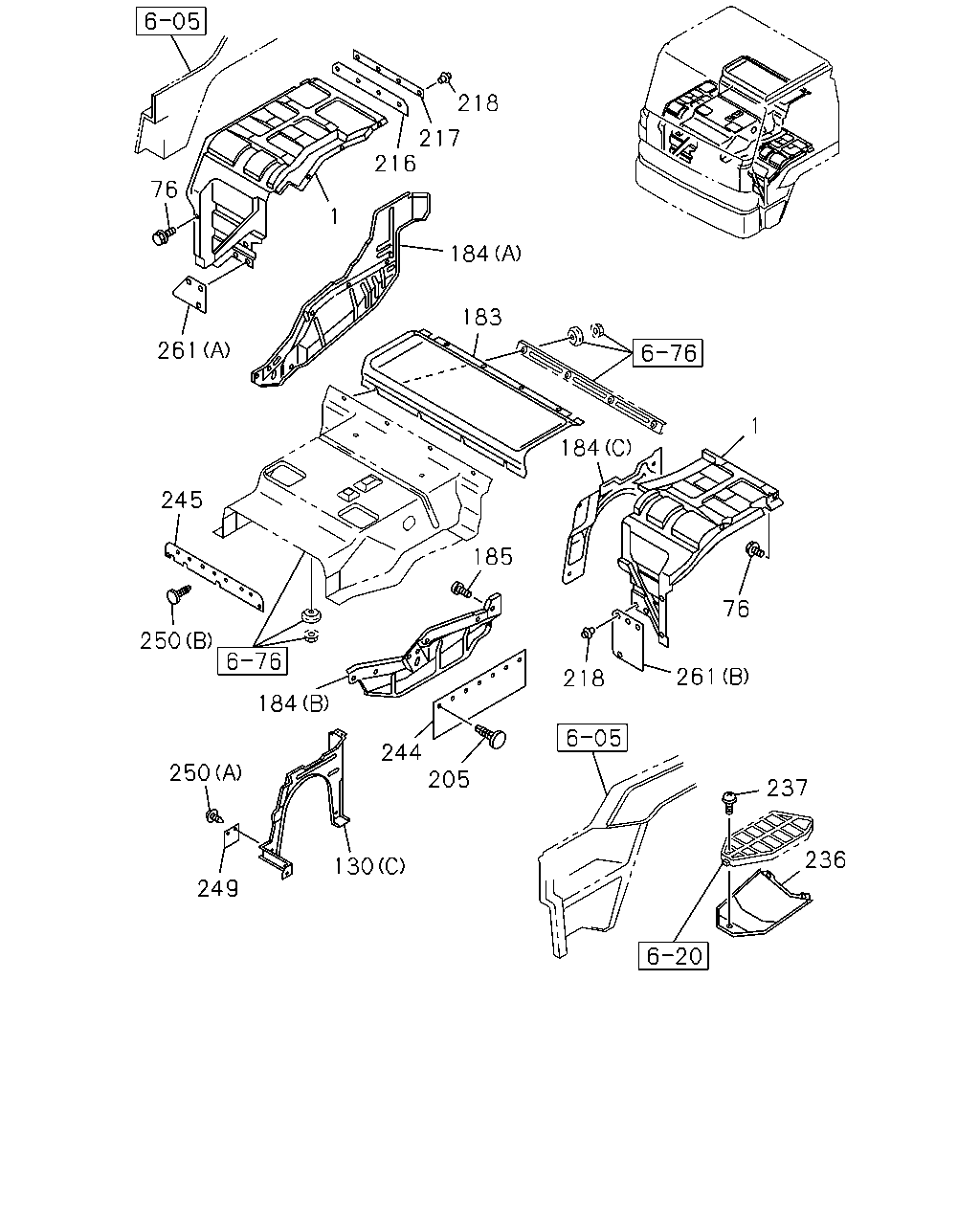

218 217 216 76 1 184 183 261 1 184 245 185 76 250 261 218 184 244 205 250 237 236 130 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79937-711-9	01	1	9002-9301
1	GUARD; MUD,FRT	1-79937-923-0	01	1	9302-
1	GUARD; MUD,FRT	1-79937-710-9	01	1	9002-
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	16	1	9002-
76	BOLT; MUD GUARD M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
76	BOLT; MUD GUARD M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (B)	1-53192-585-0	01	1	9411-9501
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (C)	1-79937-817-3	01	1	9502-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53192-333-0	01	1	9411-
130	PANEL; SHUTTER NOISE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-331-0	01	1	9411-9501
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B)	1-53192-585-0	01	1	9502-
183	INSULATOR; HEAT,BED PAN	1-71997-499-5	01	1	9002-9305
183	INSULATOR; HEAT,BED PAN	1-71997-746-2	01	1	9306-9307
183	INSULATOR; HEAT,BED PAN NYLON TUBE AIR PIPING<Z29>	1-71997-746-2	01	1	9308-
183	INSULATOR; HEAT,BED PAN EXC. NYLON TUBE AIR PIPING<Z29>	1-71997-499-5	01	1	9308-
184	INSULATOR; HEAT,ENG SIDE FRT ANTI NOISE EQUIPMENT<SV9> (C)	1-71997-896-0	01	1	9502-
184	INSULATOR; HEAT,ENG SIDE FRT ANTI NOISE EQUIPMENT<SV9> (B)	1-71997-970-0	01	1	9502-
184	INSULATOR; HEAT,ENG SIDE FRT ANTI NOISE EQUIPMENT<SV9> (A)	1-71997-748-2	01	1	9502-
185	CLIP; HEAT INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	17	1	9502-
205	FASTENER; MUD COVER L TYPE ENG<90L> D6X23 BLACK	1-09987-114-0	07	1	9002-9212
205	FASTENER; MUD COVER L TYPE ENG<90L>	1-09987-189-0	07	1	9301-9502
205	FASTENER; MUD COVER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-09987-189-0	07	1	9503-
205	FASTENER; MUD COVER 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-09987-189-0	06	1	9502-
216	RUBBER; RR,MUD GUARD FRT	1-79937-716-1	01	1	9002-
217	RETAINER; RUBBER,MUD GUARD FRT	1-79937-717-1	01	1	9002-
218	FASTENER; RUBBER AIR CONDITIONER MANUAL CONTROL(C60)	5-09989-002-0	05	1	9002-
218	FASTENER; RUBBER EXC. AIR CONDITIONER MANUAL CONTROL(C60)	5-09989-002-0	04	1	9002-
218	FASTENER; RUBBER	5-09989-002-0	04	1	9002-
236	GUARD ASM; MUD 1ST STEP	1-79937-744-0	02	1	9002-9405
236	GUARD ASM; MUD 1ST STEP HONG KONG EQUIPMENT(PQ1)	1-79937-744-0	02	1	9406-
237	BOLT; MUD GUARD M6X16 W/LK&PL WASHER	1-09980-497-0	06	1	9002-9307
237	BOLT; MUD GUARD M6X16 W/LK&PL WASHER	1-09980-586-0	06	1	9308-9405
237	BOLT; MUD GUARD HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER	1-09980-586-0	06	1	9406-
244	GUARD; MUD,SPLASH L TYPE ENG<90L>	1-79937-772-1	01	1	9002-9502
244	GUARD; MUD,SPLASH 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-79937-772-1	01	1	9503-
245	RUBBER; SHUTTER,RAD	1-79937-709-8	01	1	9002-
249	RUBBER; SHUTTER ANTI NOISE EQUIPMENT<SV9>	1-79937-886-0	01	1	9502-
250	FASTENER; SHUTTER (B)	1-09987-189-0	07	1	9002-
250	FASTENER; SHUTTER ANTI NOISE EQUIPMENT<SV9> (A) D6X16 PUSH RIVET	1-09983-105-0	02	1	9502-
261	RUBBER; FRT,MUD GUARD AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-79937-742-0	01	1	9002-
261	RUBBER; FRT,MUD GUARD AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-79937-774-1	01	1	9002-
261	RUBBER; FRT,MUD GUARD EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-79937-742-0	02	1	9002-

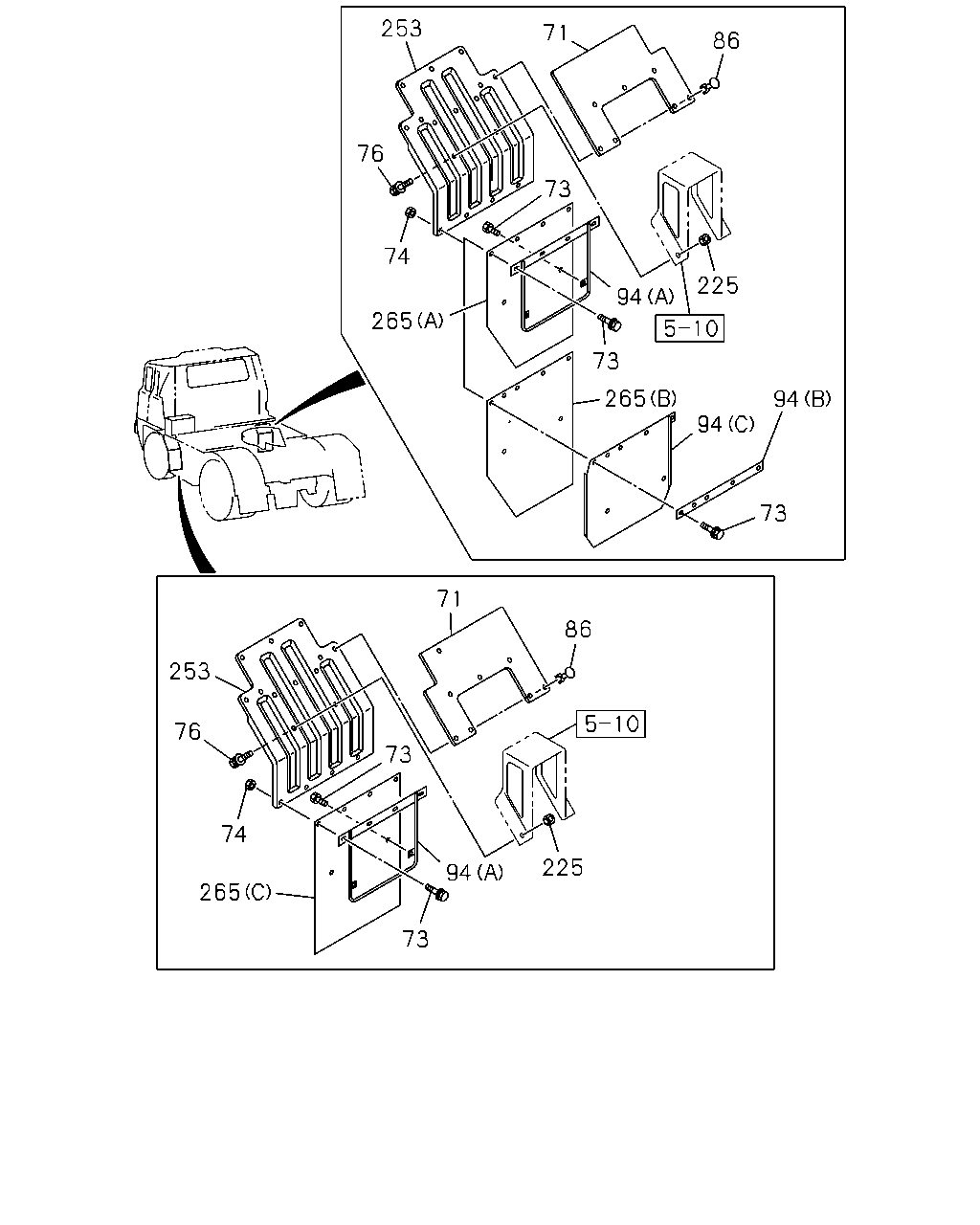

253 71 86 76 73 74 225 94 265 73 265 94 94 73 71 86 253 76 73 74 225 94 265 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	RUBBER; SEAL 470X230	1-79930-589-0	01	1	9002-9306
71	RUBBER; SEAL 470X320	1-79930-588-1	01	1	9002-9306
71	RUBBER; SEAL HONG KONG EQUIPMENT(PQ1) 470X230	1-79930-645-1	01	1	9307-
71	RUBBER; SEAL HONG KONG EQUIPMENT(PQ1) 470X320	1-79930-644-1	01	1	9307-
71	RUBBER; SEAL EXC. HONG KONG EQUIPMENT(PQ1) 470X230	1-79930-589-0	01	1	9307-
71	RUBBER; SEAL EXC. HONG KONG EQUIPMENT(PQ1) 470X320	1-79930-588-1	01	1	9307-
73	BOLT; MUD COVER BRKT M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9002-9204
73	BOLT; MUD COVER BRKT M8X16 W/LK&PL WASHER	0-50140-816-0	12	1	9205-
74	NUT M8	9-09110-408-0	08	1	9002-
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	16	1	9002-
76	BOLT; MUD GUARD M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
76	BOLT; MUD GUARD M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-
86	CLIP; MUD GUARD	5-09987-033-0	14	1	9002-
94	RETAINER; FLAP RUBBER (A)	1-79930-888-1	01	1	9307-
94	RETAINER; FLAP RUBBER (A)	8-94300-800-2	01	1	9307-
94	RETAINER; FLAP RUBBER AIR DRYER<PS7> V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-79930-738-2	01	1	9002-9306
94	RETAINER; FLAP RUBBER AIR DRYER<PS7> V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-79930-757-1	01	1	9002-9306
94	RETAINER; FLAP RUBBER SUB AIR TANK<SJD> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-79930-749-0	01	1	9002-9105
94	RETAINER; FLAP RUBBER EXC. SUB AIR TANK<SJD> (A)	1-79930-341-0	01	1	9002-9105
94	RETAINER; FLAP RUBBER NEW ZEALAND EQUIPMENT(PK5) SUB AIR TANK<SJD> (A)	1-79930-341-0	01	1	9002-9105
94	RETAINER; FLAP RUBBER (A)	1-79930-870-1	01	1	9106-9108
94	RETAINER; FLAP RUBBER (A)	1-79930-888-1	01	1	9109-9306
94	RETAINER; FLAP RUBBER V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (A)	8-94300-800-2	01	1	9002-9306
94	RETAINER; FLAP RUBBER TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L> (A)	8-94300-800-2	01	1	9002-9306
94	RETAINER; FLAP RUBBER L TYPE ENG<90L> (A)	8-94300-800-2	01	1	9002-9306
225	NUT; MUD GUARD M10 FLANGE	5-09440-006-0	08	1	9002-
225	NUT; MUD GUARD AIR DRYER<PS7> V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	5-09440-005-0	02	1	9002-
253	GUARD; MUD	1-79930-733-0	01	1	9002-9006
253	GUARD; MUD	1-79930-851-2	01	1	9007-9106
253	GUARD; MUD	1-79930-887-1	01	1	9107-
253	GUARD; MUD	1-79930-886-1	01	1	9307-
253	GUARD; MUD AIR DRYER<PS7> V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-79930-754-2	01	1	9002-9306
253	GUARD; MUD V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>	1-79930-740-0	01	1	9002-9006
253	GUARD; MUD TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L>	1-79930-740-0	01	1	9002-9006
253	GUARD; MUD L TYPE ENG<90L>	1-79930-740-0	01	1	9002-9006
253	GUARD; MUD V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>	1-79930-850-2	01	1	9007-9106
253	GUARD; MUD TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L>	1-79930-850-2	01	1	9007-9106
253	GUARD; MUD L TYPE ENG<90L>	1-79930-850-2	01	1	9007-9106
253	GUARD; MUD V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>	1-79930-886-1	01	1	9107-9306
253	GUARD; MUD TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L>	1-79930-886-1	01	1	9107-9306
253	GUARD; MUD L TYPE ENG<90L>	1-79930-886-1	01	1	9107-9306
265	RUBBER; FLAP,REAR (A)	1-79930-544-0	01	1	9307-
265	RUBBER; FLAP,REAR AIR DRYER<PS7> V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-79930-756-1	01	1	9002-9306
265	RUBBER; FLAP,REAR SUB AIR TANK<SJD> EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-79930-798-0	01	1	9002-9011
265	RUBBER; FLAP,REAR (C)	1-79930-798-0	01	1	9012-9105
265	RUBBER; FLAP,REAR (C)	1-79930-869-0	01	1	9106-
265	RUBBER; FLAP,REAR EXC. SUB AIR TANK<SJD> (C)	1-79930-343-1	01	1	9002-9011
265	RUBBER; FLAP,REAR NEW ZEALAND EQUIPMENT(PK5) SUB AIR TANK<SJD> (C)	1-79930-343-1	01	1	9002-9011
265	RUBBER; FLAP,REAR V TYPE ENG<91L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (A)	1-79930-544-0	01	1	9002-9306
265	RUBBER; FLAP,REAR TAIL PIPE SINGLE HORIZONTAL<NC2> V TYPE ENG<91L> (A)	1-79930-544-0	01	1	9002-9306
265	RUBBER; FLAP,REAR L TYPE ENG<90L> (A)	1-79930-544-0	01	1	9002-9306

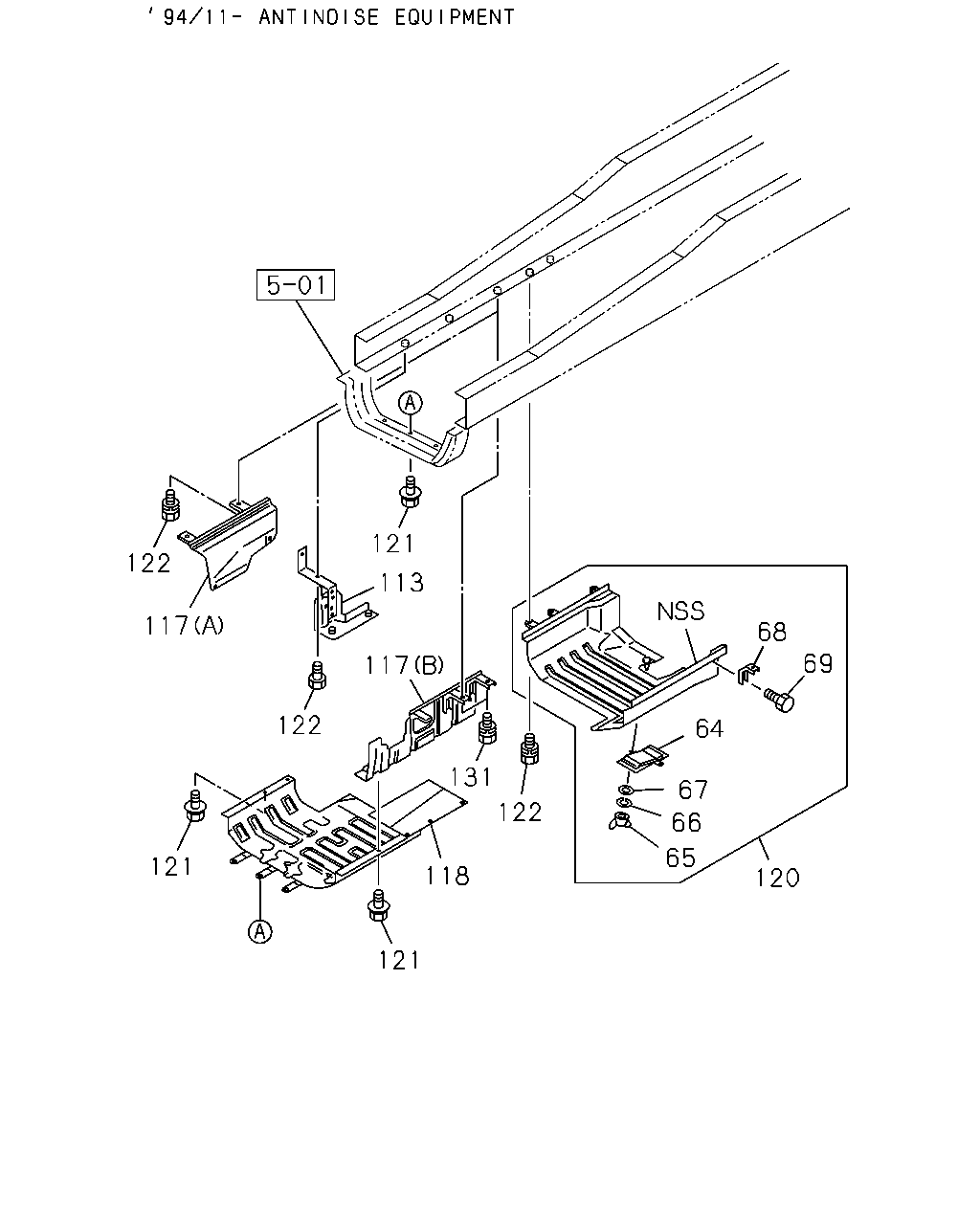

121 122 113 117 68 69 117 122 64 131 67 122 66 65 121 118 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	COVER; CHECK HOLE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-53441-421-0	01	1	9411-9501
65	NUT; WING ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8 WING NUT	9-09118-408-0	02	1	9411-9501
66	WASHER; LK ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> ID=8.2	9-09150-508-0	02	1	9411-9501
67	WASHER; PL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> ID=8.4	9-09160-508-0	02	1	9411-9501
68	STAY; COVER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-53441-452-0	03	1	9411-9501
69	BOLT; COVER TO STAY ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X16 FLANGE	0-28280-816-0	06	1	9411-9501
113	PANEL; SIDE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-53192-872-0	01	1	9411-
117	PANEL; SIDE,B UNDER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B)	1-53192-588-1	01	1	9411-
117	PANEL; SIDE,B UNDER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A)	1-53192-352-0	01	1	9411-
118	PANEL ASM; UNDER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-53192-356-1	01	1	9411-
120	PANEL; UNDER ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L>	1-53192-358-4	01	1	9411-9501
121	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X18 FLANGE	0-28080-818-0	06	1	9411-
121	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	03	1	9411-
122	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	06	1	9411-9501
122	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9411-
122	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X35 FLANGE	0-28080-835-0	02	1	9411-
122	BOLT ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X18 FLANGE	0-28080-818-0	02	1	9411-
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9411-9501
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	02	1	9411-9501
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9502-
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9502-
131	BOLT; PANEL ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X35 FLANGE	0-28080-835-0	02	1	9411-
131	BOLT; PANEL 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28080-825-0	03	1	9411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
