13 |
MIRROR ASM; OUTSIDE RR VIEW
(B)
|
1-71737-917-1 |
01 |
1 |
9601-9803 |
● |
|
| |
13 |

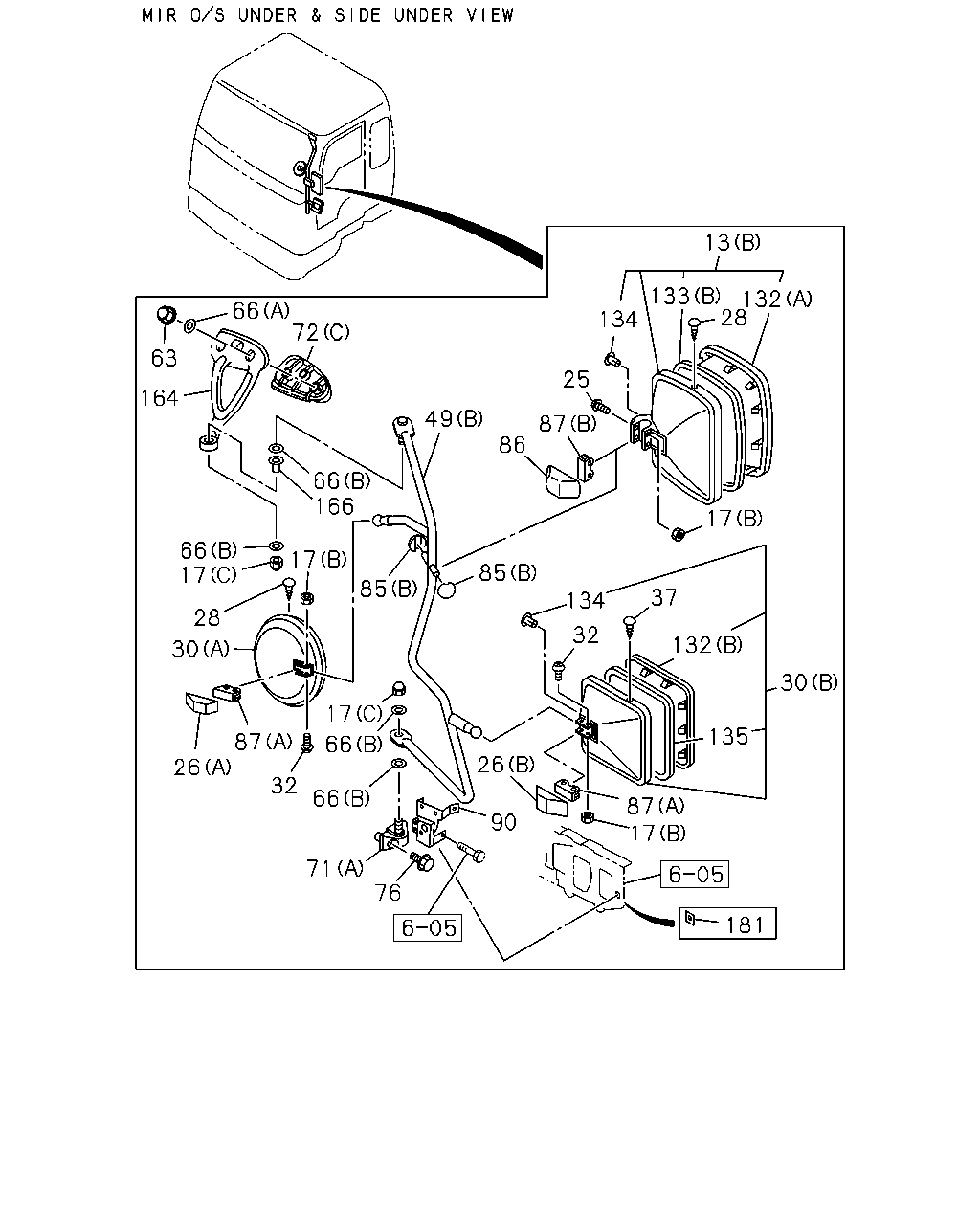

MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71737-917-1 |
01 |
1 |
9601-9803 |
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(B)
|
1-71737-917-3 |
01 |
1 |
9804- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(A)
|
1-71737-918-0 |
01 |
1 |
9601-9705 |
● |
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-918-0 |
01 |
1 |
9601-9705 |
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(A)
|
1-71737-918-1 |
01 |
1 |
9706-9803 |
● |
|
| |
13 |

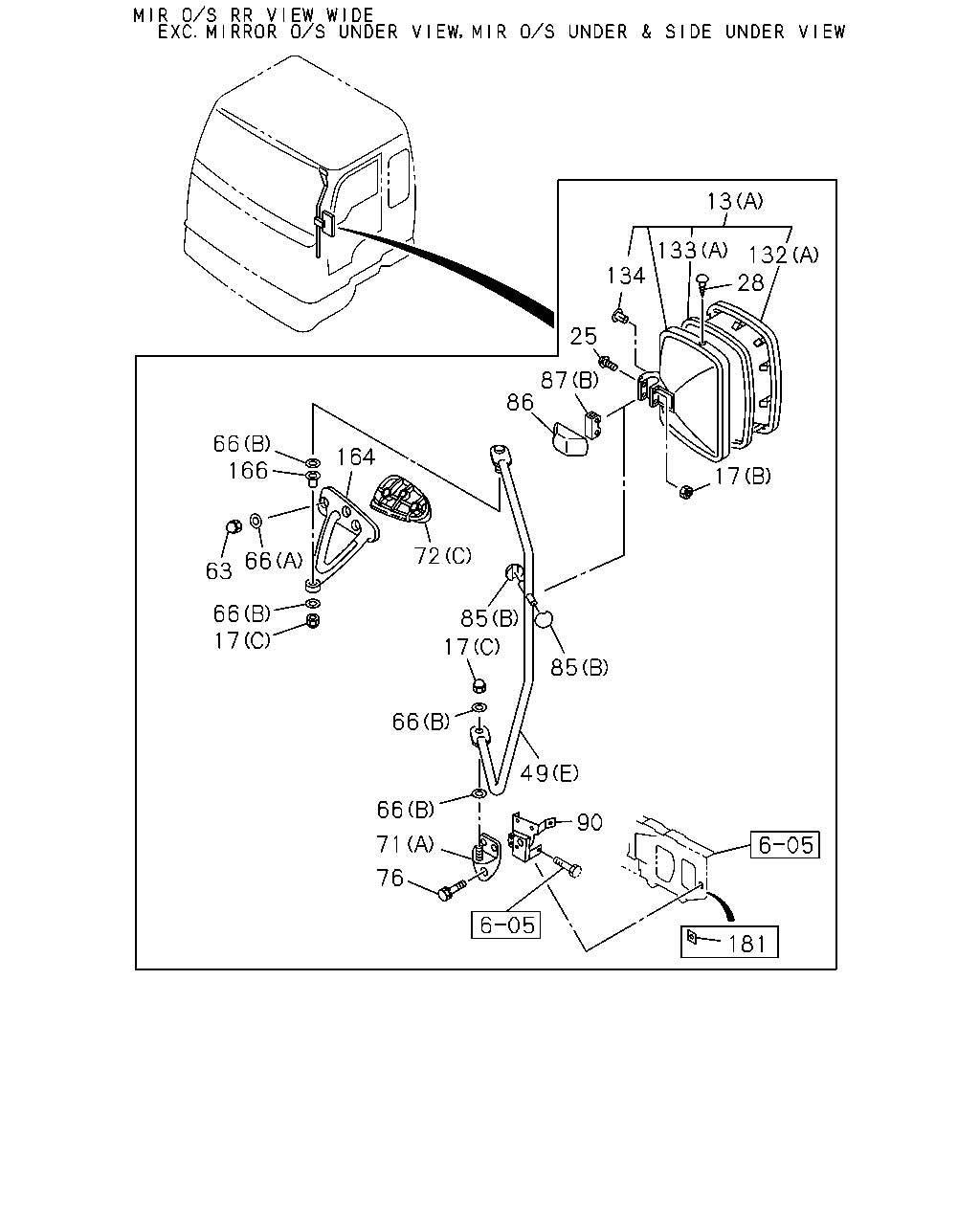

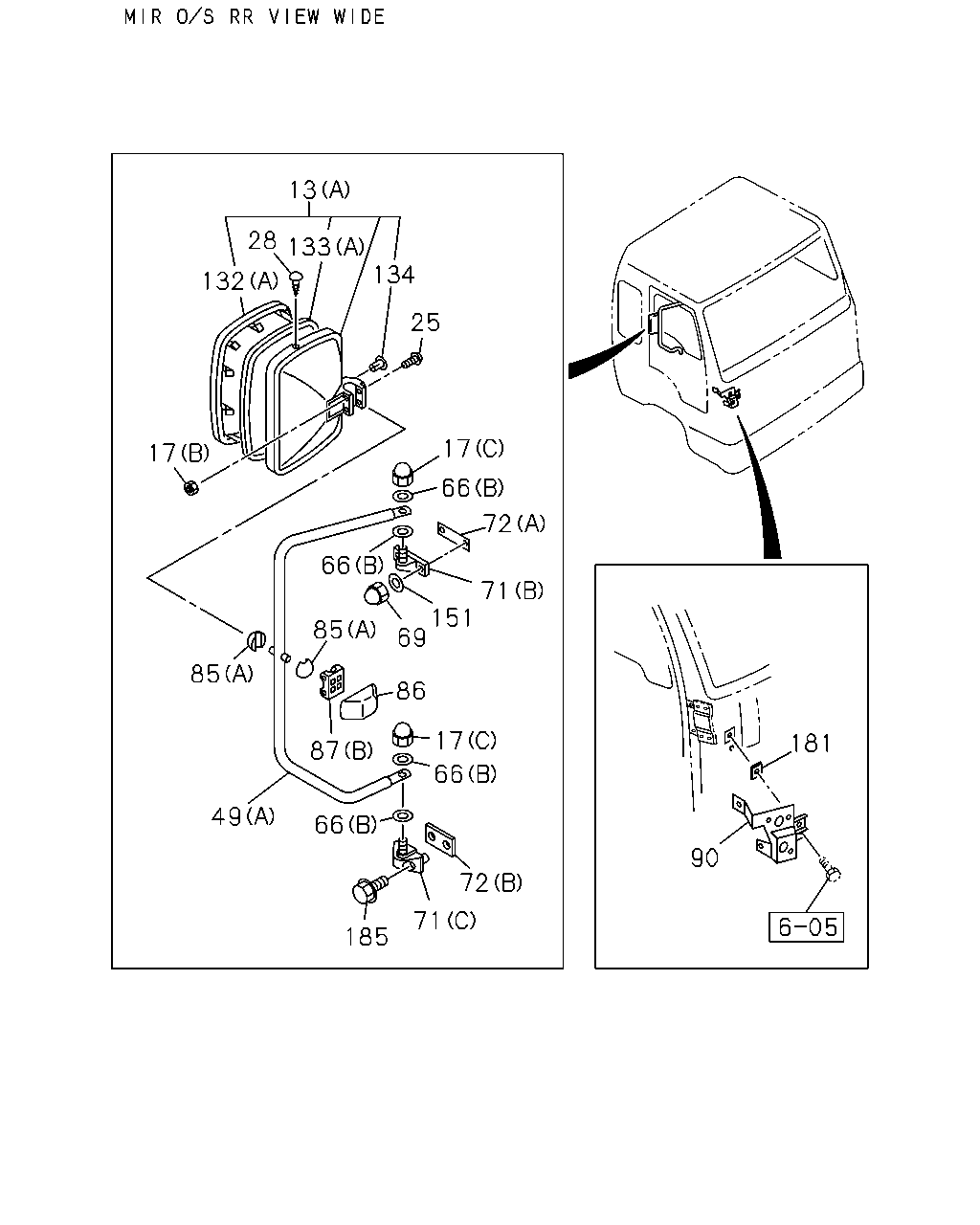

MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
(A)
|
1-71737-918-1 |
01 |
1 |
9706-9803 |
|
● |
| |
13 |

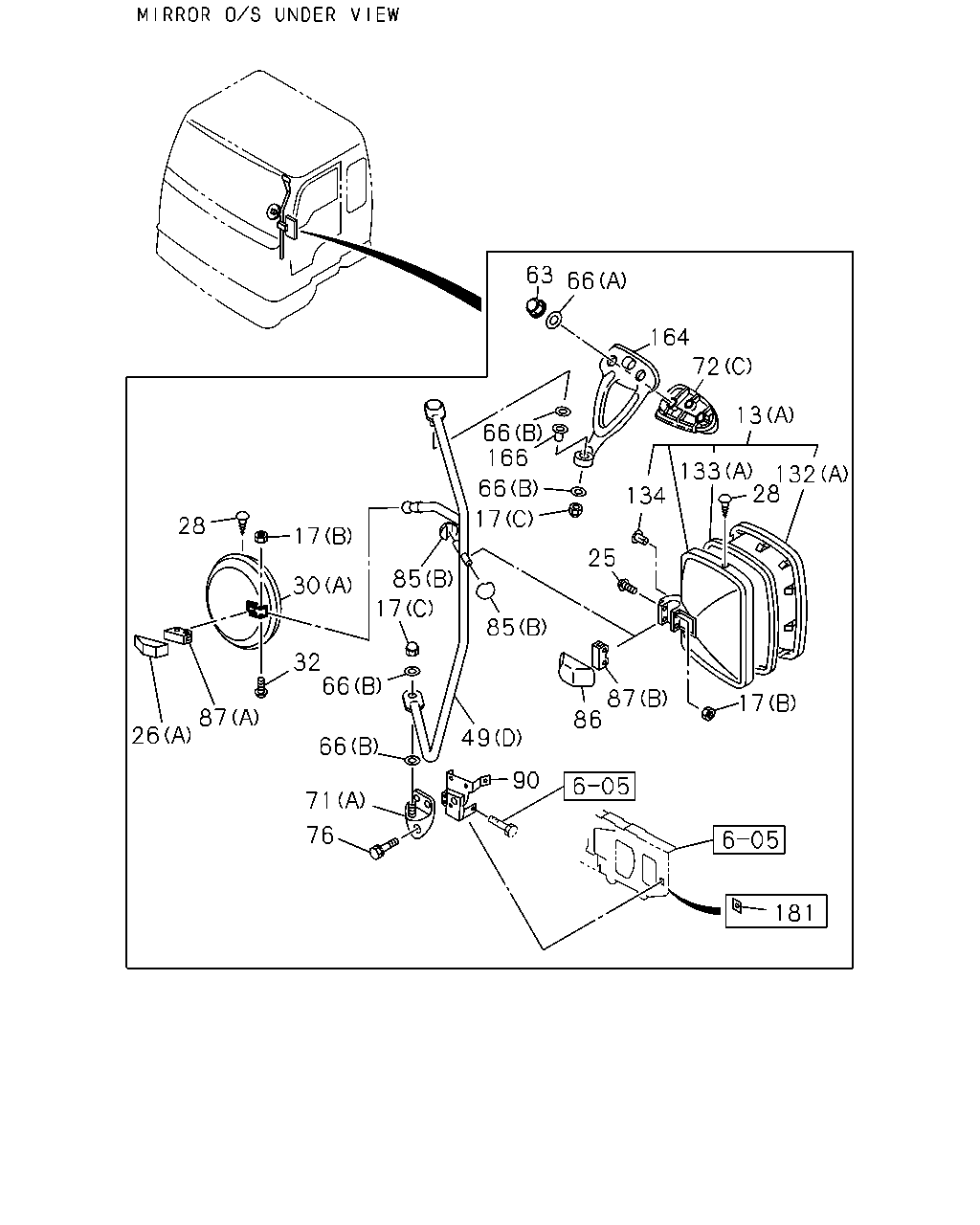

MIRROR ASM; OUTSIDE RR VIEW
MIRROR O/S UNDER VIEW<RR9>
(A)
|
1-71737-918-1 |
01 |
1 |
9706-9803 |
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71737-918-1 |
01 |
1 |
9706-9803 |
|
● |
| |
13 |

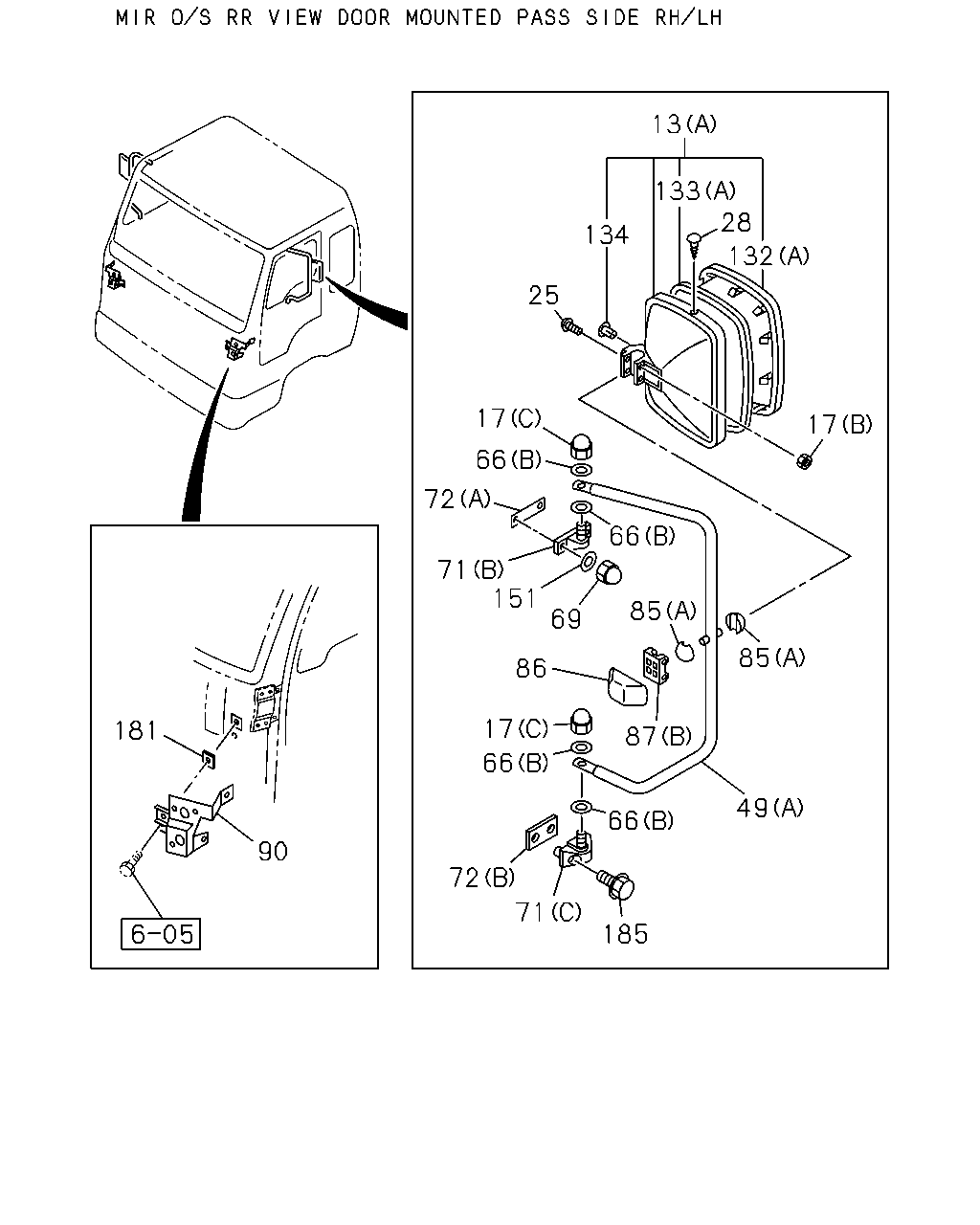

MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71737-918-1 |
01 |
1 |
9706-9803 |
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(A)
|
1-71737-918-3 |
01 |
1 |
9804- |
● |
|
| |
13 |

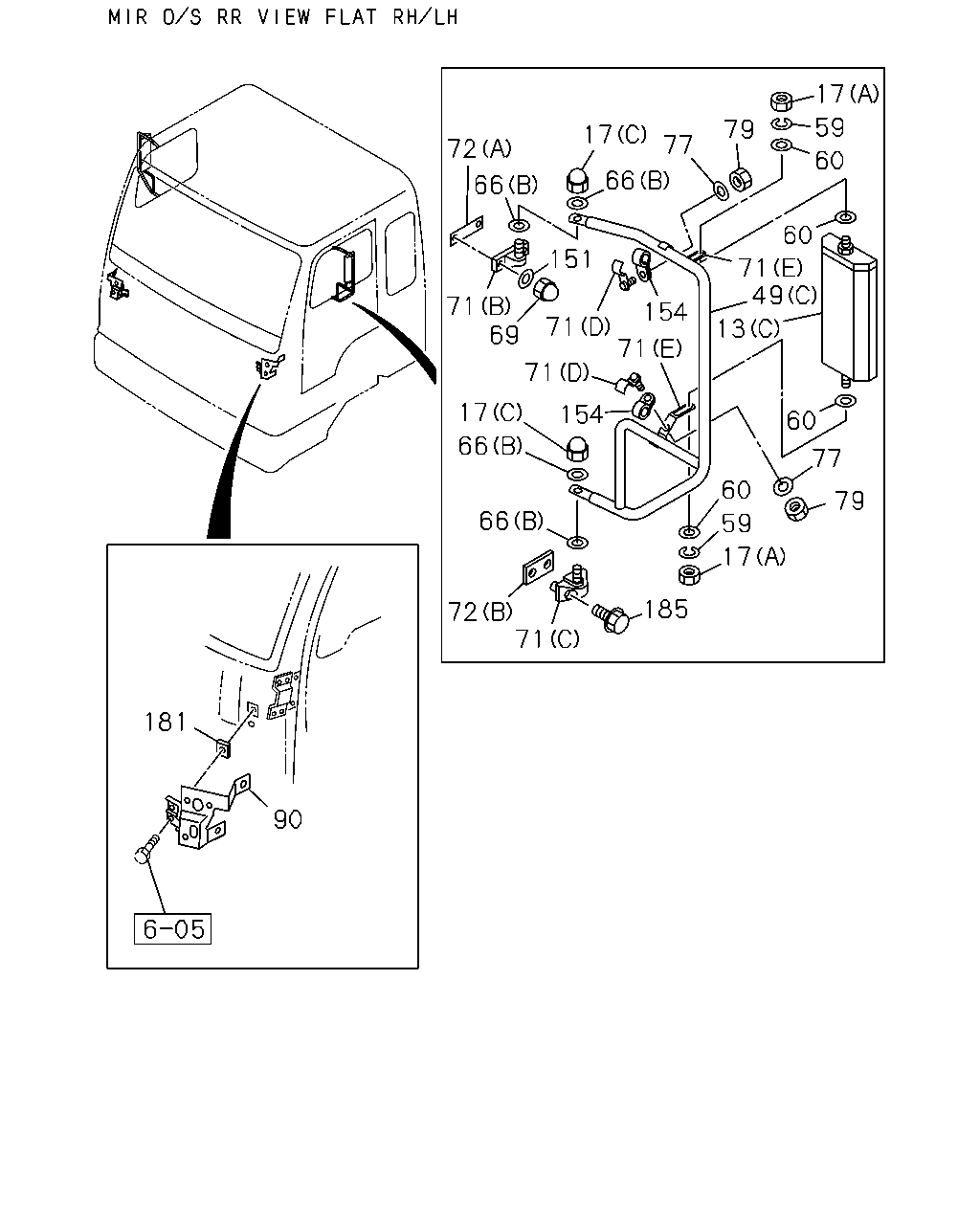

MIRROR ASM; OUTSIDE RR VIEW
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71737-487-3 |
02 |
1 |
9706-9803 |
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
(B)
M5
|
1-09984-124-0 |
06 |
1 |
9601-9803 |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
M5
|
1-09984-124-0 |
06 |
1 |
9601-9803 |
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
(B)
M5
|
1-09984-124-0 |
06 |
1 |
9804-0004 |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(B)
M5
|
1-09984-124-0 |
02 |
1 |
0005-0106 |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(B)
M5
|
1-09984-124-0 |
08 |
1 |
0107- |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9601-9705 |
● |
● |
| |
17 |
NUT; CAP,MIRROR STAY
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9601-9705 |
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9706-9803 |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9706-9803 |
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9706-9803 |
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9706-9803 |
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
(B)
M5
|
1-09984-124-0 |
02 |
1 |
9804-0004 |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(B)
M5
|
1-09984-124-0 |
06 |
1 |
0005-0106 |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(C)
M10
|
1-09984-183-0 |
04 |
1 |
9601-9803 |
● |
● |
| |
17 |
NUT; CAP,MIRROR STAY
(C)
M10
|
1-09984-183-0 |
04 |
1 |
9804-0208 |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
(C)
M10 CAP NUT
|
1-09984-134-0 |
04 |
1 |
0209- |
● |
|
| |
17 |
NUT; CAP,MIRROR STAY
MIR O/S RR VIEW FLAT<YS1>
(A)
M8 FLANGE
|
1-09984-122-0 |
04 |
1 |
9706-9803 |
|
● |
| |
17 |
NUT; CAP,MIRROR STAY
MIRROR O/S UNDER VIEW<RR9>
(B)
M5
|
1-09984-124-0 |
04 |
1 |
9601-9803 |
|
● |
| |
25 |
SCREW; OUTSIDE MIRROR
M5X50
|
1-09981-444-0 |
02 |
1 |
9601-9705 |
● |
● |
| |
25 |
SCREW; OUTSIDE MIRROR
M5X50
|
1-09981-444-0 |
02 |
1 |
9601-9705 |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
M5X50
|
1-09981-444-0 |
02 |
1 |
9706-9803 |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
M5X50
|
1-09981-444-0 |
02 |
1 |
9706-9803 |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
M5X50
|
1-09981-444-0 |
02 |
1 |
9706-9803 |
|
● |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
M5X50
|
1-09981-444-0 |
02 |
1 |
9706-9803 |
|
● |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
M5X50
|
1-09981-444-0 |
02 |
1 |
9706-9803 |
|
● |
| |
25 |
SCREW; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
M5X50
|
1-09981-444-0 |
02 |
1 |
9706-9803 |
|
● |
| |
25 |
SCREW; OUTSIDE MIRROR
M5X50
|
1-09981-444-0 |
02 |
1 |
9804-0106 |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
M5X50
|
1-09981-444-0 |
02 |
1 |
9804-0106 |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
M5X50
|
1-09981-444-0 |
04 |
1 |
0107-0404 |
● |
|
| |
25 |
SCREW; OUTSIDE MIRROR
|
1-09981-541-0 |
04 |
1 |
0405- |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
9601-9803 |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
9601-9803 |
|
● |
| |
26 |
COVER; OUTSIDE MIRROR
(A)
BLACK
|
1-71737-649-1 |
01 |
1 |
9804- |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
(B)
BLACK
|
1-71737-652-1 |
01 |
1 |
9601-9803 |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
BLACK
|
1-71737-652-1 |
01 |
1 |
9601-9803 |
|
● |
| |
26 |
COVER; OUTSIDE MIRROR
(B)
BLACK
|
1-71737-652-1 |
01 |
1 |
9804- |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
BLACK
|
1-71737-678-0 |
02 |
1 |
9601-9803 |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
02 |
1 |
9601-9803 |
|
● |
| |
28 |
GROMMET; UNDER MIRROR
BLACK
|
1-71737-678-0 |
02 |
1 |
9804-9910 |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
BLACK
|
1-71737-678-0 |
01 |
1 |
9601-9705 |
● |
● |
| |
28 |
GROMMET; UNDER MIRROR
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
01 |
1 |
9601-9705 |
|
● |
| |
28 |
GROMMET; UNDER MIRROR
BLACK
|
1-71737-678-0 |
01 |
1 |
9706-9803 |
● |
|
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
01 |
1 |
9706-9803 |
|
● |
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
BLACK
|
1-71737-678-0 |
01 |
1 |
9706-9803 |
|
● |
| |
28 |
GROMMET; UNDER MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
BLACK
|
1-71737-678-0 |
01 |
1 |
9706-9803 |
|
● |
| |
28 |
GROMMET; UNDER MIRROR
BLACK
|
1-71737-678-0 |
01 |
1 |
9804-9910 |
● |
|
| |
30 |
MIRROR; UNDER
(A)
|
1-71798-591-0 |
01 |
1 |
9601-9803 |
● |
|
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(A)
|
1-71798-591-0 |
01 |
1 |
9601-9803 |
|
● |
| |
30 |
MIRROR; UNDER
(A)
|
1-71798-591-1 |
01 |
1 |
9804- |
● |
|
| |
30 |
MIRROR; UNDER
(B)
|
1-71798-592-0 |
01 |
1 |
9601-9803 |
● |
|
| |
30 |
MIRROR; UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-592-0 |
01 |
1 |
9601-9803 |
|
● |
| |
30 |
MIRROR; UNDER
(B)
|
1-71798-592-1 |
01 |
1 |
9804- |
● |
|
| |
32 |
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
|
1-71737-797-0 |
04 |
1 |
9601-9803 |
● |
|
| |
32 |
SCREW; UNDER MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
M5X40 W/PL WASHER
|
1-71737-797-0 |
04 |
1 |
9601-9803 |
|
● |
| |
32 |
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
|
1-71737-797-0 |
04 |
1 |
9804- |
● |
|
| |
32 |
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9>
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
9601-9803 |
|
● |
| |
37 |
GASKET; SIDE UNDER MIRROR
BLACK
|
1-71737-678-0 |
01 |
1 |
9601-9803 |
● |
|
| |
37 |
GASKET; SIDE UNDER MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
BLACK
|
1-71737-678-0 |
01 |
1 |
9601-9803 |
|
● |
| |
37 |
GASKET; SIDE UNDER MIRROR
BLACK
|
1-71737-678-0 |
01 |
1 |
9804-9910 |
● |
|
| |
49 |
STAY; MIRROR SIDE
(B)
|
1-71798-517-2 |
01 |
1 |
9601-9609 |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-517-2 |
01 |
1 |
9601-9609 |
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-517-2 |
01 |
1 |
9610-9803 |
|
● |
| |
49 |
STAY; MIRROR SIDE
(B)
|
1-71798-763-2 |
01 |
1 |
9610- |
● |
|
| |
49 |
STAY; MIRROR SIDE
(A)
|
1-71798-490-2 |
01 |
1 |
9601-9705 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
(A)
|
1-71798-490-2 |
01 |
1 |
9706-9803 |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-490-2 |
01 |
1 |
9706-9803 |
|
● |
| |
49 |
STAY; MIRROR SIDE
(A)
|
1-71798-490-3 |
01 |
1 |
9804- |
● |
|
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71798-491-2 |
01 |
1 |
9706-9803 |
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-483-2 |
01 |
1 |
9706-9803 |
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-482-2 |
01 |
1 |
9706-9803 |
|
● |
| |
49 |
STAY; MIRROR SIDE
MIRROR O/S UNDER VIEW<RR9>
(D)
|
1-71797-856-0 |
01 |
1 |
9601-9803 |
|
● |
| |
49 |
STAY; MIRROR SIDE
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
(E)
|
1-71798-516-2 |
01 |
1 |
9601-9705 |
|
● |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
(E)
|
1-71798-516-2 |
01 |
1 |
9706-9803 |
|
● |
| |
63 |
NUT; STAY
M8
|
1-71707-105-0 |
03 |
1 |
0004-0005 |
● |
|
| |
63 |
NUT; STAY
M8
|
1-09984-187-0 |
03 |
1 |
9601-9705 |
● |
● |
| |
63 |
NUT; STAY
M8
|
1-09984-187-0 |
03 |
1 |
9706-9803 |
● |
|
| |
63 |
NUT; STAY
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
M8
|
1-09984-187-0 |
03 |
1 |
9706-9803 |
|
● |
| |
63 |
NUT; STAY
M8
|
1-09984-187-0 |
03 |
1 |
9804- |
● |
|
| |
63 |
NUT; STAY
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
M8
|
1-09984-187-0 |
02 |
1 |
9706-9803 |
|
● |
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
08 |
1 |
9601-9710 |
● |
● |
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
08 |
1 |
9711-9803 |
● |
● |
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
08 |
1 |
9804- |
● |
|
| |
66 |
WASHER; PL
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
9601-9705 |
● |
● |
| |
66 |
WASHER; PL
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
9706-9803 |
● |
|
| |
66 |
WASHER; PL
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
9706-9803 |
|
● |
| |
66 |
WASHER; PL
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
9804- |
● |
|
| |
66 |
WASHER; PL
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
9706-9803 |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
1-71798-581-3 |
01 |
1 |
9601-9705 |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
1-71798-581-3 |
01 |
1 |
9706-9803 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-581-3 |
01 |
1 |
9706-9803 |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
1-71798-581-3 |
01 |
1 |
9804- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(B)
|
1-71798-484-1 |
01 |
1 |
9601-9705 |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(B)
|
1-71798-484-1 |
01 |
1 |
9706-9803 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(B)
|
1-71798-484-1 |
01 |
1 |
9706-9803 |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(B)
|
1-71798-484-1 |
01 |
1 |
9804- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
1-71798-486-2 |
01 |
1 |
9601-9705 |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
1-71798-486-2 |
01 |
1 |
9706-9803 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
(C)
|
1-71798-486-2 |
01 |
1 |
9706-9803 |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
1-71798-486-2 |
01 |
1 |
9804- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
(B)
|
1-71798-484-1 |
02 |
1 |
9706-9803 |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
(C)
|
1-71798-486-2 |
02 |
1 |
9706-9803 |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW FLAT<YS1>
(D)
|
1-71736-224-3 |
04 |
1 |
9706-9803 |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW FLAT<YS1>
(E)
|
1-71736-404-1 |
04 |
1 |
9706-9803 |
|
● |
| |
72 |
SHEET
(A)
|
1-71798-487-3 |
01 |
1 |
9601-9705 |
● |
● |
| |
72 |
SHEET
(A)
|
1-71798-487-3 |
01 |
1 |
9706-9803 |
● |
|
| |
72 |
SHEET
MIR O/S RR VIEW WIDE<WU4>
(A)
|
1-71798-487-3 |
01 |
1 |
9706-9803 |
|
● |
| |
72 |
SHEET
(A)
|
1-71798-487-3 |
01 |
1 |
9804- |
● |
|
| |
72 |
SHEET
(B)
|
1-71798-488-1 |
01 |
1 |
9601-9705 |
● |
● |
| |
72 |
SHEET
(B)
|
1-71798-488-1 |
01 |
1 |
9706-9803 |
● |
|
| |
72 |
SHEET
MIR O/S RR VIEW WIDE<WU4>
(B)
|
1-71798-488-1 |
01 |
1 |
9706-9803 |
|
● |
| |
72 |
SHEET
(B)
|
1-71798-488-1 |
01 |
1 |
9804- |
● |
|
| |
72 |
SHEET
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
(A)
|
1-71798-487-3 |
02 |
1 |
9706-9803 |
|
● |
| |
72 |
SHEET
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW FLAT<YS1>
(B)
|
1-71798-488-1 |
02 |
1 |
9706-9803 |
|
● |
| |
72 |
SHEET
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
(C)
|
1-71798-393-3 |
01 |
1 |
9706-9803 |
|
● |
| |
76 |
BOLT; STAY BRKT
M8X30 W/LK WASHER
|
8-94279-183-0 |
03 |
1 |
9601-9705 |
● |
● |
| |
76 |
BOLT; STAY BRKT
M8X30 W/LK WASHER
|
8-94279-183-1 |
03 |
1 |
9706- |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9601-9705 |
● |
● |
| |
85 |
PIVOT; MAIN MIRROR
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9706-9803 |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9706-9803 |
|
● |
| |
85 |
PIVOT; MAIN MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9706-9803 |
|
● |
| |
85 |
PIVOT; MAIN MIRROR
(B)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
9804- |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9601-9705 |
● |
● |
| |
85 |
PIVOT; MAIN MIRROR
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9706-9803 |
● |
|
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9706-9803 |
|
● |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9706-9803 |
|
● |
| |
85 |
PIVOT; MAIN MIRROR
(A)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
9804- |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
BLACK
|
1-71737-760-0 |
01 |
1 |
9601-9705 |
● |
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
BLACK
|
1-71737-760-0 |
01 |
1 |
9601-9705 |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
BLACK
|
1-71737-760-0 |
01 |
1 |
9706-9803 |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
BLACK
|
1-71737-760-0 |
01 |
1 |
9706-9803 |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
BLACK
|
1-71737-760-0 |
01 |
1 |
9706-9803 |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
BLACK
|
1-71737-760-0 |
01 |
1 |
9706-9803 |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
BLACK
|
1-71737-760-0 |
01 |
1 |
9706-9803 |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
BLACK
|
1-71737-760-0 |
01 |
1 |
9706-9803 |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
BLACK
|
1-71737-760-0 |
01 |
1 |
9804-0106 |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
BLACK
|
1-71737-760-0 |
01 |
1 |
9804-0106 |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
BLACK
|
1-71737-760-1 |
02 |
1 |
0107- |
● |
|
| |
87 |
SPACER
(A)
|
1-71737-646-2 |
02 |
1 |
9601-9803 |
● |
|
| |
87 |
SPACER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-646-2 |
02 |
1 |
9601-9803 |
|
● |
| |
87 |
SPACER
(A)
|
1-71737-646-2 |
02 |
1 |
9804- |
● |
|
| |
87 |
SPACER
(B)
|
1-71737-704-0 |
01 |
1 |
9601-9705 |
● |
● |
| |
87 |
SPACER
(B)
|
1-71737-704-0 |
01 |
1 |
9601-9705 |
● |
|
| |
87 |
SPACER
(B)
|
1-71737-704-0 |
01 |
1 |
9706-9803 |
● |
|
| |
87 |
SPACER
(B)
|
1-71737-704-0 |
01 |
1 |
9706-9803 |
● |
|
| |
87 |
SPACER
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
(B)
|
1-71737-704-0 |
01 |
1 |
9706-9803 |
|
● |
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(B)
|
1-71737-704-0 |
01 |
1 |
9706-9803 |
|
● |
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(B)
|
1-71737-704-0 |
01 |
1 |
9706-9803 |
|
● |
| |
87 |
SPACER
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(B)
|
1-71737-704-0 |
01 |
1 |
9706-9803 |
|
● |
| |
87 |
SPACER
(B)
|
1-71737-704-0 |
01 |
1 |
9804-0106 |
● |
|
| |
87 |
SPACER
(B)
|
1-71737-704-0 |
01 |
1 |
9804-0106 |
● |
|
| |
87 |
SPACER
(B)
|
1-71737-704-0 |
02 |
1 |
0107- |
● |
|
| |
87 |
SPACER
MIRROR O/S UNDER VIEW<RR9>
(A)
|
1-71737-646-2 |
01 |
1 |
9601-9803 |
|
● |
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-229-4 |
01 |
1 |
9601-9803 |
● |
● |
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-229-4 |
01 |
1 |
9804-9903 |
● |
|
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-829-1 |
01 |
1 |
9904- |
● |
|
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-228-4 |
01 |
1 |
9601-9803 |
● |
● |
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-228-4 |
01 |
1 |
9804-9903 |
● |
|
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-828-1 |
01 |
1 |
9904-0809 |
● |
|
| |
90 |
BRACKET; MIRROR STAY
|
1-71707-237-0 |
01 |
1 |
0810- |
● |
|
| |
132 |
RING; MIRROR
(A)
|
1-71737-933-0 |
01 |
1 |
9601-9803 |
● |
|
| |
132 |
RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-933-0 |
01 |
1 |
9601-9803 |
|
● |
| |
132 |
RING; MIRROR
(A)
|
1-71737-933-0 |
01 |
1 |
9804- |
● |
|
| |
132 |
RING; MIRROR
(B)
|
1-71737-935-0 |
01 |
1 |
9601-9803 |
● |
|
| |
132 |
RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71737-935-0 |
01 |
1 |
9601-9803 |
|
● |
| |
132 |
RING; MIRROR
(B)
|
1-71737-935-0 |
01 |
1 |
9804- |
● |
|
| |
132 |
RING; MIRROR
(A)
|
1-71737-934-0 |
01 |
1 |
9601-9705 |
● |
● |
| |
132 |
RING; MIRROR
EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-934-0 |
01 |
1 |
9601-9705 |
|
● |
| |
132 |
RING; MIRROR
(A)
|
1-71737-934-0 |
01 |
1 |
9706-9803 |
● |
|
| |
132 |
RING; MIRROR
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
(A)
|
1-71737-934-0 |
01 |
1 |
9706-9803 |
|
● |
| |
132 |
RING; MIRROR
MIRROR O/S UNDER VIEW<RR9>
(A)
|
1-71737-934-0 |
01 |
1 |
9706-9803 |
|
● |
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71737-934-0 |
01 |
1 |
9706-9803 |
|
● |
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71737-934-0 |
01 |
1 |
9706-9803 |
|
● |
| |
132 |
RING; MIRROR
(A)
|
1-71737-934-0 |
01 |
1 |
9804- |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
(B)
|
1-71737-926-0 |
01 |
1 |
9601-9803 |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71737-926-0 |
01 |
1 |
9601-9803 |
|
● |
| |
133 |
LENS; MIRROR,OUTSIDE
(B)
|
1-71737-926-0 |
01 |
1 |
9804- |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
(A)
|
1-71737-927-0 |
01 |
1 |
9601-9705 |
● |
● |
| |
133 |
LENS; MIRROR,OUTSIDE
EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71737-927-0 |
01 |
1 |
9601-9705 |
|
● |
| |
133 |
LENS; MIRROR,OUTSIDE
(A)
|
1-71737-927-0 |
01 |
1 |
9706-9803 |
● |
|
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
(A)
|
1-71737-927-0 |
01 |
1 |
9706-9803 |
|
● |
| |
133 |
LENS; MIRROR,OUTSIDE
MIRROR O/S UNDER VIEW<RR9>
(A)
|
1-71737-927-0 |
01 |
1 |
9706-9803 |
|
● |
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
(A)
|
1-71737-927-0 |
01 |
1 |
9706-9803 |
|
● |
| |
133 |
LENS; MIRROR,OUTSIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71737-927-0 |
01 |
1 |
9706-9803 |
|
● |
| |
133 |
LENS; MIRROR,OUTSIDE
(A)
|
1-71737-927-0 |
01 |
1 |
9804- |
● |
|
| |
134 |
CLIP; MIRROR LENS
|
1-71737-936-0 |
02 |
1 |
9601-9803 |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
|
1-71737-936-0 |
02 |
1 |
9601-9803 |
|
● |
| |
134 |
CLIP; MIRROR LENS
|
1-71737-936-0 |
02 |
1 |
9804-0004 |
● |
|
| |
134 |
CLIP; MIRROR LENS
|
1-71737-936-0 |
01 |
1 |
0005-0106 |
● |
|
| |
134 |
CLIP; MIRROR LENS
|
1-71737-936-0 |
03 |
1 |
0107- |
● |
|
| |
134 |
CLIP; MIRROR LENS
|
1-71737-936-0 |
01 |
1 |
9601-9705 |
● |
● |
| |
134 |
CLIP; MIRROR LENS
EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>
|
1-71737-936-0 |
01 |
1 |
9601-9705 |
|
● |
| |
134 |
CLIP; MIRROR LENS
|
1-71737-936-0 |
01 |
1 |
9706-9803 |
● |
|
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW WIDE<WU4>
EXC. MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER &
SIDE UNDER VIEW<TAF>
|
1-71737-936-0 |
01 |
1 |
9706-9803 |
|
● |
| |
134 |
CLIP; MIRROR LENS
MIRROR O/S UNDER VIEW<RR9>
|
1-71737-936-0 |
01 |
1 |
9706-9803 |
|
● |
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/S RR VIEW WIDE<WU4>
|
1-71737-936-0 |
01 |
1 |
9706-9803 |
|
● |
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
|
1-71737-936-0 |
01 |
1 |
9706-9803 |
|
● |
| |
134 |
CLIP; MIRROR LENS
|
1-71737-936-0 |
01 |
1 |
9804-0004 |
● |
|
| |
134 |
CLIP; MIRROR LENS
|
1-71737-936-0 |
02 |
1 |
0005-0106 |
● |
|
| |
135 |
LENS; MIRROR,SIDE UNDER
|
1-71737-929-0 |
01 |
1 |
9601-9803 |
● |
|
| |
135 |
LENS; MIRROR,SIDE UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
|
1-71737-929-0 |
01 |
1 |
9601-9803 |
|
● |
| |
135 |
LENS; MIRROR,SIDE UNDER
|
1-71737-929-0 |
01 |
1 |
9804- |
● |
|
| |
164 |
STAY; ROOF
|
1-71798-299-4 |
01 |
1 |
9601-9705 |
● |
● |
| |
164 |
STAY; ROOF
|
1-71798-299-4 |
01 |
1 |
9706-9803 |
● |
|
| |
164 |
STAY; ROOF
HIGH ROOF<S2F>
MIR O/S RR VIEW WIDE<WU4>
|
1-71798-299-4 |
01 |
1 |
9706-9803 |
|
● |
| |
164 |
STAY; ROOF
|
1-71798-299-4 |
01 |
1 |
9804- |
● |
|
| |
164 |
STAY; ROOF
MIR O/S RR VIEW WIDE<WU4>
LOW ROOF<6XQ>
|
1-71798-211-4 |
01 |
1 |
9706-9803 |
|
● |
| |
166 |
BUSHING; STAY
|
1-09983-175-1 |
01 |
1 |
9601-9705 |
● |
● |
| |
166 |
BUSHING; STAY
|
1-09983-175-1 |
01 |
1 |
9706-9803 |
● |
|
| |
166 |
BUSHING; STAY
MIR O/S RR VIEW WIDE<WU4>
|
1-09983-175-1 |
01 |
1 |
9706-9803 |
|
● |
| |
166 |
BUSHING; STAY
|
1-09983-175-1 |
01 |
1 |
9804- |
● |
|
| |
181 |
SEAL; BRKT
25X25
|
8-94272-533-0 |
02 |
1 |
9902- |
● |
|
| |
181 |
SEAL; BRKT
25X25
|
8-94272-533-0 |
02 |
1 |
9601-9707 |
● |
● |
