◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#25268) — 58 parça
çizim 104648
51 51 60 49 160
BalonParca AdiParca NoAdetTipApplied Date A B
49 PLATE; CAUTION,FUSE BOX 1-85888-554-2 01 1 9601-9803 ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85888-554-2 01 1 9601-9803 ●
49 PLATE; CAUTION,FUSE BOX 1-85877-623-0 01 1 9804-0004 ●
49 PLATE; CAUTION,FUSE BOX 1-85878-278-0 01 1 0005-0106 ●
49 PLATE; CAUTION,FUSE BOX
6HK1 TCS ENG(80L) 		1-85878-324-0 01 1 0107-0603 ●
49 PLATE; CAUTION,FUSE BOX 1-85878-324-0 01 1 0604- ●
49 PLATE; CAUTION,FUSE BOX
6SD1 TCN ENG(31L) 		1-85878-278-0 01 1 0107-0603 ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85888-558-0 01 1 9601-9803 ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85888-557-0 01 1 9601-9803 ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 9601-9803 ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-707-1 01 1 9601-9803 ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 9804- ●
51 PLATE; CAUTION,WARNING
(B) 		1-85888-559-2 01 1 9601-9803 ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85888-559-2 01 1 9601-9803 ●
51 PLATE; CAUTION,WARNING
(B) 		1-85888-559-2 01 1 9804-0106 ●
51 PLATE; CAUTION,WARNING
6HK1 TCS ENG(80L) (B) 		1-85878-325-0 01 1 0107- ●
51 PLATE; CAUTION,WARNING
6SD1 TCN ENG(31L) (B) 		1-85888-559-2 01 1 0107- ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-710-0 01 1 9601-9601 ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-709-1 01 1 9602-9803 ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85888-560-2 01 1 9601-9803 ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-709-0 01 1 9601-9601 ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-710-1 01 1 9602-9803 ●
60 PLATE; CAUTION,CAB TILT 1-85883-169-0 01 1 9601-9803 ●
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85883-169-0 01 1 9601-9803 ●
60 PLATE; CAUTION,CAB TILT 1-85883-169-0 01 1 9804- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-173-0 01 1 9601-9601 ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-172-0 01 1 9602-9803 ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-172-0 01 1 9601-9601 ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-173-0 01 1 9602-9803 ●
160 PLATE; CAUTION,TOWING 1-85888-737-1 01 1 9601-9609 ●
160 PLATE; CAUTION,TOWING
ZF M/T<X9E> 		1-85888-737-1 01 1 9610-9803 ●
160 PLATE; CAUTION,TOWING
ZF 9S109 OD M/T(Y2L) 		1-85888-737-1 01 1 9804-9903 ●
160 PLATE; CAUTION,TOWING
ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T(Y3Y) 		1-85888-737-1 01 1 9904-0004 ●
160 PLATE; CAUTION,TOWING
ZF 9S109 OD M/T(Y2L) 		1-85888-737-1 01 1 0005- ●

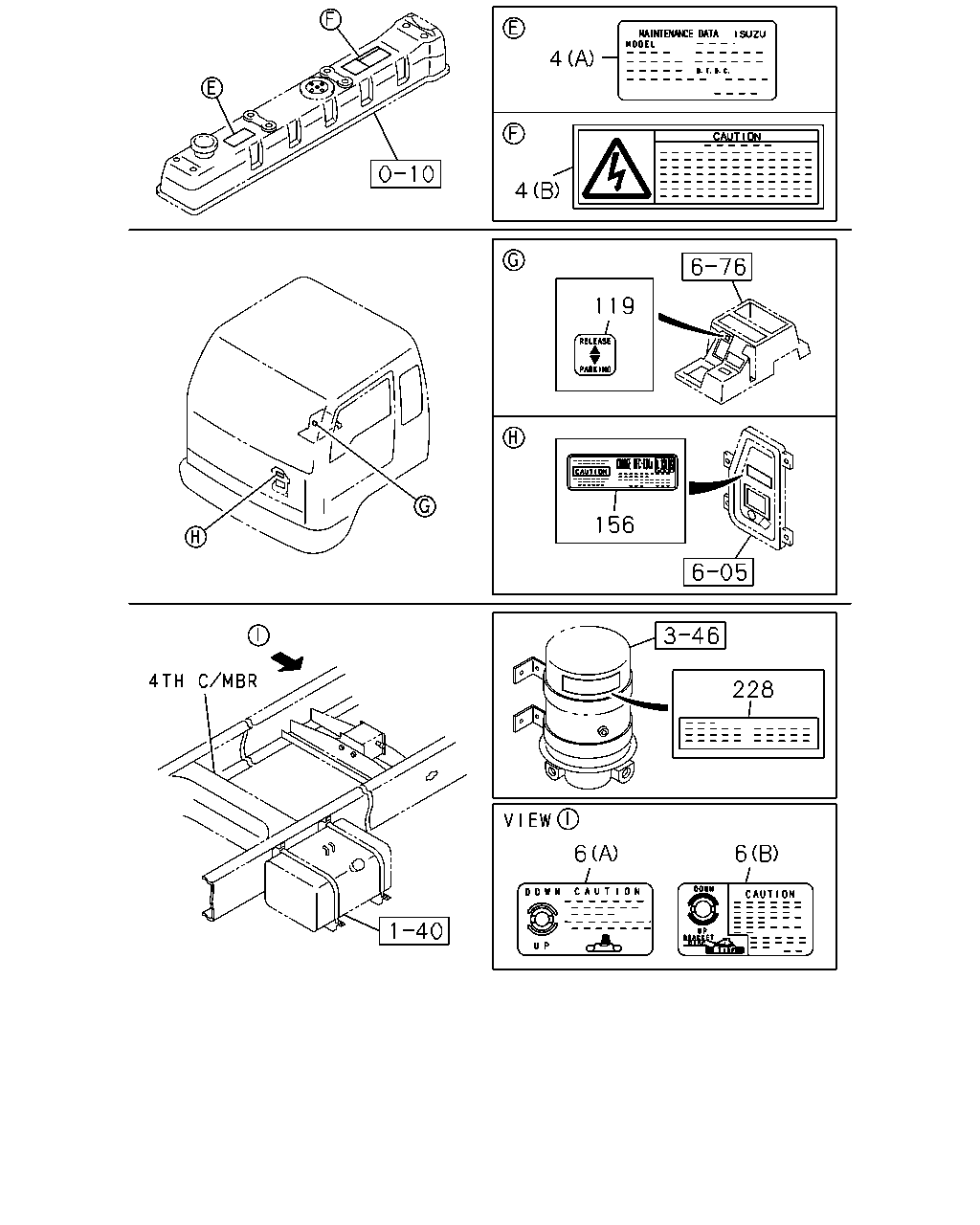

çizim 104649
4 4 119 156 228 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
(A) 		1-85886-788-0 01 1 9601-9609 ●
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG(31L) EXC. ENGINE NO PLATE<E6D>,EURO2 SPECIFICATION<THN> ,TAMPER PROOF INJ PUMP SET<W44> (A) 		1-85886-788-0 01 1 9610-9803 ●
4 LABEL; ENG MAINTENANCE
6HK1 TCS ENG(80L) (A) 		8-97601-793-0 01 1 0107- ●
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG(31L) (B) 		8-94391-524-0 01 1 0107- ●
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> EXC. ENGINE NO PLATE<E6D>,TAMPER PROOF INJ PUMP SET<W44> (A) 		1-85886-841-0 01 1 9610-9803 ●
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG(31L) (A) 		1-85886-841-0 01 1 9804-0106 ●
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG(31L) (A) 		1-85889-081-0 01 1 0107- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53639-004-0 01 1 9601-9803 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-53639-004-0 01 1 9601-9803 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53639-004-0 01 1 9804-0106 ●
6 PLATE; CAUTION,SPARE TIRE
(A) 		1-53639-004-0 01 1 0107-0708 ●
6 PLATE; CAUTION,SPARE TIRE
(B) 		8-98082-437-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A) 		1-85883-114-0 01 1 9601-9803 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A) 		1-85883-108-0 01 1 9601-9803 ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-726-0 01 1 9601-9606 ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 9607-9803 ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 9804- ●
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97065-990-0 01 1 9804-0106 ●
156 PLATE; CAUTION,A/C 8-97065-990-0 01 1 0107- ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-85887-935-0 01 1 9601-9803 ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 9601-9803 ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-85887-935-0 01 1 9804-0106 ●
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0107-1001 ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS FRENCH<WJ8> 		1-85887-936-0 01 1 9601-9803 ●
