◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#25267) — 19 parça

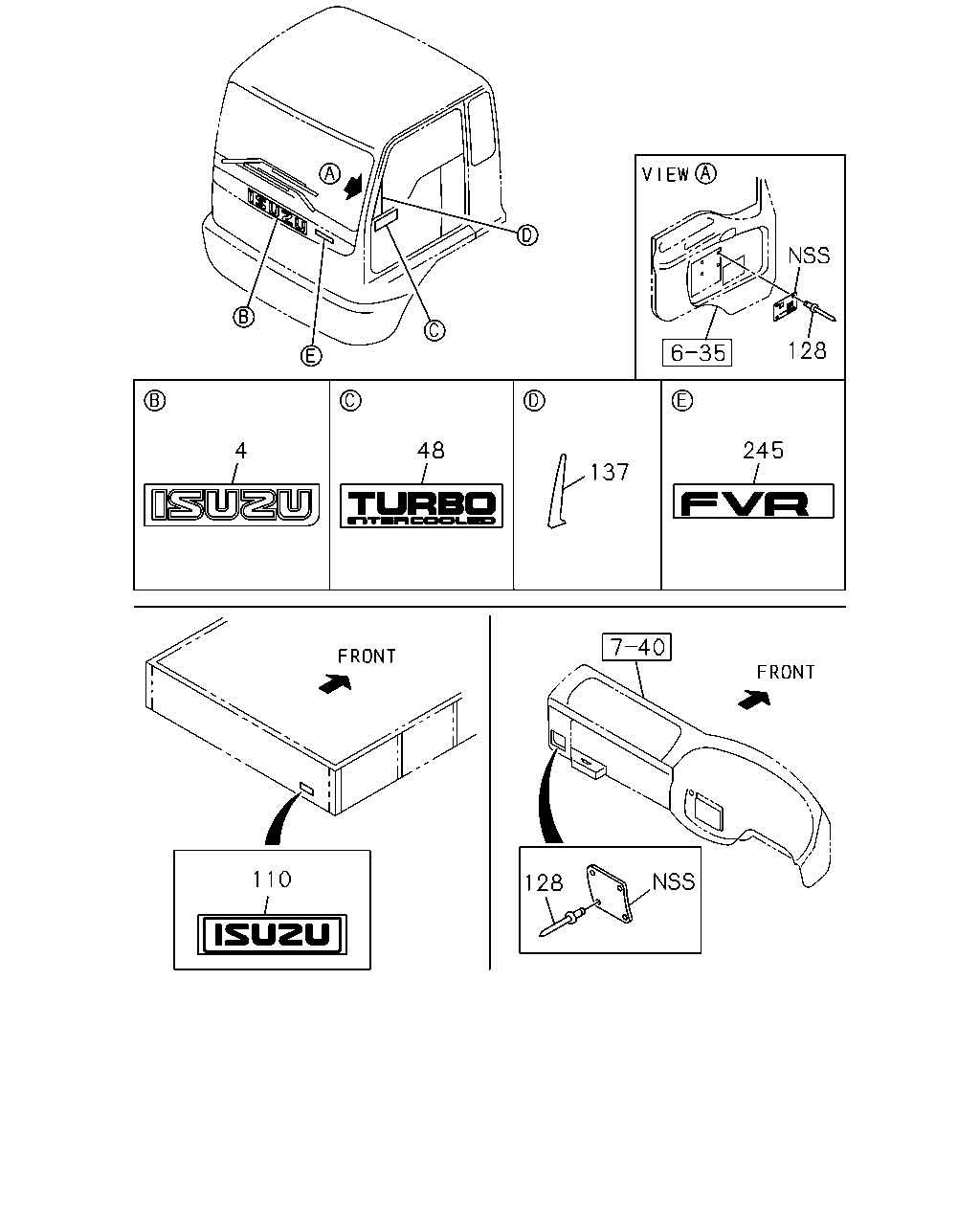

çizim 104653
128 48 245 4 137 110 128
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE 1-76210-634-0 01 1 9601-9803 ● ●
4 EMBLEM; RAD GRILLE 1-76210-668-3 01 1 9804- ●
48 DECAL; TURBOCHARGER 1-76218-114-0 01 1 9601-9705 ●
48 DECAL; TURBOCHARGER 1-76218-114-0 01 1 9706-9803 ●
48 DECAL; TURBOCHARGER
6HE1 TC ENG(57L) 		1-76218-114-0 01 1 9706-9803 ●
48 DECAL; TURBOCHARGER 1-76218-114-0 01 1 9804- ●
110 EMBLEM; "ISUZU",RR BODY 1-76210-663-0 01 1 9601-9803 ● ●
110 EMBLEM; "ISUZU",RR BODY 1-76210-663-0 01 1 9804-0004 ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 9601-9803 ● ●
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 9601-9803 ● ●
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 9804-0106 ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 9804-0106 ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 0107- ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9601-9803 ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9804- ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9601-9803 ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9804- ●
245 DECAL; MODEL 1-76218-111-0 01 1 9804- ●
245 DECAL; MODEL 1-76218-111-0 01 1 9601-9803 ● ●
